Equipment ↠ Caterpillar ↠ Excavators ↠ 2005 Caterpillar 322C L

2005 Caterpillar 322C L For Sale in Edmonton, Ab

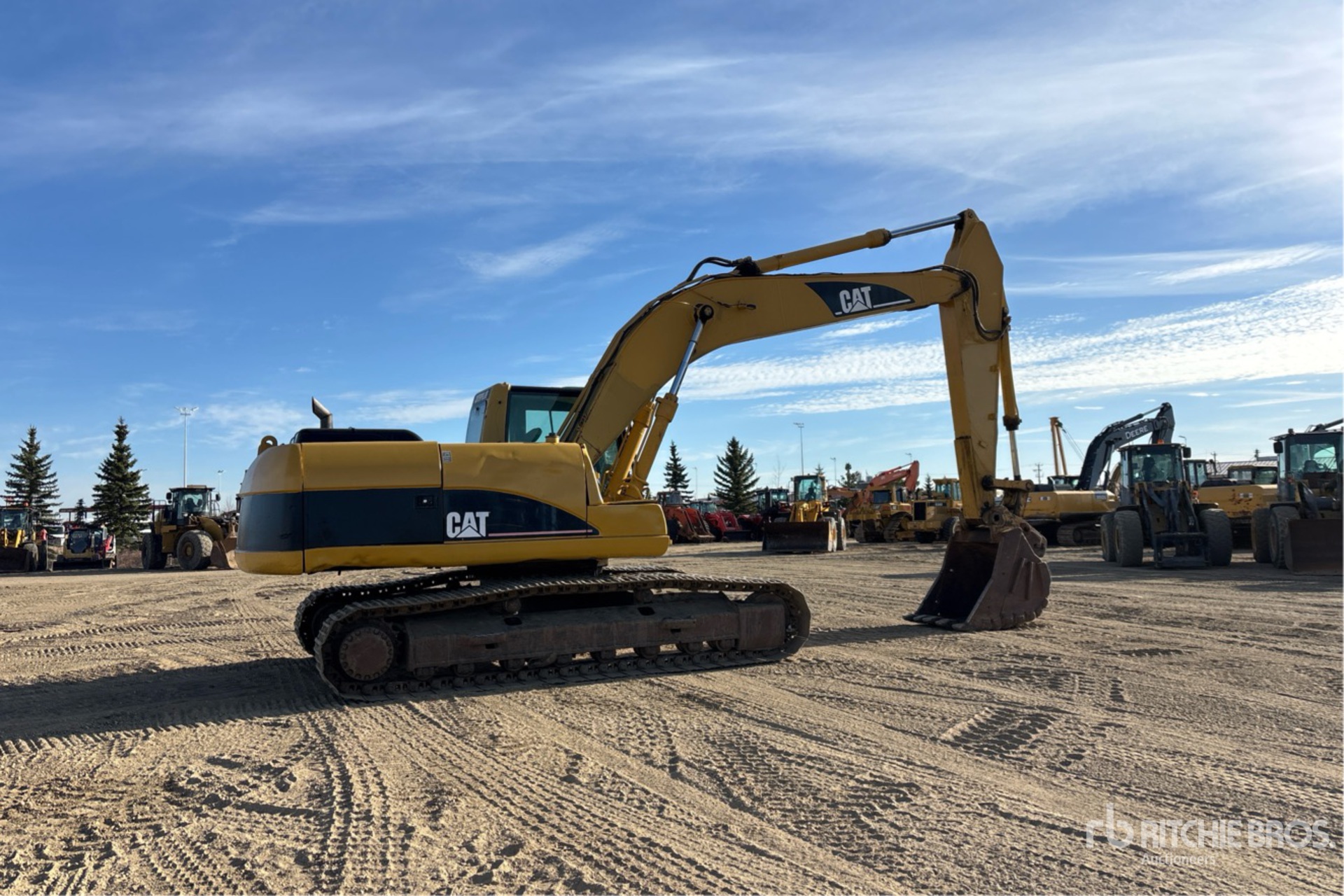

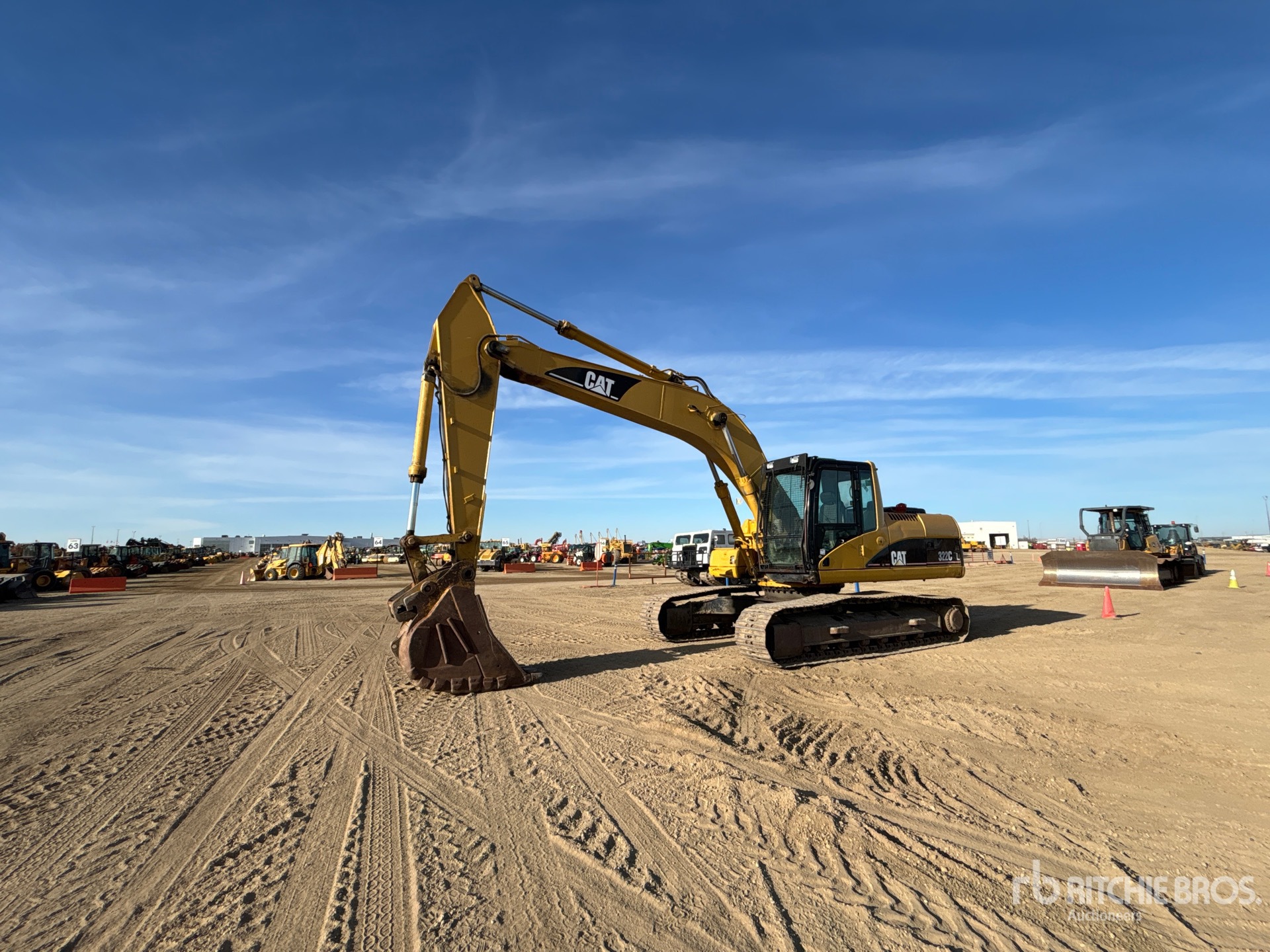

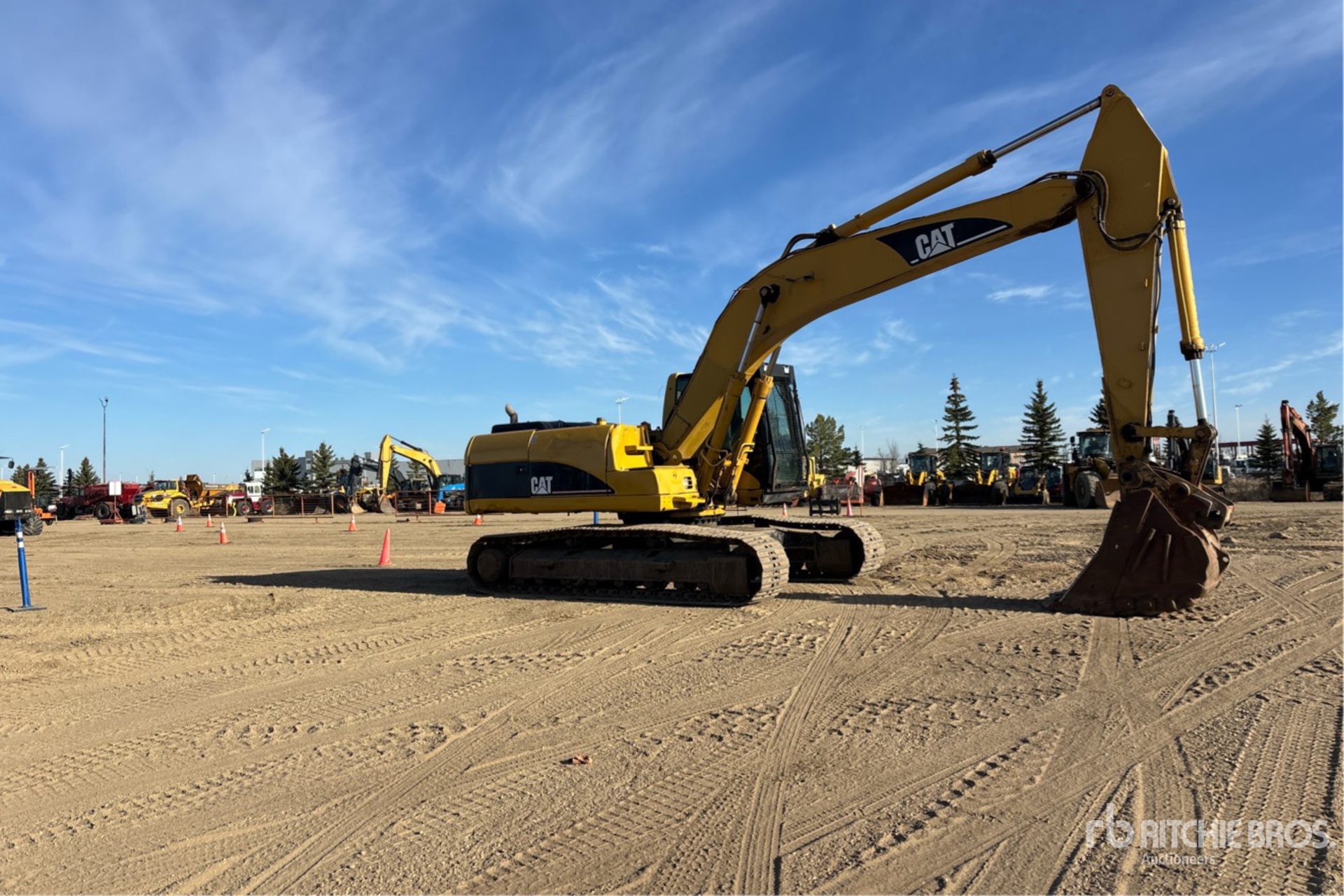

Name: 2005 Caterpillar 322C L
Brand: Caterpillar
SKU: 87657301
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

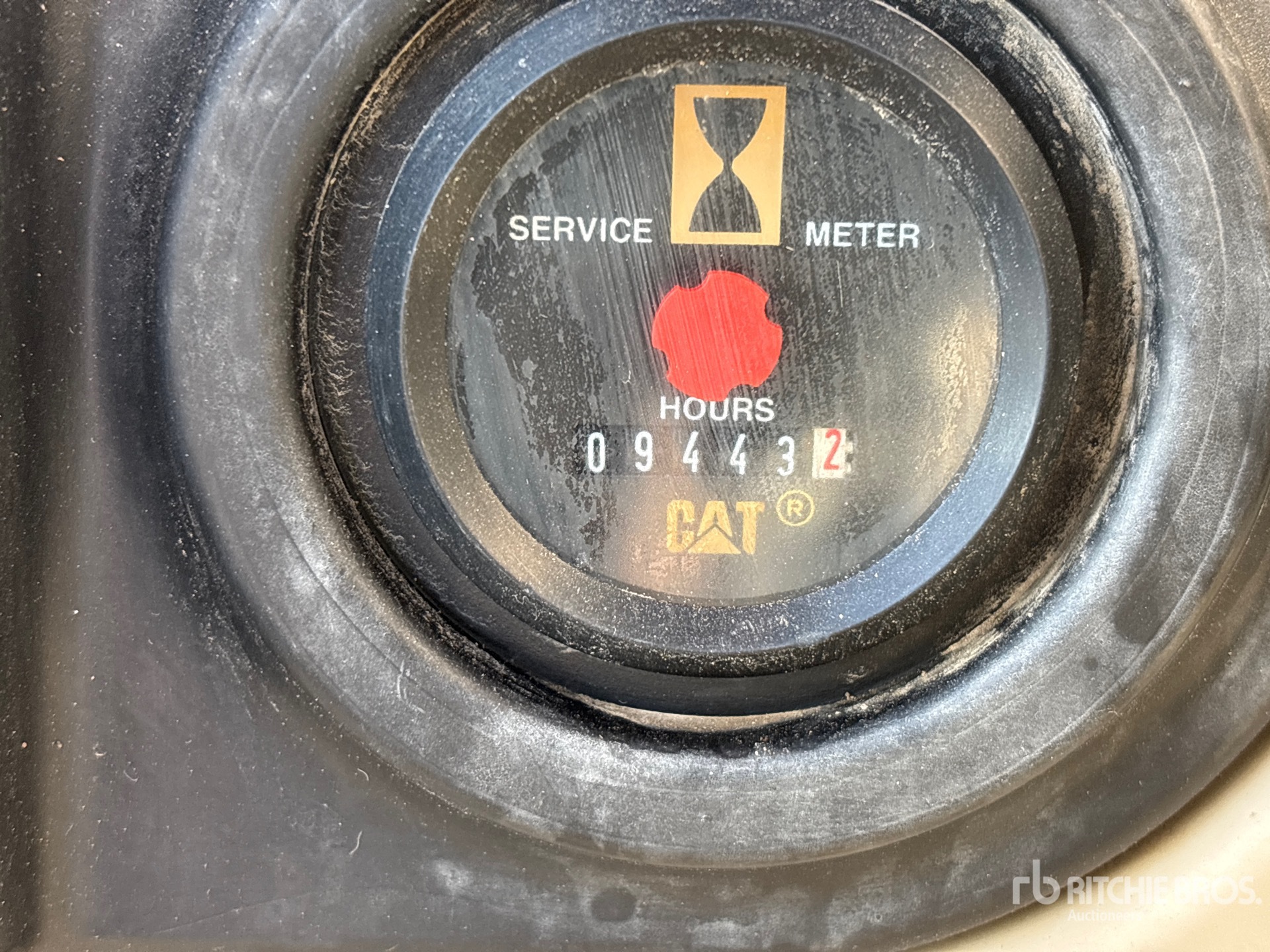

Hours:	9443

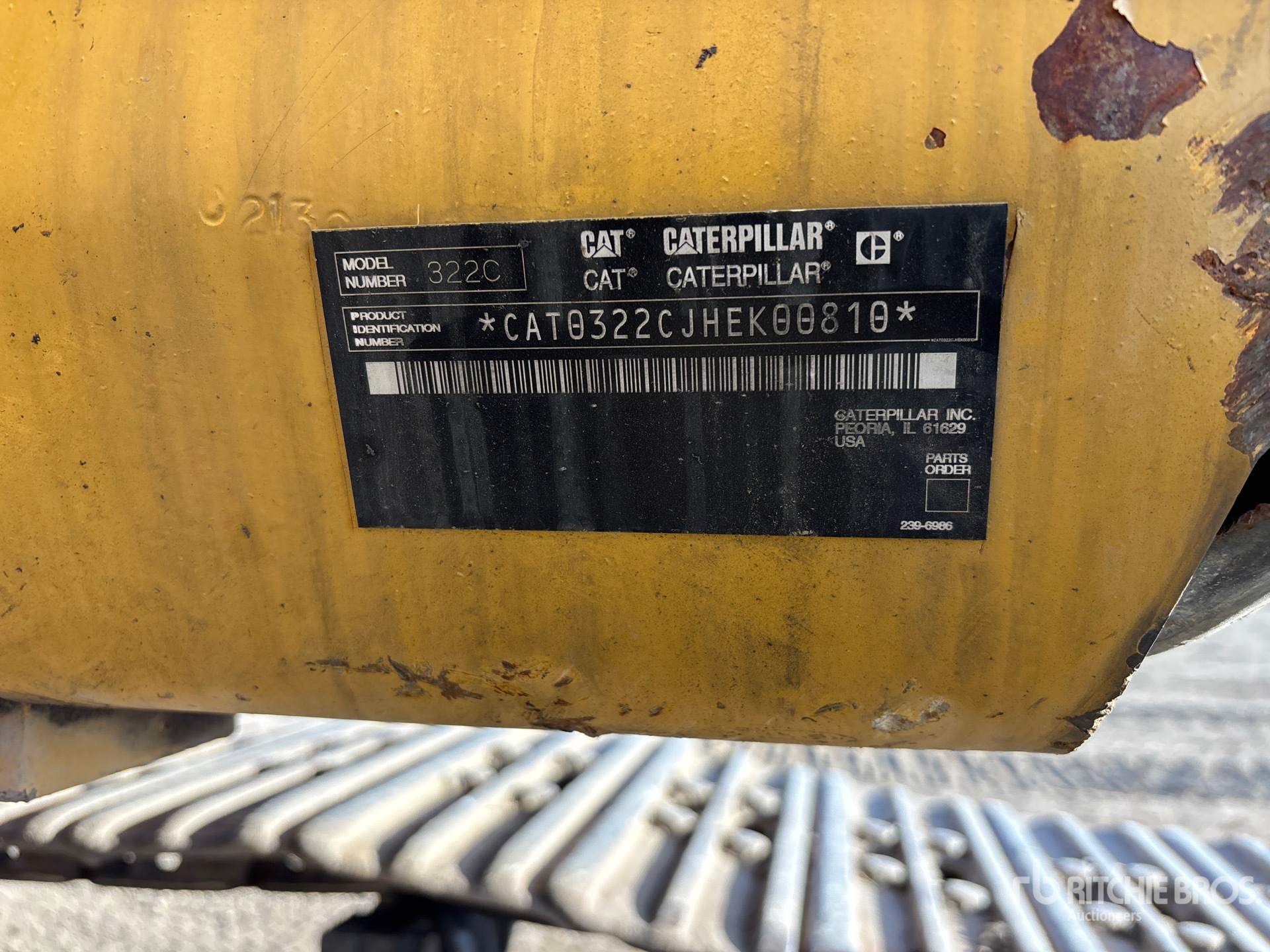

Serial Number:	CAT0322CJHEK00810
Machine Location:	EDMONTON, AB

Description:

Air Conditioner, Control Pattern Changer, Cab Screens, 2004 US EPA Label, CARB Compliant, 9 ft 4 in Stick, 24 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 40 in Digging Bucket Closing Time: 2026-05-11 02:27:45 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	37 ft (11 m)
Max Digging Depth	14 ft (4 m)
Max Loading Height	26 ft (8 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	11 ft (3 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	38 ft (12 m)
Max Digging Depth	15 ft (5 m)
Max Loading Height	28 ft (8 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	12 ft (4 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	33 ft (10 m)
Boom/Stick Excavator Option 3
Max Cutting Height	39 ft (12 m)
Max Digging Depth	17 ft (5 m)
Max Loading Height	29 ft (9 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	13 ft (4 m)
Shipping Length of Unit	33 ft (10 m)
Boom/Stick Excavator Option 4
Max Cutting Height	41 ft (13 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	32 ft (10 m)
Max Reach Along Ground	37 ft (11 m)
Max Vertical Wall Dig Depth	16 ft (5 m)
Shipping Length of Unit	33 ft (10 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Digging Depth	23 ft (7 m)
Digging Reach	23 ft (7 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Tail Swing Radius	10 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull	50,132 lbs (22,740 kg)
Engine
Bore	4 in (11 cm)
Engine Model	Cat 3126B ATAAC HEUI Fuel System
Net Power	173 hp (129 kw)
Net Power - EEC 80/1269	168 hp (125 kw)
Net Power - ISO 9249	168 hp (125 kw)
Net Power - SAE J1349	166 hp (124 kw)
Stroke	5 in (13 cm)
Hydraulic System
Boom Cylinder - Bore	5 in (13 cm)
Boom Cylinder - Stroke	51 in (131 cm)
Main Implement System - Maximum Flow (2x)	58 gpm (220 lpm)
Maximum Pressure - Equipment	4,980 psi
Maximum Pressure - Swing	3,553 psi
Maximum Pressure - Travel	4,980 psi
Service Refill Capacities
Cooling System	10 gal (38 l)
Engine Oil	9 gal (34 l)
Final Drive - Each	1 gal (5 l)
Fuel Tank Capacity	132 gal (500 l)
Hydraulic System - Including Tank	65 gal (245 l)
Swing Drive	2 gal (8 l)
Standards
Brakes	SAE J1026 APR90
Cab/FOGS	SAE J1356 FEB88 ISO 10262
Undercarriage
Drawbar Pull	50,132 lbs (22,740 kg)
Max Travel Speed	4 mph (6 kph)
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
Weights
Operating Weight - Standard Undercarriage	53,352 lbs (24,200 kg)
