| Air Conditioning System |
|
Air Conditioning (Since 2025)
|
Contains R134a refrigerant (0.85 kg, CO2 equivalent of 1.216 metric tonnes) |
| Boom/Stick Excavator Option 1 |
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
| Dimensions |
|

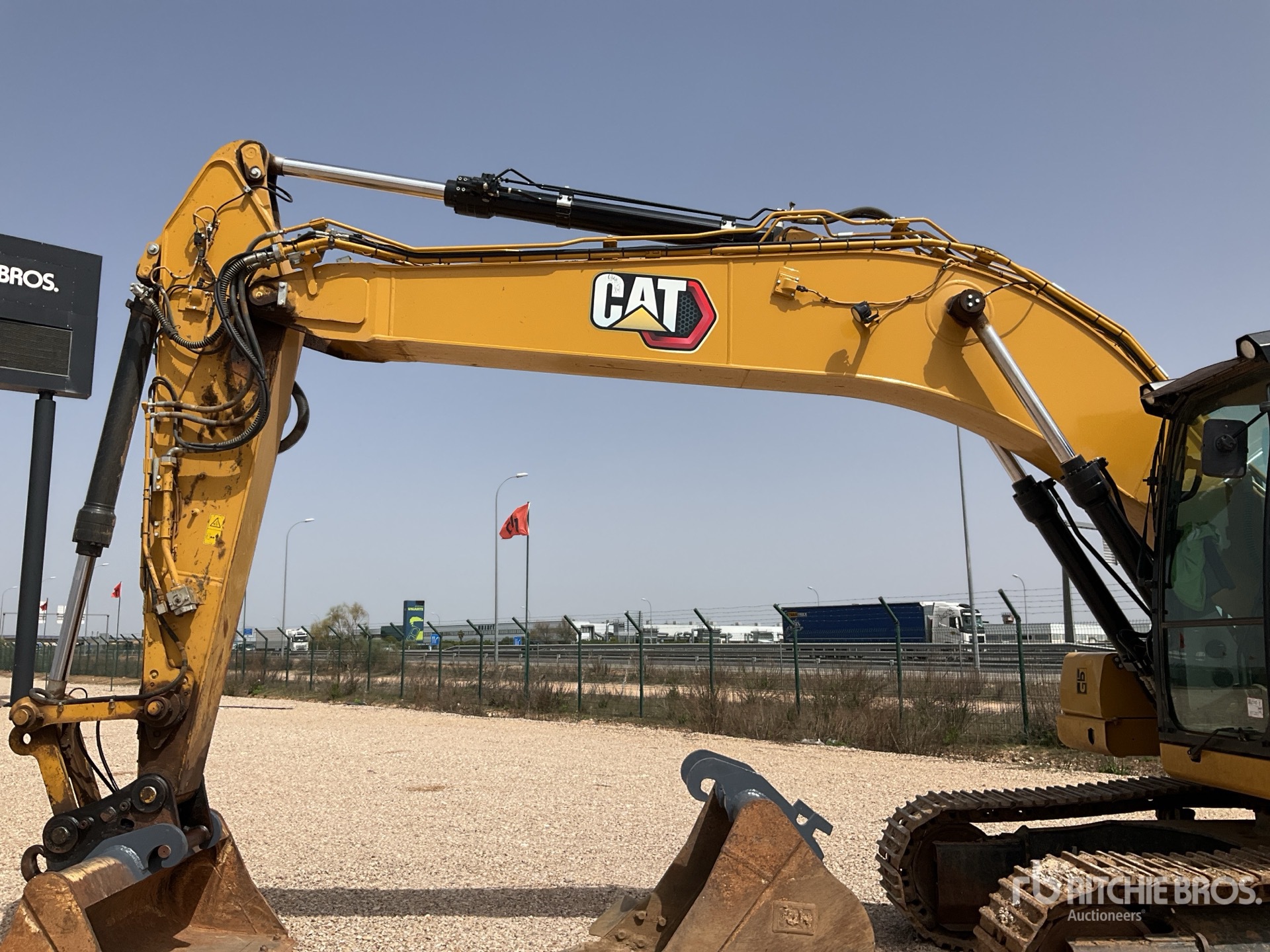

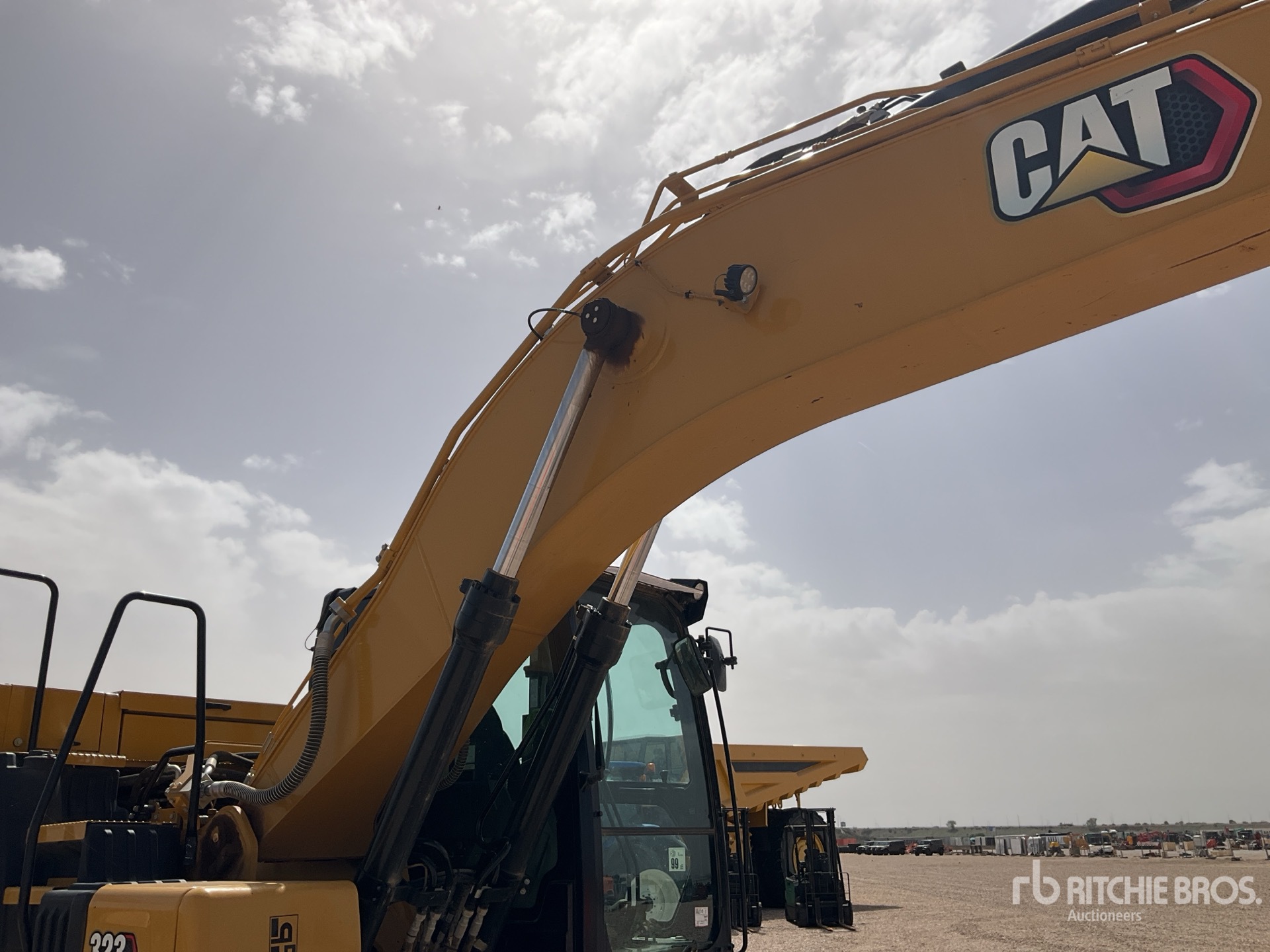

Boom (Since 2025)
|
Reach 5.7 m |
|

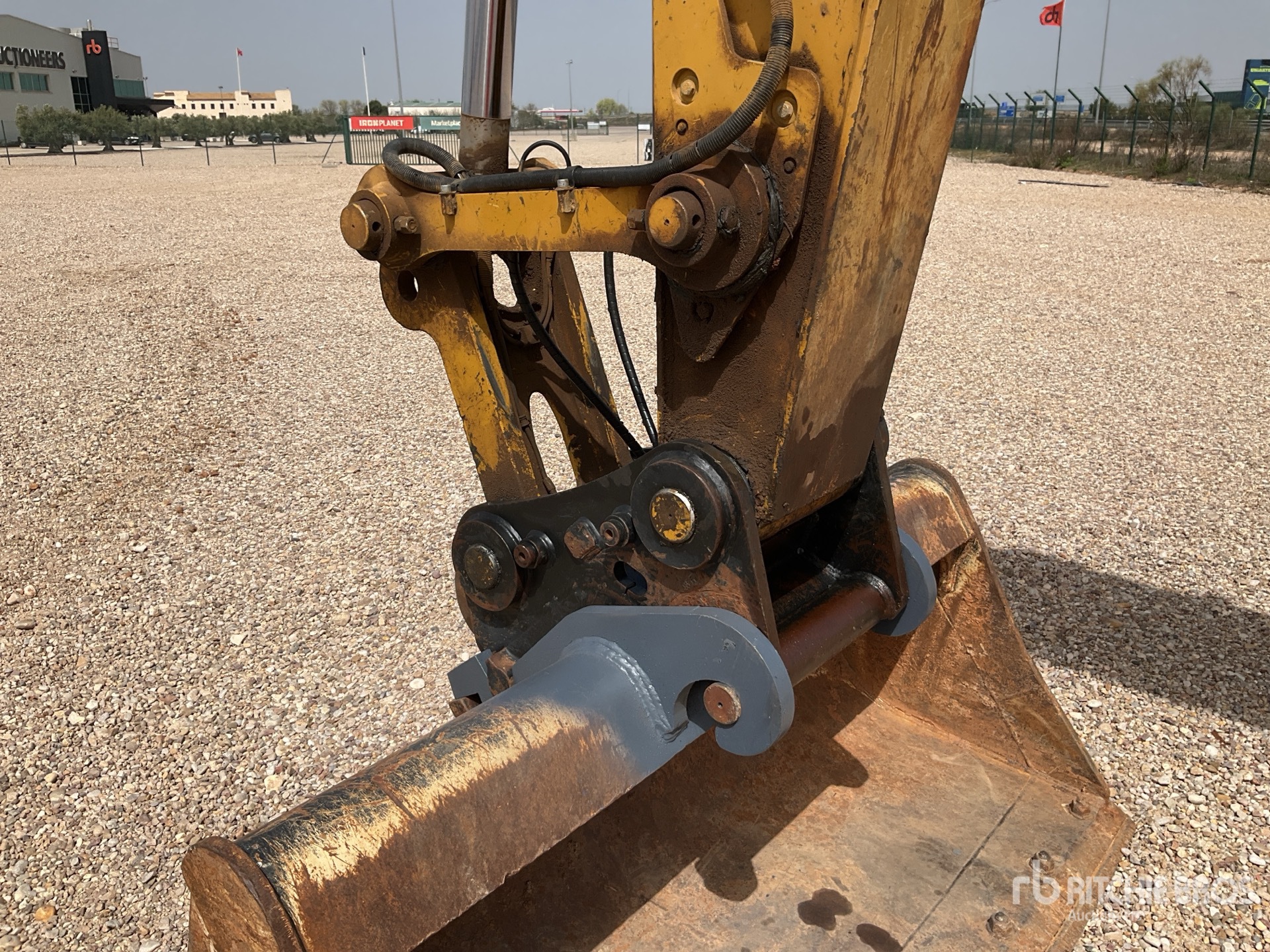

Bucket (Since 2025)
|
HD 1.30 m³ |
|
Counterweight Clearance (Since 2025)
|
3 ft (1 m)
|
|
Ground Clearance (Since 2025)
|
2 ft (0 m)
|
|
Handrail Height (Since 2025)
|
10 ft (3 m)
|
|
Length to Center of Rollers (Since 2025)
|
12 ft (4 m)
|
|
Shipping Height - Top of Cab (Since 2025)
|
10 ft (3 m)
|
|
Shipping Length (Since 2025)
|
31 ft (10 m)
|
|

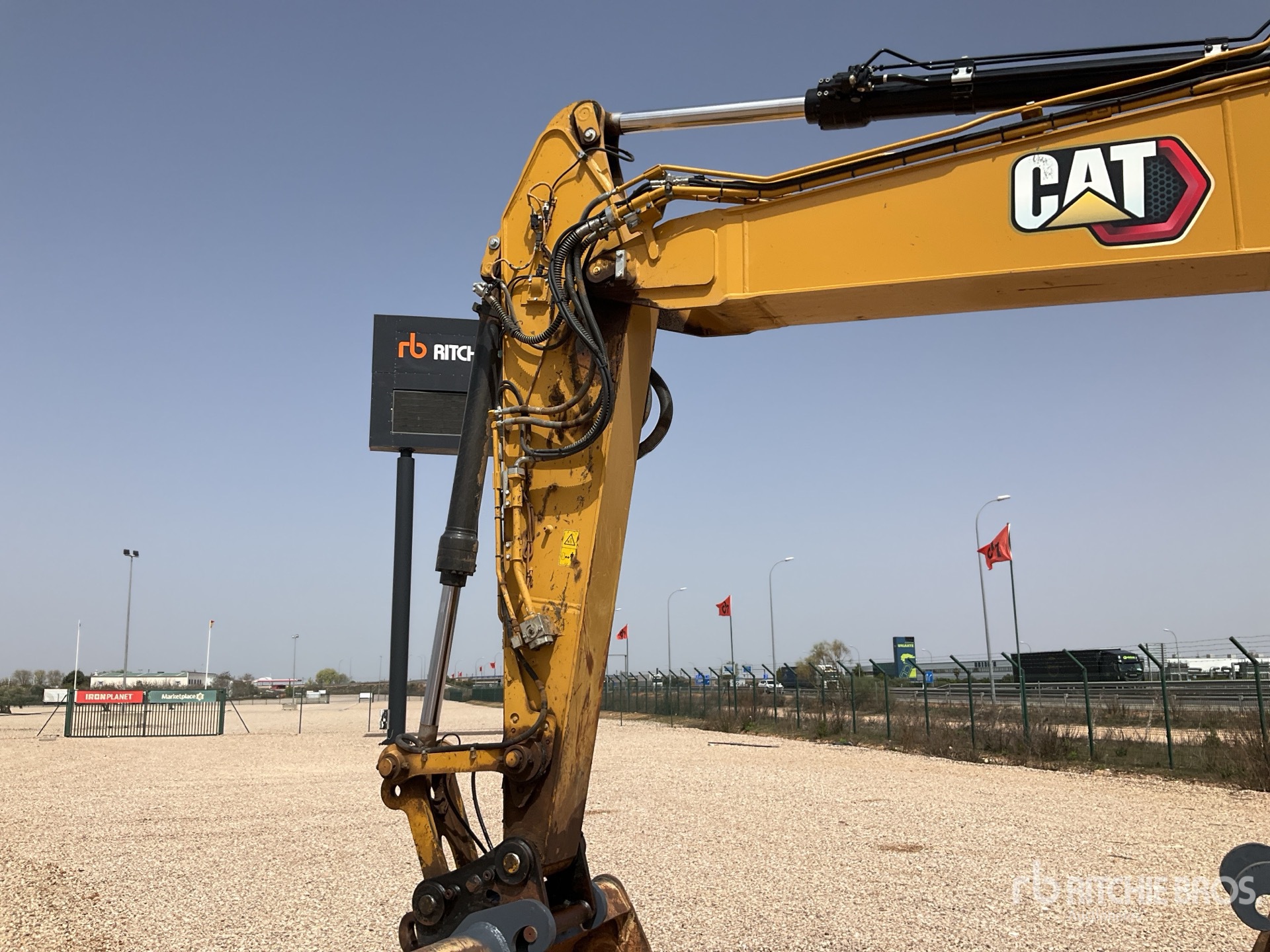

Stick (Since 2025)
|
Reach 2.9 m |
|
Tail Swing Radius (Since 2025)
|
9 ft (3 m)
|
|
Track Gauge (Since 2025)
|
8 ft (2 m)
|
|
Track Length (Since 2025)
|
15 ft (4 m)
|
|
Transport Width (Since 2025)
|
10 ft (3 m)
|
| Engine |
|
Biodiesel Capability (Since 2025)
|
Up to B20¹ |
|
Bore (Since 2025)
|
4 in (10 cm)
|
|
Displacement (Since 2025)
|
428 in³ |
|
Emissions (Since 2025)
|
Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. |
|
Engine Model (Since 2025)
|
Cat C7.1 |
|
Engine Power - ISO 14396 (DIN) (Since 2025)
|
176 hp (131 kw)
|
|
Engine Power - ISO 14396: 2002 (Since 2025)
|
174 hp (130 kw)
|
|
Net Power |
162 hp (121 kw)
|
|
Net Power - ISO 9249 (Since 2025)
|
172 hp (128 kw)
|
|
Net Power - ISO 9249 (DIN) (Since 2025)
|
175 hp (131 kw)
|
|
Note (1) (Since 2025)
|
Net power advertised is the power available at the flywheel when the engine is equipped... |
|
Note (2) (Since 2025)
|
¹Cat diesel engines are required to use ULSD or ULSD blended with lower-carbon intensity fuels. |
|
Stroke (Since 2025)
|
5 in (13 cm)
|
| General Specifications |
|
Digging Depth ft. (m) (Since 2025)
|
22.1 (6.73) |
|
Digging Reach ft. (m) (Since 2025)
|
32.4 (9.87) |
|
Engine (Since 2021)
|
C7.1e TA |
|
Engine (2023)
|
C7.1e TA |
|
Engine hp (kW) (Since 2025)
|
172 (128.5) |
|
Max Digging Depth (Since 2021)
|
22 ft (7 m)
|
|
Max Digging Depth (Since 2023)
|
22.1 ft ft (7 m)
|
|
Net Power (Since 2021)
|
162 hp (121 kw)
|
|
Net Power (Since 2023)
|
172 hp (128 kw)
|
|
Operating Weight (Since 2021)
|
56,200 lbs (25,492 kg)
|
|
Operating Weight (Since 2023)
|
54,900 lbs (24,902 kg)
|
|
Operating Weight lbs. (kg) (Since 2025)
|
55,100 (25,000) |
| Hydraulic System |
|
Main System - Maximum Flow (Since 2025)
|
113 gal/min |
|
Maximum Pressure - Equipment (Since 2025)
|
5,075 psi |
|
Maximum Pressure - Swing (Since 2025)
|
3,988 psi |
|
Maximum Pressure - Travel (Since 2025)
|
4,974 psi |
| Operating Specifications |
|
Operating Weight |
56,200 lbs (25,492 kg)
|
| Service Refill Capacities |
|
Cooling System (Since 2025)
|
7 gal (25 l)
|
|
DEF Tank (Since 2025)
|
11 gal (41 l)
|
|
Engine Oil (Since 2025)
|
7 gal (25 l)
|
|
Final Drive - Each (Since 2025)
|
1 gal (5 l)
|
|
Fuel Tank Capacity (Since 2025)
|
87 gal (328 l)
|
|
Hydraulic System - Including Tank (Since 2025)
|
62 gal (234 l)
|
|
Hydraulic Tank (Since 2025)
|
30 gal (115 l)
|
|
Swing Drive - Each (Since 2025)
|
2 gal (6 l)
|
| Sustainability |
|
Recyclability (Since 2025)
|
97 % |
| Swing Mechanism |
|
Maximum Swing Torque (Since 2025)
|
60,300 lbf·ft |
|
Note (1) (Since 2025)
|
For CE-marked machine default value may be set lower. |
|
Swing Speed (Since 2025)
|
11 r/min |
| Weights |
|
Note (Since 2025)
|
Long undercarriage, Reach boom, R2.9 (9'6"), Reach stick, HD 1.38 m³ (1.81 yd³) bucket, 790 mm (31") HD triple grouser track shoes and 5,400 kg (11,900 lb) counterweight. |
|
Operating Weight (Since 2025)
|
55,100 lb |
| Working Ranges and Forces |
|
Boom (Since 2025)
|
Reach 5.7 m |
|
Bucket (Since 2025)
|
HD 1.30 m³ |
|
Bucket Digging Force - ISO (Since 2025)
|
34,308 lbs ft (46,515 nm)
|
|
Maximum Cutting Height (Since 2025)
|
31 ft (9 m)
|
|
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom (Since 2025)
|
22 ft (7 m)
|
|
Maximum Digging Depth (Since 2025)
|
22 ft (7 m)
|
|
Maximum Loading Height (Since 2025)
|
21 ft (6 m)
|
|
Maximum Reach at Ground Level (Since 2025)
|
32 ft (10 m)
|
|
Maximum Vertical Wall Digging Depth (Since 2025)
|
19 ft (6 m)
|
|
Minimum Loading Height (Since 2025)
|
7 ft (2 m)
|
|
Stick (Since 2025)
|
Reach 2.9 m |
|
Stick Digging Force - ISO (Since 2025)
|
26,094 lbs ft (35,378 nm)
|
