Equipment ↠ Caterpillar ↠ Excavators ↠ 1999 Caterpillar 325B L

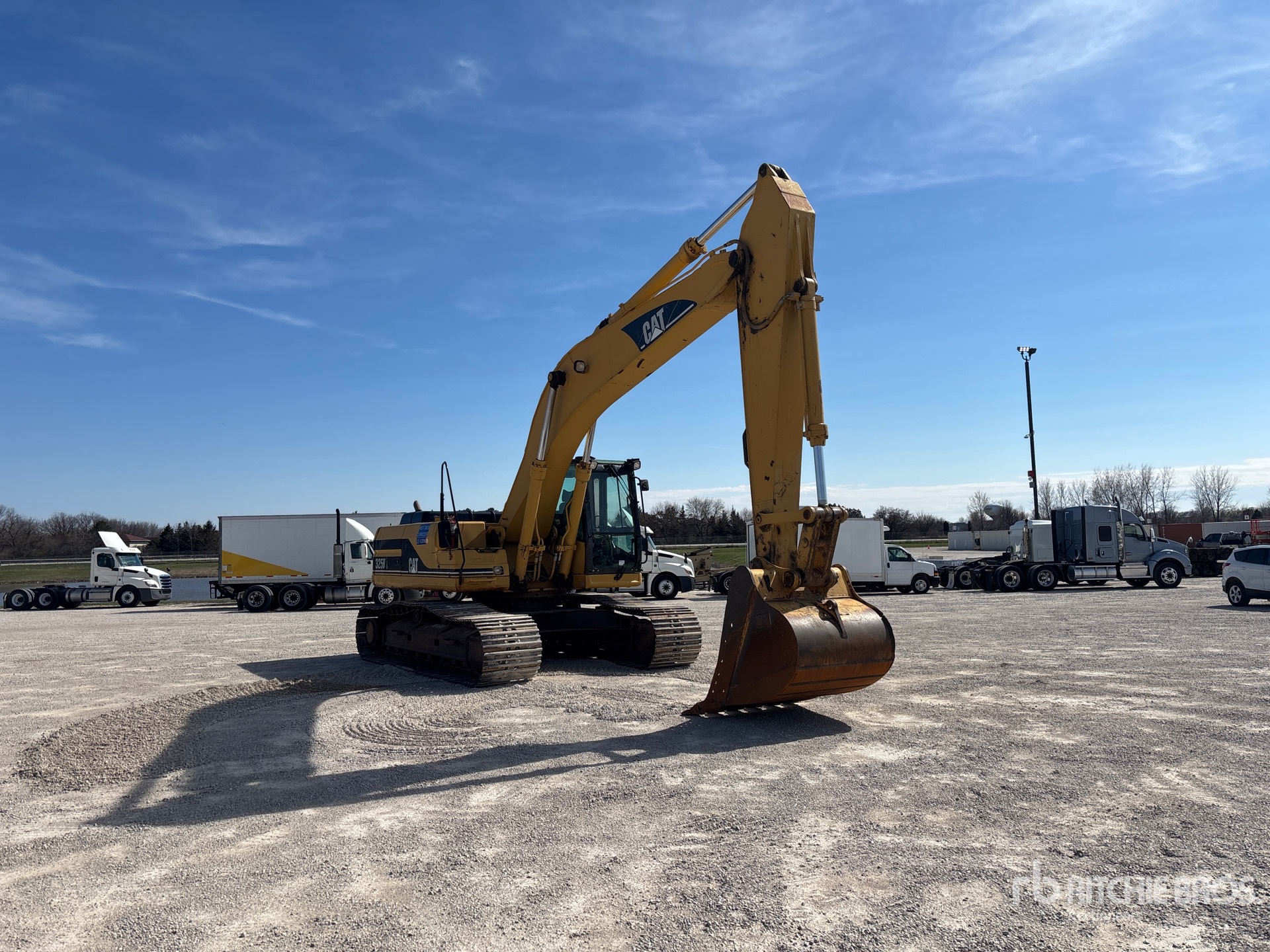

1999 Caterpillar 325B L For Sale in Chicago, Il

Name: 1999 Caterpillar 325B L
Brand: Caterpillar
SKU: 86660813
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

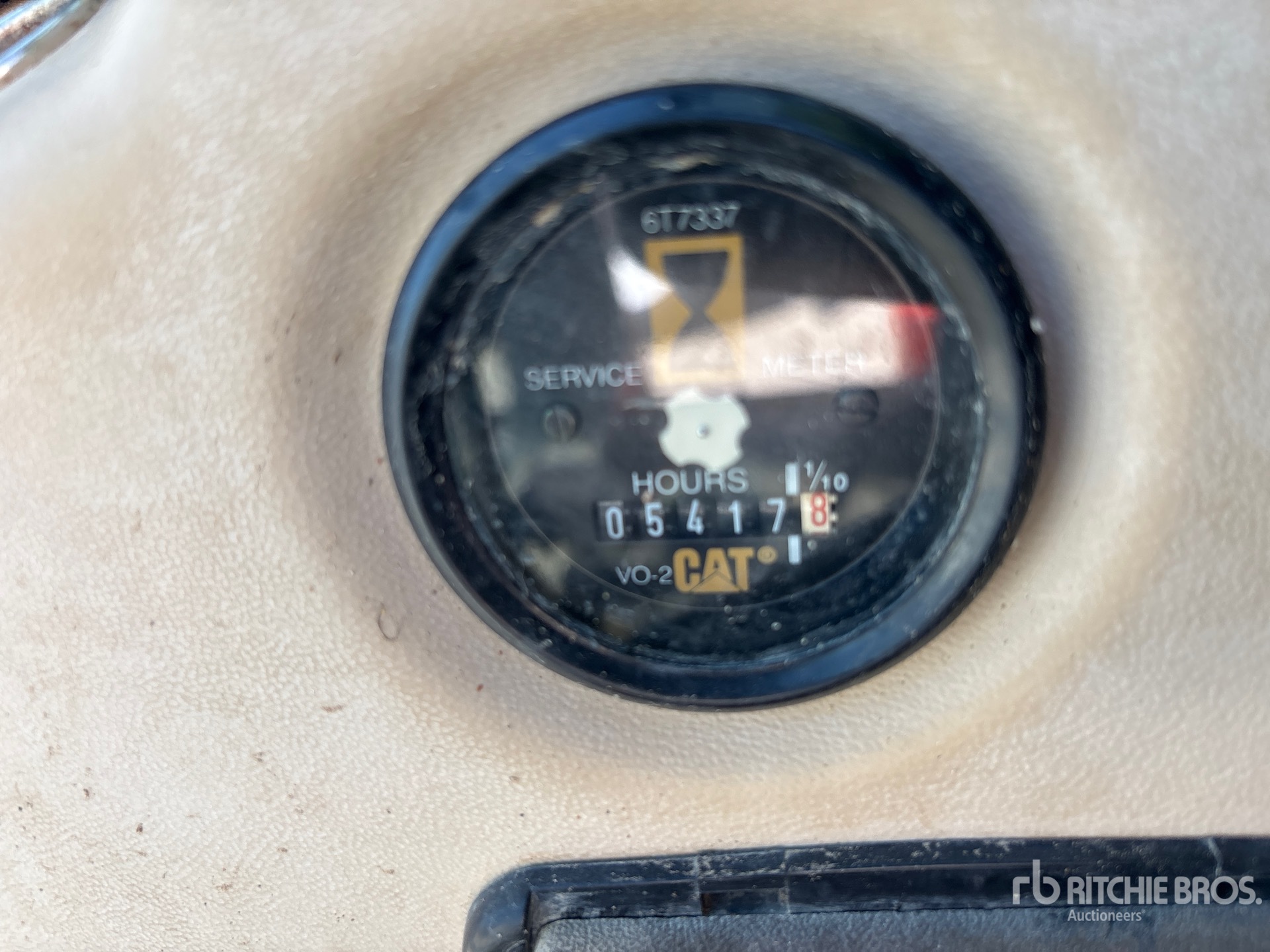

Hours:	5417

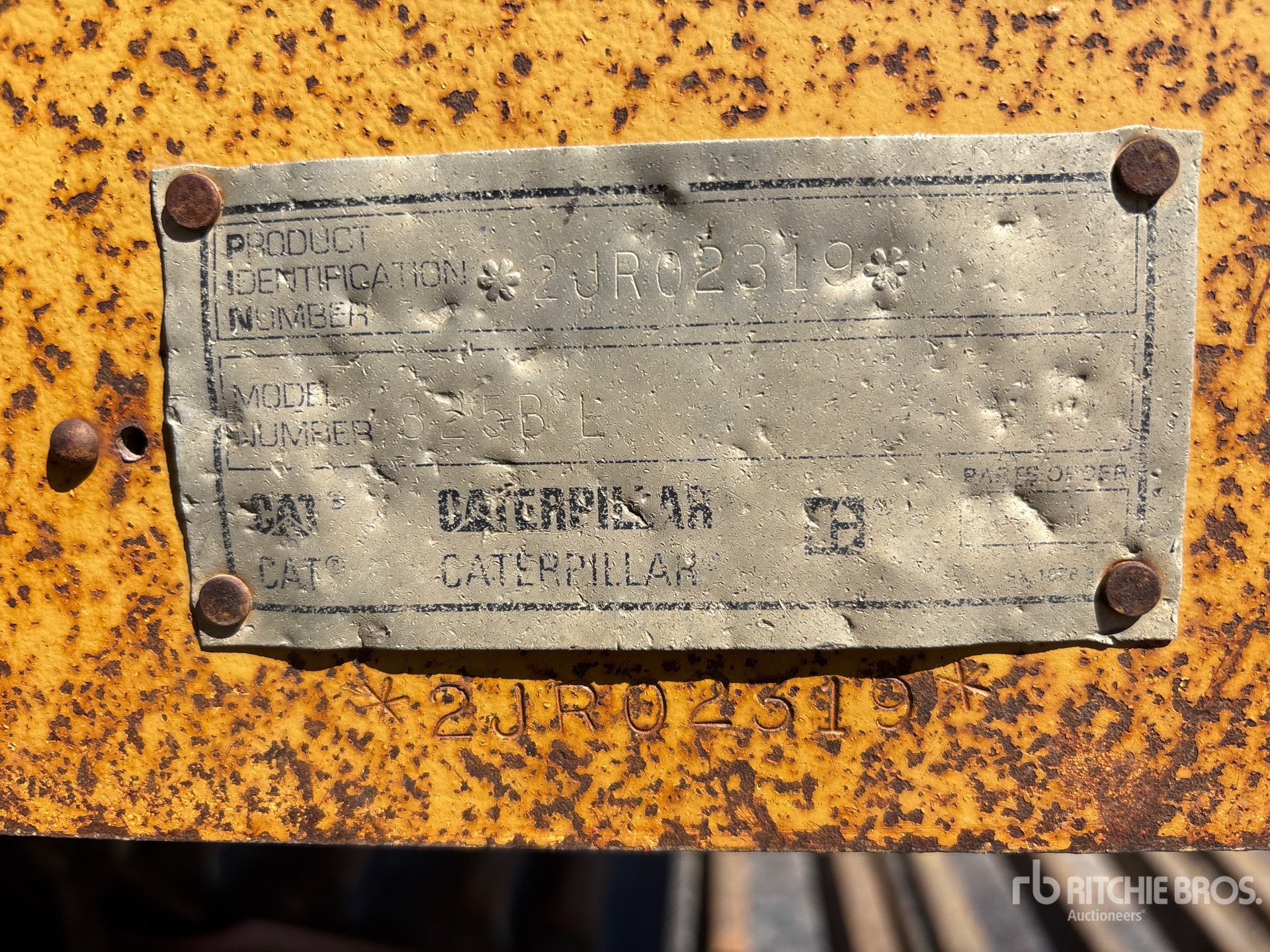

Serial Number:	2JR02319
Machine Location:	CHICAGO, IL

Description:

Located in Lane 21 Spot 73, Air Conditioner, Straight Travel Pedal, Control Pattern Changer, 13 ft Stick, 32 in Triple Grouser Track Shoes, 50 in Digging Bucket 5417 actual hours Closing Time: 2026-05-12 10:03:45 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	33 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	32 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Boom/Stick Excavator Option 3
Max Cutting Height	30 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	31 ft (9 m)
Max Vertical Wall Digging Depth	15 ft (5 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	32 ft (10 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull	48,350 lbs (21,931 kg)
Engine
Aspiration	Turbocharged and Aftercooled
Bore	4 in (11 cm)
Displacement	403 cu in (6,604 cu cm)
Engine Model	Cat 3116TA
Gross Power	177 hp (132 kw)
Net Power	168 hp (125 kw)
Net Power - EEC 80/1269	168 hp (125 kw)
Net Power - ISO 9249	168 hp (125 kw)
Net Power - SAE J1349	168 hp (125 kw)
Power Measured @	2,000 rpm
Stroke	5 in (13 cm)
Hydraulic System
Boom Cylinder - Bore	6 in (14 cm)
Boom Cylinder - Stroke	55 in (140 cm)
Main Implement System - Maximum Flow (2x)	57 gpm (214 lpm)
Maximum Pressure - Equipment	4,980 psi
Maximum Pressure - Swing	4,250 psi
Maximum Pressure - Travel	4,980 psi
Pilot System - Maximum Flow	11 gpm (41 lpm)
Operating Specifications
Alternator Supplied Amperage	52 amps
Cooling System Fluid Capacity	8 gal (32 l)
Engine Oil Capacity	5 gal (20 l)
Fuel Capacity	111 gal (420 l)
Hydraulic Pump Flow Capacity	110 gpm (416 lpm)
Hydraulic System Fluid Capacity	82 gal (310 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 volts
Operating Weight	60,600 lbs (27,488 kg)
Swing Drive Fluid Capacity	3 gal (10 l)
Service Refill Capacities
Cooling System	8 gal (31 l)
Engine Oil	5 gal (20 l)
Final Drive - Each	2 gal (8 l)
Fuel Tank Capacity	111 gal (420 l)
Hydraulic System - Including Tank	82 gal (310 l)
Swing Drive	3 gal (10 l)
Undercarriage
Drawbar Pull	48,334 lbs (21,924 kg)
Max Travel Speed	3 mph (5 kph)
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
Weights
Operating Weight - Standard Undercarriage	56,240 lbs (25,510 kg)
