Equipment ↠ Caterpillar ↠ Excavators ↠ 2018 Caterpillar 336F L

2018 Caterpillar 336F L For Sale in Edmonton, Ab

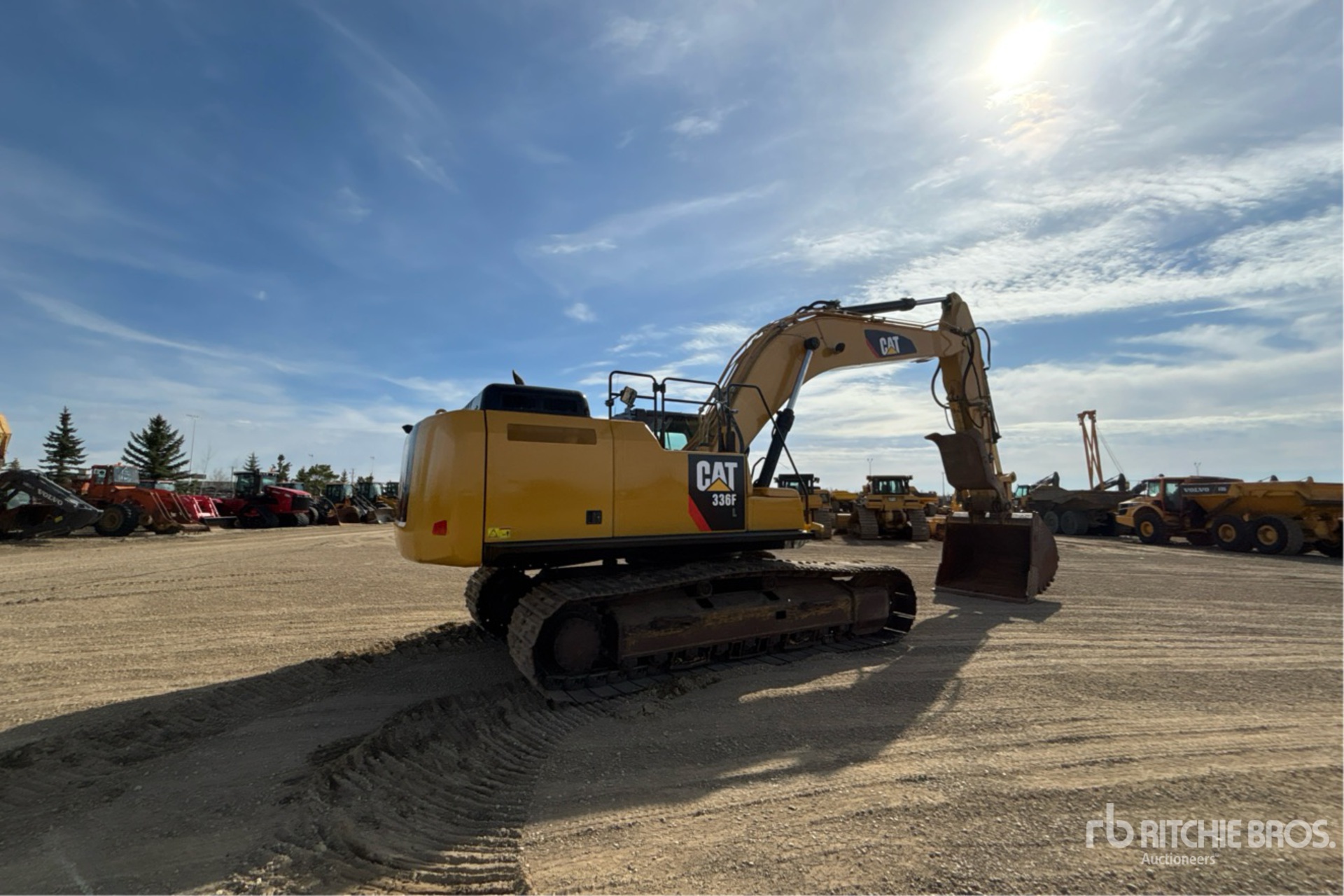

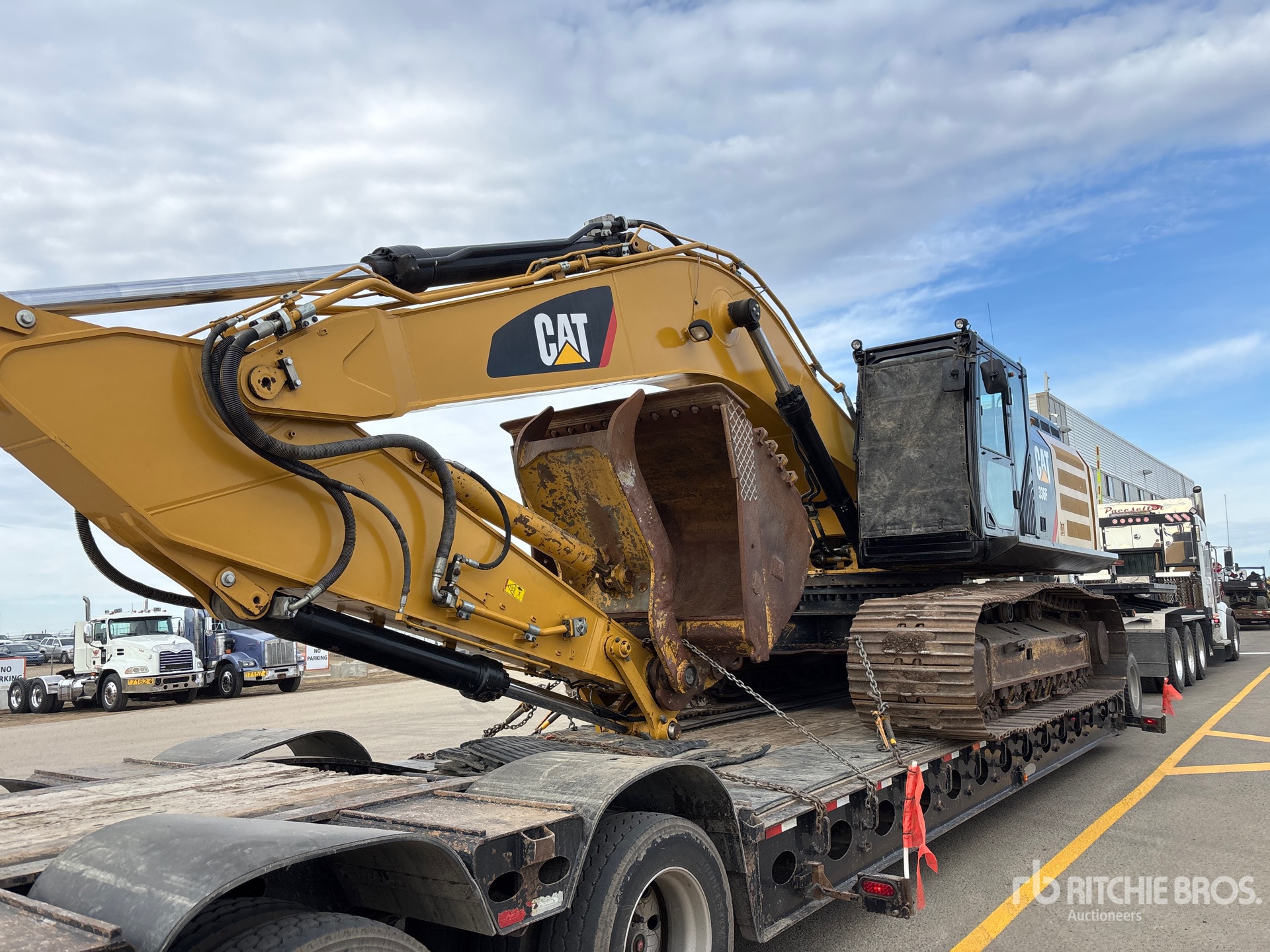

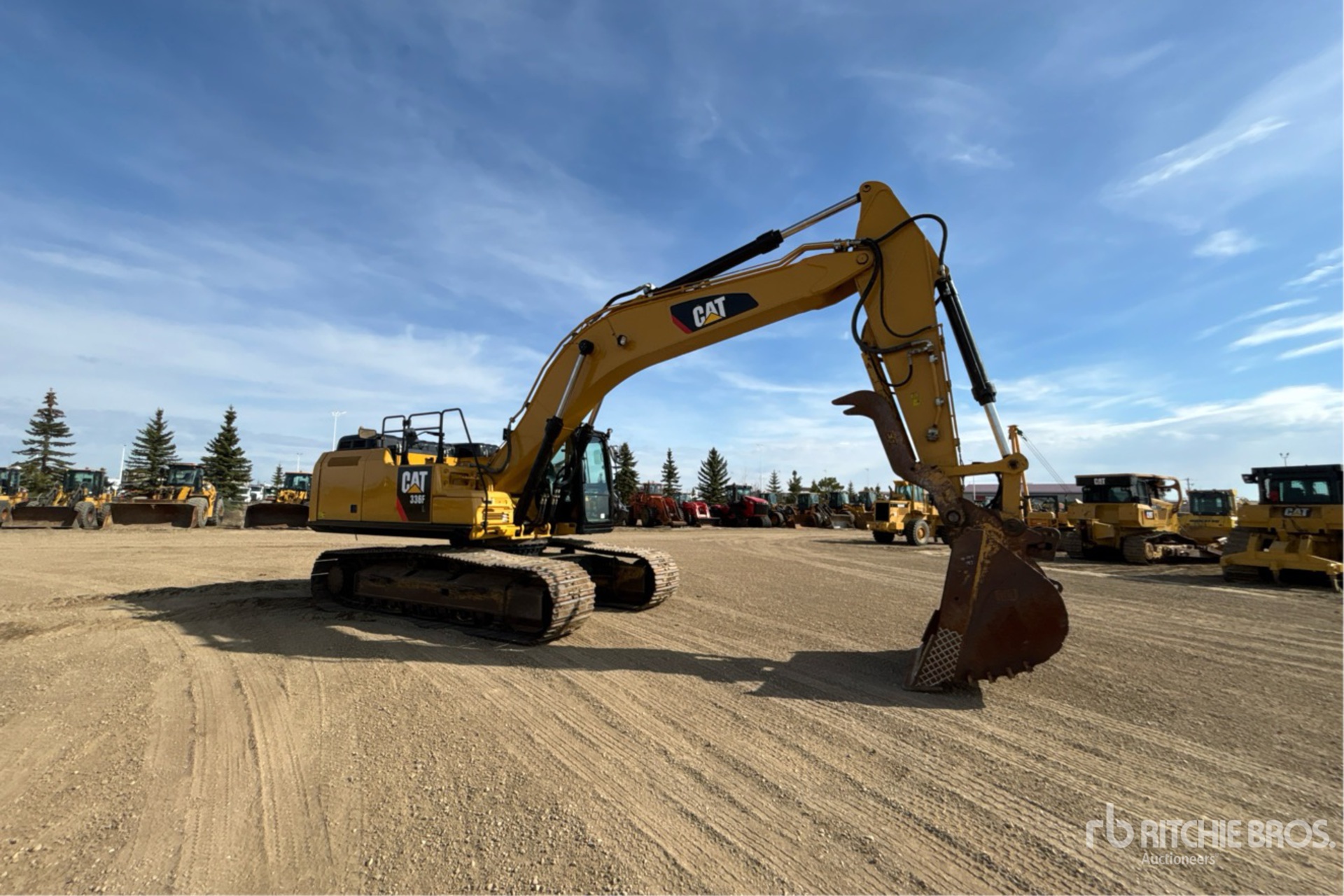

Name: 2018 Caterpillar 336F L
Brand: Caterpillar
SKU: 87456154
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

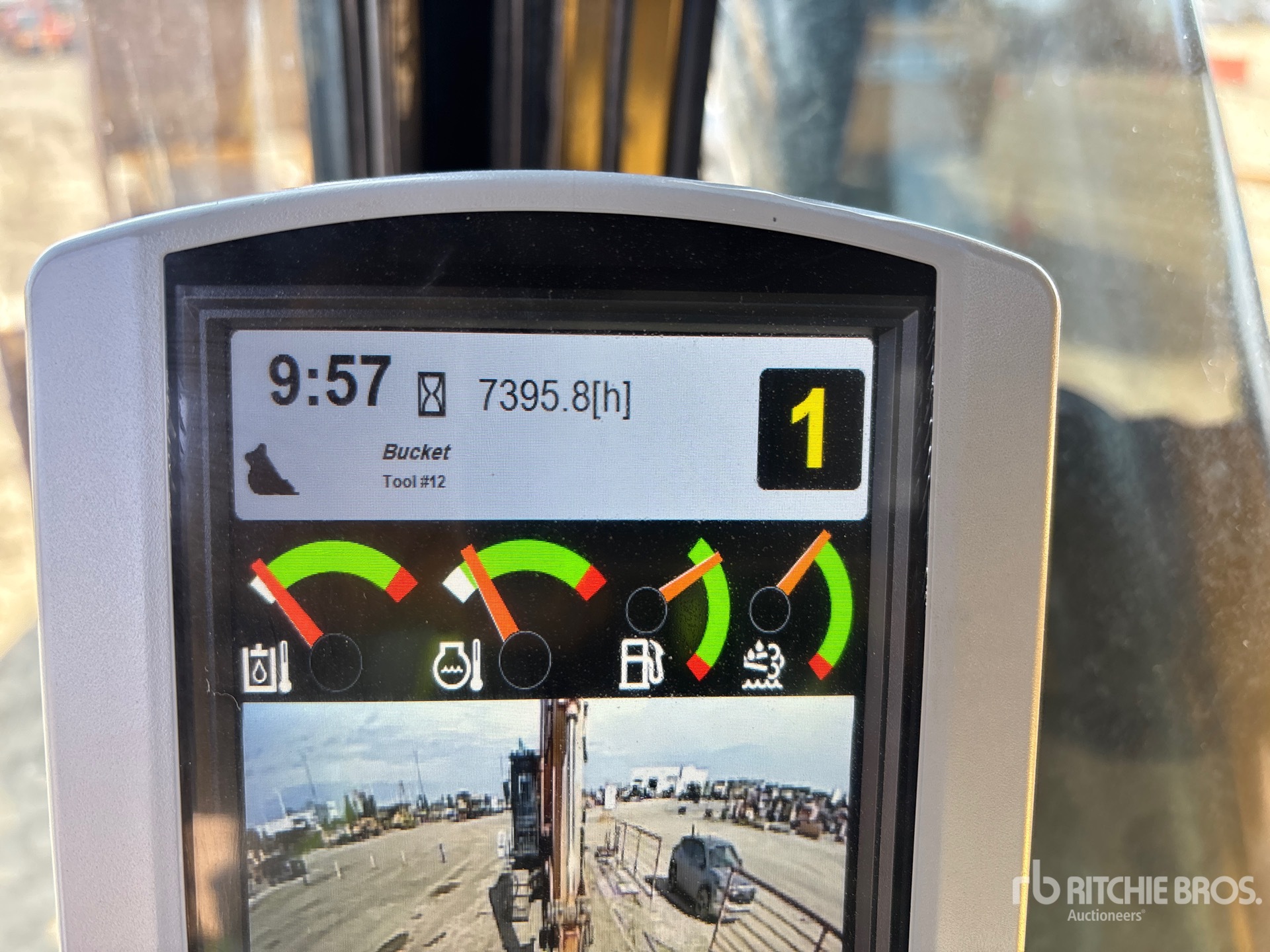

Hours:	7395

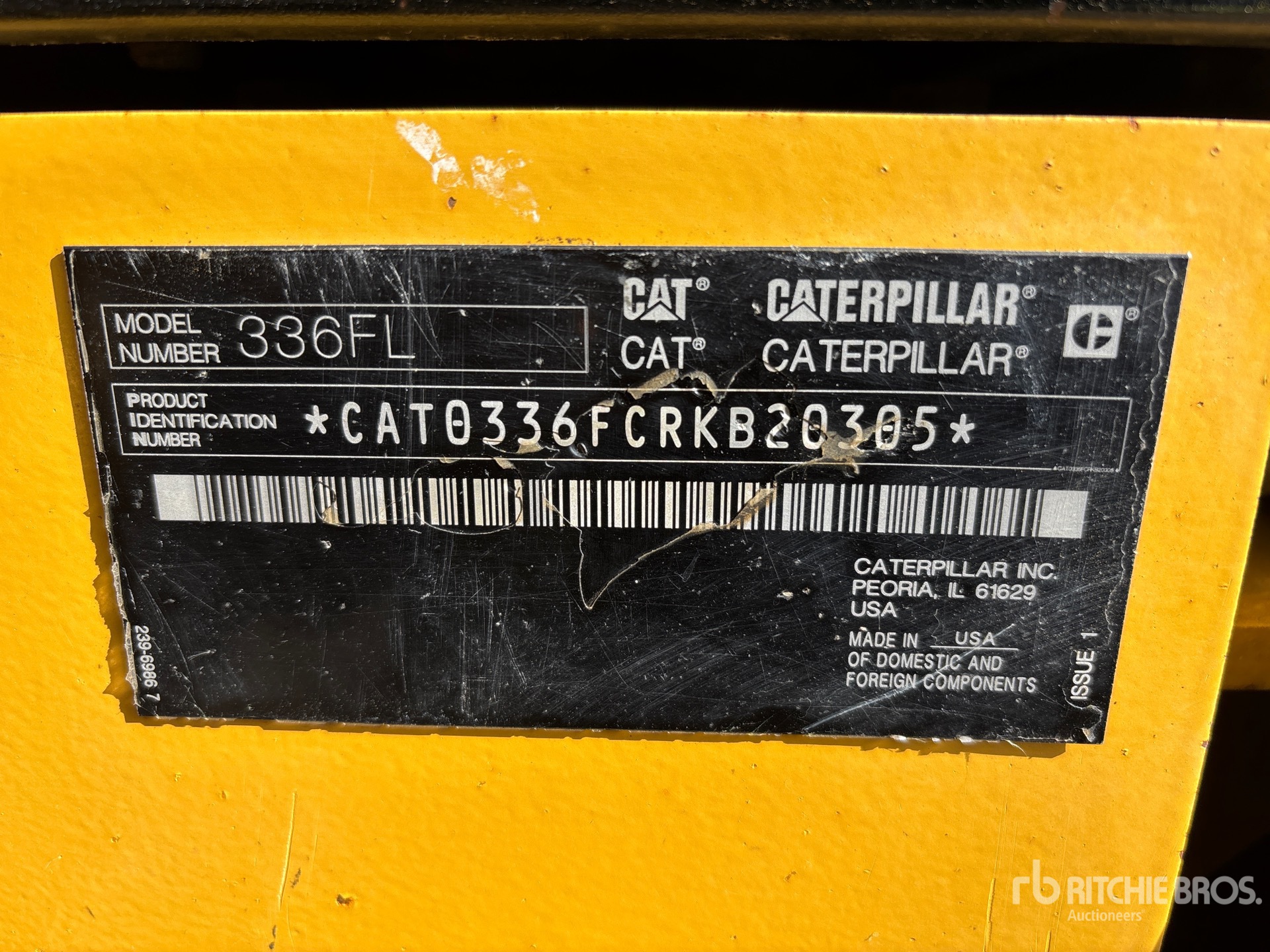

Serial Number:	CAT0336FCRKB20305
Machine Location:	EDMONTON, AB

Description:

Air Conditioner, Straight Travel Pedal, Control Pattern Changer, Rear View Camera, 2018 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, 10 ft 6 in Stick, Auxiliary Hydraulic Plumbing, 33.5 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 70 in Cleanup Bucket, Hydraulic Thumb, Catwalks, 2nd Outlet Closing Time: 2026-05-11 01:37:30 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 336F L is a hydraulic excavator in Caterpillar's 36-ton class, designed for heavy-duty earthmoving, trenching, site preparation, and material handling. It is powered by a Caterpillar diesel engine and uses a hydraulic system optimized for digging force, cycle efficiency, and fuel management. The 336F L features a long undercarriage for improved stability and ground contact, making it suitable for demanding construction and quarry applications. Common configurations include a standard boom, stick options, and multiple bucket sizes. The model is used in infrastructure, utility, demolition support, and general excavation work.

Boom/Stick Excavator Option 1
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Maximum Reach at Ground Level	39 ft (12 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	23 ft (7 m)
Max Vertical Wall Digging Depth	18 ft (6 m)
Maximum Reach at Ground Level	434 in (1,102 cm)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	15 ft (4 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	36 ft (11 m)
Capacities
Cooling system	11 gal (43 l)
DEF Tank	11 gal (41 l)
Engine Oil	9 gal (32 l)
Final Drive	2 gal (8 l)
Fuel Tank	164 gal (620 l)
Hydraulic system	100 gal (380 l)
Hydraulic Tank	46 gal (175 l)
Swing drive	5 gal (19 l)
Dimensions
Cab height	125 in (316 cm)
Gradeability	70%
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Track Gauge	9 ft (3 m)
Track length	198 in (503 cm)
Width to Outside of Tracks	11 ft (3 m)
Engine
Displacement	568 cu in (9,301 cu cm)
Engine Make	Caterpillar
Engine Model	C15 ACERT
Gross Power	319 hp (238 kw)
Net Power	314 hp (234 kw)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Drawbar Pull	66,094 lbs (29,980 kg)
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	9
