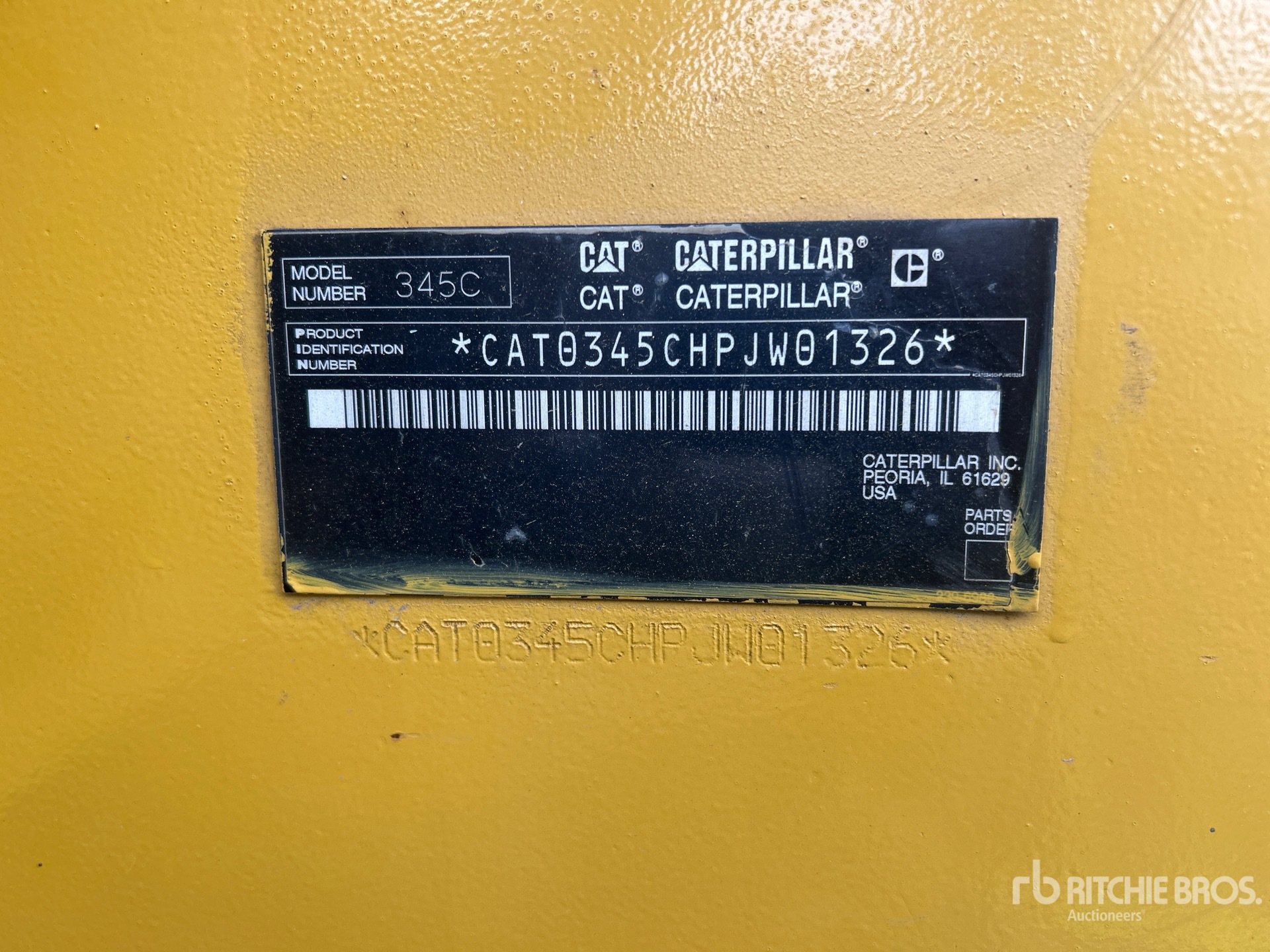

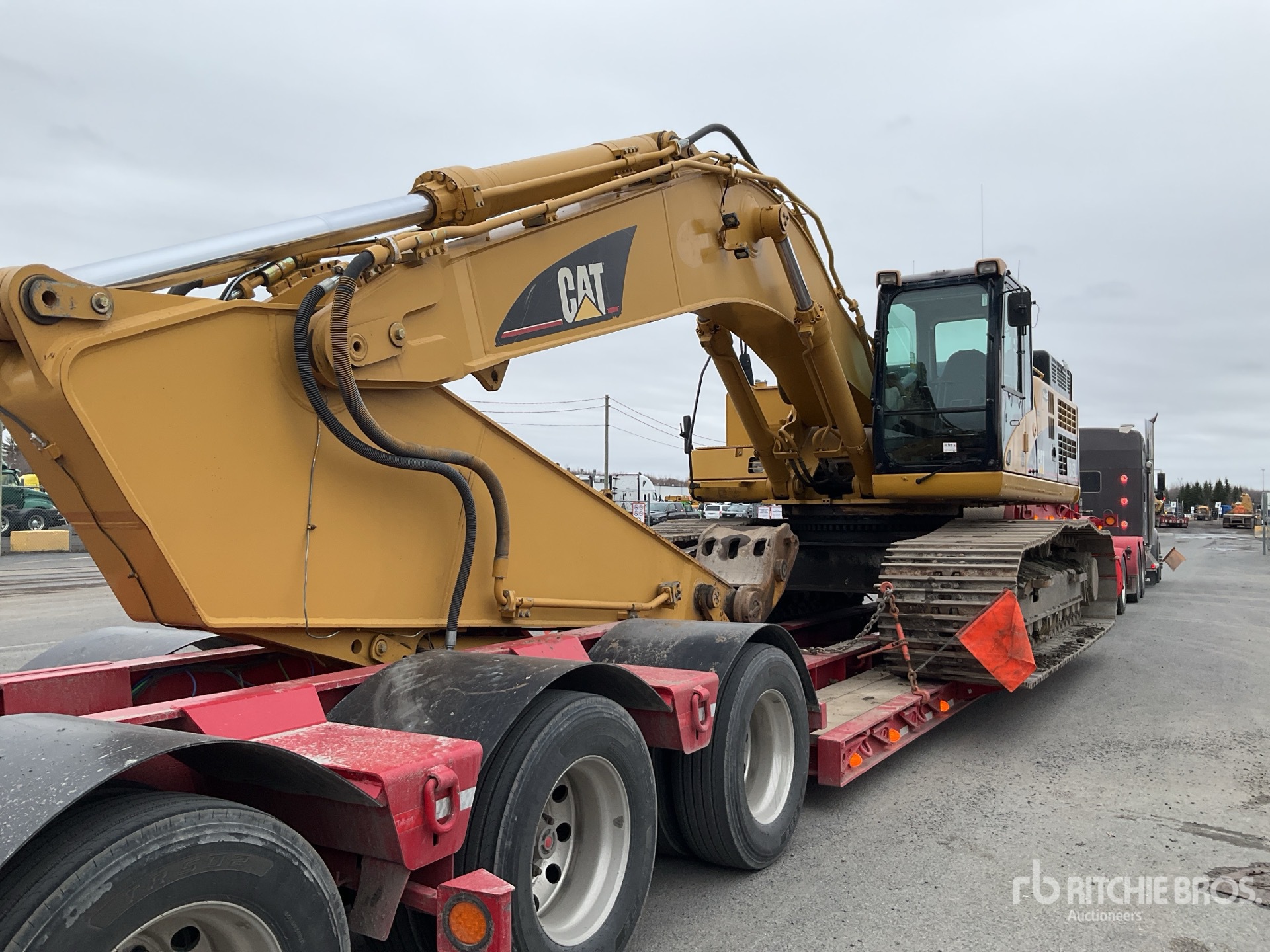

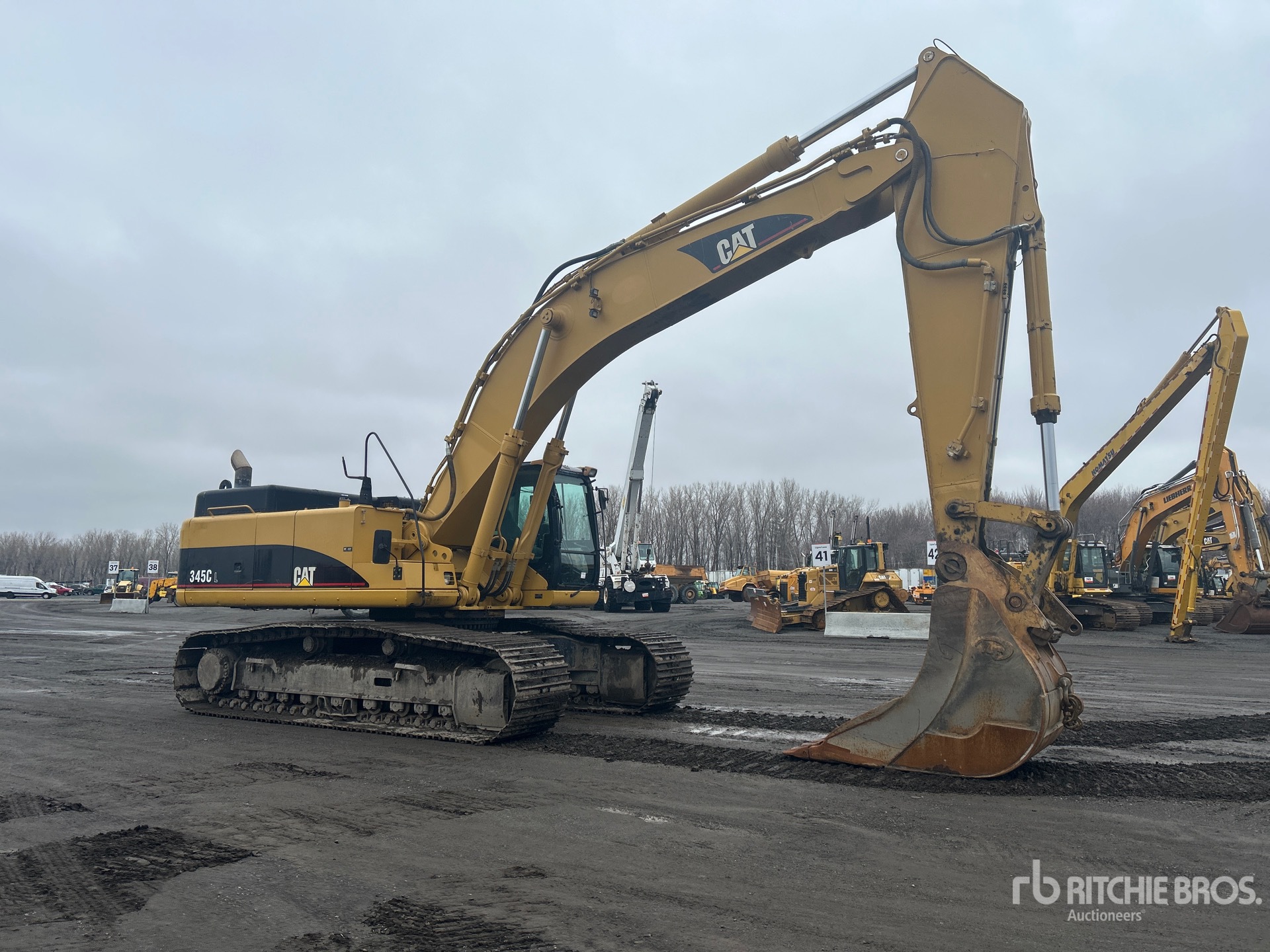

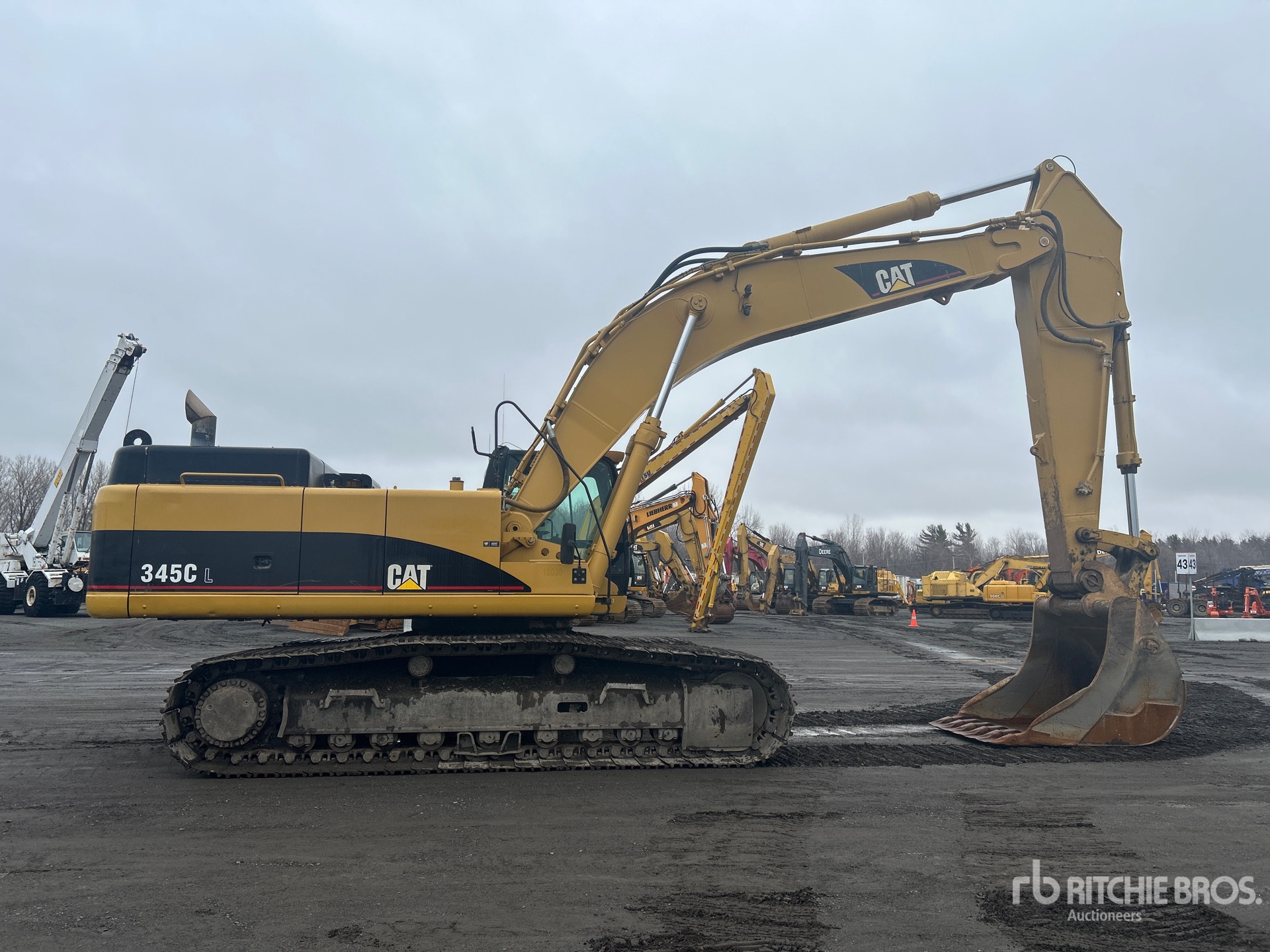

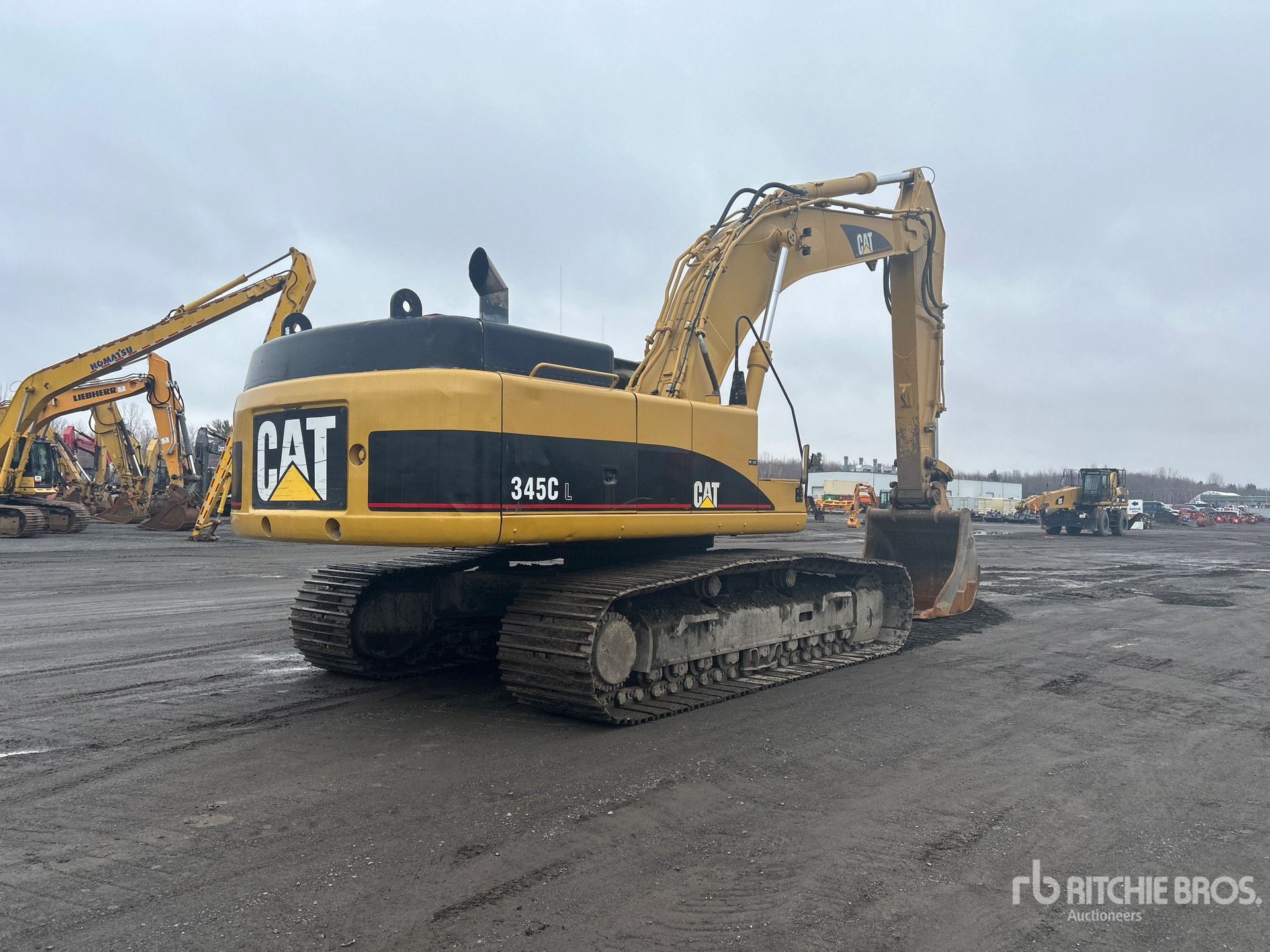

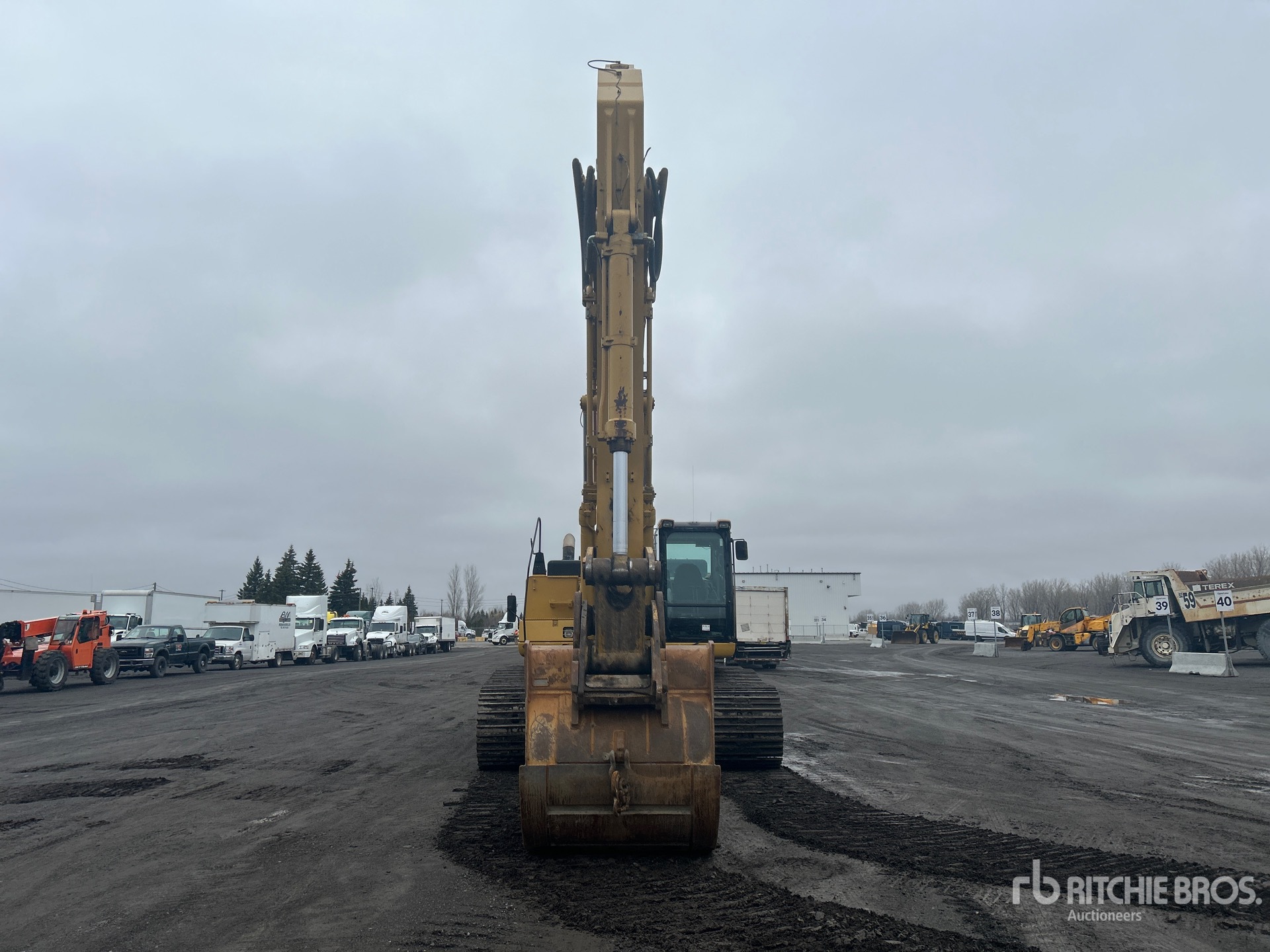

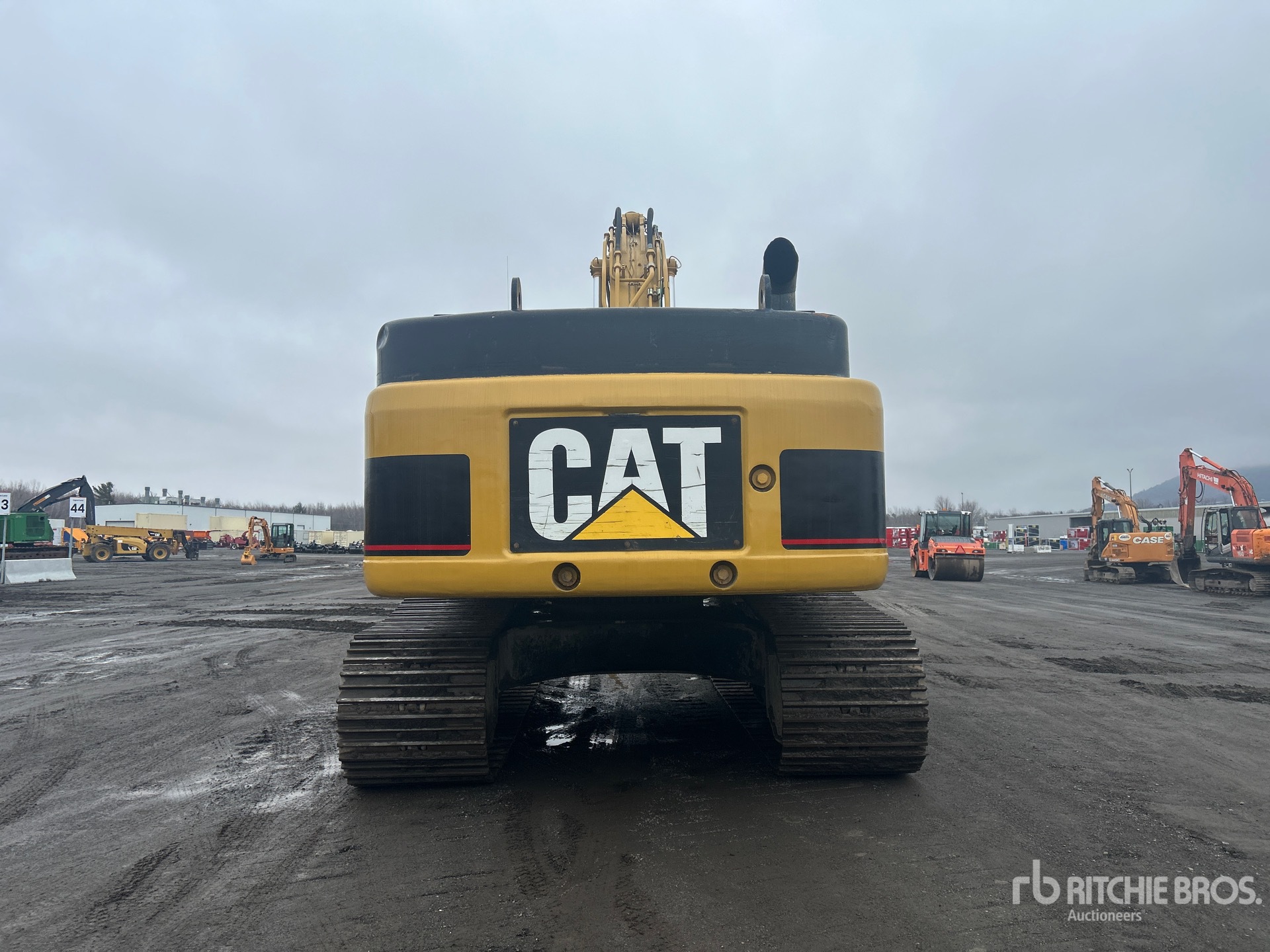

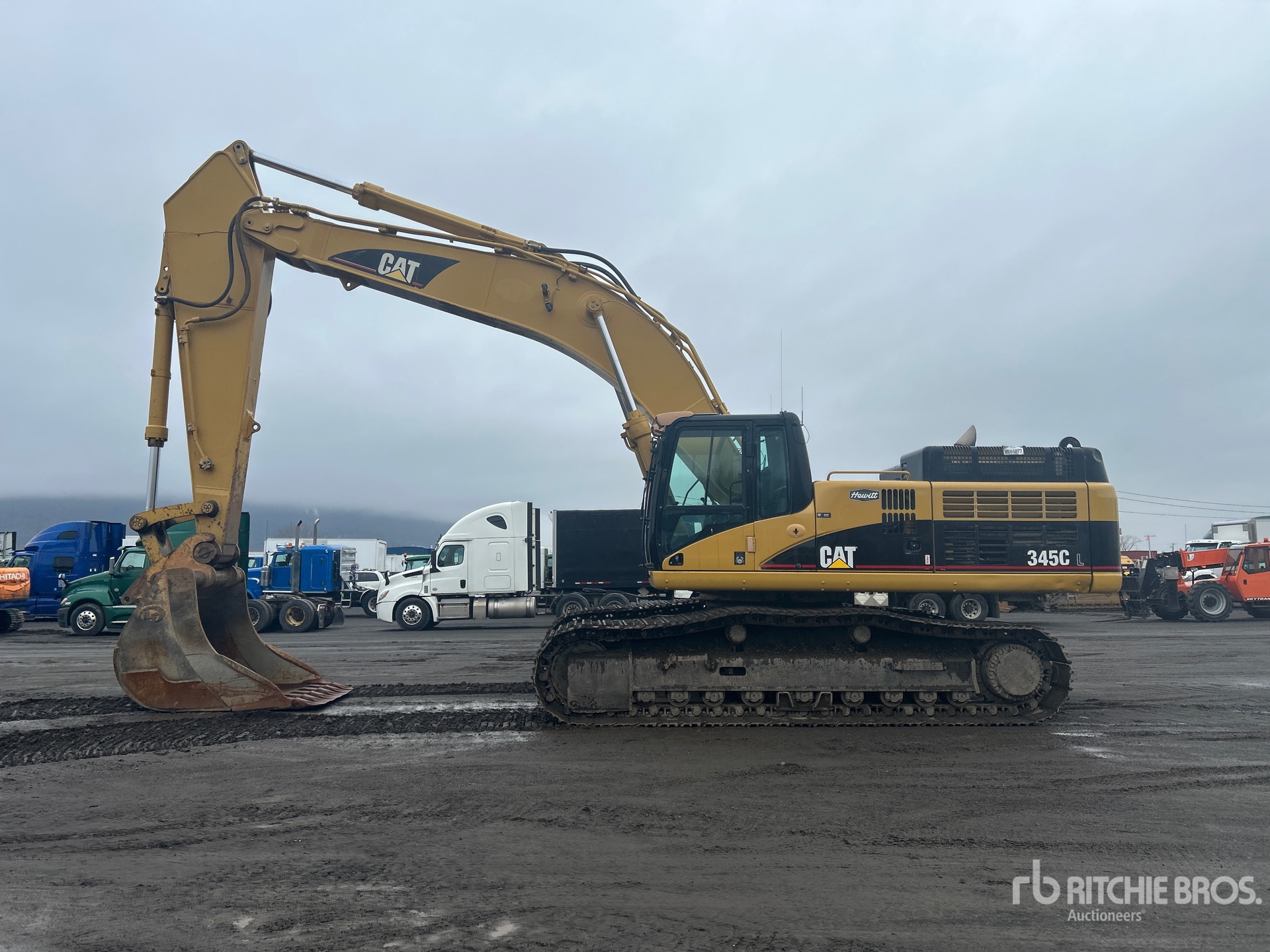

| Boom/Stick Excavator Option 1 |
|
Max Digging Depth |
28 ft (9 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Reach Along Ground |
41 ft (13 m)
|
|
Max Vertical Wall Digging Depth |
20 ft (6 m)
|
|
Shipping Height of Unit |
12 ft (4 m)
|
|
Shipping Length of Unit |
39 ft (12 m)
|
| Boom/Stick Excavator Option 2 |
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
25 ft (7 m)
|
|
Max Reach Along Ground |
40 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (5 m)
|
|
Shipping Height of Unit |
12 ft (4 m)
|
|
Shipping Length of Unit |
39 ft (12 m)
|
| Boom/Stick Excavator Option 3 |
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
39 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Length of Unit |
39 ft (12 m)
|
| Boom/Stick Excavator Option 4 |
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
37 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Shipping Length of Unit |
39 ft (12 m)
|
| Boom/Stick Excavator Option 5 |
|
Max Digging Depth |
29 ft (9 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
43 ft (13 m)
|
|
Max Vertical Wall Dig Depth |
20 ft (6 m)
|
|
Shipping Height of Unit |
12 ft (4 m)
|
|
Shipping Length of Unit |
41 ft (12 m)
|
| Boom/Stick Excavator Option 6 |
|
Max Digging Depth |
28 ft (9 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
41 ft (13 m)
|
|
Max Vertical Wall Dig Depth |
18 ft (5 m)
|
|
Shipping Height of Unit |
12 ft (4 m)
|
|
Shipping Length of Unit |
41 ft (12 m)
|
| Bucket |
|
Maximum Bucket Capacity |
5 cu yd (4 cu m)
|
|
Reference Bucket Capacity |
3 cu yd (2 cu m)
|

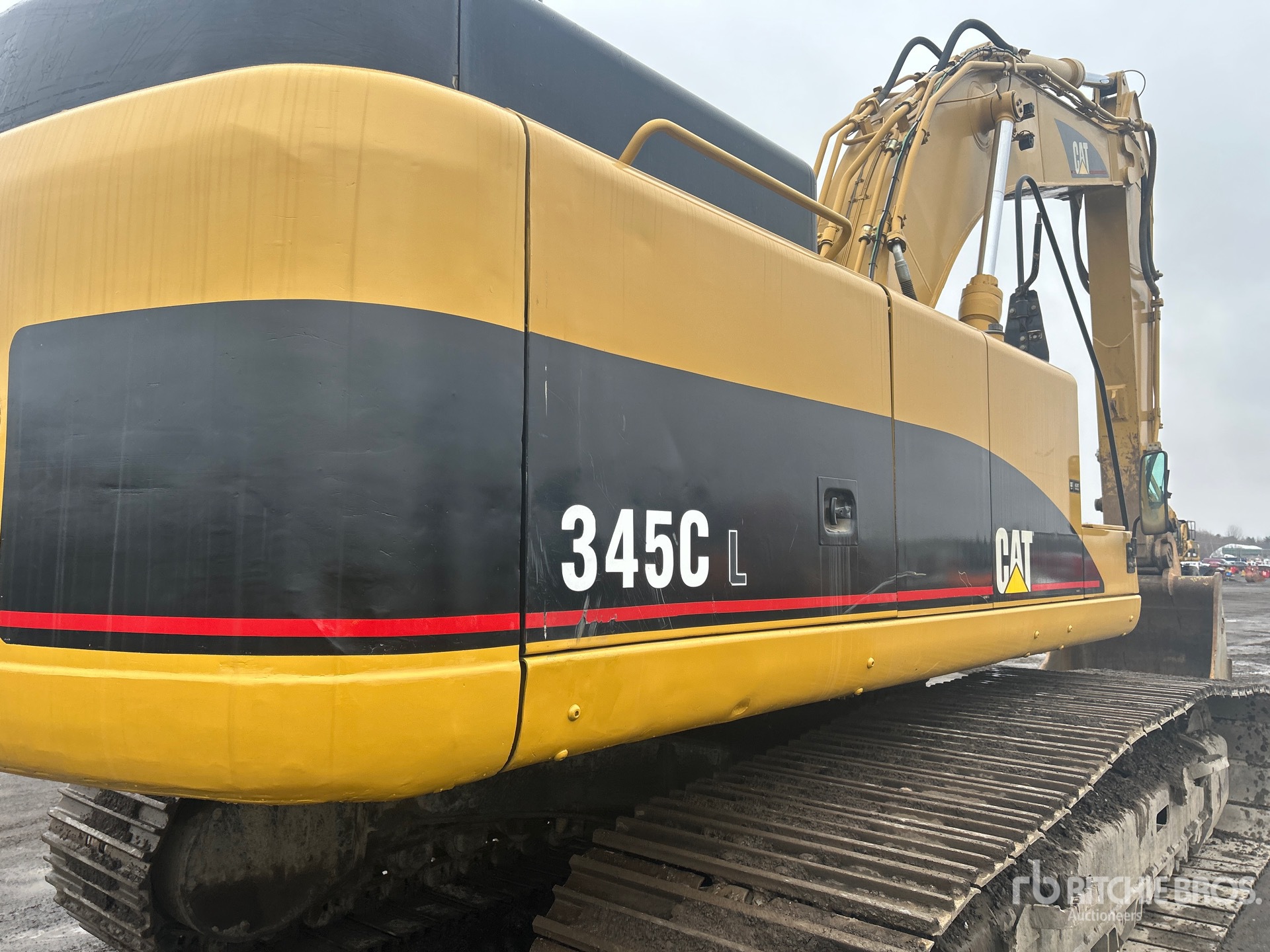

| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height - Top of Cab |
11 ft (3 m)
|
|
Length of Track on Ground |
14 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Shipping Height |
12 ft (4 m)
|
|
Tail Swing Radius |
12 ft (4 m)
|
|
Width to Outside of Tracks |
12 ft (4 m)
|

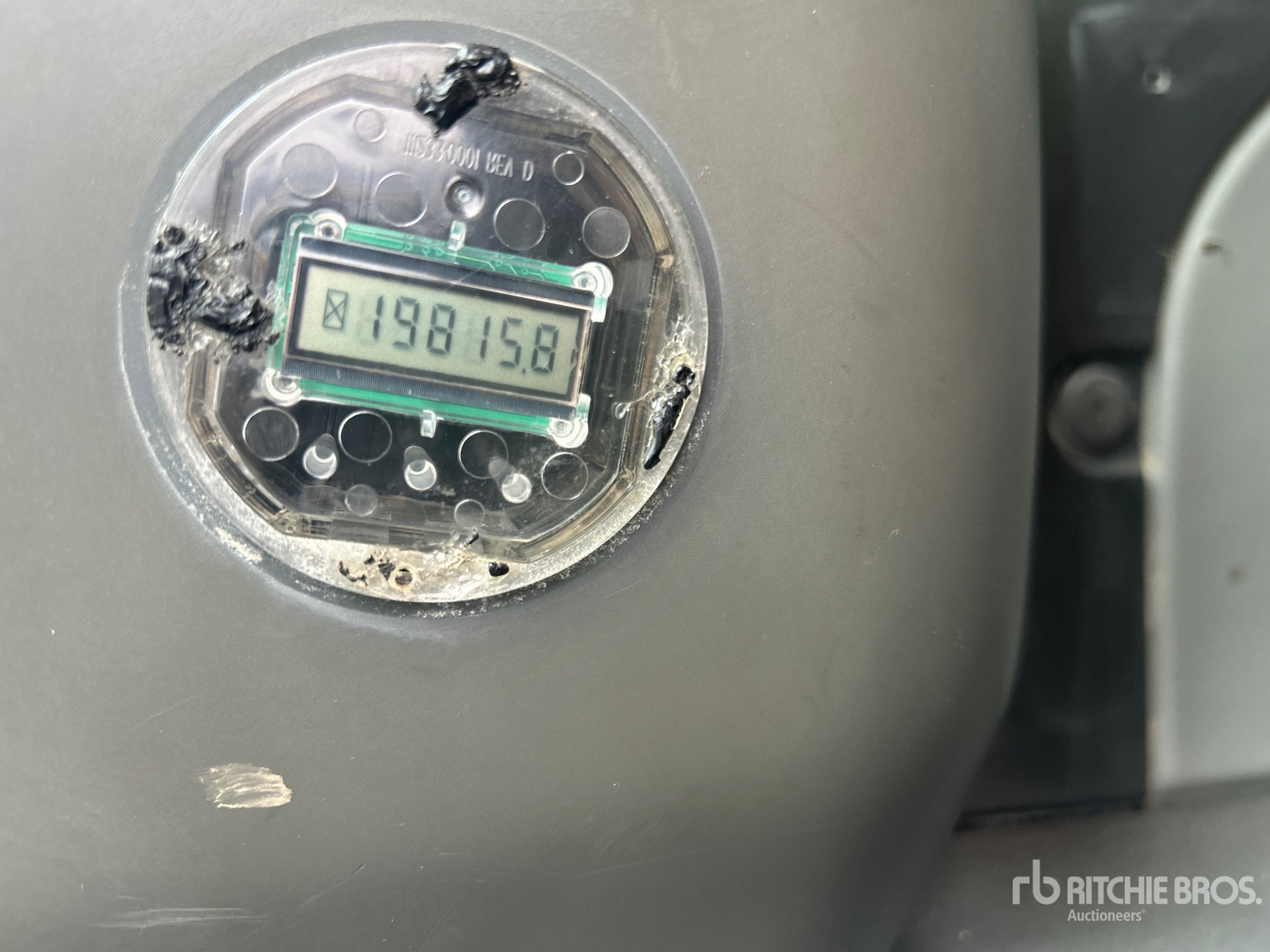

| Engine |
|
Bore |
5 in (13 cm)
|
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Net Power - EEC 80/1269 |
345 hp (257 kw)
|
|
Net Power - ISO 9249 |
345 hp (257 kw)
|
|
Net Power - SAE J1349 |
345 hp (257 kw)
|
|
Power Measured @ |
1,800 rpm |
|
Stroke |
6 in (16 cm)
|
| Hydraulic System |
|
190 |
190 gpm (719 lpm)
|
|
Boom Cylinder - Bore |
6 in (16 cm)
|
|
Boom Cylinder - Stroke |
62 in (157 cm)
|
|
Maximum Pressure - Equipment - Normal |
5,080 psi |
|
Maximum Pressure - Swing |
4,550 psi |
|
Maximum Pressure - Travel |
5,080 psi |
|
Pilot System - Maximum Flow |
11 gpm (42 lpm)
|
|
Stick Cylinder - Bore |
8 in (19 cm)
|
| Operating Specifications |
|
Cooling System Fluid Capacity |
16 gal (61 l)
|
|
Engine Oil Capacity |
11 gal (42 l)
|
|
Fuel Capacity |
186 gal (704 l)
|
|
Hydraulic Pump Flow Capacity |
190 gpm (719 lpm)
|
|
Hydraulic System Fluid Capacity |
150 gal (568 l)
|
|
Hydraulic System Relief Valve Pressure |
5,080 psi |
|
Maximum Bucket Capacity |
5 cu yd (4 cu m)
|
|
Maximum Digging Depth |
29 ft (9 m)
|
|
Operating Weight |
99,150 lbs (44,974 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (10 l)
|
| Service Refill Capacities |
|
Cooling System |
16 gal (61 l)
|
|
Engine Oil |
11 gal (42 l)
|
|
Final Drive - Each |
4 gal (15 l)
|
|
Fuel Tank Capacity |
186 gal (704 l)
|
|
Hydraulic System - Including Tank |
150 gal (568 l)
|
|
Hydraulic Tank |
64 gal (242 l)
|
|
Swing Drive - Each |
3 gal (10 l)
|
| Standards |
|
Brakes |
SAE J1026 APR90 |
|
Cab/FOGS |
SAE J1356 FEB 88 and ISO 10262-1998 |
| Swing Mechanism |
|
Swing Speed |
9 rpm |
| Track |
|
Number of Shoes - Each Side - Long Undercarriage |
52 |
|
Number of Track Rollers - Each Side - Long Undercarriage |
9 |
| Undercarriage |
|
Drawbar Pull |
75,920 lbs (34,437 kg)
|
|
Max Travel Speed |
3 mph (4 kph)
|
|
Number of Carrier Rollers per Side |
2 |
|
Number of Shoes per Side |
52 |
|
Number of Track Rollers per Side |
9 |
|
Shoe Size |
30 in (76 cm)
|
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Operating Weight |
99,150 lbs (44,974 kg)
|
|
Operating Weight - Long Undercarriage |
99,150 lbs (44,974 kg)
|
|
Operating Weight - Standard Undercarriage |
99,150 lbs (44,974 kg)
|
