Equipment ↠ Caterpillar ↠ Excavators ↠ 2015 Caterpillar 349F L

2015 Caterpillar 349F L For Sale in Chehalis, Wa

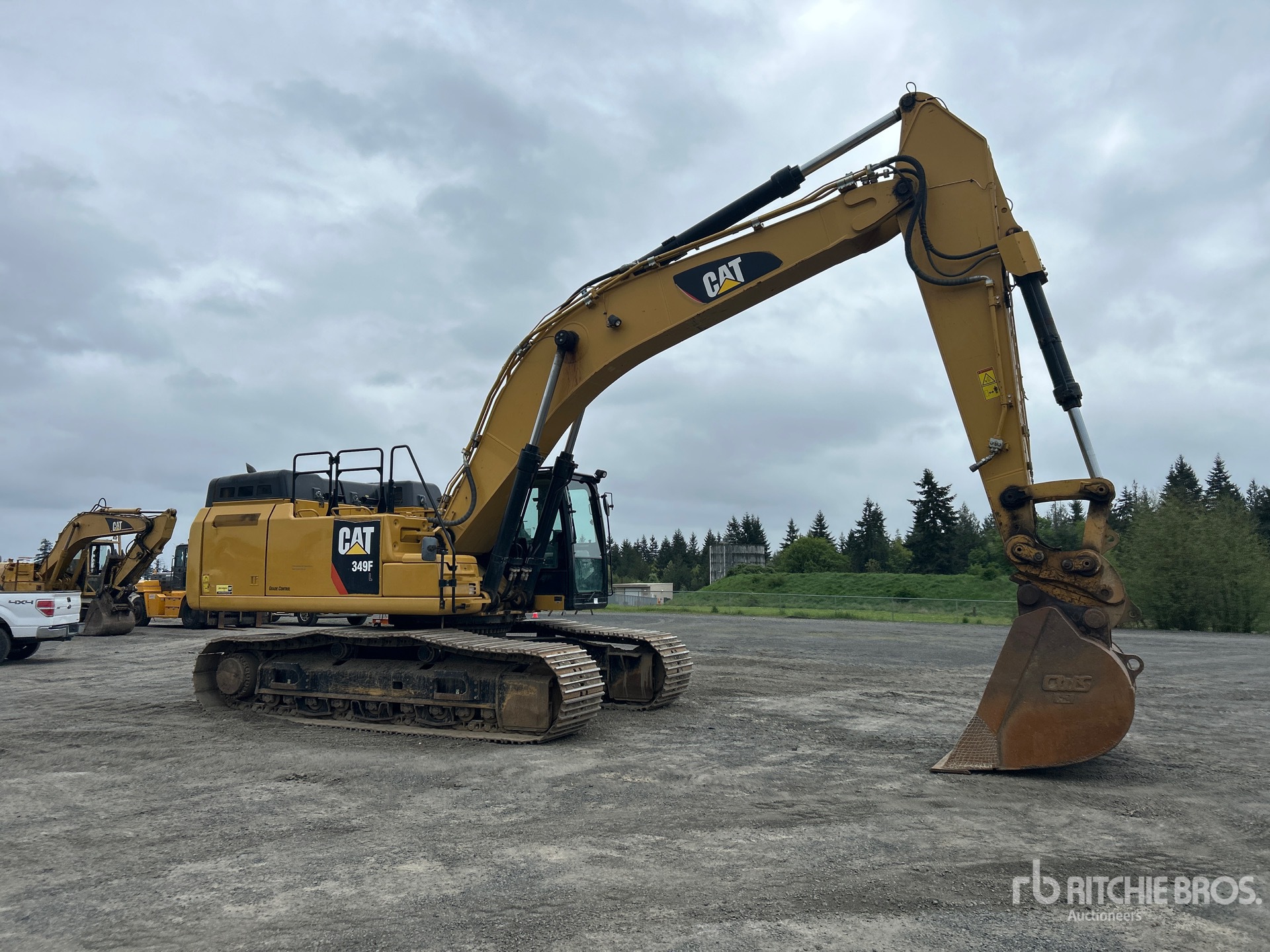

Name: 2015 Caterpillar 349F L
Brand: Caterpillar
SKU: 87334890
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

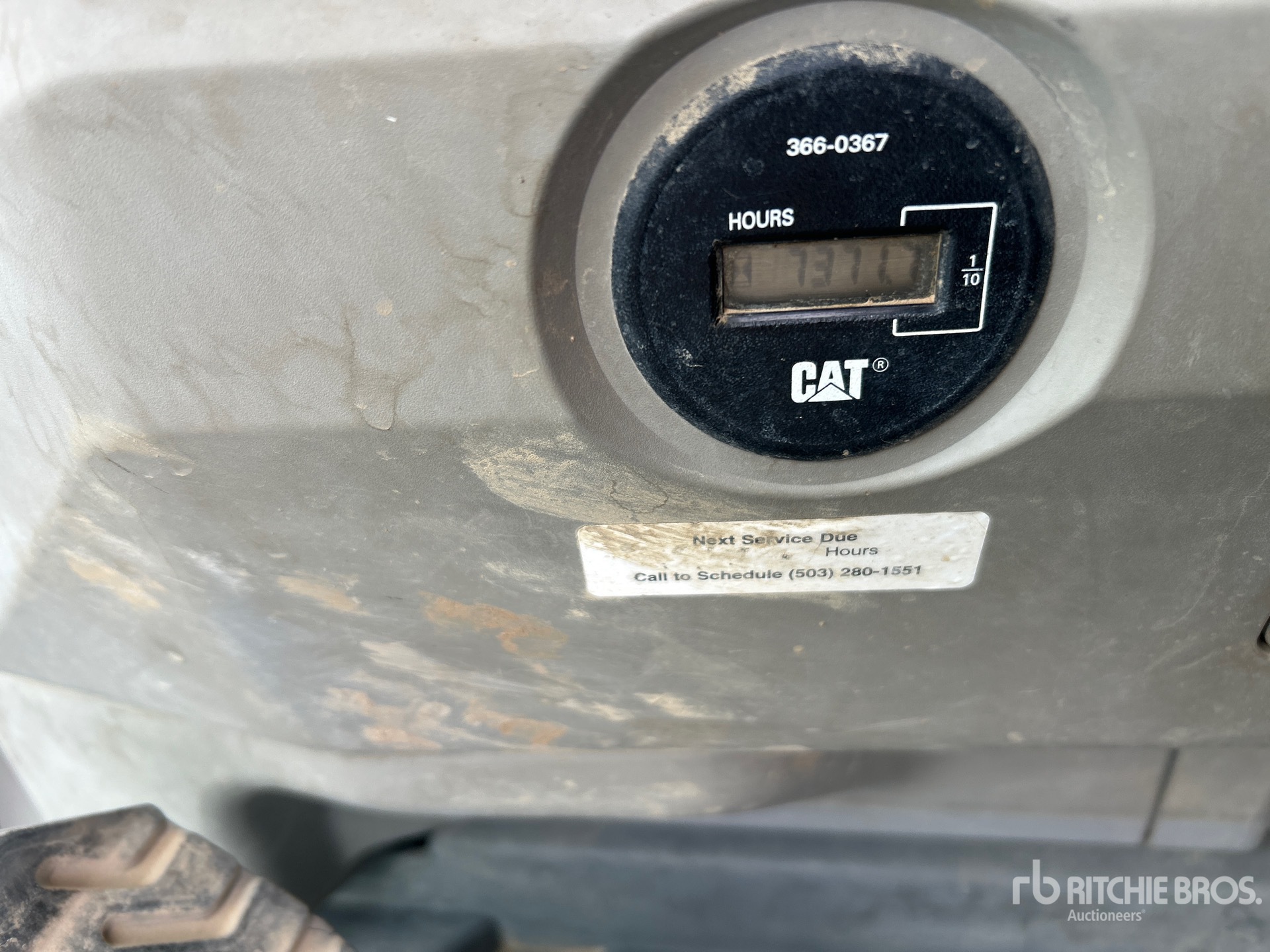

Hours:	7371
Serial Number:	CAT0349FVHPD00329
Machine Location:	CHEHALIS, WA

Description:

Located in Lane 3 Spot 6, Straight Travel Pedal, Rear View Camera, 2015 US EPA Label, Requires Diesel Exhaust Fluid, 13 ft 8 in Stick, Auxiliary Hydraulic Plumbing, 35 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 71 in Cleanup Bucket Closing Time: 2026-05-07 09:51:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 349F L is a large hydraulic excavator in Caterpillar's F Series lineup, designed for heavy-duty earthmoving, mass excavation, and quarry applications. It is powered by a Caterpillar diesel engine and uses an advanced hydraulic system for digging, lifting, and loading performance. The 349F L features a long undercarriage for improved stability, a reinforced boom and stick, and a spacious operator cab with integrated controls and monitoring systems. Common attachments include buckets, hammers, and grapples. The model is used in construction, mining, demolition, and infrastructure projects where high production and durability are required.

Dimensions
Length to Center of Rollers (Since 2017)	4,360 mm (172 in)
Shipping Height (Since 2017)	3,730 mm (147 in)
Shipping Length (Since 2017)	11,900 mm (469 in)
Tail Swing Radius (Since 2017)	3,730 mm (147 in)
Track Gauge (Since 2017)	2,740 mm (108 in)
Track Length (Since 2017)	5,370 mm (211 in)
Drive
Maximum Drawbar Pull (Since 2017)	75,300 lbs ft (102,092 nm)
Maximum Travel Speed (Since 2017)	3 mph (5 kph)
Engine
Bore (Since 2017)	5 in (13 cm)
Displacement (Since 2017)	763 in³
Engine Model (Since 2017)	Cat C13 ACERT
Engine Power - ISO 14396 (Since 2017)	425 hp (317 kw)
Gross Power - SAE J1995 (Since 2017)	432 hp (322 kw)
Net Power - SAE J1349/ISO 9249 (Since 2017)	417 hp (311 kw)
Stroke (Since 2017)	6 in (16 cm)
Hydraulic System
Main System - Maximum Flow (total) (Since 2017)	203 gal/min
Maximum Pressure - Equipment (Heavy Lift) (Since 2017)	5,512 psi
Maximum Pressure - Equipment (Normal) (Since 2017)	5,076 psi
Maximum Pressure - Swing (Since 2017)	3,989 psi
Maximum Pressure - Travel (Since 2017)	5,076 psi
Pilot System - Maximum Flow (Since 2017)	7 gal/min
Pilot System - Maximum Pressure (Since 2017)	598 psi
Swing System - Maximum Flow (Since 2017)	102 gal/min
Machine Weight
Operating Weight (Since 2017)	107,145 lb
Service Refill Capacities
Cooling System (Since 2017)	13 gal (50 l)
DEF Tank Capacity (Since 2017)	11 gal (42 l)
Engine Oil (with filter) (Since 2017)	10 gal (38 l)
Final Drive (each) (Since 2017)	4 gal (15 l)
Fuel Tank Capacity (Since 2017)	190 gal (719 l)
Hydraulic System (including tank) (Since 2017)	151 gal (570 l)
Hydraulic Tank (Since 2017)	108 gal (407 l)
Swing Drive (each) (Since 2017)	3 gal (10 l)
Sound Performance
Exterior - ISO 6395 (Since 2017)	106 db(a)
Operator - SAE J1166/ISO 6396 (Since 2017)	69 db(a)
Swing Mechanism
Swing Speed (Since 2017)	9 rpm
Swing Torque (Since 2017)	109,500 lbf-ft
Working Ranges
Maximum Cutting Height (Since 2017)	10,820 mm (426 in)
Maximum Digging Depth (Since 2017)	7,660 mm (302 in)
Maximum Loading Height (Since 2017)	7,430 mm (293 in)
Maximum Reach at Ground Level (Since 2017)	11,730 mm (462 in)
Minimum Loading Height (Since 2017)	2,750 mm (108 in)
