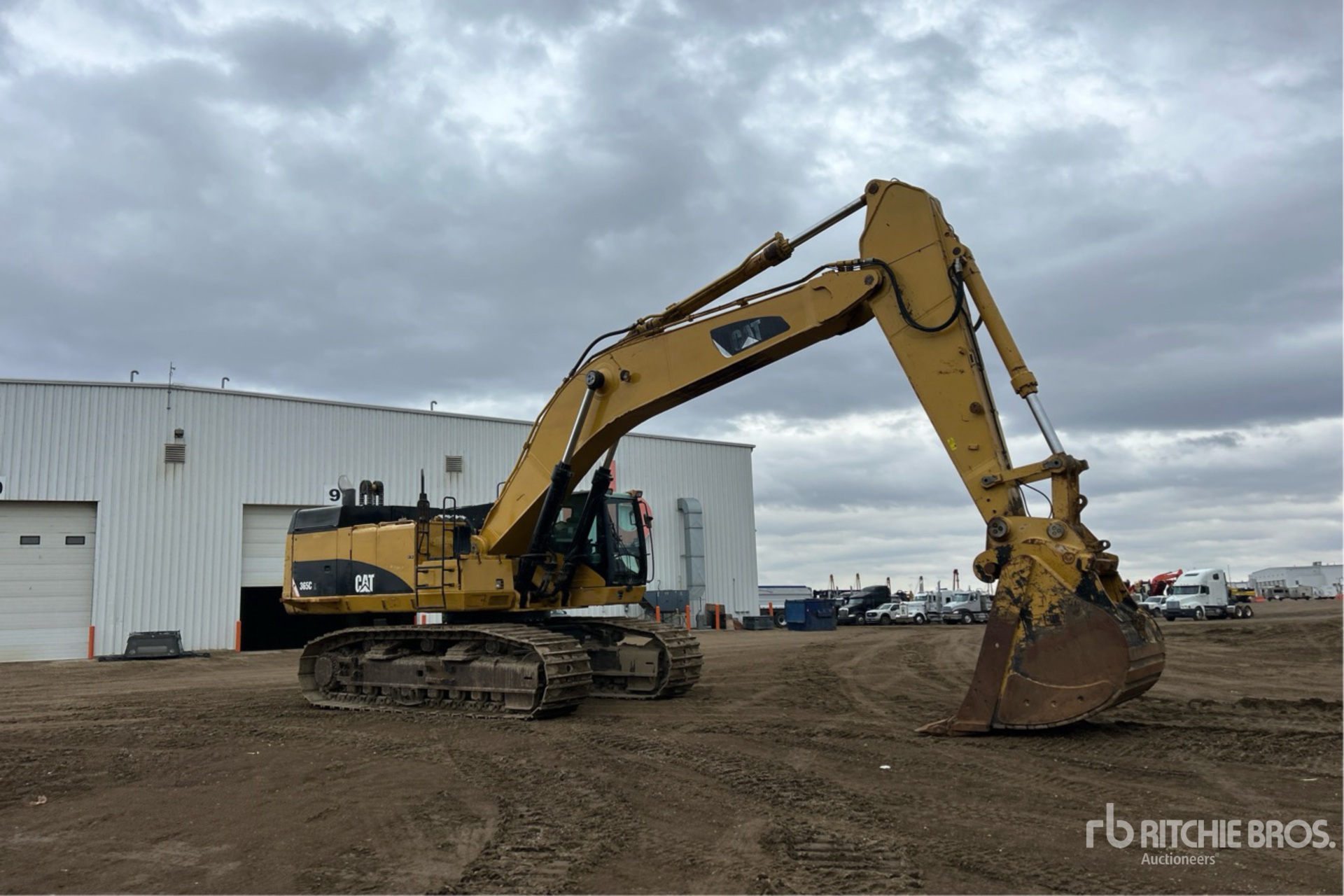

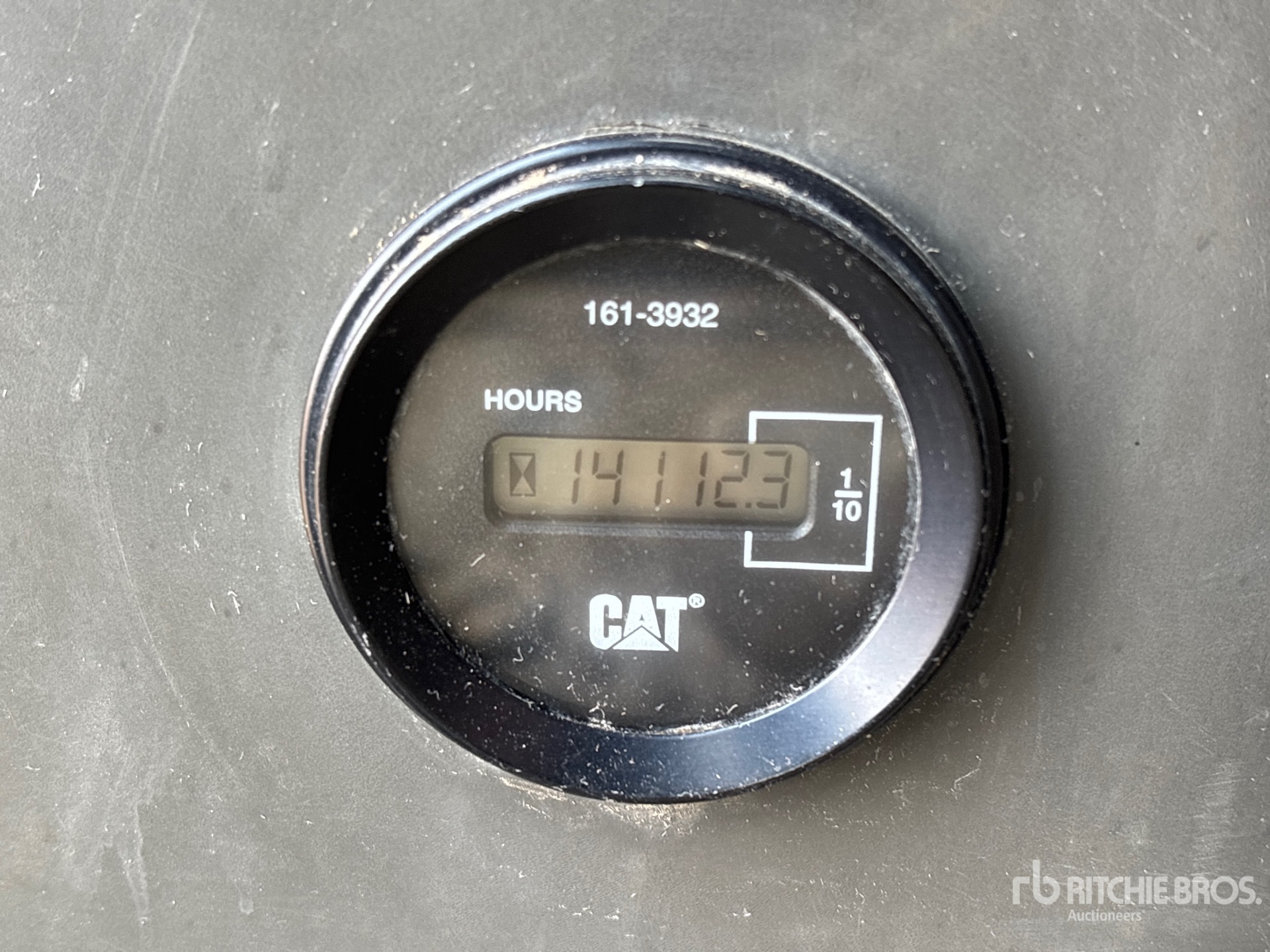

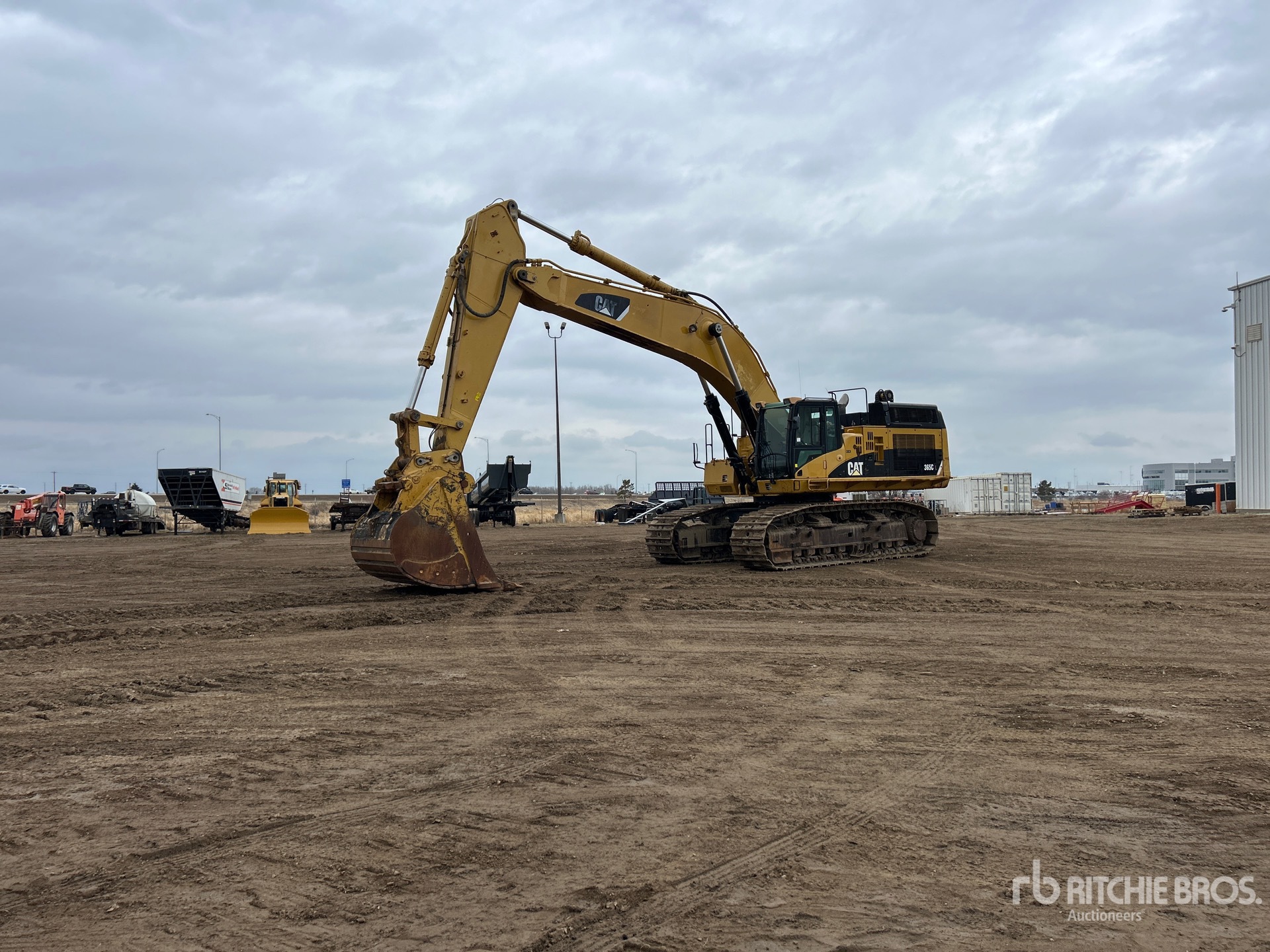

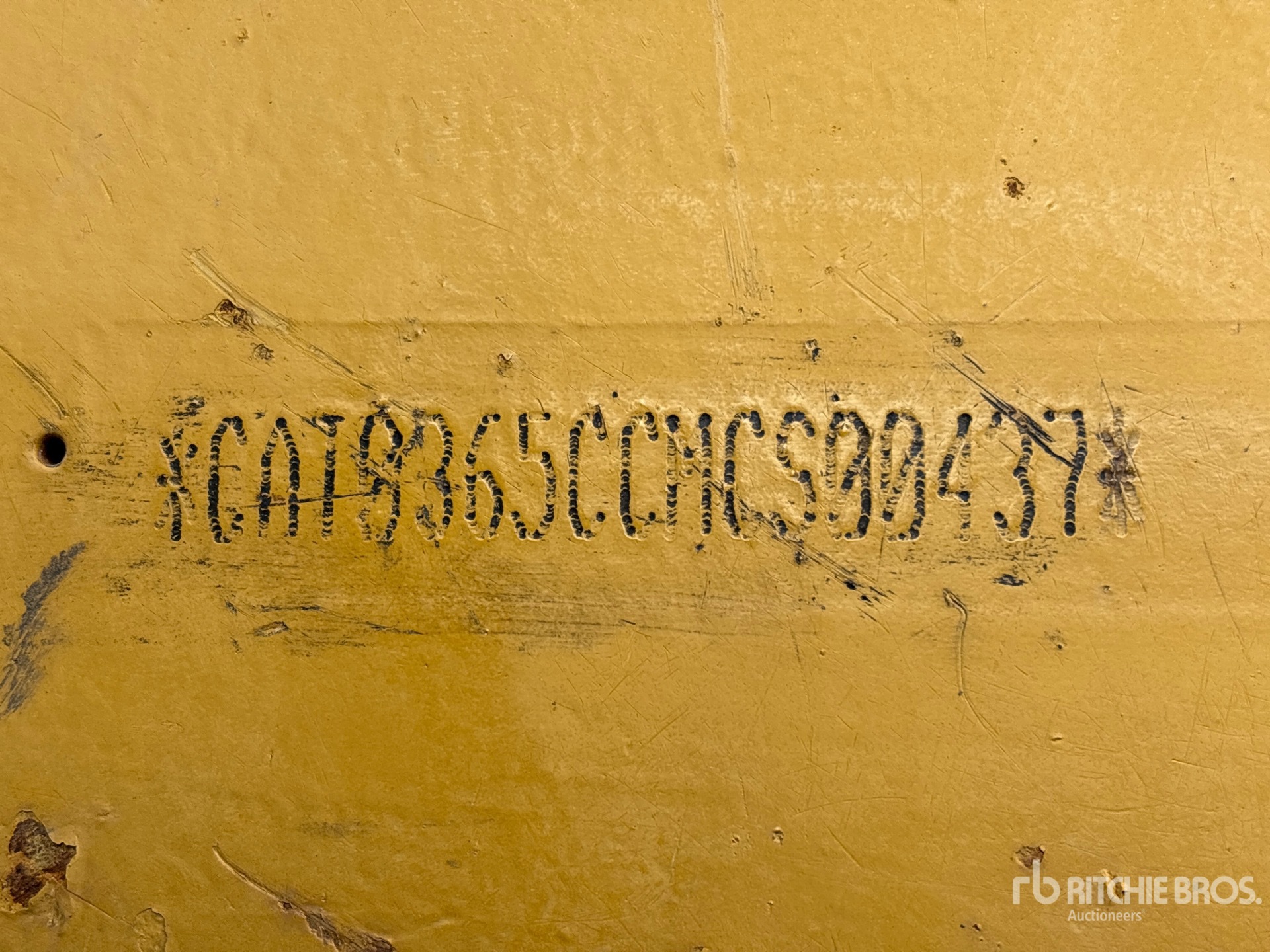

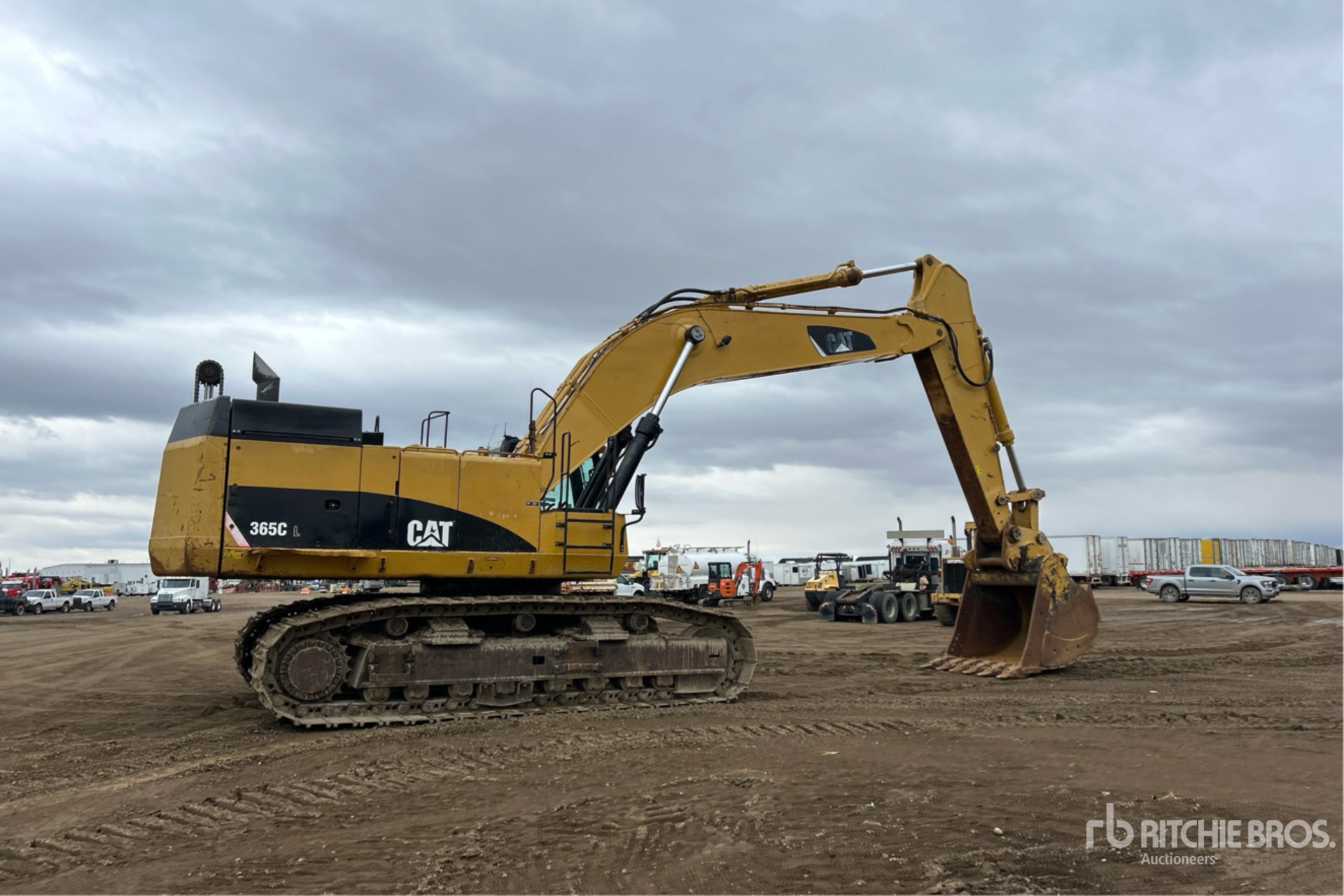

| Boom/Stick Excavator Option 1 |
|
Max Cutting Height |
43 ft (13 m)
|
|
Max Digging Depth |
31 ft (9 m)
|
|
Max Loading Height |
30 ft (9 m)
|
|
Max Reach Along Ground |
46 ft (14 m)
|
|
Max Vertical Wall Digging Depth |
25 ft (8 m)
|
|
Shipping Height of Unit |
16 ft (5 m)
|
|
Shipping Length of Unit |
43 ft (13 m)
|
| Boom/Stick Excavator Option 2 |
|
Max Cutting Height |
42 ft (13 m)
|
|
Max Digging Depth |
29 ft (9 m)
|
|
Max Loading Height |
29 ft (9 m)
|
|
Max Reach Along Ground |
44 ft (14 m)
|
|
Max Vertical Wall Digging Depth |
23 ft (7 m)
|
|
Shipping Height of Unit |
15 ft (5 m)
|
|
Shipping Length of Unit |
44 ft (13 m)
|
| Boom/Stick Excavator Option 3 |
|
Max Cutting Height |
41 ft (13 m)
|
|
Max Digging Depth |
28 ft (8 m)
|
|
Max Loading Height |
28 ft (9 m)
|
|
Max Reach Along Ground |
43 ft (13 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Shipping Length of Unit |
44 ft (13 m)
|
| Boom/Stick Excavator Option 4 |
|
Max Cutting Height |
41 ft (12 m)
|
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
28 ft (8 m)
|
|
Max Reach Along Ground |
41 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
20 ft (6 m)
|
|
Shipping Length of Unit |
44 ft (13 m)
|
| Boom/Stick Excavator Option 5 |
|
Max Cutting Height |
39 ft (12 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
38 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
15 ft (4 m)
|
|
Shipping Height of Unit |
15 ft (5 m)
|
|
Shipping Length of Unit |
40 ft (12 m)
|
| Boom/Stick Excavator Option 6 |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
23 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
36 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
13 ft (4 m)
|
|
Shipping Height of Unit |
15 ft (5 m)
|
|
Shipping Length of Unit |
40 ft (12 m)
|
| Bucket |
|
Maximum Bucket Capacity |
6 cu yd (5 cu m)
|
|
Reference Bucket Capacity |
4 cu yd (3 cu m)
|
| Dimensions |
|
Ground Clearance |
3 ft (1 m)
|
|
Height - Top of Cab |
12 ft (4 m)
|
|
Length of Track on Ground |
16 ft (5 m)
|
|
Removal Counterweight Clearance |
5 ft (2 m)
|
|
Shipping Height |
16 ft (5 m)
|
|
Tail Swing Radius |
13 ft (4 m)
|
|
Width to Outside of Tracks |
12 ft (4 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
5 in (14 cm)
|
|
Displacement |
928 cu in (15,207 cu cm)
|
|
Engine Model |
Cat C15 ACERT |
|
Net Power |
411 hp (306 kw)
|
|
Net Power - EEC 80/1269 |
404 hp (301 kw)
|
|
Net Power - ISO 9249 |
404 hp (301 kw)
|
|
Net Power - SAE J1349 |
404 hp (301 kw)
|
|
Power Measured @ |
1,800 rpm |
|
Stroke |
7 in (17 cm)
|
| Hydraulic System |
|
212 |
212 gpm (802 lpm)
|
|
24 |
24 gpm (91 lpm)
|
|
Boom Cylinder - Bore |
8 in (19 cm)
|
|
Boom Cylinder - Stroke |
71 in (179 cm)
|
|
Maximum Pressure - Equipment - Normal |
4,640 psi |
|
Maximum Pressure - Swing |
4,060 psi |
|
Maximum Pressure - Travel |
5,080 psi |
|
Stick Cylinder - Bore |
8 in (20 cm)
|
|
Stick Cylinder - Stroke |
83 in (212 cm)
|
|
Swing System - Maximum Flow |
94 gpm (356 lpm)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
75 amps |
|
Cooling System Fluid Capacity |
25 gal (95 l)
|
|
Engine Oil Capacity |
14 gal (54 l)
|
|
Fuel Capacity |
211 gal (799 l)
|
|
Hydraulic Pump Flow Capacity |
212 gpm (802 lpm)
|
|
Hydraulic System Fluid Capacity |
177 gal (670 l)
|
|
Hydraulic System Relief Valve Pressure |
4,640 psi |
|
Maximum Bucket Capacity |
6 cu yd (5 cu m)
|
|
Maximum Digging Depth |
32 ft (10 m)
|
|
Operating Weight |
154,037 lbs (69,870 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (12 l)
|
| Service Refill Capacities |
|
Cooling System |
25 gal (95 l)
|
|
Engine Oil |
14 gal (54 l)
|
|
Final Drive - Each |
4 gal (15 l)
|
|
Fuel Tank Capacity |
211 gal (799 l)
|
|
Hydraulic System - Including Tank |
177 gal (670 l)
|
|
Hydraulic Tank |
82 gal (310 l)
|
|
Swing Drive - Each |
3 gal (12 l)
|
| Standards |
|
Brakes |
SAE J1026 APR90 |
|
Cab/FOGS |
SAE J1356 FEB88 ISO 10262 |
| Swing Mechanism |
|
Swing Speed |
7 rpm |
| Track |
|
Number of Shoes - Each Side - Long Undercarriage |
47 |
|
Number of Track Rollers - Each Side - Long Undercarriage |
8 |
|
Optional for Long Undercarriage (1) |
30 in (76 cm)
|
|
Standard with Long Undercarriage |
36 in (91 cm)
|
| Undercarriage |
|
Drawbar Pull |
103,767 lbs (47,068 kg)
|
|
Ground Pressure |
14 psi |
|
Max Travel Speed |
3 mph (4 kph)
|
|
Number of Carrier Rollers per Side |
3 |
|
Number of Shoes per Side |
47 |
|
Number of Track Rollers per Side |
8 |
|
Shoe Size |
26 in (66 cm)
|
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Operating Weight |
145,430 lbs (65,966 kg)
|
|
Operating Weight - Long Undercarriage |
145,430 lbs (65,966 kg)
|
|
Operating Weight - Standard Undercarriage |
145,430 lbs (65,966 kg)
|
