Equipment ↠ Caterpillar ↠ Excavators ↠ 1993 Caterpillar 375

1993 Caterpillar 375 For Sale in Las Vegas, Nv

Name: 1993 Caterpillar 375
Brand: Caterpillar
SKU: 87241946
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-05 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

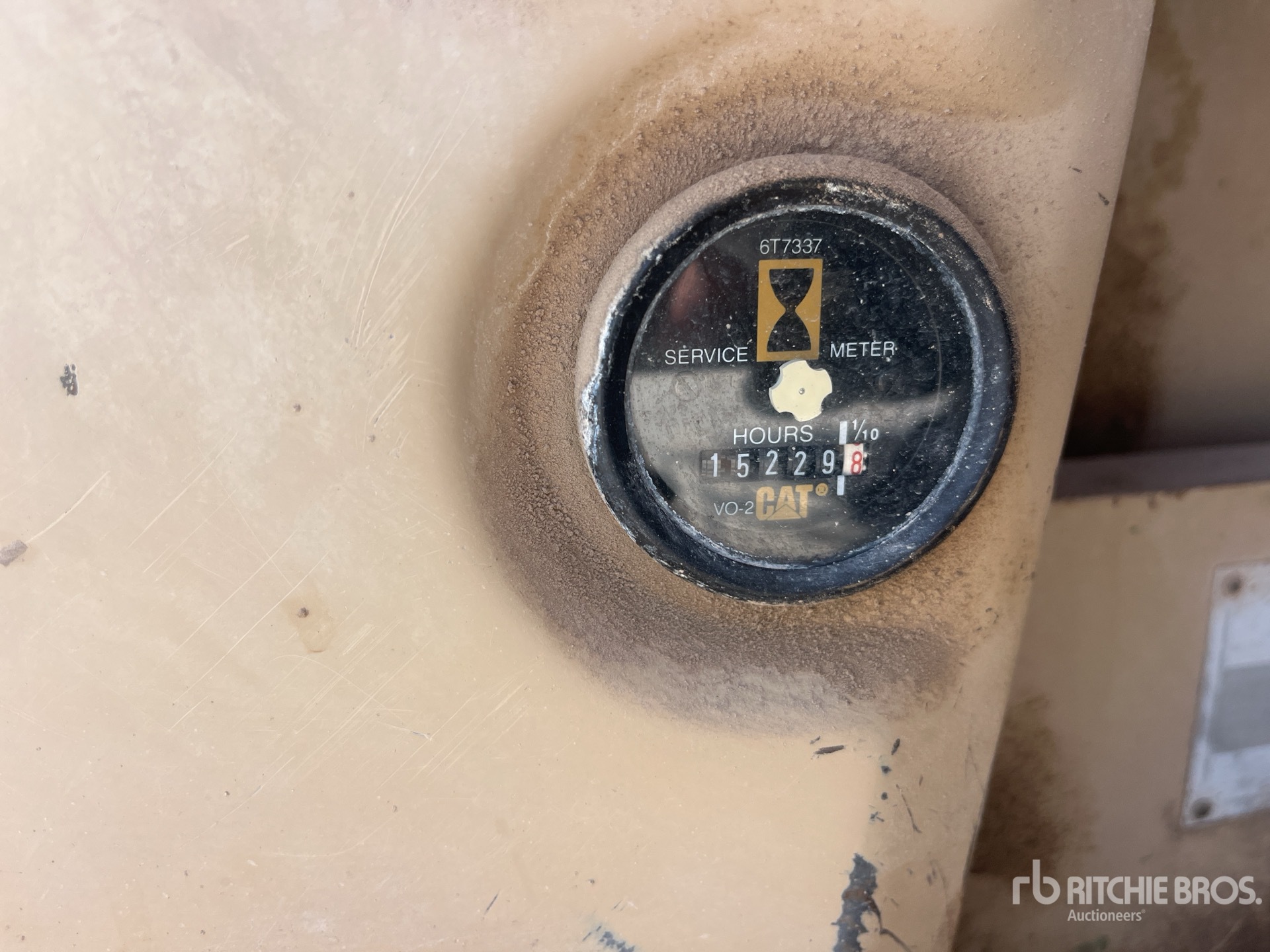

Hours:	15229

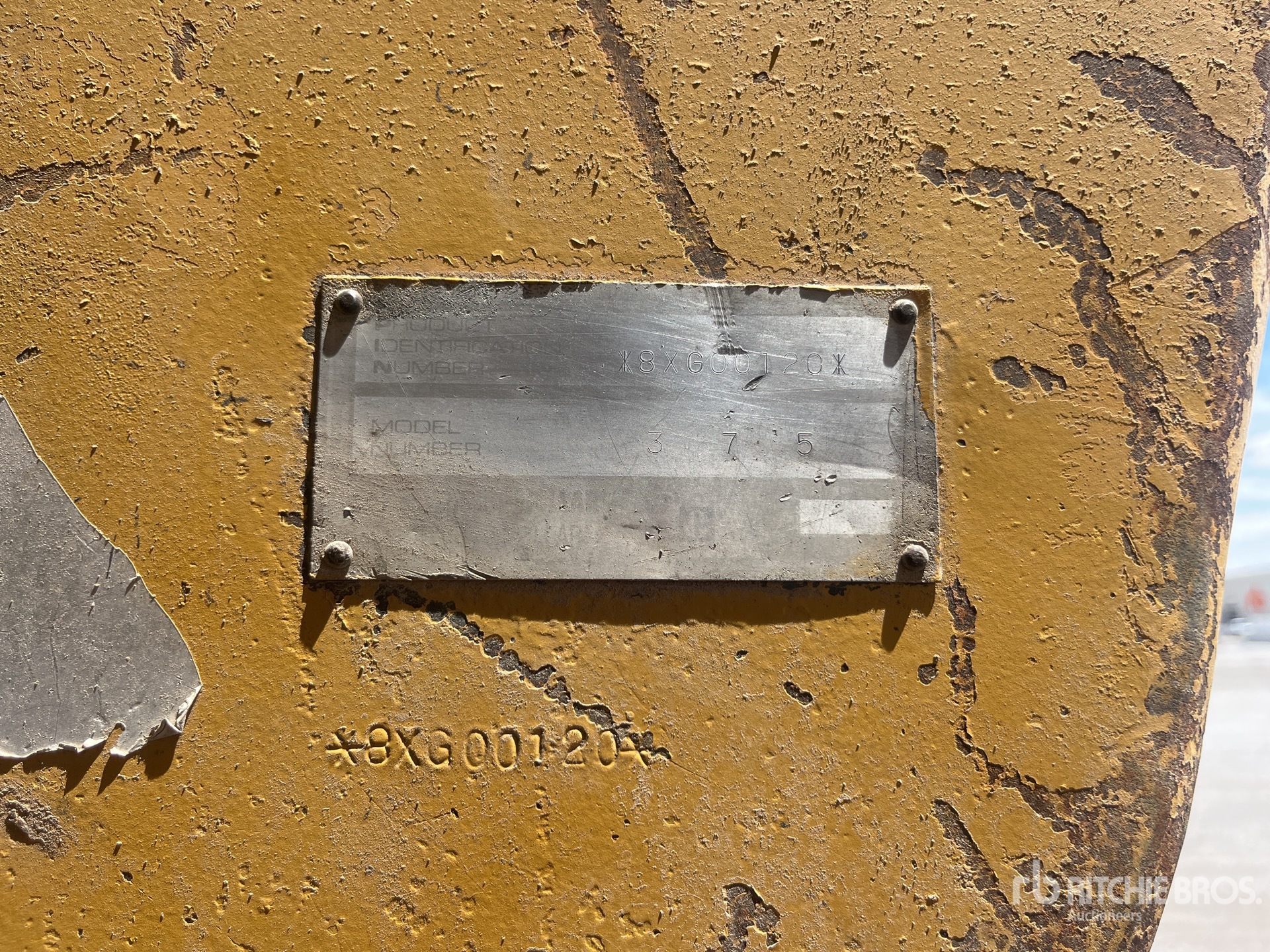

Serial Number:	8XG00120
Machine Location:	LAS VEGAS, NV

Description:

29.5 in Double Grouser Track Shoes, Catwalks Closing Time: 2026-06-05 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	48 ft (15 m)
Max Digging Depth	36 ft (11 m)
Max Loading Height	34 ft (10 m)
Max Reach Along Ground	52 ft (16 m)
Max Vertical Wall Digging Depth	31 ft (9 m)
Shipping Height of Unit	15 ft (5 m)
Shipping Length of Unit	48 ft (15 m)
Boom/Stick Excavator Option 2
Max Cutting Height	44 ft (14 m)
Max Digging Depth	32 ft (10 m)
Max Loading Height	32 ft (10 m)
Max Reach Along Ground	48 ft (15 m)
Max Vertical Wall Digging Depth	27 ft (8 m)
Shipping Height of Unit	15 ft (5 m)
Shipping Length of Unit	48 ft (15 m)
Boom/Stick Excavator Option 3
Max Cutting Height	45 ft (14 m)
Max Digging Depth	32 ft (10 m)
Max Loading Height	31 ft (10 m)
Max Reach Along Ground	49 ft (15 m)
Max Vertical Wall Digging Depth	26 ft (8 m)
Shipping Height of Unit	15 ft (5 m)
Shipping Length of Unit	48 ft (15 m)
Boom/Stick Excavator Option 4
Max Cutting Height	44 ft (13 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	31 ft (9 m)
Max Reach Along Ground	45 ft (14 m)
Max Vertical Wall Dig Depth	24 ft (7 m)
Shipping Length of Unit	48 ft (15 m)
Boom/Stick Excavator Option 5
Max Cutting Height	48 ft (15 m)
Max Digging Depth	35 ft (11 m)
Max Loading Height	34 ft (10 m)
Max Reach Along Ground	52 ft (16 m)
Max Vertical Wall Dig Depth	31 ft (9 m)
Shipping Height of Unit	17 ft (5 m)
Shipping Length of Unit	47 ft (14 m)
Boom/Stick Excavator Option 6
Max Cutting Height	43 ft (13 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	29 ft (9 m)
Max Reach Along Ground	43 ft (13 m)
Max Vertical Wall Dig Depth	23 ft (7 m)
Shipping Height of Unit	16 ft (5 m)
Shipping Length of Unit	43 ft (13 m)
Dimensions
Ground Clearance	3 ft (1 m)
Height - Top of Cab	12 ft (4 m)
Length of Track on Ground	15 ft (5 m)
Removal Counterweight Clearance	5 ft (2 m)
Tail Swing Radius	14 ft (4 m)
Width to Outside of Tracks	12 ft (4 m)
Engine
Bore	5 in (14 cm)
Displacement	893 cu in (14,634 cu cm)
Engine Model	Cat 3406C Turbocharged ATAAC
Net Power	428 hp (319 kw)
Net Power - EEC 80/1269	428 hp (319 kw)
Net Power - ISO 9249	428 hp (319 kw)
Net Power - SAE J1349	428 hp (319 kw)
Stroke	7 in (17 cm)
Hydraulic System
13.2	13 gpm (50 lpm)
228	228 gpm (863 lpm)
Boom Cylinder - Bore	8 in (20 cm)
Boom Cylinder - Stroke	77 in (197 cm)
Maximum Pressure - Equipment - Normal	4,550 psi
Maximum Pressure - Swing	3,980 psi
Maximum Pressure - Travel	4,980 psi
Stick Cylinder - Bore	9 in (22 cm)
Stick Cylinder - Stroke	89 in (226 cm)
Swing System - Maximum Flow	90 gpm (341 lpm)
Operating Specifications
Fuel Capacity	262 gal (990 l)
Hydraulic Pump Flow Capacity	227 gpm (860 lpm)
Hydraulic System Relief Valve Pressure	4,980 psi
Maximum Digging Depth	35 ft (11 m)
Operating Weight	178,993 lbs (81,190 kg)
Service Refill Capacities
Cooling System	25 gal (95 l)
Engine Oil	17 gal (65 l)
Final Drive - Each	7 gal (25 l)
Fuel Tank Capacity	261 gal (988 l)
Hydraulic System - Including Tank	263 gal (995 l)
Hydraulic Tank	206 gal (780 l)
Swing Drive - Each	4 gal (14 l)
Track
Number of Shoes - Each Side - Long Undercarriage	51
Number of Track Rollers - Each Side - Long Undercarriage	9
Standard with Long Undercarriage	36 in (91 cm)
Undercarriage
Drawbar Pull	122,800 lbs (55,701 kg)
Max Travel Speed	3 mph (5 kph)
Shoe Size	24 in (61 cm)
Track Gauge	9 ft (3 m)
Weights
Operating Weight - Long Undercarriage	179,800 lbs (81,556 kg)
Operating Weight - Standard Undercarriage	173,100 lbs (78,517 kg)
