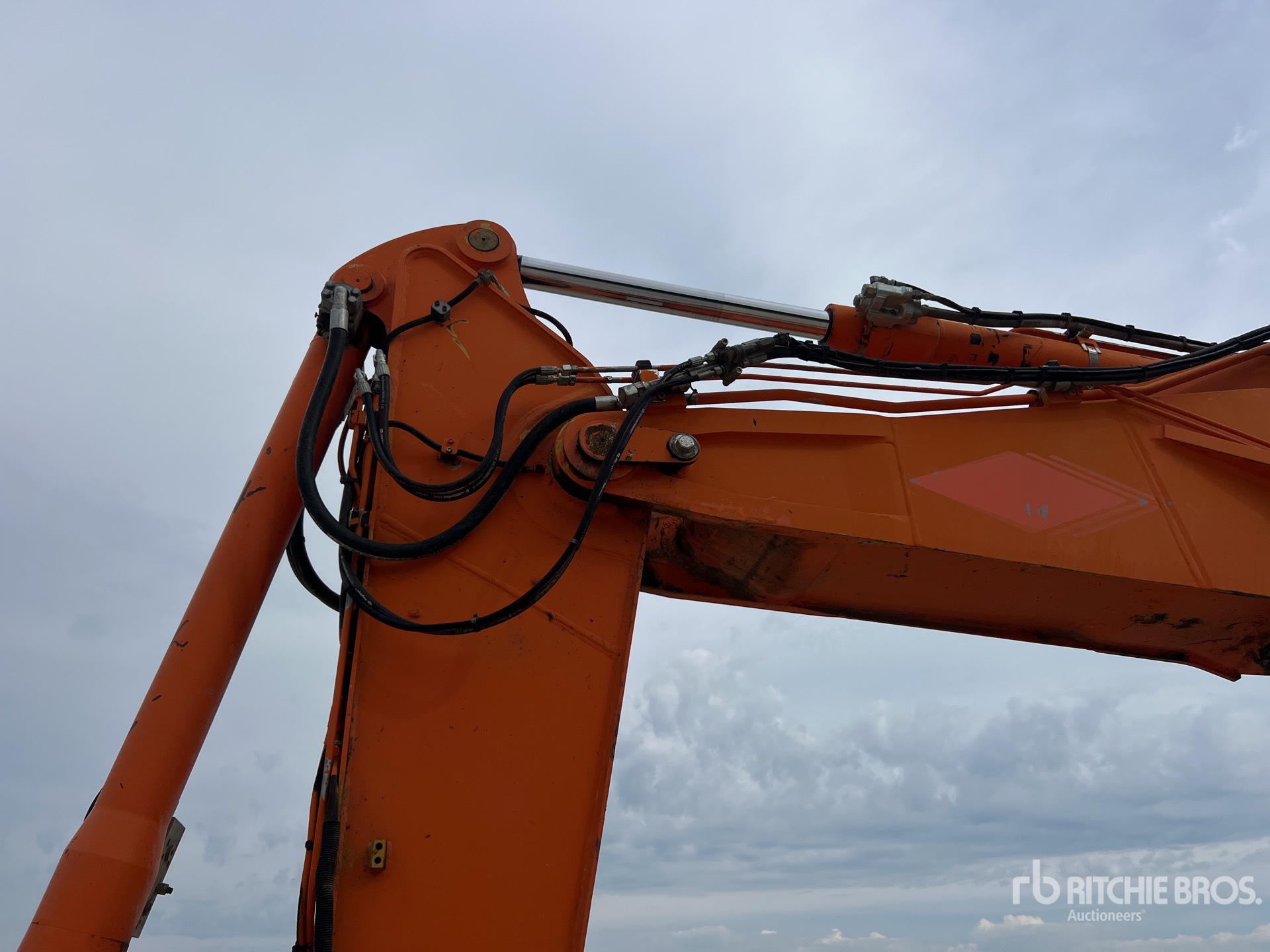

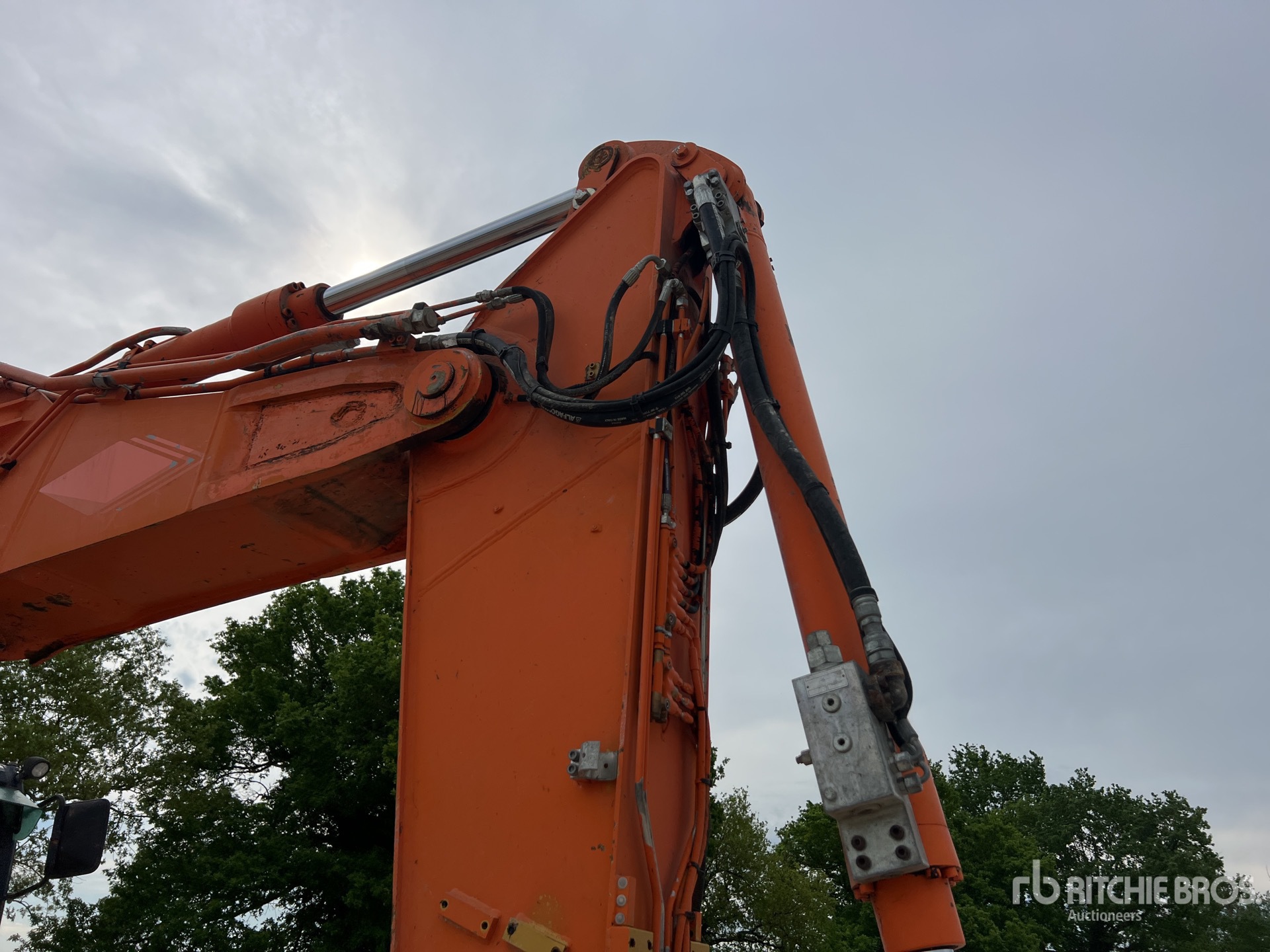

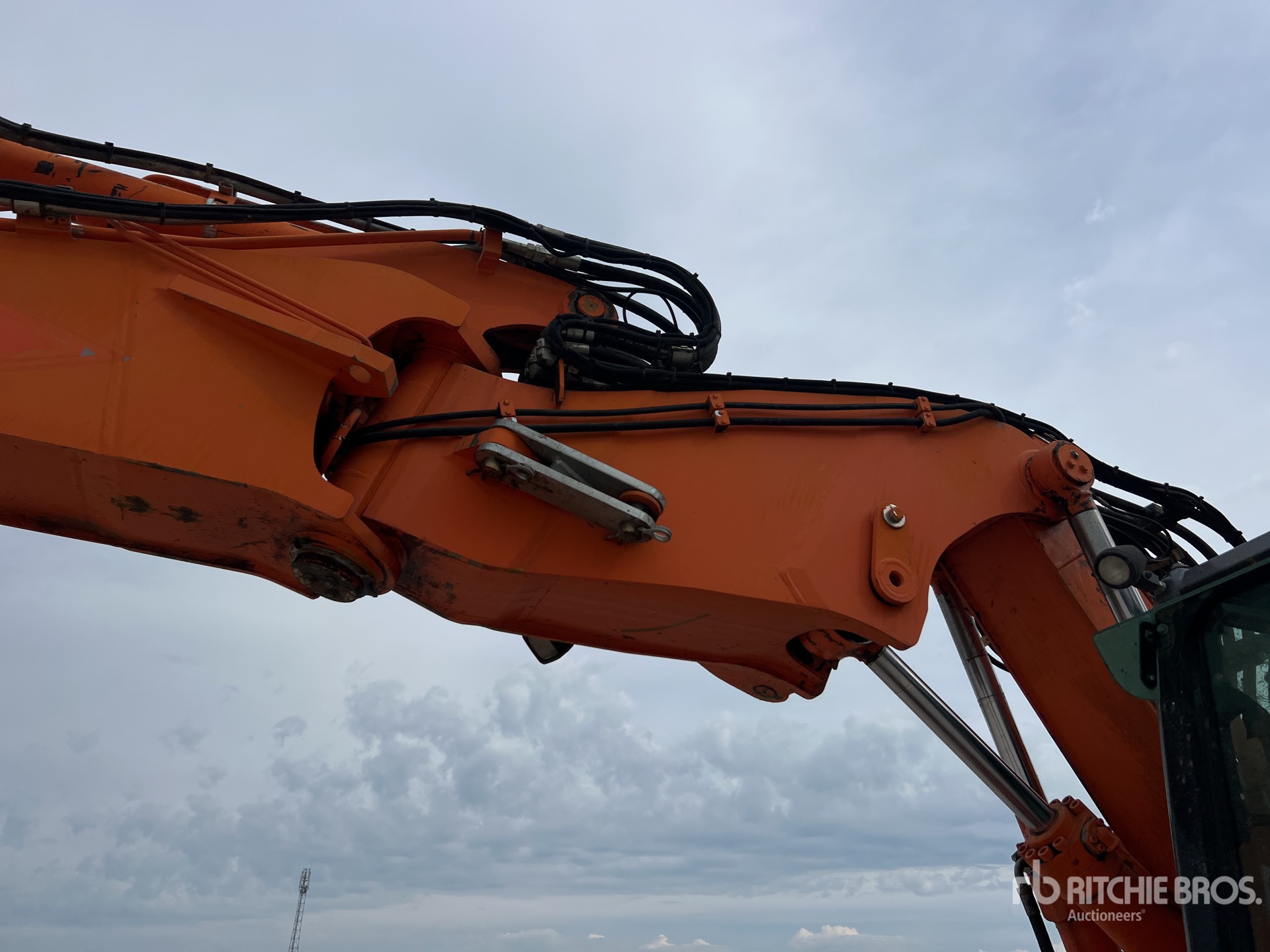

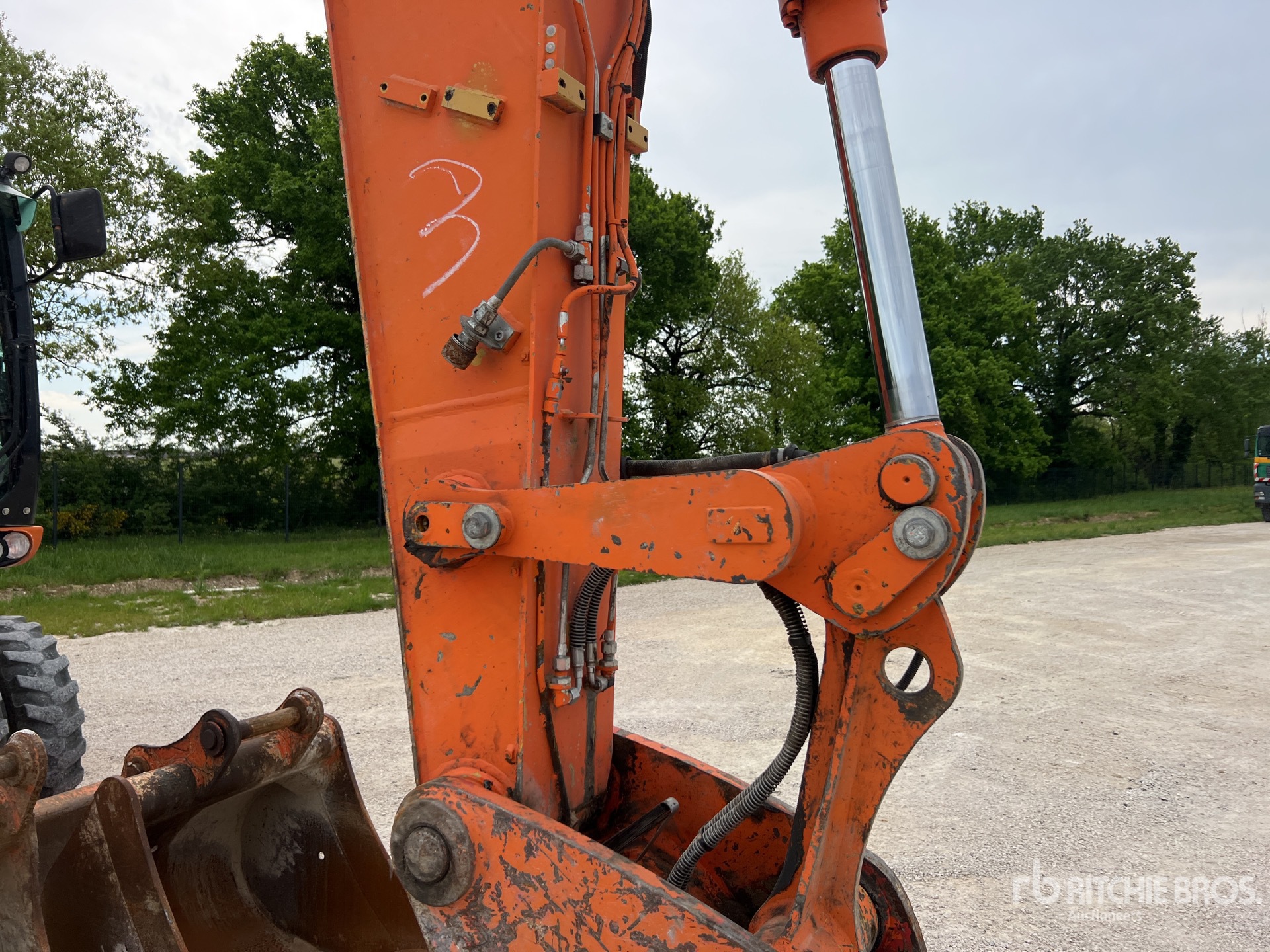

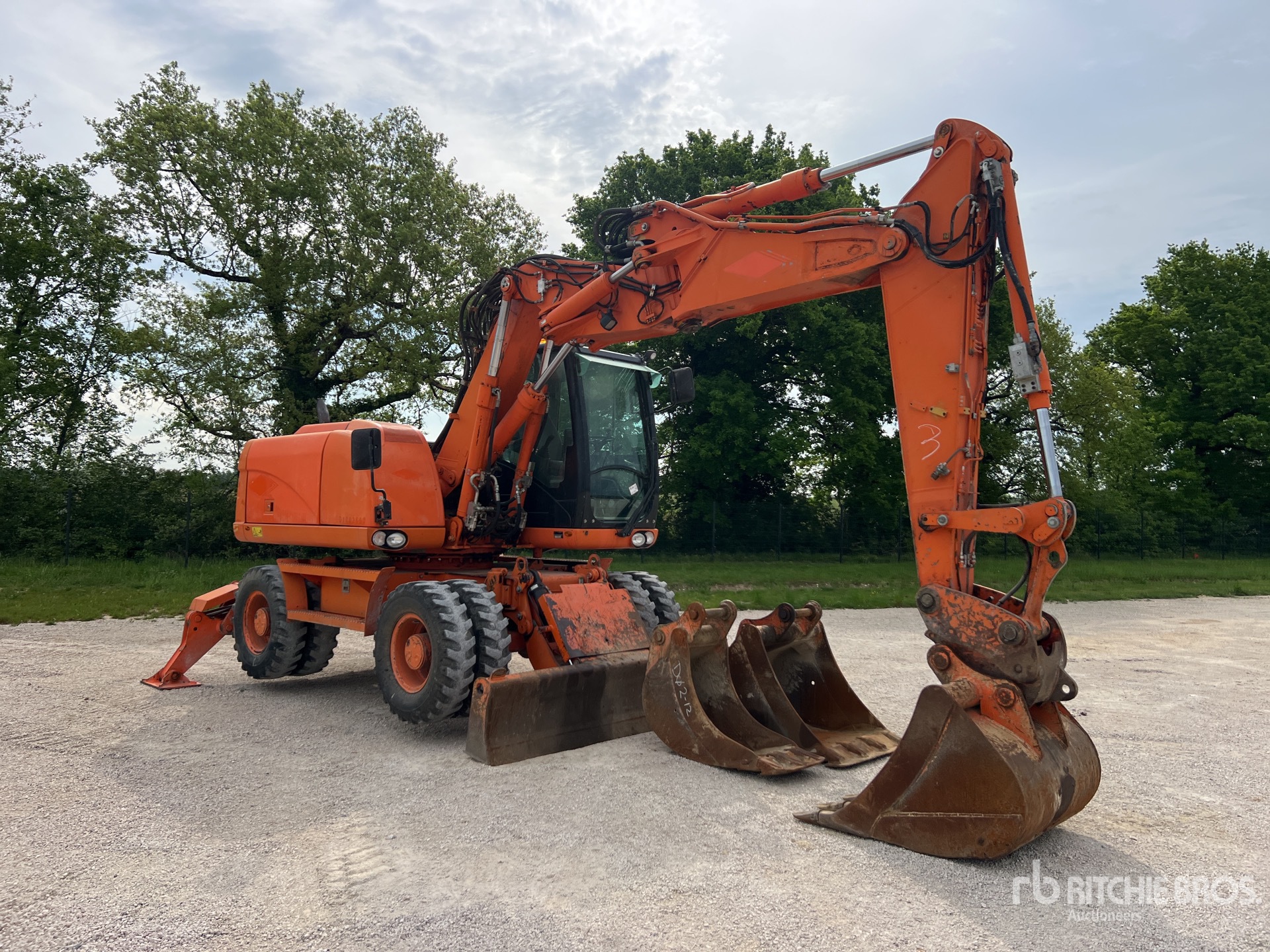

| Boom/Stick Excavator Option 1 |
|
Max Digging Depth |
18 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|

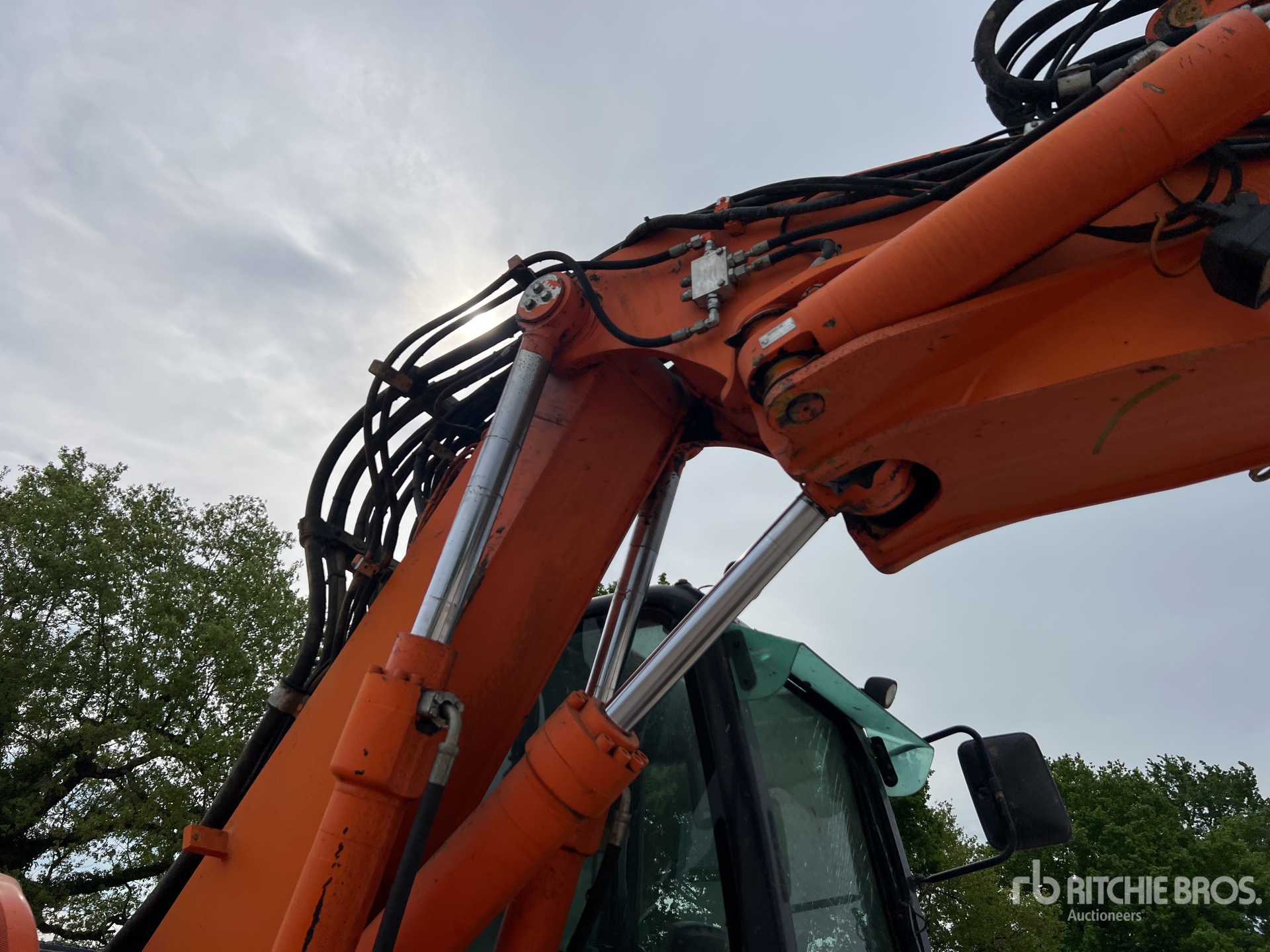

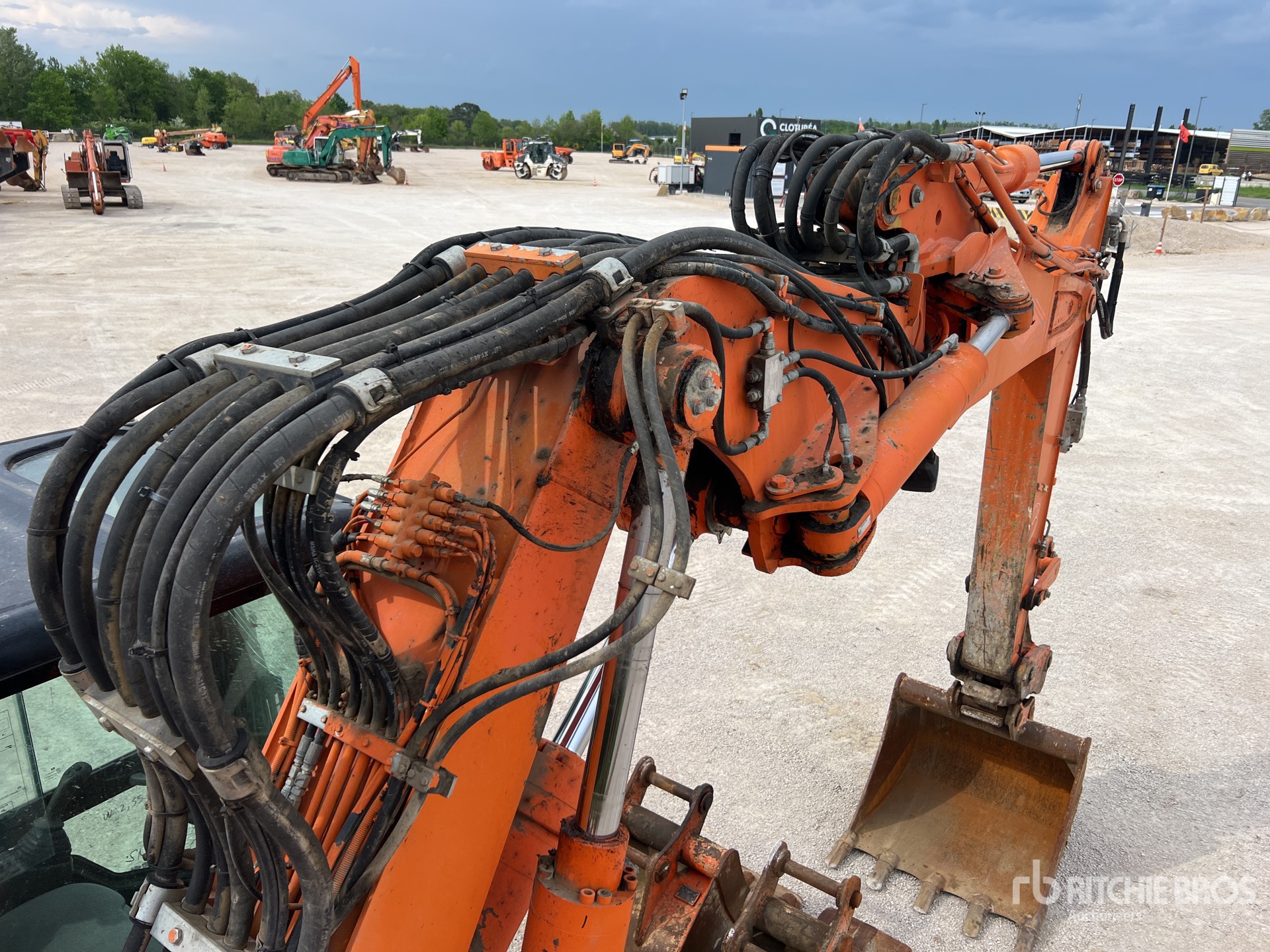

| Boom/Stick Mobile Excavator Option 1 |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
17 ft (5 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
28 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
12 ft (4 m)
|
|
Shipping Height of Unit |
10 ft (3 m)
|
|
Shipping Length of Unit |
27 ft (8 m)
|

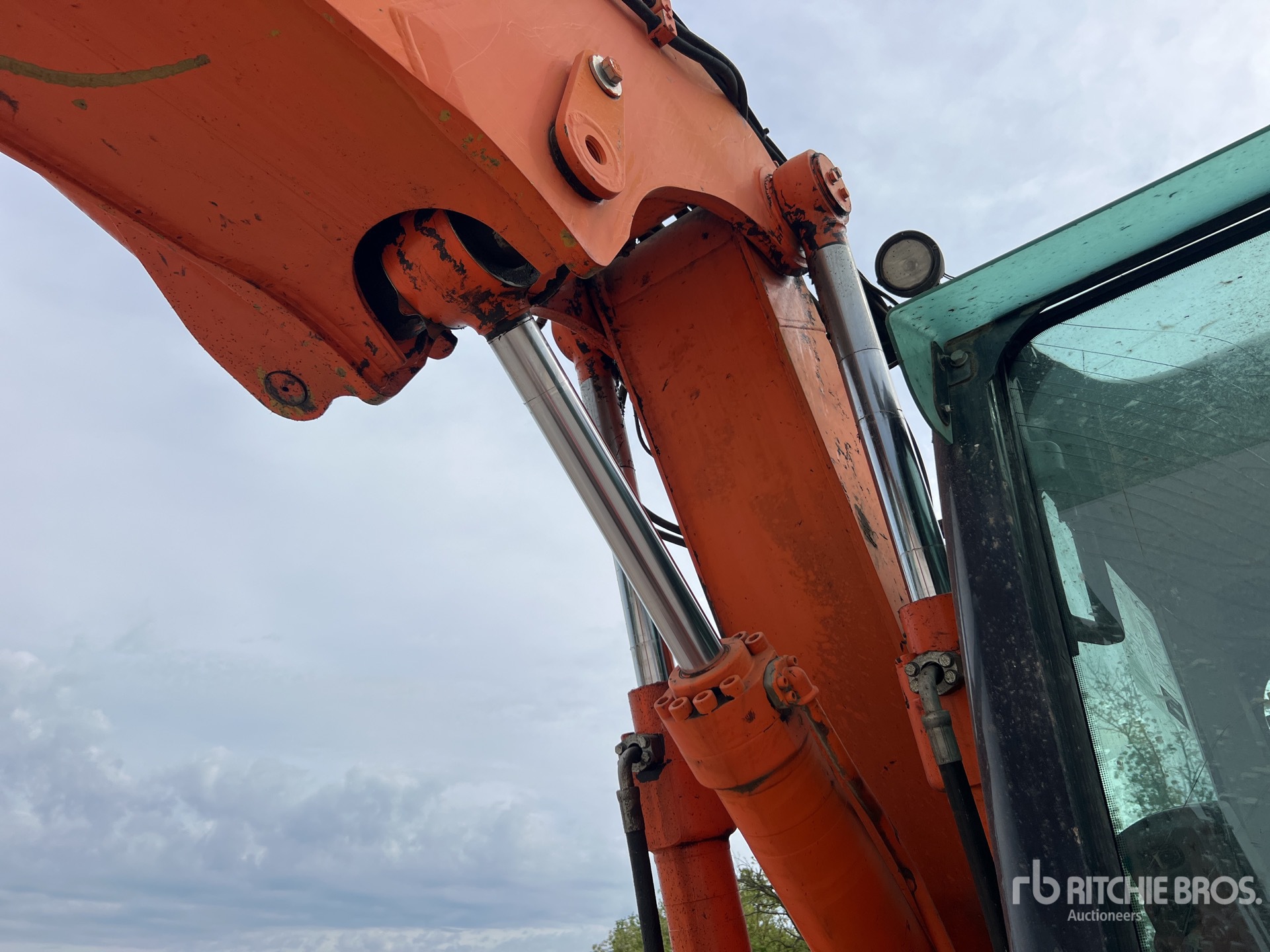

| Boom/Stick Mobile Excavator Option 2 |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
30 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
13 ft (4 m)
|
|
Shipping Height of Unit |
10 ft (3 m)
|
|
Shipping Length of Unit |
27 ft (8 m)
|
| Boom/Stick Mobile Excavator Option 3 |
|
Max Cutting Height |
28 ft (9 m)
|
|
Max Digging Depth |
16 ft (5 m)
|
|
Max Loading Height |
19 ft (6 m)
|
|
Max Reach Along Ground |
27 ft (8 m)
|
|
Max Vertical Wall Dig Depth |
11 ft (3 m)
|
|
Shipping Height of Unit |
10 ft (3 m)
|
|
Shipping Length of Unit |
27 ft (8 m)
|
| Boom/Stick Mobile Excavator Option 4 |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
17 ft (5 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
28 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
12 ft (4 m)
|
|
Shipping Height of Unit |
10 ft (3 m)
|
|
Shipping Length of Unit |
27 ft (8 m)
|

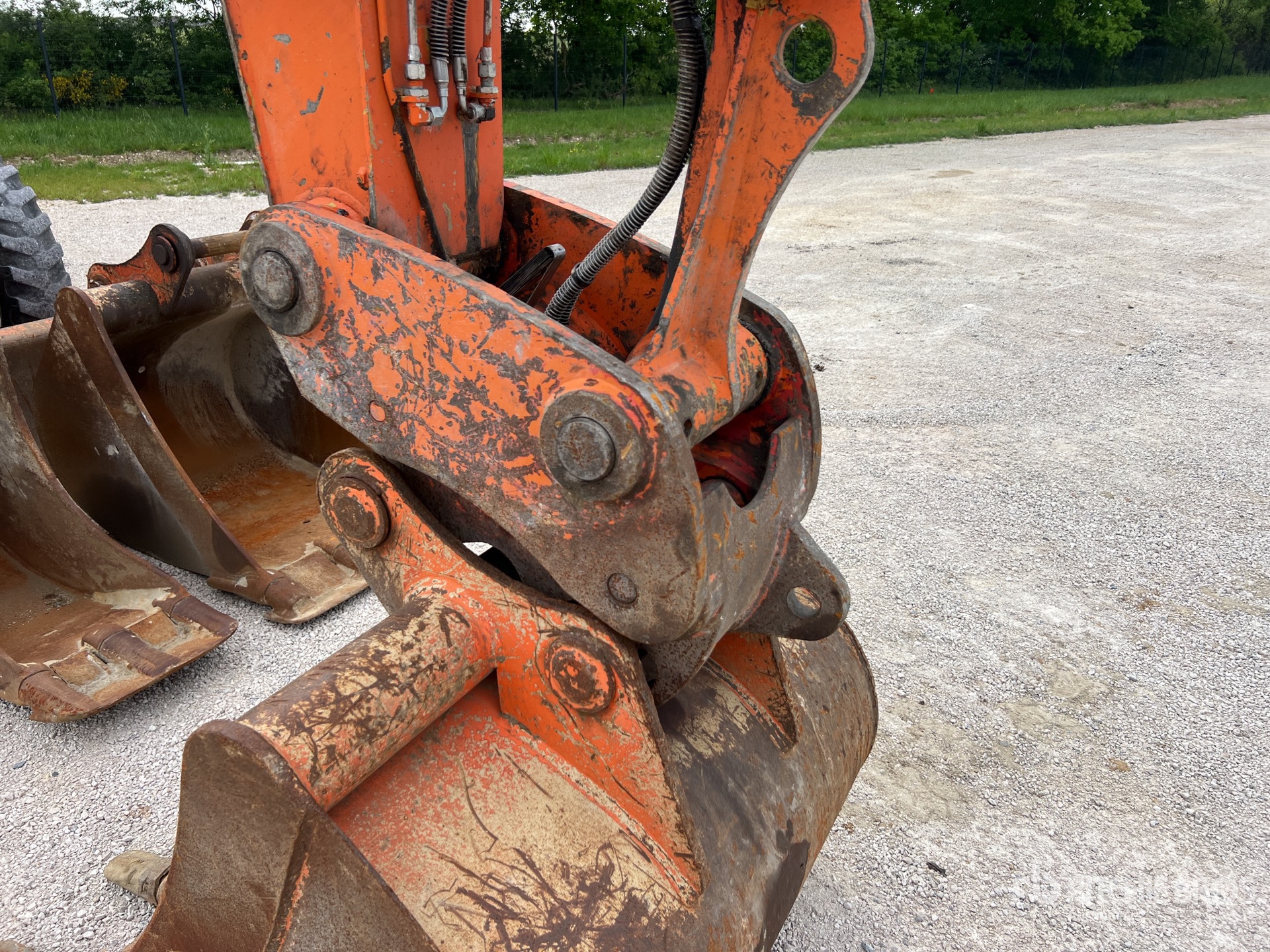

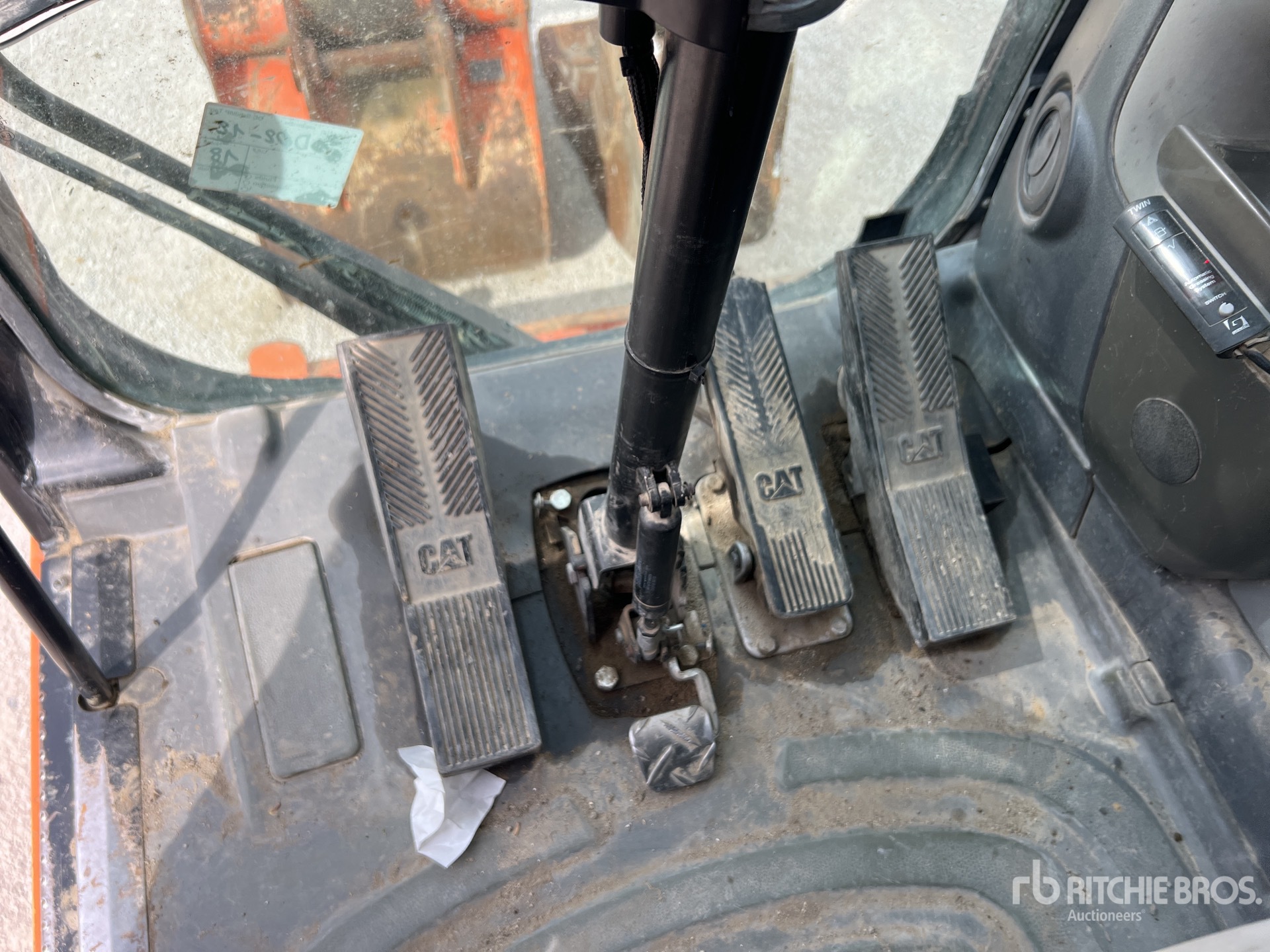

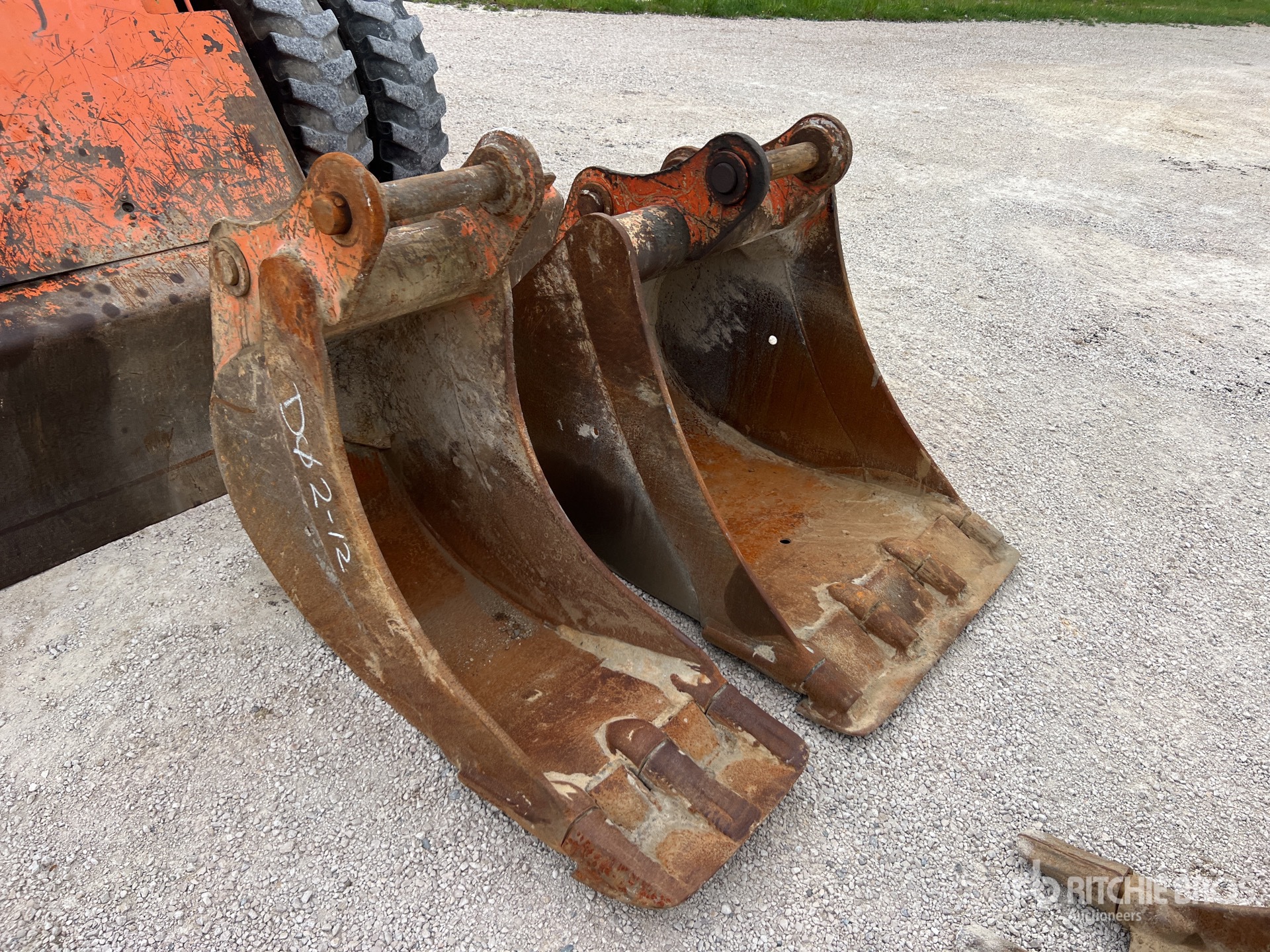

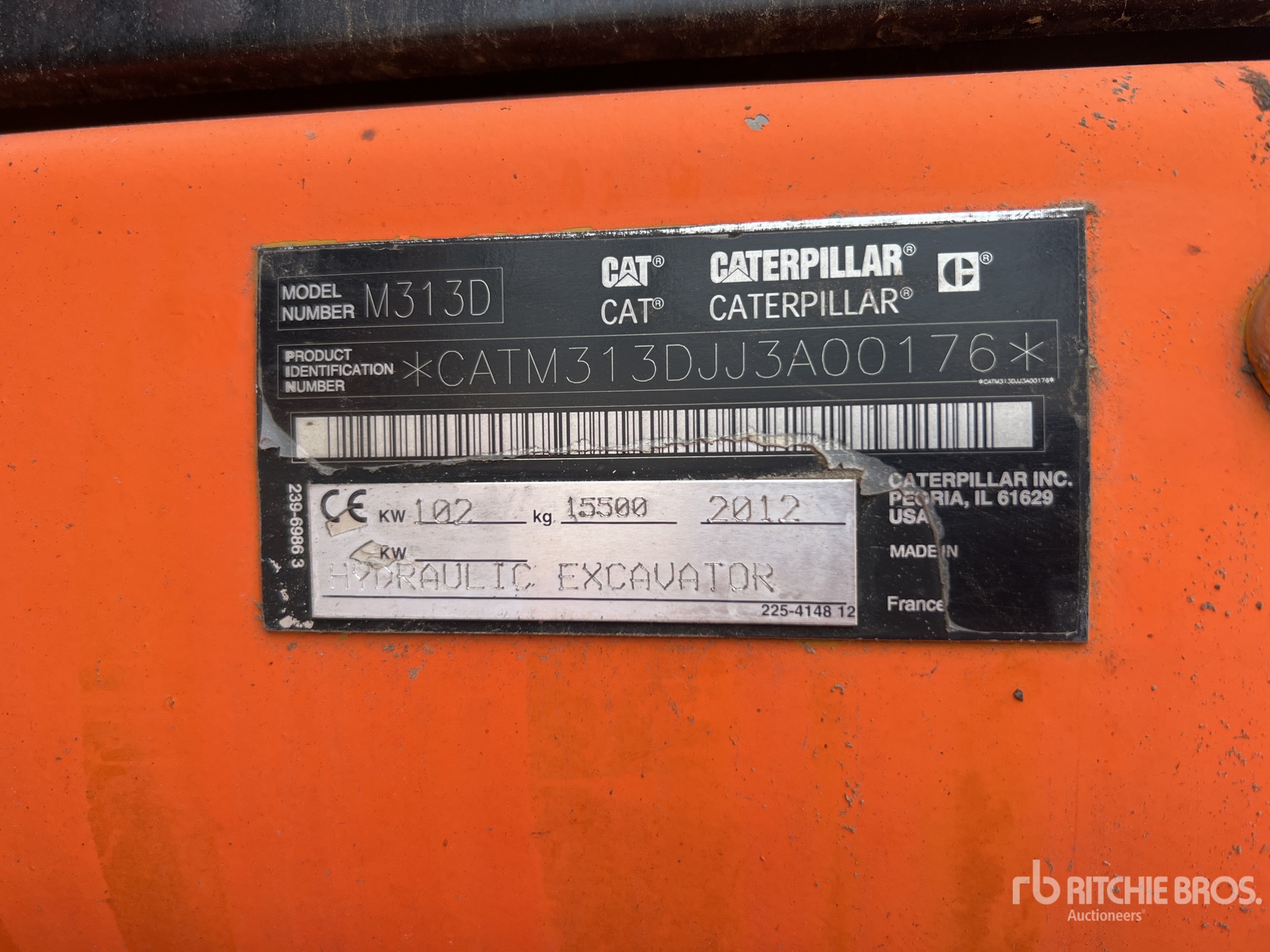

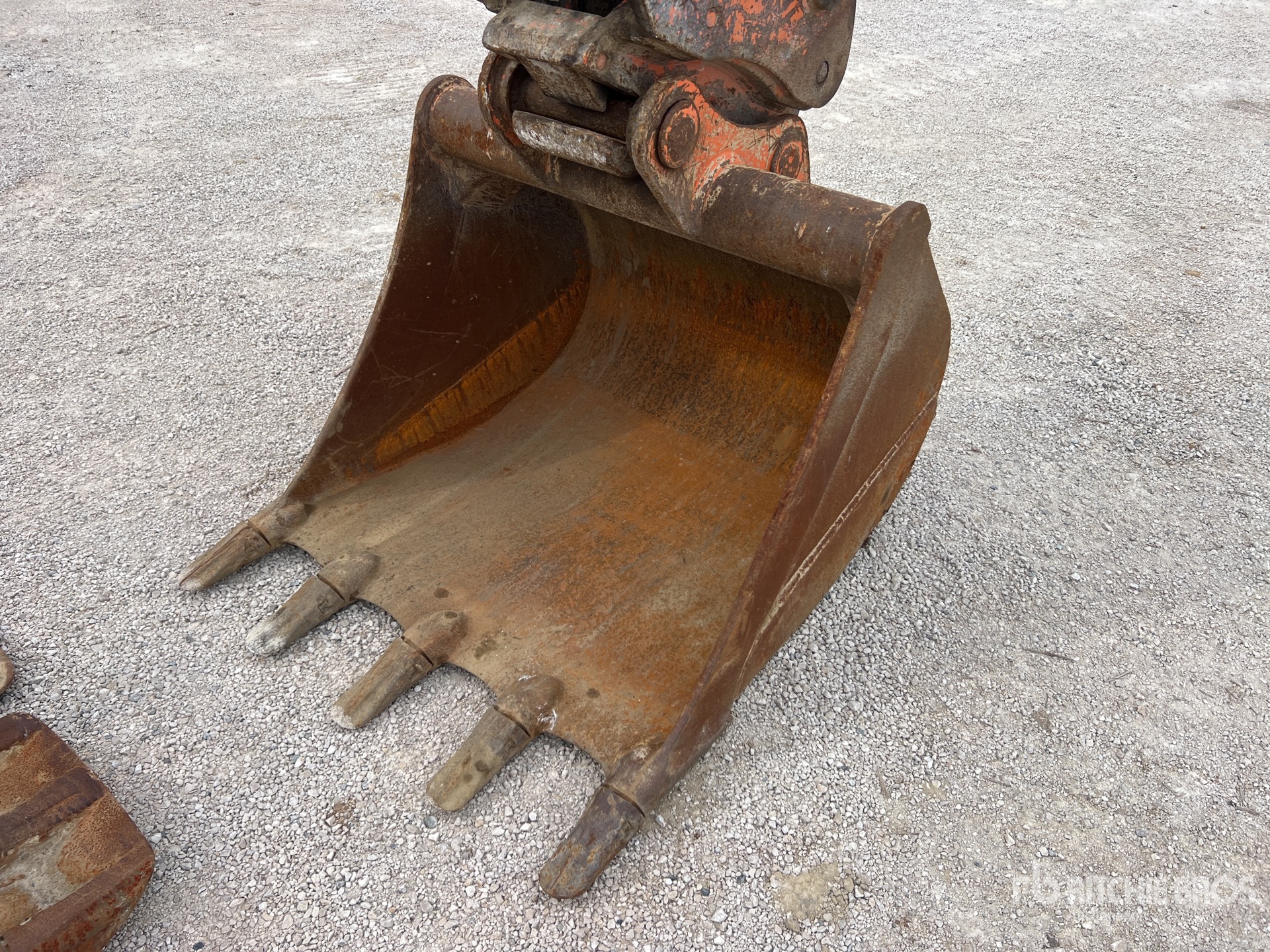

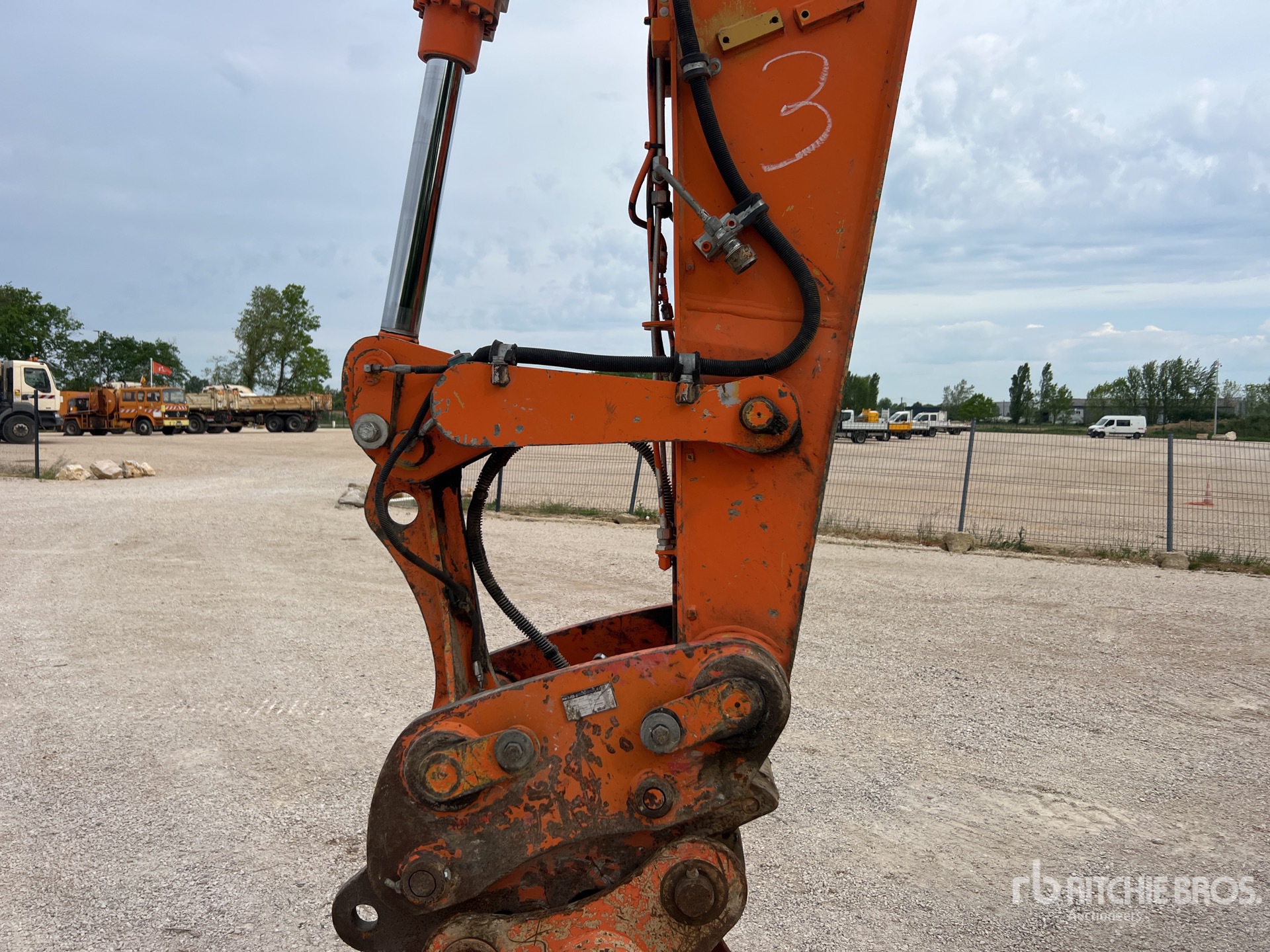

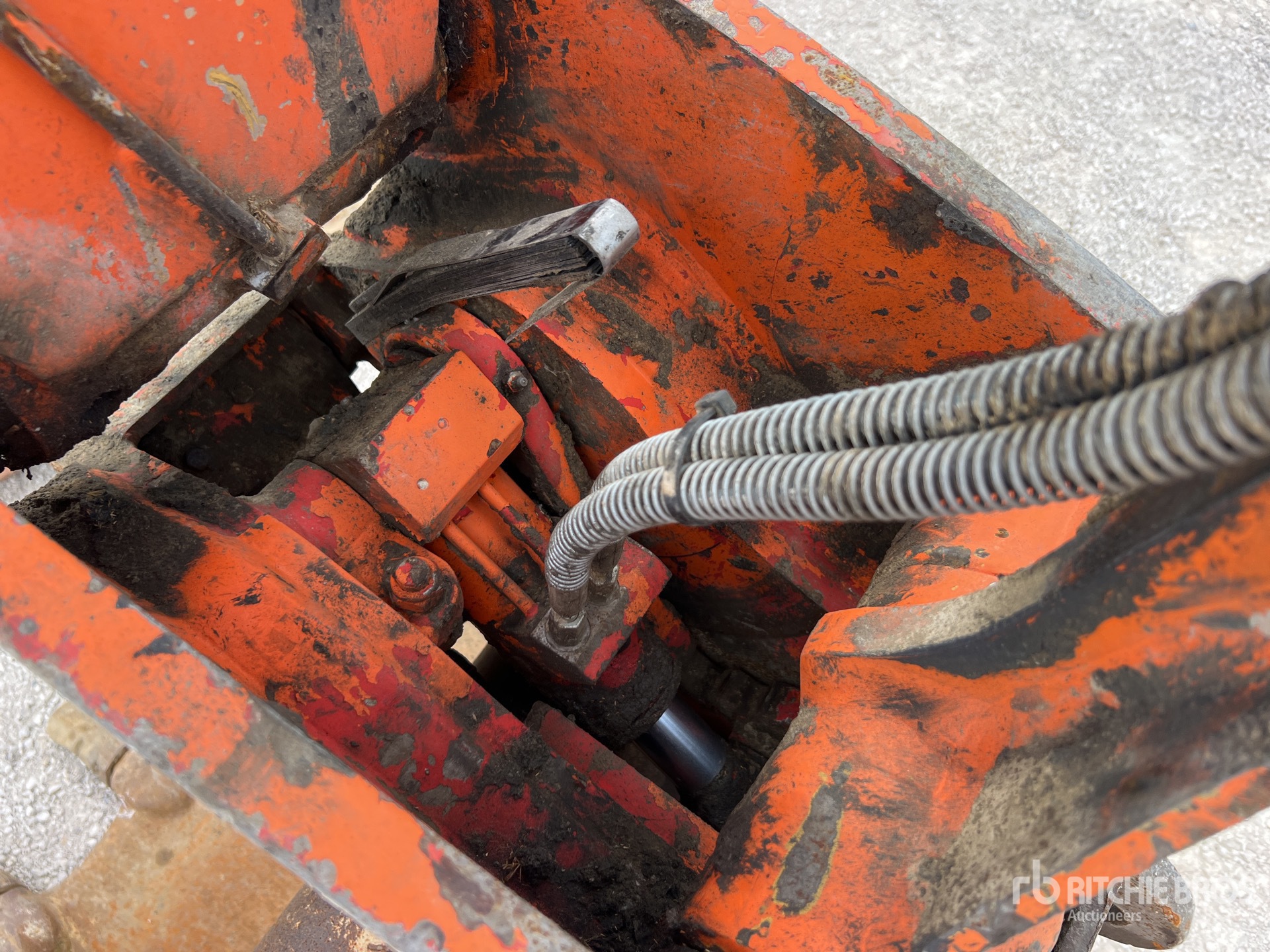

| Bucket |
|
Bucket Capacities |
1 cu yd (1 cu m)
|
|
Maximum Bucket Capacity |
1 cu yd (1 cu m)
|
|
Minimum Bucket Capacity |
1 cu yd (0 cu m)
|
|
Reference Bucket Capacity |
1 cu yd (1 cu m)
|
| Dimensions |
|
Counterweight Clearance |
4 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|

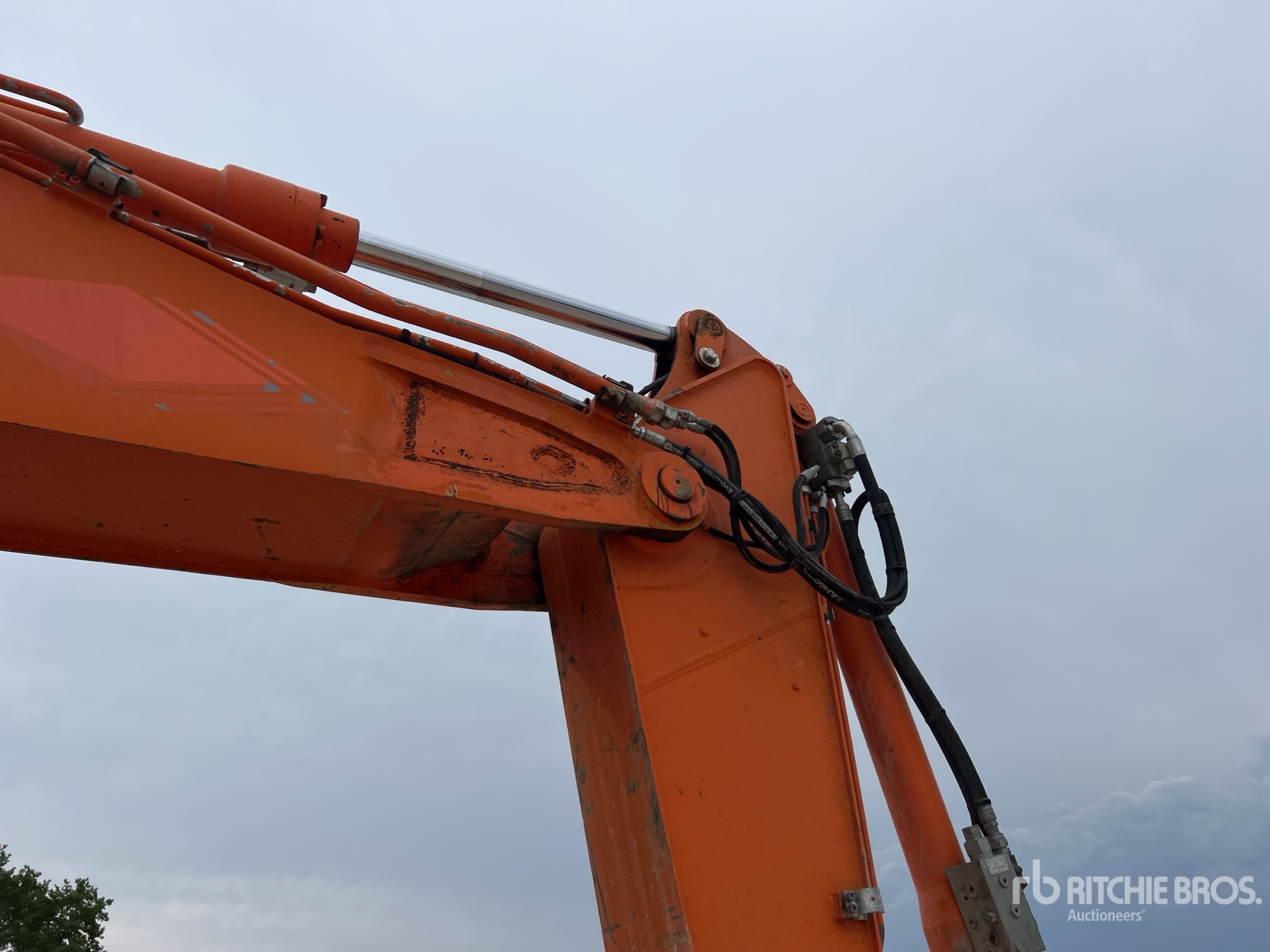

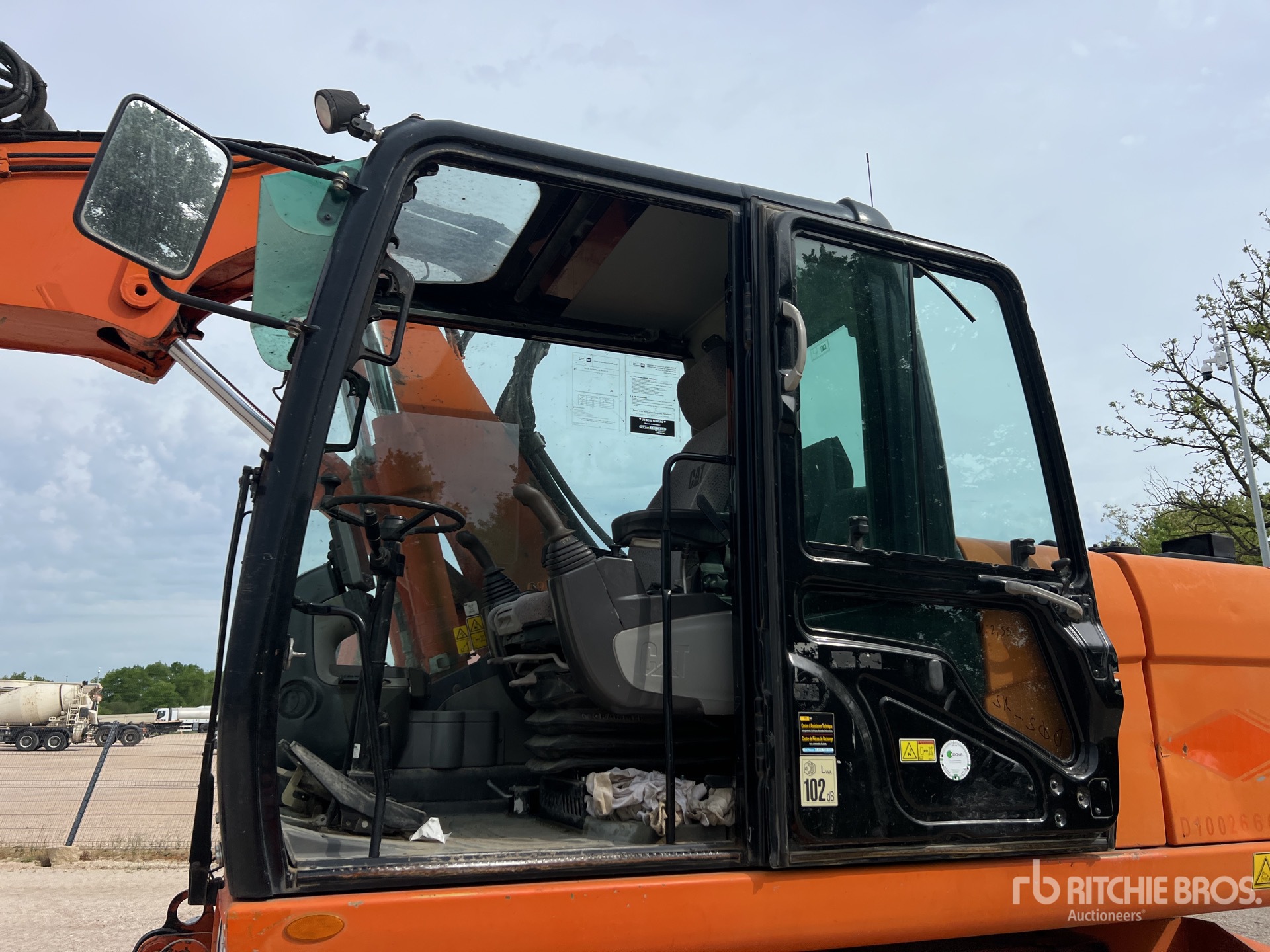

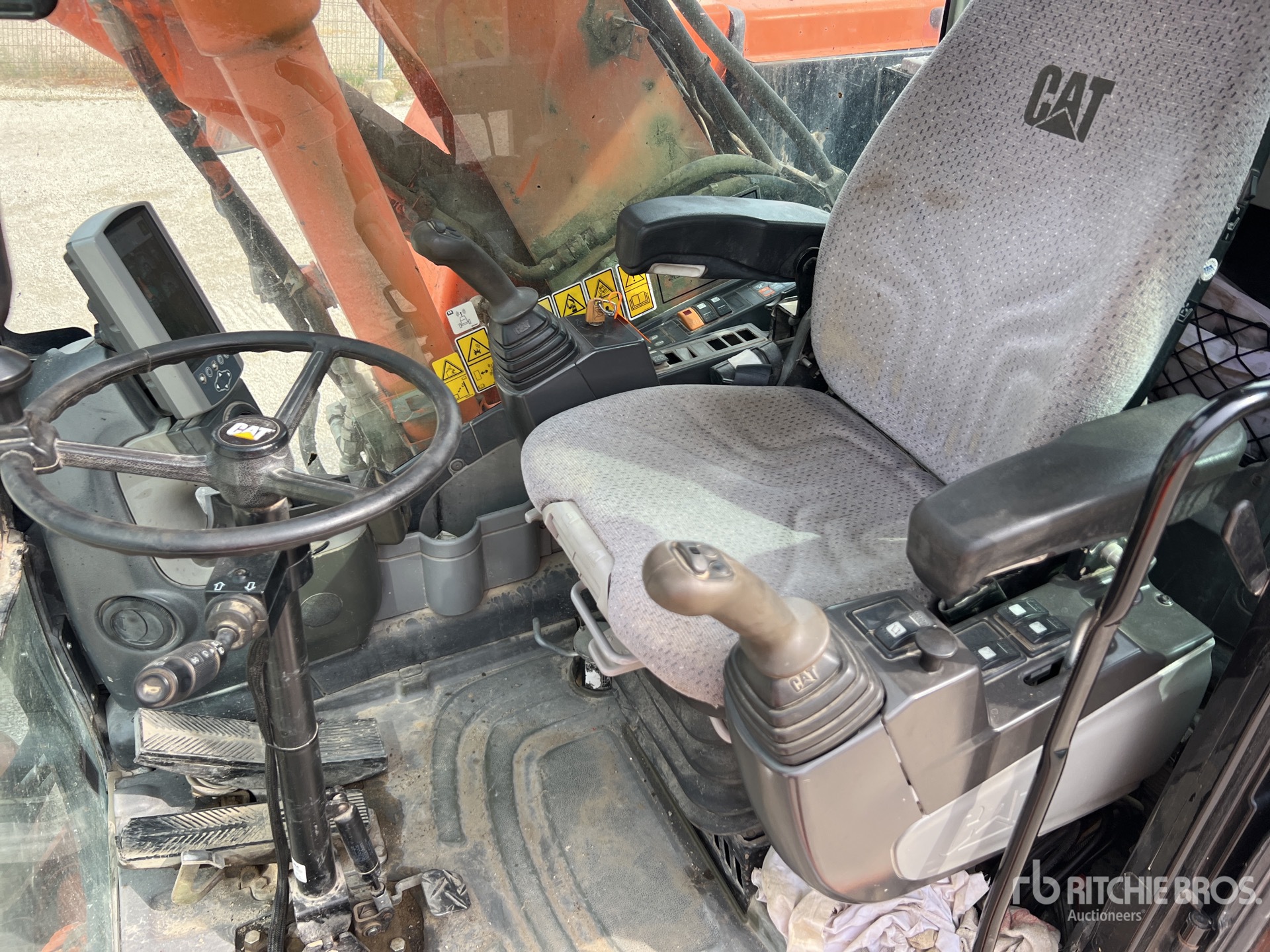

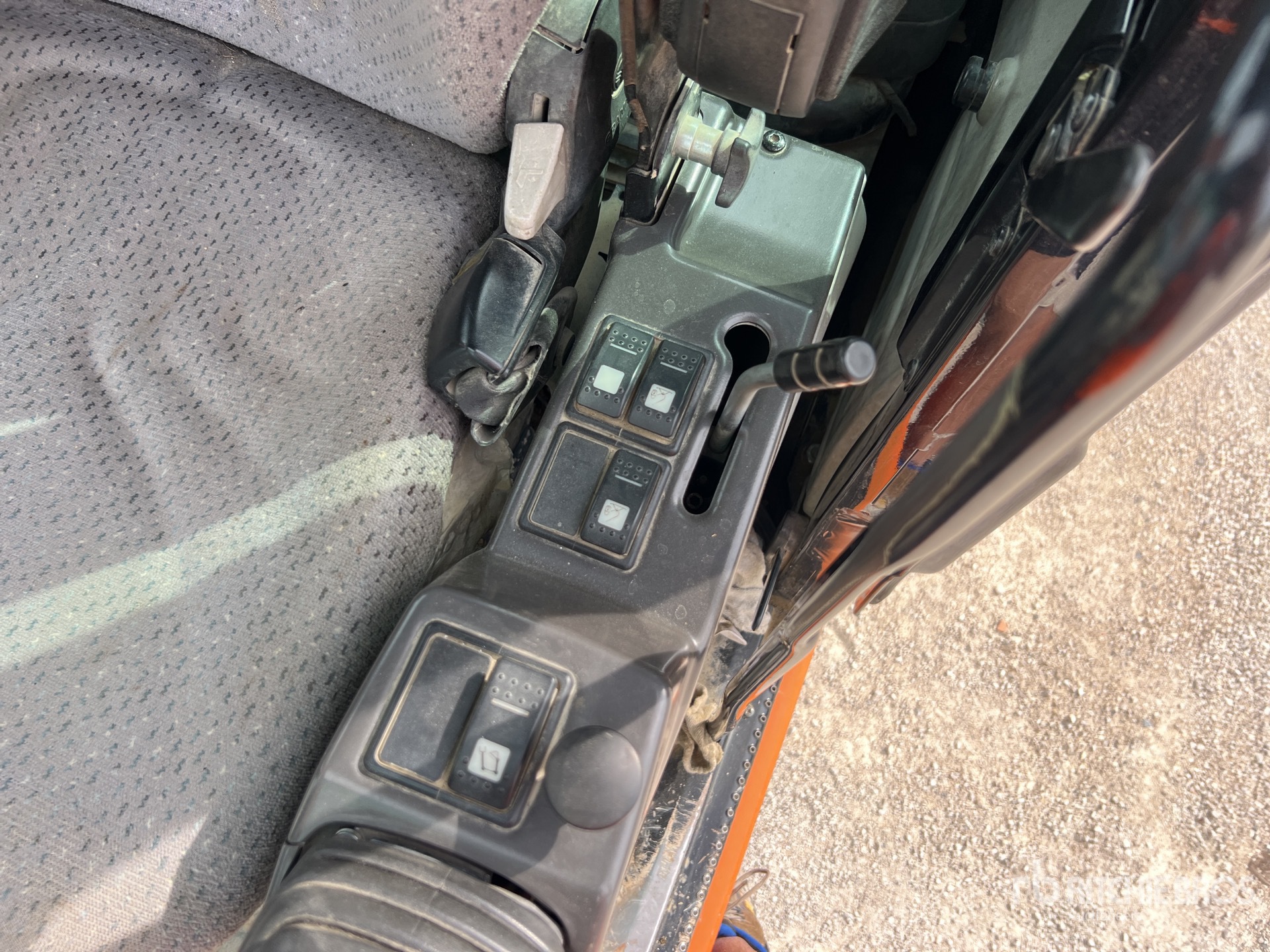

Height - Top of Cab |
10 ft (3 m)
|
|
Overall Width |
8 in (21 cm)
|
|

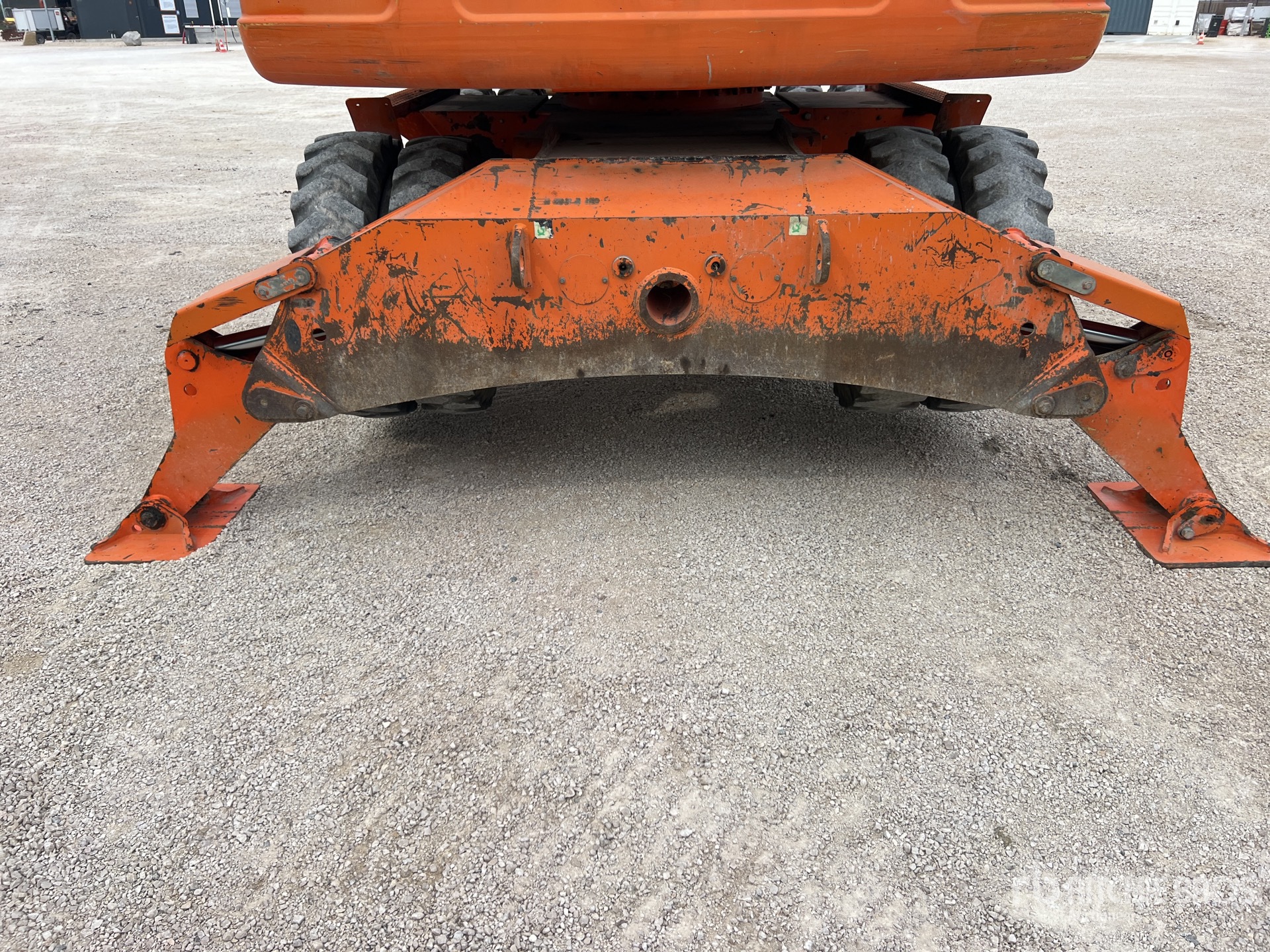

Overall Width - Outriggers Down |
12 ft (4 m)
|
|
Tail Swing Radius |
7 ft (2 m)
|
|
Upper Structure Clearance |
4 ft (1 m)
|
|
Wheelbase |
8 ft (3 m)
|

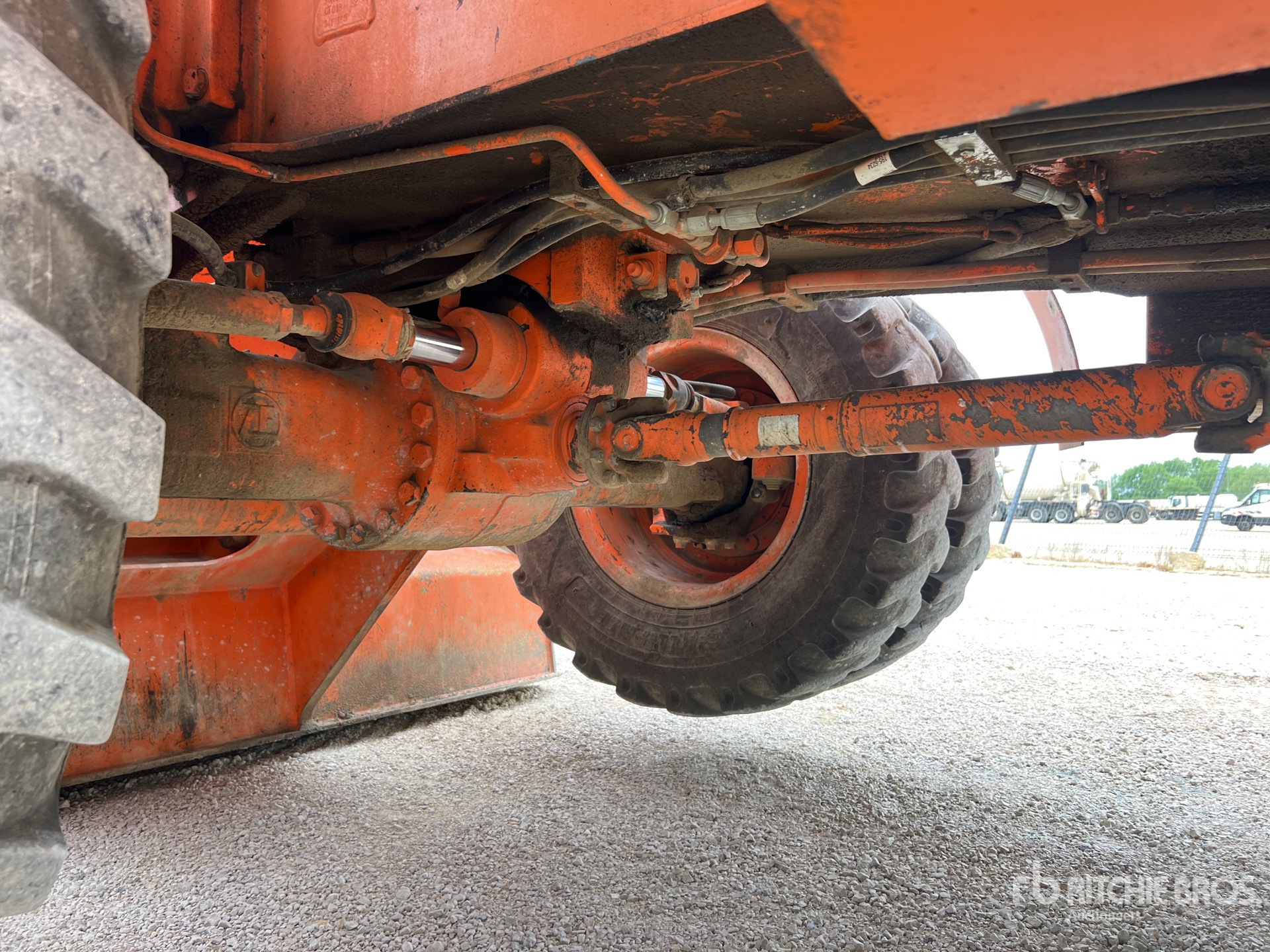

| DRIVE SYSTEM |
|
Maximum Travel Speed |
23 mph (37 kph)
|

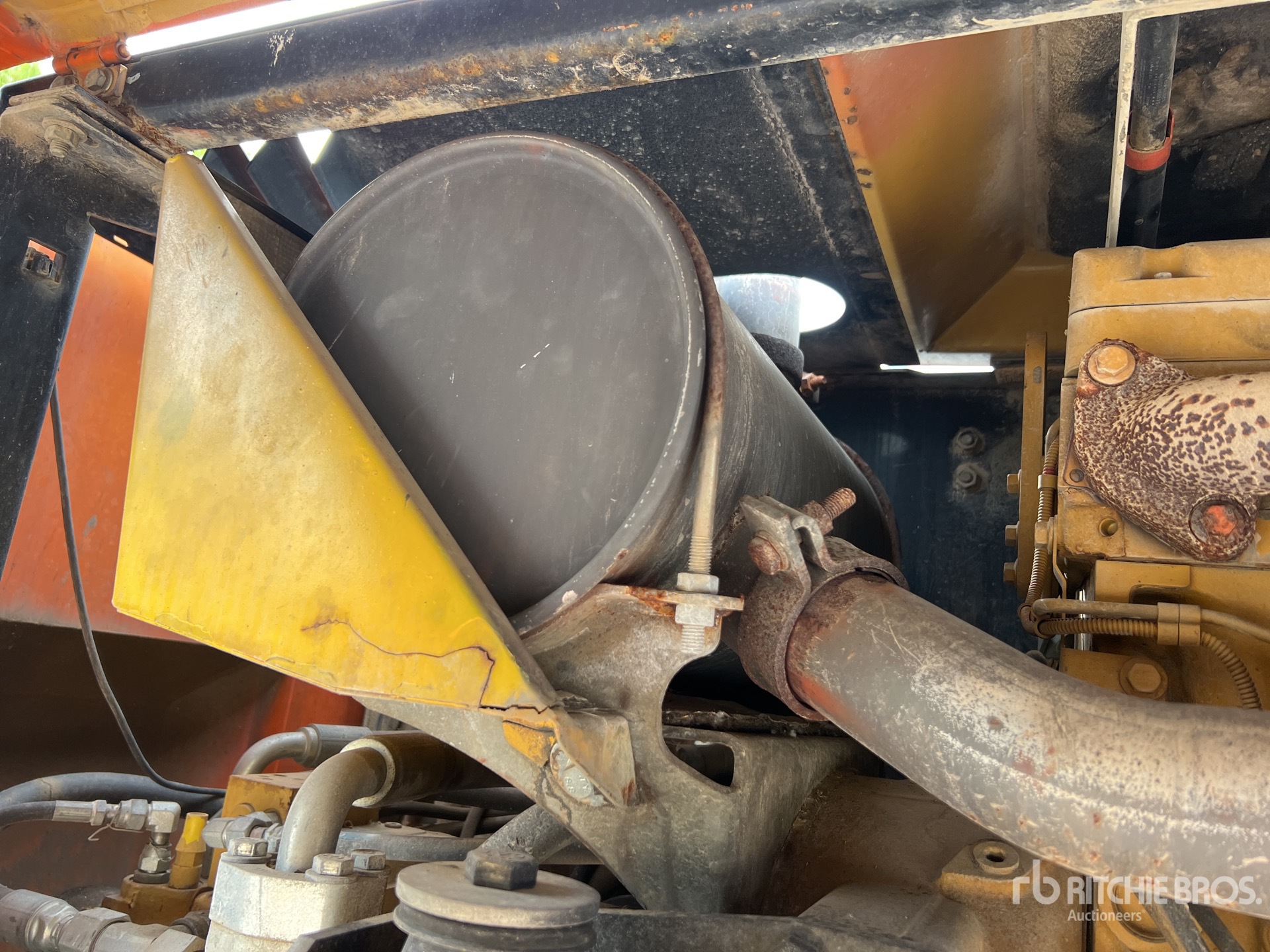

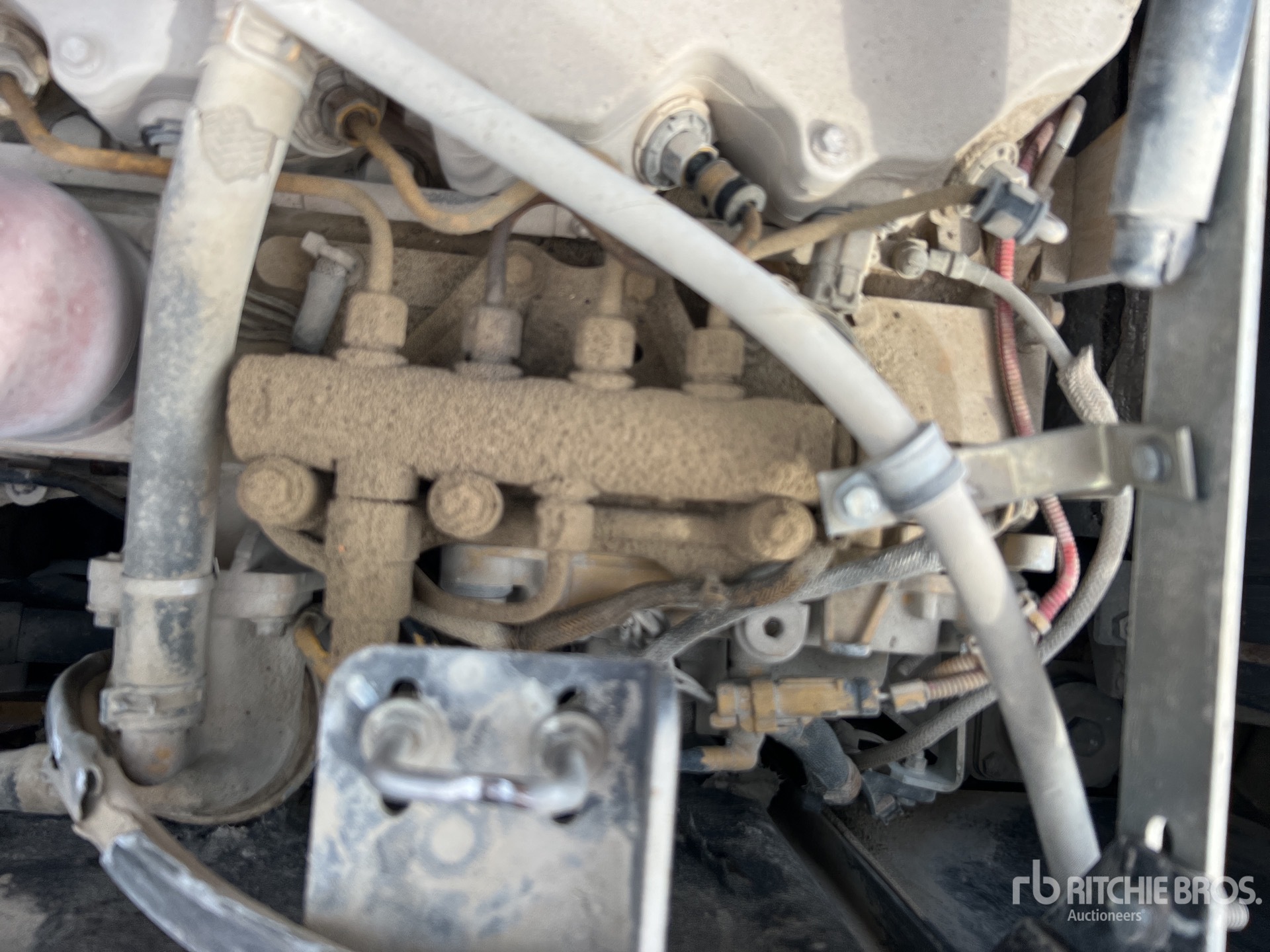

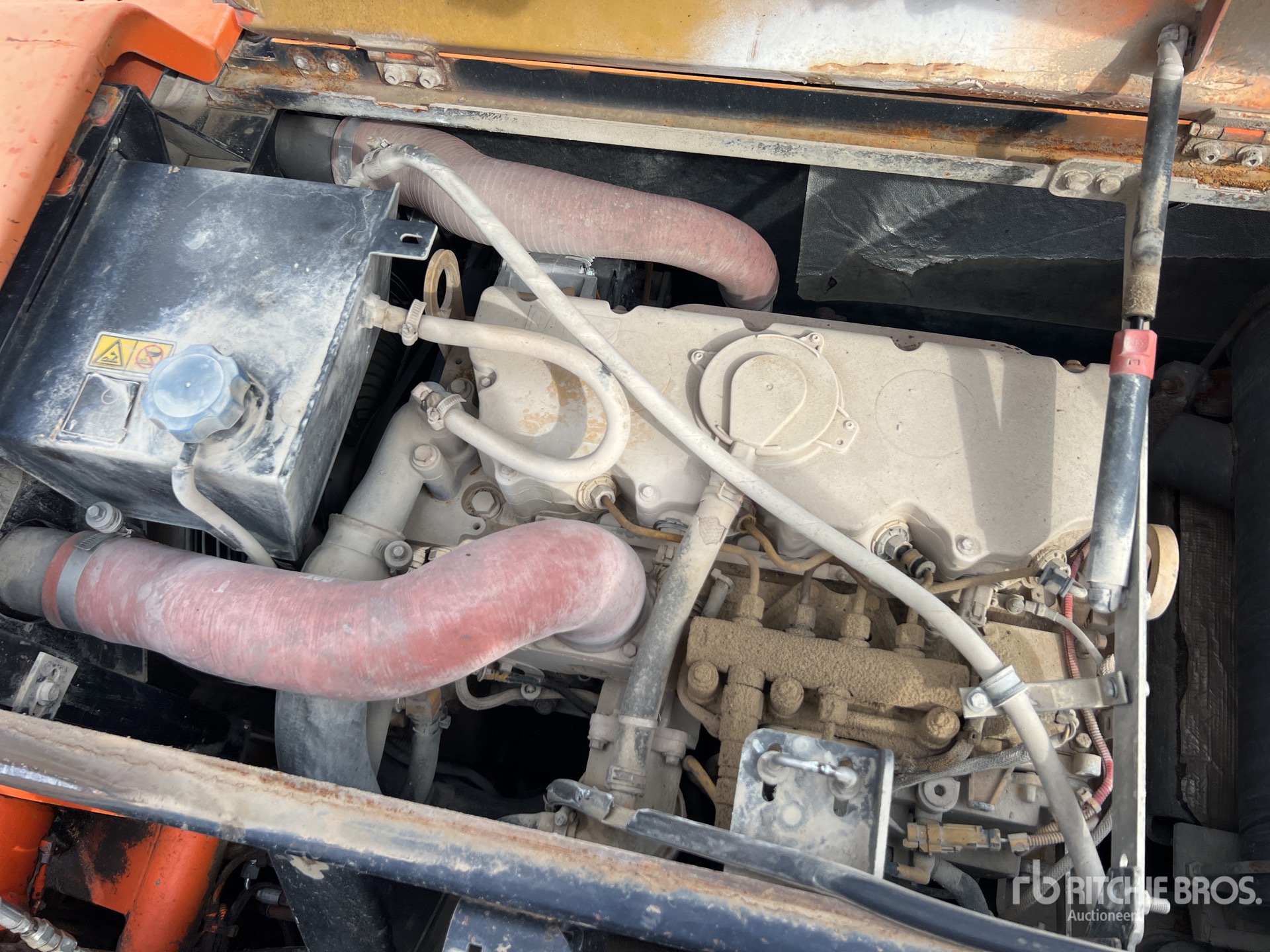

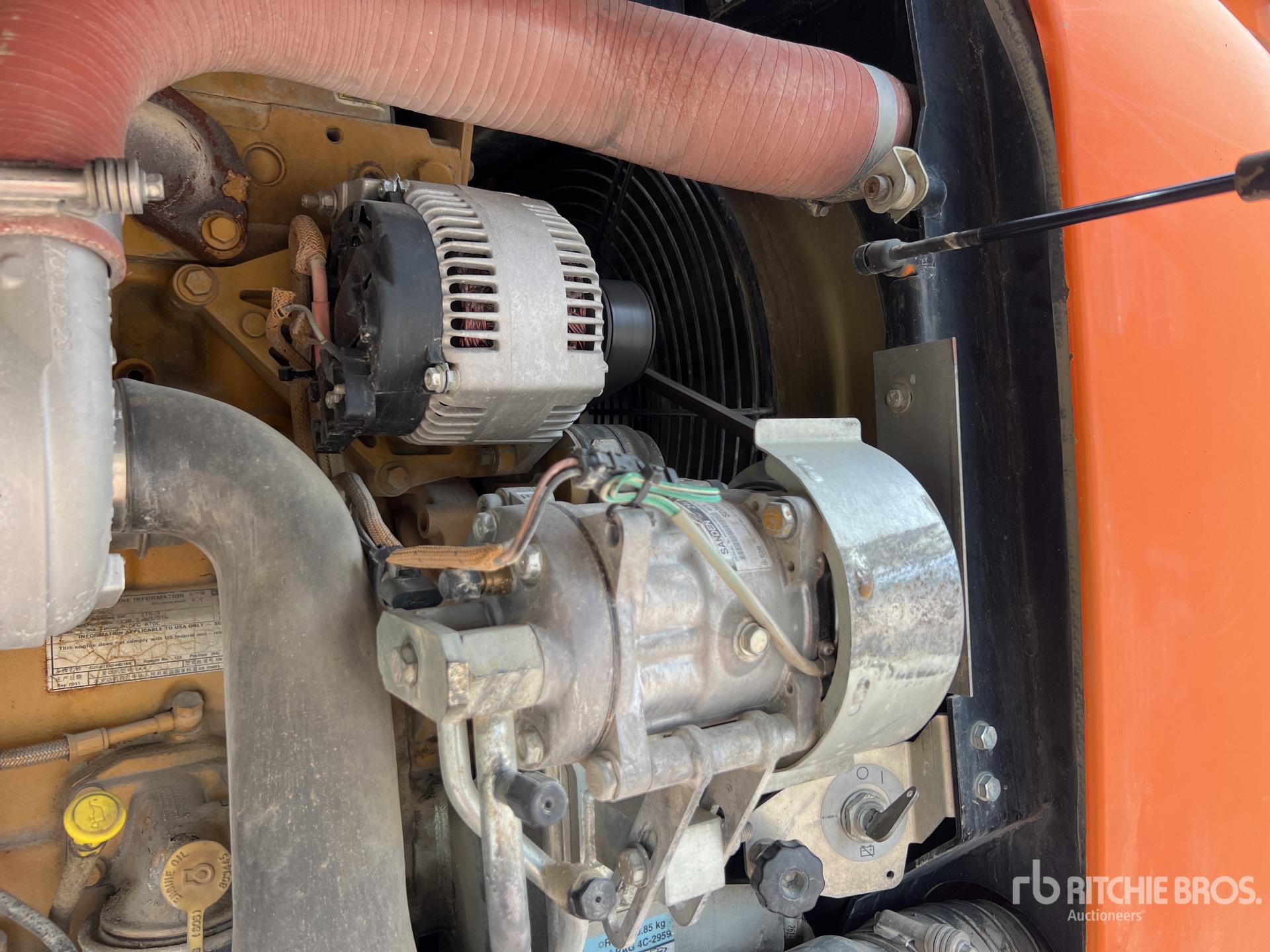

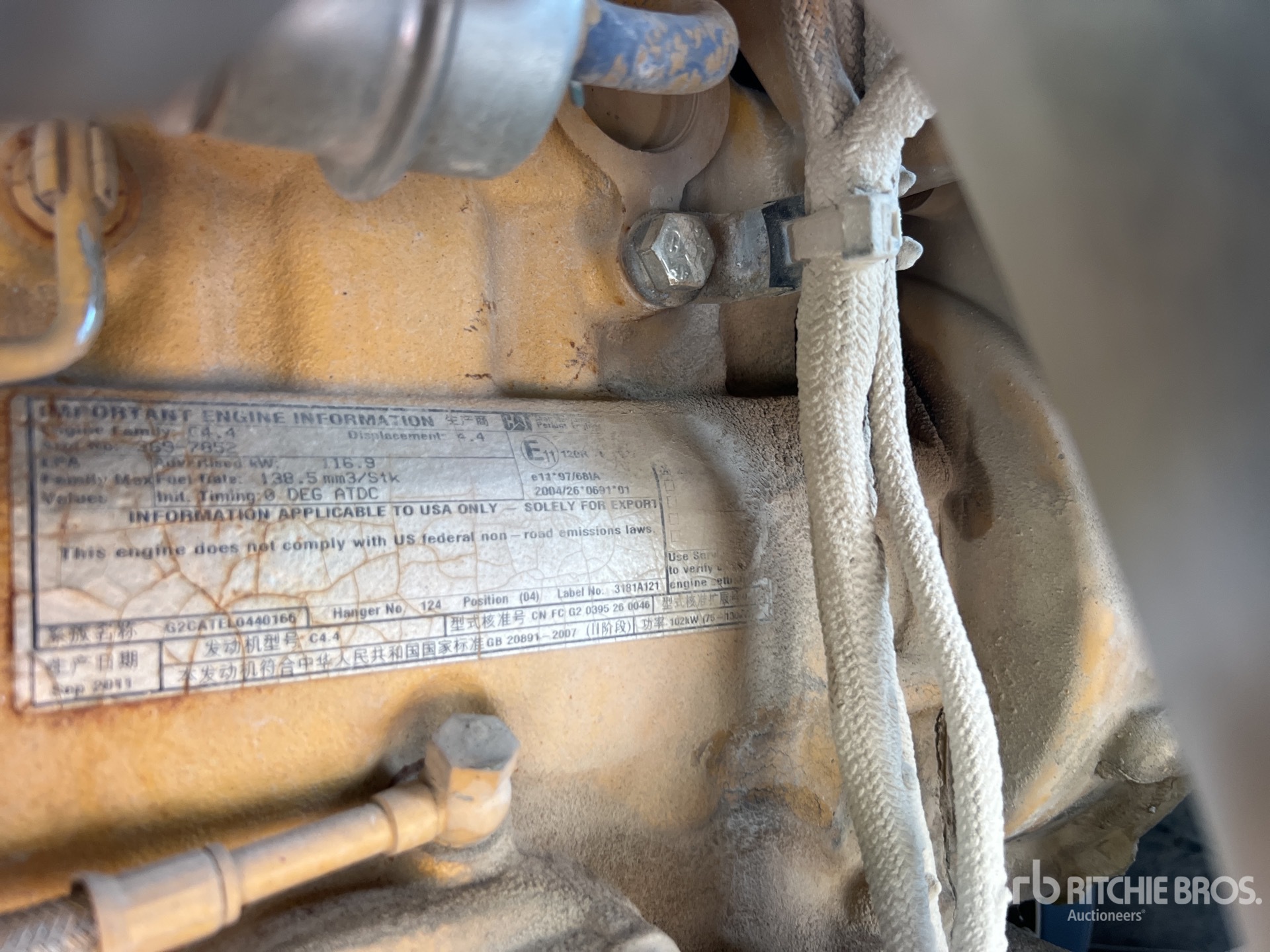

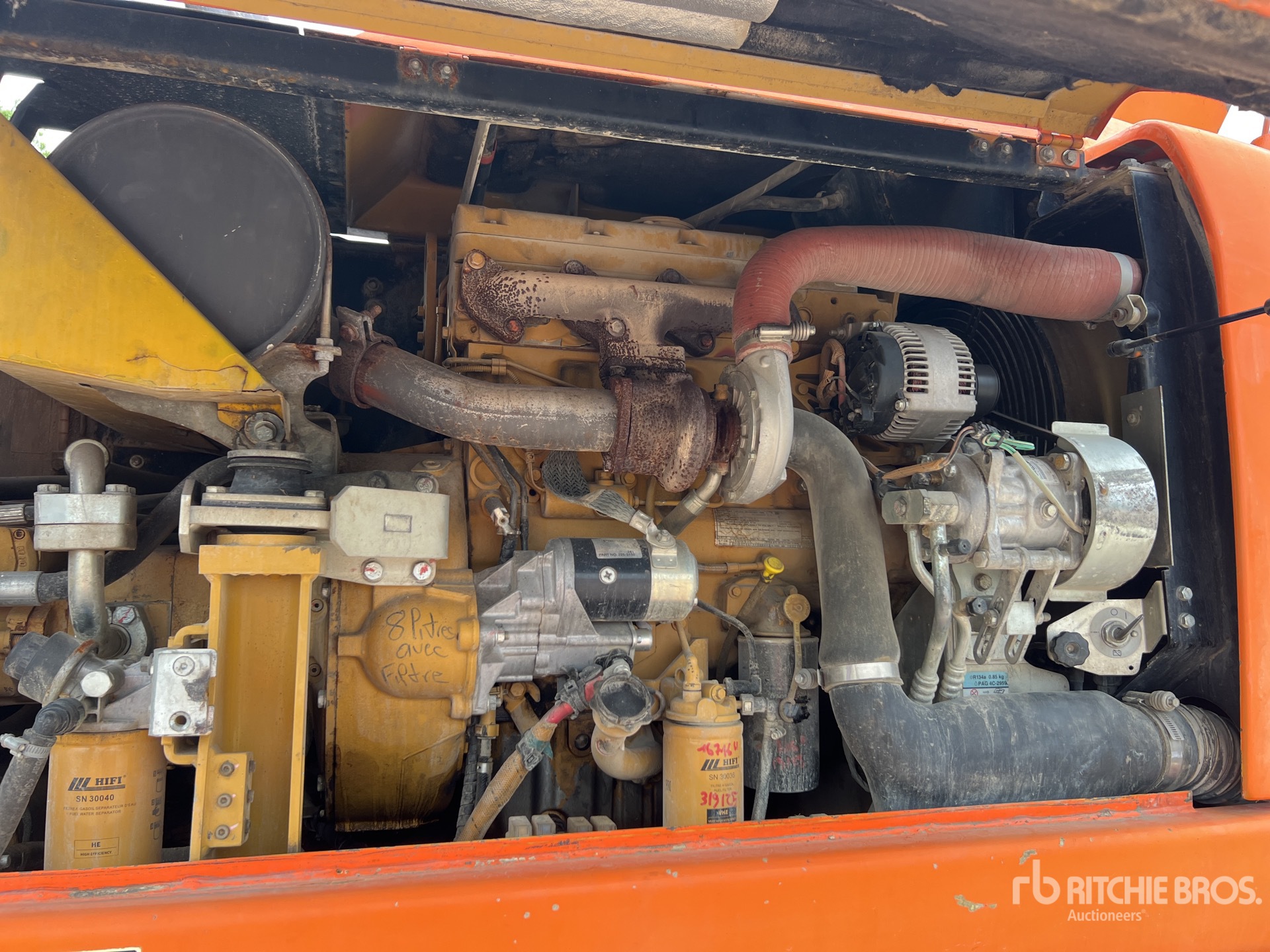

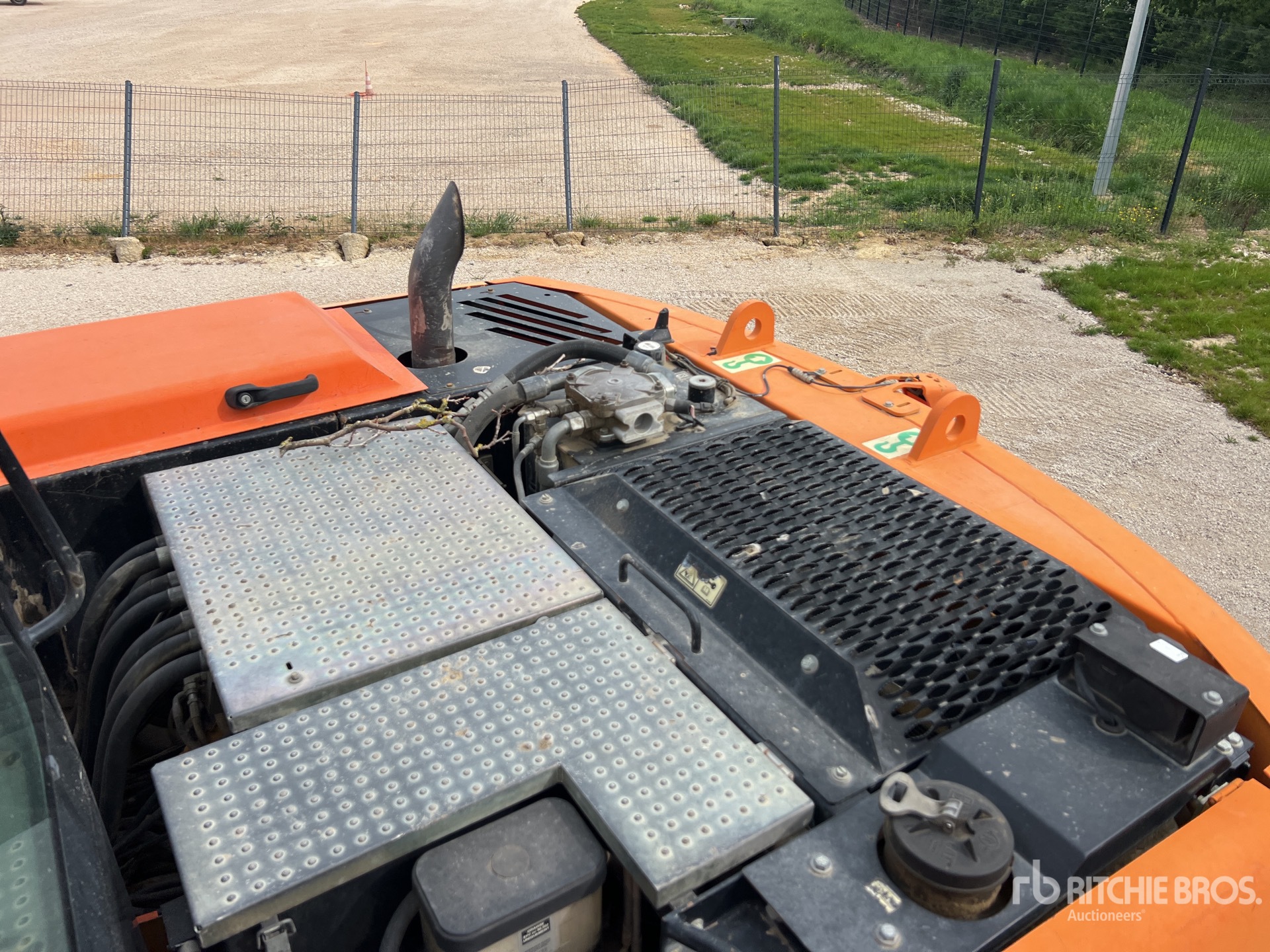

| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
269 cu in (4,408 cu cm)
|
|
Engine Model |
Cat C4.4 ACERT |
|
Gross Power |
137 hp (102 kw)
|
|
ISO 9249 |
127 hp (95 kw)
|
|
Make |
Caterpillar |
|
Maximum Torque - 1,400 rpm |
406 lbs ft (550 nm)
|
|
Net Power |
127 hp (95 kw)
|
|
Net Torque |
406 lbs ft (550 nm)
|
|
Number of Cylinders |
4 |
|
Power Measured @ |
2,000 rpm |
|
Ratings |
2,000 rpm |
|
Stroke |
5 in (13 cm)
|
|
Torque Measured @ |
1,400 rpm |
| Fuel Tank |
|
Fuel Tank Capacity |
62 gal (235 l)
|

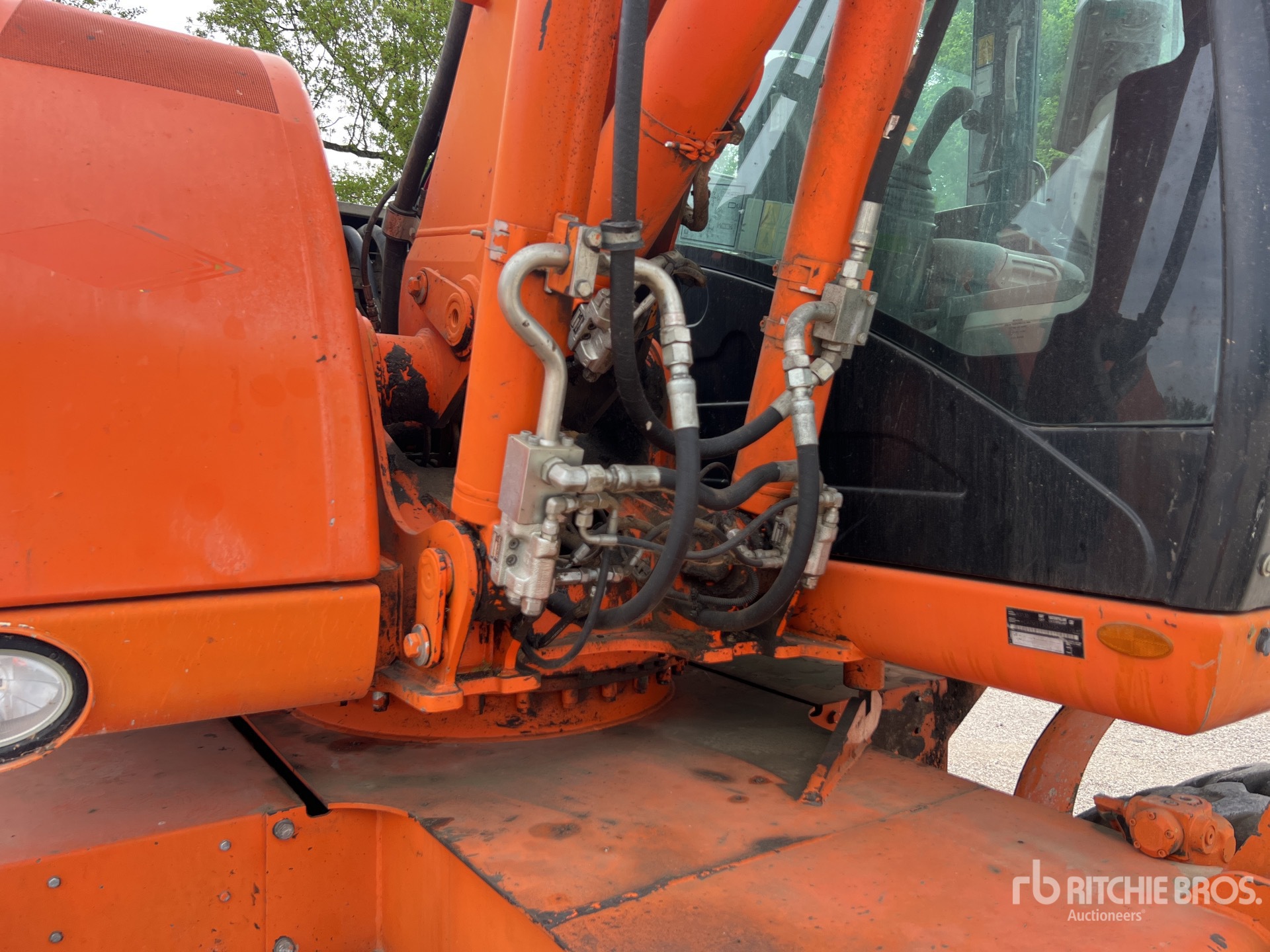

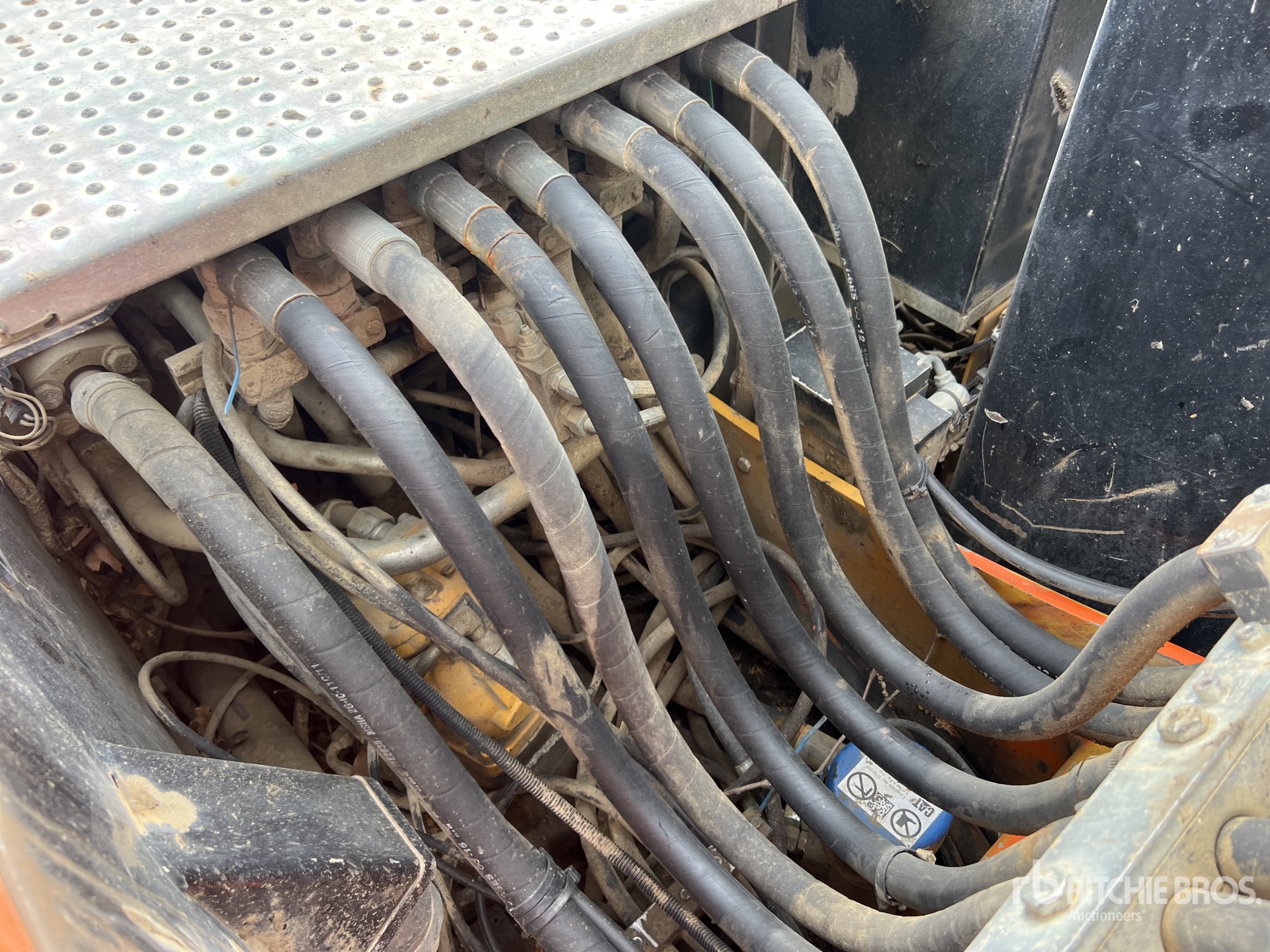

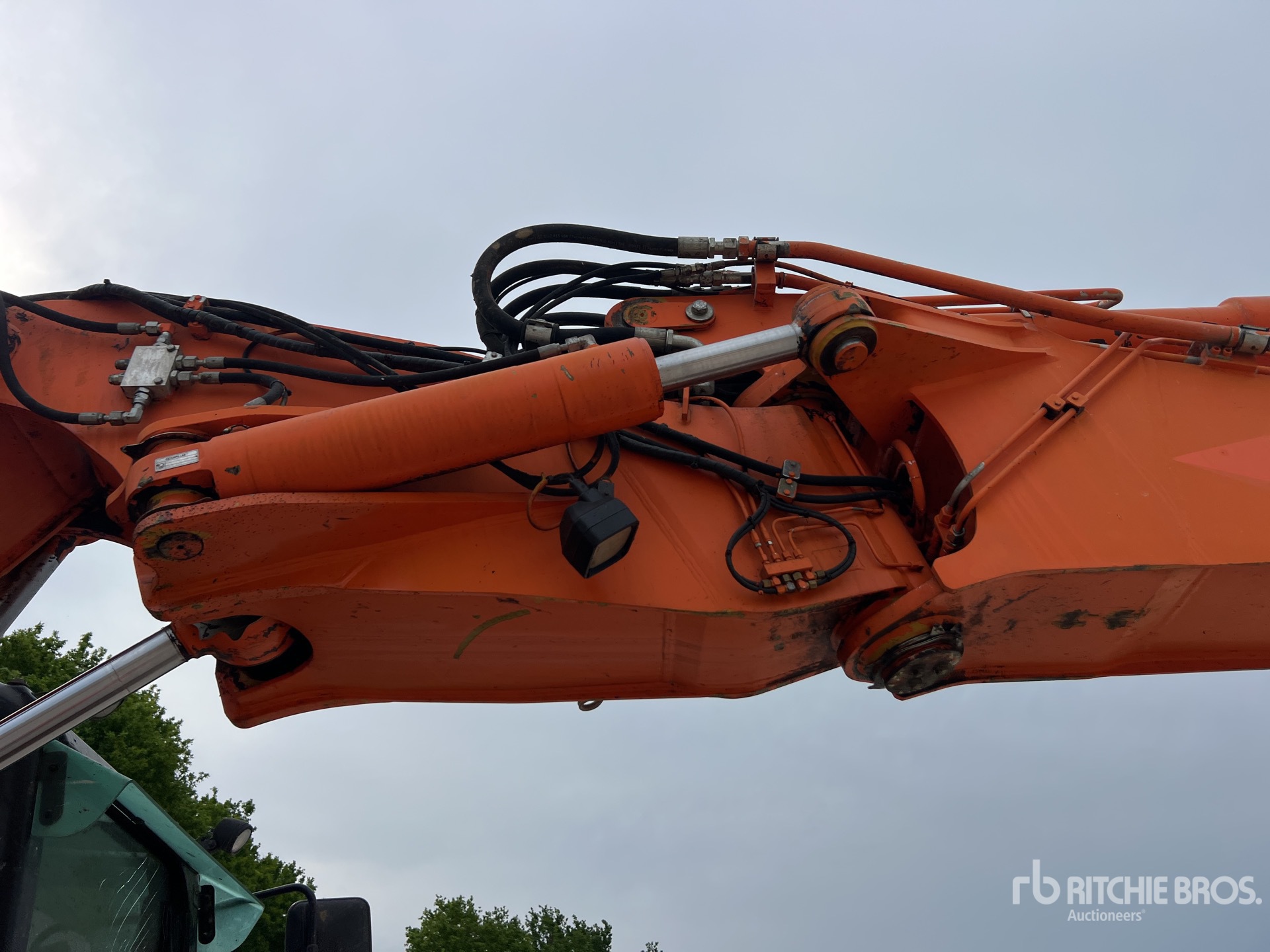

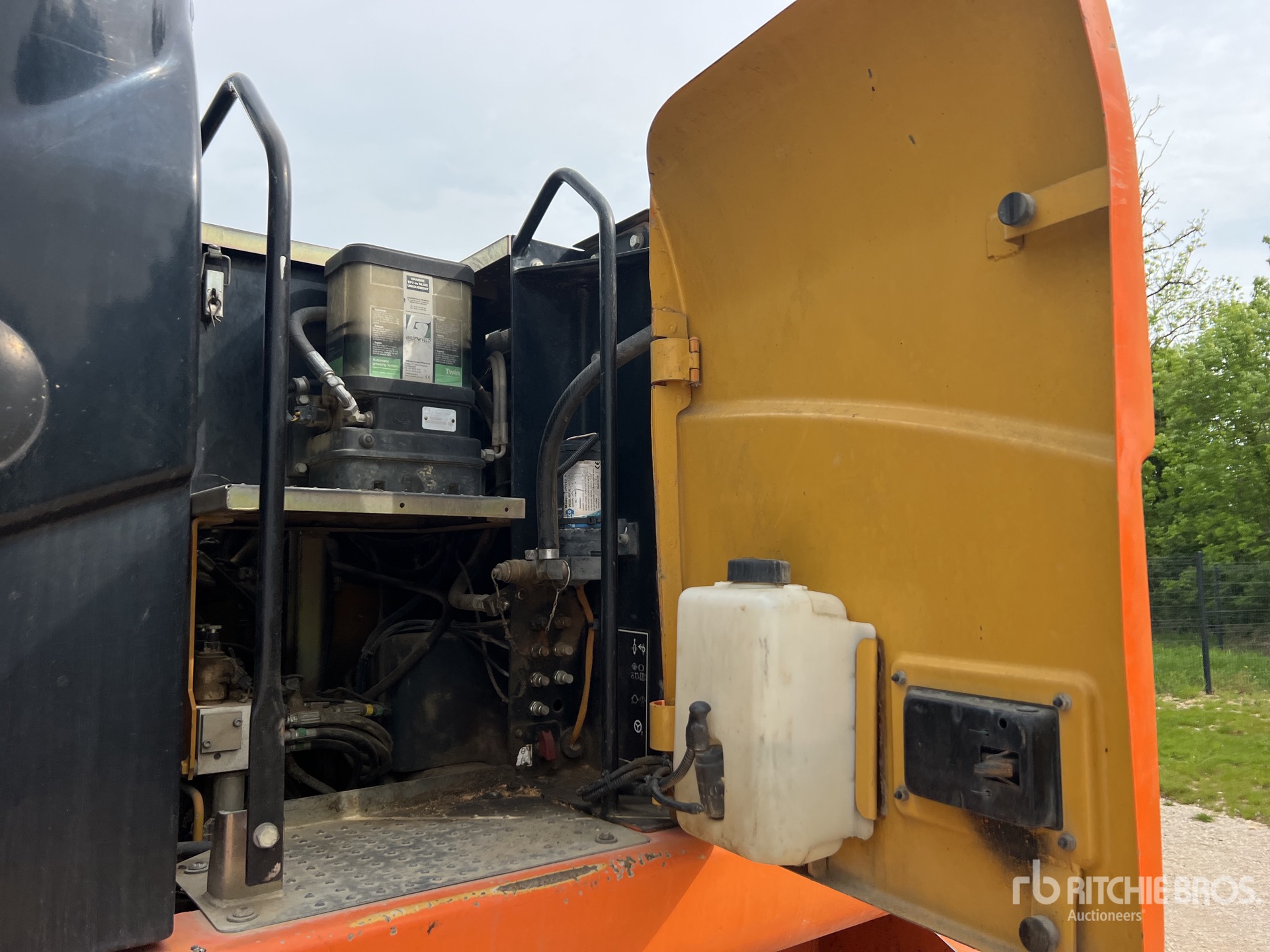

| Hydraulic System |
|
Implement/Travel Circuit |
50 gpm (189 lpm)
|
|
Maximum Flow - Auxiliary Circuit - High Pressure |
50 gpm (189 lpm)
|
|
Maximum Flow - Auxiliary Circuit - Medium Pressure |
13 gpm (49 lpm)
|
|
Maximum Flow - Implement/Travel Circuit |
50 gpm (189 lpm)
|
|
Maximum Flow - Swing Mechanism |
21 gpm (79 lpm)
|
|
Maximum Pressure - Auxiliary Circuit - High Pressure |
5,076 psi |
|
Maximum Pressure - Auxiliary Circuit - Medium Pressure |
2,683 psi |
|
Maximum Pressure - Implement Circuit - Heavy Lift |
5,439 psi |
|
Maximum Pressure - Implement Circuit - Normal |
5,076 psi |
|
Maximum Pressure - Swing Mechanism |
5,076 psi |
|
Maximum Pressure - Travel Circuit |
5,076 psi |
|
Normal |
5,076 psi |
|
System |
48 gal (182 l)
|
|
Tank Capacity |
25 gal (95 l)
|
|
Travel Circuit |
5,076 psi |

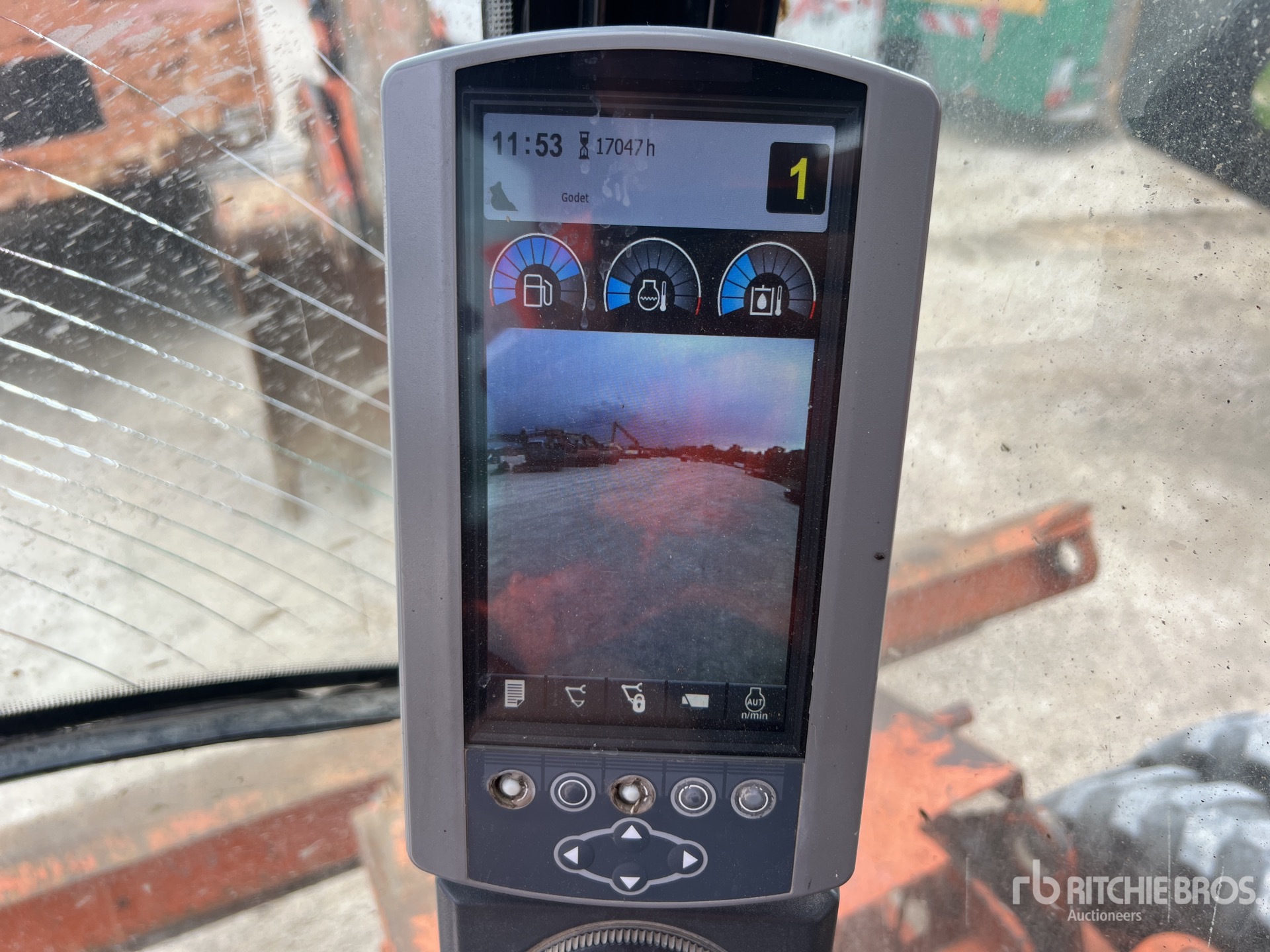

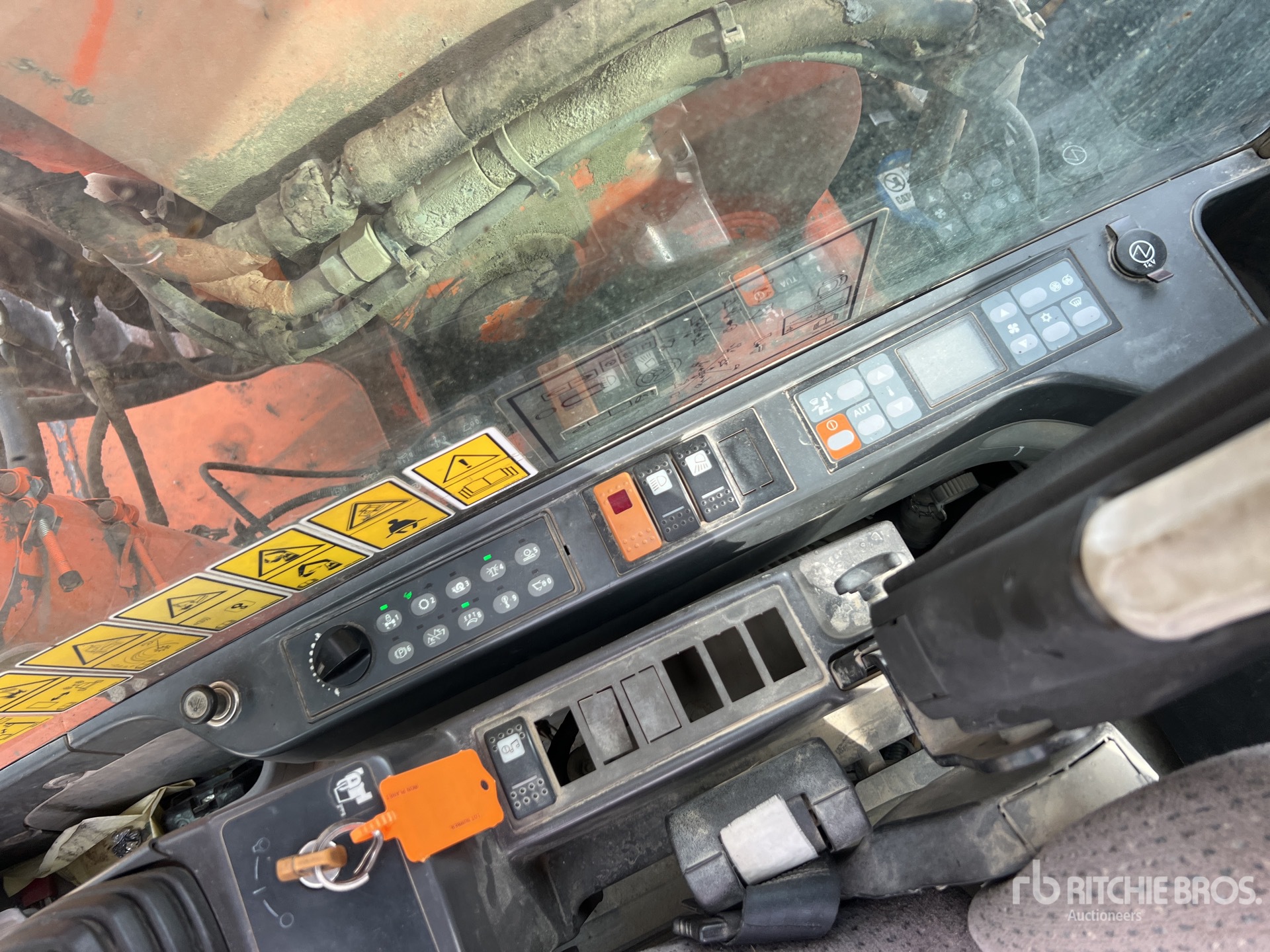

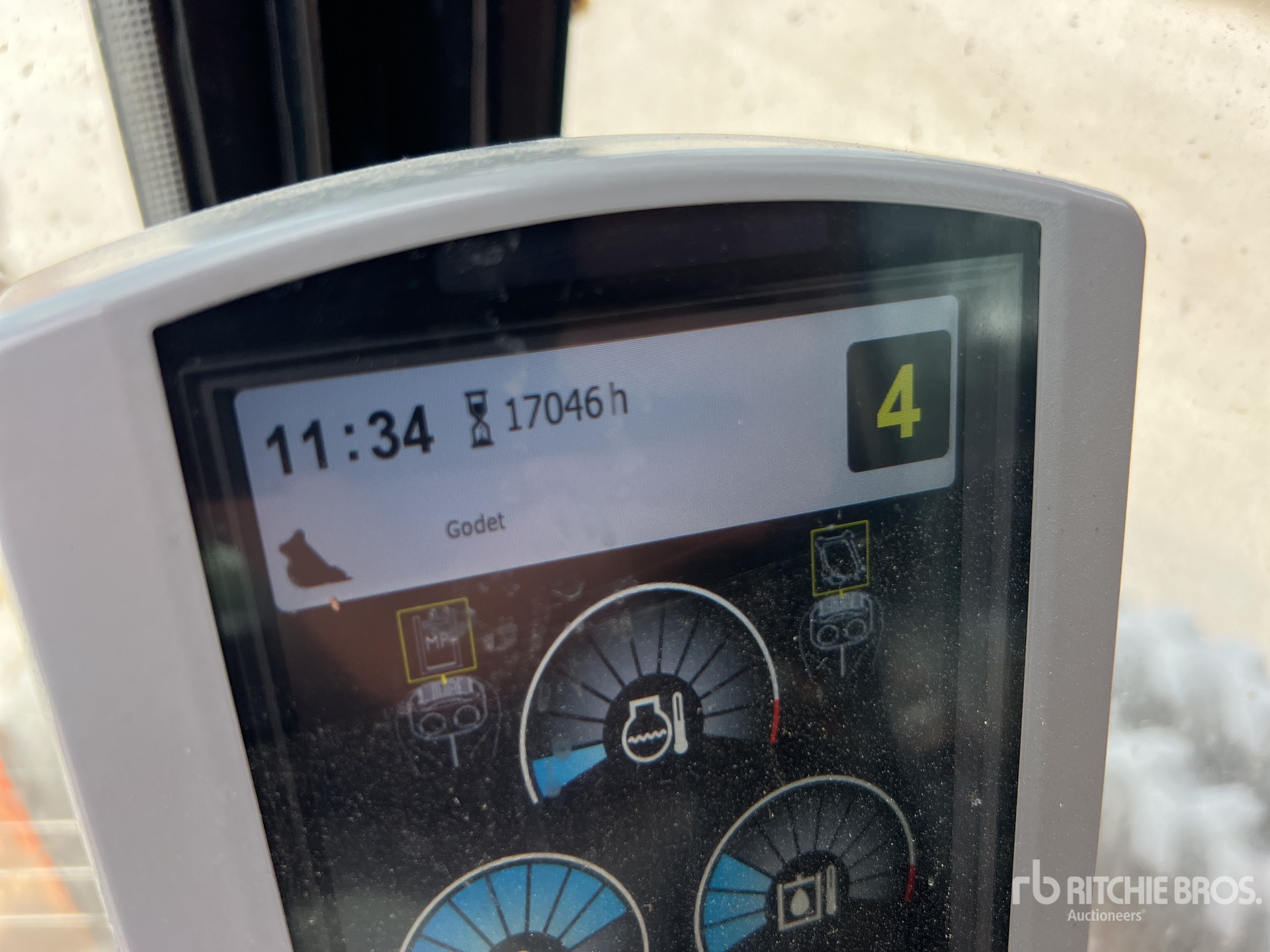

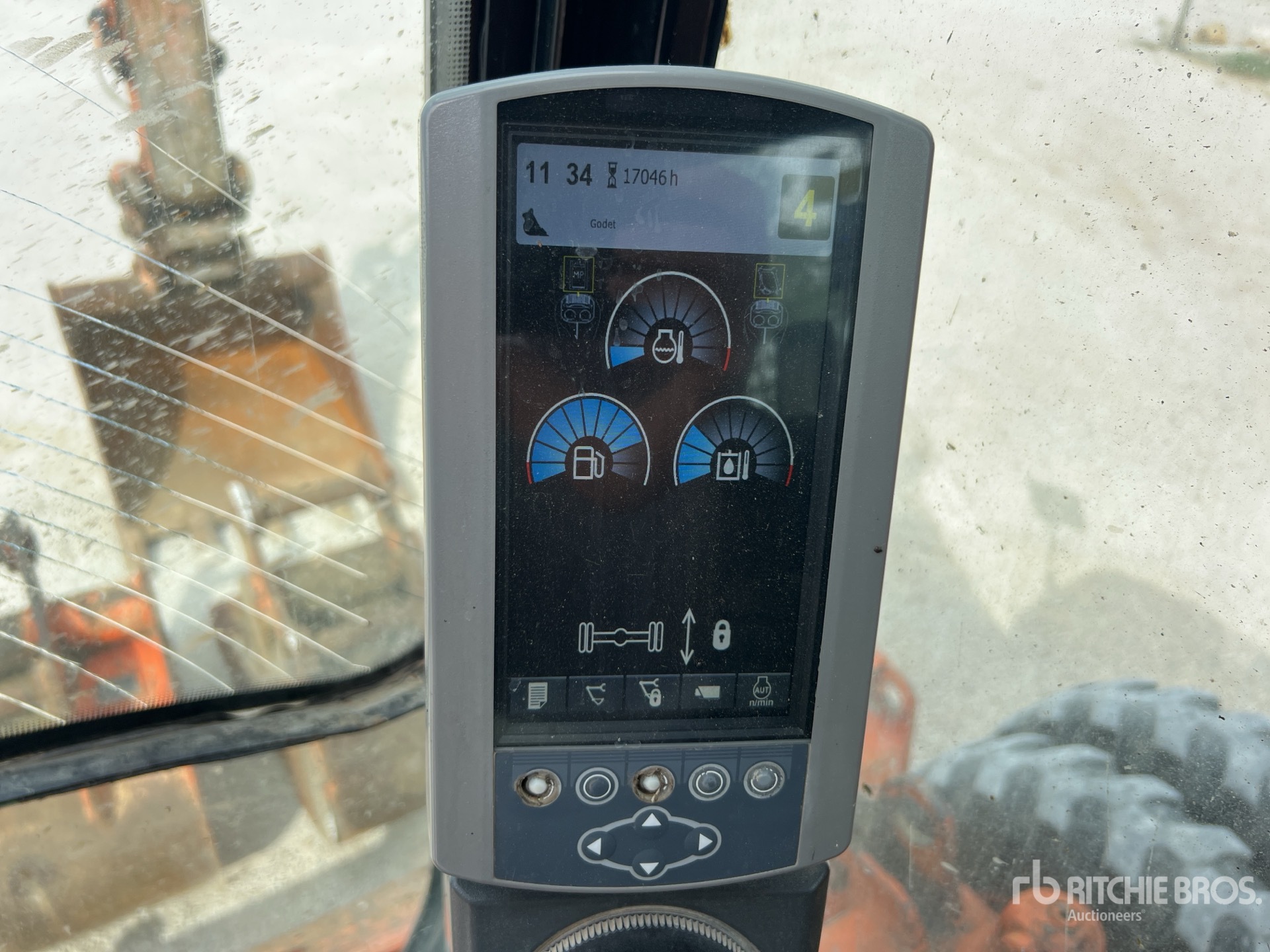

| Operating Specifications |
|
Alternator Supplied Amperage |
75 amps |
|

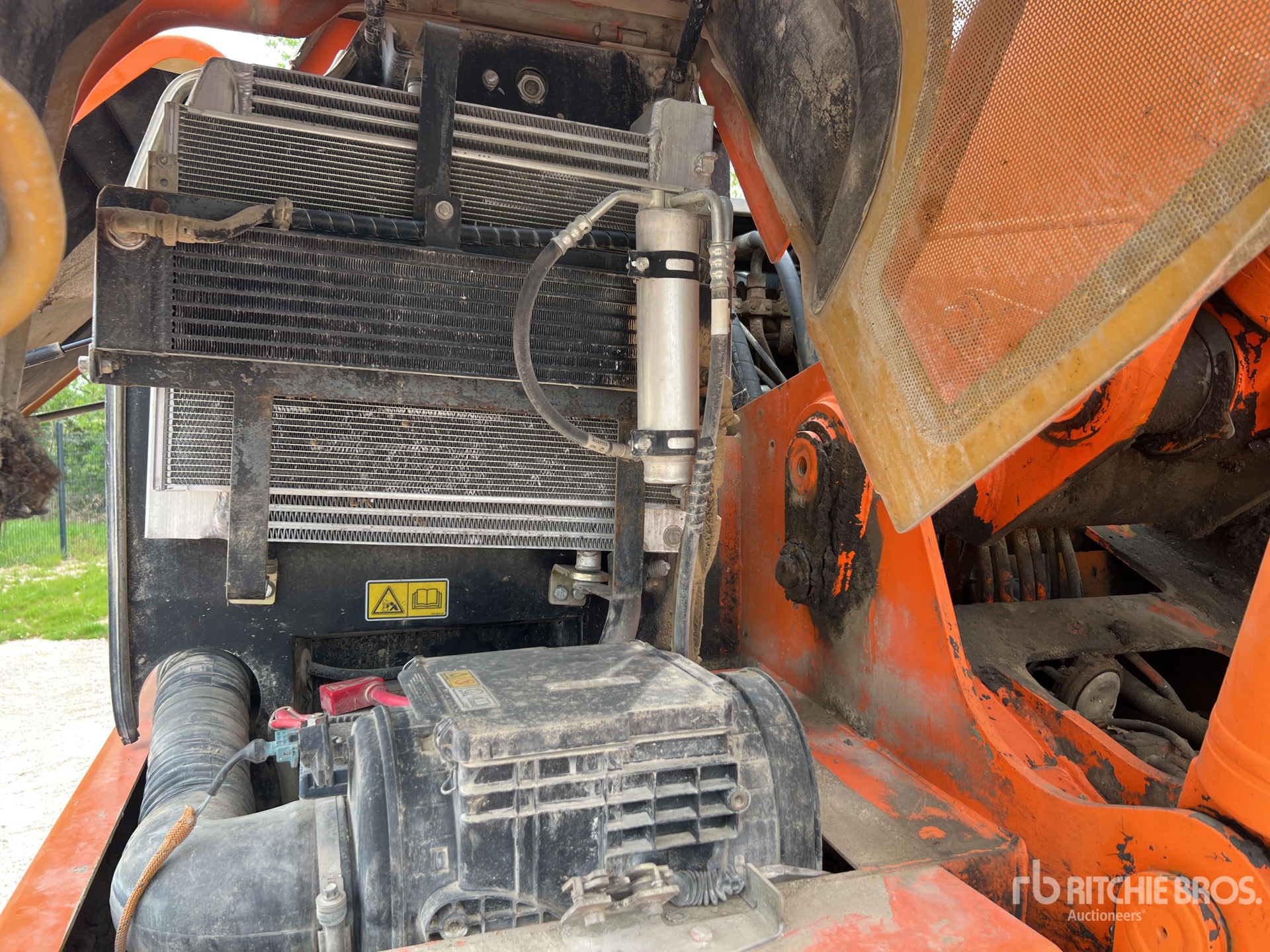

Cooling System Fluid Capacity |
7 gal (26 l)
|
|
Engine Oil Capacity |
2 gal (8 l)
|
|
Front Diff Fluid Capacity |
2 gal (9 l)
|
|
Fuel Capacity |
62 gal (235 l)
|
|
Hydraulic Pump Flow Capacity |
50 gpm (190 lpm)
|
|

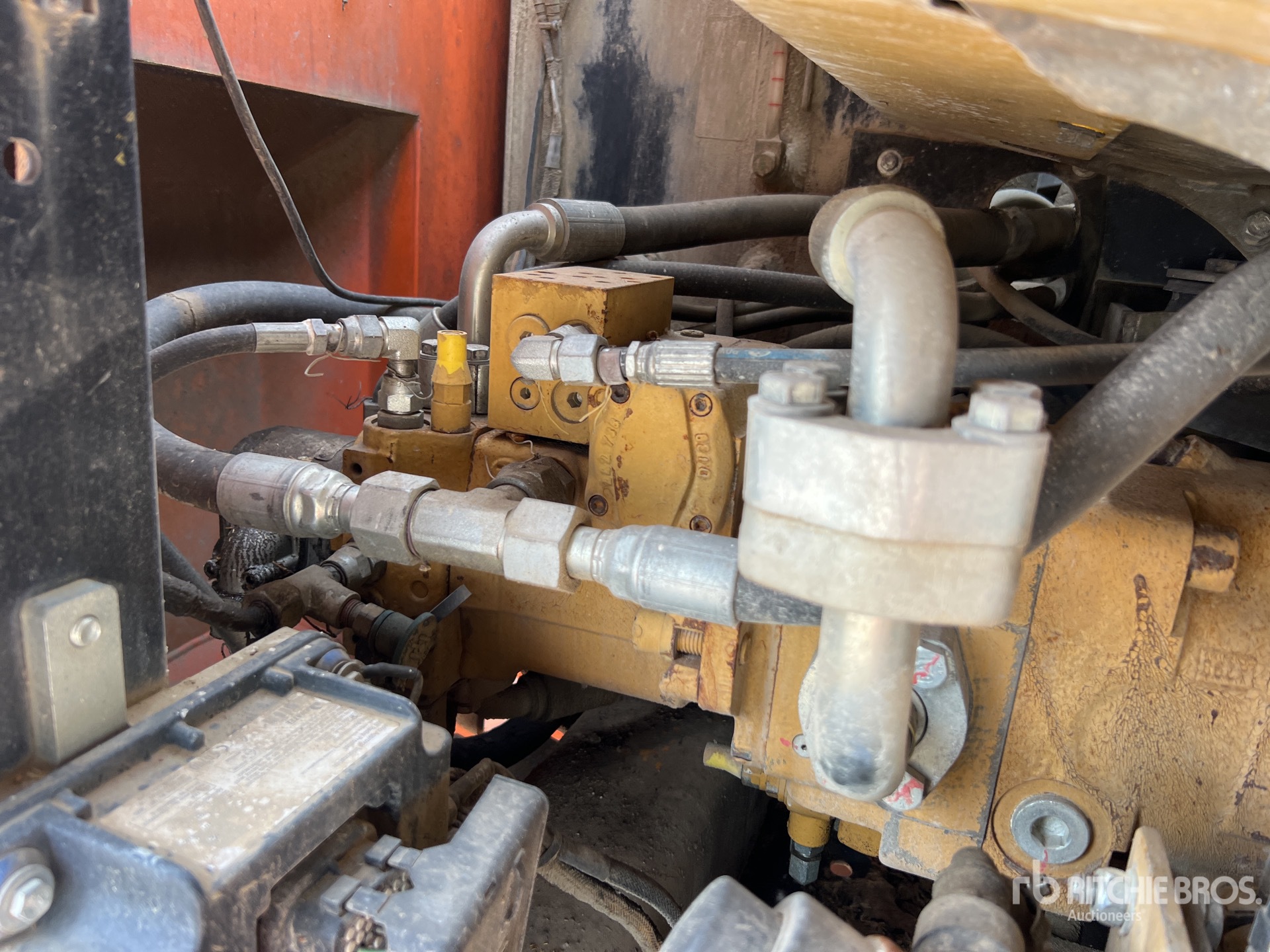

Hydraulic Pump Type |
Piston |
|
Hydraulic System Fluid Capacity |
48 gal (180 l)
|
|
Hydraulic System Relief Valve Pressure |
5,076 psi |
|
Max Steering Angle |
35 degrees |
|
Operating Weight |
34,833 lbs (15,800 kg)
|
|
Oscillating Axle Angle |
9 degrees |
|
Rear Diff Fluid Capacity |
3 gal (11 l)
|
|

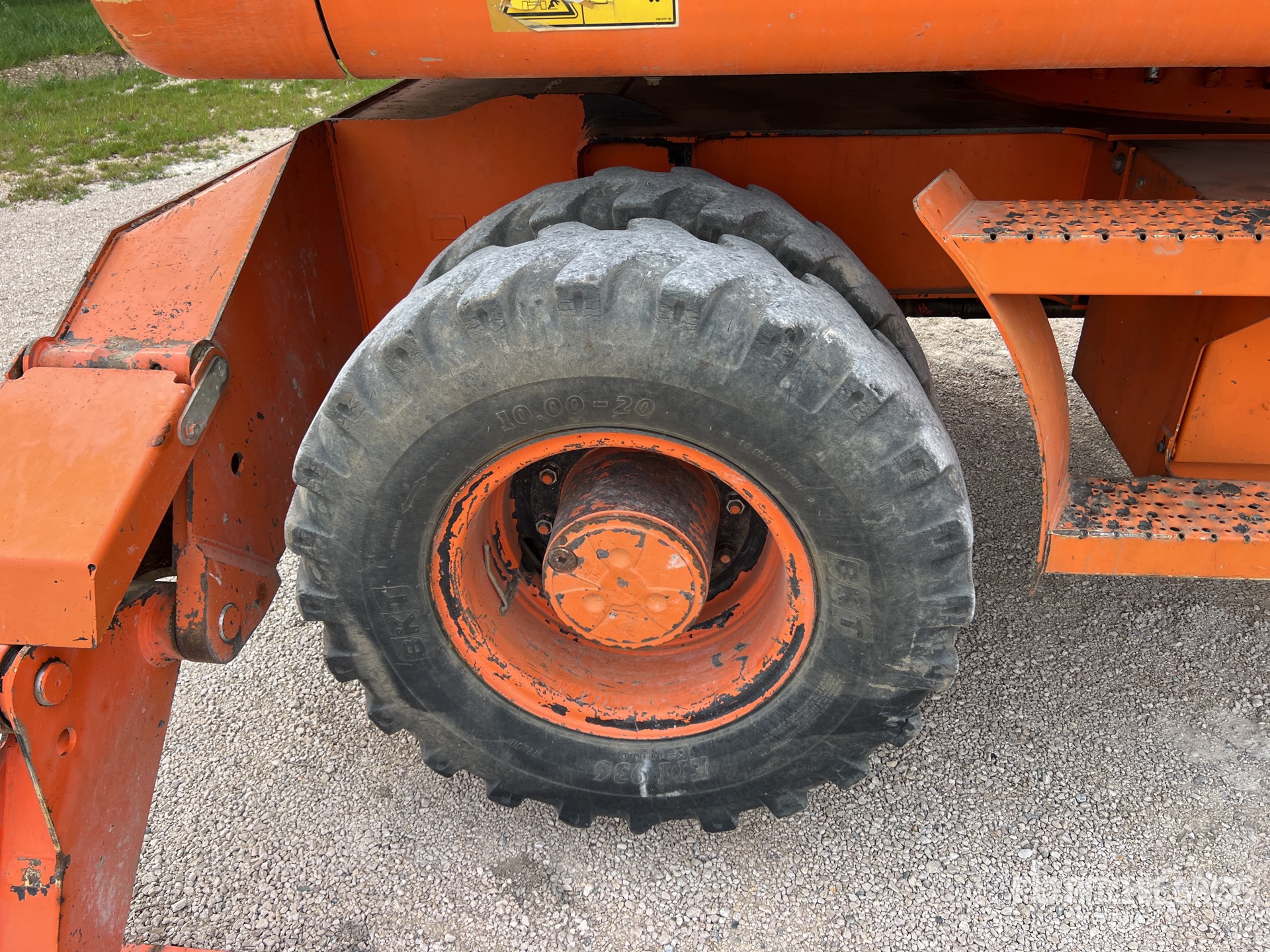

Tire Size |
10.00-20 16PR dual |
| Service Refill Capacities |
|
Cooling |
7 gal (27 l)
|
|
Engine Crankcase |
2 gal (8 l)
|
|
Final Drive |
1 gal (3 l)
|
|
Front Steering Axle - Differential |
2 gal (9 l)
|
|
Fuel Tank |
62 gal (235 l)
|
|
Hydraulic System - Including Tank |
48 gal (182 l)
|
|
Hydraulic Tank |
25 gal (95 l)
|
|
Powershift Transmission |
1 gal (3 l)
|
|
Rear Axle - Housing (Differential) |
3 gal (11 l)
|

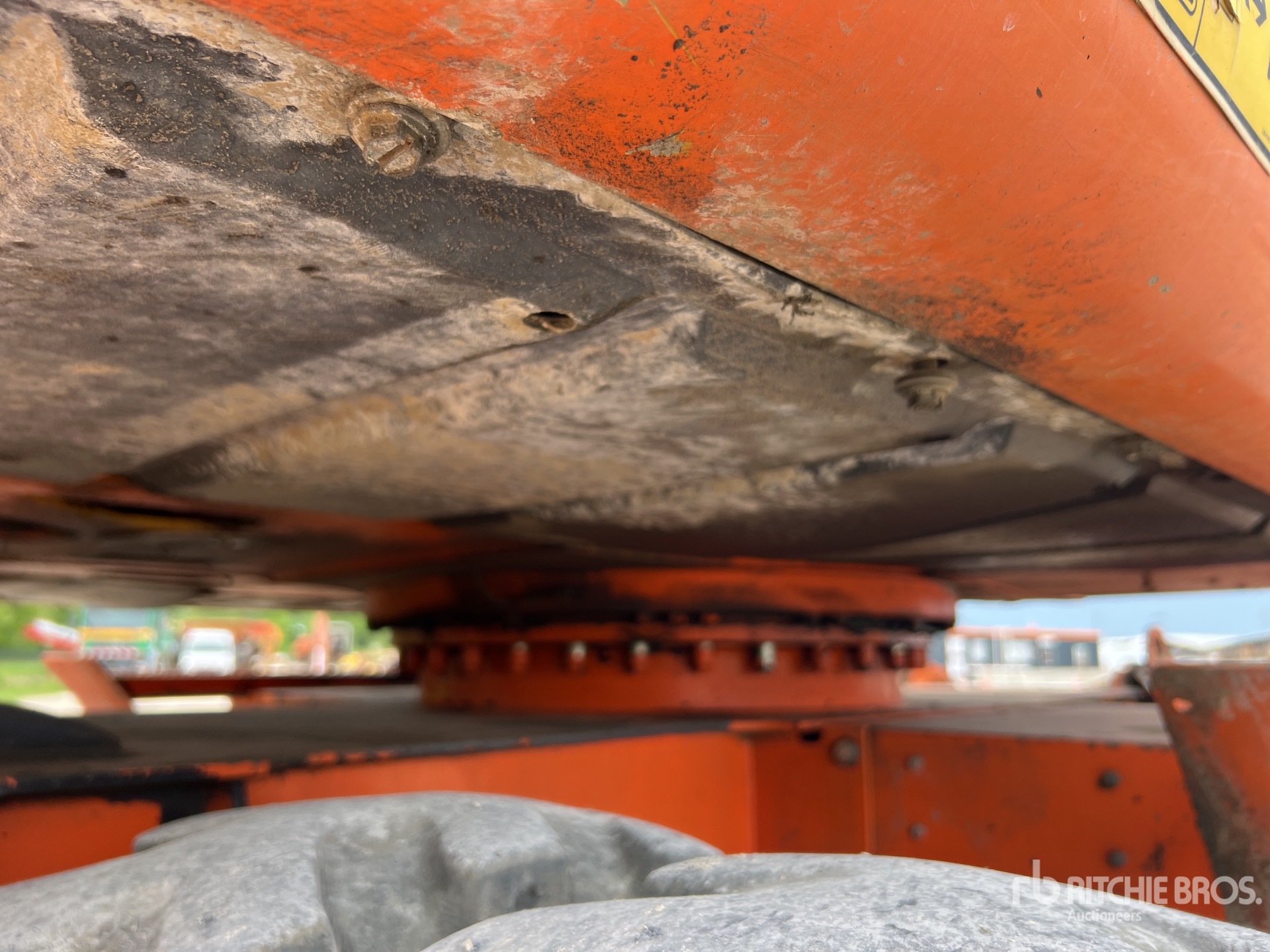

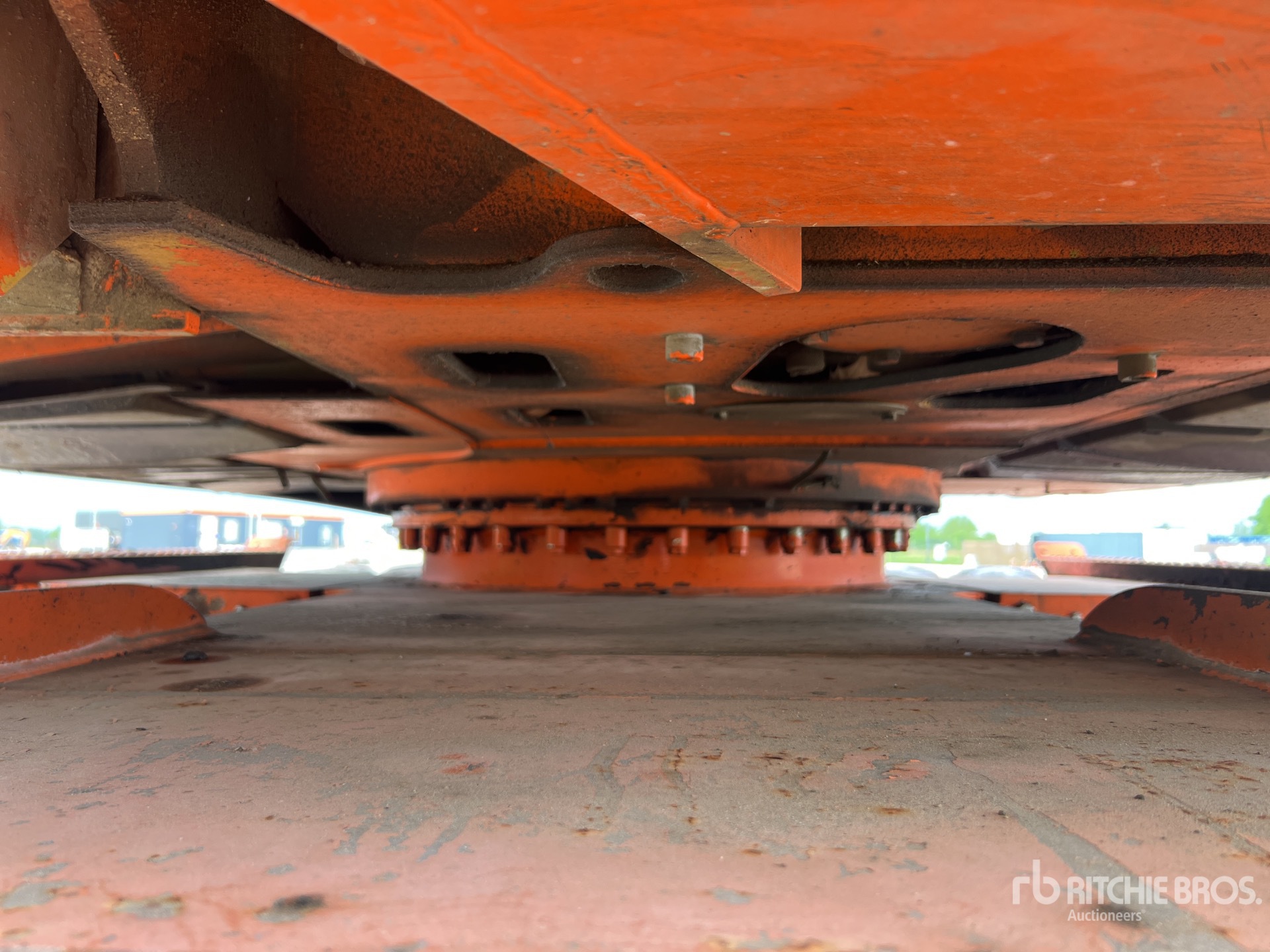

| Swing Mechanism |
|
Swing Speed |
11 rpm |
|
Swing Torque |
25,815 lbs ft (35,000 nm)
|

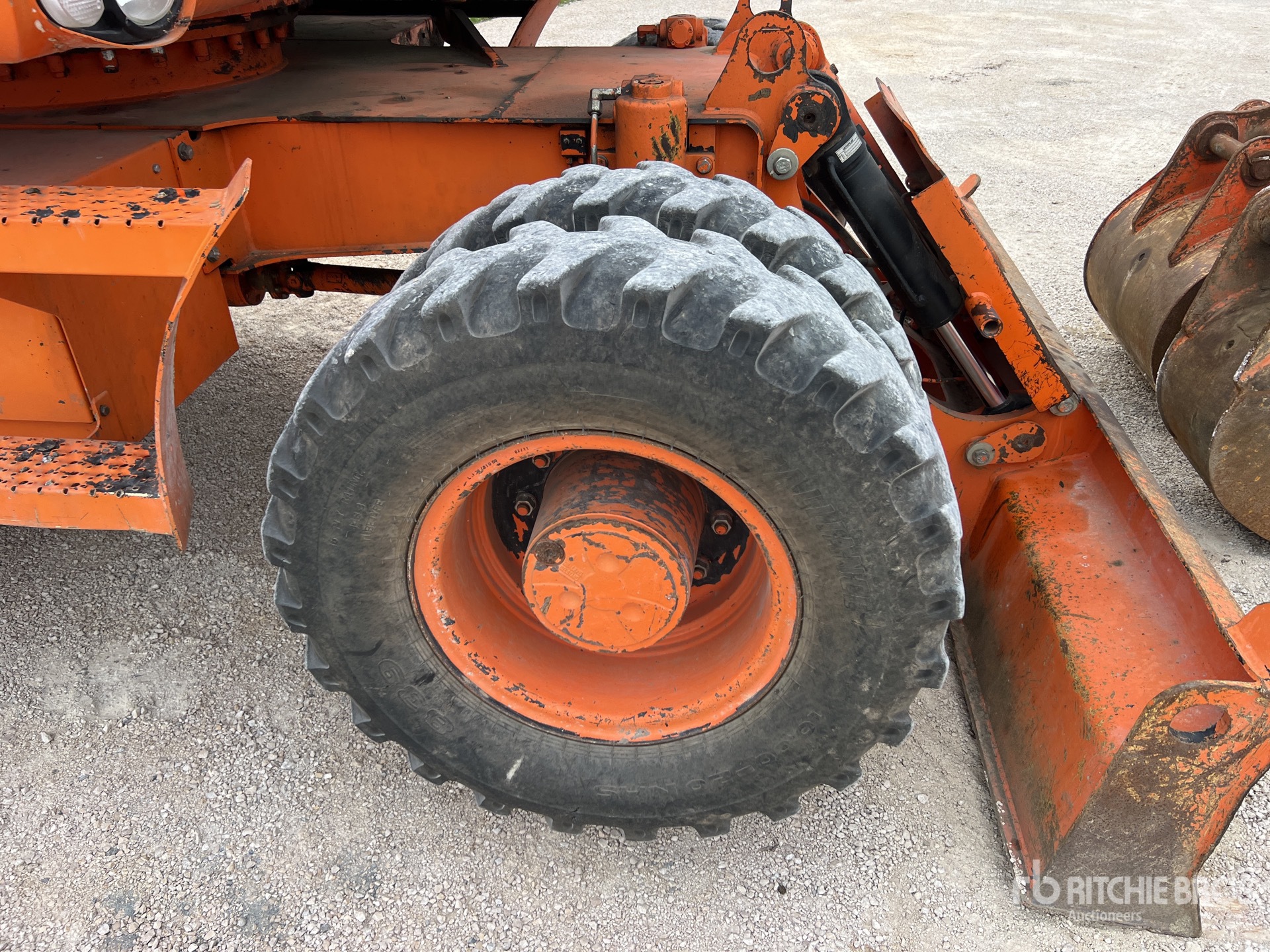

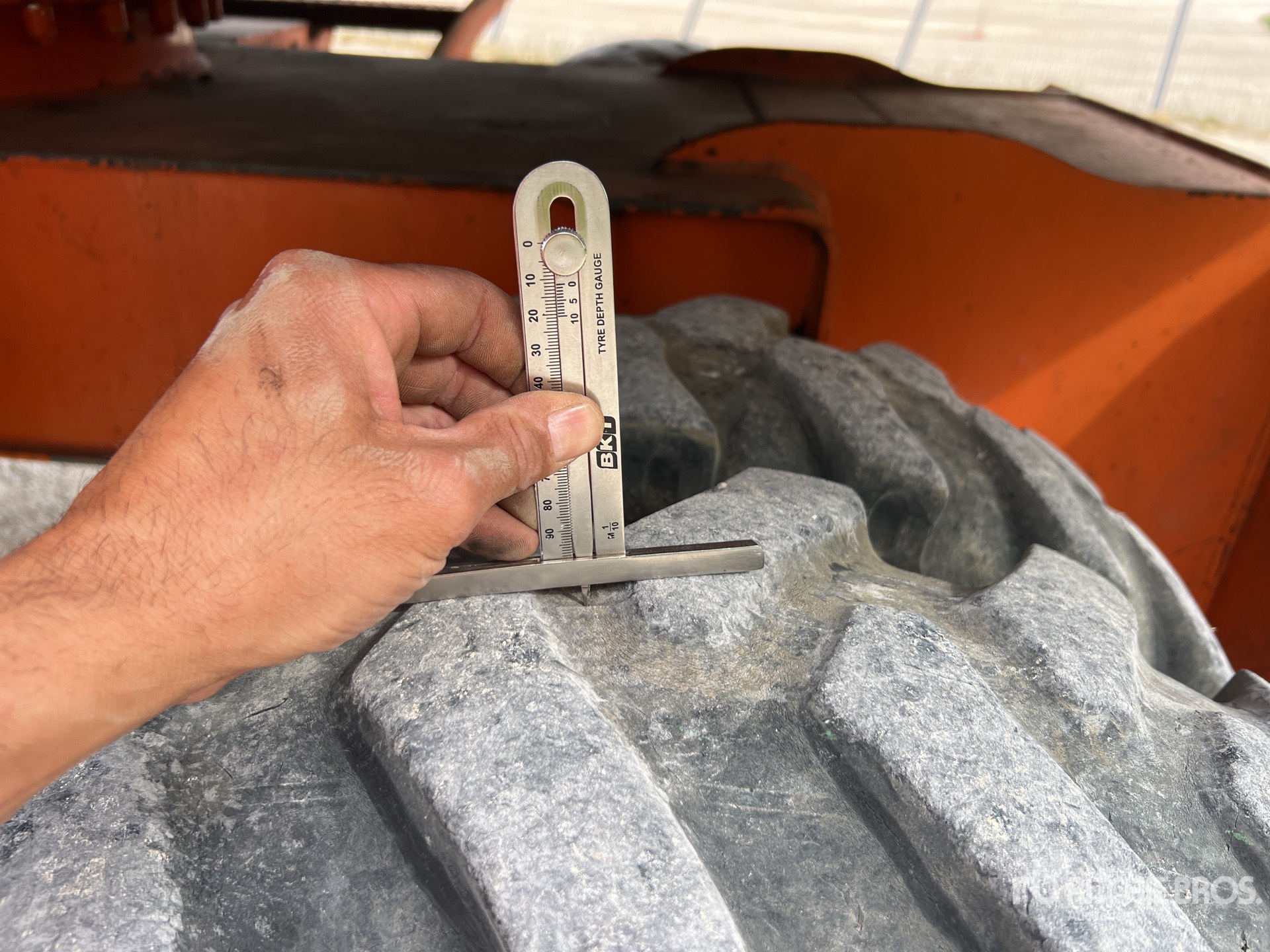

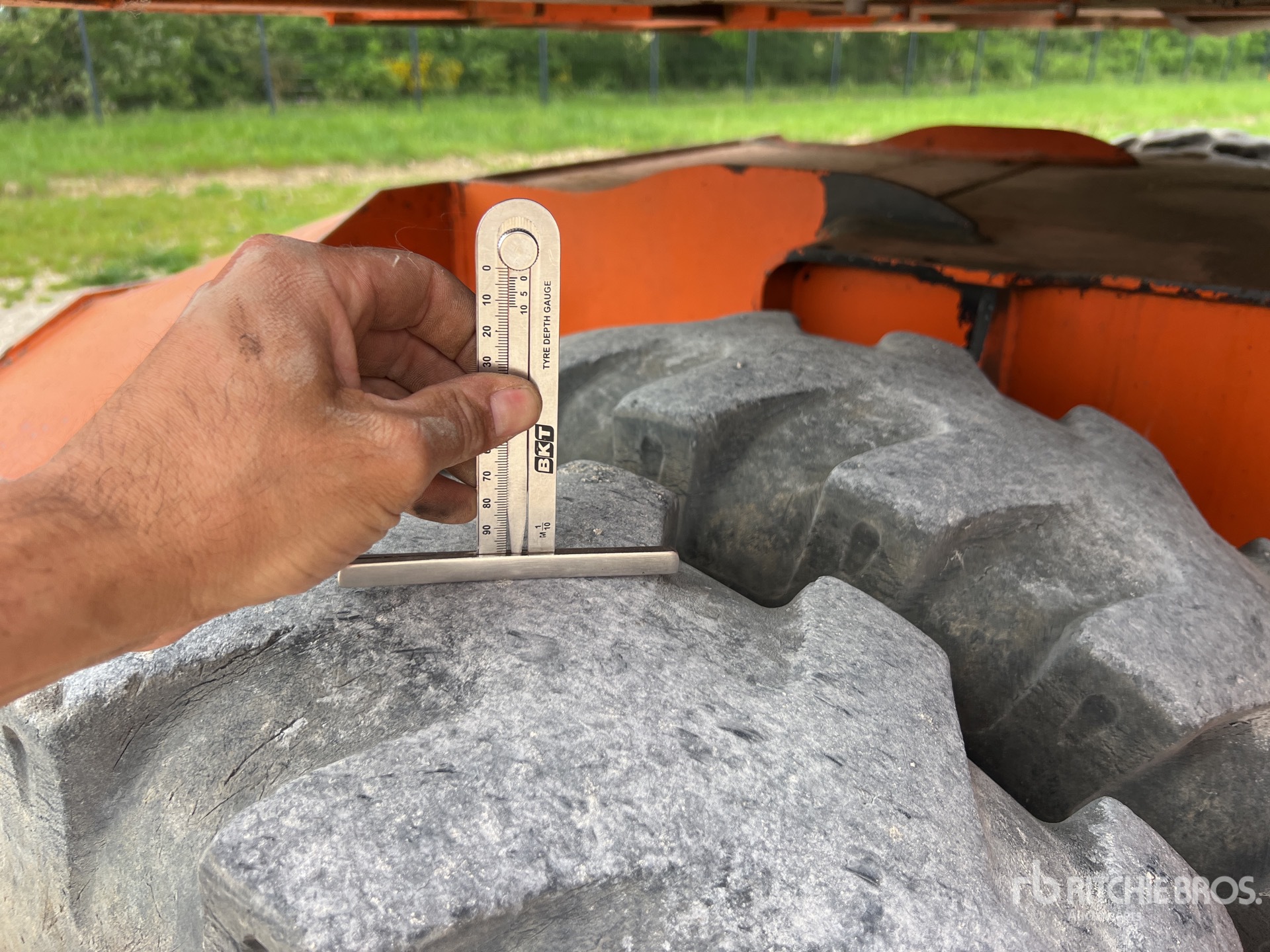

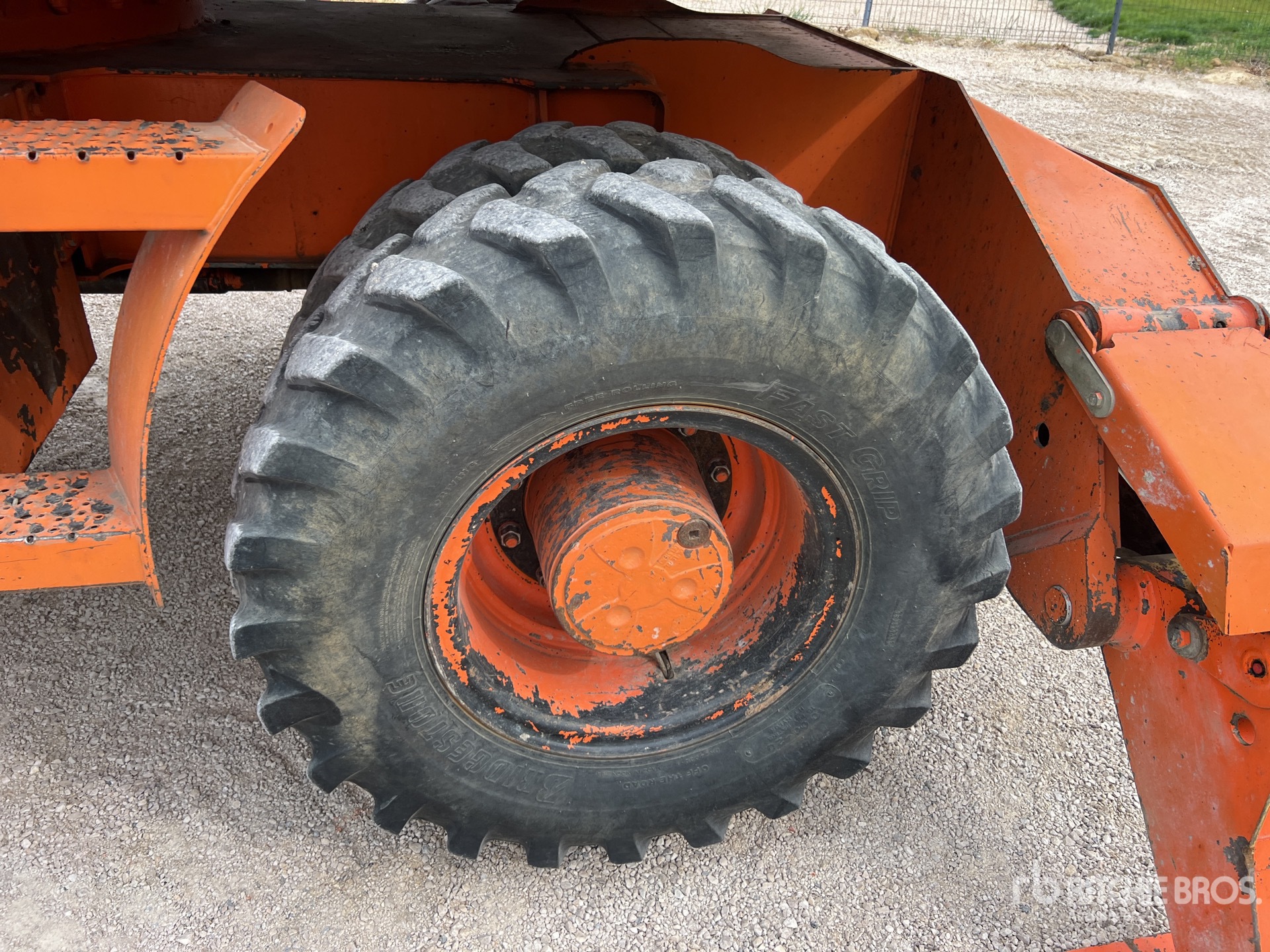

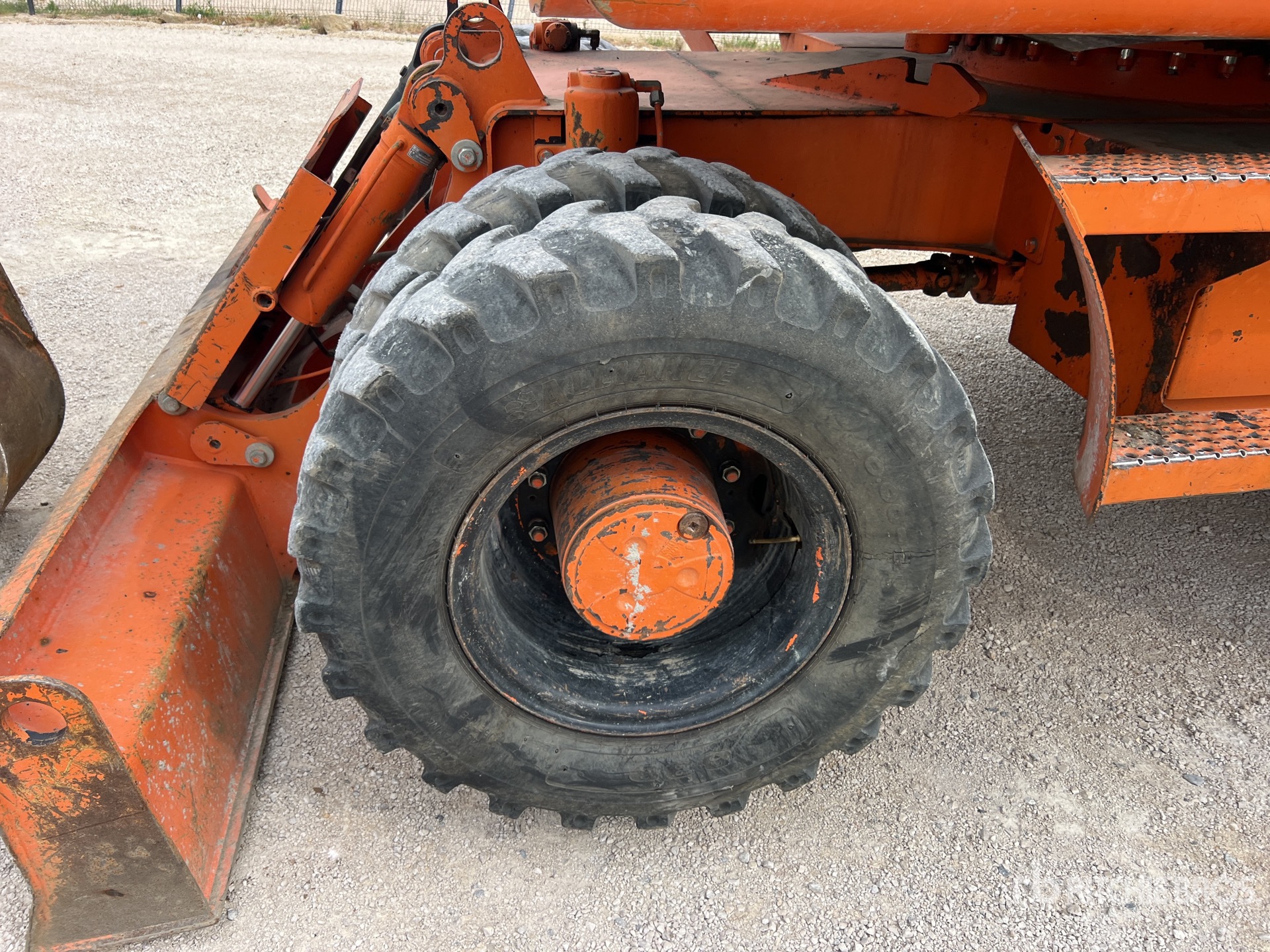

| Tires |
|
Optional |
See Optional Equipment |
|
Standard |
10.00-20 dual pneumatic |

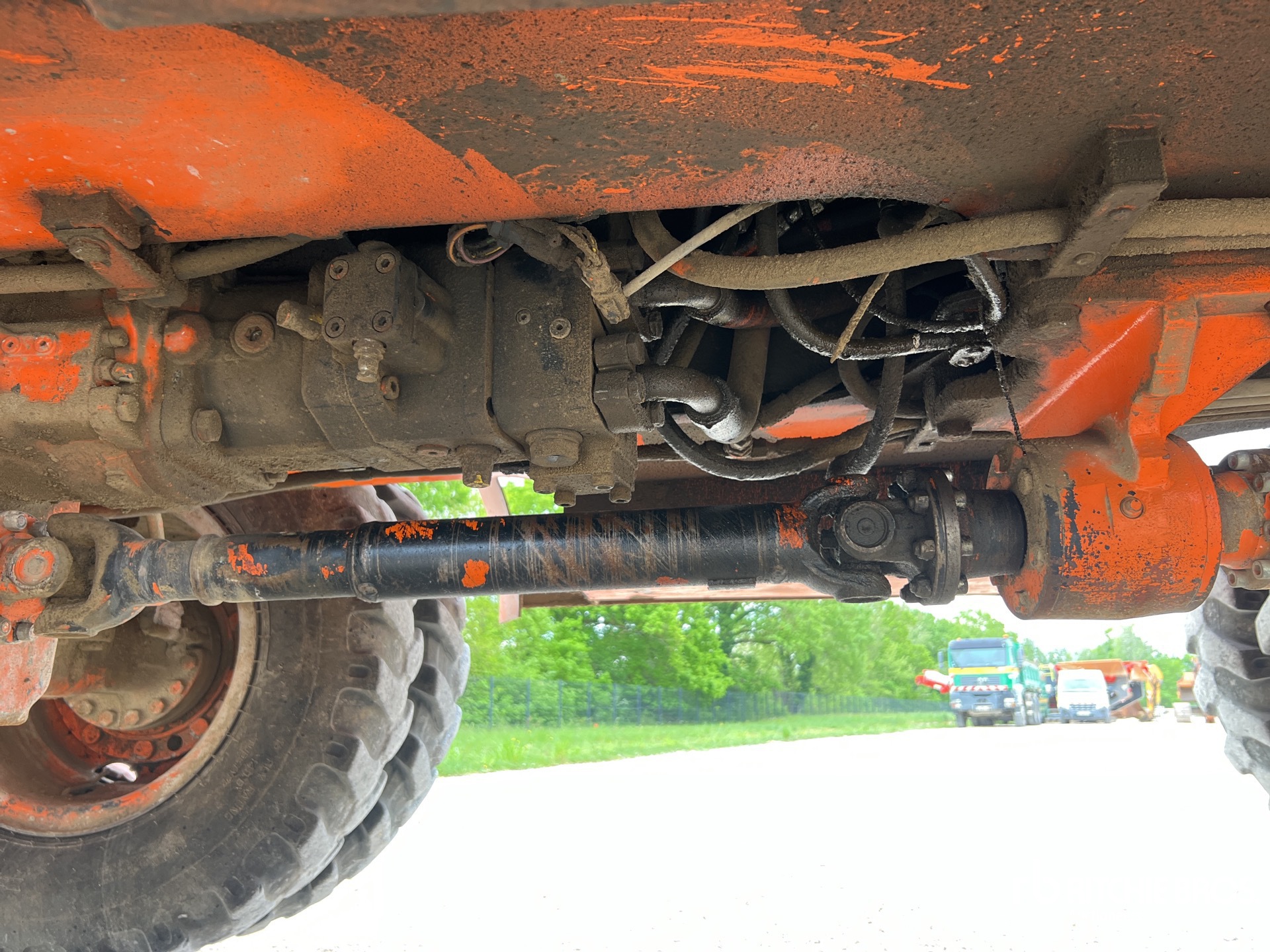

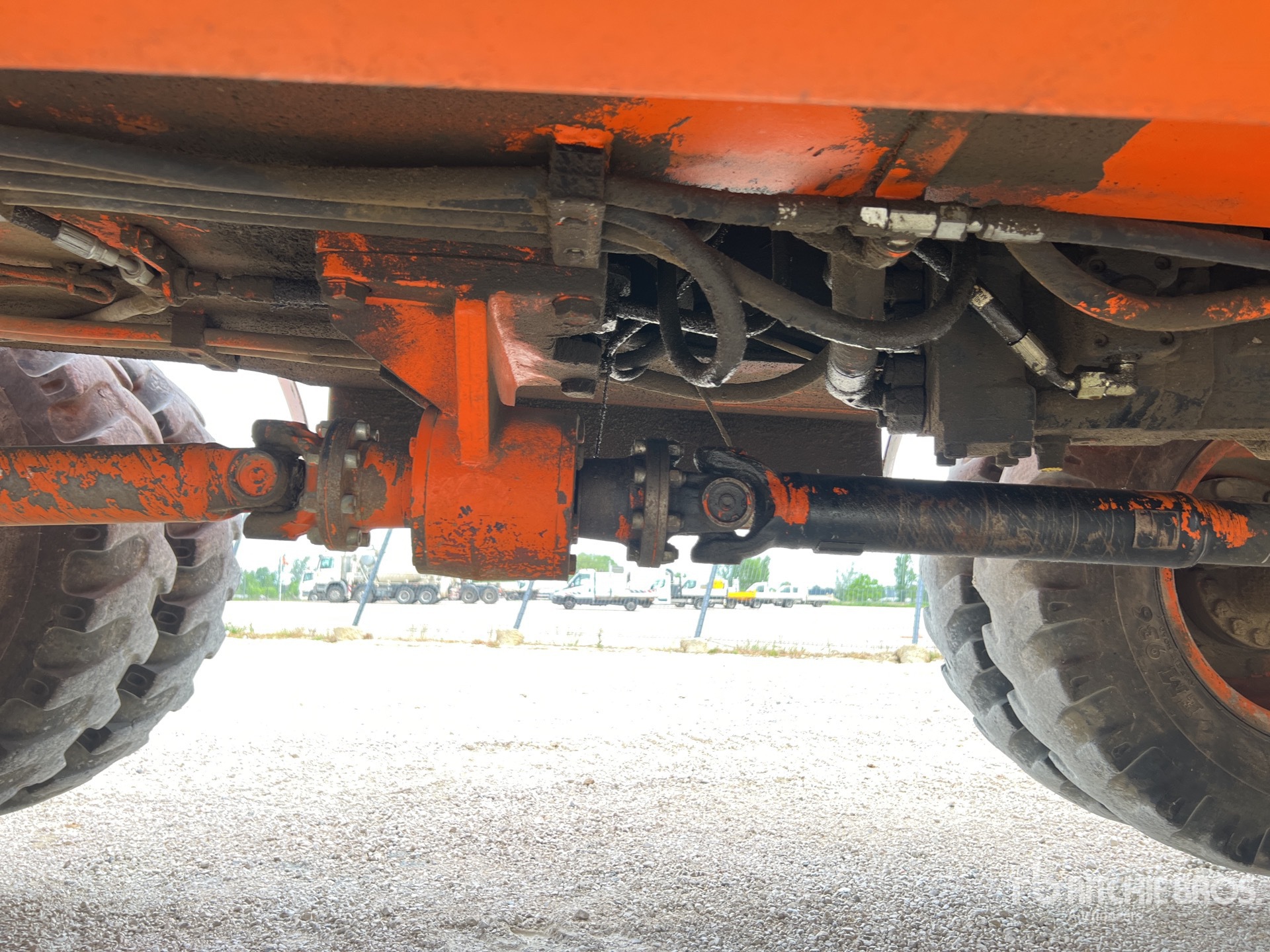

| Transmission |
|
Creeper Speed - 1st Gear |
2 mph (3 kph)
|
|
Creeper Speed - 2nd Gear |
8 mph (13 kph)
|
|
Drawbar Pull |
17,085 lbs (7,750 kg)
|
|
Forward/Reverse - 1st Gear |
6 mph (9 kph)
|
|
Forward/Reverse - 2nd Gear |
23 mph (37 kph)
|
|
Max Travel Speed |
23 mph (37 kph)
|
|
Maximum Gradeability |
58% |
|
Maximum Travel Speed |
23 mph (37 kph)
|
|
Number of Forward Gears |
2 |
|
Number of Reverse Gears |
2 |
|
Transmission Type |
Gear |

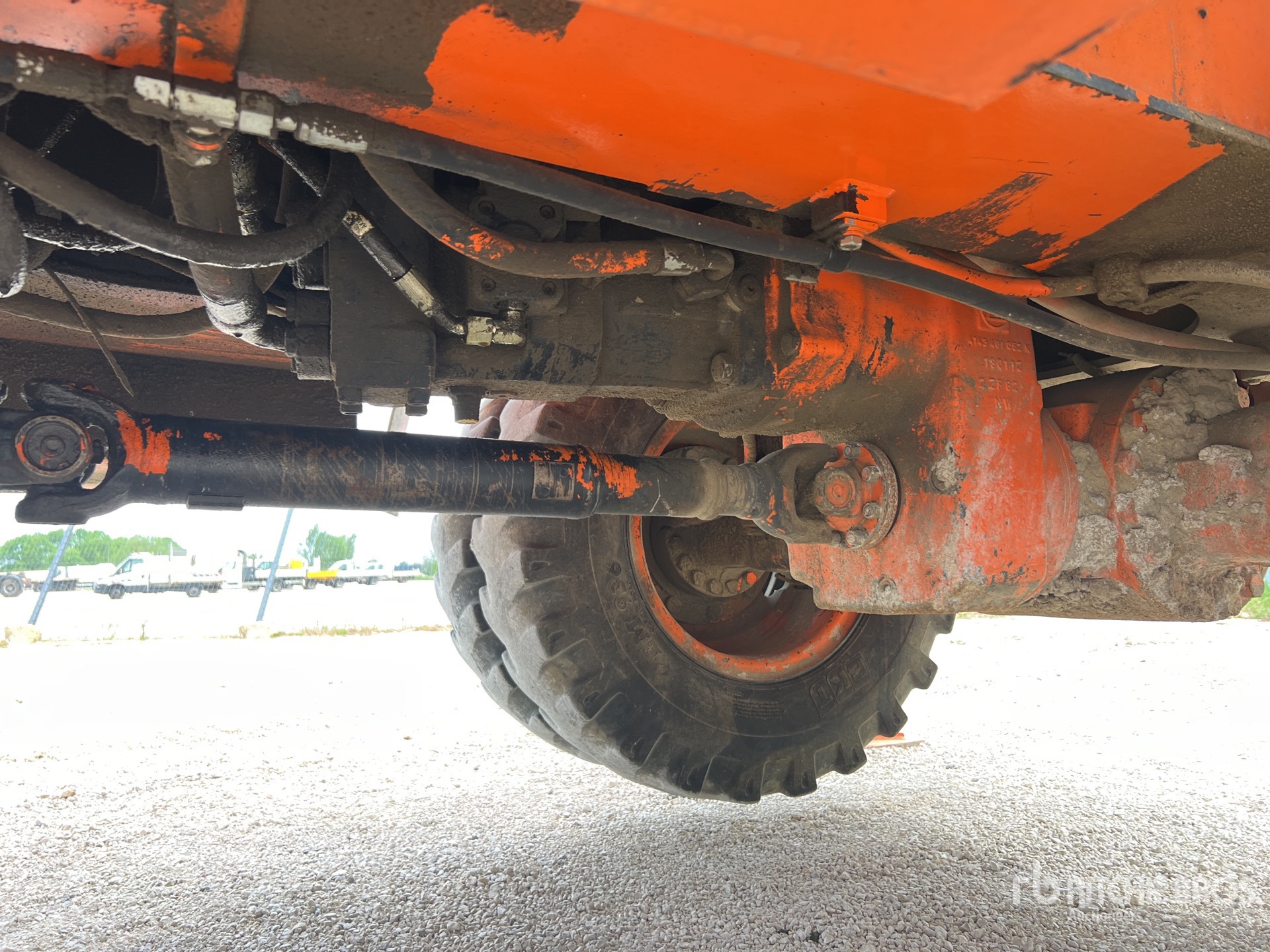

| Undercarriage |
|
Ground Clearance |
1 ft (0 m)
|
|
Oscillation Axle Angle |
9 degrees |
| Weights |
|
Counterweight |
6,393 lbs (2,900 kg)
|
|

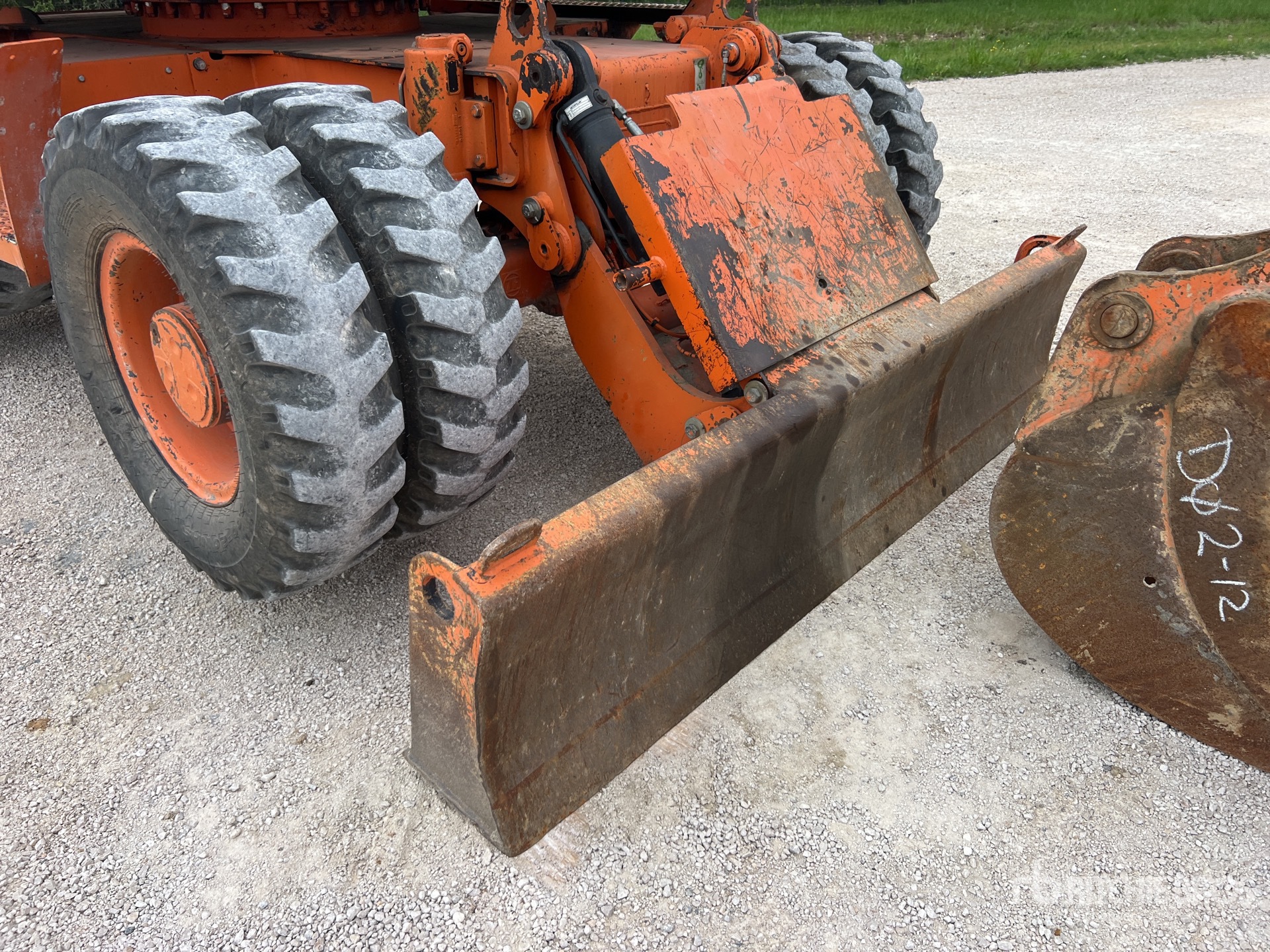

Dozer Blade |
1,653 lbs (750 kg)
|
|
Front and Rear Outriggers (1) |
32,298 lbs (14,650 kg)
|
|
Front and Rear Outriggers (2) |
31,306 lbs (14,200 kg)
|
|
One-Piece Boom - Front and Rear Outriggers |
32,518 lbs (14,750 kg)
|
|
One-Piece Boom - Rear Dozer, Front Outriggers |
31,857 lbs (14,450 kg)
|
|
Outriggers |
2,116 lbs (960 kg)
|
|
Rear - Dozer Only (1) |
29,542 lbs (13,400 kg)
|
|
Rear - Dozer Only (2) |
28,550 lbs (12,950 kg)
|
|
Rear - Dozer, Front Outriggers (1) |
31,636 lbs (14,350 kg)
|
|
Rear - Dozer, Front Outriggers (2) |
30,644 lbs (13,900 kg)
|
|
VA Boom - Front and Rear Outriggers |
33,180 lbs (15,050 kg)
|
|
VA Boom - Rear Dozer Only |
30,424 lbs (13,800 kg)
|
|
VA Boom - Rear Dozer, Front Outriggers |
32,518 lbs (14,750 kg)
|
| Working Ranges |
|
Maximum Digging Depth |
19 ft (6 m)
|
|
Maximum Reach - Ground Level |
345 ft (105 m)
|
