    This machine has been sold or is not currently for sale.
    Equipment ↠ Caterpillar ↠ Excavators ↠ 2016 Caterpillar M314F

    2016 Caterpillar M314F


    / Save to Watch List
    Apply for Financing

    MACHINE SOLD

       Auction Info: Starting on 2026-06-24   Click here to place a bid


    Ritchie Bros. Auctioneers

    Ritchie Bros. Auctioneers Dealer Info
    Ritchie Bros. Auctioneers Website
    Click here to email Ritchie Bros. Auctioneers.
    Click for Phone Number


    Machine Info:

    Hours:4835

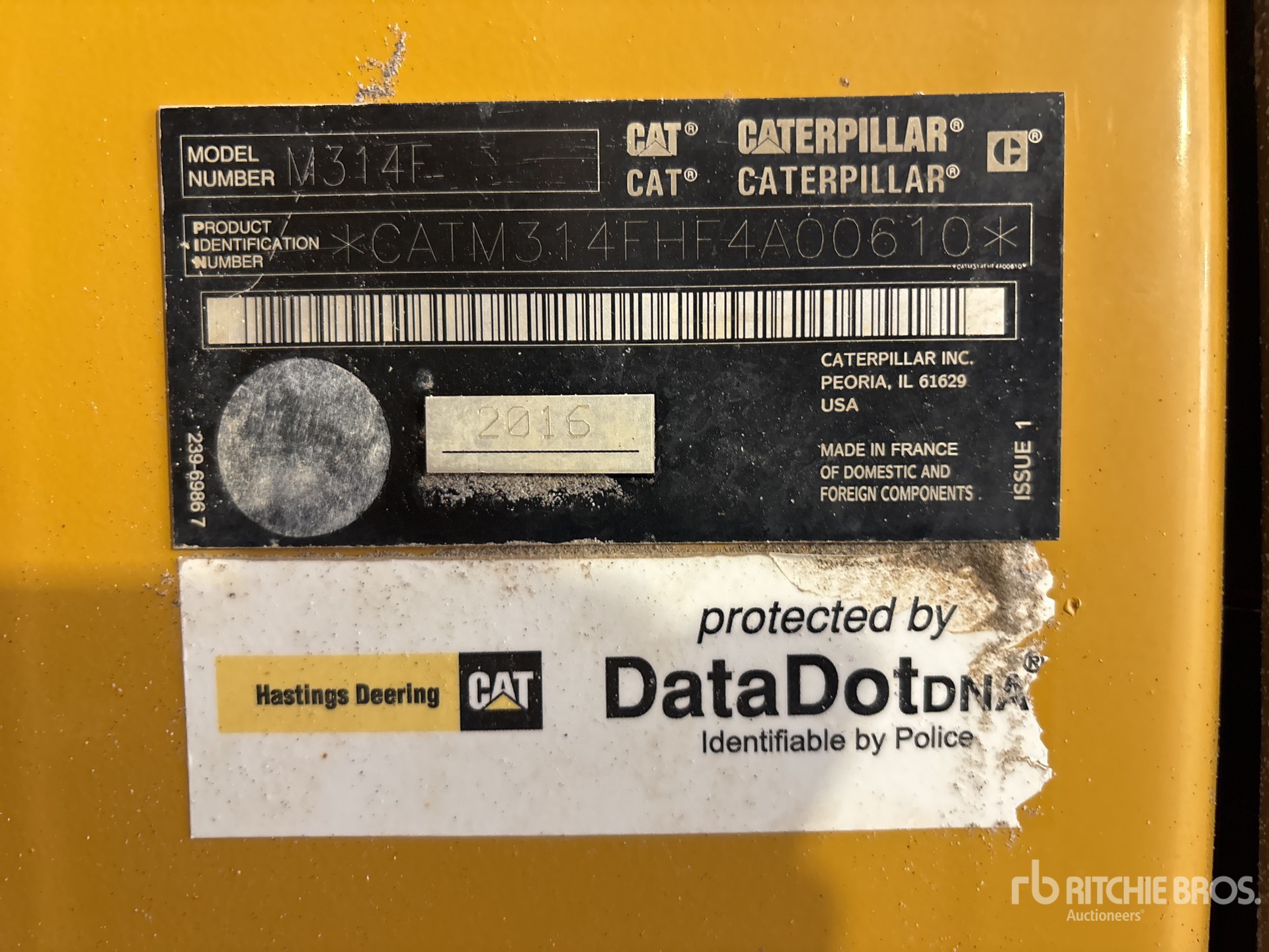

    Serial Number:CATM314FHF4A00610
    Machine Location:AUSTRALIA, AUS

    Description:

    Air Conditioner, Rear View Camera, E-Stops, Pre-Wired for Grade Control, 2016 US EPA Label, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Backfill Blade, Stabilizers, 10.00x20 Tires, Hydraulic Quick Coupler, Cleanup Bucket, Safety Rails, equipment-from-garraway-group Closing Time: 2026-06-24 04:00:00 PM


    From the manufacturer:

    Supplied by HeavyEquipmentData.com →

    Bucket
    Bucket Capacities 1 yd (1 m)
    DRIVE SYSTEM
    Maximum Travel Speed 23 mph (37 kph)
    Engine
    Bore 4 in (10 cm)
    Displacement 269 cu in (4,400 cu cm)
    Engine Gross Power (Maximum) - ISO 14396 148 hp (110 kw)
    Engine Model Cat C4.4 ACERT
    Engine Power - Maximum Gross - ISO 14396 110 kW (148 [150]*)
    Engine Power - Maximum Net - ISO 9249/SAE J1349 105 kW (141 [143]*)
    Maximum Torque - 1,400 rpm 413 lbs ft (560 nm)
    Net Power 141 hp (105 kw)
    Note *Metric values.
    Number of Cylinders 4
    Ratings 2,000 rpm
    Stroke 5 in (13 cm)
    Hydraulic System
    Maximum Flow - Auxiliary Circuit - High Pressure 48 gpm (180 lpm)
    Maximum Flow - Auxiliary Circuit - Medium Pressure 13 gpm (50 lpm)
    Maximum Pressure - Auxiliary Circuit - High Pressure 5,076 psi
    Maximum Pressure - Auxiliary Circuit - Medium Pressure 2,683 psi
    Maximum Pressure - Implement Circuit - Heavy Lift 5,439 psi
    Maximum Pressure - Implement Circuit - Normal 5,076 psi
    Maximum Pressure - Implement Circuit - Normal and Travel Circuit 5,076 psi
    Maximum Pressure - Swing Mechanism 5,076 psi
    Swing Mechanism 5,076 psi
    System 58 gal (220 l)
    Tank Capacity 24 gal (89 l)
    Service Refill Capacities
    Cooling System 10 gal (38 l)
    Diesel Exhaust Fluid Tank 5 gal (19 l)
    Engine Crankcase 2 gal (8 l)
    Final Drive 1 gal (2 l)
    Front Steering Axle - Differential 2 gal (9 l)
    Fuel Tank - Total Capacity 74 gal (280 l)
    Powershift Transmission 1 gal (3 l)
    Rear Axle - Housing (Differential) 3 gal (11 l)
    Swing Mechanism
    Maximum Swing Torque 35402 lb ft (10,791 m)
    Swing Speed 10 rpm
    Swing Torque 24,420 lbs ft (33,109 nm)
    Tires
    Standard 10.00-20 (Dual Pneumatic)
    Transmission
    Creeper Speed - 1st Gear 2 mph (3 kph)
    Creeper Speed - 2nd Gear 8 mph (12 kph)
    Forward/Reverse - 1st Gear 6 mph (9 kph)
    Forward/Reverse - 2nd Gear 23 mph (37 kph)
    Maximum Forward/Reverse - 2nd Gear 23 mph (37 kph)
    Undercarriage
    Ground Clearance 1 ft (0 m)
    Oscillation Axle Angle 9 degrees
    Weights
    One-Piece Boom - Front and Rear Outriggers 34,392 lbs (15,600 kg)
    VA Boom - Front and Rear Outriggers 35,164 lbs (15,950 kg)
    VA Boom - Rear Dozer Only 32,430 lbs (14,710 kg)
    VA Boom - Rear Dozer, Front Outriggers 34,546 lbs (15,670 kg)
    Working Ranges
    Maximum Digging Depth 19 ft (6 m)
    Maximum Reach - Ground Level 30 ft (9 m)
