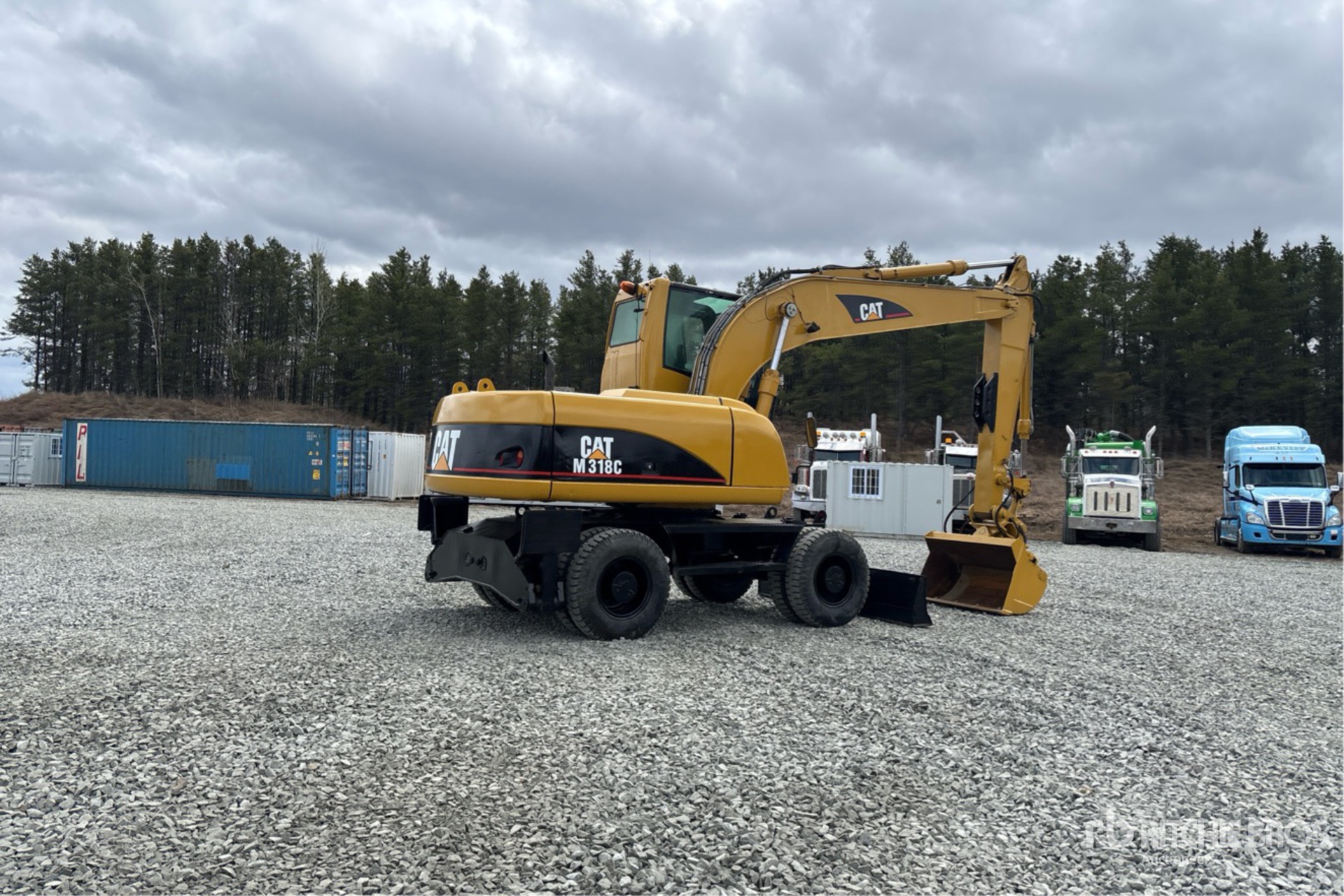

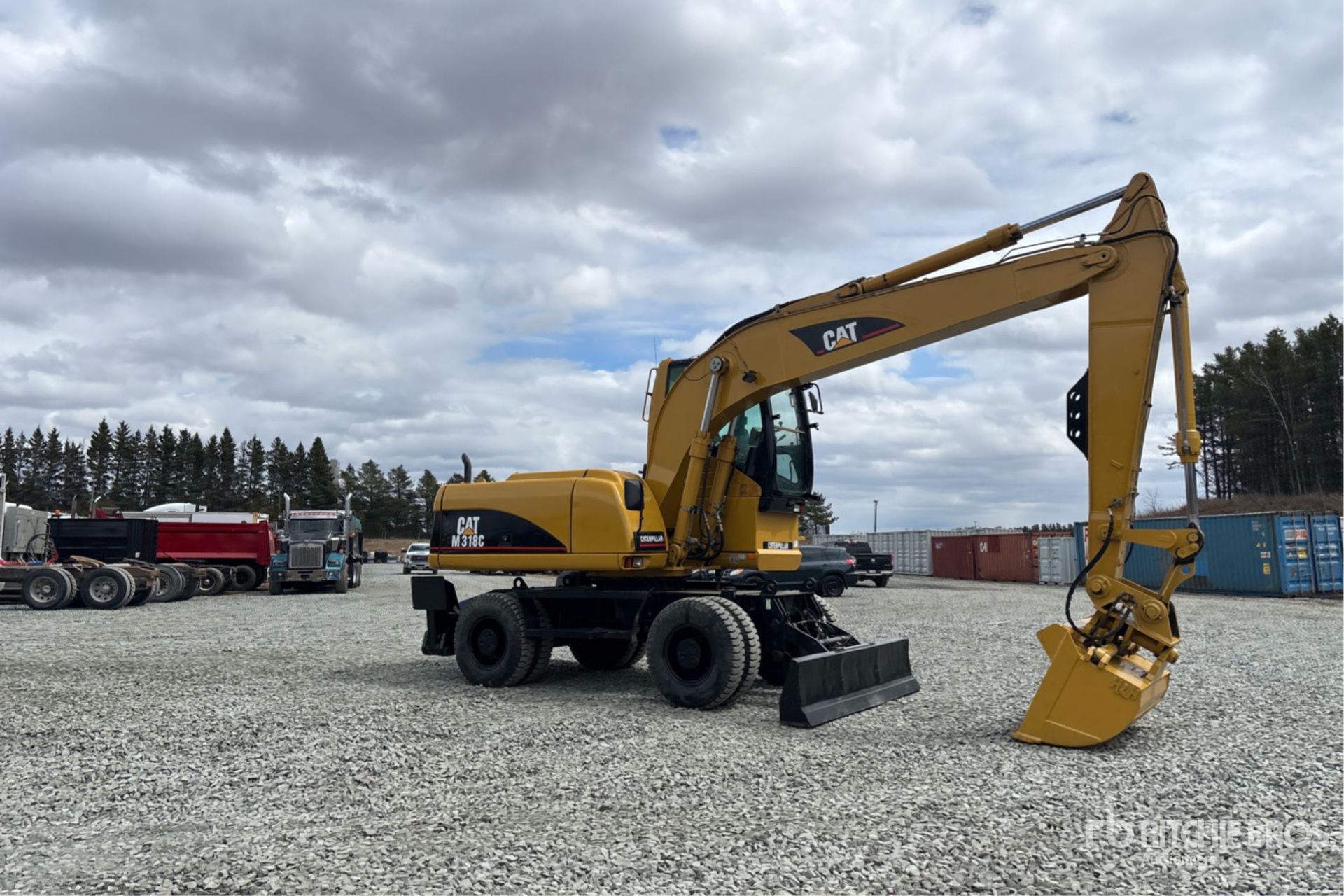

| Boom/Stick Mobile Excavator Option 1 |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
12 ft (4 m)
|
|
Shipping Height of Unit |
13 ft (4 m)
|
|
Shipping Length of Unit |
29 ft (9 m)
|
| Boom/Stick Mobile Excavator Option 2 |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Dig Depth |
13 ft (4 m)
|
|
Shipping Height of Unit |
13 ft (4 m)
|
|
Shipping Length of Unit |
29 ft (9 m)
|
| Boom/Stick Mobile Excavator Option 3 |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
11 ft (3 m)
|
|
Shipping Height of Unit |
11 ft (3 m)
|
|
Shipping Length of Unit |
29 ft (9 m)
|
| Boom/Stick Mobile Excavator Option 4 |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Dig Depth |
12 ft (4 m)
|
|
Shipping Height of Unit |
11 ft (3 m)
|
|
Shipping Length of Unit |
29 ft (9 m)
|
| Bucket |
|
Maximum Bucket Capacity |
2 cu yd (1 cu m)
|
|
Minimum Bucket Capacity |
1 cu yd (0 cu m)
|
|
Reference Bucket Capacity |
1 cu yd (1 cu m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top of Cab |
11 ft (3 m)
|
|
Overall Width |
8 in (21 cm)
|
|
Overall Width - Outriggers Down |
12 ft (4 m)
|
|
Tail Swing Radius |
8 ft (3 m)
|
|
Upper Structure Clearance |
4 ft (1 m)
|
|
Wheelbase |
9 ft (3 m)
|
| Engine |
|
Aspiration |
Turbocharged with Aftercooler |
|
Bore |
4 in (10 cm)
|
|
Displacement |
366 cu in (5,998 cu cm)
|
|
Engine Model |
Cat 3056E ATAAC |
|
ISO 9249 |
151 hp (113 kw)
|
|
Maximum Torque - 1,400 rpm |
498 lbs ft (675 nm)
|
|
Net Power |
151 hp (113 kw)
|
|
Net Torque |
498 lbs ft (675 nm)
|
|
Number of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Stroke |
5 in (13 cm)
|
|
Torque Measured @ |
1,400 rpm |
| Hydraulic System |
|
Implement/Travel Circuit |
65 gpm (246 lpm)
|
|
Normal |
5,076 psi |
|
Travel Circuit |
5,076 psi |
| Operating Specifications |
|
Cooling System Fluid Capacity |
10 gal (39 l)
|
|
Engine Oil Capacity |
4 gal (16 l)
|
|
Front Diff Fluid Capacity |
3 gal (11 l)
|
|
Fuel Capacity |
102 gal (385 l)
|
|
Hydraulic Pump Flow Capacity |
74 gpm (280 lpm)
|
|
Hydraulic System Fluid Capacity |
67 gal (255 l)
|
|
Hydraulic System Relief Valve Pressure |
5,076 psi |
|
Max Steering Angle |
35 degrees |
|
Operating Weight |
41,557 lbs (18,850 kg)
|
|
Oscillating Axle Angle |
18 degrees |
|
Rear Diff Fluid Capacity |
4 gal (14 l)
|
|
Tire Size |
10.00-20 |
| Service Refill Capacities |
|
Cooling |
10 gal (39 l)
|
|
Engine Crankcase |
5 gal (18 l)
|
|
Front Steering Axle - Differential |
2 gal (8 l)
|
|
Fuel Tank |
102 gal (386 l)
|
|
Hydraulic System - Including Tank |
67 gal (254 l)
|
|
Hydraulic Tank |
45 gal (170 l)
|
|
Powershift Transmission |
1 gal (3 l)
|
|
Rear Axle - Housing (Differential) |
3 gal (11 l)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
|
Swing Torque |
33,700 lbs ft (45,690 nm)
|
| Tires |
|
Optional |
10.00-20 dual solid rubber; 18-R 19.5 XF single; 600/40-22.5 single; 11.00-20 dual |
|
Standard |
10.00-20 dual pneumatic |
| Transmission |
|
Creeper Speed - 1st Gear |
3 mph (4 kph)
|
|
Creeper Speed - 2nd Gear |
8 mph (13 kph)
|
|
Forward/Reverse - 1st Gear |
6 mph (9 kph)
|
|
Max Travel Speed |
21 mph (34 kph)
|
|
Maximum Gradeability |
61.5% |
|
Maximum Travel Speed |
21 mph (34 kph)
|
|
Number of Forward Gears |
2 |
|
Number of Reverse Gears |
2 |
|
Transmission Type |
Hydrostatic |
| Weights |
|
Counterweight |
8,820 lbs (4,001 kg)
|
|
Dozer Blade |
1,675 lbs (760 kg)
|
|
Front and Rear Outriggers (1) |
43,320 lbs (19,650 kg)
|
|
Front and Rear Outriggers (2) |
42,220 lbs (19,151 kg)
|
|
Outriggers |
2,250 lbs (1,021 kg)
|
|
Rear - Dozer Only (1) |
40,340 lbs (18,298 kg)
|
|
Rear - Dozer Only (2) |
39,240 lbs (17,799 kg)
|
|
Rear - Dozer, Front Outriggers (1) |
42,660 lbs (19,350 kg)
|
|
Rear - Dozer, Front Outriggers (2) |
41,560 lbs (18,851 kg)
|
