2006 Caterpillar C3500 For Sale in Las Vegas, Nv

Name: 2006 Caterpillar C3500
Brand: Caterpillar
SKU: 86474348
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-05 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

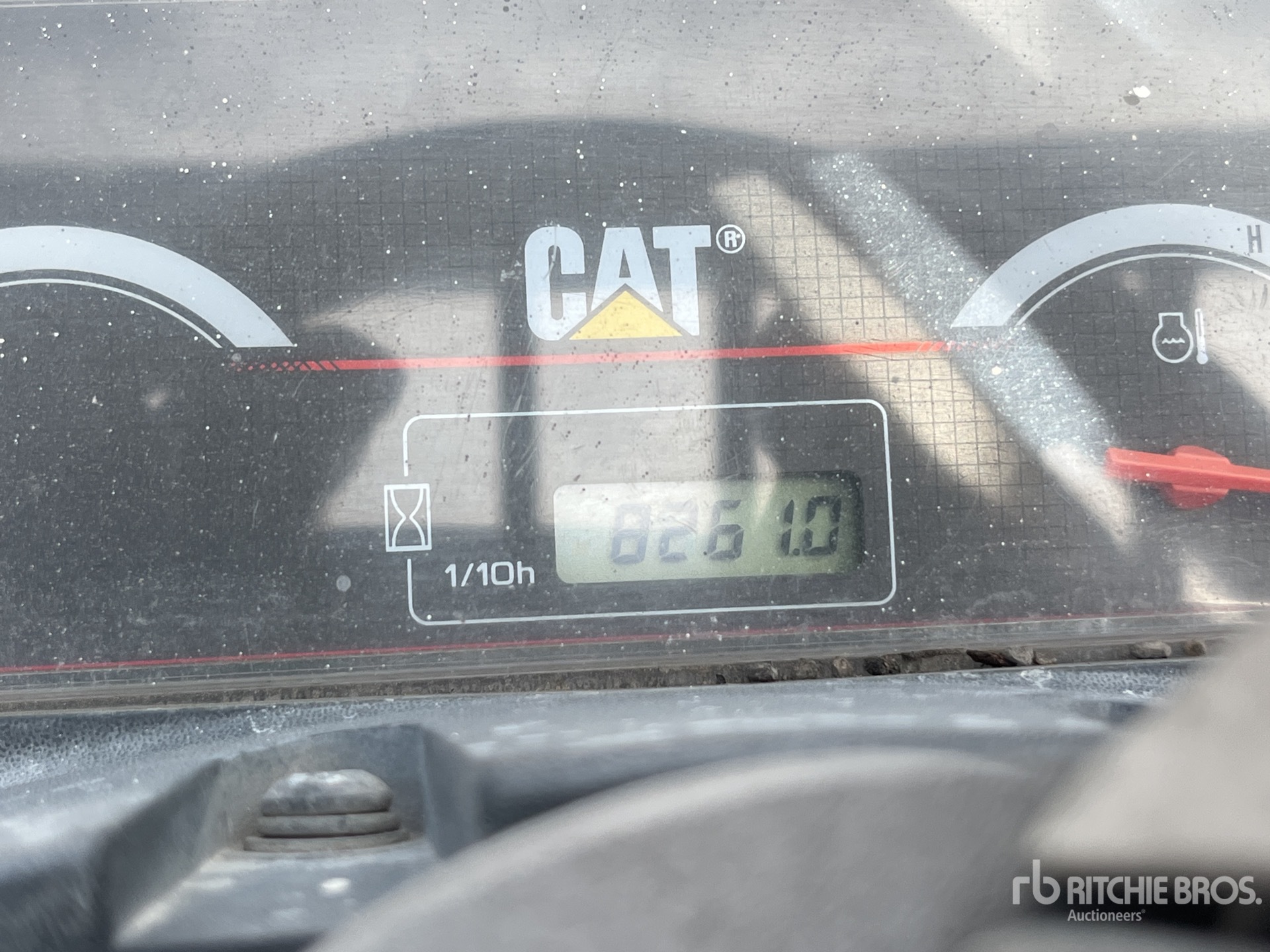

Hours:	8261

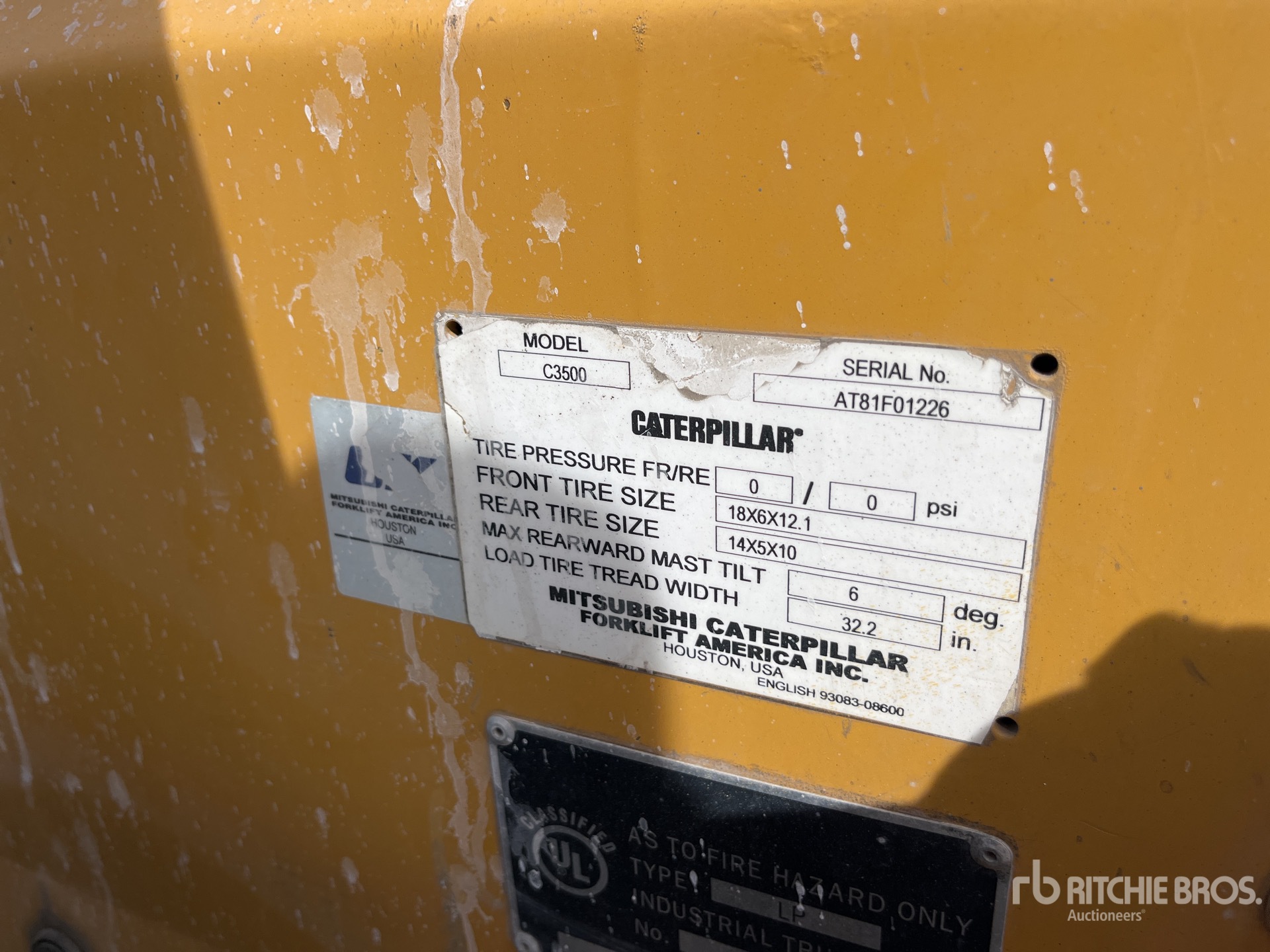

Serial Number:	AT81F01226
Machine Location:	LAS VEGAS, NV

Description:

3 Stage Mast, 188 in Max Lift Height, 82 in Lowered Mast Height, 42 in Forks, Side Shift, 2006 US EPA Label, Nissan 4 Cylinder 2.1 L LPG Engine Closing Time: 2026-06-05 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Ground Clearance	3 in (8 cm)
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	7 ft (2 m)
Max Fork Height	11 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	3 ft (1 m)
Turning Radius	6 ft (2 m)
Wheelbase	4 ft (1 m)
Engine
Displacement	128 cu in (2,101 cu cm)
Engine Model	K21
Fuel Type	gas
Power	50 hp (37 kw)
Power Measured @	2,400 rpm
Torque	111 lbs ft (150 nm)
Torque Measured @	2,000 rpm
MAST
Lift Speed	125 ft/min (38 m/min)
Load Capacity	3,500 lbs (1,588 kg)
Load Center	20 in (50 cm)
Lower Speed	99 ft/min (30 m/min)
Mast Tip Forward	5 degrees
Mast Tip Rear	10 degrees
Max Fork Spread	32 in (82 cm)
Operating Specifications
Max Speed	10 mph (16 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	6,449 lbs (2,925 kg)
Tire Type	cushion
