Equipment ↠ Caterpillar ↠ Material Handlers ↠ 2007 Caterpillar M322D MH

2007 Caterpillar M322D MH For Sale in Summerville, SC

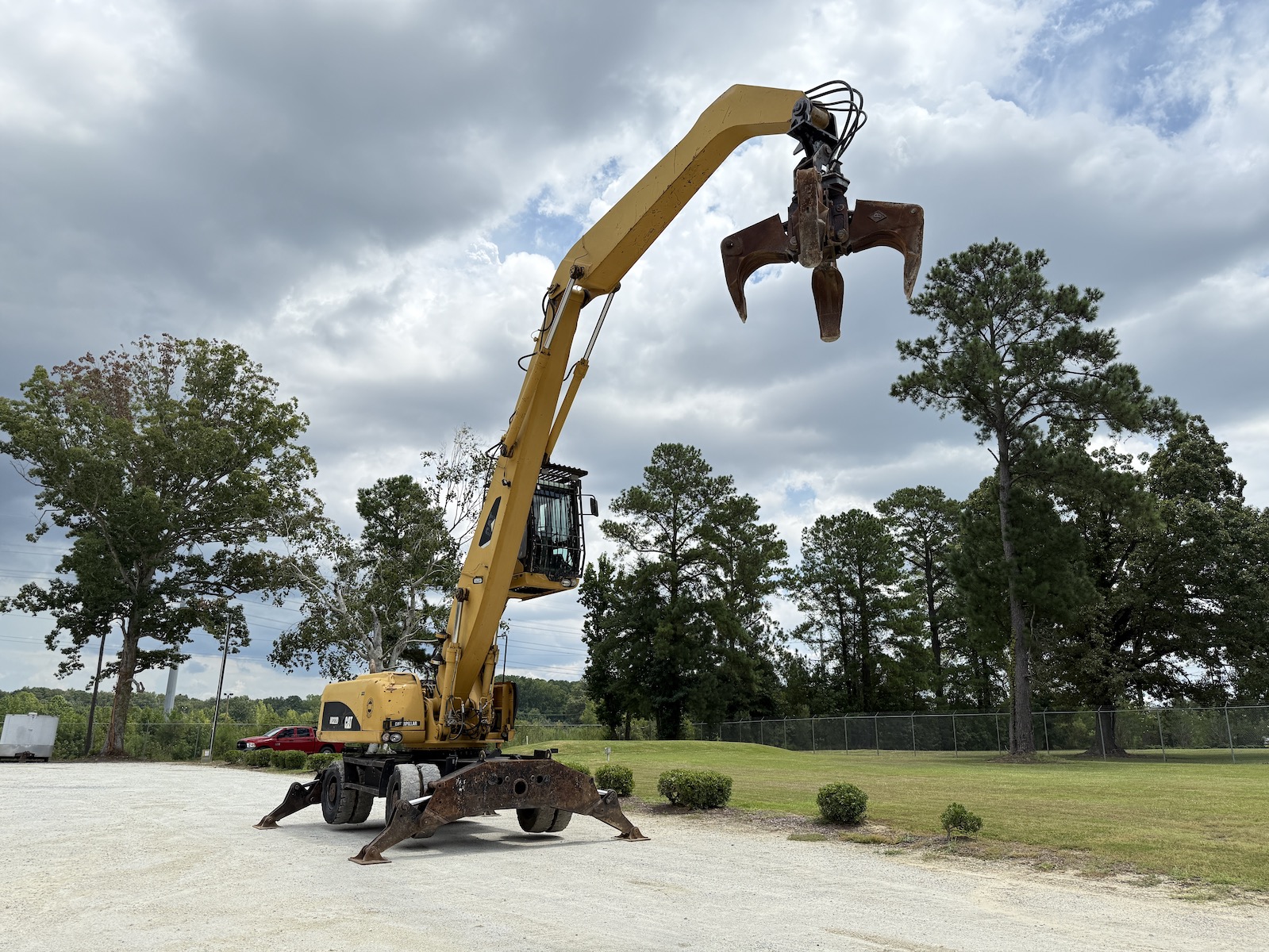

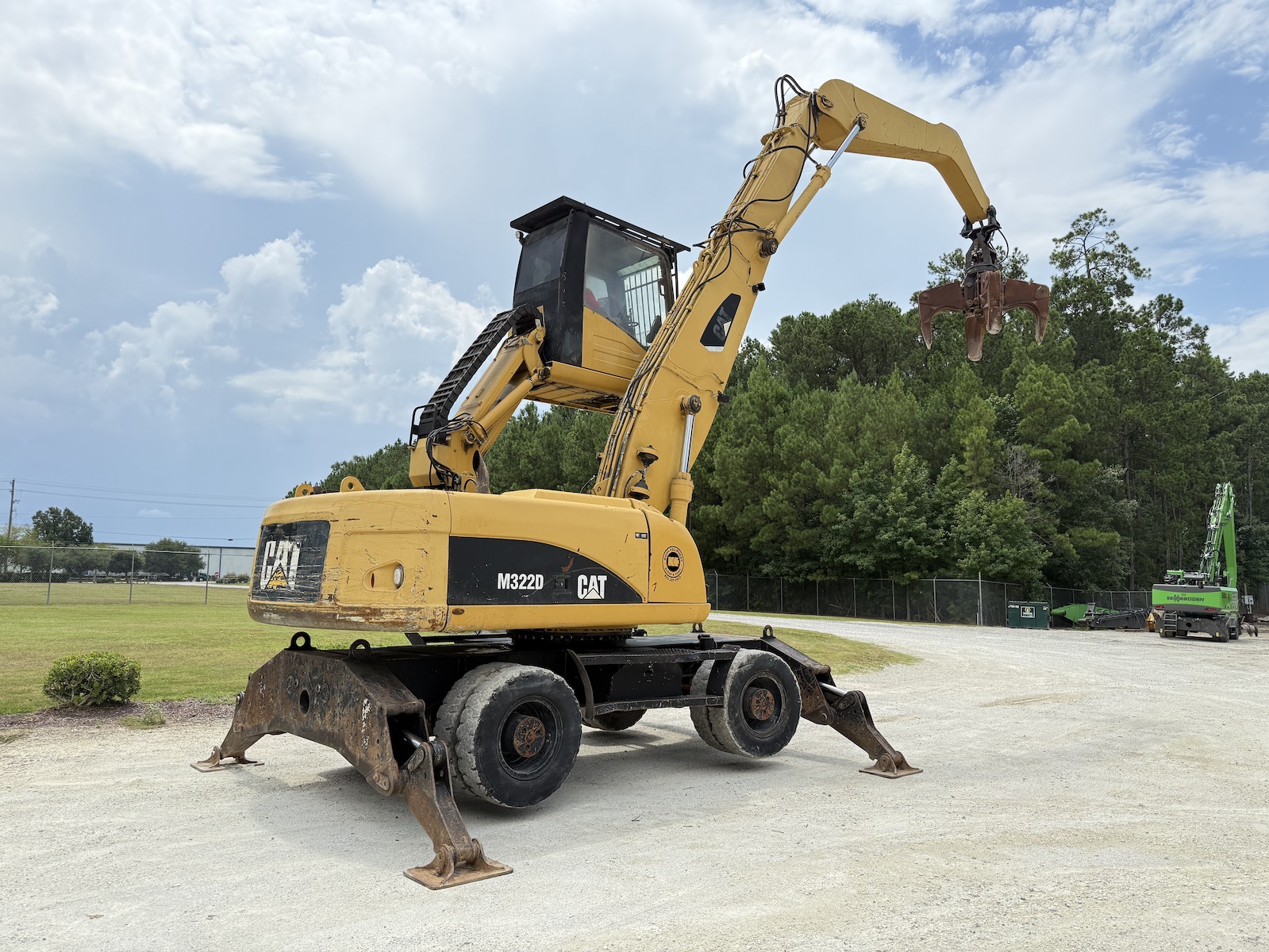

Name: 2007 Caterpillar M322D MH
Brand: Caterpillar
SKU: 87653421
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Call for Price

Kuhn Equipment

Kuhn Equipment Dealer Info

Kuhn Equipment Website

Click here to email Kuhn Equipment .

Contact: Mike Bernard

Click for Phone Number

Machine Info:

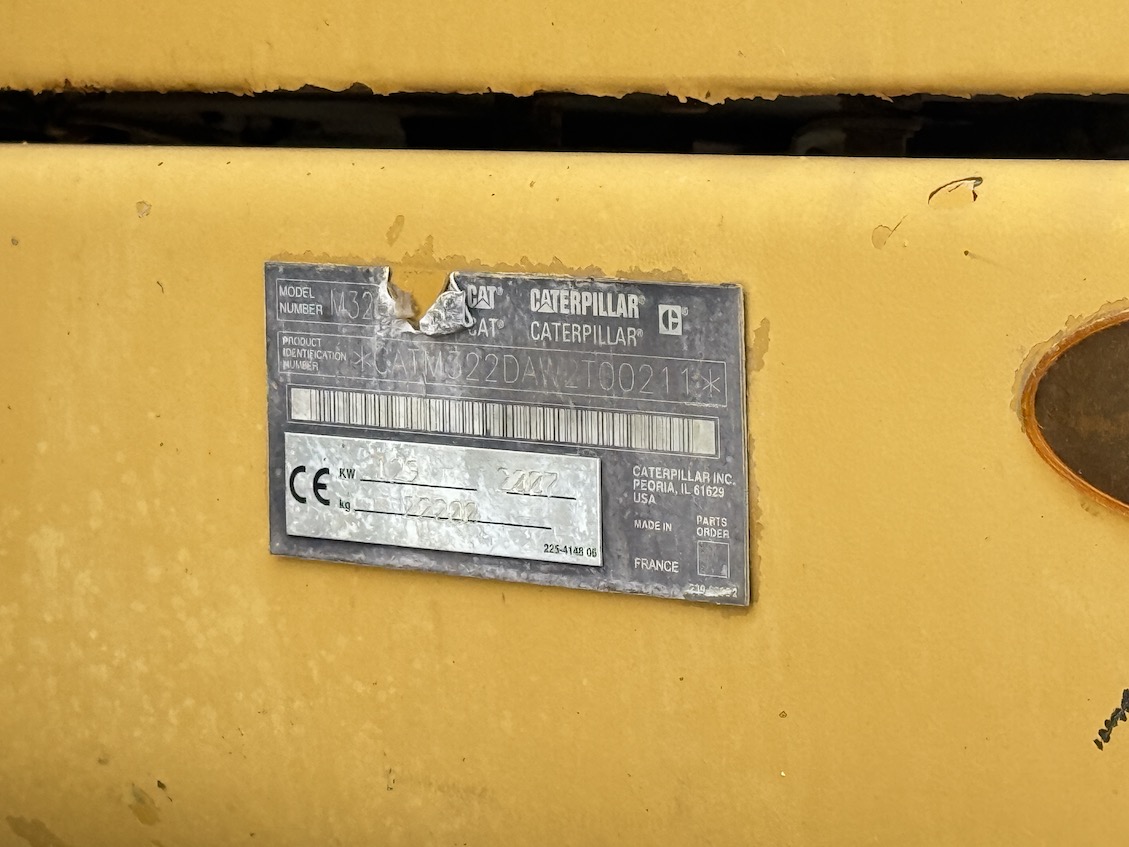

Serial Number:	W2T00211
Stock Number:	23
Machine Location:	SUMMERVILLE, SC

Description:

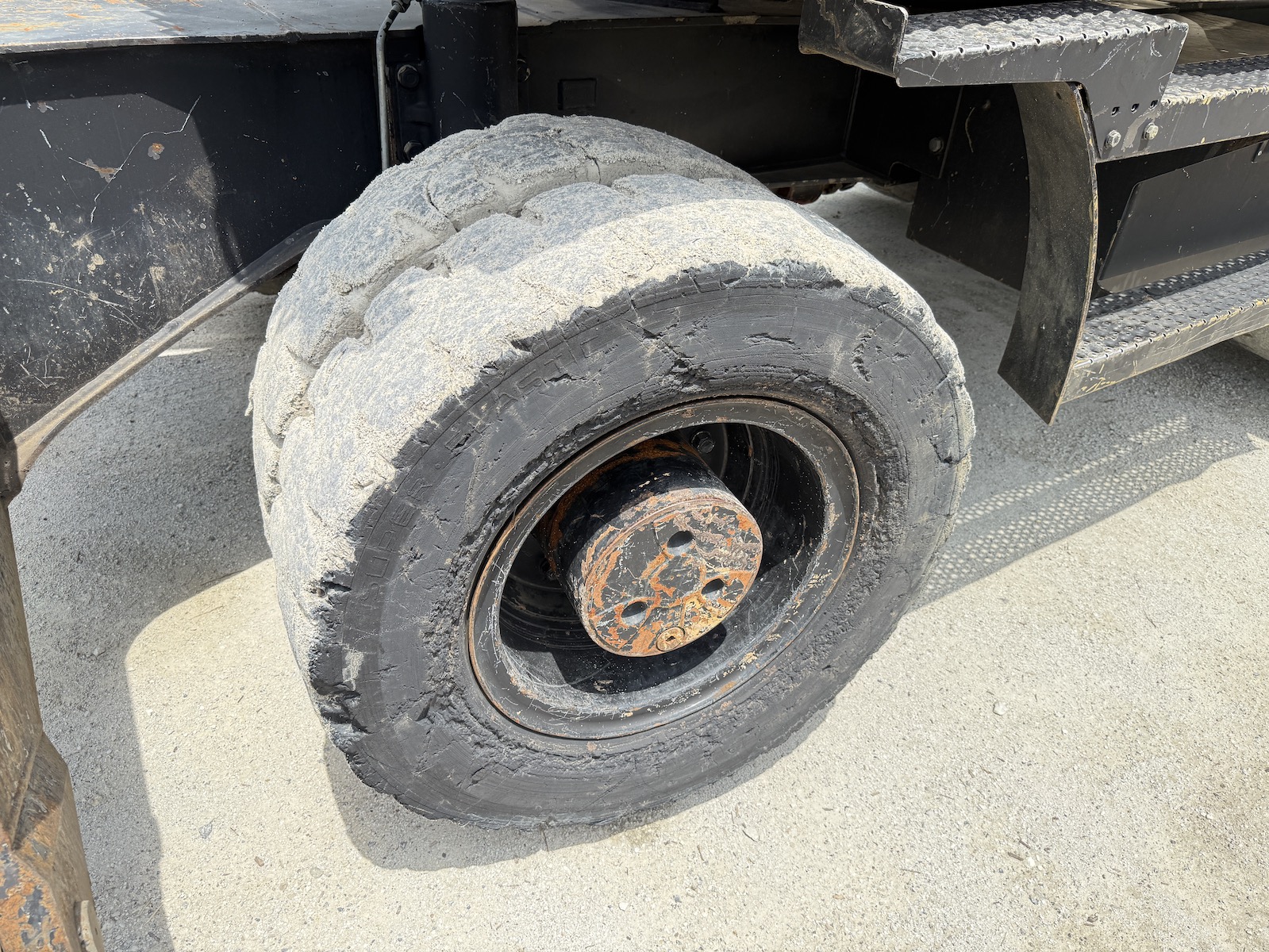

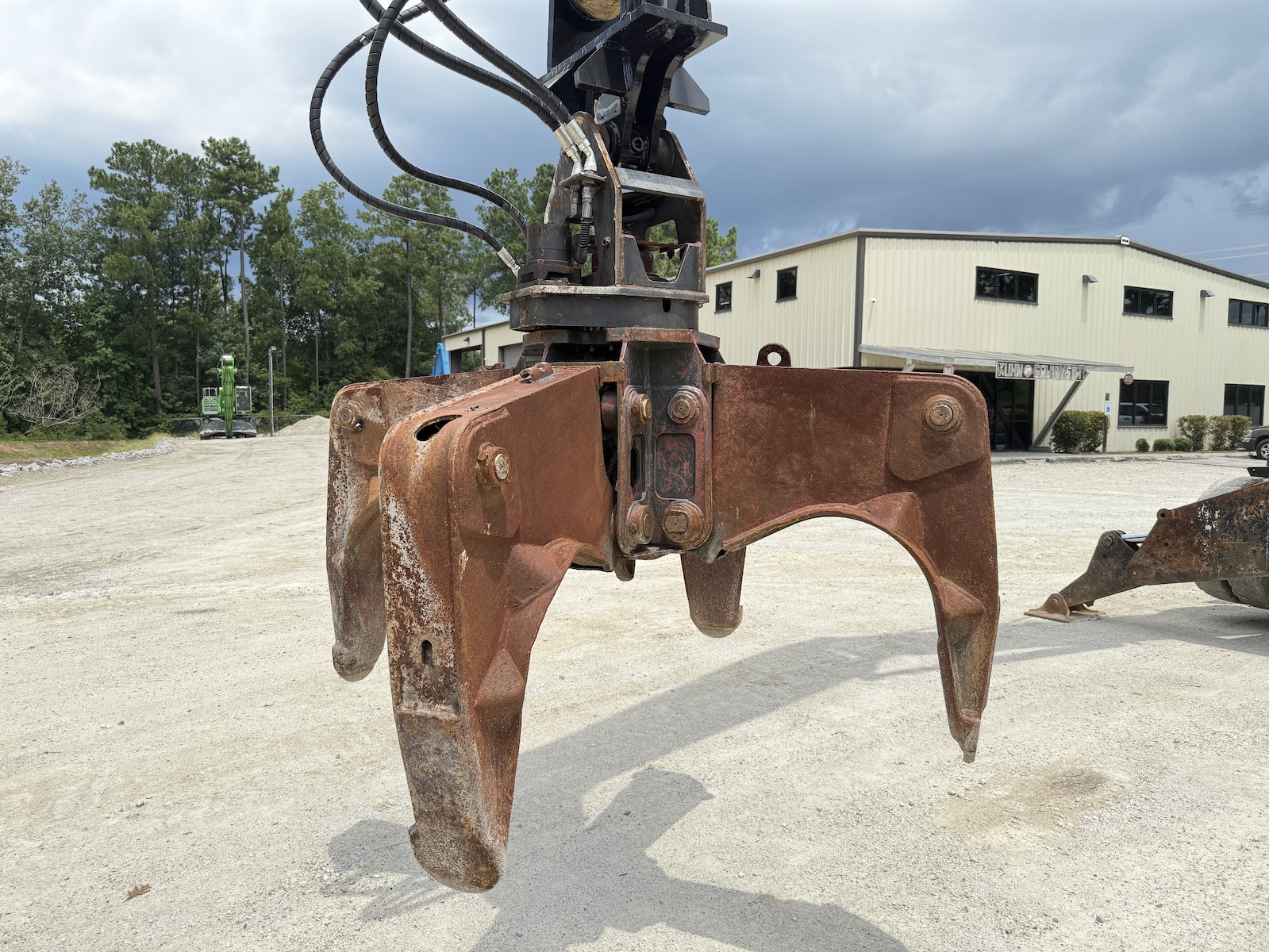

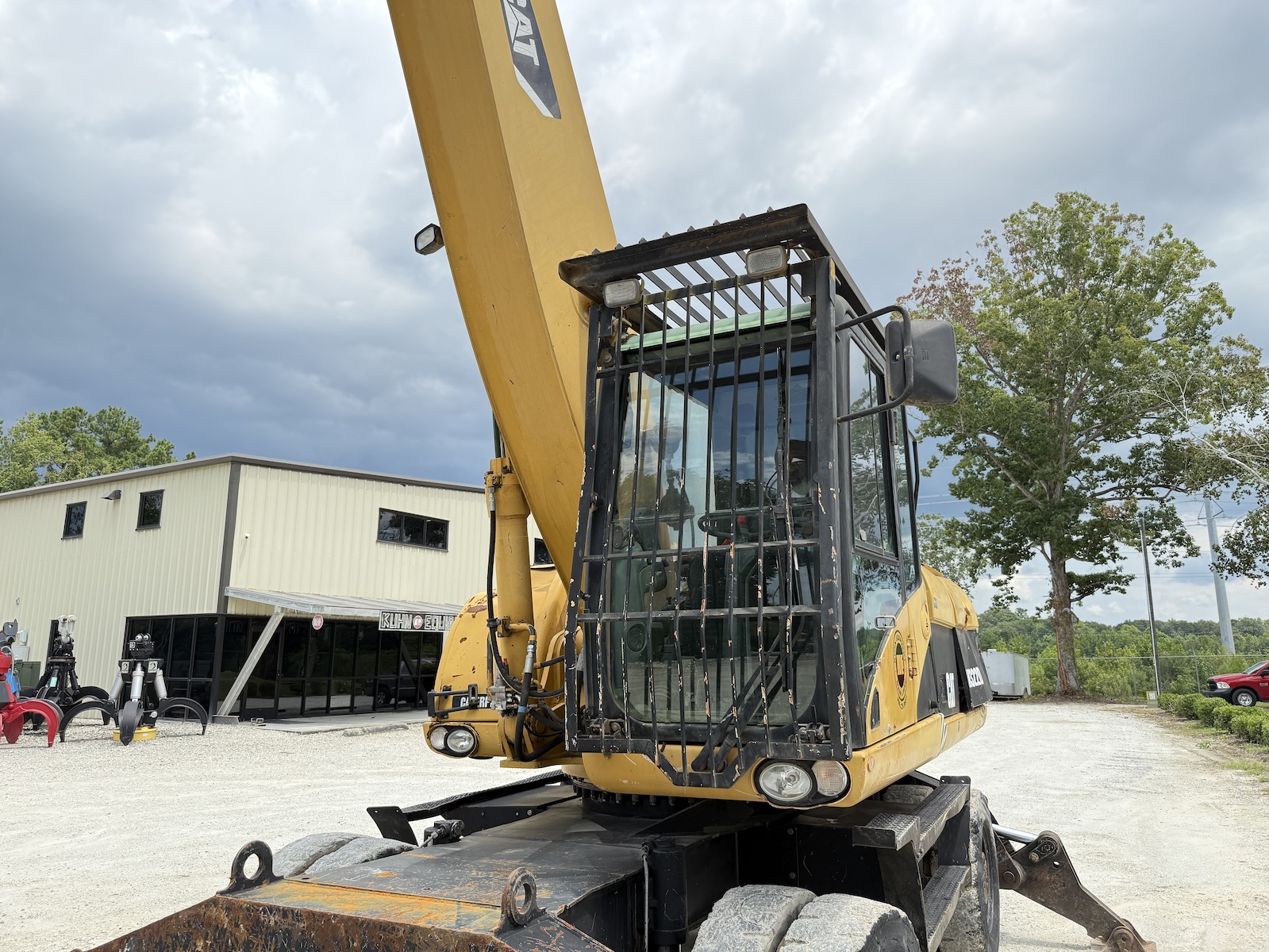

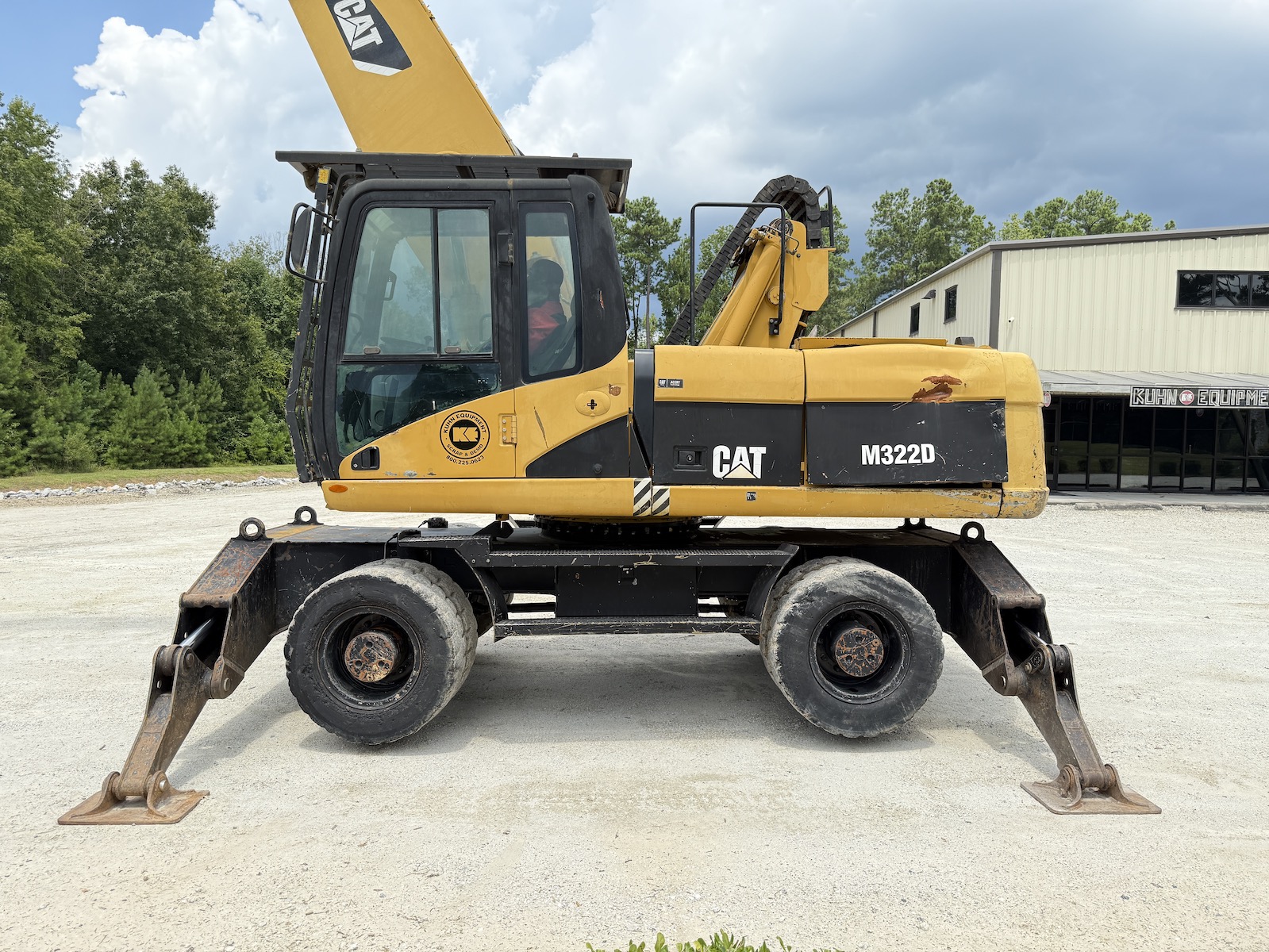

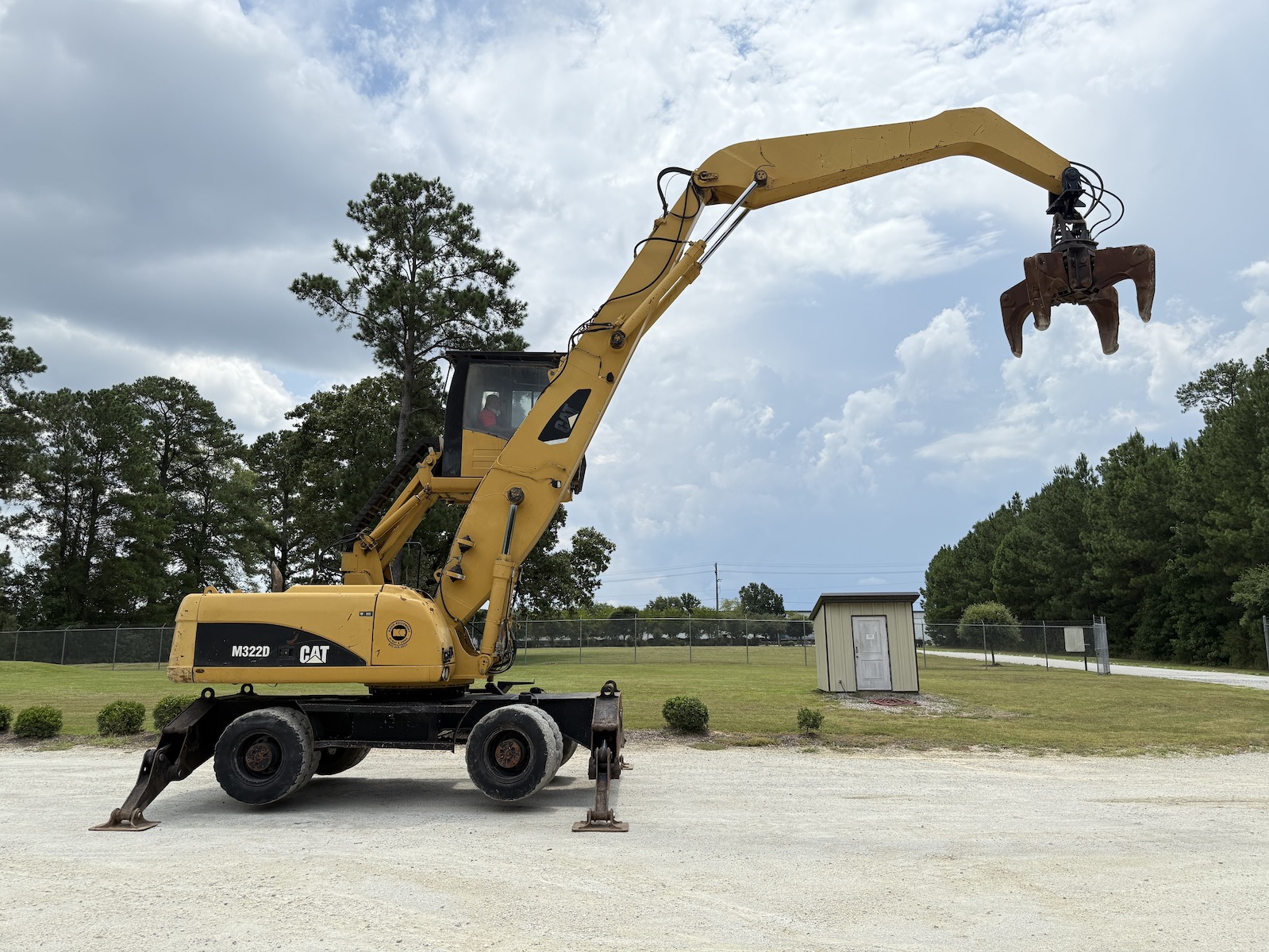

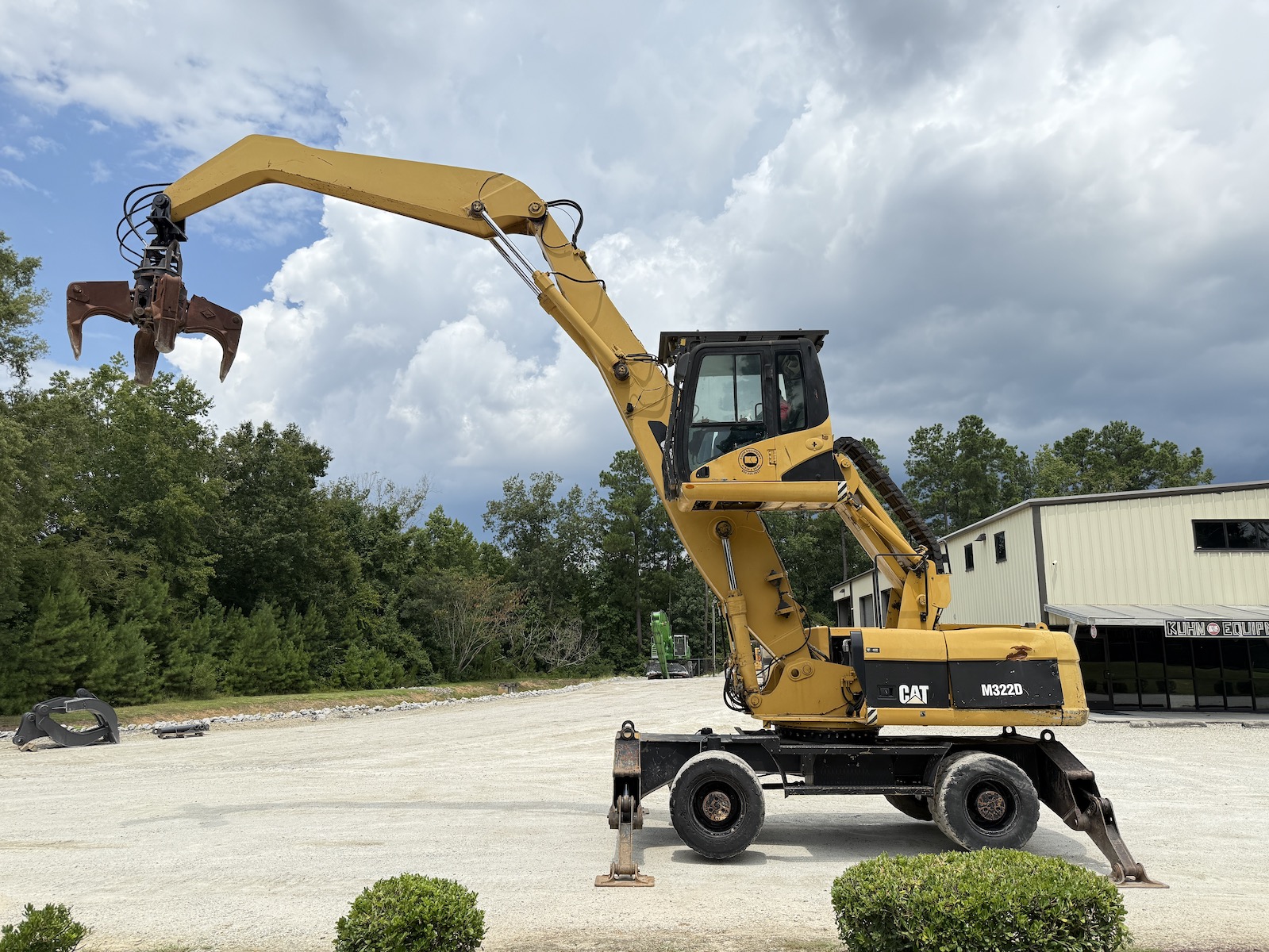

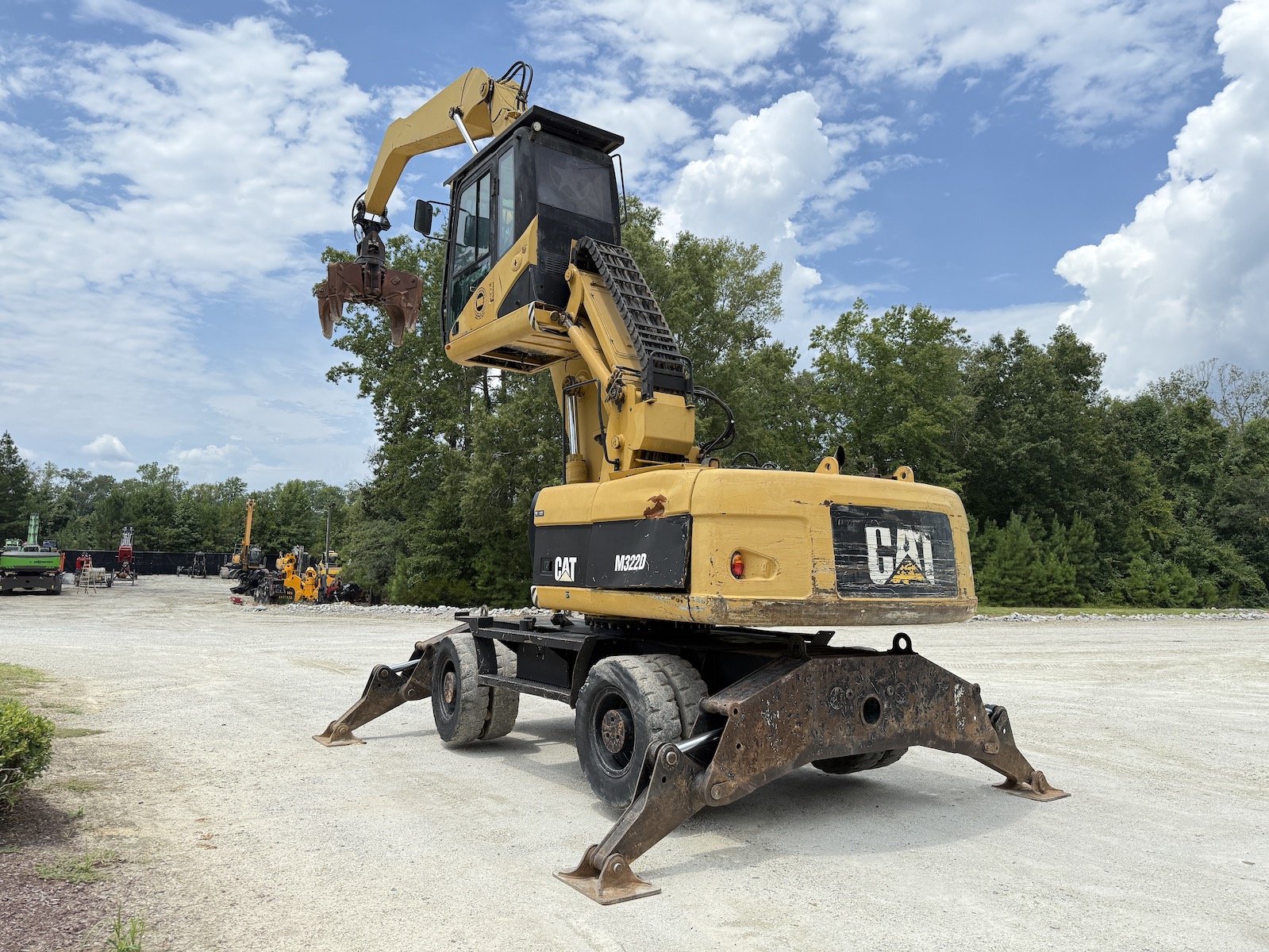

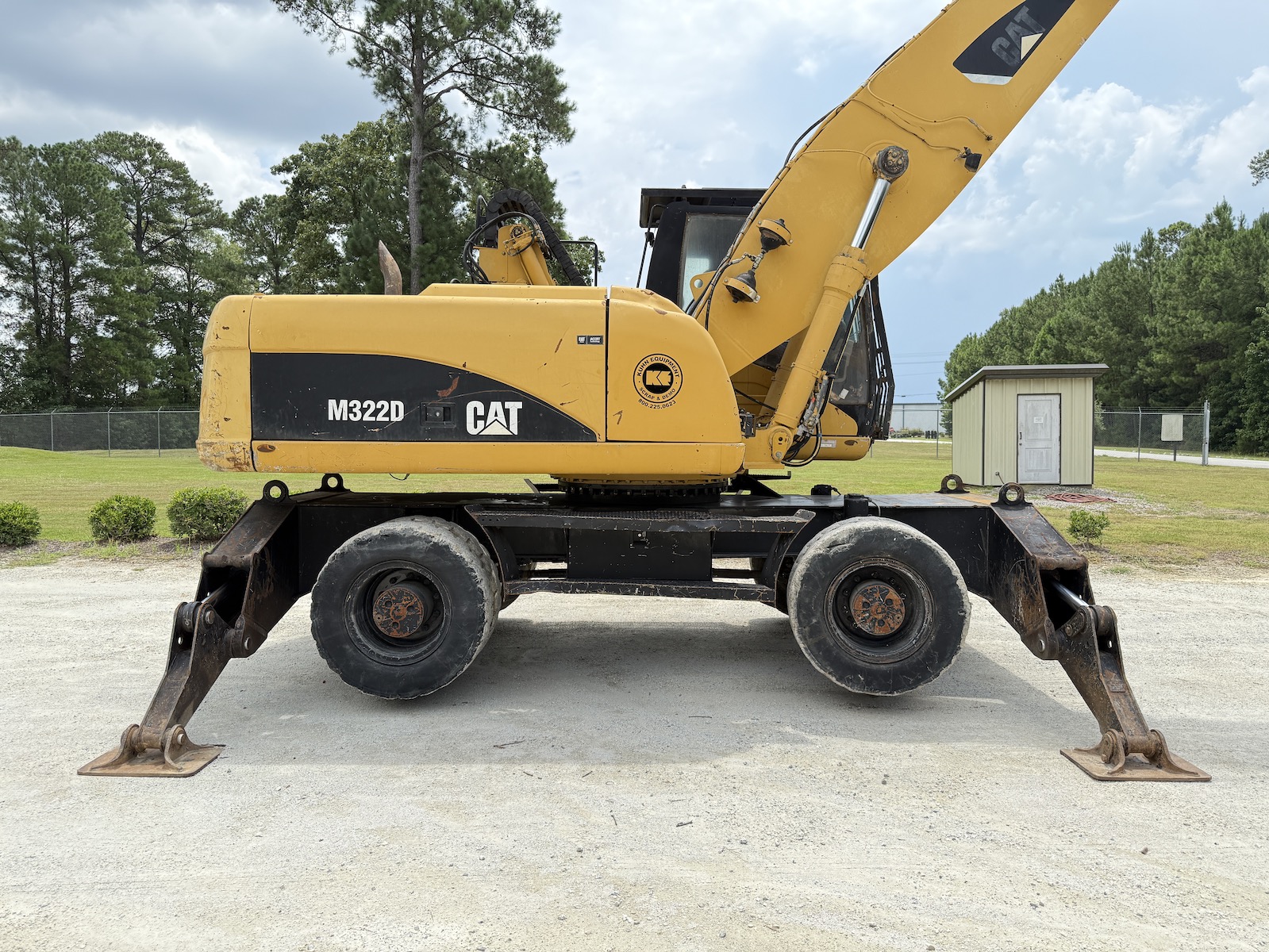

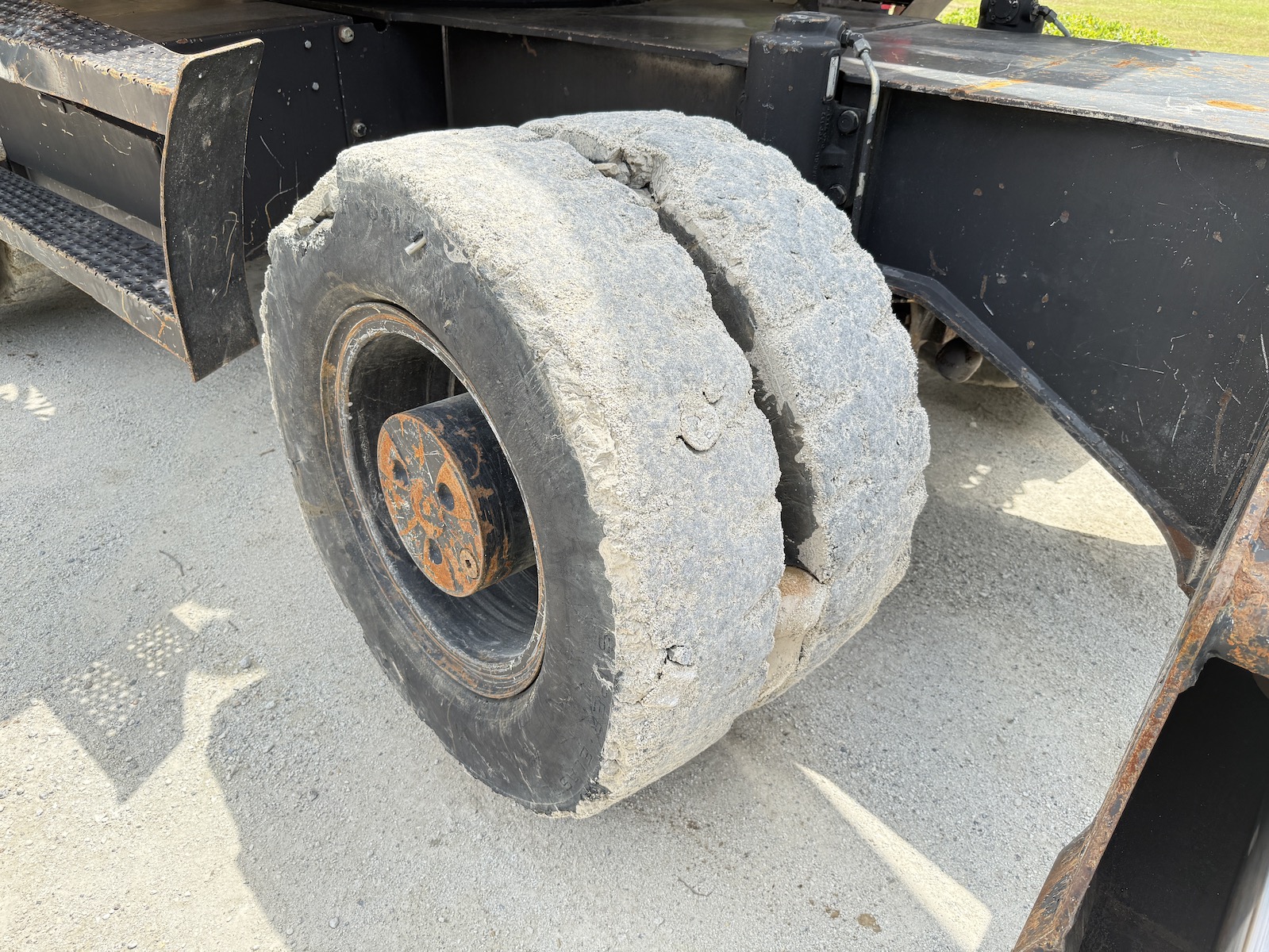

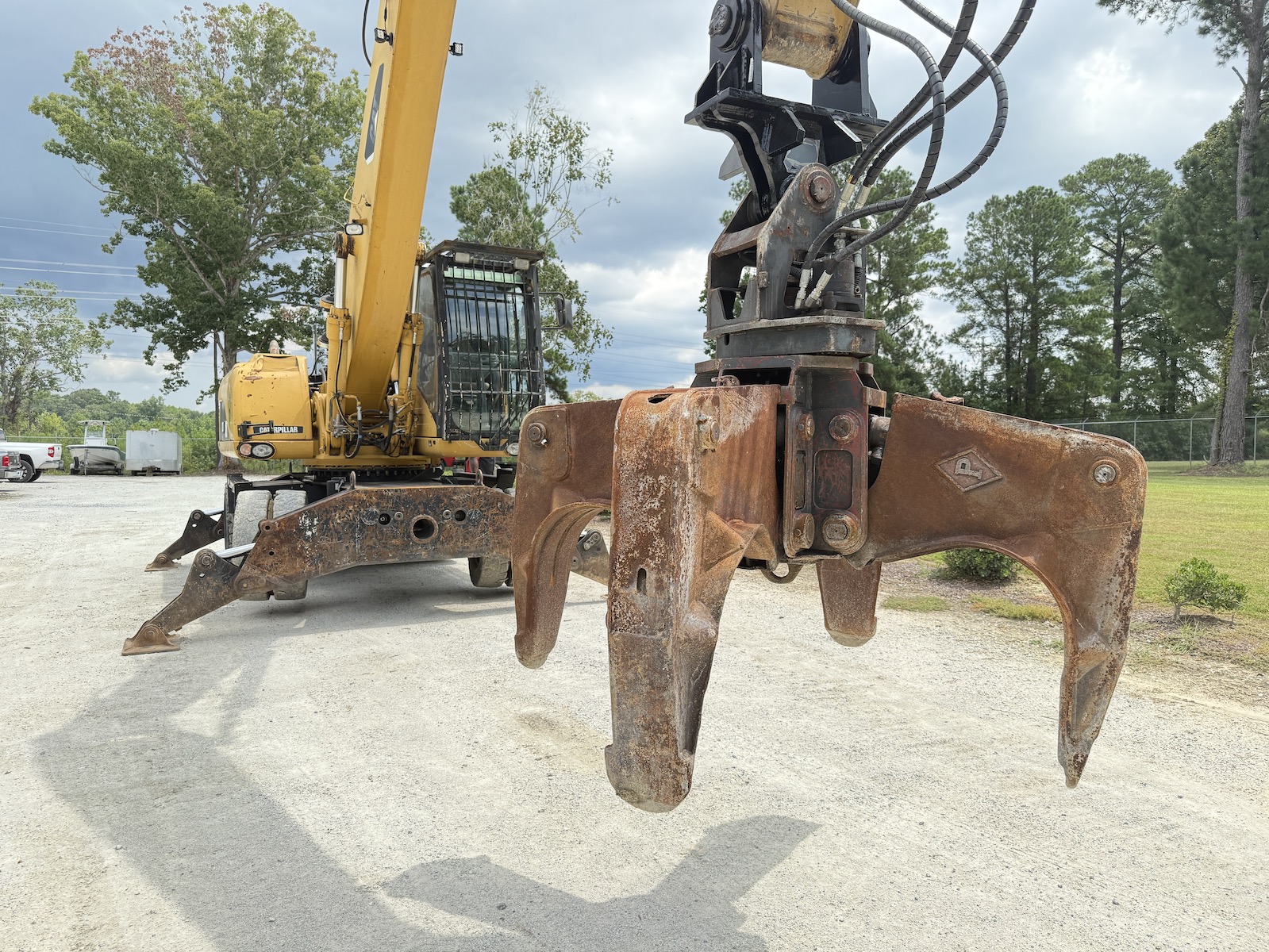

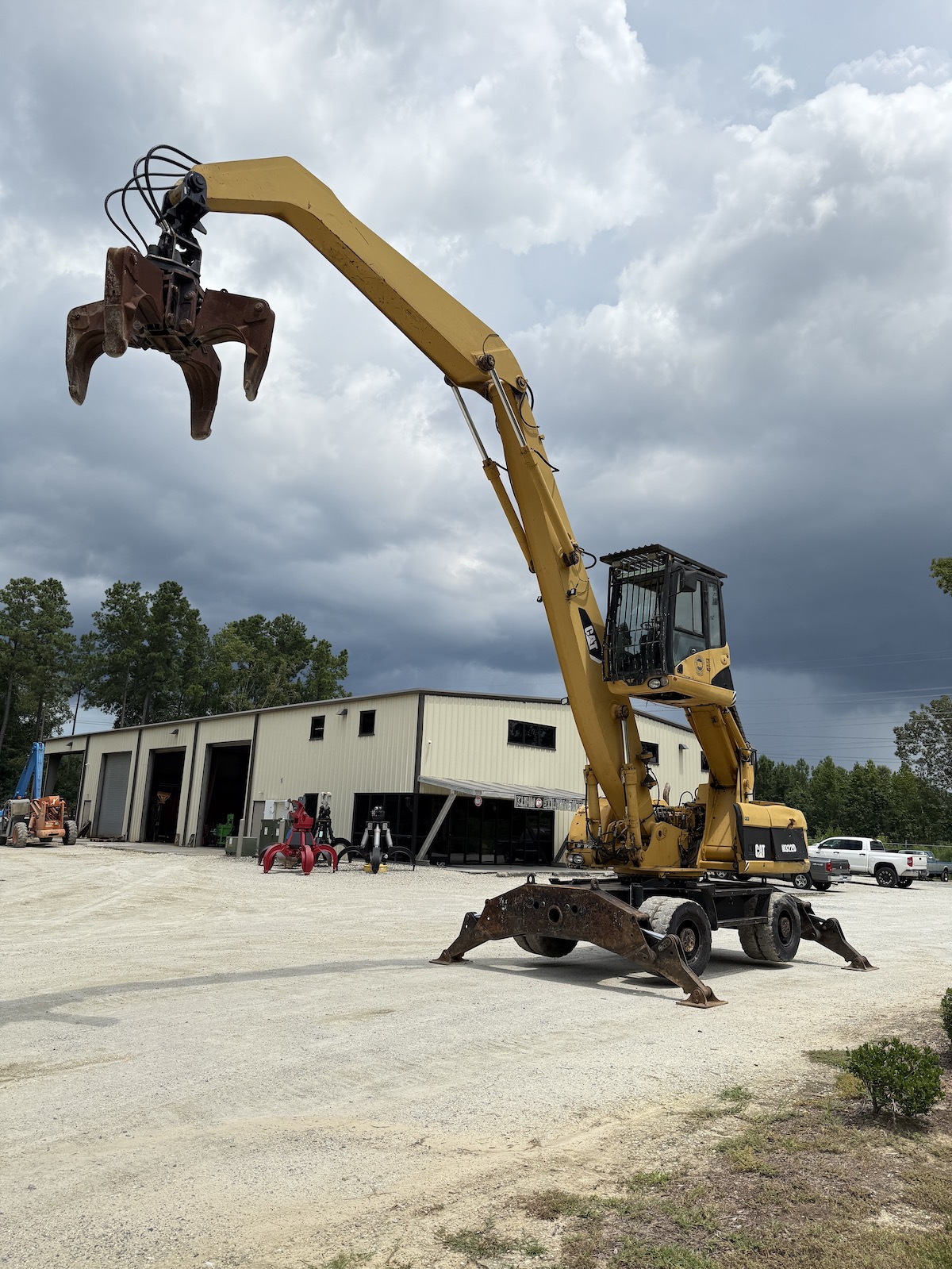

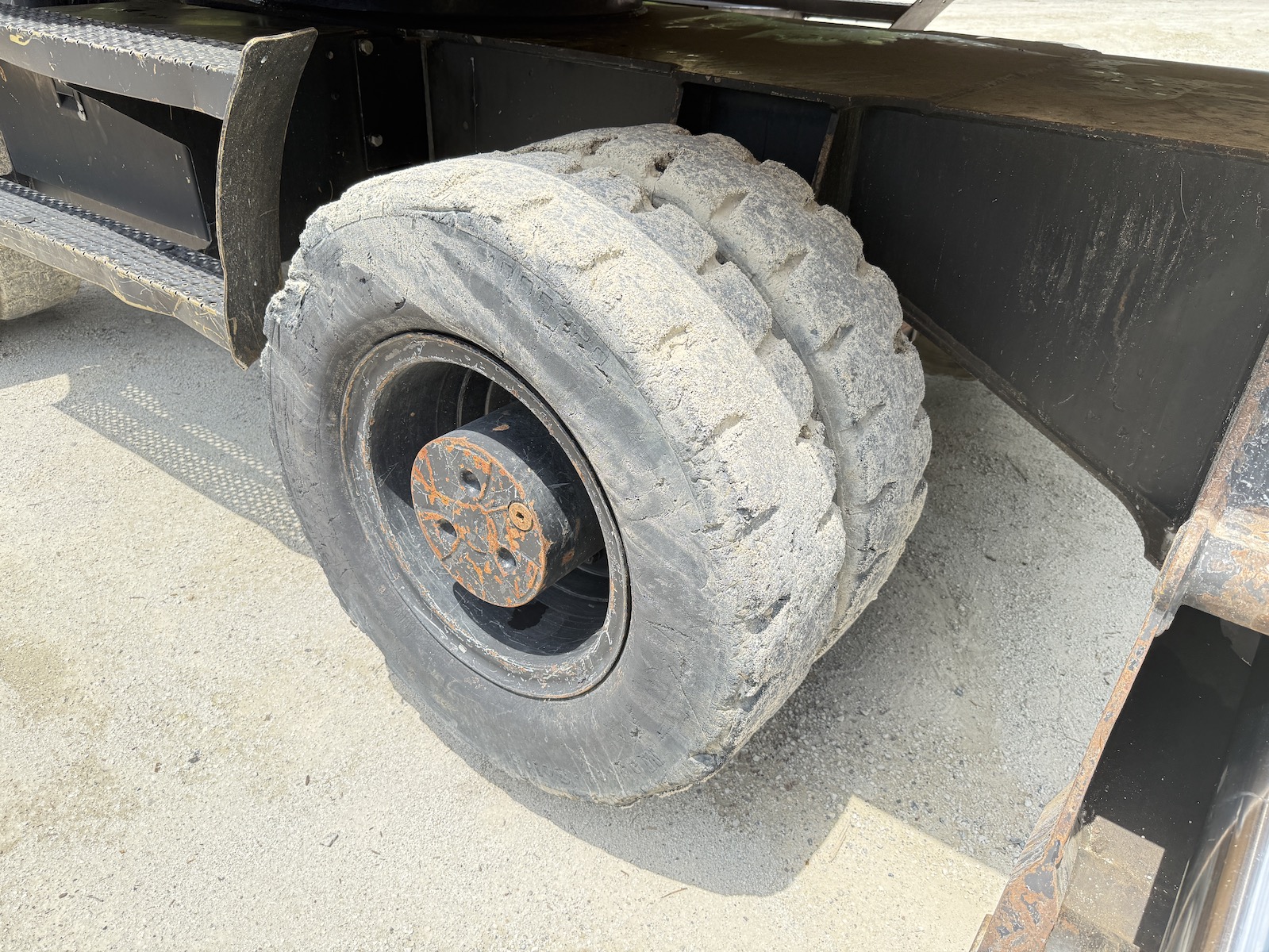

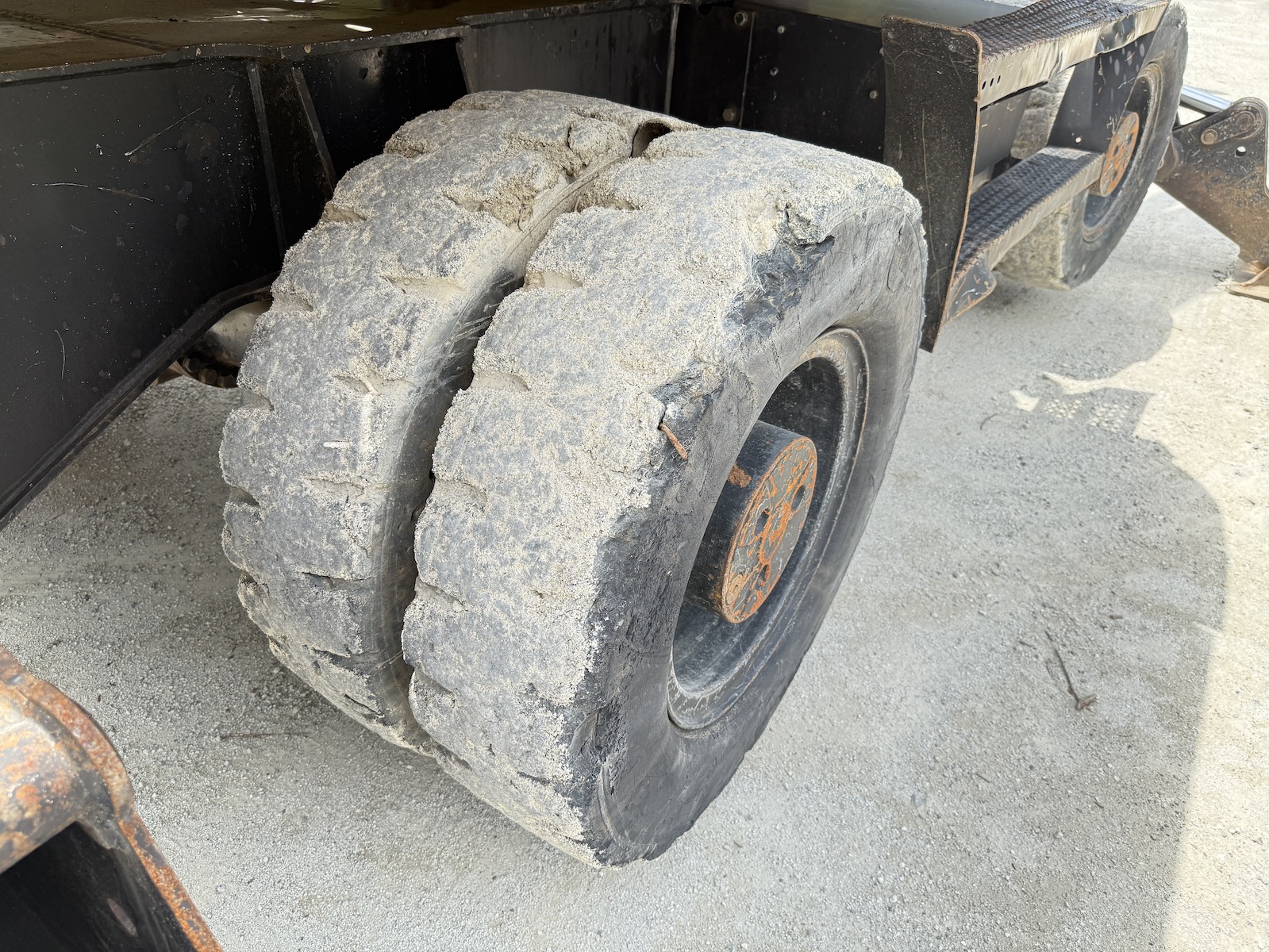

40 ft reach, Hydraulic Elevating Cab, cab Guard, Heat & A/C, MH boom w/ Drop Nose stick, 3/4 yd3 4 tine Pemberton grapple w/ 360 degree hydraulic rotation, Outriggers x 4, and Dual Solid tires. Checked through shop, serviced, and ready for work. Good all around condition and appearance. https://cdn.filepicker.io/api/file/3hbAknVkTK2XzsAiU9pv

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Mat. Handler Option 1
Boom/Stick Option (MAT) 1	Boom 6.8m w / drop nose 4.9m
Max Depth	6 ft (2 m)
Max Height	41 ft (13 m)
Max Reach Along Ground	36 ft (11 m)
Boom/Stick Mat. Handler Option 2
Boom/Stick Option (MAT) 2	Boom 6.8m w / drop nose 5.9m
Max Depth	10 ft (3 m)
Max Height	44 ft (13 m)
Max Reach Along Ground	40 ft (12 m)
Boom/Stick Mat. Handler Option 3
Boom/Stick Option (MAT) 3	Boom 6.8m w / stick 4.8m
Max Depth	6 ft (2 m)
Max Height	41 ft (12 m)
Max Reach Along Ground	37 ft (11 m)
Dimensions
Counterweight Clearance	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Shipping Height	11 ft (3 m)
Shipping Height - Cab Tipped	11 ft (3 m)
Shipping Length	50 ft (15 m)
Shipping Width	10 ft (3 m)
Tail Swing Radius	9 ft (3 m)
Undercarriage Width	10 ft (3 m)
Upperstructure Clearance	4 ft (1 m)

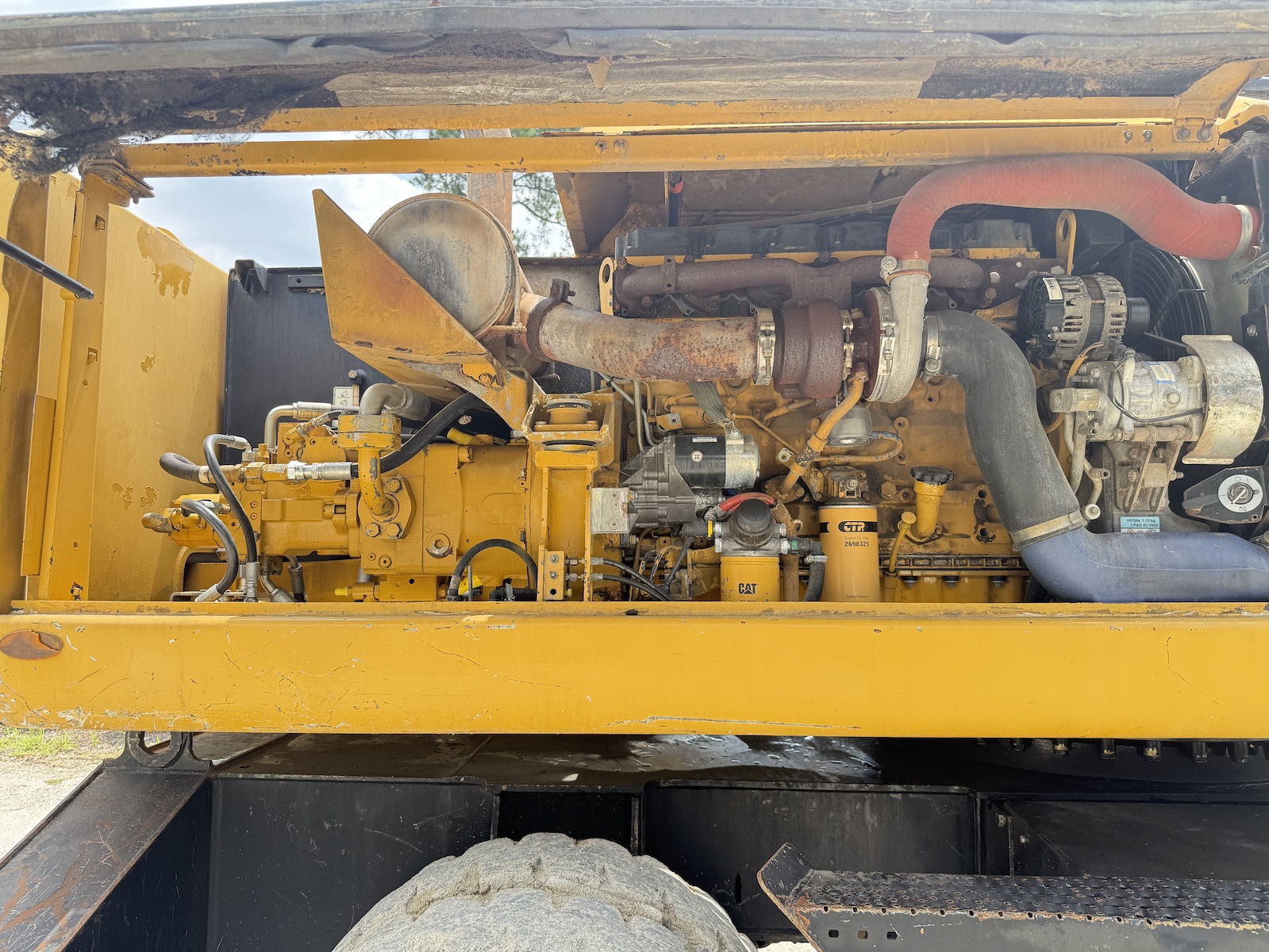

Engine
Bore	4 in (10 cm)
Displacement	403 cu in (6,604 cu cm)
Engine Model	Cat C6.6 ACERT
Gross Power	173 hp (129 kw)
Net Power	165 hp (123 kw)
Net Power - EEC 80/1269	165 hp (123 kw)
Net Power - ISO 9249	165 hp (123 kw)
Power Measured @	2,000 rpm
Stroke	5 in (13 cm)
Hydraulic System
Pump Capacity	93 gpm (350 lpm)
Relief Pressure	5,076 psi
Operating Specifications
Cooling System Fluid Capacity	9 gal (33 l)
Engine Oil Capacity	4 gal (15 l)
Fuel Capacity	102 gal (385 l)
Hydraulic System Fluid Capacity	89 gal (335 l)
Maximum Reach	38 ft (11 m)
Operating Weight w/o Attachment	51,919 lbs (23,550 kg)
Service Refill Capacities
Cooling System	9 gal (33 l)
Final Drive - Each	1 gal (3 l)
Fuel Tank	101 gal (382 l)
Hydraulic System - Including Tank	88 gal (333 l)
Hydraulic Tank	58 gal (220 l)
Swing Mechanism
Swing Speed	9 rpm
Swing Torque	41,525 lbs ft (56,300 nm)
Transmission
Max Speed	16 mph (25 kph)
Number of Forward Gears	2
Number of Reverse Gears	2
Undercarriage
Ground Clearance	1 ft (0 m)
Weights
Counterweight	11,905 lbs (5,400 kg)
Wheel Undercarriage
Axel Oscillation	6 degrees
Steering Angle	35 degrees
Wheelbase	9 ft (3 m)
Width w/ Stabilizers on Ground	13 ft (4 m)
