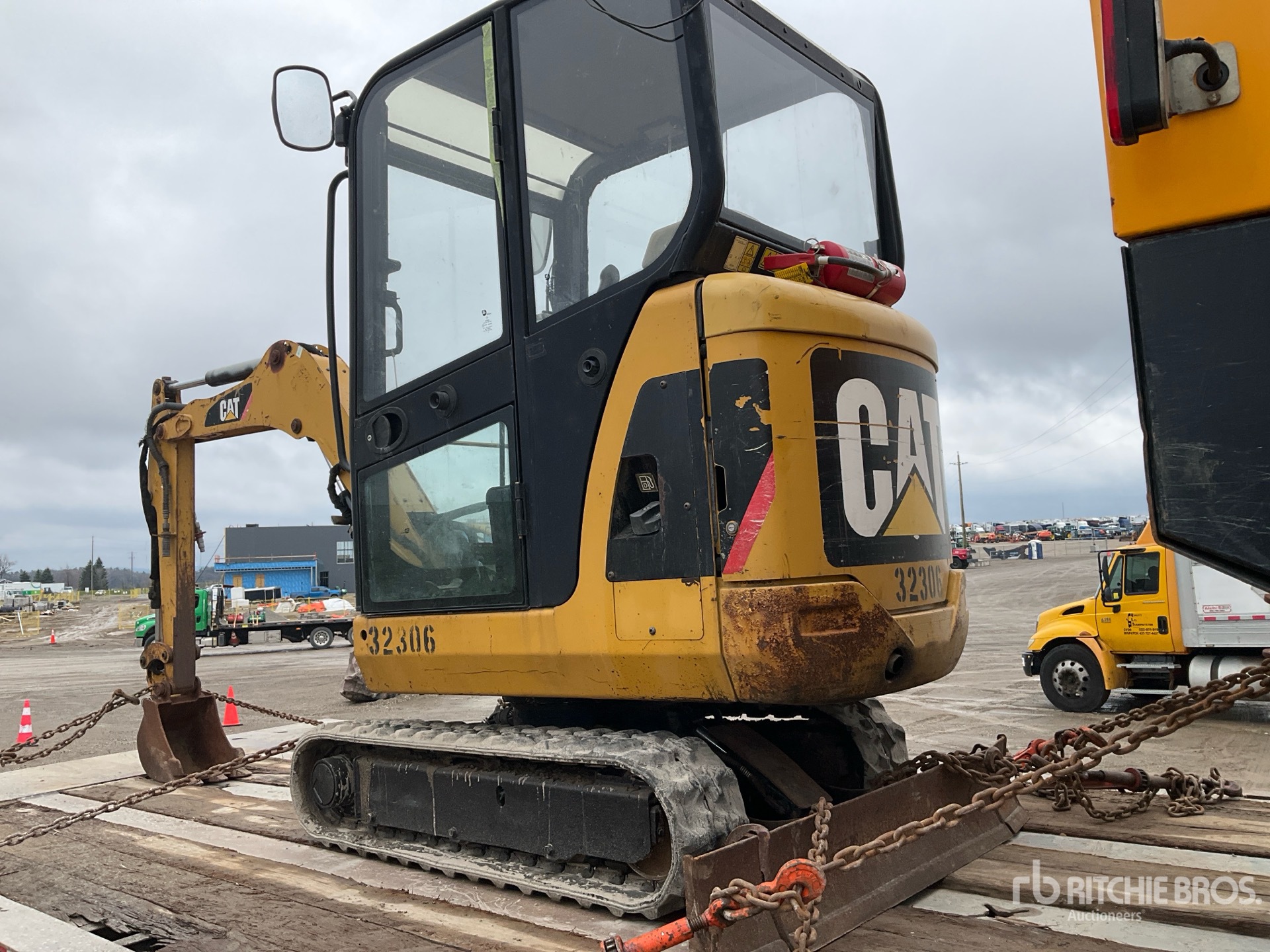

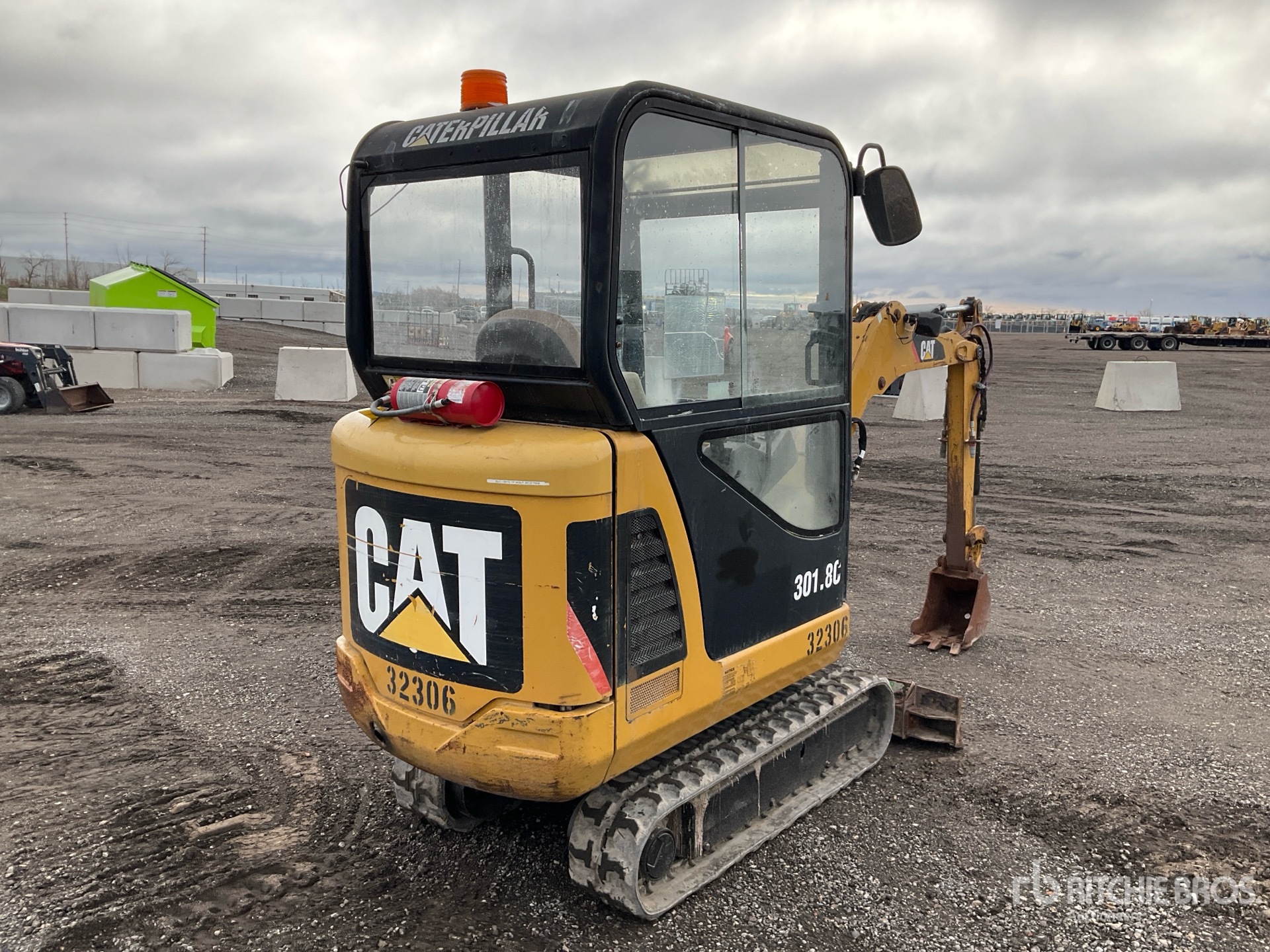

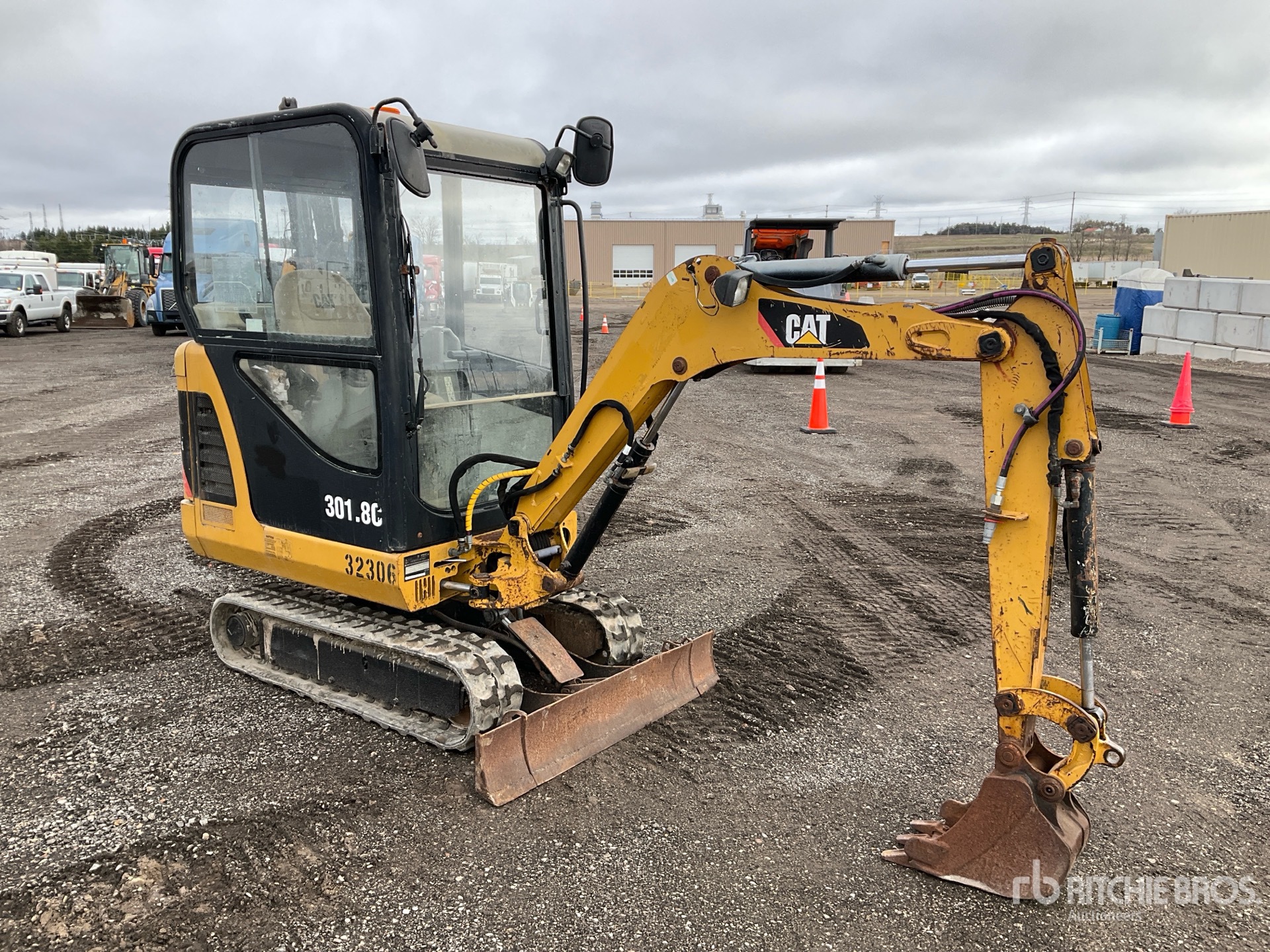

| Blades |
|
Blade Height |
10 in (25 cm)
|
|
Blade Lift Height |
8 in (20 cm)
|
|
Blade Width |
3 ft (1 m)
|
|
Dig Depth |
10 in (25 cm)
|

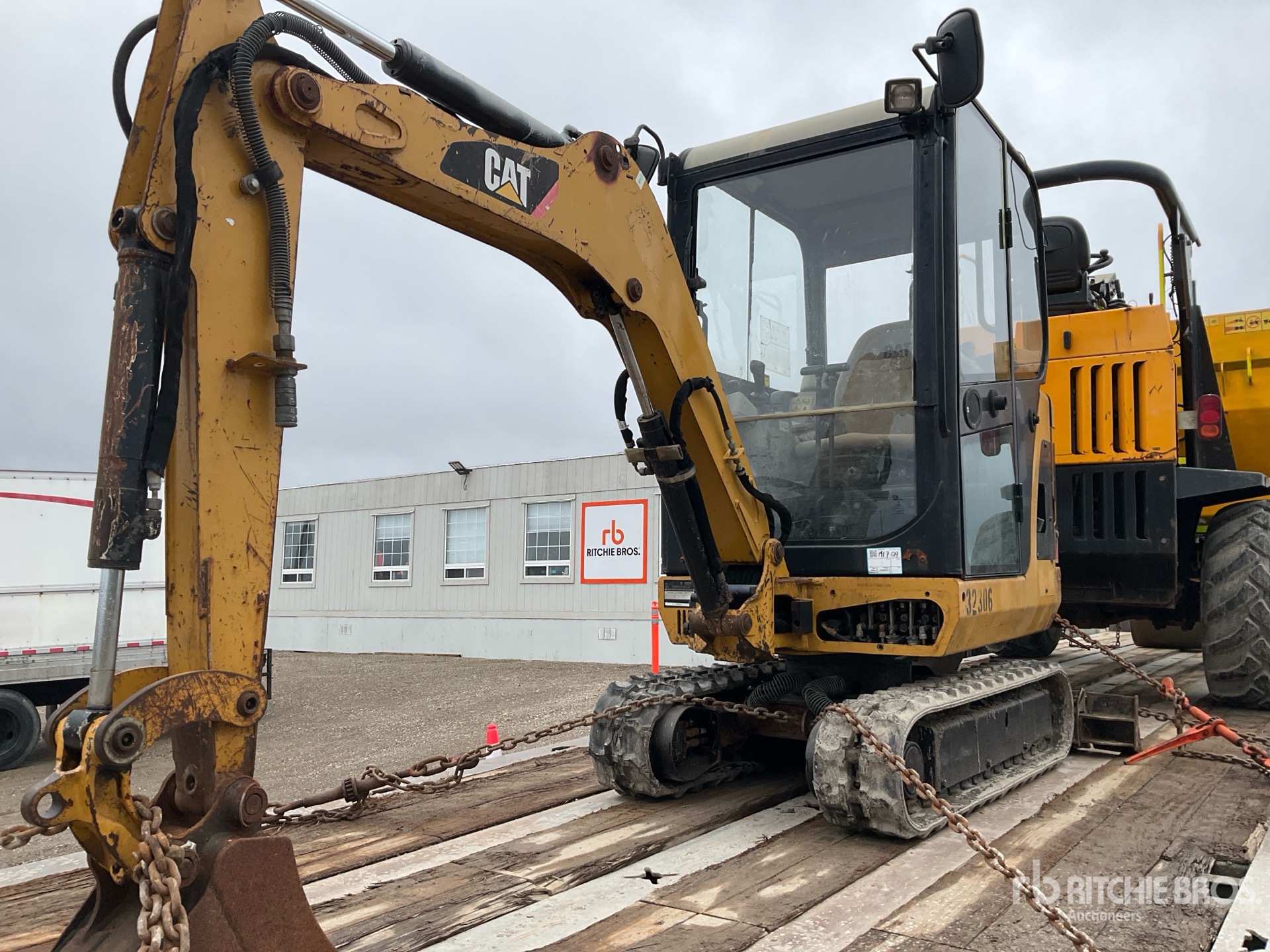

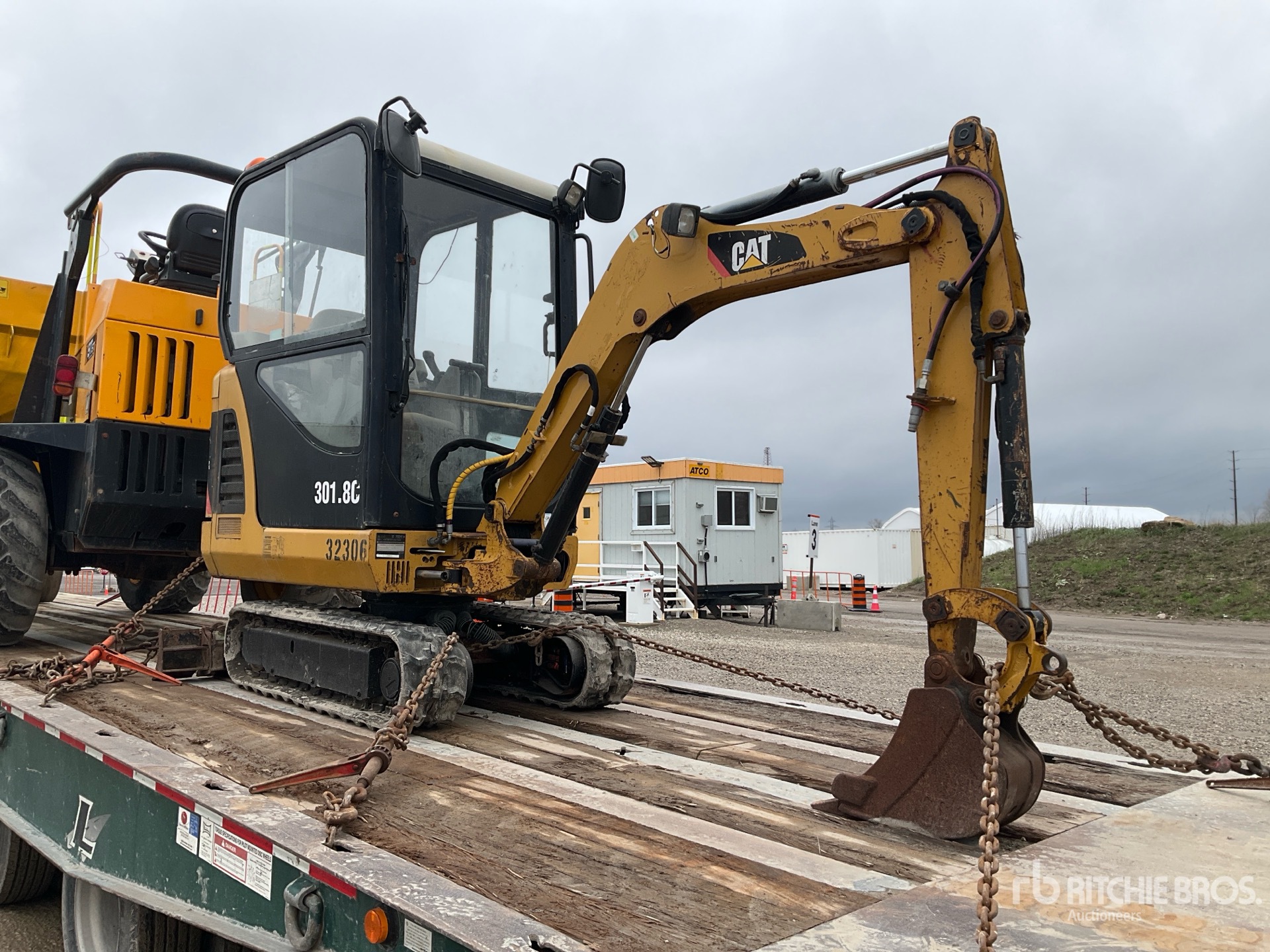

| Boom/Stick Excavator Option 1 |
|
Max Cutting Height |
11 ft (3 m)
|
|
Max Digging Depth |
7 ft (2 m)
|
|
Max Loading Height |
8 ft (2 m)
|
|
Max Reach Along Ground |
12 ft (4 m)
|
|
Max Vertical Wall Digging Depth |
5 ft (2 m)
|
|
Shipping Height of Unit |
7 ft (2 m)
|
|
Shipping Length of Unit |
12 ft (4 m)
|
| Boom/Stick Excavator Option 2 |
|
Max Cutting Height |
11 ft (3 m)
|
|
Max Digging Depth |
8 ft (2 m)
|
|
Max Loading Height |
8 ft (3 m)
|
|
Max Reach Along Ground |
13 ft (4 m)
|
|
Max Vertical Wall Digging Depth |
6 ft (2 m)
|
|
Shipping Height of Unit |
7 ft (2 m)
|
|
Shipping Length of Unit |
12 ft (4 m)
|
| Bucket |
|
Maximum Bucket Capacity |
0 cu yd (0 cu m)
|
|
Minimum Bucket Capacity |
0 cu yd (0 cu m)
|
|
Reference Bucket Capacity |
0 cu yd (0 cu m)
|
| Dimensions |
|
Center Ground Clearance |
1 ft (0 m)
|
|
Height - Over Cab |
7 ft (2 m)
|
|
Height - Over Canopy |
7 ft (2 m)
|
|
Height - Top of Cab |
7 ft (2 m)
|
|
Length of Track on Ground |
5 ft (2 m)
|
|
Maximum Cutting Height - Long Stick |
11 ft (3 m)
|
|
Maximum Cutting Height - Standard Stick |
11 ft (3 m)
|
|
Maximum Digging Depth - Long Stick |
8 ft (2 m)
|
|
Maximum Digging Depth - Standard Stick |
7 ft (2 m)
|
|
Maximum Dump Height - Long Stick |
8 ft (2 m)
|
|
Maximum Dump Height - Standard Stick |
8 ft (2 m)
|
|
Maximum Horizontal Reach - Long Stick |
13 ft (4 m)
|
|
Maximum Horizontal Reach - Standard Stick |
12 ft (4 m)
|
|
Maximum Reach - Ground Level - Long Stick |
13 ft (4 m)
|
|
Maximum Reach - Ground Level - Standard Stick |
12 ft (4 m)
|
|
Maximum Vertical Dig Depth - Long Stick |
6 ft (2 m)
|
|
Maximum Vertical Dig Depth - Standard Stick |
5 ft (2 m)
|
|
Removal Counterweight Clearance |
2 ft (0 m)
|
|
Shipping Height |
7 ft (2 m)
|
|
Shipping Length |
12 ft (4 m)
|
|
Stick Length - Long Stick |
4 ft (1 m)
|
|
Stick Length - Standard Stick |
3 ft (1 m)
|
|
Swing Radius - Rear |
4 ft (1 m)
|
|
Tail Swing Radius |
4 ft (1 m)
|
|
Track Gauge |
3 ft (1 m)
|
|
Track Shoe Width |
9 ft (3 m)
|
|
Transport Width |
3 ft (1 m)
|
|
Width - Over Track |
3 ft (1 m)
|
|
Width - Upper Structure |
3 ft (1 m)
|
|
Width to Outside of Tracks |
5 ft (1 m)
|
| Electrical System |
|
Electrical System Type |
Twelve-volt system |

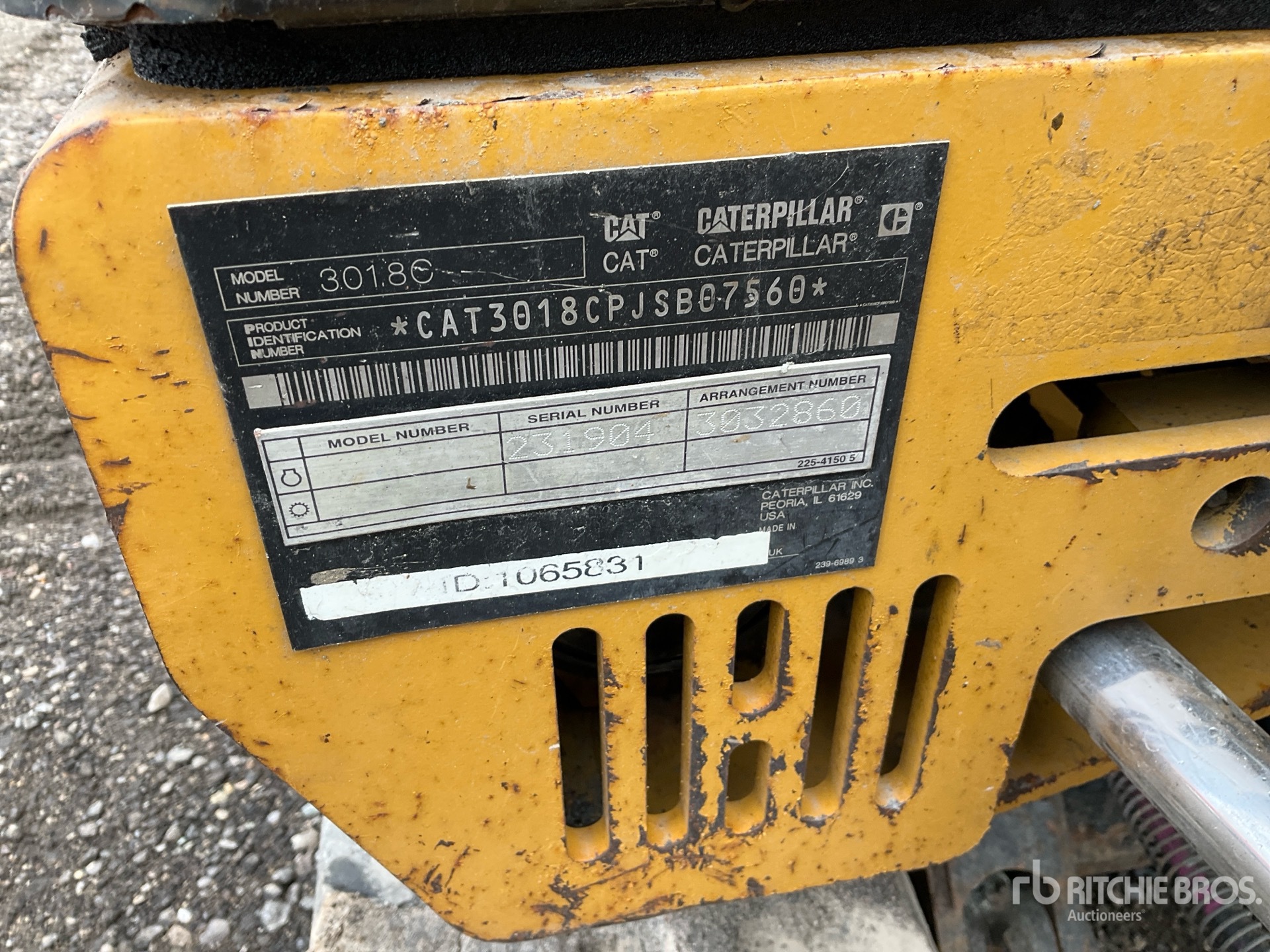

| Engine |
|
Bore |
3 in (8 cm)
|
|
Engine Model |
Mitsubishi L3NE NA Diesel |
|
Gross Power |
19 hp (14 kw)
|
|
Make |
Mitsubishi |
|
Net Power |
18 hp (14 kw)
|
|
Number of Cylinders |
3 |
|
Power Measured @ |
2,400 rpm |
|
Stroke |
3 in (8 cm)
|
| Hydraulic System |
|
Digging Force - Bucket |
3,462 lbs (1,570 kg)
|
|
Digging Force - Stick - Long |
1,978 lbs (897 kg)
|
|
Digging Force - Stick - Standard |
2,226 lbs (1,010 kg)
|
|
Operating Pressure - Equipment |
2,988 psi |
|
Operating Pressure - Swing |
2,524 psi |
|
Operating Pressure - Travel |
2,988 psi |
| Operating Specifications |
|
Alternator Supplied Amperage |
35 amps |
|
Cooling System Fluid Capacity |
1 gal (4 l)
|
|
Engine Oil Capacity |
1 gal (4 l)
|
|
Fuel Capacity |
6 gal (22 l)
|
|
Hydraulic Pump Flow Capacity |
11 gpm (40 lpm)
|
|
Hydraulic System Fluid Capacity |
10 gal (37 l)
|
|
Hydraulic System Relief Valve Pressure |
2,988 psi |
|
Operating Voltage |
12 volts |
|
Operating Weight |
3,936 lbs (1,785 kg)
|
| Service Refill Capacities |
|
Cooling System |
1 gal (4 l)
|
|
Engine Oil |
1 gal (4 l)
|
|
Fuel Tank |
6 gal (22 l)
|
|
Hydraulic System |
10 gal (37 l)
|
|
Hydraulic Tank |
6 gal (24 l)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Swing System |
|
Boom Swing - Left - With Stop |
54 degrees |
|
Boom Swing - Left - Without Stop |
90 degrees |
|
Boom Swing - Right |
50 degrees |
|
Machine Swing Speed |
11 rpm |
|
Swing System Type |
Hydraulic Motor Driven |
| Travel System |
|
Maximum Traction Force - High Speed |
1,574 lbs (714 kg)
|
|
Maximum Traction Force - Low Speed |
3,372 lbs (1,530 kg)
|
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed - Low |
1 mph (2 kph)
|
| Undercarriage |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Shoe Size |
9 in (23 cm)
|
|
Track Gauge |
3 ft (1 m)
|
| Weights |
|
Operating Weight |
3,703 lbs (1,680 kg)
|
|
Operating Weight - With Cab |
3,935 lbs (1,785 kg)
|
