2008 Caterpillar 301.6C For Sale in Edmonton, Ab

Name: 2008 Caterpillar 301.6C
Brand: Caterpillar
SKU: 86624527
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

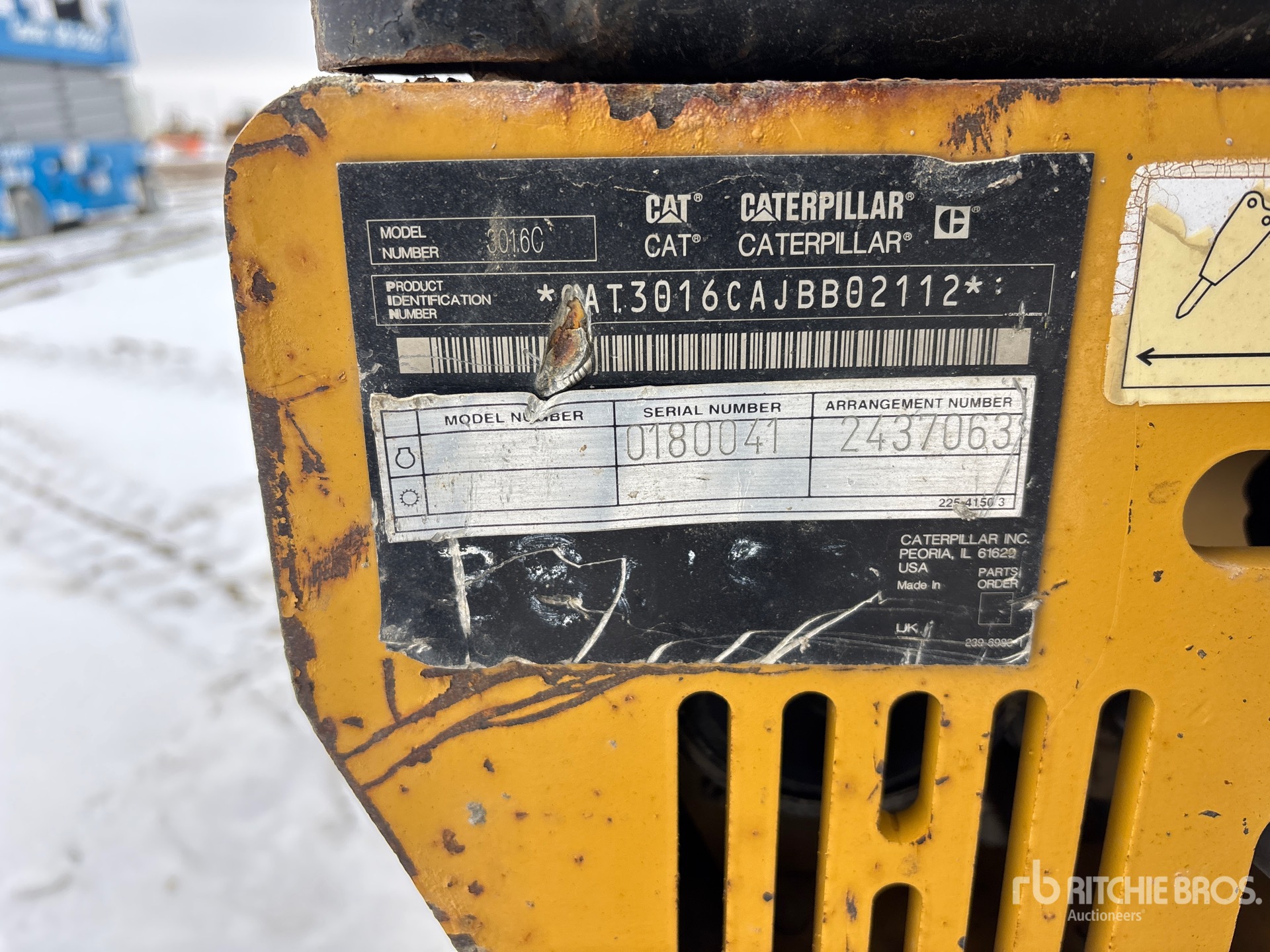

Serial Number:	CAT3016CAJBB02112
Machine Location:	EDMONTON, AB

Description:

Located in Lane 61 Spot 52, Swing Boom, 3 ft 8 in Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 10 in Rubber Tracks, Manual Quick Coupler, 30 in Cleanup Bucket, Additional 10 in Digging Bucket Accessory located at yard office ( Behind) Closing Time: 2026-05-11 02:55:30 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Blades
Blade Height	9 in (23 cm)
Blade Lift Height	7 in (18 cm)
Blade Width	3 ft (1 m)
Dig Depth	9 in (23 cm)
Boom/Stick Excavator Option 1
Max Cutting Height	11 ft (3 m)
Max Digging Depth	7 ft (2 m)
Max Loading Height	8 ft (2 m)
Max Reach Along Ground	12 ft (4 m)
Max Vertical Wall Digging Depth	5 ft (2 m)
Shipping Height of Unit	7 ft (2 m)
Shipping Length of Unit	12 ft (4 m)
Boom/Stick Excavator Option 2
Max Cutting Height	11 ft (3 m)
Max Digging Depth	6 ft (2 m)
Max Loading Height	8 ft (3 m)
Max Reach Along Ground	13 ft (4 m)
Max Vertical Wall Digging Depth	6 ft (2 m)
Shipping Height of Unit	7 ft (2 m)
Shipping Length of Unit	12 ft (4 m)
Bucket
Maximum Bucket Capacity	0 cu yd (0 cu m)
Minimum Bucket Capacity	0 cu yd (0 cu m)
Reference Bucket Capacity	0 cu yd (0 cu m)
Dimensions
Height - Over Cab	7 ft (2 m)
Height - Top of Cab	7 ft (2 m)
Length of Track on Ground	5 ft (2 m)
Maximum Cutting Height - Long Stick	11 ft (3 m)
Maximum Cutting Height - Standard Stick	11 ft (3 m)
Maximum Digging Depth - Long Stick	8 ft (2 m)
Maximum Digging Depth - Standard Stick	7 ft (2 m)
Maximum Dump Height - Long Stick	8 ft (2 m)
Maximum Dump Height - Standard Stick	8 ft (2 m)
Maximum Horizontal Reach - Long Stick	13 ft (4 m)
Maximum Horizontal Reach - Standard Stick	12 ft (4 m)
Maximum Reach - Ground Level - Standard Stick	12 ft (4 m)
Maximum Vertical Dig Depth - Long Stick	6 ft (2 m)
Maximum Vertical Dig Depth - Standard Stick	5 ft (2 m)
Removal Counterweight Clearance	2 ft (0 m)
Shipping Height	7 ft (2 m)
Shipping Length	12 ft (4 m)
Swing Radius - Rear	4 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Track Gauge	3 ft (1 m)
Track Shoe Width	1 ft (0 m)
Transport Width	3 ft (1 m)
Width - Over Track	3 ft (1 m)
Width to Outside of Tracks	3 ft (1 m)
Electrical System
Electrical System Type	12-volt system 500 CCA 35 amp/h maintenance free battery
Engine
Bore	3 in (8 cm)
Displacement	58 cu in (952 cu cm)
Engine Model	Mitsubishi L3E NA Diesel
Gross Power	19 hp (14 kw)
Make	Mitsubishi
Net Power	18 hp (14 kw)
Number of Cylinders	3
Power Measured @	2,400 rpm
Stroke	3 in (7 cm)
Hydraulic System
Digging Force - Bucket	3,462 lbs (1,570 kg)
Digging Force - Stick - Long	1,978 lbs (897 kg)
Digging Force - Stick - Standard	2,226 lbs (1,010 kg)
Operating Pressure - Equipment	2,988 psi
Operating Pressure - Swing	2,524 psi
Operating Pressure - Travel	2,988 psi
Operating Specifications
Alternator Supplied Amperage	40 amps
Cooling System Fluid Capacity	1 gal (4 l)
Engine Oil Capacity	1 gal (4 l)
Fuel Capacity	6 gal (22 l)
Hydraulic Pump Flow Capacity	11 gpm (40 lpm)
Hydraulic System Fluid Capacity	10 gal (37 l)
Hydraulic System Relief Valve Pressure	2,988 psi
Operating Voltage	12 volts
Operating Weight	3,792 lbs (1,720 kg)
Service Refill Capacities
Cooling System	1 gal (4 l)
Engine Oil	1 gal (4 l)
Fuel Tank	6 gal (22 l)
Hydraulic System	10 gal (37 l)
Hydraulic Tank	6 gal (24 l)
Swing Mechanism
Swing Speed	11 rpm
Swing System
Boom Swing - Left - With Stop	54 degrees
Boom Swing - Left - Without Stop	90 degrees
Boom Swing - Right	50 degrees
Machine Swing Speed	11 rpm
Travel System
Maximum Traction Force - High Speed	1,574 lbs (714 kg)
Maximum Traction Force - Low Speed	3,372 lbs (1,530 kg)
Travel Speed - High	3 mph (5 kph)
Travel Speed - Low	1 mph (2 kph)
Undercarriage
Max Travel Speed	3 mph (5 kph)
Shoe Size	9 in (23 cm)
Track Gauge	3 ft (1 m)
Weights
Operating Weight	3,549 lbs (1,610 kg)
Operating Weight - With Cab	3,792 lbs (1,720 kg)
