Machine Info:

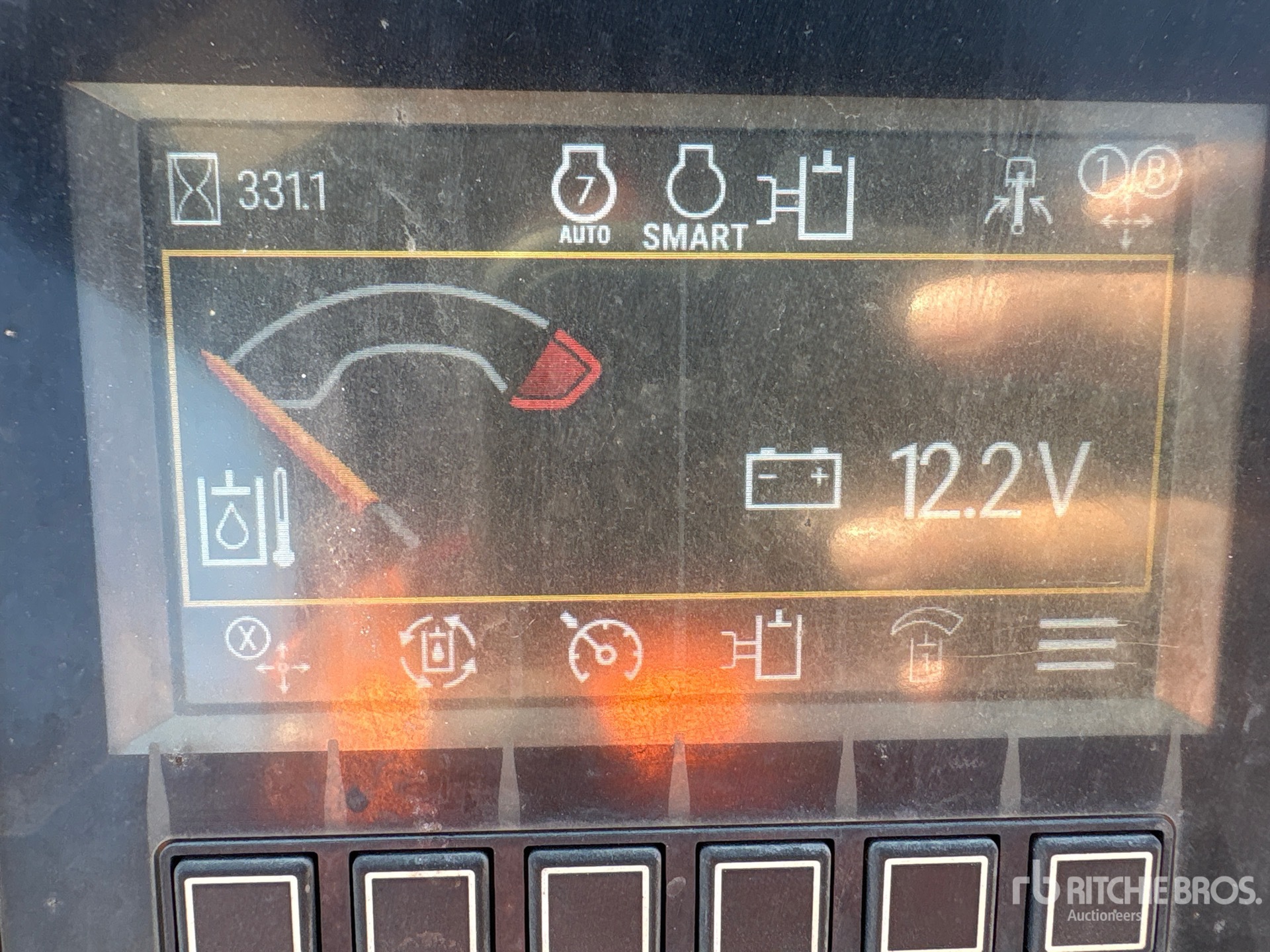

Hours:	331
Serial Number:	CAT03017EJH708507
Machine Location:	ORLANDO, FL

Description:

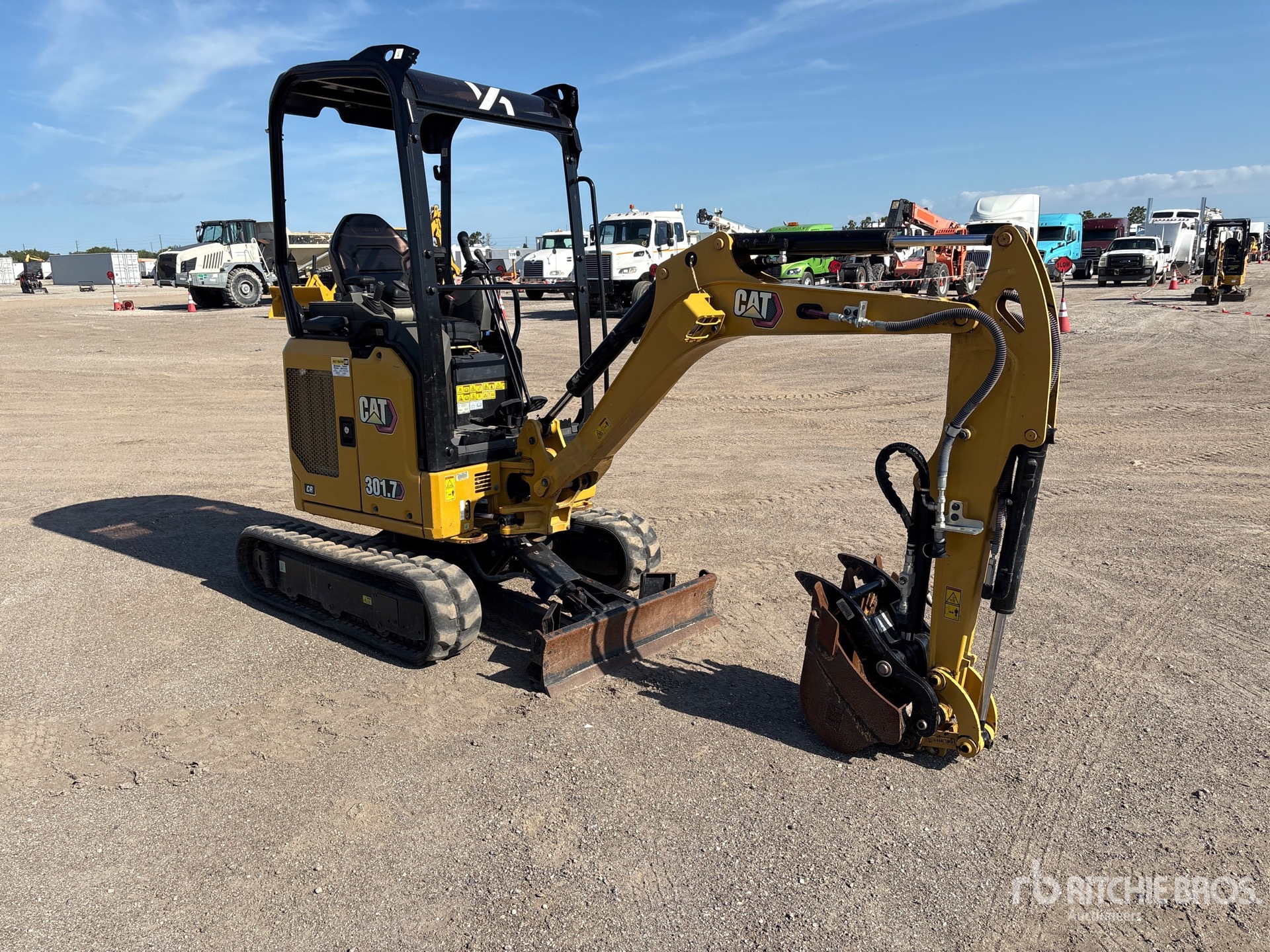

Located in Lane 3 Spot 134, Swing Boom, 4 ft 10 in Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 10 in Rubber Tracks, Expandable Width Tracks, 19 in Digging Bucket, Hydraulic Thumb, Equipment-from-Kelly-Tractor Closing Time: 2026-05-21 09:13:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 301.7 CR is a compact mini excavator designed for digging, trenching, grading, and utility work in confined spaces. It features a reduced tail swing design for improved maneuverability on tight job sites and is commonly used in landscaping, construction, and municipal applications. The 301.7 CR offers hydraulic performance suited to attachments such as buckets, augers, and breakers, with a cab or canopy configuration depending on market specification. As part of Caterpillar's mini excavator line, the 301.7 CR is built for transportability, operator access, and efficient operation in small-scale earthmoving tasks.

Blades
Blade Height	9 in (23 cm)
Dimensions - Long Stick
Boom In Reach	64 in (162 cm)
Boom Swing - Left	65 in (165 cm)
Boom Swing - Right	50 in (127 cm)
Dig Depth	100 in (254 cm)
Maximum Blade Depth	10 in (26 cm)
Maximum Blade Height	11 in (27 cm)
Maximum Dig Height	137 in (349 cm)
Maximum Dump Clearance	99 in (251 cm)
Maximum Reach	163 in (413 cm)
Maximum Reach - Ground Level	160 in (406 cm)
O/A Undercarriage Length	63 in (159 cm)
Stick Length	46 in (116 cm)
Swing Bearing - Height	17 in (44 cm)
Track Belt/Shoe Width	9 in (23 cm)
Vertical Wall	74 in (189 cm)
Dimensions - Standard Stick
Boom In Reach	64 in (163 cm)
Boom Swing - Left	65 in (165 cm)
Boom Swing - Right	50 in (127 cm)
Dig Depth	93 in (235 cm)
Maximum Blade Depth	10 in (26 cm)
Maximum Blade Height	11 in (27 cm)
Maximum Dig Height	135 in (343 cm)
Maximum Dump Clearance	97 in (245 cm)
Maximum Reach	156 in (397 cm)
Maximum Reach - Ground Level	154 in (390 cm)
O/A Undercarriage Length	63 in (159 cm)
Stick Length	38 in (96 cm)
Swing Bearing - Height	17 in (44 cm)
Track Belt/Shoe Width	9 in (23 cm)
Vertical Wall	71 in (180 cm)
Engine
Bore	3 in (8 cm)
Displacement	69 cu in (1,131 cu cm)
Engine Model	C1.1
Net Power	19 hp (14 kw)
Stroke	3 in (8 cm)
General Specifications
Digging Depth ft. (m) (Since 2025)	8.3 (2.5)
Digging Reach ft. (m) (Since 2025)	13.6 (4.1)
Engine (Since 2021)	C1.1
Engine (2023)	C1.1
Engine hp (kW) (Since 2025)	19.2 (14.3)
Max Digging Depth (Since 2021)	31 ft (9 m)
Max Digging Depth (Since 2023)	100 in ft (30 m)
Net Power (Since 2021)	19 hp (14 kw)
Net Power (Since 2023)	21 hp (16 kw)
Operating Weight (Since 2021)	4,403 lbs (1,997 kg)
Operating Weight (Since 2023)	3,913 lbs (1,775 kg)
Operating Weight lbs. (kg) (Since 2025)	4,045 (1,834.8)
Hydraulic System
Auxiliary Circuit - Primary - Flow	9 gpm (33 lpm)
Auxiliary Circuit - Primary - Pressure	3,553 psi
Auxiliary Circuit - Secondary - Flow	4 gpm (14 lpm)
Auxiliary Circuit - Secondary - Pressure	3,553 psi
Digging Force - Bucket	3,642 lbs (1,652 kg)
Digging Force - Stick - Long	1,866 lbs (846 kg)
Digging Force - Stick - Standard	2,136 lbs (969 kg)
Hydraulic System Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	2,132 psi
Operating Pressure - Travel	3,553 psi
Pump Flow at 2,400 rpm	17 gpm (66 lpm)
Service Refill Capacities
Cooling System	1 gal (4 l)
Engine Oil	1 gal (5 l)
Fuel Tank	6 gal (22 l)
Hydraulic System	7 gal (26 l)
Hydraulic Tank	5 gal (18 l)
Swing System
Machine Swing Speed	10 rpm
Travel System
Gradeability - Maximum	30 degrees
Ground Pressure - Maximum Weight	4 psi
Ground Pressure - Minimum Weight	4 psi
Maximum Traction Force - High Speed	2,675 lbs (1,213 kg)
Maximum Traction Force - Low Speed	4,137 lbs (1,876 kg)
Travel Speed - High	3 mph (4 kph)
Travel Speed - Low	2 mph (3 kph)
Weights
Operating Weight	4,045 lbs (1,835 kg)
