2017 Caterpillar 304E2 CR For Sale in Orlando, Fl

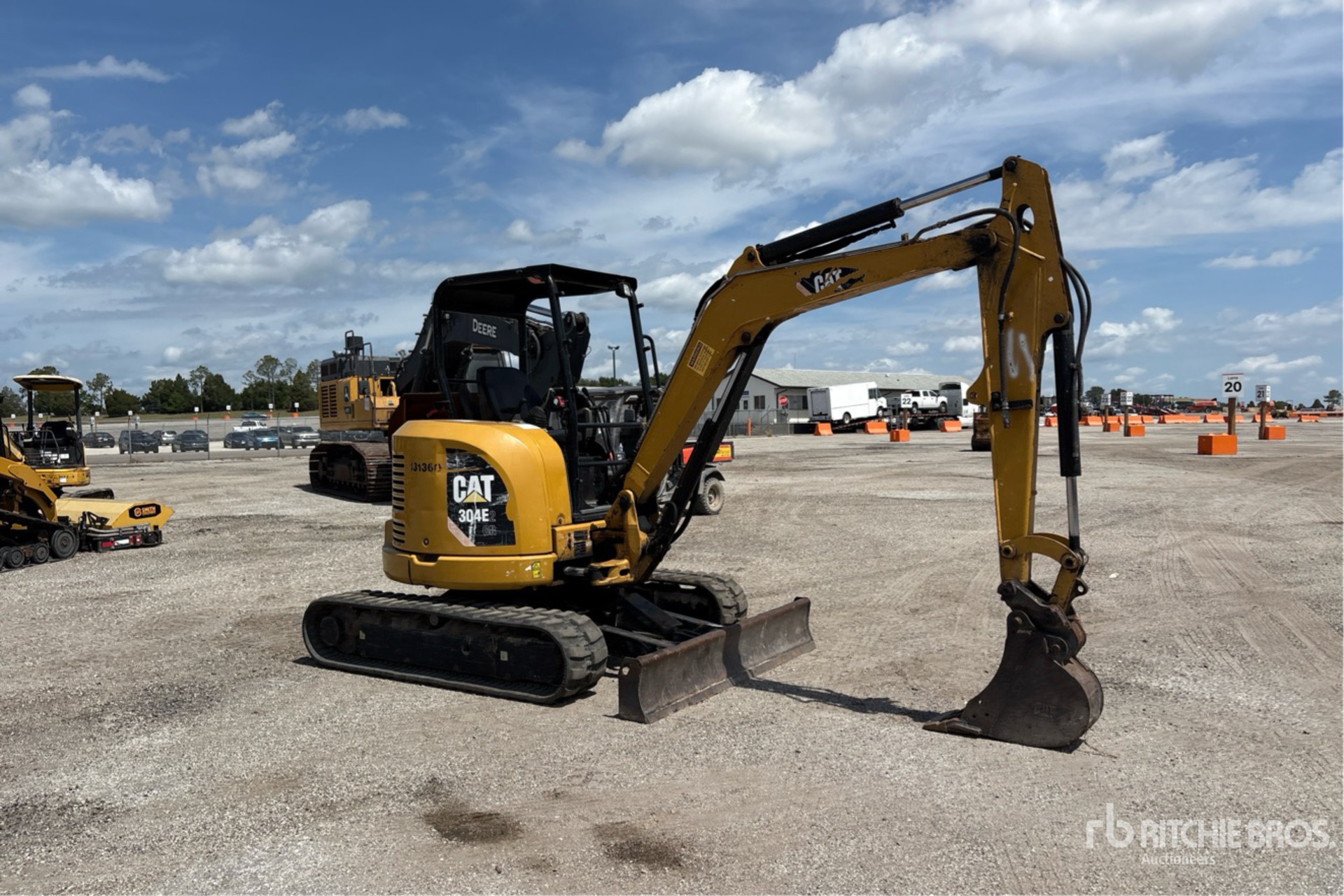

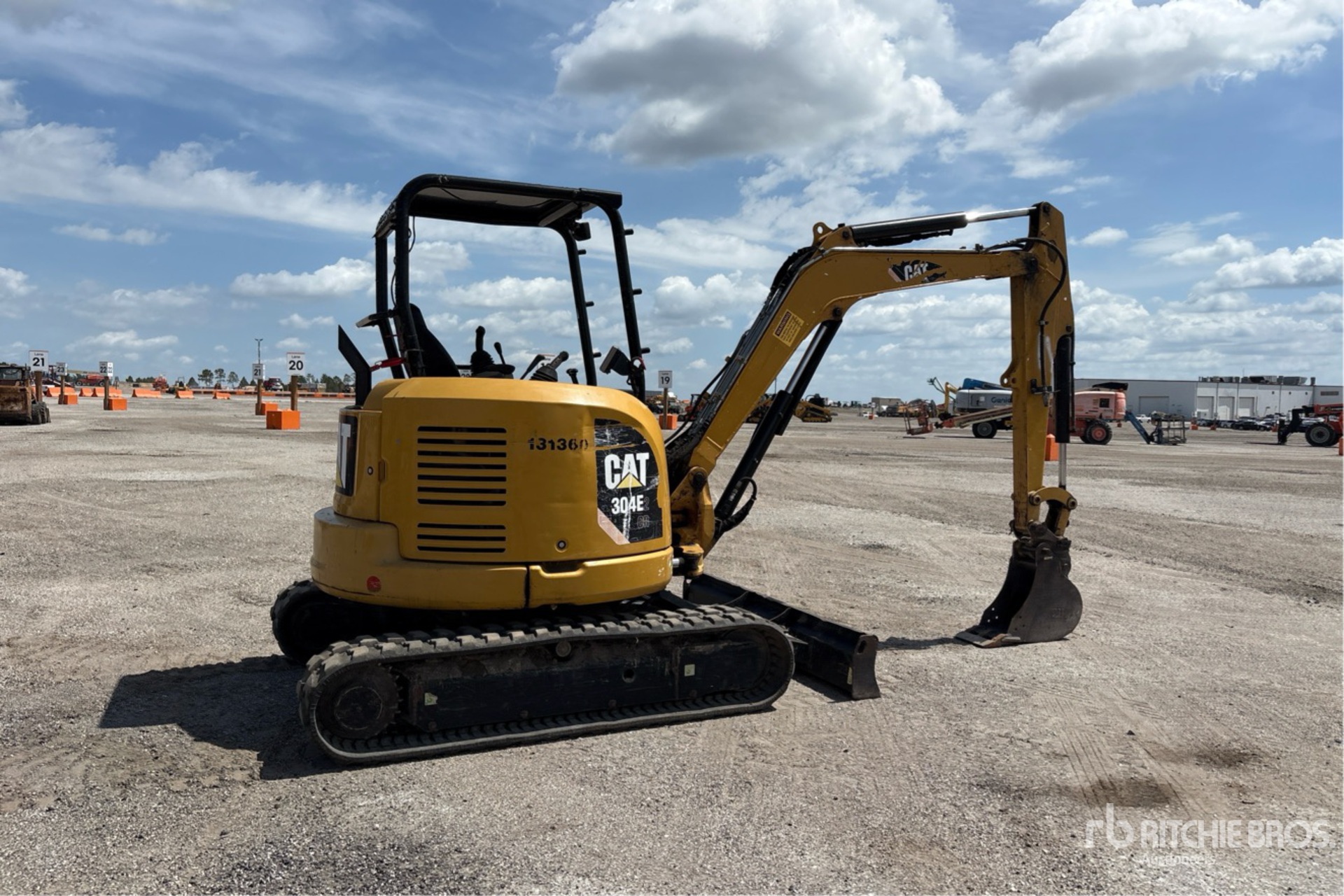

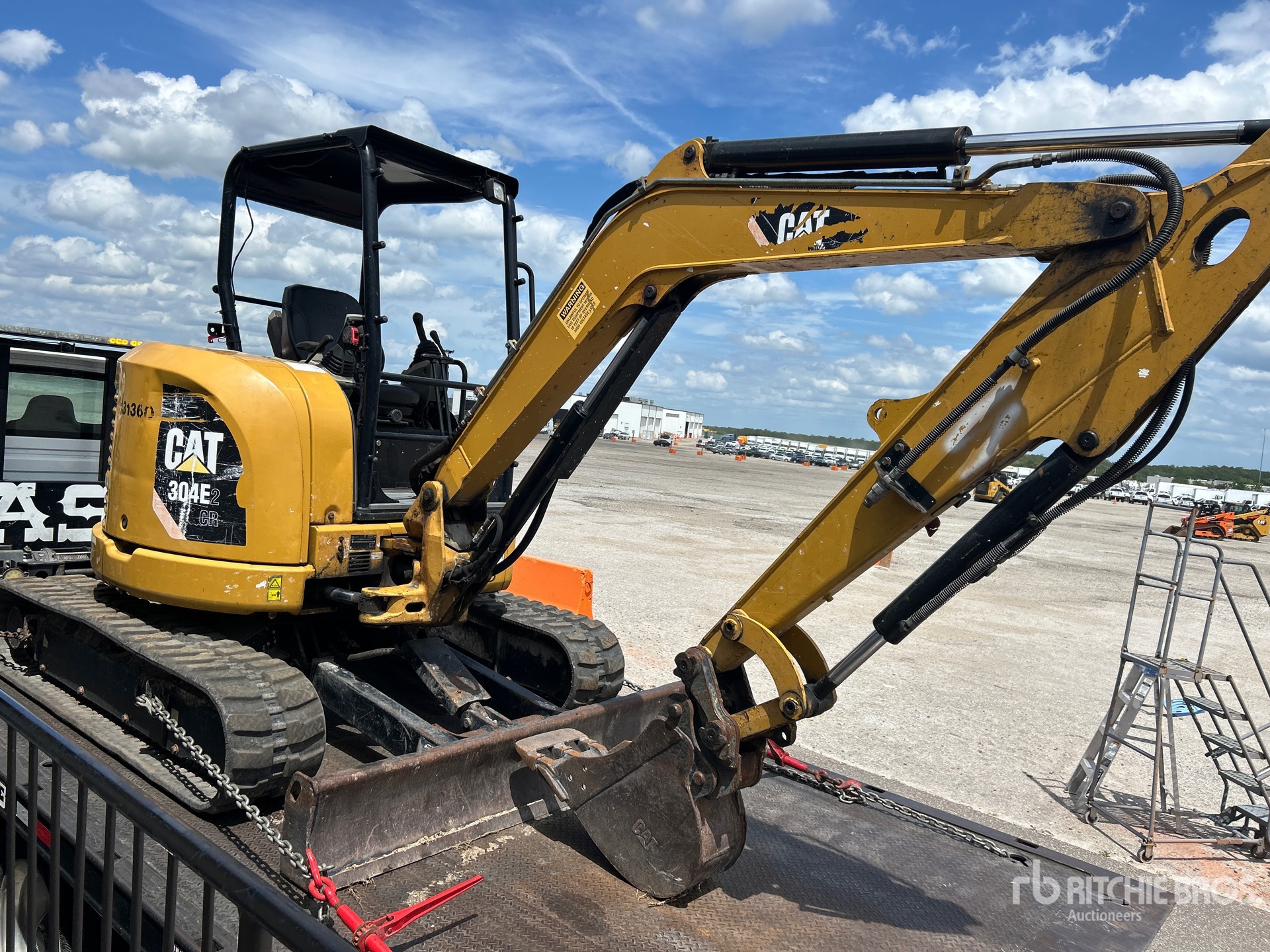

Name: 2017 Caterpillar 304E2 CR
Brand: Caterpillar
SKU: 87614163
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

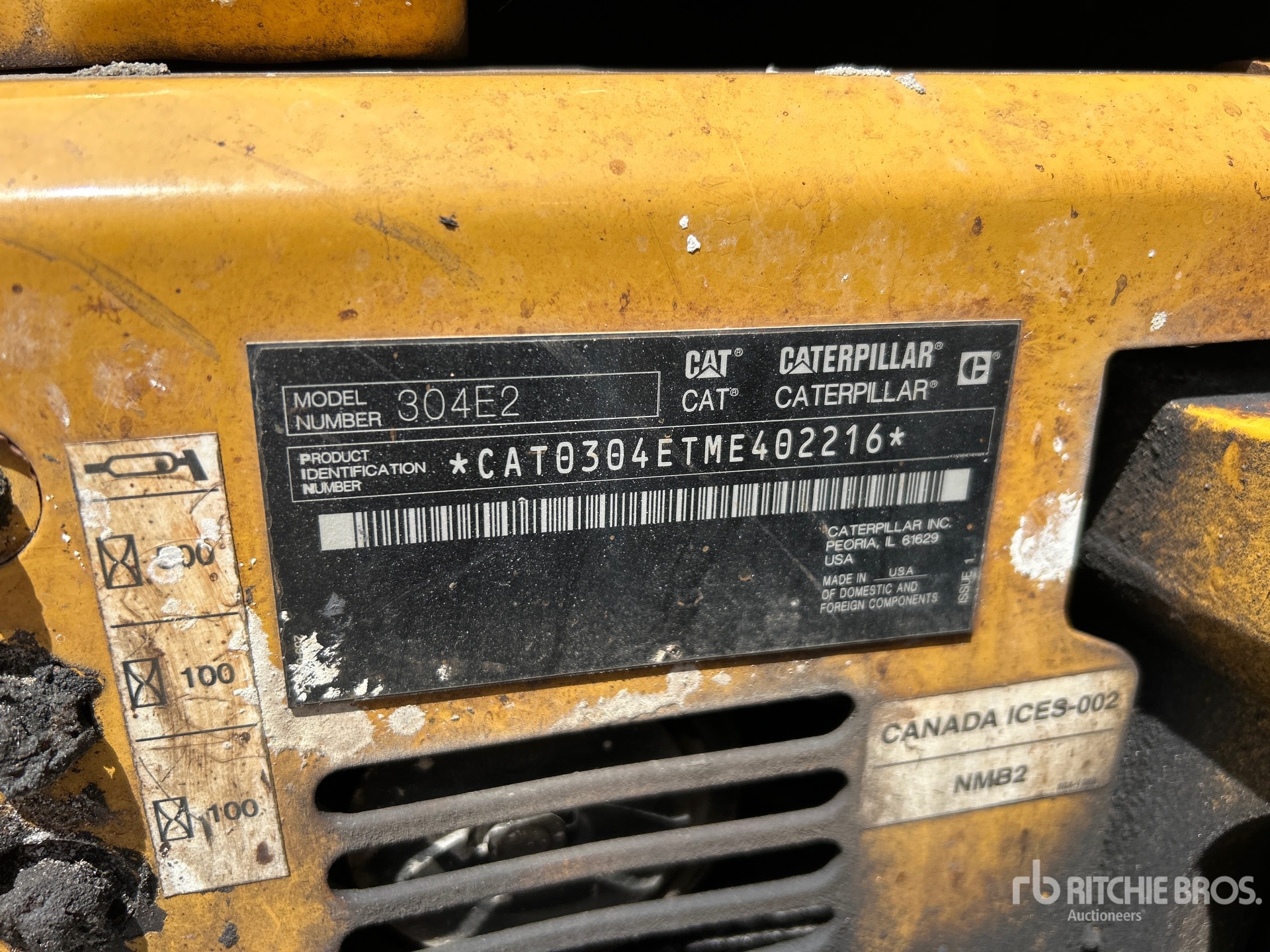

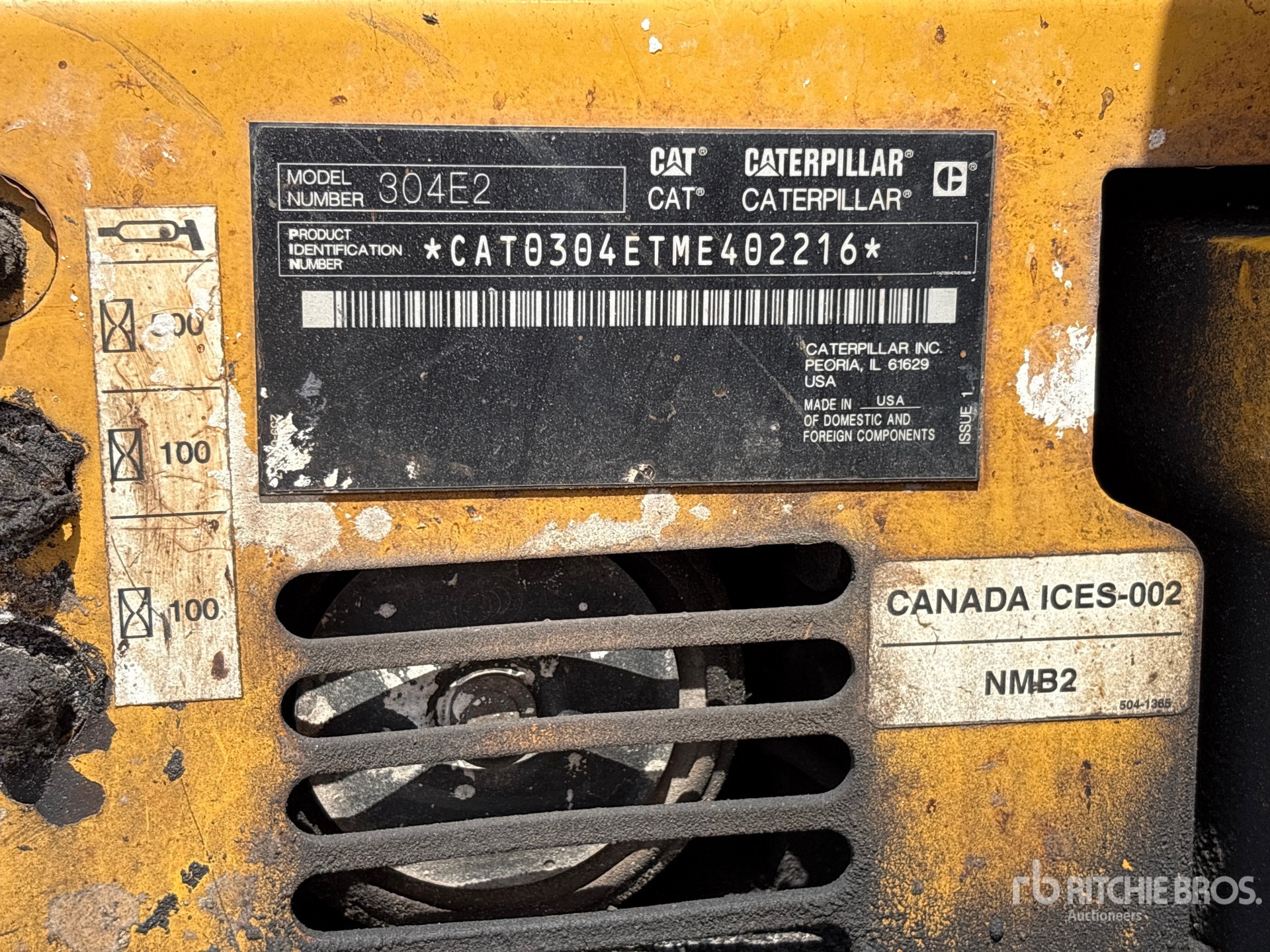

Serial Number:	CAT0304ETME402216
Machine Location:	ORLANDO, FL

Description:

Swing Boom, 5 ft 3 in Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 13.5 in Rubber Tracks, Manual Quick Coupler, 10 in Digging Bucket, Thumb Bracket Closing Time: 2026-05-21 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 304E2 CR is a compact mini excavator designed for construction, utility, landscaping, and site preparation work in confined spaces. It features a reduced tail swing design for improved maneuverability near walls, roads, and obstacles. The 304E2 CR is typically equipped with a fuel-efficient diesel engine, hydraulic system for digging and lifting, and a comfortable operator station with intuitive controls. Common applications include trenching, grading, backfilling, and material handling. As part of Caterpillar's mini excavator lineup, the 304E2 CR is valued for transportability, versatility, and performance on small to medium job sites.

Blades
Blade Height	13 in (33 cm)
Blade Lift Height	16 in (40 cm)
Blade Width	6 ft (2 m)
Dig Depth	19 in (47 cm)
Boom/Stick Excavator Option 1
Max Digging Depth	10 ft (3 m)
Max Reach Along Ground	17 ft (5 m)
Dimensions - Long Stick
Boom In Reach	87 in (221 cm)
Boom Swing - Left	26 in (66 cm)
Boom Swing - Right	29 in (74 cm)
Dig Depth	135 in (343 cm)
Maximum Blade Depth	19 in (48 cm)
Maximum Blade Height	16 in (41 cm)
Maximum Dig Height	200 in (508 cm)
Maximum Dump Clearance	145 in (368 cm)
Maximum Reach	220 in (559 cm)
Maximum Reach - Ground Level	215 in (546 cm)
O/A Shipping Length	194 in (493 cm)
O/A Track Width	77 in (196 cm)
O/A Undercarriage Length	87 in (221 cm)
Swing Bearing - Height	22 in (56 cm)
Track Belt/Shoe Width	14 in (36 cm)
Vertical Wall	101 in (257 cm)
Dimensions - Standard Stick
Boom In Reach	83 in (211 cm)
Boom Swing - Left	26 in (66 cm)
Boom Swing - Right	29 in (74 cm)
Dig Depth	123 in (312 cm)
Maximum Blade Depth	19 in (48 cm)
Maximum Blade Height	16 in (41 cm)
Maximum Dig Height	196 in (498 cm)
Maximum Dump Clearance	141 in (358 cm)
Maximum Reach	211 in (536 cm)
Maximum Reach - Ground Level	206 in (523 cm)
O/A Shipping Length	190 in (483 cm)
O/A Track Width	77 in (196 cm)
O/A Undercarriage Length	87 in (221 cm)
Swing Bearing - Height	22 in (56 cm)
Track Belt/Shoe Width	14 in (36 cm)
Vertical Wall	95 in (241 cm)
Engine
Bore	3 in (9 cm)
Displacement	146 cu in (2,393 cu cm)
Emissions	*Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards.
Engine Model	Cat C2.4
Stroke	4 in (10 cm)
General Specifications
Engine (Since 2021)	C2.4
Max Digging Depth (Since 2021)	77 ft (23 m)
Net Power (Since 2021)	40 hp (30 kw)
Operating Weight (Since 2021)	8,930 lbs (4,051 kg)
Hydraulic System
Digging Force - Bucket	8,498 lbs (3,855 kg)
Digging Force - Stick - Long	4,384 lbs (1,989 kg)
Digging Force - Stick - Standard	4,856 lbs (2,203 kg)
Hydraulic System Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	3,132 psi
Operating Pressure - Travel	3,553 psi
Service Refill Capacities
Cooling System	2 gal (6 l)
Engine Oil	3 gal (9 l)
Fuel Tank	12 gal (46 l)
Hydraulic System	17 gal (65 l)
Hydraulic Tank	11 gal (42 l)
Swing System
Boom Swing - Left - With Stop	55 degrees
Boom Swing - Left - Without Stop	70 degrees
Machine Swing Speed	10 rpm
Travel System
Gradeability - Maximum	30 degrees
Maximum Traction Force - High Speed	3,799 lbs (1,723 kg)
Maximum Traction Force - Low Speed	6,969 lbs (3,161 kg)
Travel Speed - High	3 mph (5 kph)
Travel Speed - Low	2 mph (3 kph)
