2002 Caterpillar 305 CR For Sale in Chehalis, Wa

Name: 2002 Caterpillar 305 CR
Brand: Caterpillar
SKU: 87407750
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

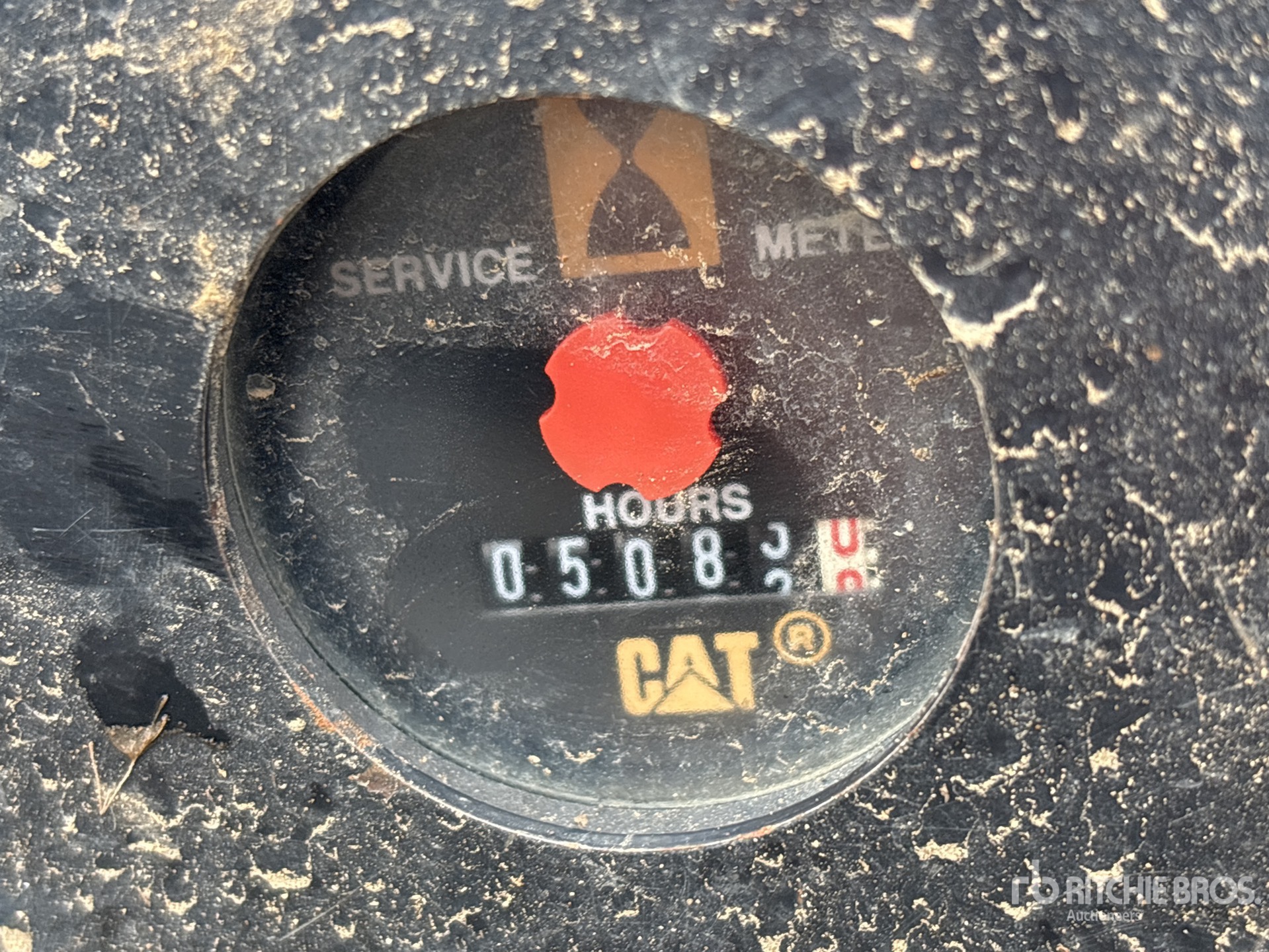

Hours:	5083

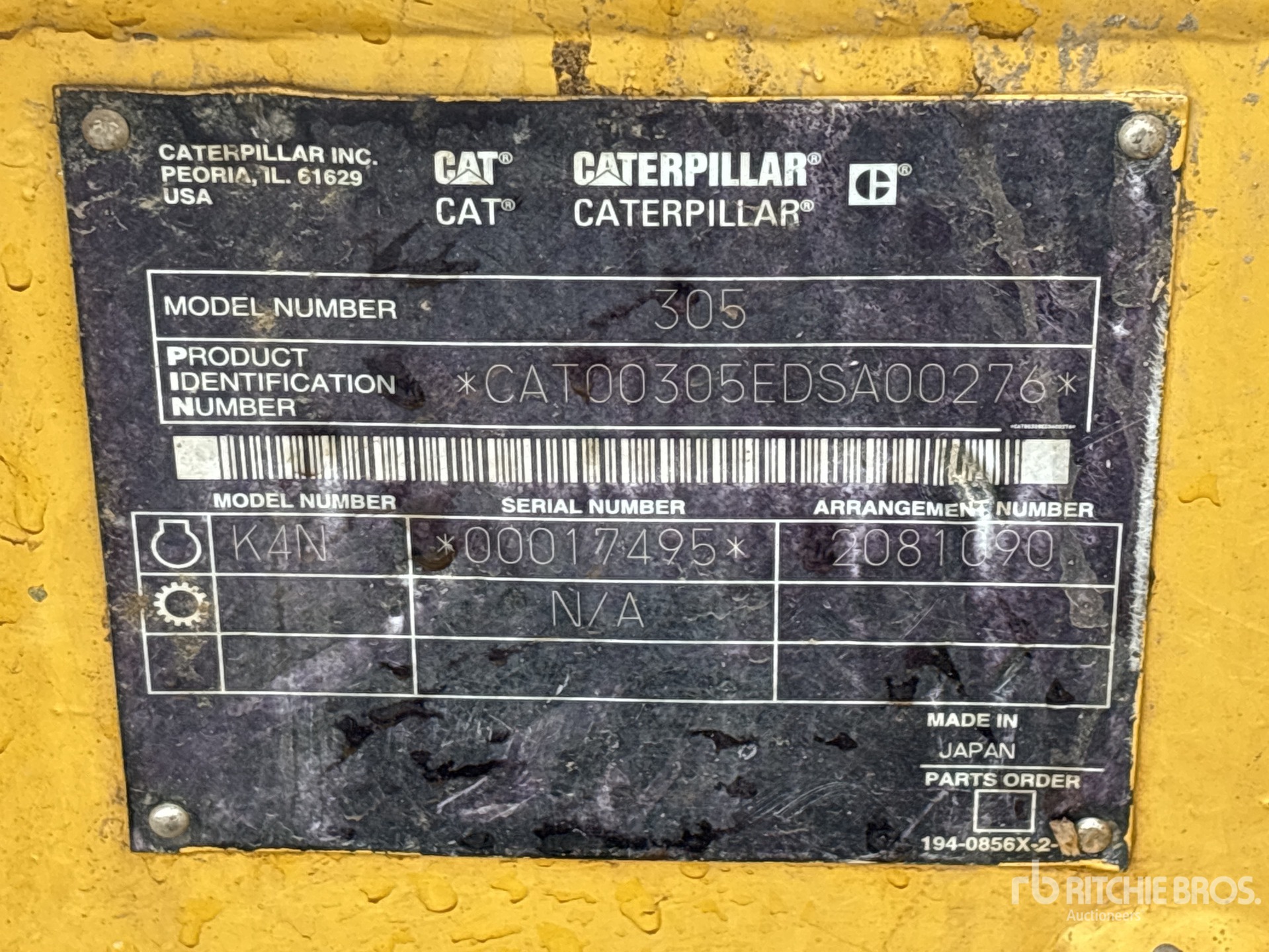

Serial Number:	CAT00305EDSA00276
Machine Location:	CHEHALIS, WA

Description:

Swing Boom, 5 ft 4 in Stick, Backfill Blade, 16 in Rubber Tracks, Manual Quick Coupler, 24 in Digging Bucket, Hydraulic Thumb Pick up by appointment only, Closing Time: 2026-05-08 01:05:30 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 305 CR is a compact mini excavator designed for construction, landscaping, utility, and site preparation work. It features a reduced tail swing design for operation in confined spaces while maintaining digging performance and machine stability. The 305 CR is typically equipped with a hydraulic system suited for attachments such as buckets, augers, and breakers. Caterpillar offers the model with a comfortable operator station, intuitive controls, and service access for routine maintenance. As a mini excavator, the 305 CR is used for trenching, grading, lifting, and material handling on small to medium job sites.

Blades
Blade Lift Height	18 in (46 cm)
Blade Width	7 ft (2 m)
Dig Depth	14 in (36 cm)
Dimensions
Center Ground Clearance	2 ft (1 m)
Digging Depth	11 ft (3 m)
Digging Reach	11 ft (3 m)
Height - Over Cab	9 ft (3 m)
Height - Over Canopy	9 ft (3 m)
Maximum Cutting Height - Long Stick	18 ft (6 m)
Maximum Cutting Height - Standard Stick	18 ft (5 m)
Maximum Digging Depth - Long Stick	12 ft (4 m)
Maximum Digging Depth - Standard Stick	12 ft (4 m)
Maximum Dump Height - Long Stick	13 ft (4 m)
Maximum Dump Height - Standard Stick	12 ft (4 m)
Maximum Horizontal Reach - Long Stick	21 ft (6 m)
Maximum Horizontal Reach - Standard Stick	19 ft (6 m)
Maximum Reach - Ground Level - Long Stick	20 ft (6 m)
Maximum Reach - Ground Level - Standard Stick	18 ft (6 m)
Maximum Vertical Dig Depth - Long Stick	11 ft (3 m)
Maximum Vertical Dig Depth - Standard Stick	9 ft (3 m)
Shipping Length	18 ft (5 m)
Swing Radius - Rear	4 ft (1 m)
Track Gauge	5 ft (2 m)
Track Shoe Width	1 ft (0 m)
Width - Over Track	7 ft (2 m)
Width - Upper Structure	6 ft (2 m)
Electrical System
Electrical System Type	Twelve-volt system
Engine
Bore	4 in (9 cm)
Displacement	140 cu in (2,294 cu cm)
Engine Model	3,013
Gross Power	43 hp (32 kw)
Net Power	42 hp (31 kw)
Stroke	4 in (9 cm)
General Specifications
Digging Depth ft. (m) (Since 2025)	12 (3.7)
Digging Reach ft. (m) (Since 2025)	19.1 (5.8)
Engine (Since 2023)	C1.7 Turbo
Engine hp (kW) (Since 2025)	45 (33.6)
Max Digging Depth (Since 2023)	144.5 in ft (44 m)
Net Power (Since 2023)	45 hp (34 kw)
Operating Weight (Since 2023)	12,688 lbs (5,755 kg)
Operating Weight lbs. (kg) (Since 2025)	12,688 (5,755.2)
Hydraulic System
Auxiliary Circuit - Primary (245 bar/3,553 psi)	25 gpm (95 lpm)
Digging Force - Bucket	9,440 lbs (4,282 kg)
Digging Force - Stick - Long	5,240 lbs (2,377 kg)
Digging Force - Stick - Standard	6,205 lbs (2,815 kg)
Operating Pressure - Equipment	3,550 psi
Operating Pressure - Swing	3,550 psi
Operating Pressure - Travel	3,550 psi
Pump - Gear (Single)	11 gpm (42 lpm)
Pump - Gear (Tandem)	14 gpm (52 lpm)
Operating Specifications
Operating Weight	11,001 lbs (4,990 kg)
Service Refill Capacities
Cooling System TAG	2 gal (7 l)
Engine Oil	2 gal (8 l)
Fuel Tank	18 gal (68 l)
Hydraulic System	22 gal (85 l)
Hydraulic Tank	15 gal (57 l)
Swing System
Boom Swing - Left - With Stop	55 degrees
Boom Swing - Left - Without Stop	80 degrees
Boom Swing - Right	50 degrees
Machine Swing Speed	10 rpm
Swing System Type	Hydraulic Motor Driven
Travel System
Travel Speed - High	3 mph (5 kph)
Travel Speed - Low	2 mph (3 kph)
Weights
Operating Weight - With Cab	11,000 lbs (4,990 kg)
