Caterpillar 305E2CR For Sale in Hazlehurst, GA

Name: Caterpillar 305E2CR
Brand: Caterpillar
SKU: 87226334
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-14 Click here to place a bid

Rebel Auction Co., Inc.

Rebel Auction Co., Inc. Dealer Info

Rebel Auction Co., Inc. Website

Click here to email Rebel Auction Co., Inc..

Click for Phone Number

Machine Info:

Machine Location:	HAZLEHURST, GA
More Information:	https://www.proxibid.com/heavy-construction-equipment/excavators/2019-caterpillar-305e2-cr-excavator/lotInformation/100561381?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=65056

Description:

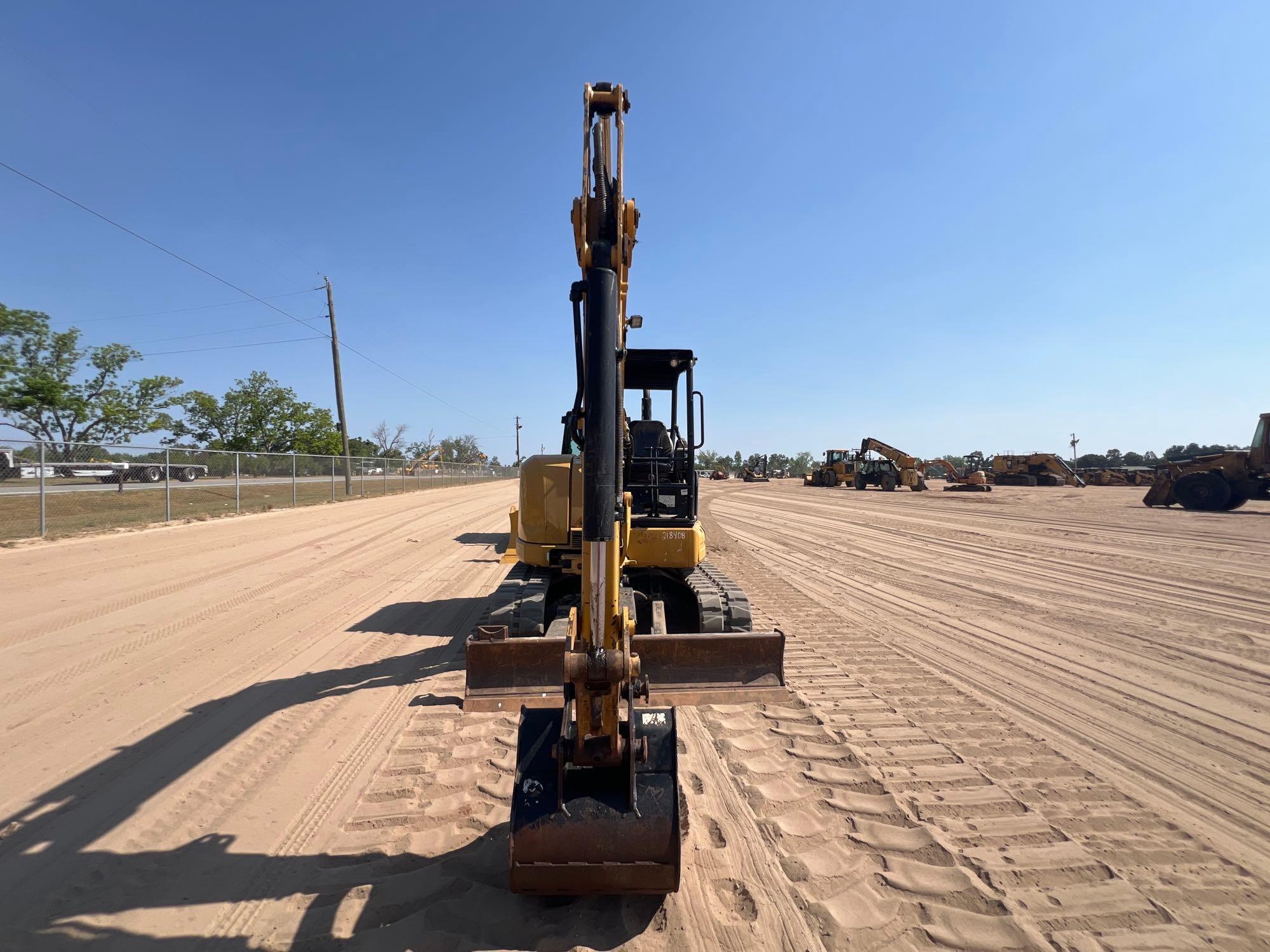

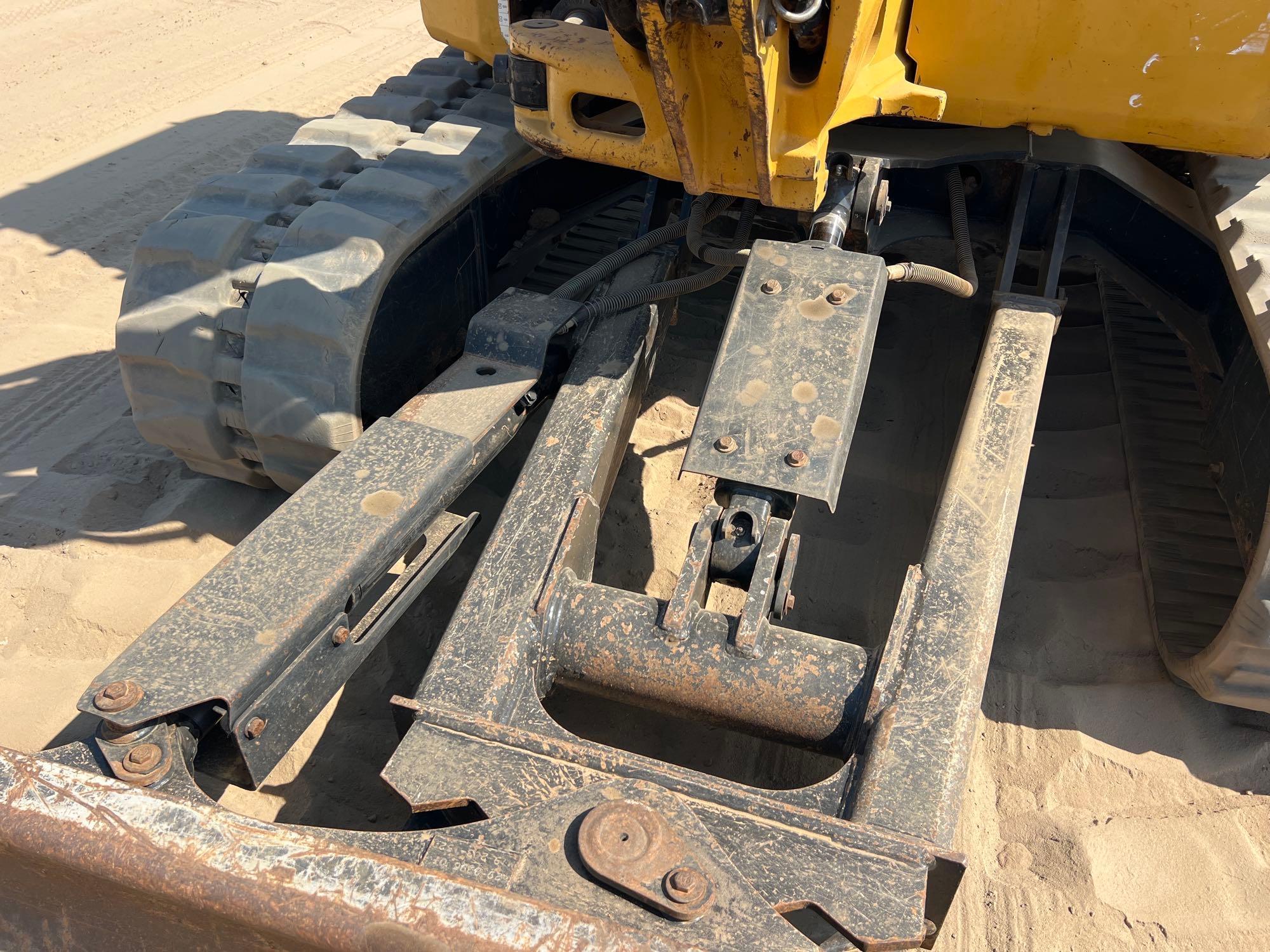

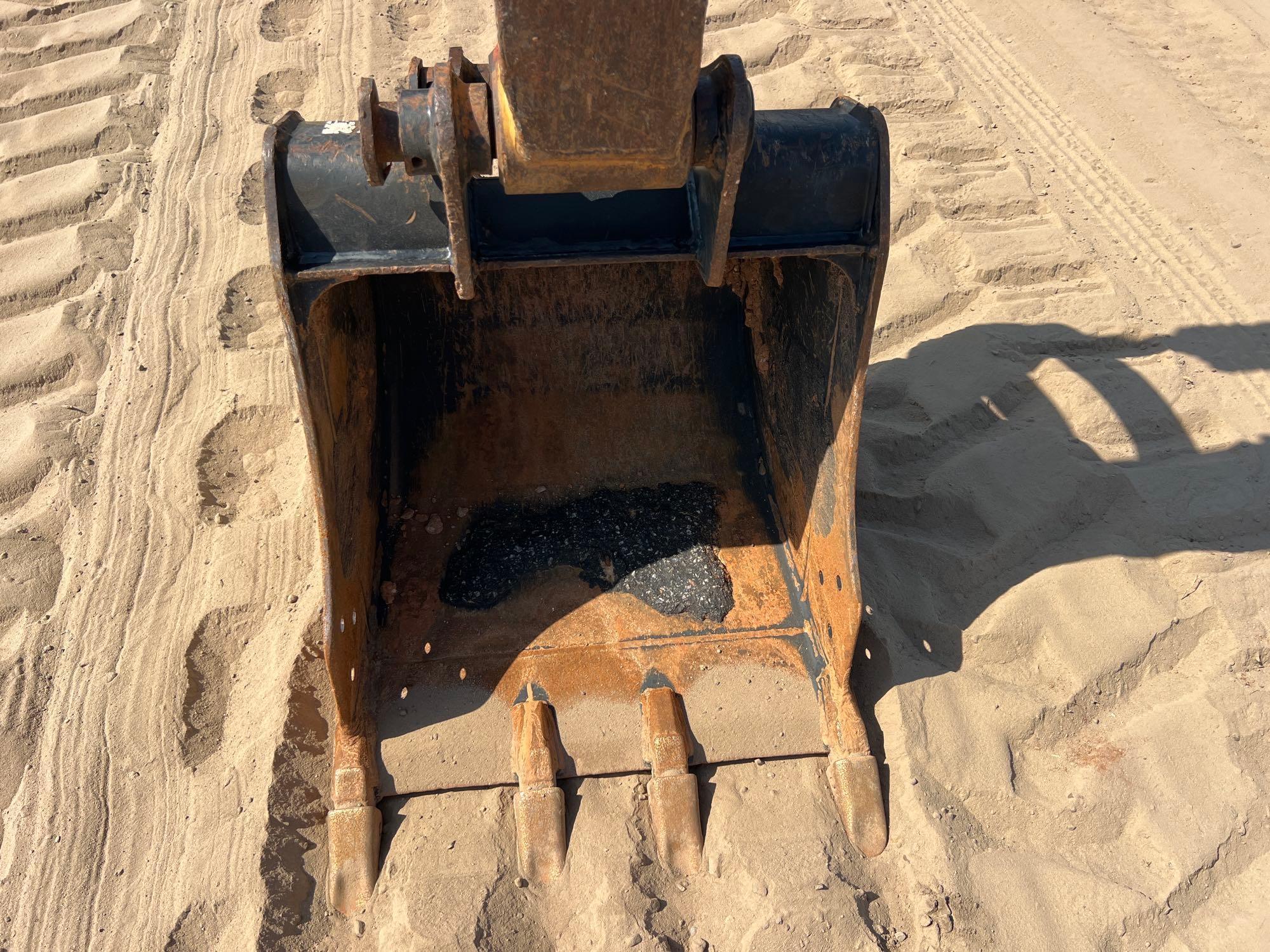

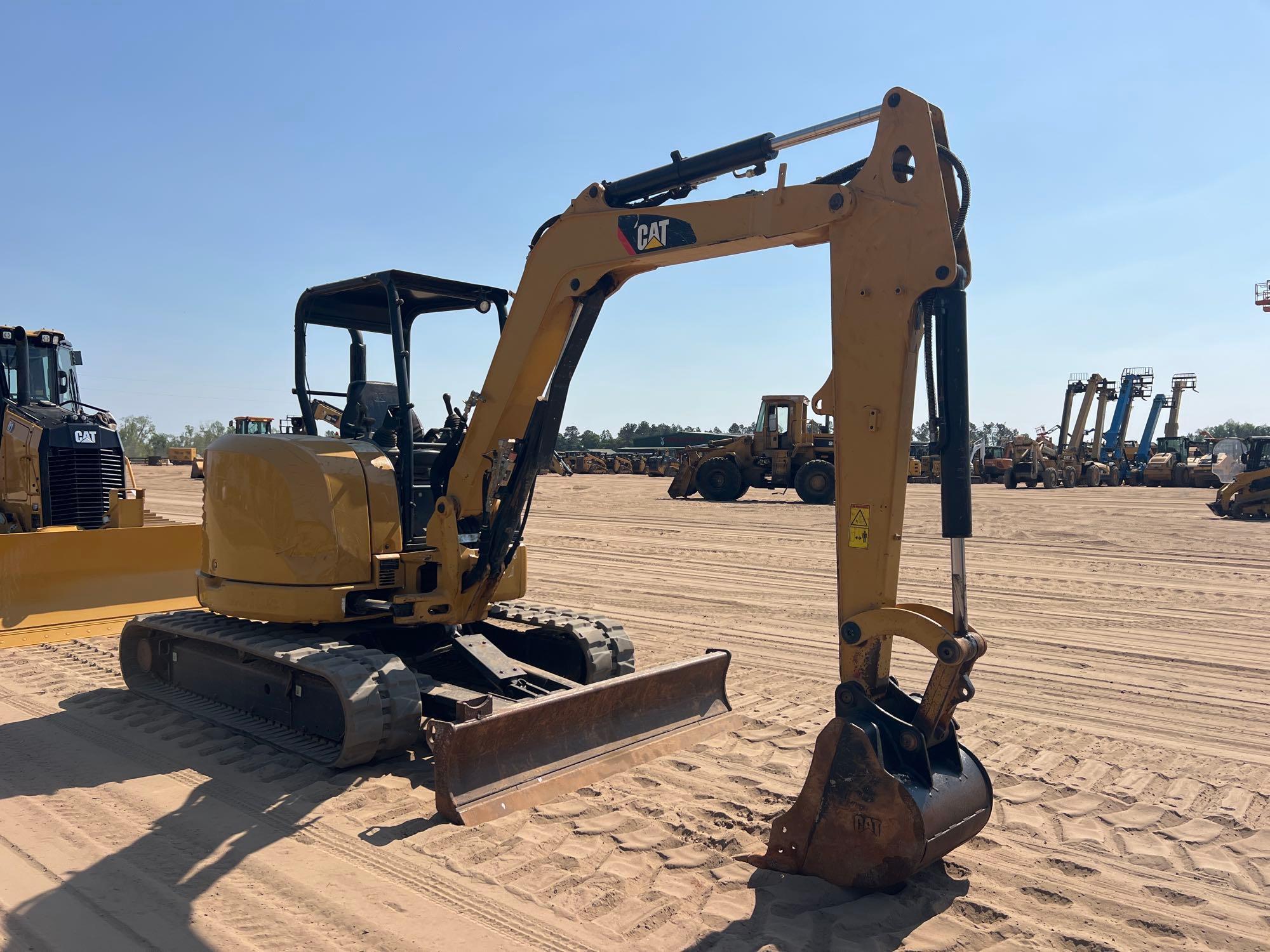

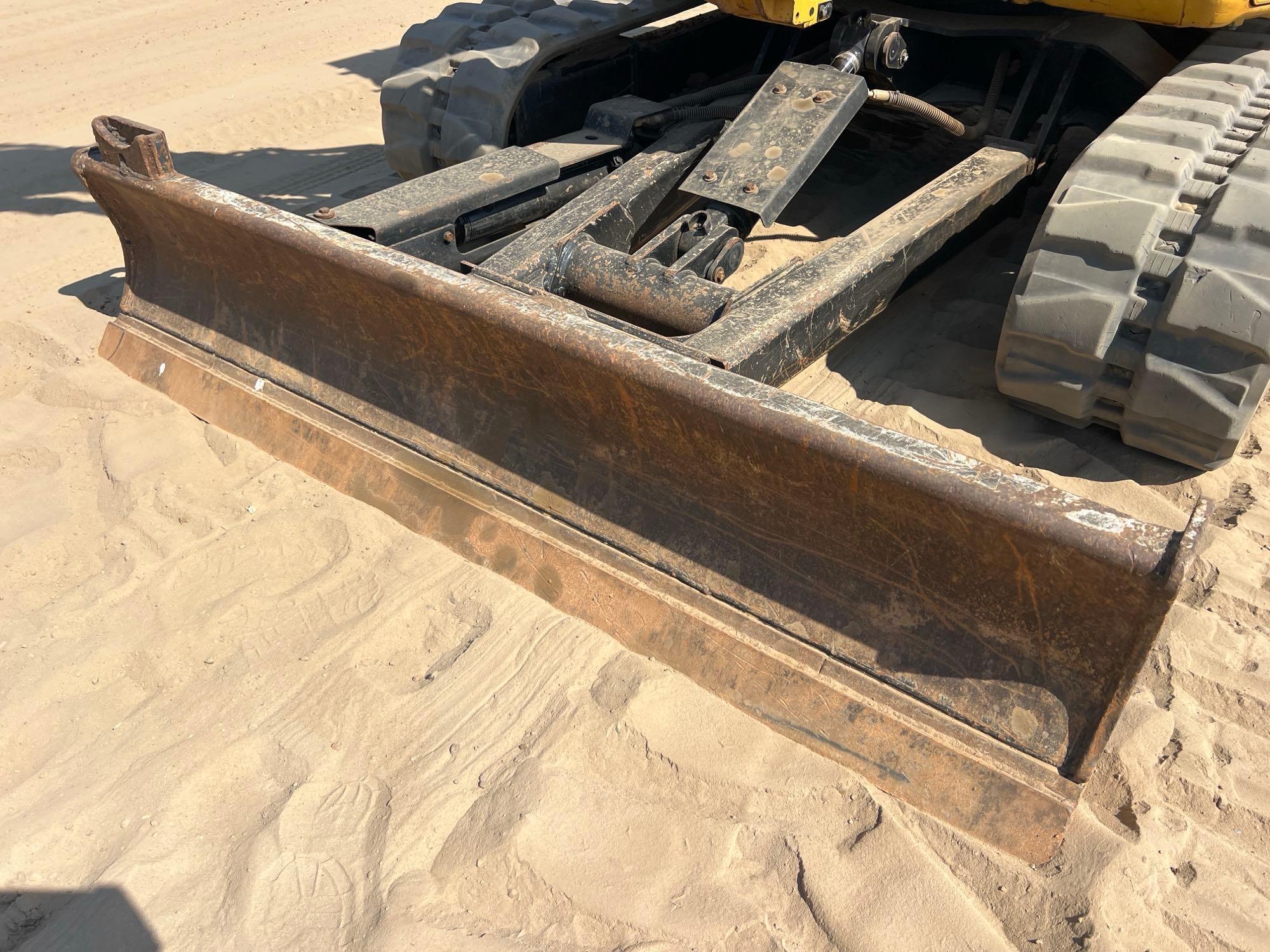

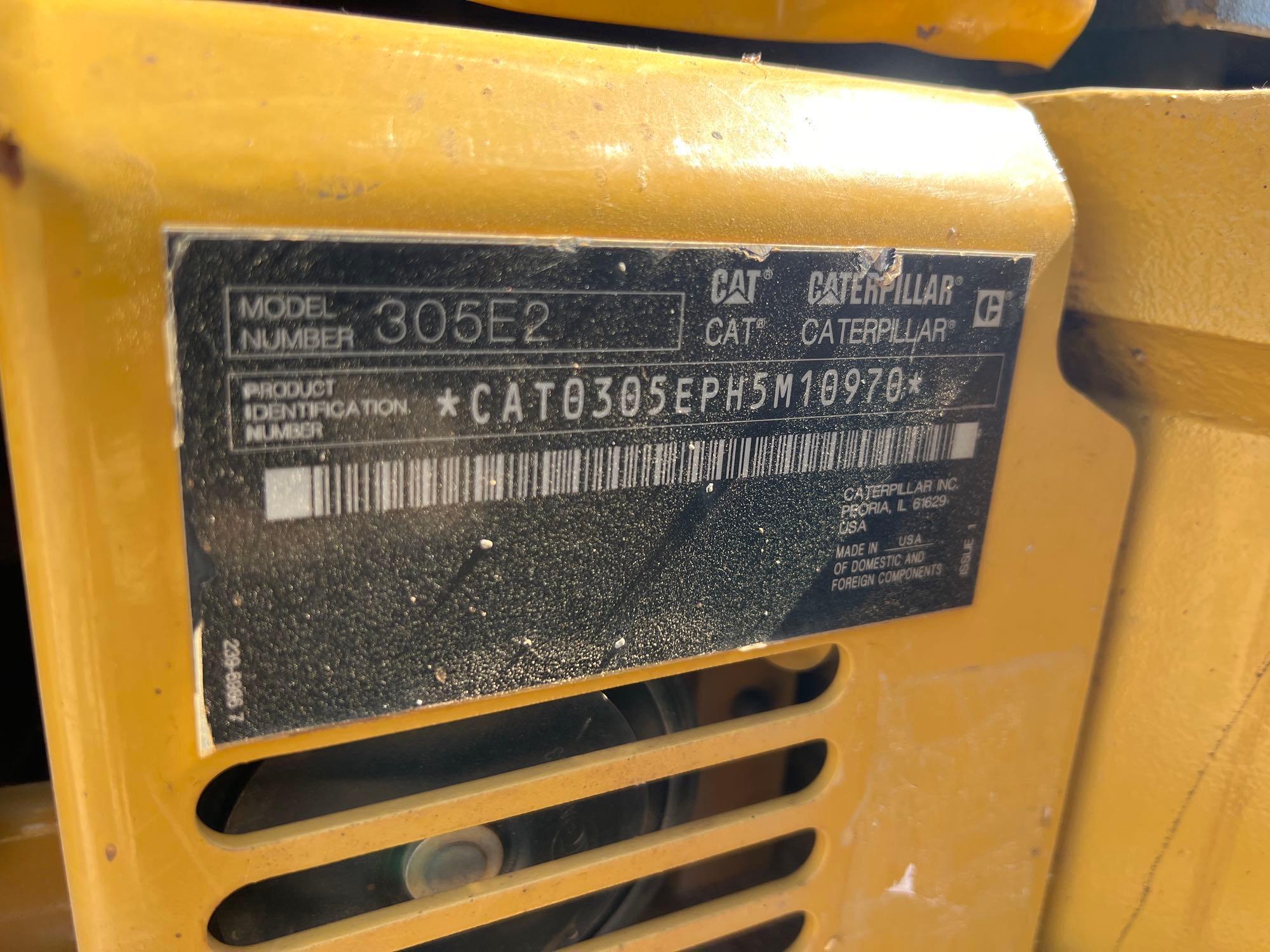

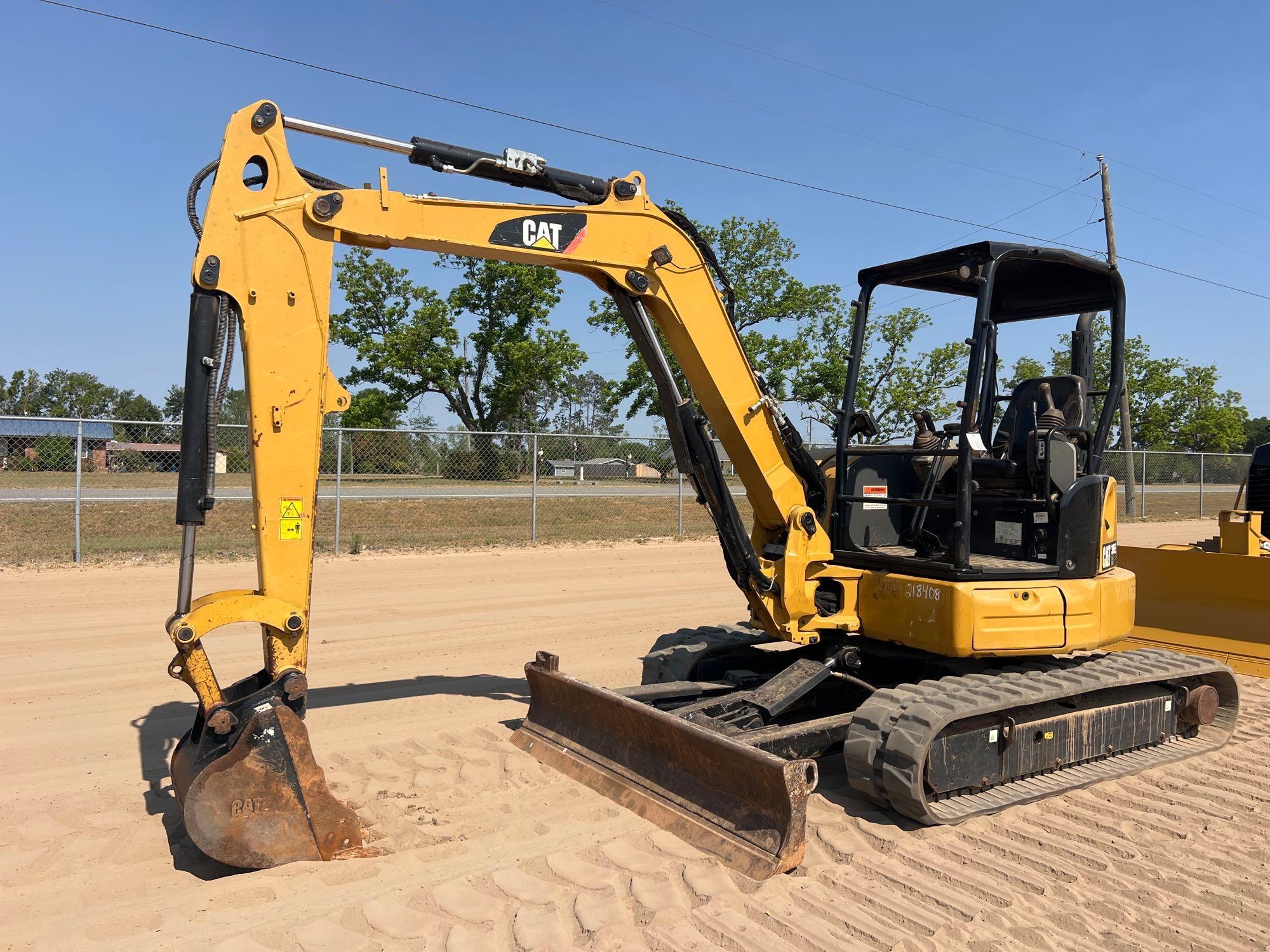

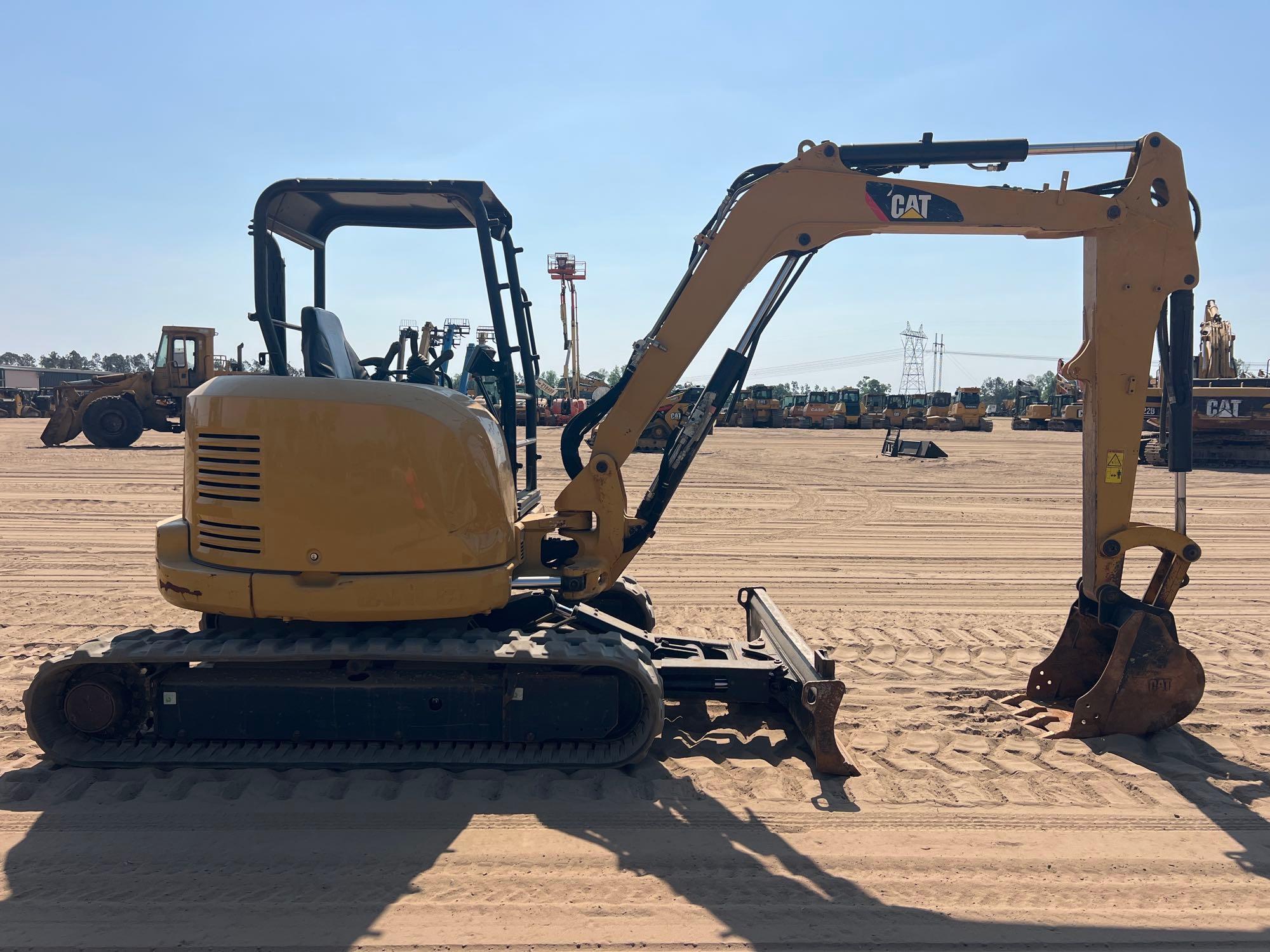

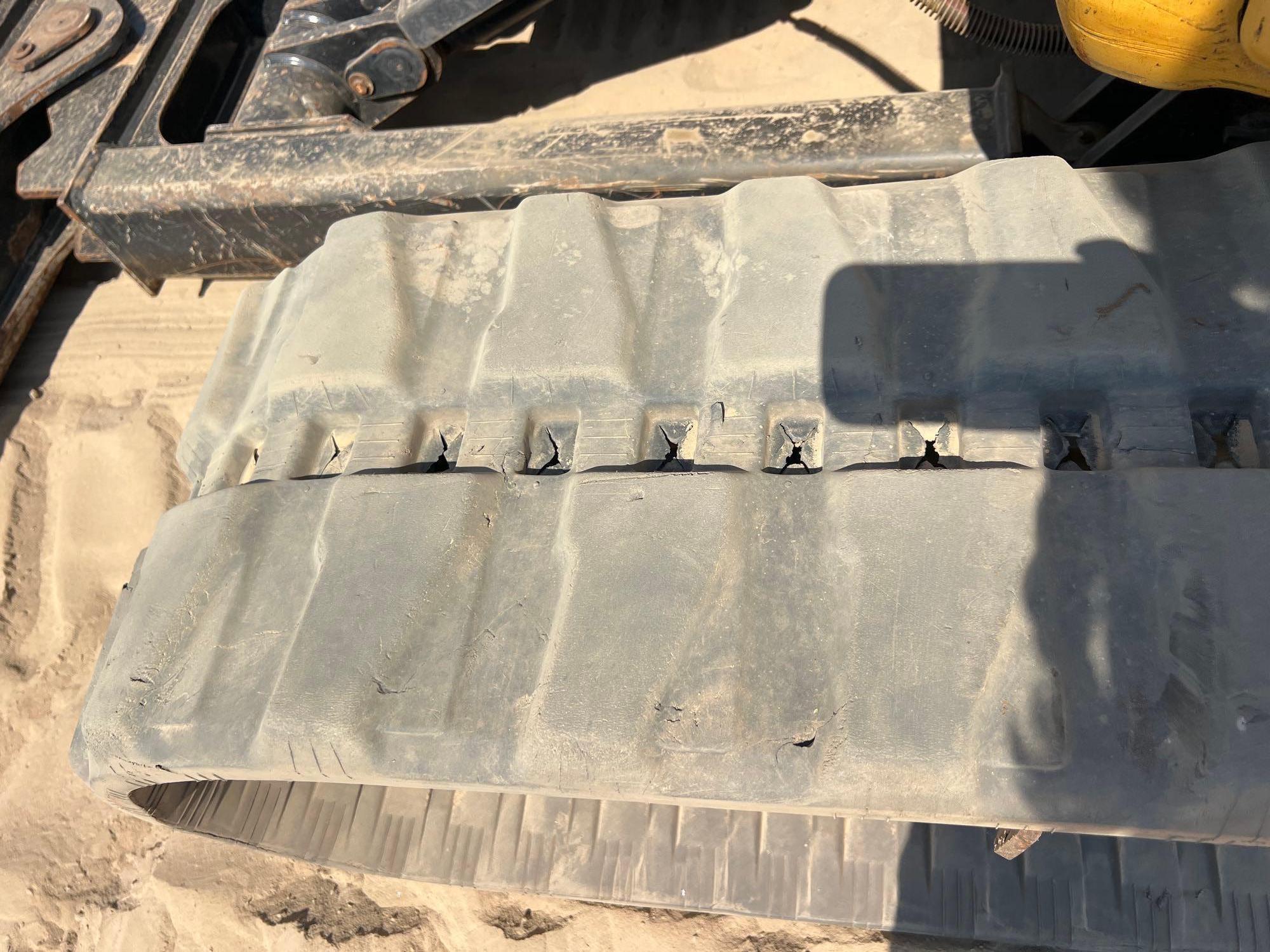

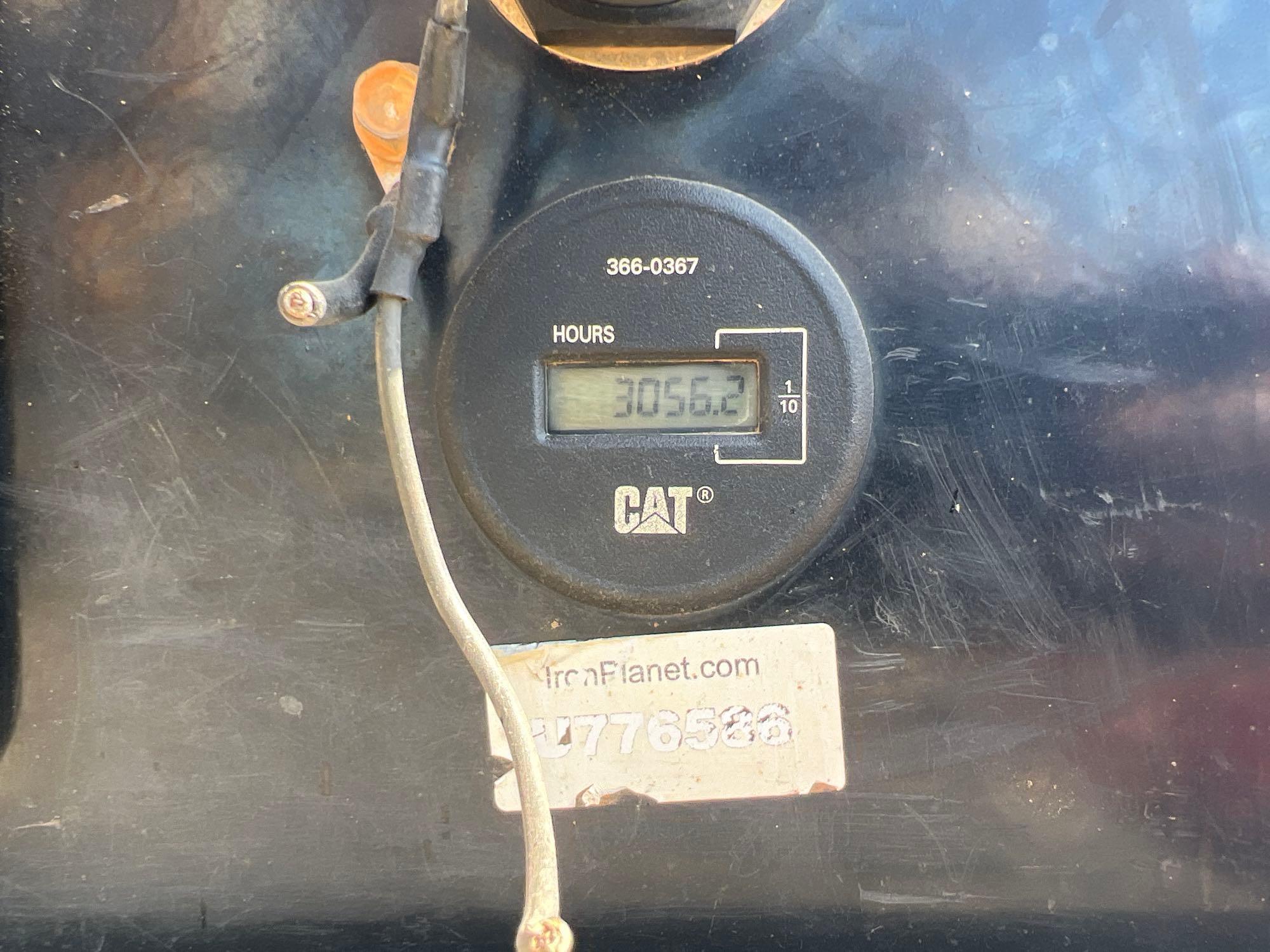

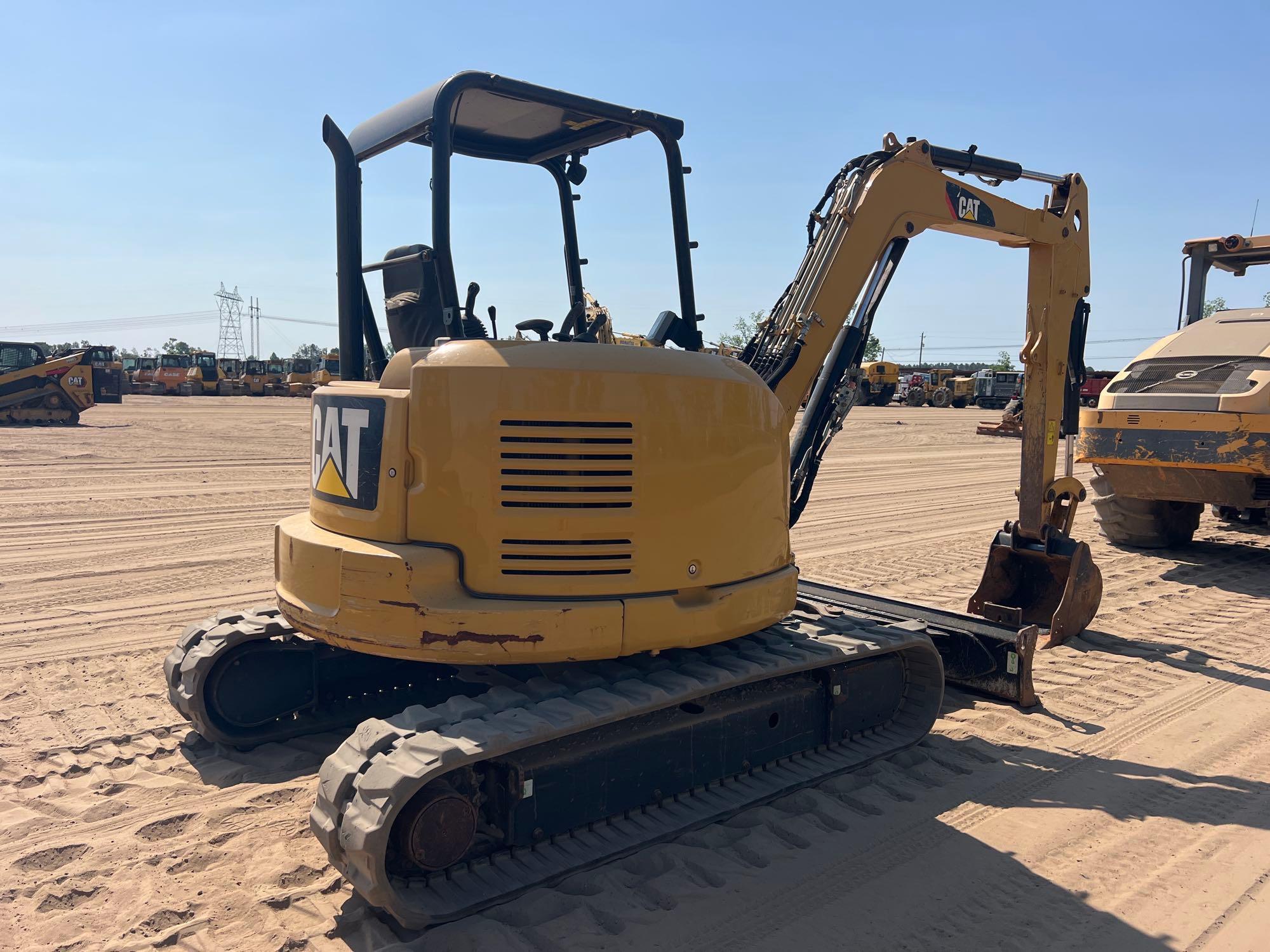

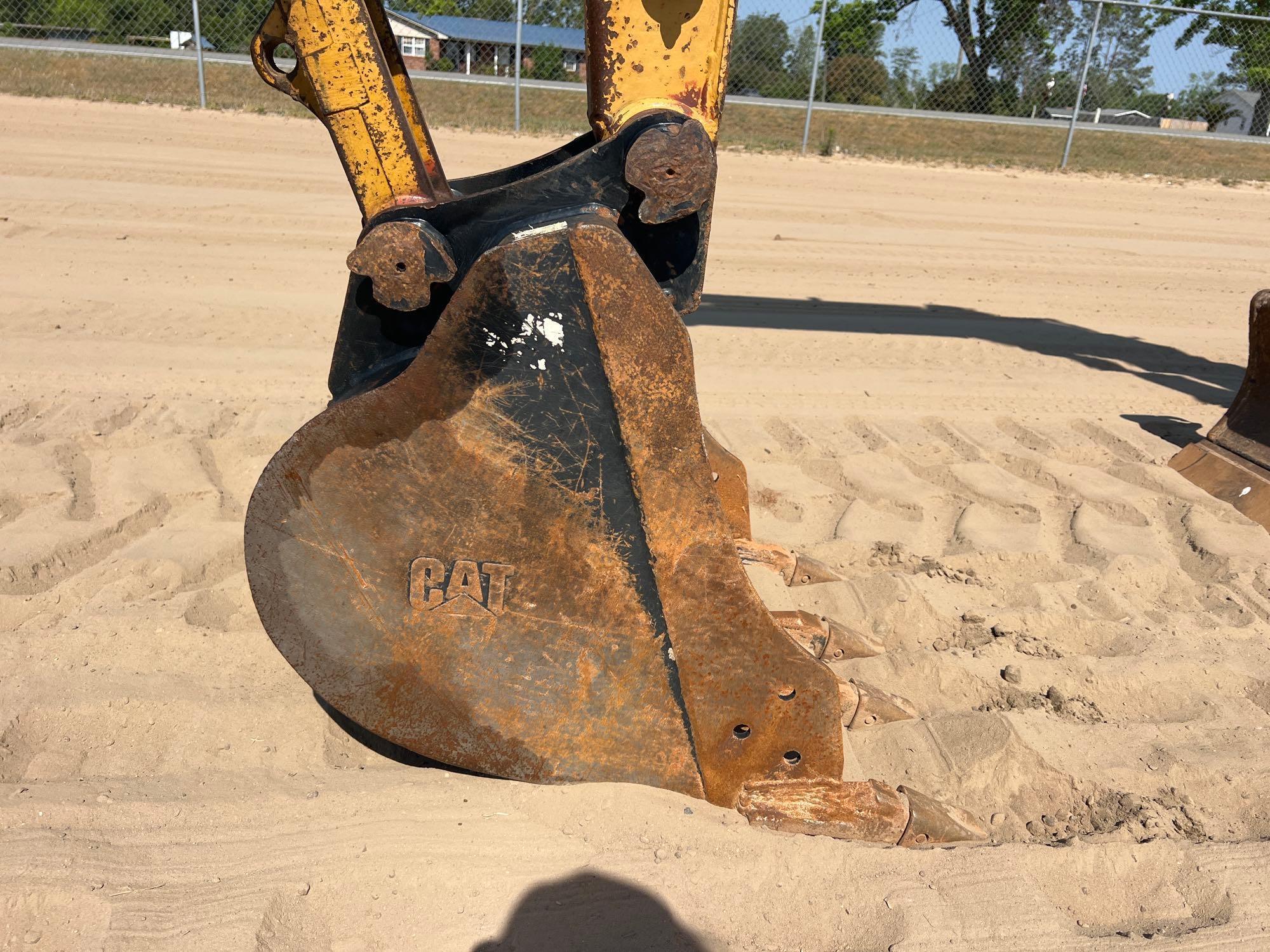

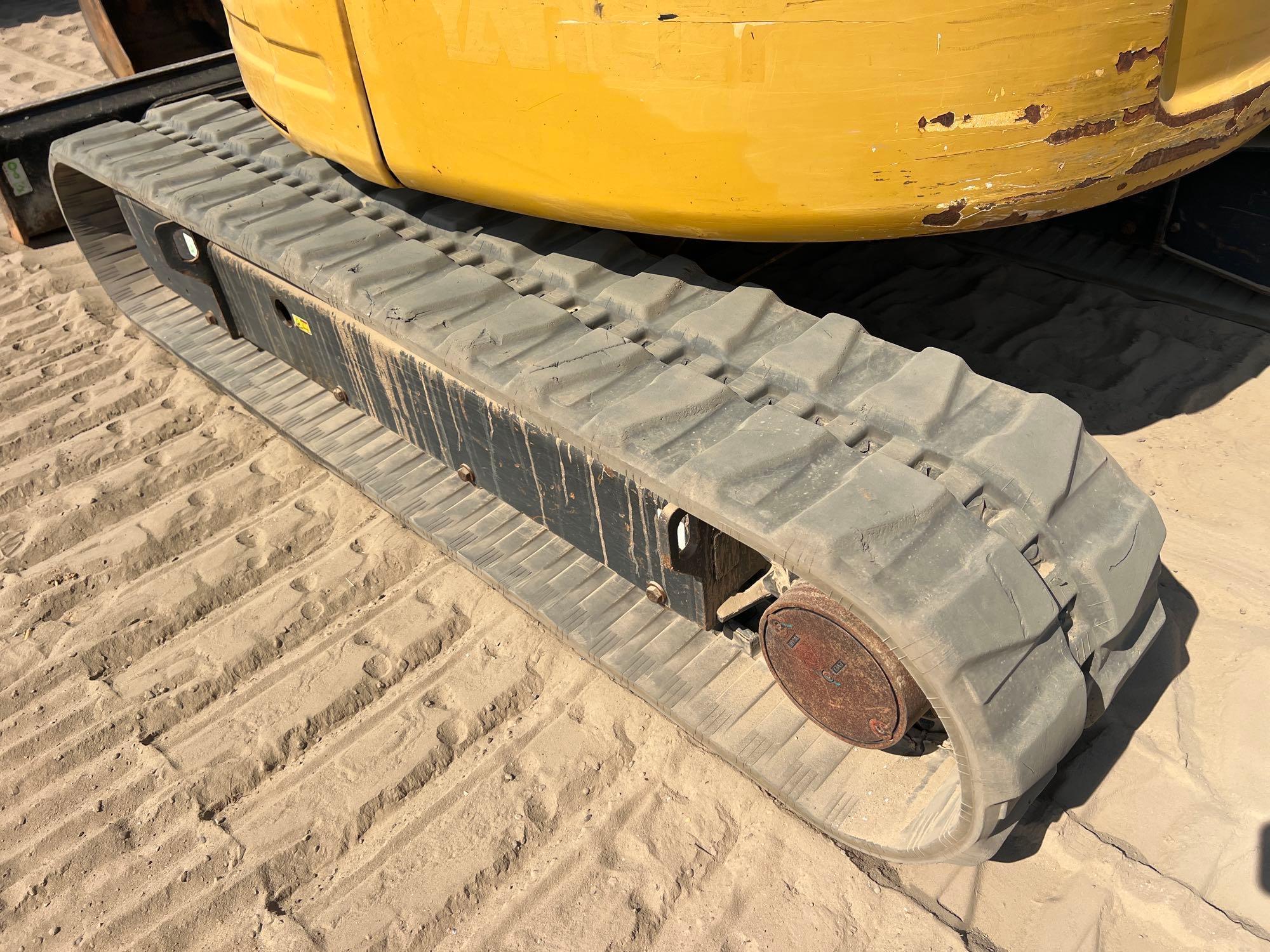

(HRS SHOW-3055), OROPS, AUX HYD, 22" BUCKET, ANGLE BLADE, RUBBER TRACK, S/N-CAT0305EPH5M10970

From the manufacturer:

Supplied by HeavyEquipmentData.com →

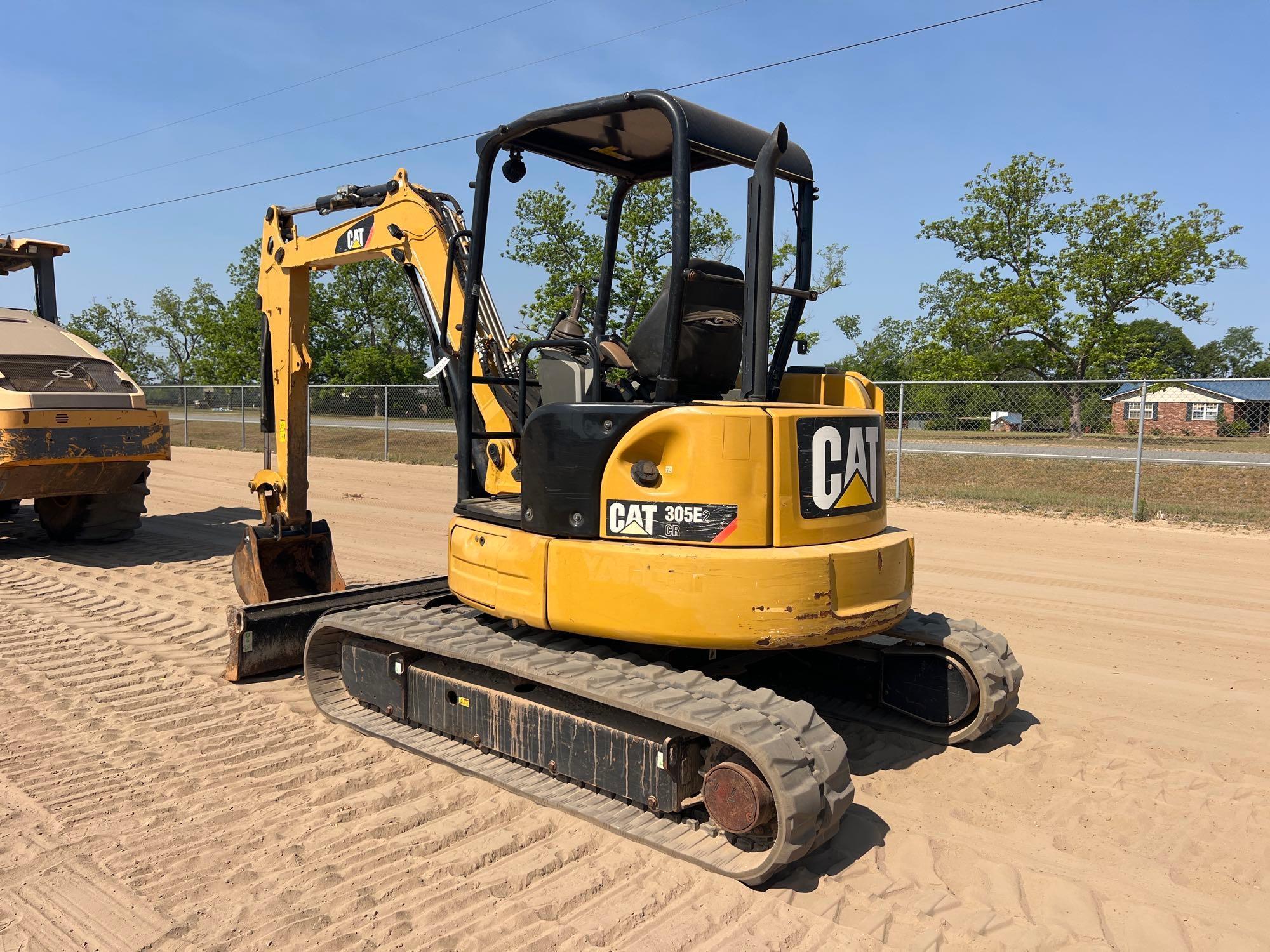

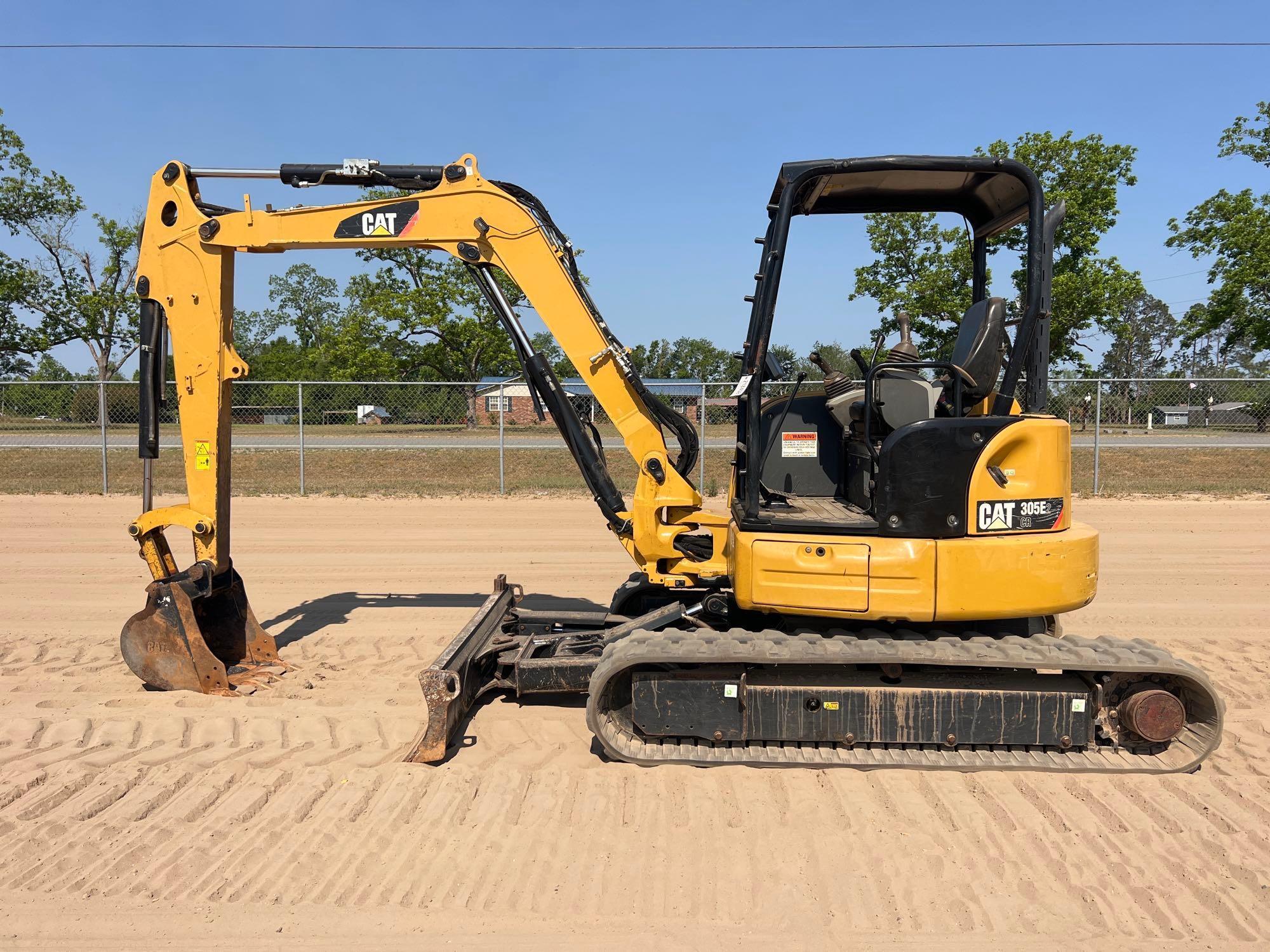

The Caterpillar 305E2CR is a compact mini excavator designed for construction, utility, landscaping, and site preparation work in confined spaces. The reduced tail swing design improves maneuverability near walls, roads, and other obstacles, while the machine's hydraulic system supports digging, trenching, grading, and material handling tasks. The 305E2CR is typically equipped with a comfortable operator station, responsive controls, and compatibility with a range of attachments. Its size and transportability make it suitable for urban job sites and smaller projects where access is limited. The Caterpillar 305E2CR is part of Caterpillar's mini excavator lineup.

Blades
Blade Height	15 in (38 cm)
Blade Lift Height	16 in (40 cm)
Blade Width	7 ft (2 m)
Dig Depth	22 in (56 cm)
Boom/Stick Excavator Option 1
Max Digging Depth	11 ft (3 m)
Max Reach Along Ground	18 ft (5 m)
Dimensions - Long Stick
Boom In Reach	100 in (254 cm)
Boom Swing - Left	27 in (69 cm)
Boom Swing - Right	31 in (79 cm)
Dig Depth	144 in (366 cm)
Maximum Blade Depth	22 in (56 cm)
Maximum Blade Height	16 in (41 cm)
Maximum Dig Height	214 in (544 cm)
Maximum Dump Clearance	154 in (391 cm)
Maximum Reach	235 in (597 cm)
Maximum Reach - Ground Level	229 in (582 cm)
O/A Shipping Length	208 in (528 cm)
O/A Track Width	78 in (198 cm)
O/A Undercarriage Length	102 in (259 cm)
Swing Bearing - Height	24 in (61 cm)
Track Belt/Shoe Width	16 in (41 cm)
Vertical Wall	104 in (264 cm)
Dimensions - Standard Stick
Boom In Reach	93 in (236 cm)
Boom Swing - Left	27 in (69 cm)
Boom Swing - Right	31 in (79 cm)
Dig Depth	129 in (328 cm)
Maximum Blade Depth	22 in (56 cm)
Maximum Blade Height	16 in (41 cm)
Maximum Dig Height	207 in (526 cm)
Maximum Dump Clearance	129 in (328 cm)
Maximum Reach	220 in (559 cm)
Maximum Reach - Ground Level	210 in (533 cm)
O/A Shipping Length	204 in (518 cm)
O/A Track Width	78 in (198 cm)
O/A Undercarriage Length	102 in (259 cm)
Swing Bearing - Height	24 in (61 cm)
Track Belt/Shoe Width	16 in (41 cm)
Vertical Wall	91 in (231 cm)

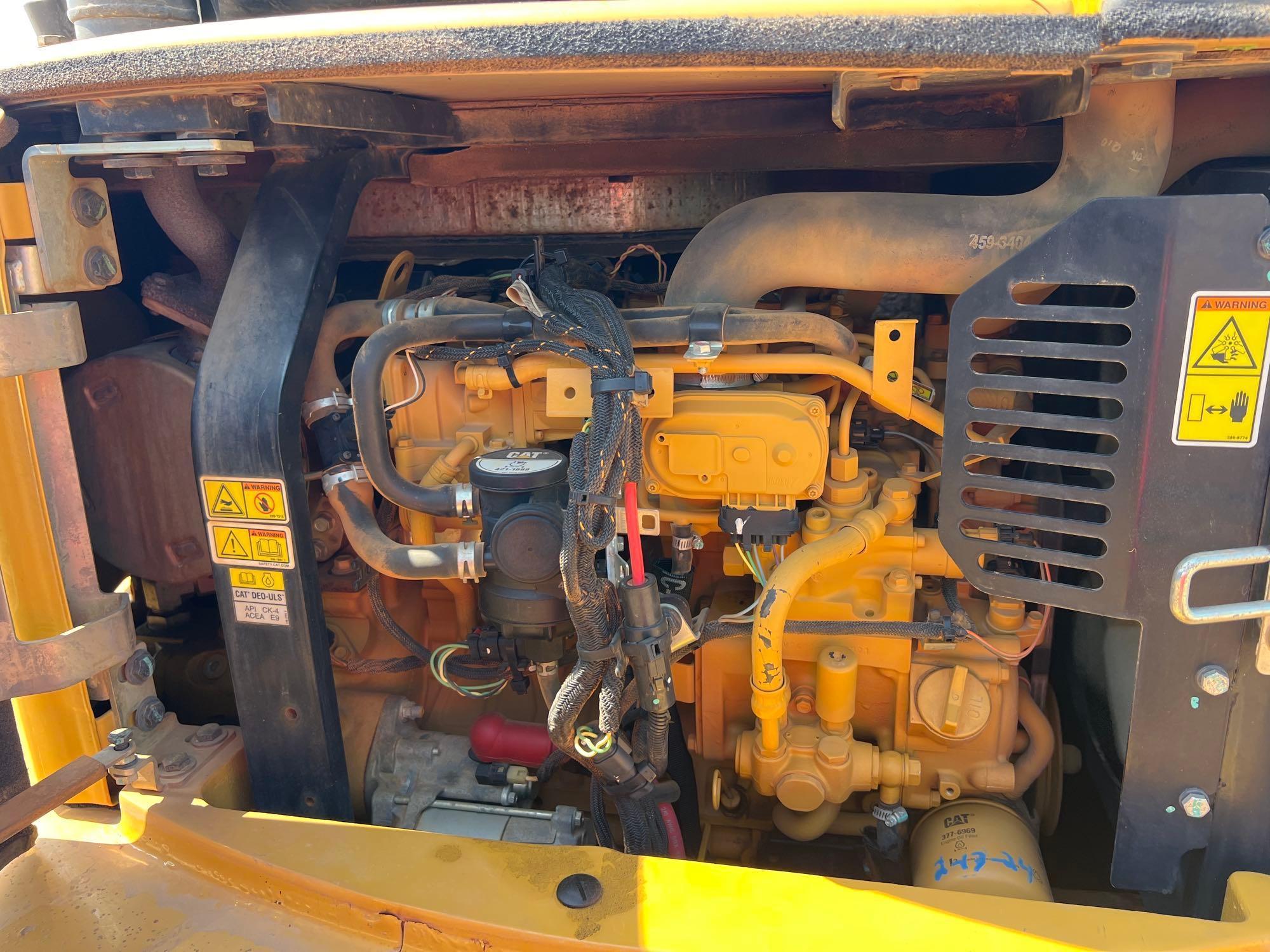

Engine
Bore	3 in (9 cm)
Displacement	146 cu in (2,393 cu cm)
Emissions	Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards.
Engine Model	Cat C2.4
Net Power	40 hp (30 kw)
Stroke	4 in (10 cm)
General Specifications
Engine (Since 2021)	C2.4
Max Digging Depth (Since 2021)	77 ft (23 m)
Net Power (Since 2021)	40 hp (30 kw)
Operating Weight (Since 2021)	9,330 lbs (4,232 kg)

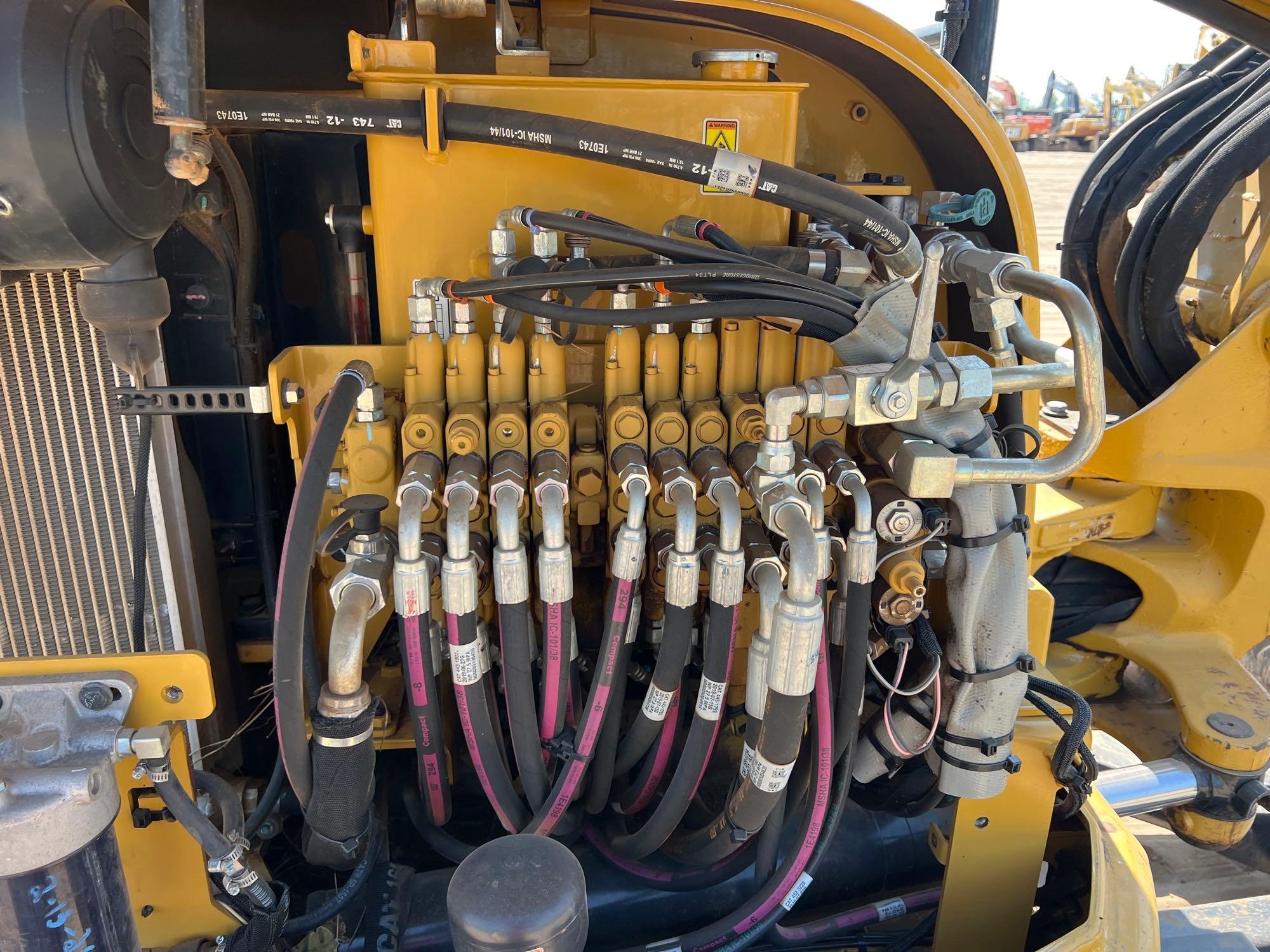

Hydraulic System
Digging Force - Bucket	10,050 lbs (4,559 kg)
Digging Force - Stick - Long	4,788 lbs (2,172 kg)
Digging Force - Stick - Standard	5,550 lbs (2,517 kg)
Hydraulic System Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	3,132 psi
Operating Pressure - Travel	3,553 psi
Pump Flow at 2,400 rpm	40 gpm (150 lpm)
Service Refill Capacities
Cooling System	3 gal (11 l)
Engine Oil	3 gal (9 l)
Fuel Tank	17 gal (63 l)
Hydraulic System	21 gal (78 l)
Hydraulic Tank	18 gal (68 l)
Swing System
Boom Swing - Left - With Stop	60 degrees
Boom Swing - Left - Without Stop	80 degrees
Machine Swing Speed	10 rpm
Travel System
Gradeability - Maximum	30 degrees
Maximum Traction Force - High Speed	5,418 lbs (2,458 kg)
Maximum Traction Force - Low Speed	10,161 lbs (4,609 kg)
Travel Speed - High	3 mph (4 kph)
Travel Speed - Low	2 mph (3 kph)
