1987 Caterpillar 140G For Sale in Fort Worth, Tx

Name: 1987 Caterpillar 140G
Brand: Caterpillar
SKU: 87021027
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

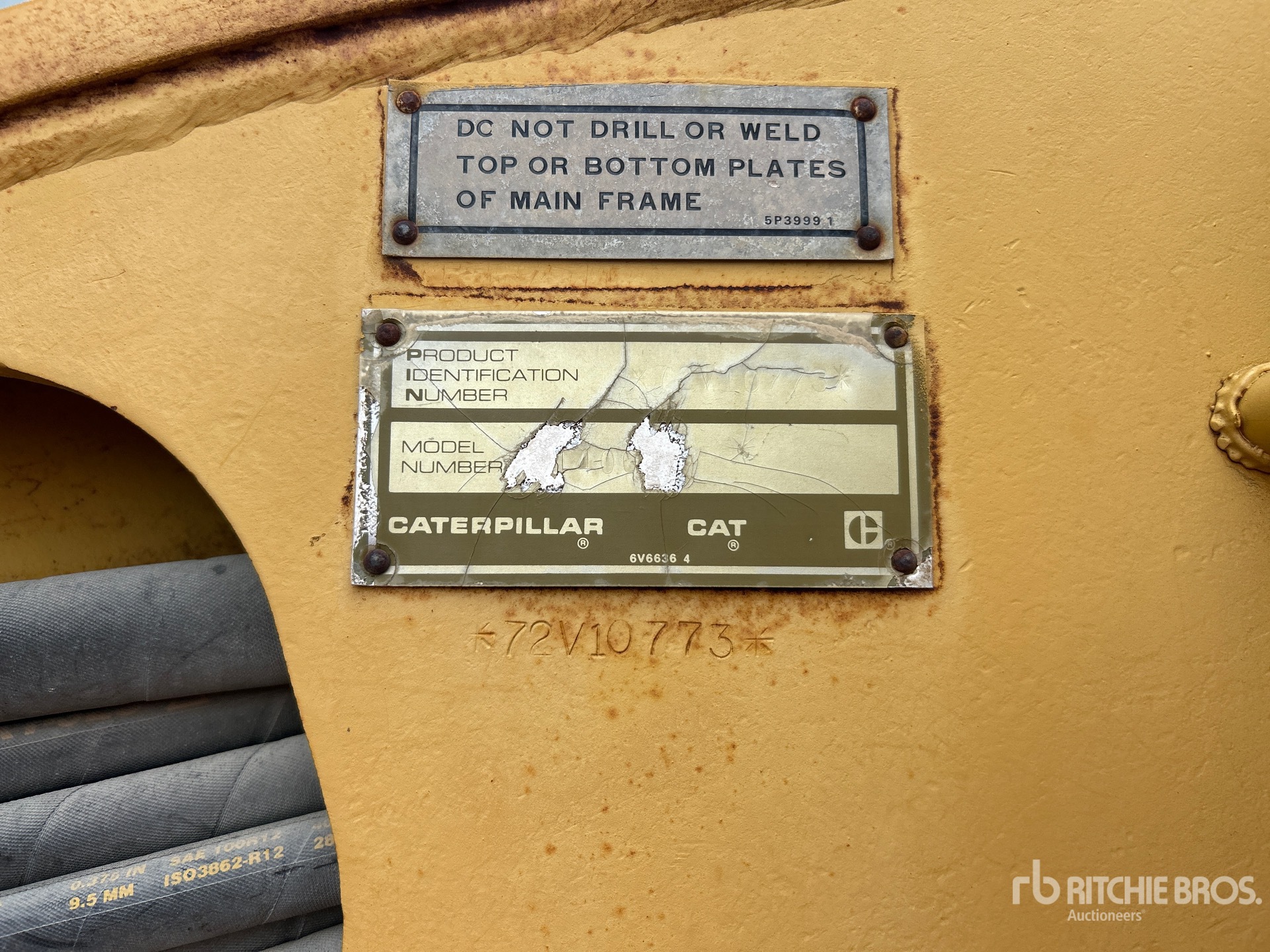

Serial Number:	72V10773
Machine Location:	FORT WORTH, TX

Description:

Enclosed Cab, 14 ft / 4.27 m Moldboard, Push Block, Mid Mount Scarifier, 14.00-24 Tires Closing Time: 2026-05-13 10:42:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 140G is a motor grader designed for road construction, maintenance, and grading applications. Produced as part of Caterpillar's 140-series lineup, the 140G is known for its articulated frame, moldboard control, and balanced machine layout. It is commonly used for shaping surfaces, ditching, snow removal, and fine grading on highways, municipal roads, and job sites. The model typically features a diesel engine, rear-wheel drive, and hydraulic controls for blade positioning. As a used equipment model, the Caterpillar 140G remains relevant in secondary markets for contractors, municipalities, and fleet operators seeking a conventional motor grader platform.

Circle
Diameter	60 in (153 cm)
Max Lift Above Ground	18 in (46 cm)
Max Reach Outside Tires - Left	77 in (196 cm)
Max Reach Outside Tires - Right	72 in (183 cm)
Rotation	360 degrees
Shift Left	26 in (65 cm)
Shift Right	21 in (52 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	27 ft (8 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)
Engine
Displacement	638 cu in (10,455 cu cm)
Max Power	150 hp (112 kw)
Net Power Gear 5-6	150 hp (112 kw)
Number of Cylinders	6
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	51 gpm (193 lpm)
Pump Type	closed-centre constant-presure system w/ variable displacement piston pump
Relief Valve Pressure	2,150 psi
Moldboard
Max Depth of Cut	17 in (44 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	26 in (66 cm)
Side Shift Right	26 in (66 cm)
Operating Specifications
Alternator Supplied Amperage	40 amps
Cooling System Fluid Capacity	13 gal (47 l)
Fuel Capacity	75 gal (284 l)
Hydraulic System Fluid Capacity	18 gal (68 l)
Oil System Fluid Capacity	8 gal (30 l)
Operating Voltage	24 volts
Std Operation Weight - Total	27,822 lbs (12,620 kg)
Tire Size	14x24 10PR
Steering System
Articulation Angle	50 degrees
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	26 mph (41 kph)
Max Speed - Reverse	26 mph (41 kph)
Number of Gears - Forward	6
Number of Gears - Reverse	6
Transmission Type	direct drive power shift
