Equipment ↠ Caterpillar ↠ Motor Graders ↠ 1996 Caterpillar 143H

1996 Caterpillar 143H For Sale in Chehalis, Wa

Name: 1996 Caterpillar 143H
Brand: Caterpillar
SKU: 87200281
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

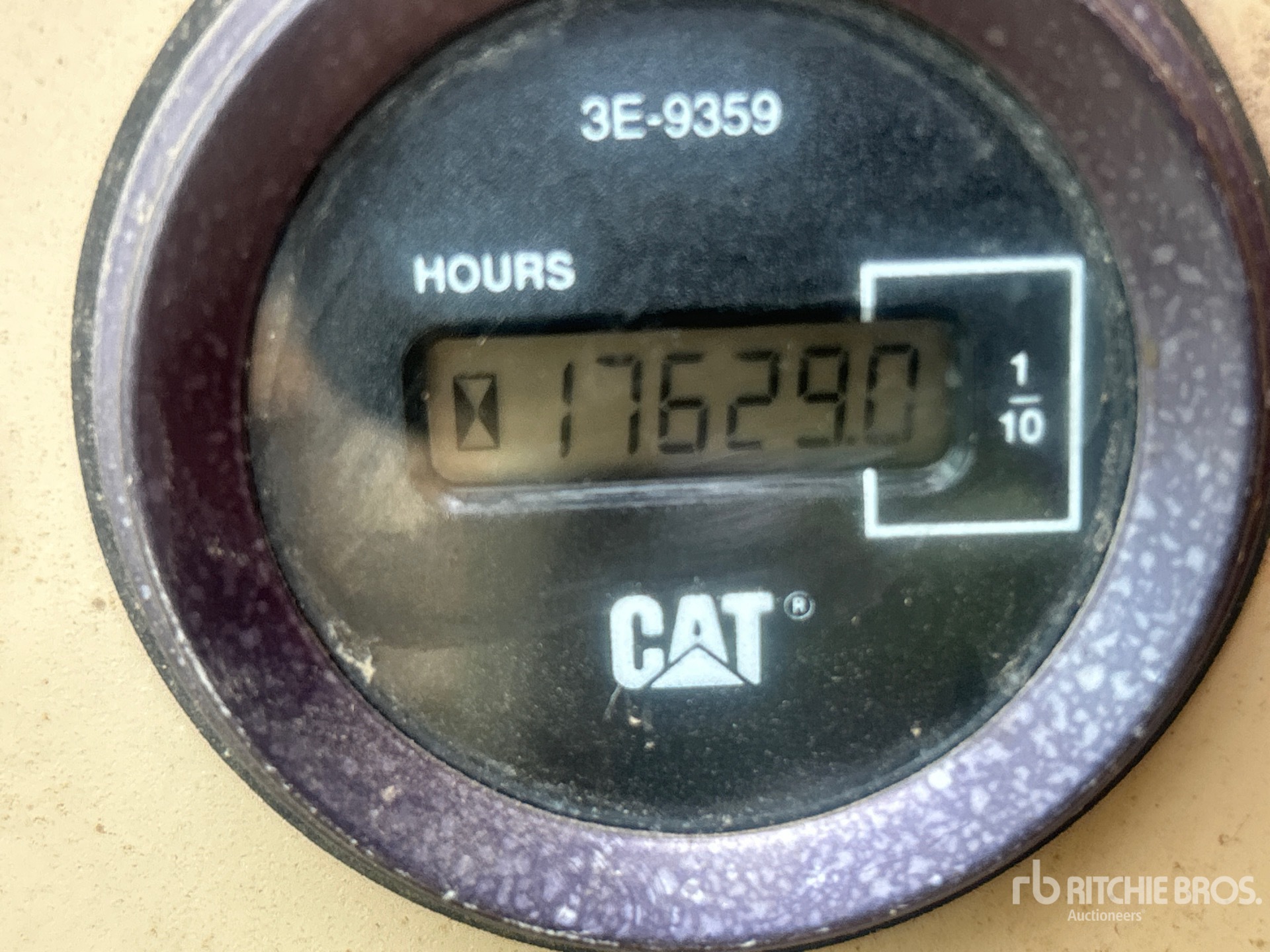

Hours:	17629

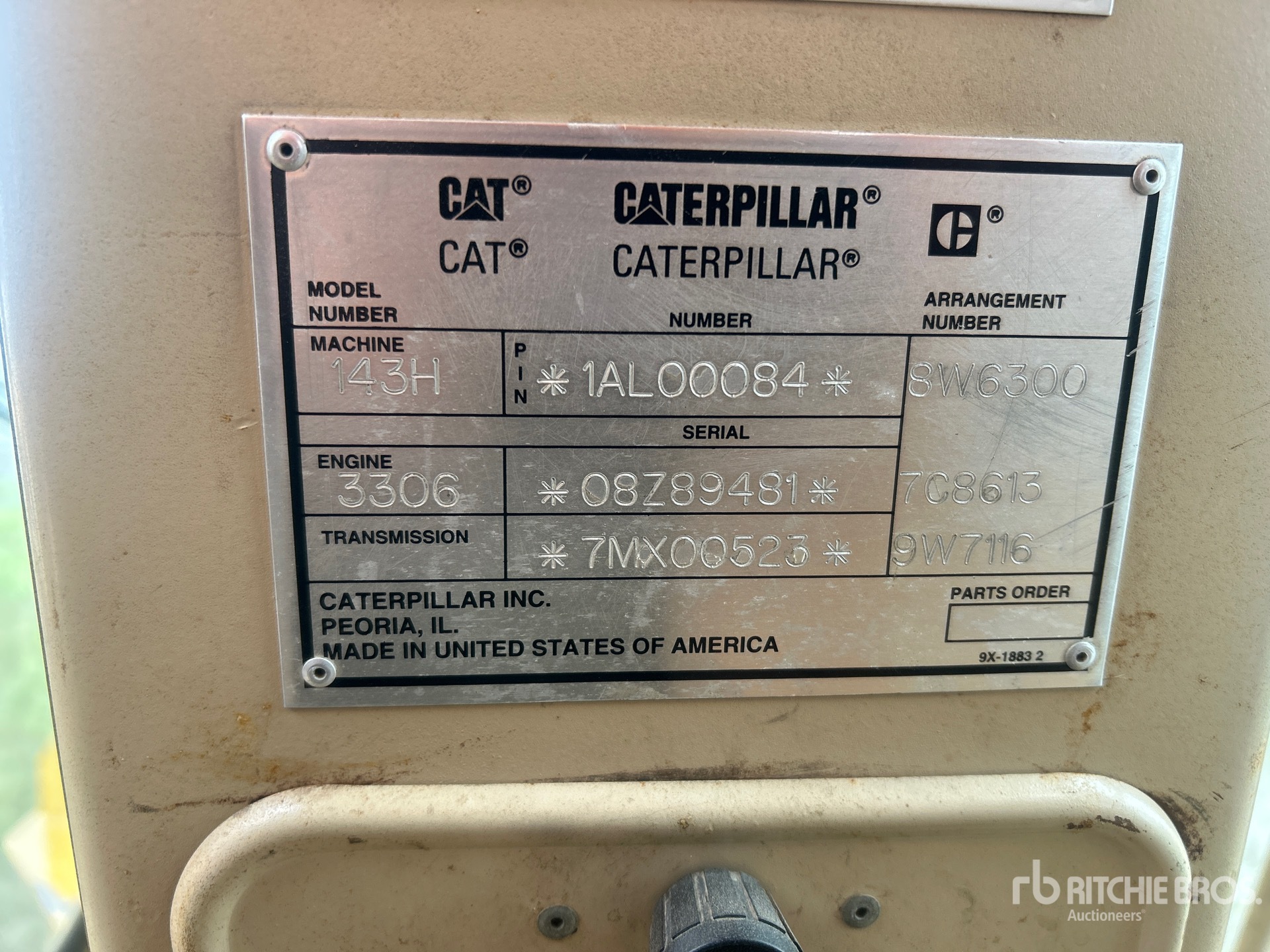

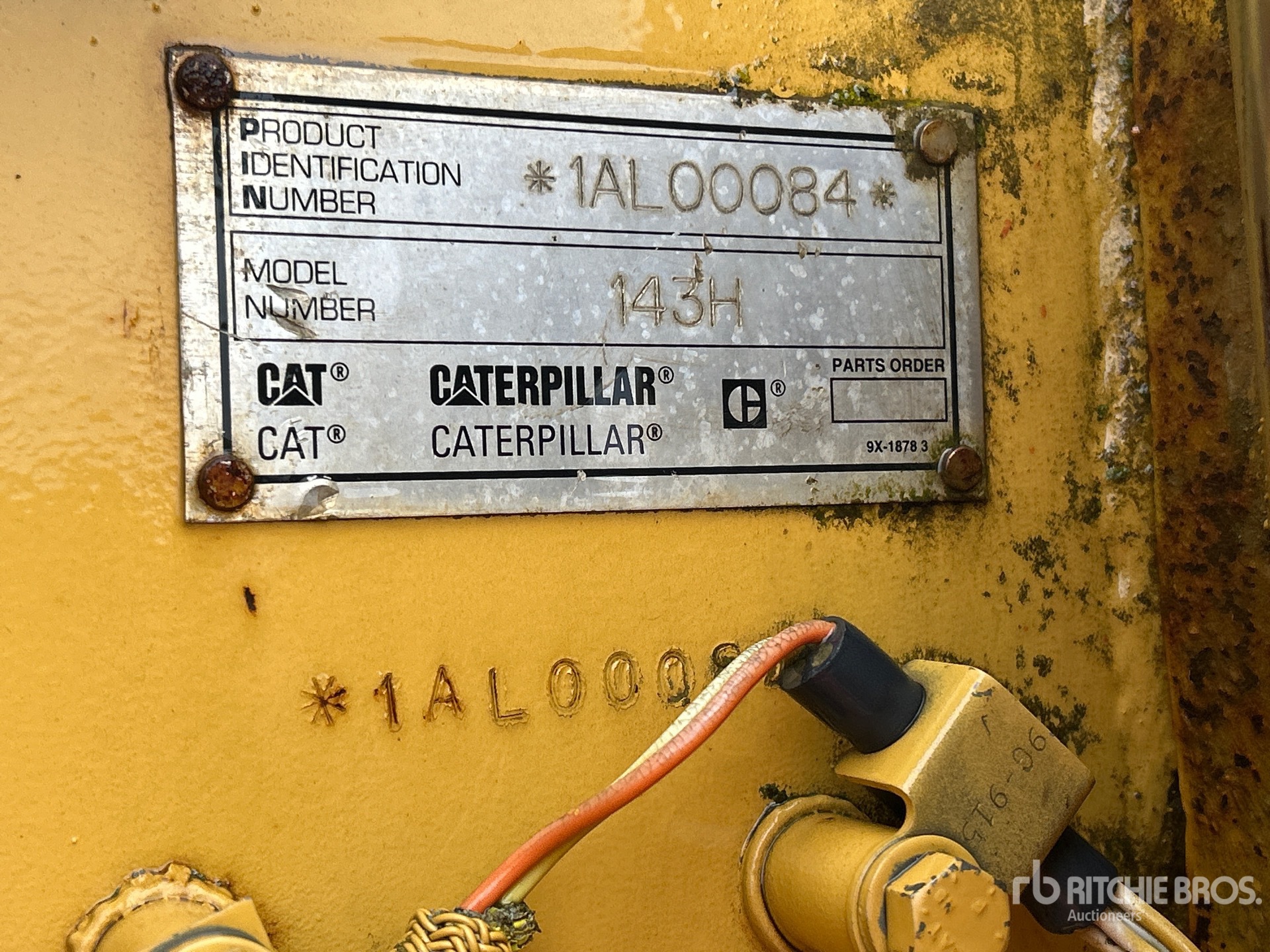

Serial Number:	1AL00084
Machine Location:	CHEHALIS, WA

Description:

Enclosed Cab, Air Conditioner, 14 ft / 4.27 m Moldboard w/ Extension, Front Auxiliary Hydraulics, Lift Group, Combination Ripper/Scarifier, 17.5R25 Tires Pick up by appointment only, Closing Time: 2026-05-07 09:30:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 143H is a versatile motor grader designed for road construction, maintenance, and earthmoving applications. Equipped with a powerful engine and advanced hydraulic systems, the 143H delivers precise blade control and efficient grading performance. Its durable frame and robust transmission ensure reliability in demanding work environments. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and comfort. Ideal for fine grading, ditching, and snow removal, the Caterpillar 143H motor grader supports various attachments to increase functionality. This model is widely used in construction, mining, and municipal projects requiring accurate surface leveling and material spreading.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (153 cm)
Max Lift Above Ground	19 in (48 cm)
Max Reach Outside Tires - Left	75 in (189 cm)
Max Reach Outside Tires - Right	78 in (198 cm)
Shift Left	27 in (70 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	8 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	29 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Displacement	629 cu in (10,307 cu cm)
Engine Model	3176C DITA ATAAC VHP
Max Power	205 hp (153 kw)
Net Power Gear 1-2	165 hp (123 kw)
Net Power Gear 4-6	185 hp (138 kw)
Net Power Gear 5-6	185 hp (138 kw)
Net Power Gears 7-8	205 hp (153 kw)
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	54 gpm (206 lpm)
Pump Type	axial piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	30,126 lbs (13,665 kg)
Blade Pull at Max Weight	43,977 lbs (19,948 kg)
Max Depth of Cut	28 in (71 cm)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	21 in (52 cm)
Side Shift Right	26 in (66 cm)
Operating Specifications
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	10 gal (38 l)
Fuel Capacity	105 gal (397 l)
Hydraulic System Fluid Capacity	21 gal (79 l)
Max Operation Weight - Front Axle	17,443 lbs (7,912 kg)
Max Operation Weight - Rear Axle	31,420 lbs (14,252 kg)
Max Operation Weight - Total	48,863 lbs (22,164 kg)
Std Operation Weight - Front Axle	9,493 lbs (4,306 kg)
Std Operation Weight - Rear Axle	24,177 lbs (10,967 kg)
Std Operation Weight - Total	33,670 lbs (15,272 kg)
Tandem Case Fluid Capacity (each)	17 gal (64 l)
Steering System
Articulation Angle	20 degrees
Turning Radius	25 ft (8 m)
Transmission
Max Speed - Forward	27 mph (44 kph)
Max Speed - Reverse	22 mph (35 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift
