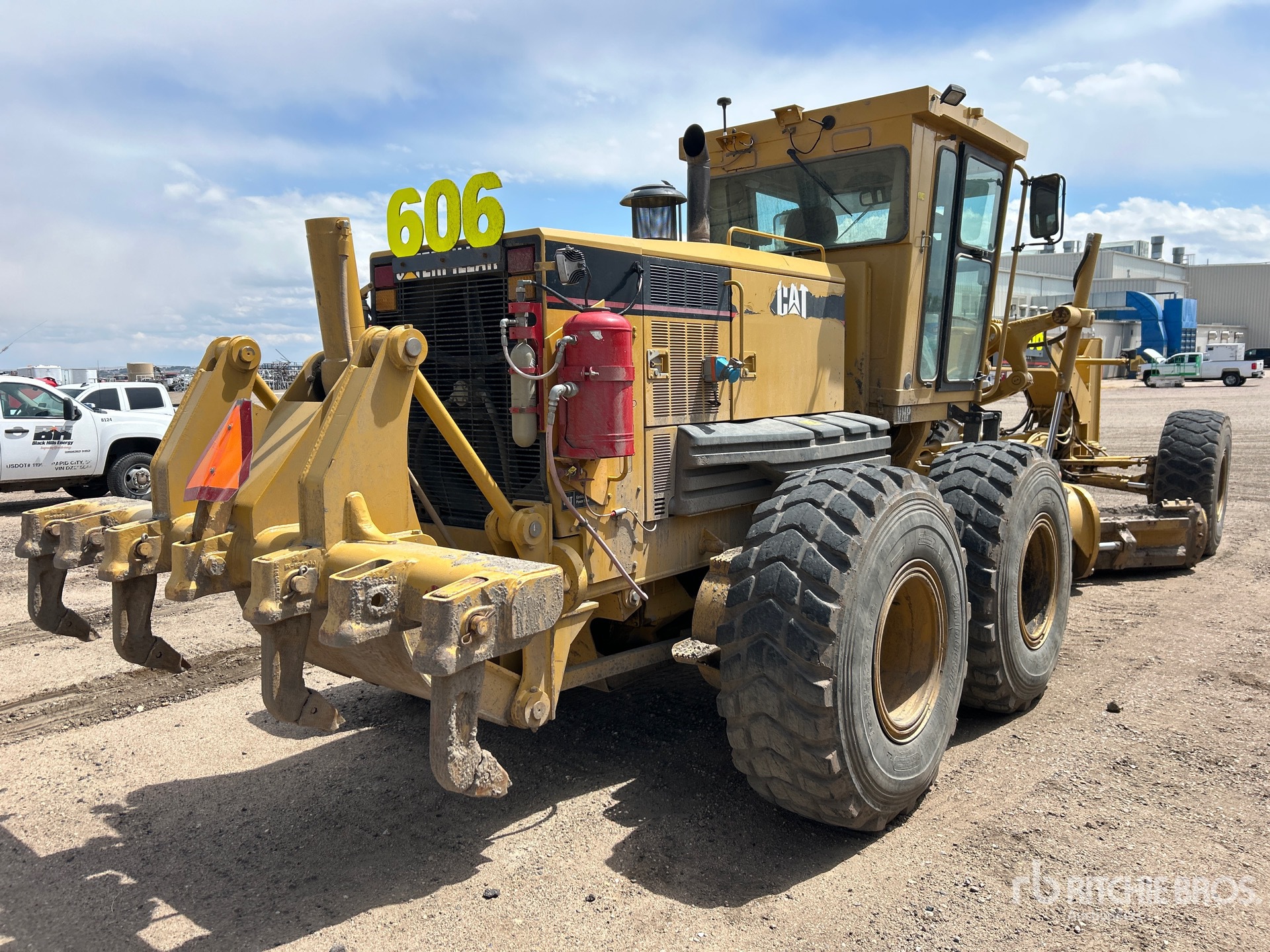

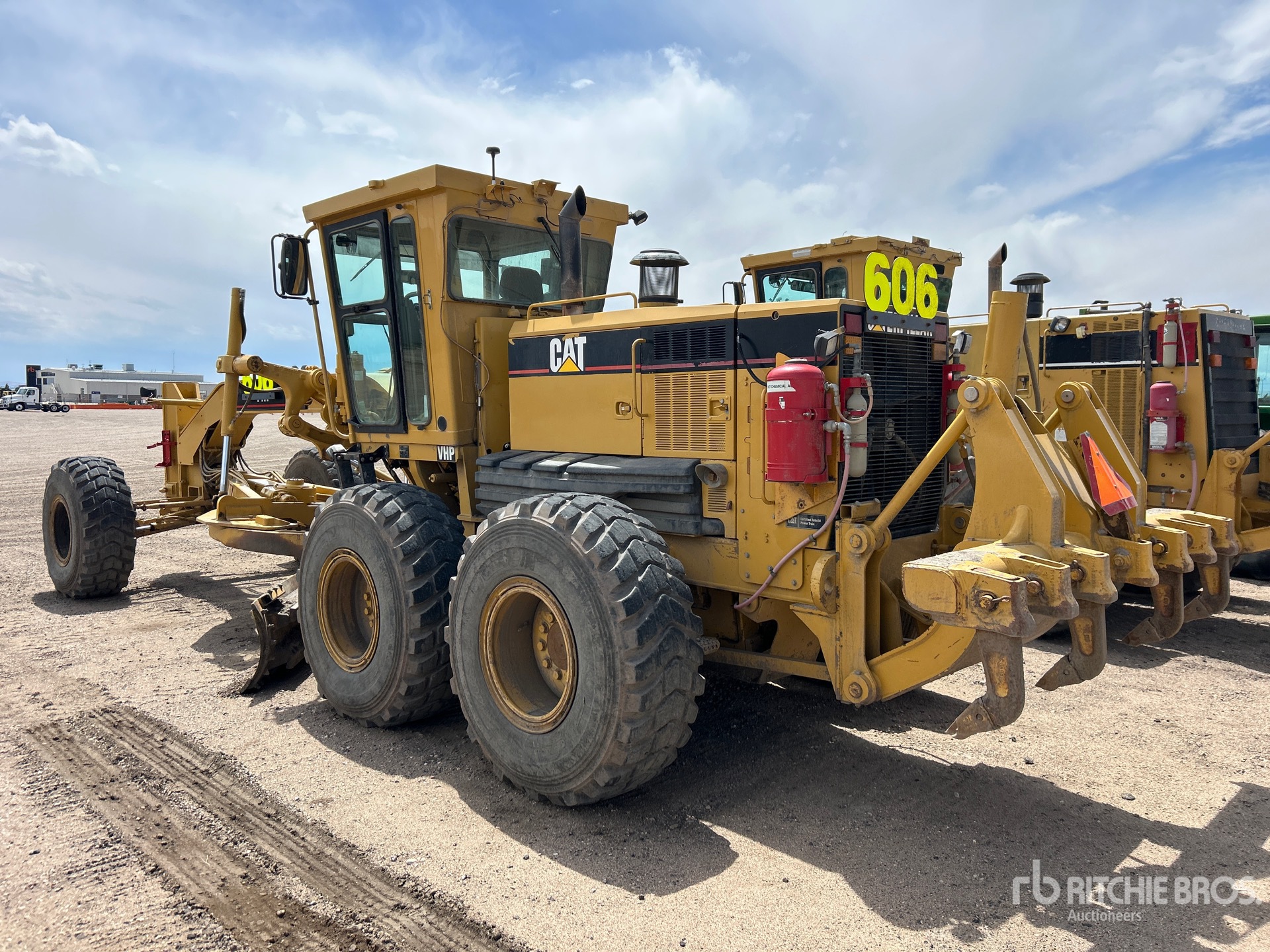

2007 Caterpillar 14H For Sale in Denver, Co

Name: 2007 Caterpillar 14H
Brand: Caterpillar
SKU: 87412011
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-29 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	25624
Serial Number:	CAT0014HHASE02351
Machine Location:	DENVER, CO

Description:

Enclosed Cab, Differential Lock, Fire Suppression System, 16 ft / 4.88 m Moldboard, Push Block, Combination Ripper/Scarifier, 20.5-25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 14H is a versatile motor grader designed for road construction, maintenance, and earthmoving applications. Equipped with a powerful engine and advanced hydraulic systems, the 14H delivers precise blade control and efficient grading performance. Its durable frame and robust components ensure long-lasting reliability in demanding job sites. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and comfort. The Caterpillar 14H motor grader supports various attachments, making it adaptable for multiple grading tasks. Known for fuel efficiency and ease of maintenance, the 14H is widely used in construction, mining, and infrastructure projects worldwide.

Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	72 in (182 cm)
Max Lift Above Ground	17 in (42 cm)
Max Reach Outside Tires - Left	81 in (206 cm)
Max Reach Outside Tires - Right	82 in (208 cm)
Shift Left	26 in (65 cm)
Shift Right	21 in (52 cm)
Dimensions
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	11 ft (3 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	6 ft (2 m)
Wheelbase	21 ft (6 m)
Width Over Tires	9 ft (3 m)
Engine
Net Power Gear 1-2	220 hp (164 kw)
Net Power Gear 4-6	240 hp (179 kw)
Net Power Gear 5-6	240 hp (179 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Type	axial piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Down Pressure	34,518 lbs (15,657 kg)
Blade Pull at Max Weight	52,660 lbs (23,886 kg)
Max Depth of Cut	17 in (44 cm)
Moldboard Height	27 in (69 cm)
Moldboard Thickness	1 in (3 cm)
Side Shift Left	26 in (65 cm)
Side Shift Right	31 in (79 cm)
Operating Specifications
Alternator Supplied Amperage	50 amps
Circle Gearbox Fluid Capacity	2 gal (6 l)
Cooling System Fluid Capacity	13 gal (48 l)
Max Operation Weight - Front Axle	19,425 lbs (8,811 kg)
Max Operation Weight - Rear Axle	39,084 lbs (17,728 kg)
Max Operation Weight - Total	58,509 lbs (26,539 kg)
Operating Voltage	24 volts
Std Operation Weight - Front Axle	11,695 lbs (5,305 kg)
Std Operation Weight - Rear Axle	29,770 lbs (13,503 kg)
Tandem Case Fluid Capacity (each)	26 gal (97 l)
Tire Size	16-24 12PR (G-2)
Transmission Fluid Capacity	22 gal (82 l)
Steering System
Articulation Angle	20 degrees
Transmission
Max Speed - Forward	27 mph (43 kph)
Max Speed - Reverse	29 mph (47 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	8
Transmission Type	direct drive power shift planetary
