Equipment ↠ Caterpillar ↠ Motor Graders ↠ 2008 Caterpillar 160M

2008 Caterpillar 160M For Sale in Edmonton, Ab

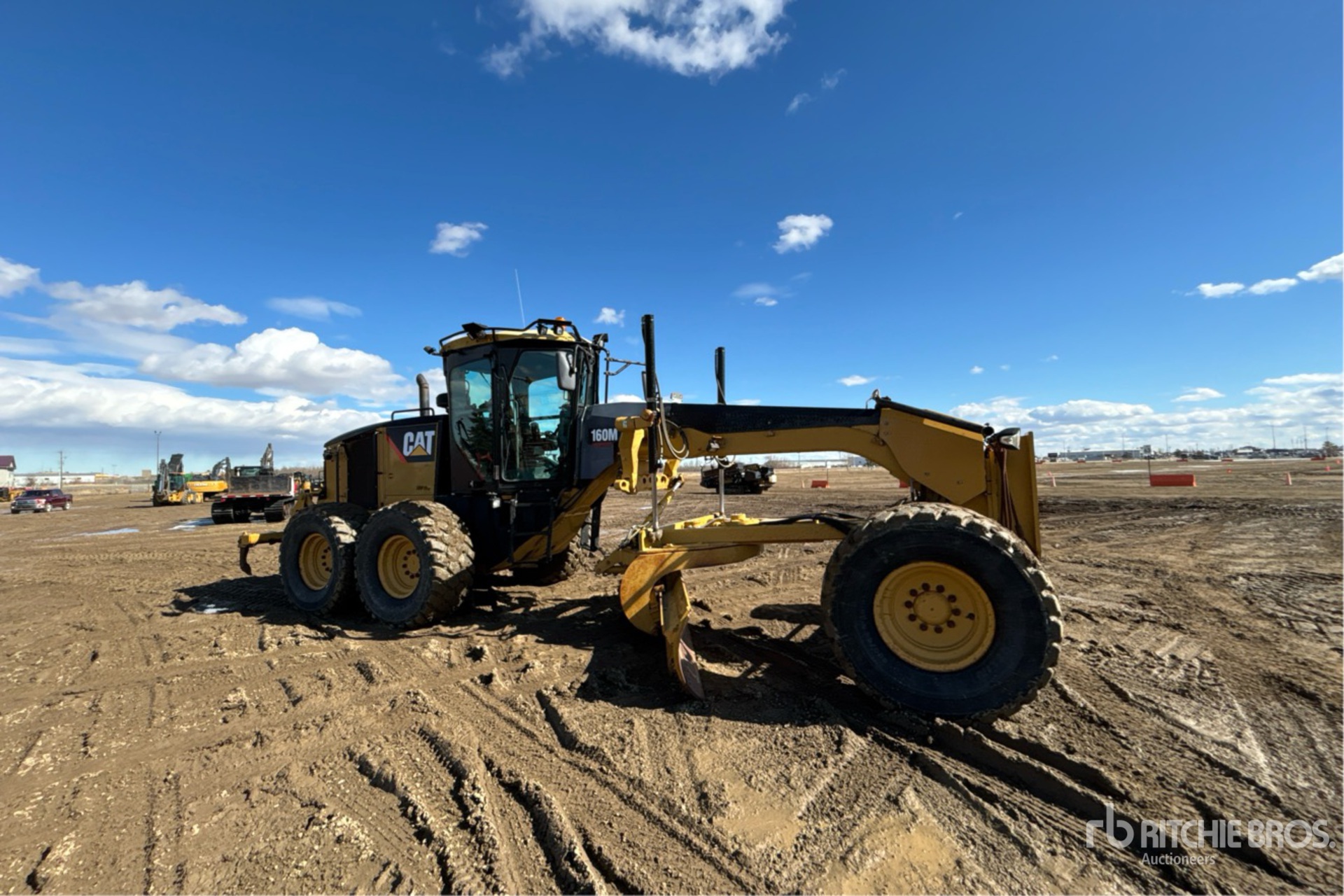

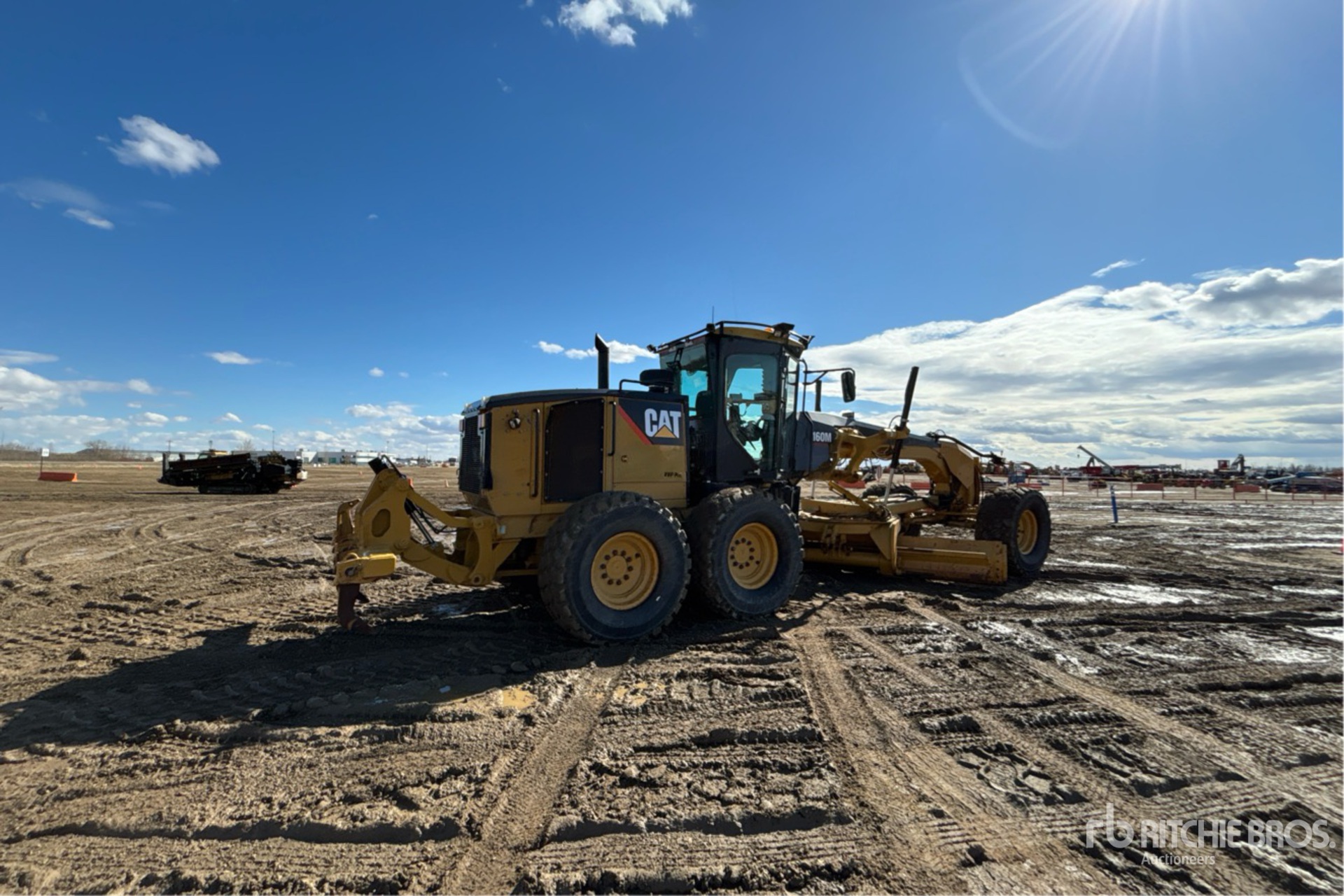

Name: 2008 Caterpillar 160M
Brand: Caterpillar
SKU: 86807772
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

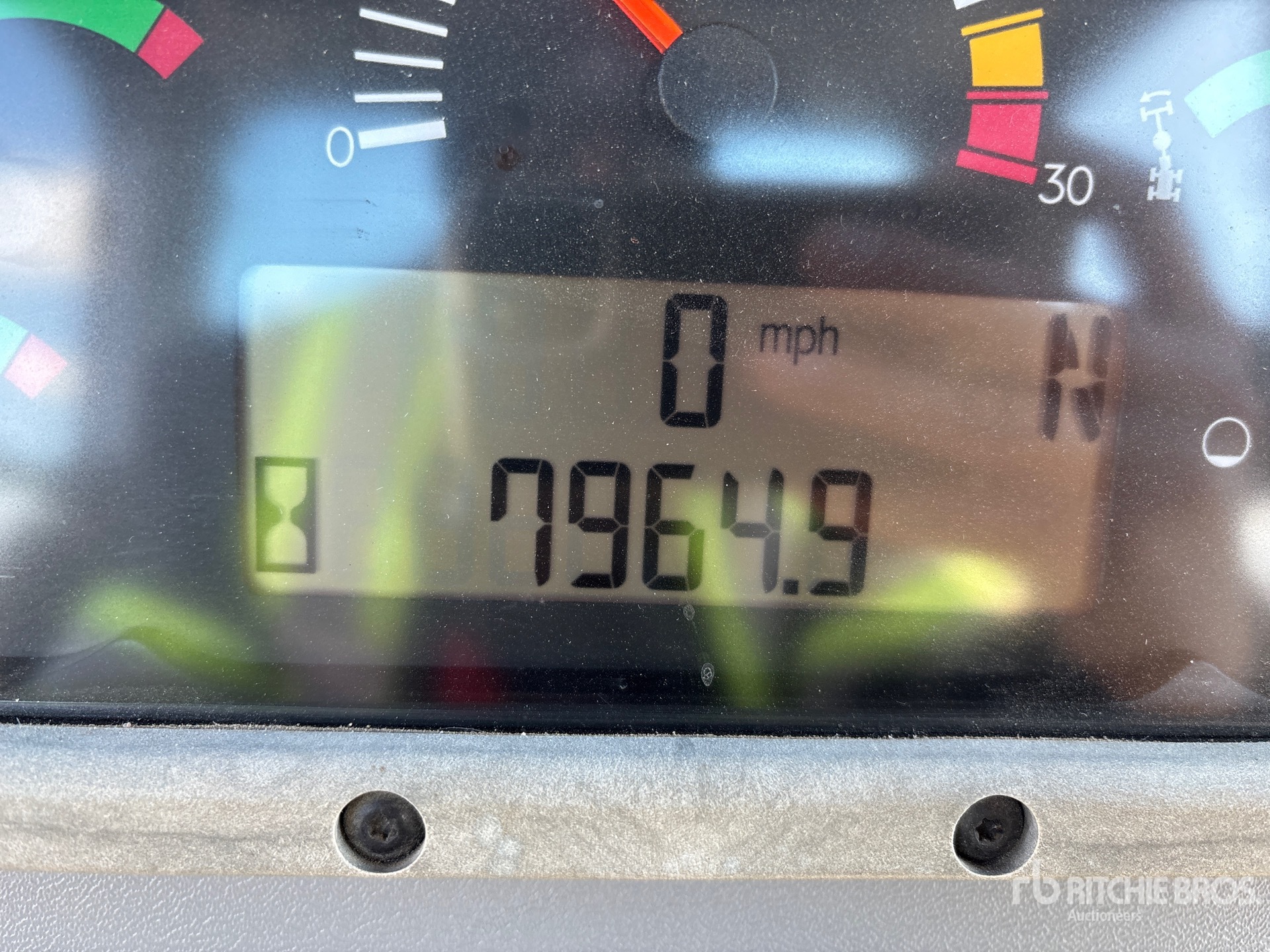

Hours:	7963
Serial Number:	CAT0160MEB9L00228
Machine Location:	EDMONTON, AB

Description:

Located in Lane 57 Spot 23, Enclosed Cab, Air Conditioner, Air Ride Seat, Joystick Steering, Differential Lock, 2007 US EPA Label, CARB Compliant, Positive Air Shutoff, 14 ft / 4.27 m Moldboard, Front Auxiliary Hydraulics, Push Block, Combination Ripper/Scarifier, Rear Auxiliary Hydraulics, 600/65R25 Tires Closing Time: 2026-05-11 11:07:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 160M is a versatile motor grader designed for road construction, maintenance, and earthmoving applications. Equipped with a powerful engine and advanced hydraulics, the 160M delivers precise blade control and efficient grading performance. Its durable frame and robust transmission ensure reliability in demanding environments. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and comfort. The Caterpillar 160M motor grader features adjustable blade angles, moldboard options, and advanced technology integration for optimized grading accuracy. Suitable for various construction, mining, and infrastructure projects, the 160M combines durability, efficiency, and operator-focused design in a mid-sized motor grader platform.

Blades
Maximum Shoulder Reach Outside of Tires - Left	82 in (208 cm)
Maximum Shoulder Reach Outside of Tires - Right	90 in (229 cm)
Moldboard Sideshift - Left	32 in (81 cm)
Moldboard Sideshift - Right	37 in (94 cm)
Circle
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	61 in (155 cm)
Max Lift Above Ground	18 in (45 cm)
Max Reach Outside Tires - Left	82 in (209 cm)
Max Reach Outside Tires - Right	90 in (228 cm)
Shift Left	27 in (70 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	29 ft (9 m)
Rear Ground Clearance	1 ft (0 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Base Power (1st Gear) - Net	213 hp (159 kw)
Displacement	537 cu in (8,800 cu cm)
Engine Model	C9 ACERT VHP
Max Power	213 hp (159 kw)
Net Power Gears 7-8	213 hp (159 kw)
Net Torque Gears 7-8	912 lbs ft (1,237 nm)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	2,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	56 gpm (211 lpm)
Pump Type	variable piston
Relief Valve Pressure	3,500 psi
Moldboard
Blade Pull at Max Weight	32,904 lbs (14,925 kg)
Max Depth of Cut	30 in (75 cm)
Moldboard Height	27 in (69 cm)
Moldboard Length	14 ft (4 m)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	14 ft (4 m)
Side Shift Left	32 in (82 cm)
Side Shift Right	37 in (95 cm)
Operating Specifications
Circle Gearbox Fluid Capacity	2 gal (7 l)
Cooling System Fluid Capacity	11 gal (40 l)
Fuel Capacity	105 gal (397 l)
Hydraulic System Fluid Capacity	17 gal (64 l)
Max Operation Weight - Front Axle	18,478 lbs (8,381 kg)
Max Operation Weight - Rear Axle	34,317 lbs (15,566 kg)
Max Operation Weight - Total	52,795 lbs (23,947 kg)
Operating Weight	35,060 lbs (15,903 kg)
Rear Diff/Final Drive Fluid Capacity	17 gal (65 l)
Std Operation Weight - Front Axle	9,677 lbs (4,389 kg)
Std Operation Weight - Rear Axle	25,383 lbs (11,514 kg)
Std Operation Weight - Total	35,060 lbs (15,903 kg)
Tandem Case Fluid Capacity (each)	21 gal (80 l)
Steering System
Articulation Angle	20 degrees
Turning Radius	25 ft (8 m)
Transmission
Max Speed - Forward	30 mph (47 kph)
Max Speed - Reverse	23 mph (38 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift countershaft
