2016 Caterpillar 725C For Sale in Atlanta, Ga

Name: 2016 Caterpillar 725C
Brand: Caterpillar
SKU: 86593263
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-27 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

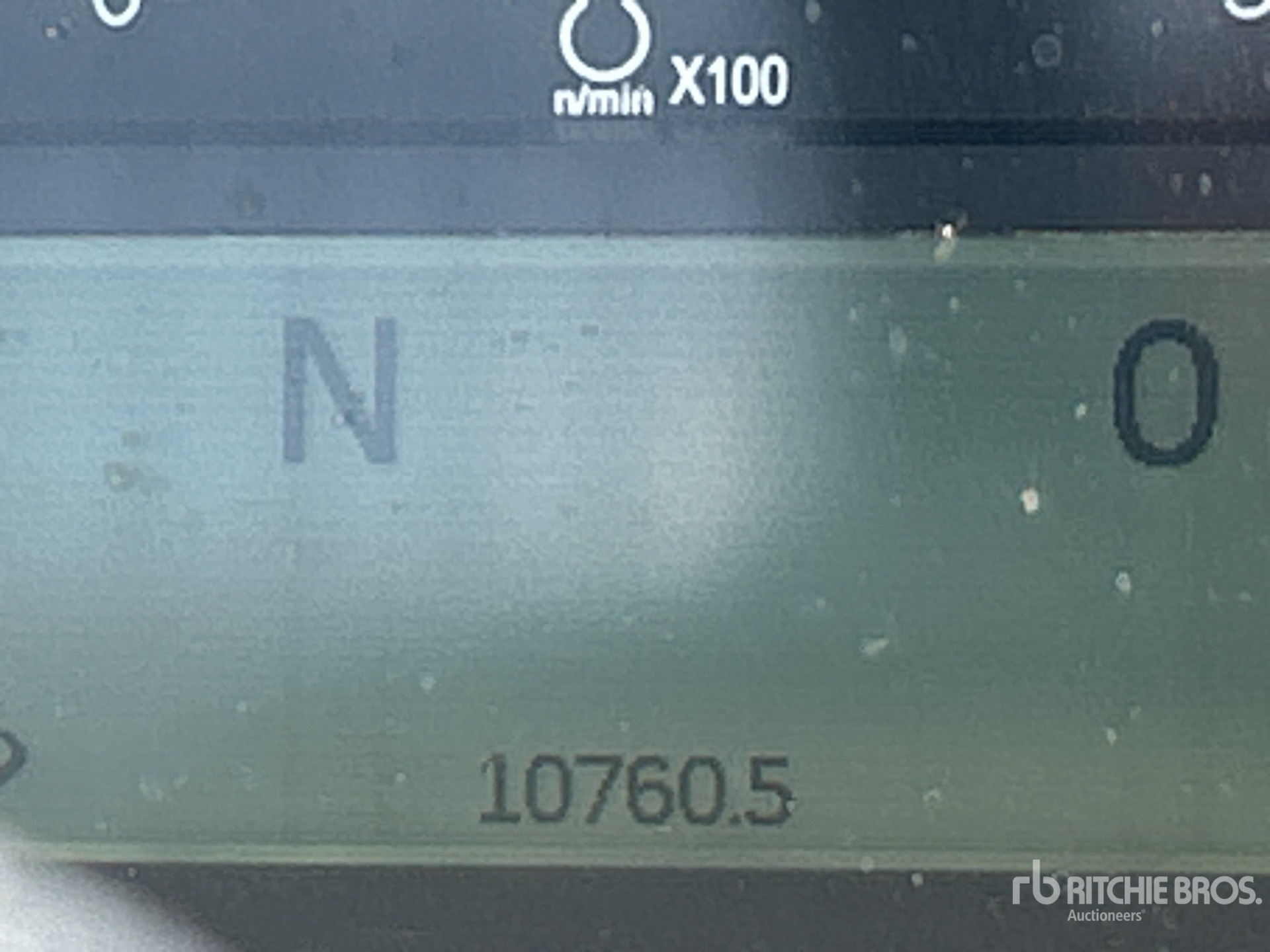

Hours:	10760

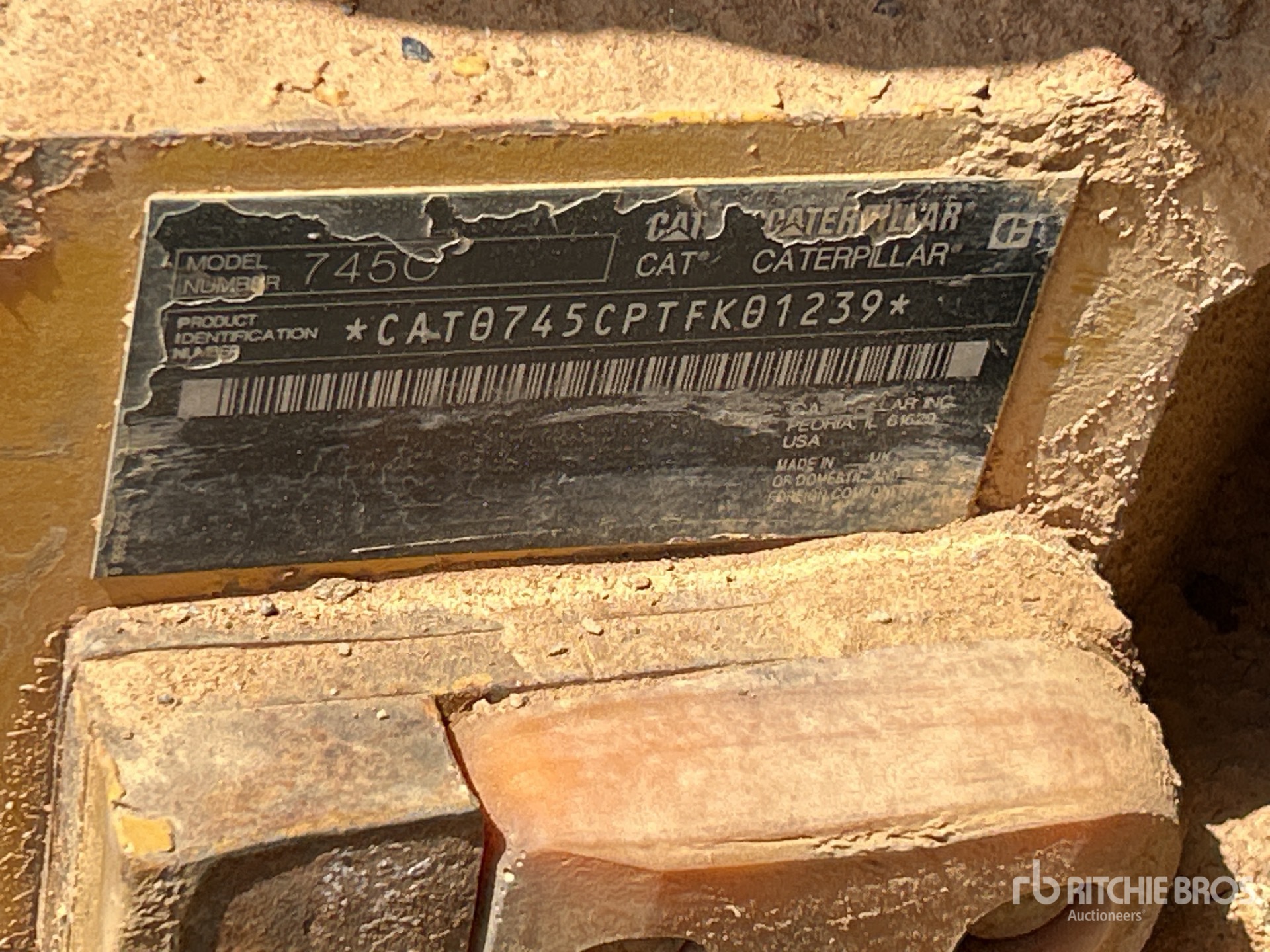

Serial Number:	CAT0745CPTFK01239
Machine Location:	ATLANTA, GA

Description:

Air Conditioner, 2015 US EPA Label, Tailgate, 29.5R25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 725C is an articulated off-highway truck designed for hauling material in construction, quarry, and earthmoving applications. It is part of Caterpillar's 725 series and is used for transport on rough terrain where traction, stability, and payload capacity are required. The 725C typically features a diesel engine, articulated steering, all-wheel drive, and a dump body for efficient loading and unloading. It is commonly used in site development, road building, and mining support operations. The model is recognized for its durability, serviceability, and suitability for demanding off-road hauling tasks in varied ground conditions.

Body Capacities
Heaped (SAE 2:1)	20 cu yd (15 cu m)
Struck	14 cu yd (11 cu m)
Tailgate Heaped SAE 2:1	20 cu yd (16 cu m)
Tailgate Struck	15 cu yd (11 cu m)
Body Hoist
Lower Time	8 seconds
Raise Time	10 seconds
Body Plate
Body Plate Type	High Strength Brinell HB450 Wear Resistant Steel
Dump
Capacity - Heaped	20 cu yd (16 cu m)
Capacity - Struck	14 cu yd (11 cu m)
Dump Angle	45 degrees
Lower Time	8 seconds
Raise Time	10 seconds
Engine
Bore	5 in (12 cm)
Displacement	567 cu in (9,291 cu cm)
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV	Cat C9.3 ACERT
Gross Power	320 hp (239 kw)
Gross Power - SAE J1995	320 hp (239 kw)
Max Torque	1,263 lbs ft (1,712 nm)
Net Power	314 hp (234 kw)
Net Power - ISO 14396	316 hp (236 kw)
Net Power - SAE J1349	314 hp (234 kw)
No Engine De-rating Required Below	8,400 ft (2,560 m)
Peak Engine Torque Gross (SAE J1995)	1,275 lbs ft (1,729 nm)
Peak Engine Torque Net (ISO 14396)	1,263 lbs ft (1,712 nm)
Peak Engine Torque Speed	1,200 rpm
Stroke	6 in (15 cm)
Torque Measured @	1,200 rpm
Operating Specifications
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	29 gal (108 l)
Hydraulic System Fluid Capacity	8 gal (29 l)
Transmission Fluid Capacity	3 gal (12 l)
Operating Weights
Center Axle - Empty	10,030 lbs (4,550 kg)
Center Axle - Loaded	33,333 lbs (15,120 kg)
Center Axle - Rated Load	23,303 lbs (10,570 kg)
Front Axle - Empty	31,813 lbs (14,430 kg)
Front Axle - Loaded	37,236 lbs (16,890 kg)
Front Axle - Rated Load	5,423 lbs (2,460 kg)
Rear Axle - Empty	9,348 lbs (4,240 kg)
Rear Axle - Loaded	32,651 lbs (14,810 kg)
Rear Axle - Rated Load	23,303 lbs (10,570 kg)
Total - Empty	51,191 lbs (23,220 kg)
Total - Loaded	103,220 lbs (46,820 kg)
Total - Rated Load	52,029 lbs (23,600 kg)
Service Refill Capacities
Cooling System	22 gal (83 l)
DEF Tank (ISO 2224-1)	5 gal (20 l)
Engine Crankcase	10 gal (38 l)
Final Drives/Differential	36 gal (135 l)
Fuel Tank	109 gal (412 l)
Hydraulic System	29 gal (110 l)
Output Transfer Gear Box	6 gal (24 l)
Transmission	12 gal (47 l)
Sound Levels
Interior Cab	76 dB(A)
Standards
Brakes	ISO 3450 - 2011
Cab - FOPS	ISO 3449 Level II - 2005
Cab - ROPS	ISO 3471 - 2008
Steering	ISO 5010 - 2007
Steering System
Lock to Lock	4.75 seconds @ 60 rpm
Transmission
Forward - 1	5 mph (8 kph)
Forward - 2	9 mph (14 kph)
Forward - 3	14 mph (23 kph)
Forward - 4	21 mph (34 kph)
Forward - 5	30 mph (48 kph)
Forward - 6	35 mph (56 kph)
Number of Forward Gears	6
Number of Reverse Gears	1
Reverse - 1	6 mph (10 kph)
Turning Circle
Turning Dimensions - Aisle Width	210 in (533 cm)
Turning Dimensions - Clearance Radius	318 in (808 cm)
Turning Dimensions - Inside Radius	153 in (389 cm)
Turning Dimensions - SAE Turning Radius	294 in (747 cm)
Turning Dimensions - Steer Angle - Left/Right	45 degrees
Weights
Center Axle - empty	10,030 lbs (4,550 kg)
Center Axle - loaded	23,303 lbs (10,570 kg)
Front Axle - empty	31,813 lbs (14,430 kg)
Front Axle - loaded	5,423 lbs (2,460 kg)
Rear Axle - empty	9,348 lbs (4,240 kg)
Rear Axle - loaded	23,303 lbs (10,570 kg)
Total Empty	51,191 lbs (23,220 kg)
Total Loaded	103,220 lbs (46,820 kg)
