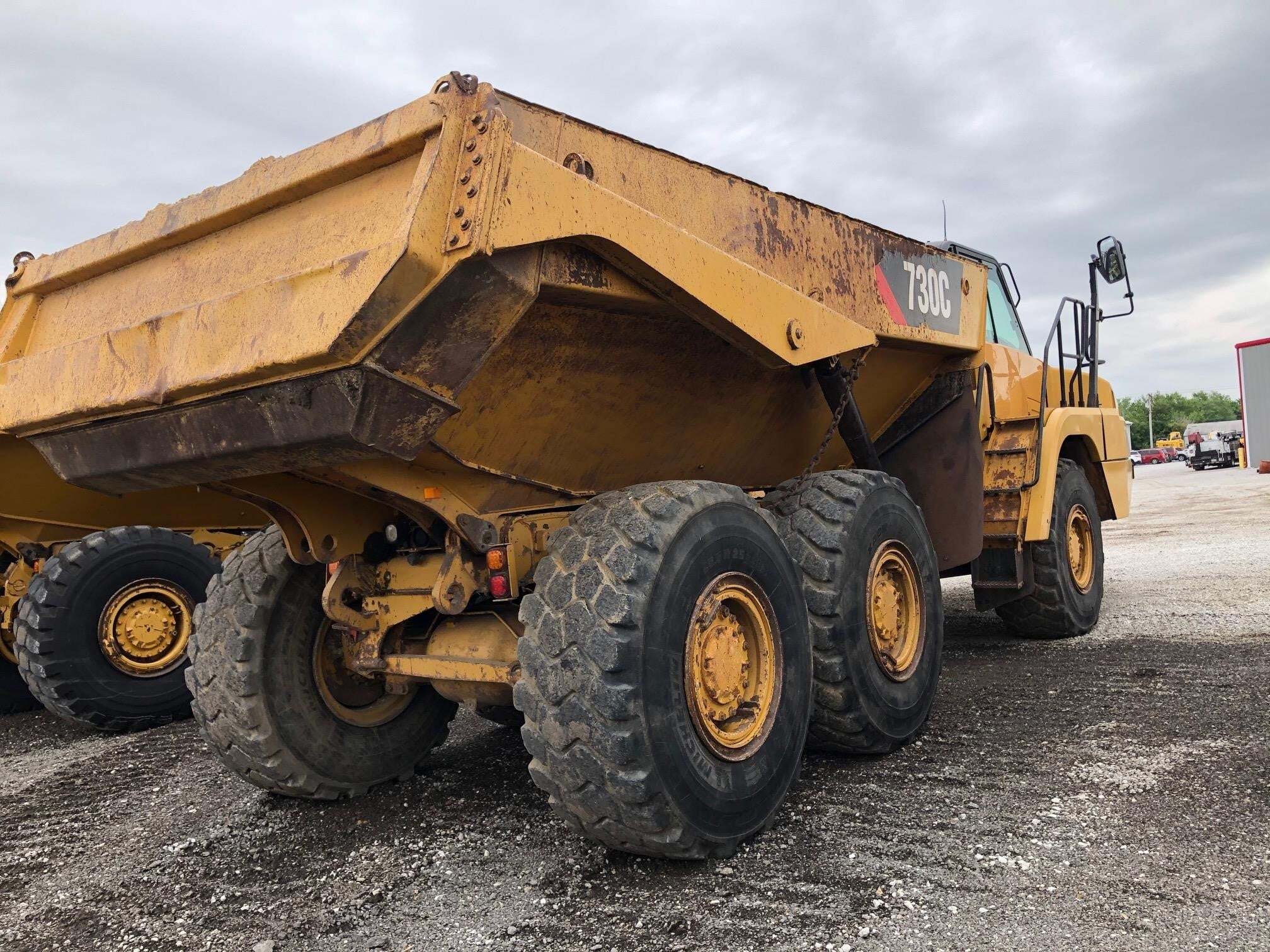

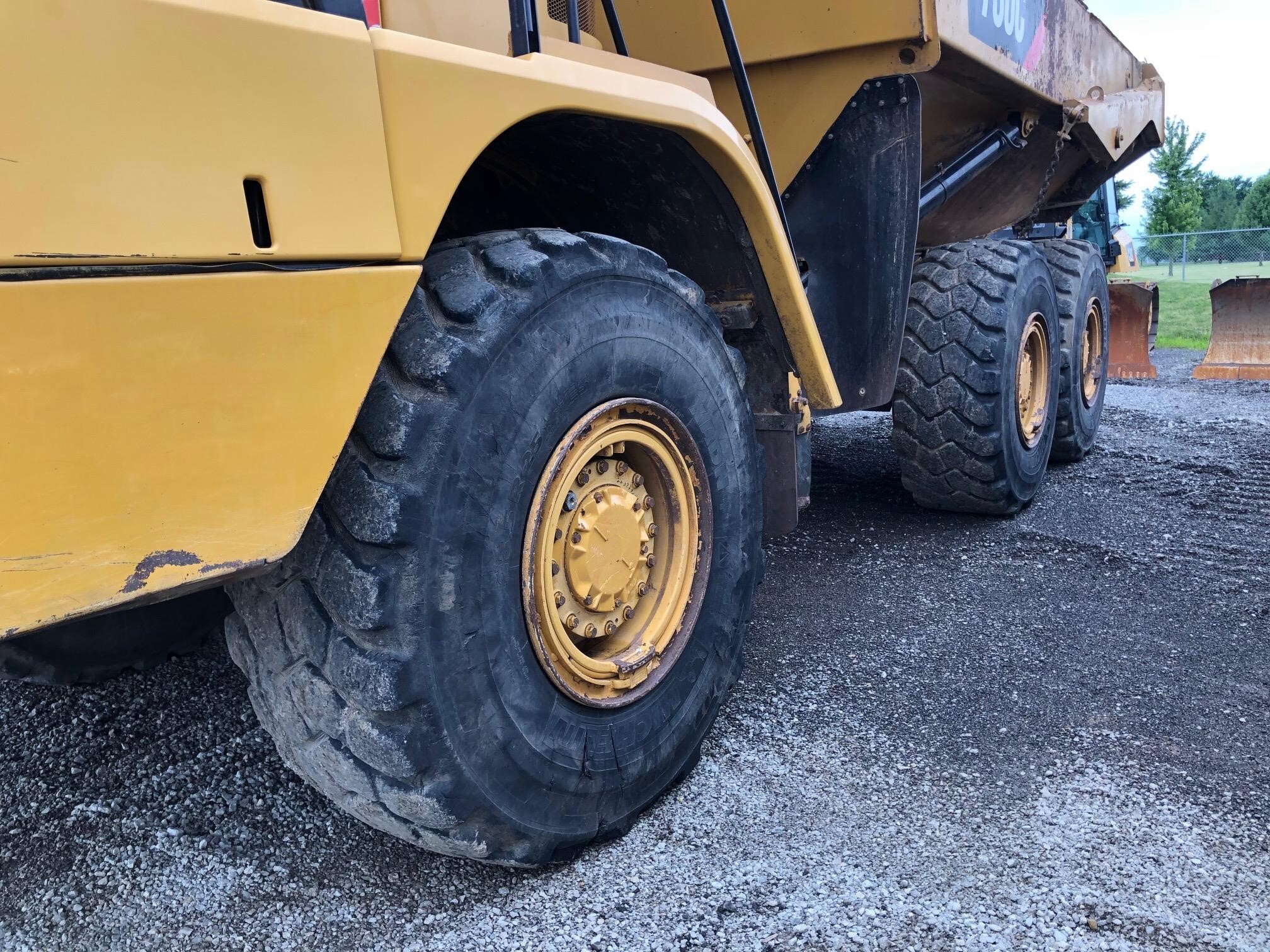

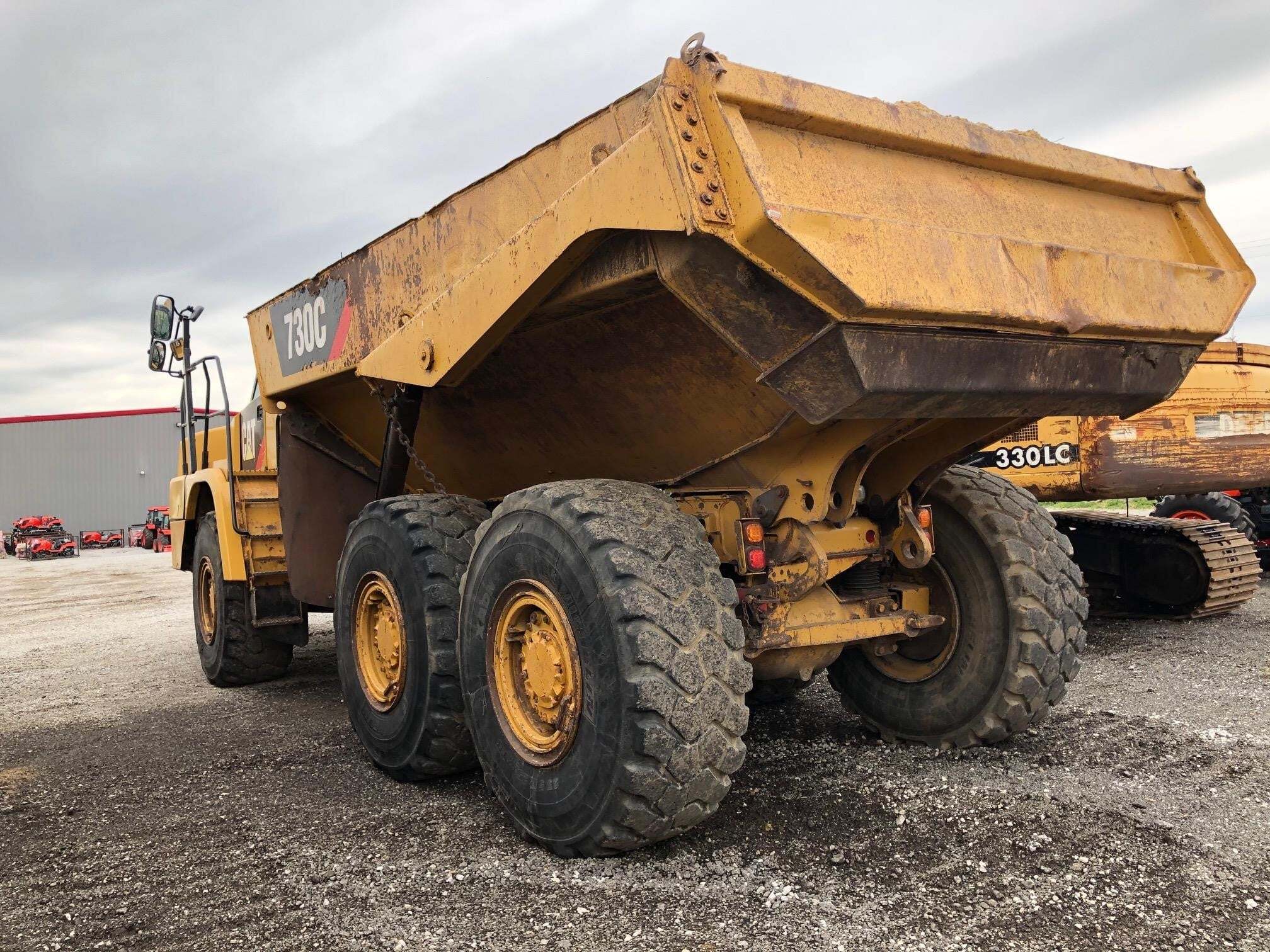

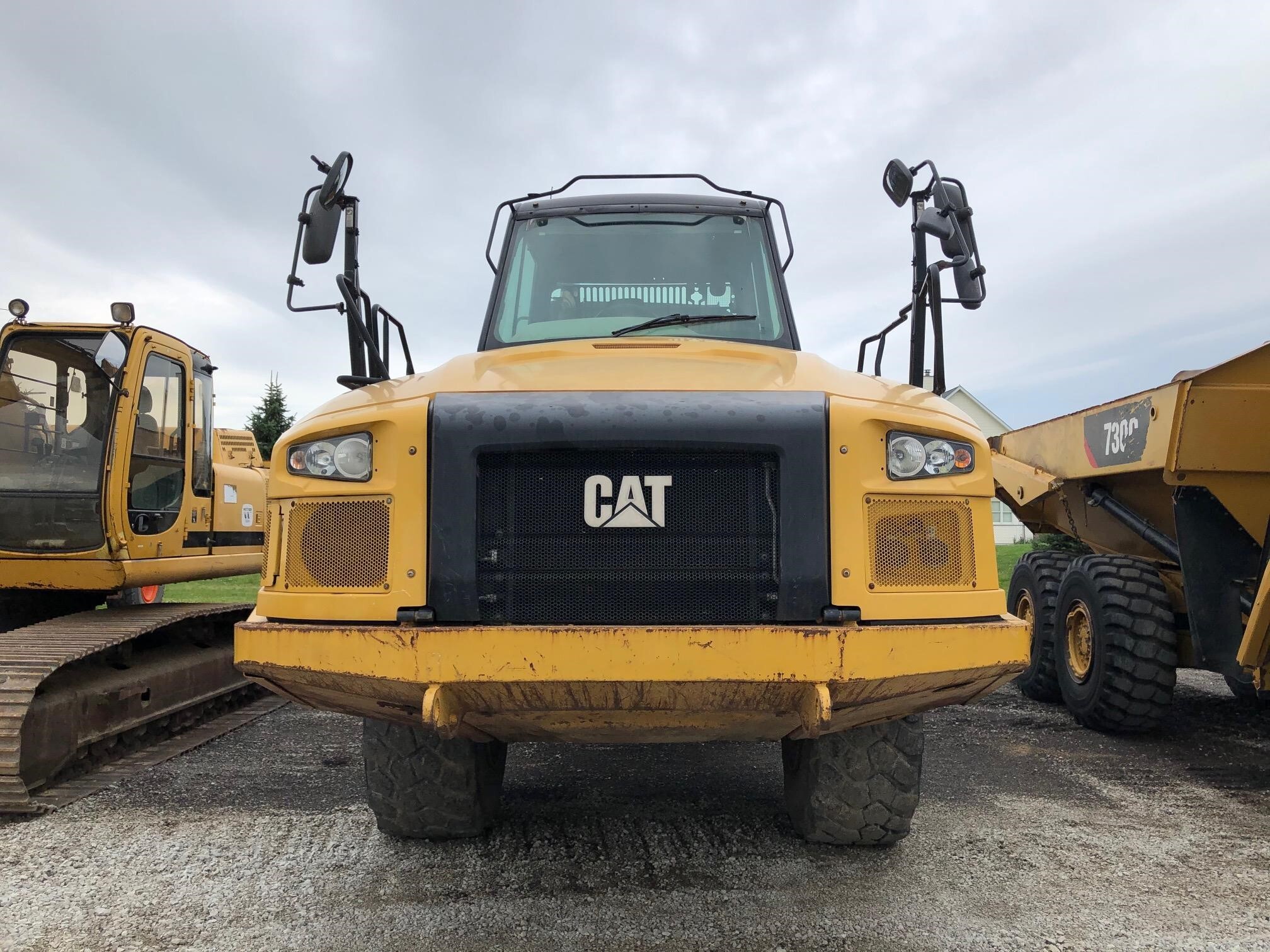

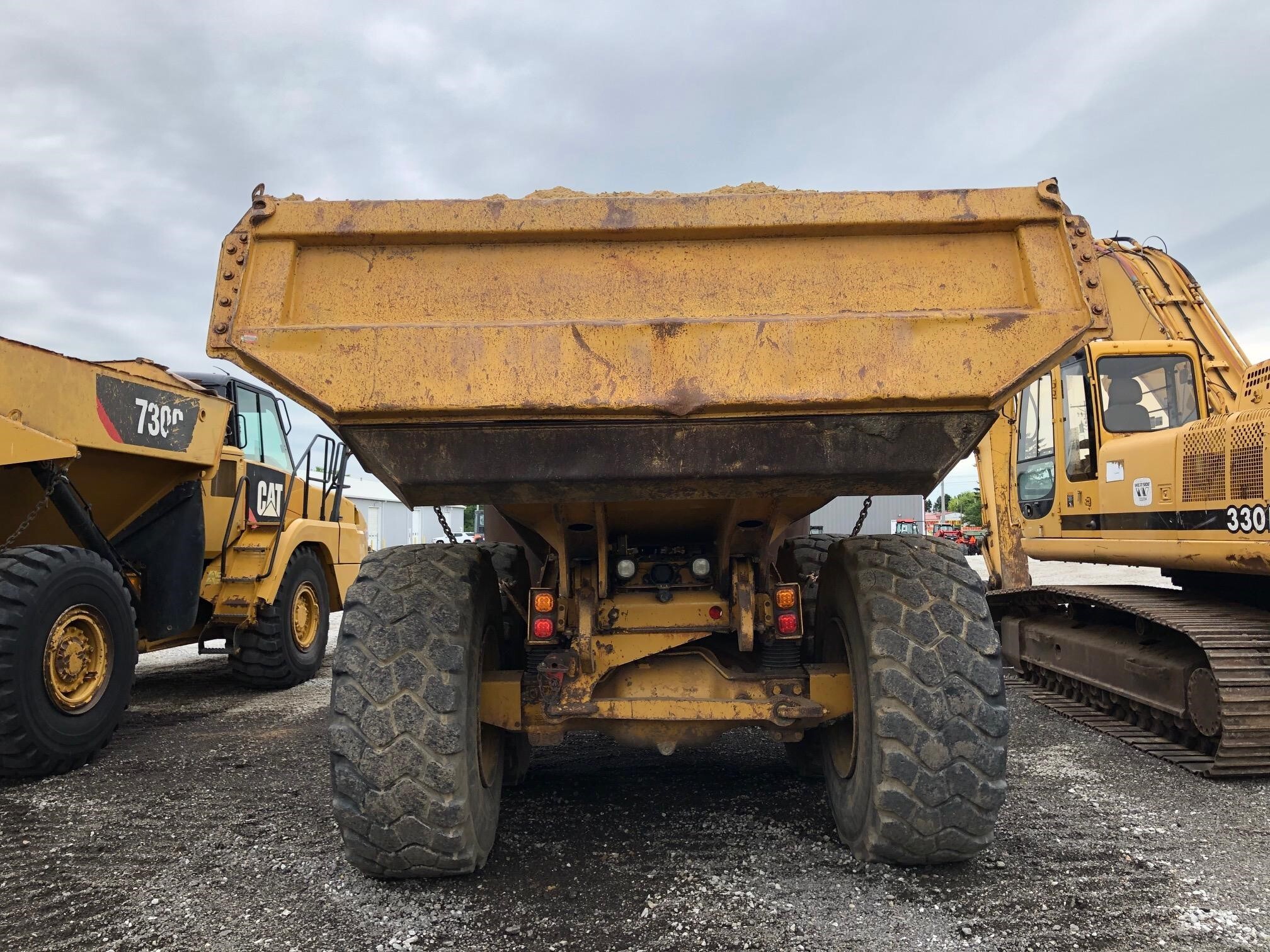

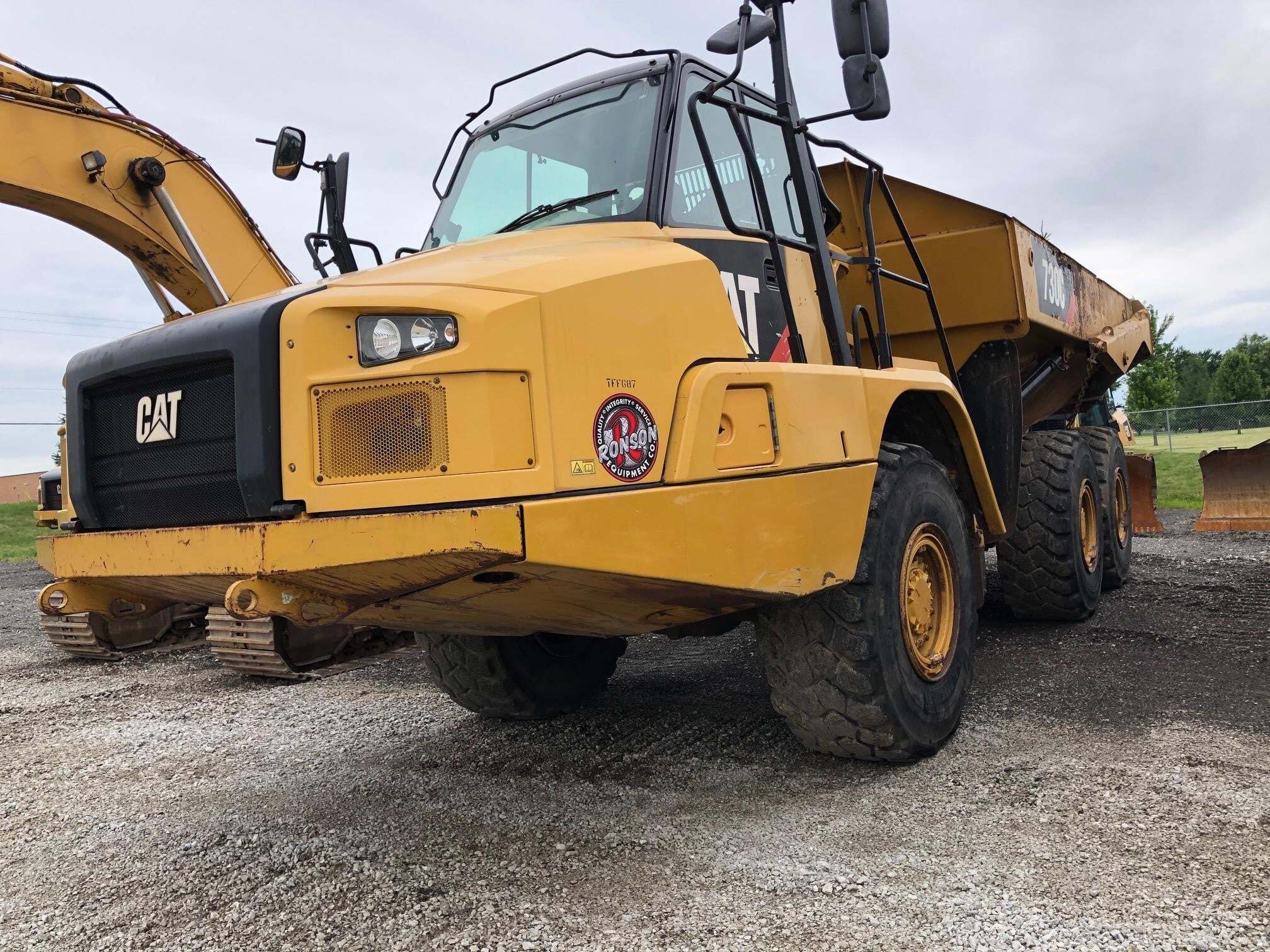

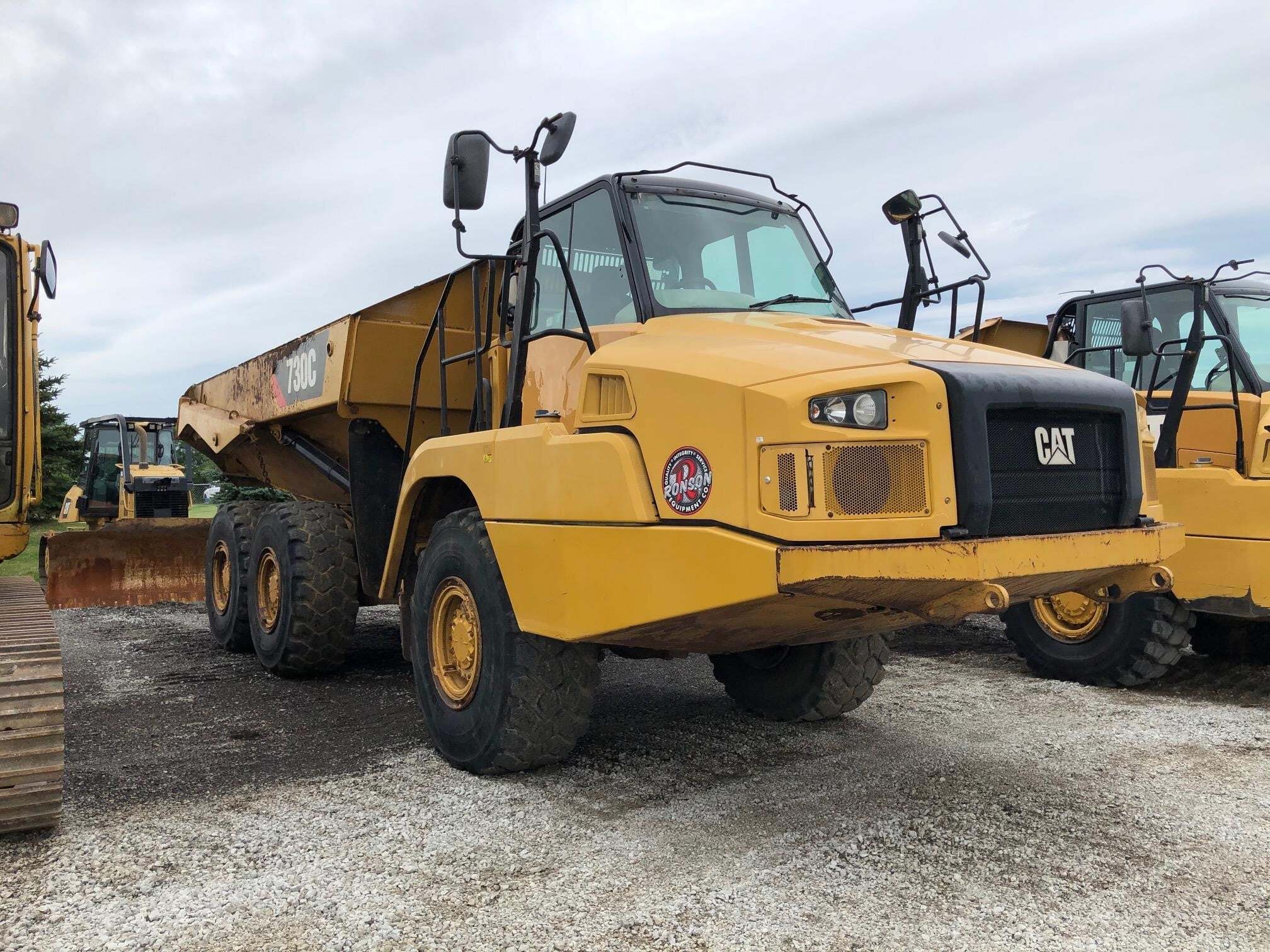

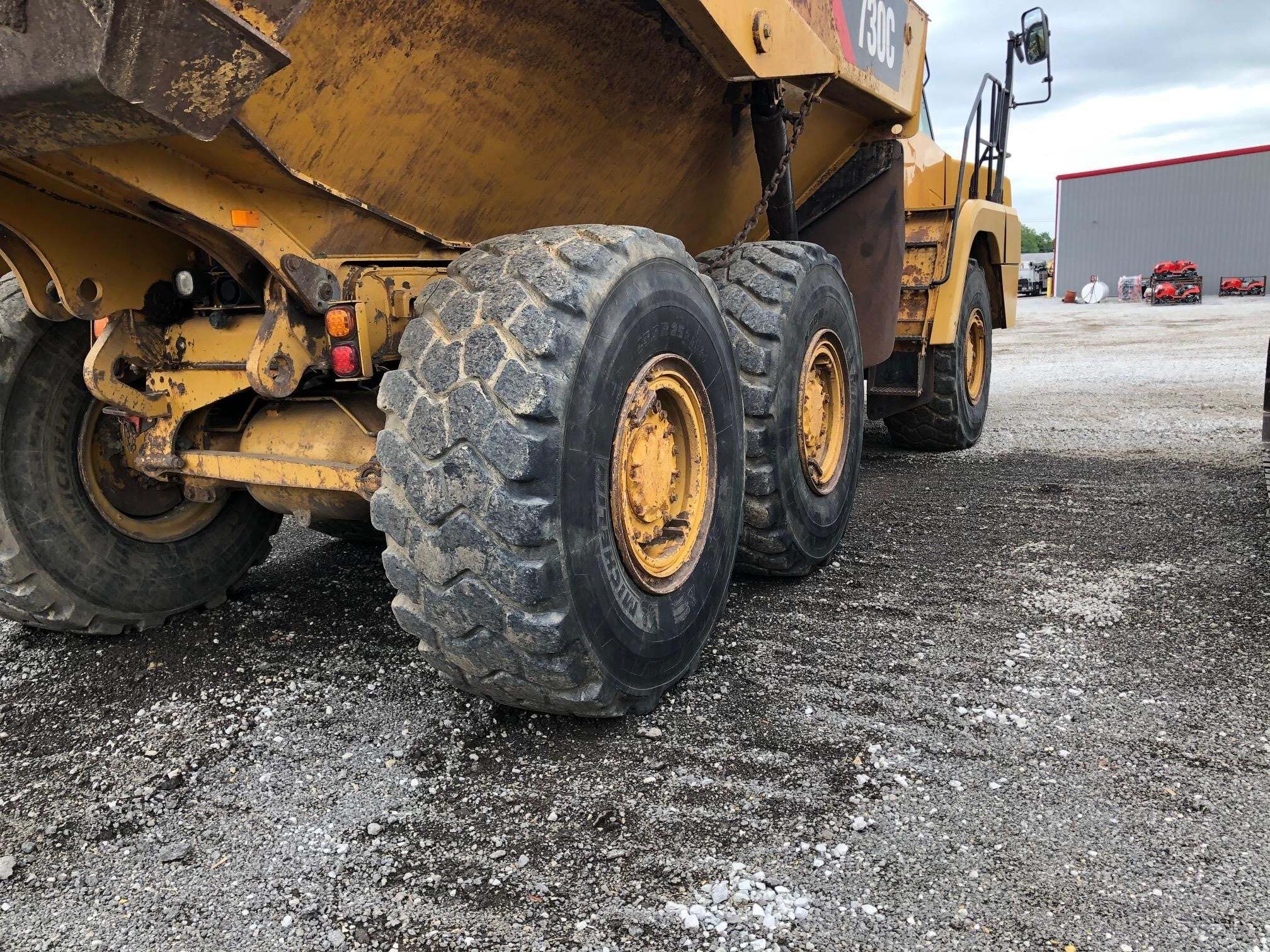

2015 Caterpillar 730C For Sale in Lowell, IN


/ Save to Watch List

For Sale: Call for Price





Machine Info:

Hours:6050

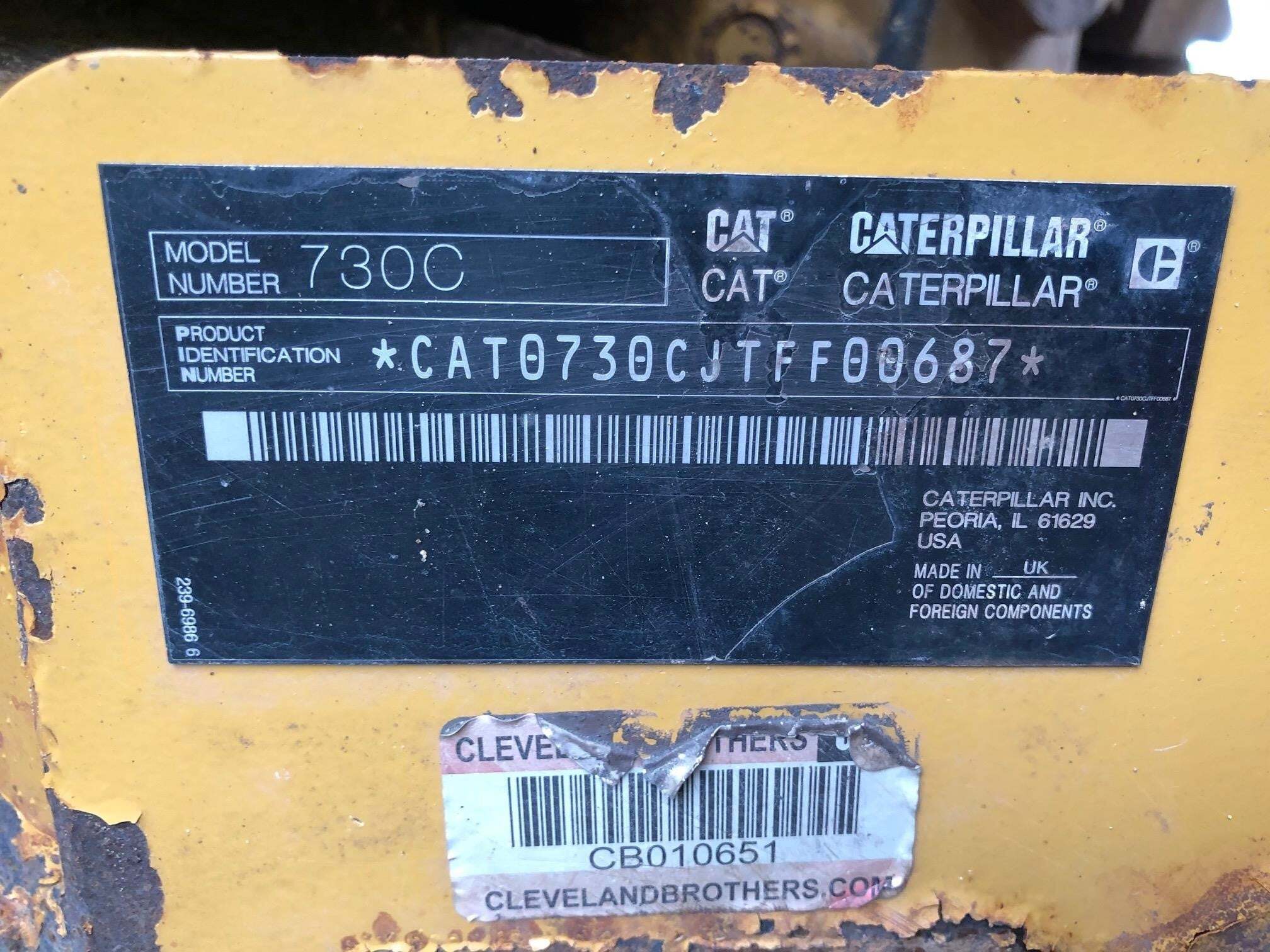

Stock Number:CAT0730CJTFF00687
Machine Location:LOWELL, IN
More Information:https://ronsonequipment.com/inventory/off+highway+trucks/2015-caterpillar-730c-lowell-il-69f52284c0900b0faa0b2364/

Description:

Explore the capability of this versatile machine designed for demanding tasks. 2015 CATERPILLAR 730C — Off Highway Trucks. This equipment excels in earthmoving applications, handling heavy loads with ease.
This machine is ideal for digging, trenching, and transporting materials. Its robust design ensures durability and reliability on the job site.
Built to tackle tasks without extra fuss.
A few key features and specs:

Hours: 6,898 hours


We encourage you to see this equipment in person. Use the contact form for questions and next steps.
---
This content was generated with the assistance of Artificial Intelligence. While we strive for relevance and accuracy, please understand that AI-generated content may not always be correct so you should contact


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar 730C is a reliable off-highway truck designed for heavy-duty hauling in mining, construction, and quarry applications. Featuring a robust Cat engine, the 730C delivers efficient power and fuel economy for optimal performance on rough terrain. Its advanced drivetrain and suspension system enhance stability and operator comfort, while the spacious cab provides improved visibility and ergonomic controls. With a payload capacity of approximately 28 metric tons, the Caterpillar 730C supports high productivity in demanding environments. Durable components and simplified maintenance contribute to reduced downtime. This model is widely used for transporting large volumes of material in off-road conditions.
Body Capacities
Heaped (SAE 2:1) 23 cu yd (18 cu m)
Struck 17 cu yd (13 cu m)
Tailgate Heaped SAE 2:1 25 cu yd (19 cu m)
Tailgate Struck 18 cu yd (14 cu m)
Body Hoist
Lower Time 8 seconds
Raise Time 12 seconds
Body Plate
Body Plate Type High Strength Brinell HB450 Wear Resistant Steel
Dump
Capacity - Heaped 23 cu yd (18 cu m)
Capacity - Struck 17 cu yd (13 cu m)
Dump Angle 45 degrees
Lower Time 8 seconds
Raise Time 12 seconds
Rated Payload 62,000 lbs (28,123 kg)
Engine
Bore 5 in (13 cm)
Displacement 763 cu in (12,503 cu cm)
Engine Model Cat C13
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV Cat C13 ACERT
Gross Power 375 hp (280 kw)
Gross Power - SAE J1995 375 hp (280 kw)
Max Torque 1,579 lbs ft (2,141 nm)
Net Power 367 hp (274 kw)
Net Power - ISO 14396 370 hp (276 kw)
Net Power - SAE J1349 367 hp (274 kw)
No Engine De-rating Required Below 12,500 ft (3,810 m)
Peak Engine Torque Gross (SAE J1995) 1,579 lbs ft (2,141 nm)
Peak Engine Torque Net (ISO 14396) 1,564 lbs ft (2,120 nm)
Peak Engine Torque Speed 1,200 rpm
Stroke 6 in (16 cm)
Torque Measured @ 1,200 rpm
Operating Specifications
Cooling System Fluid Capacity 22 gal (83 l)
Fuel Capacity 109 gal (412 l)
Hydraulic System Fluid Capacity 29 gal (110 l)
Transmission Fluid Capacity 9 gal (35 l)
Operating Weights
Center Axle - Empty 10,384 lbs (4,710 kg)
Center Axle - Loaded 37,633 lbs (17,070 kg)
Center Axle - Rated Load 27,249 lbs (12,360 kg)
Front Axle - Empty 33,091 lbs (15,010 kg)
Front Axle - Loaded 40,322 lbs (18,290 kg)
Front Axle - Rated Load 7,231 lbs (3,280 kg)
Rear Axle - Empty 9,656 lbs (4,380 kg)
Rear Axle - Loaded 36,905 lbs (16,740 kg)
Rear Axle - Rated Load 27,249 lbs (12,360 kg)
Total - Empty 53,131 lbs (24,100 kg)
Total - Loaded 114,860 lbs (52,100 kg)
Total - Rated Load 61,729 lbs (28,000 kg)
Service Refill Capacities
Cooling System 22 gal (83 l)
DEF Tank (ISO 2224-1) 5 gal (20 l)
Engine Crankcase 11 gal (40 l)
Final Drives/Differential 36 gal (135 l)
Fuel Tank 109 gal (412 l)
Hydraulic System 29 gal (110 l)
Output Transfer Gear Box 6 gal (24 l)
Transmission 9 gal (35 l)
Sound Levels
Interior Cab 76 dB(A)
Standards
Brakes ISO 3450 - 2011
Cab - FOPS ISO 3449 Level II - 2005
Cab - ROPS ISO 3471 - 2008
Steering ISO 5010 - 2007
Steering System
Lock to Lock 4.75 seconds @ 60 rpm
Transmission
Forward - 1 5 mph (8 kph)
Forward - 2 9 mph (14 kph)
Forward - 3 14 mph (23 kph)
Forward - 4 21 mph (34 kph)
Forward - 5 29 mph (47 kph)
Forward - 6 34 mph (55 kph)
Number of Forward Gears 6
Number of Reverse Gears 1
Reverse - 1 6 mph (10 kph)
Turning Circle
Turning Dimensions - Aisle Width 210 in (533 cm)
Turning Dimensions - Clearance Radius 318 in (808 cm)
Turning Dimensions - Inside Radius 153 in (389 cm)
Turning Dimensions - SAE Turning Radius 294 in (747 cm)
Turning Dimensions - Steer Angle - Left/Right 45 degrees
Weights
Center Axle - empty 10,384 lbs (4,710 kg)
Center Axle - loaded 27,249 lbs (12,360 kg)
Front Axle - empty 33,091 lbs (15,010 kg)
Front Axle - loaded 7,231 lbs (3,280 kg)
Rear Axle - empty 9,656 lbs (4,380 kg)
Rear Axle - loaded 27,249 lbs (12,360 kg)
Total Empty 53,131 lbs (24,100 kg)
Total Loaded 61,729 lbs (28,000 kg)
