2005 Caterpillar 735 For Sale in Maltby, Gbr

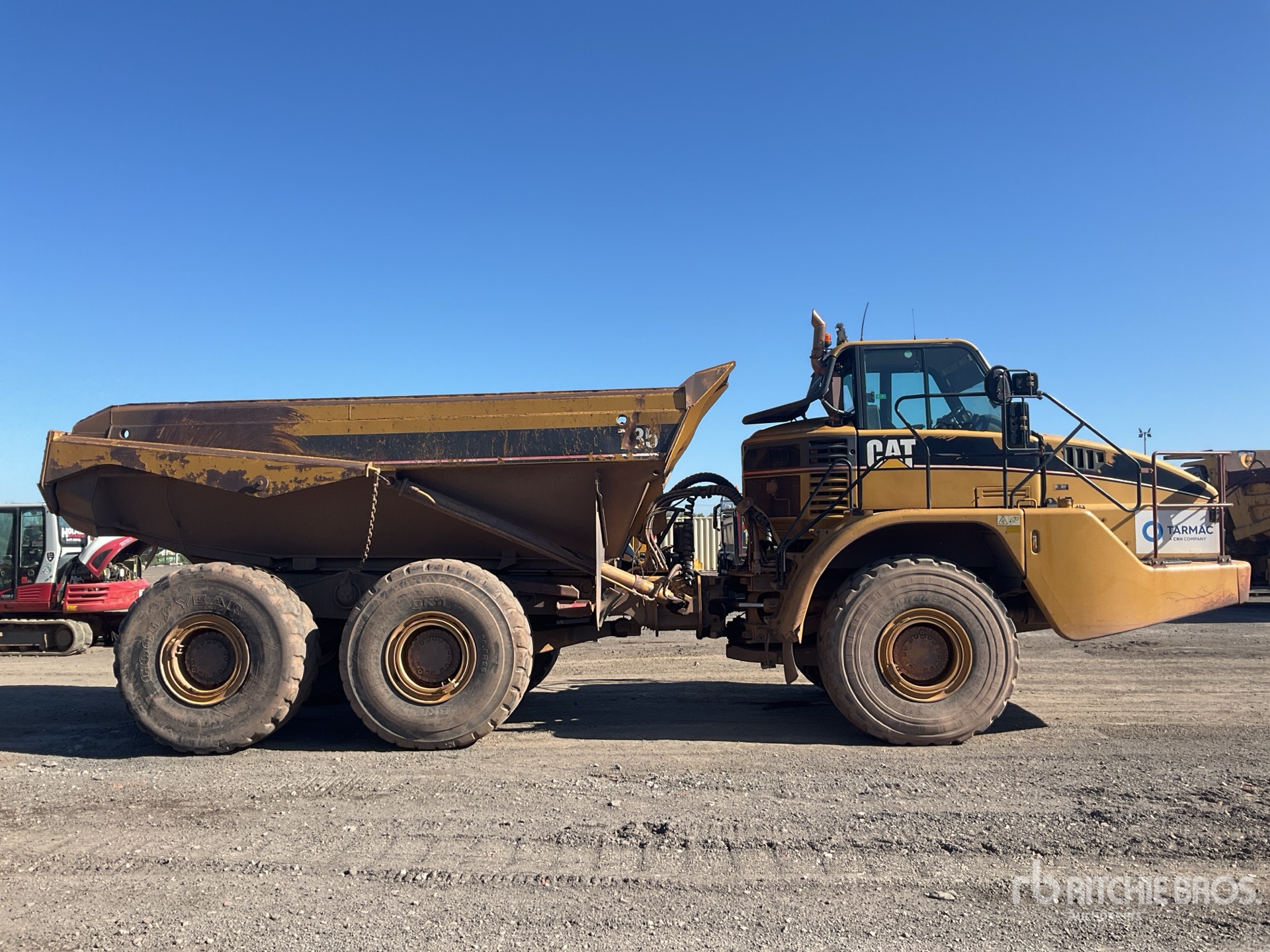

Name: 2005 Caterpillar 735
Brand: Caterpillar
SKU: 87404115
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

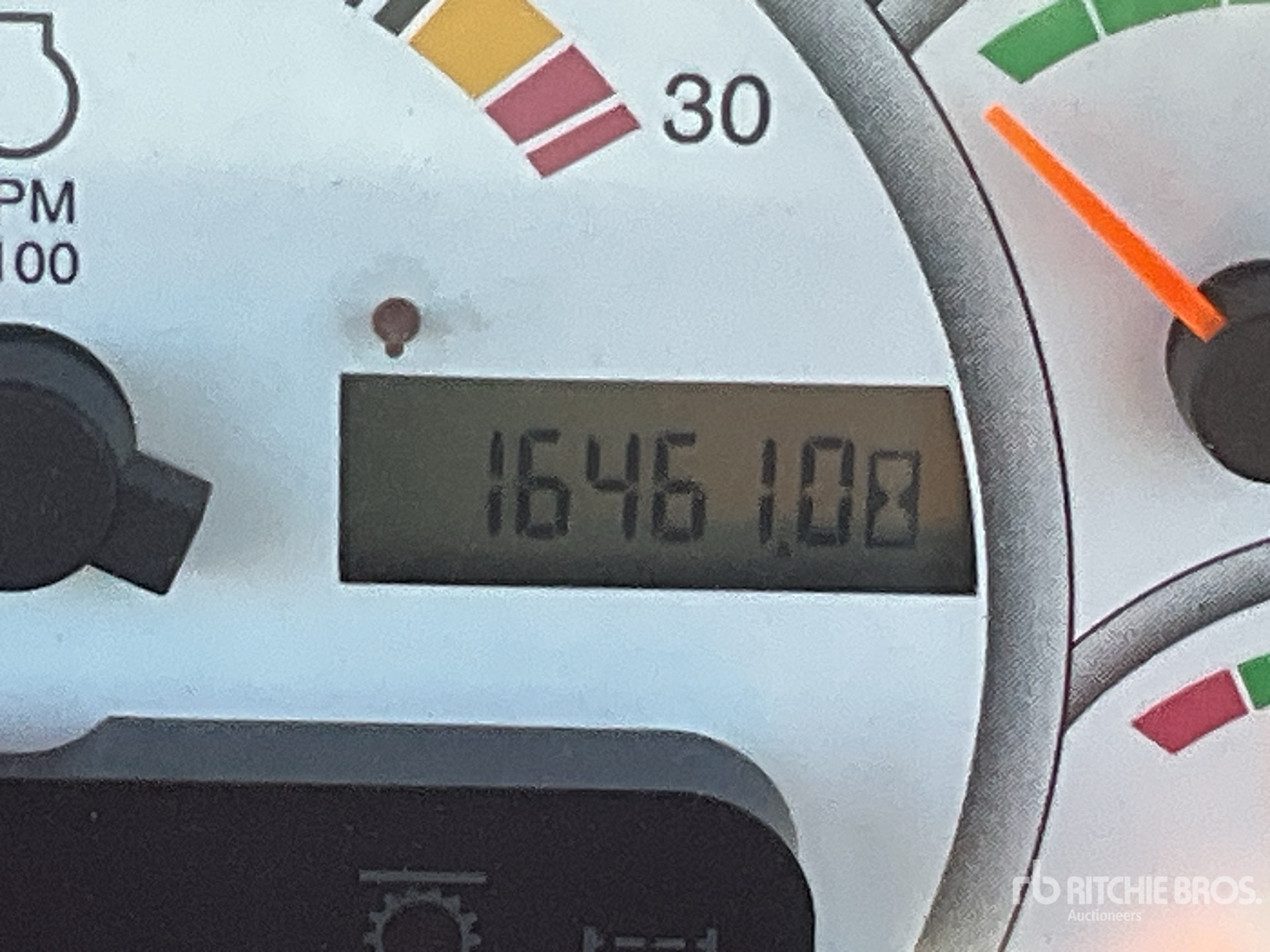

Hours:	16461

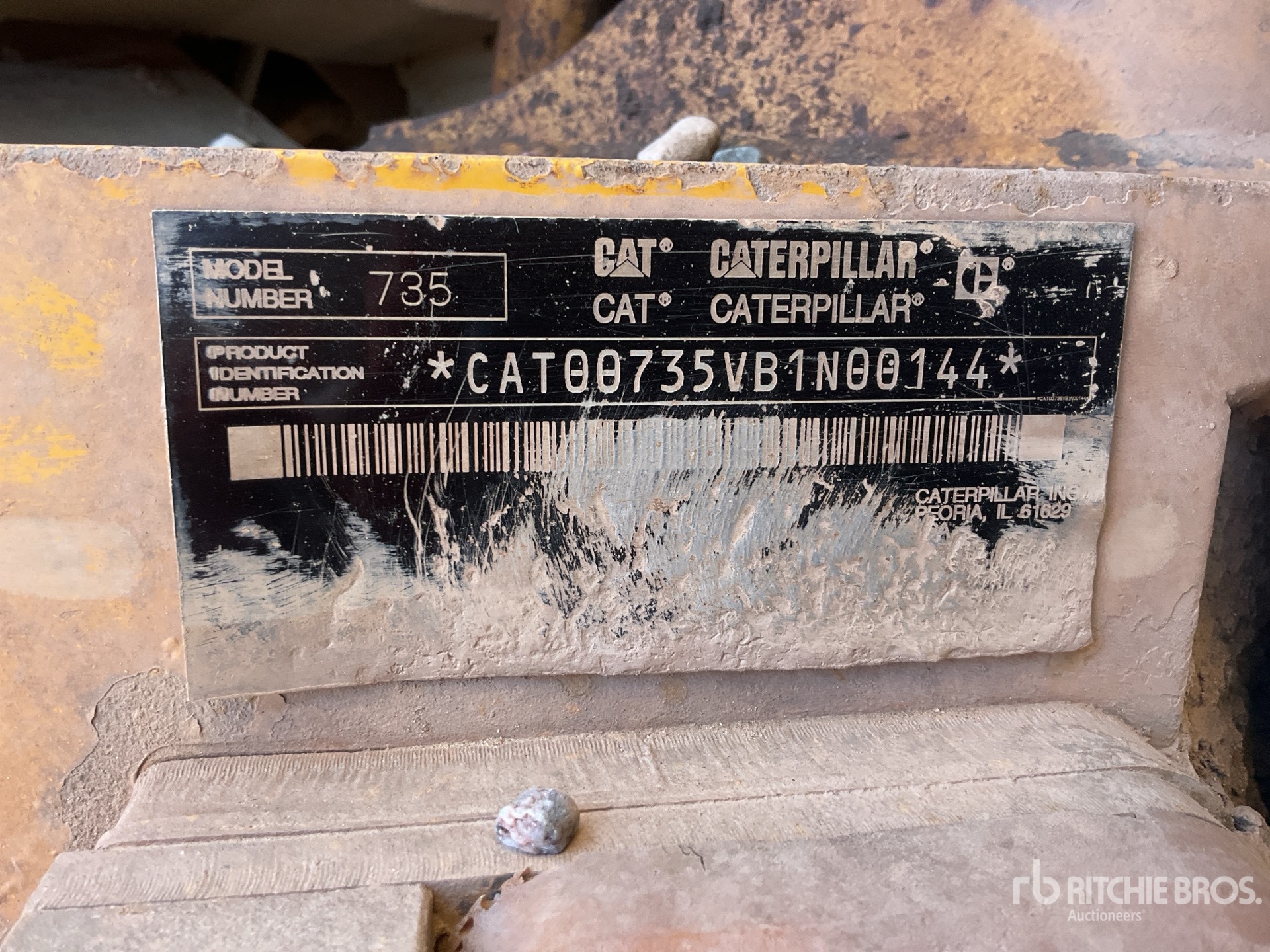

Serial Number:	CAT00735VB1N00144
Machine Location:	MALTBY, GBR

Description:

Air Conditioner, Retarder, Rear View Camera, Tailgate, Auto Lube, 26.5R25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 735 is a robust off-highway truck designed for heavy-duty hauling in mining and construction applications. Featuring a payload capacity of approximately 33 tons (30 metric tonnes), the 735 offers efficient material transport on rough terrain. Powered by a Cat C11 ACERT engine, it delivers reliable performance with optimized fuel efficiency. The truck's advanced drivetrain and suspension systems enhance stability and operator comfort, while its durable frame ensures long service life. Equipped with modern safety and monitoring technologies, the Caterpillar 735 supports productivity and operational control. This model is widely used in earthmoving, quarrying, and large-scale infrastructure projects.

Articulating/Rigid
Articulating/Rigid	Articulated
Body Capacities
Heaped (SAE 2:1)	26 cu yd (20 cu m)
Struck	19 cu yd (15 cu m)
Tailgate Heaped SAE 2:1	27 cu yd (21 cu m)
Tailgate Struck	20 cu yd (15 cu m)
Body Hoist
Lower Time	7 seconds
Raise Time	11 seconds
Body Plate
Body Plate Type	High strength Brinell HB450 wear resistant steel
Body Plate Thickness
Base	1 in (2 cm)
Front	0 in (1 cm)
Scow	1 in (2 cm)
Side	1 in (1 cm)
Dimensions
Dump Ground Clearance	2 ft (1 m)
Dump Height	23 ft (7 m)
Ground Clearance	2 ft (1 m)
Overall Height	12 ft (4 m)
Overall Length	36 ft (11 m)
Overall Width	11 ft (3 m)
Wheelbase	17 ft (5 m)
DRIVE SYSTEM
Drive Config	6x6
Dump
Capacity - Heaped	26 cu yd (20 cu m)
Capacity - Struck	19 cu yd (15 cu m)
Lower Time	7 seconds
Raise Time	11 seconds
Rated Payload	72,091 lbs (32,700 kg)
Engine
Aspiration	Turbocharged
Bore	5 in (14 cm)
Displacement	926 cu in (15,174 cu cm)
Engine Model	Cat C15 ACERT
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV	Cat C13 ACERT
Flywheel Power	385 hp (287 kw)
Gross Power	413 hp (308 kw)
Gross Power - SAE J1995	435 hp (324 kw)
Make	Cat
Max Torque	1,525 lbs ft (2,067 nm)
Net Power	394 hp (294 kw)
Net Power - EEC 80/1269	424 hp (316 kw)
Net Power - ISO 14396	429 hp (320 kw)
Net Power - ISO 9249	424 hp (316 kw)
Net Power - SAE J1349	419 hp (312 kw)
Number of Cylinders	6
Peak Engine Torque Gross (SAE J1995)	1,614 lbs ft (2,188 nm)
Peak Engine Torque Net (SAE J1349)	1,597 lbs ft (2,165 nm)
Peak Engine Torque Speed	1,200 rpm
Stroke	7 in (17 cm)
Torque Measured @	1,200 rpm
General Specifications
Articulated/Rigid (Since 2018)	A
Articulated/Rigid (2019)	A
Articulated/Rigid (2020)	A
Articulated/Rigid (2021)	A
Articulated/Rigid (2022)	A
Articulated/Rigid (2023)	A
Articulated/Rigid (Since 2024)	Articulated
Drive Configuration (Since 2018)	6WD
Drive Configuration (2019)	6WD
Drive Configuration (2020)	6WD
Drive Configuration (2021)	6WD
Drive Configuration (2022)	6WD
Drive Configuration (2023)	6WD
Drive Configuration (2024)	6WD
Engine Type (Since 2018)	Cat C13 ACERT
Engine Type (2019)	Cat C13 ACERT
Engine Type (2020)	Cat C13 ACERT
Engine Type (2021)	Cat C13 ACERT
Engine Type (Since 2022)	Cat C13
Engine Type (2023)	Cat C13
Engine Type (2024)	Cat C13
Mfg. Model (Since 2018)	735
Mfg. Model (2019)	735
Mfg. Model (2020)	735
Mfg. Model (2021)	735
Mfg. Model (2022)	735
Mfg. Model (2023)	735
Mfg. Model (2024)	735
Operating Weight Pounds (Kgs) (Since 2018)	55,645 (25,240)
Operating Weight Pounds (Kgs) (2019)	55,645 (25,240)
Operating Weight Pounds (Kgs) (2020)	55,645 (25,240)
Operating Weight Pounds (Kgs) (2021)	55,645 (25,240)
Operating Weight Pounds (Kgs) (2022)	55,645 (25,240)
Operating Weight Pounds (Kgs) (2023)	55,645 (25,240)
Operating Weight Pounds (Kgs) (2024)	55,645 (25,240)
Planetary Powershift Transmission (Since 2018)	Powershift w/ lockup torque converter
Planetary Powershift Transmission (2019)	Powershift w/ lockup torque converter
Planetary Powershift Transmission (2020)	Powershift w/ lockup torque converter
Planetary Powershift Transmission (2021)	Powershift w/ lockup torque converter
Planetary Powershift Transmission (2022)	Powershift w/ lockup torque converter
Planetary Powershift Transmission (2023)	Powershift w/ lockup torque converter
Planetary Powershift Transmission (2024)	Powershift w/ lockup torque converter
Rated Payload Tons (Metric Tons) (Since 2018)	35 (32)
Rated Payload Tons (Metric Tons) (2019)	35 (32)
Rated Payload Tons (Metric Tons) (2020)	35 (32)
Rated Payload Tons (Metric Tons) (2021)	35 (32)
Rated Payload Tons (Metric Tons) (2022)	35 (32)
Rated Payload Tons (Metric Tons) (2023)	35 (32)
Rated Payload Tons (Metric Tons) (2024)	35 (32)
Operating Specifications
Cooling System Fluid Capacity	21 gal (80 l)
Engine Oil Capacity	10 gal (38 l)
Fuel Capacity	148 gal (560 l)
Hydraulic System Fluid Capacity	62 gal (233 l)
Tire Size	26.5R25
Transmission Fluid Capacity	19 gal (72 l)
Operating Weights
Center Axle - Empty	14,406 lbs (6,534 kg)
Center Axle - Loaded	46,743 lbs (21,202 kg)
Center Axle - Rated Load	32,337 lbs (14,668 kg)
Front Axle - Empty	41,881 lbs (18,997 kg)
Front Axle - Loaded	49,298 lbs (22,361 kg)
Front Axle - Rated Load	7,417 lbs (3,364 kg)
Rear Axle - Empty	12,919 lbs (5,860 kg)
Rear Axle - Loaded	45,256 lbs (20,528 kg)
Rear Axle - Rated Load	32,337 lbs (14,668 kg)
Total - Empty	69,206 lbs (31,391 kg)
Total - Loaded	141,297 lbs (64,091 kg)
Total - Rated Load	72,091 lbs (32,700 kg)
Service Refill Capacities
Cooling System	25 gal (95 l)
DEF Tank	5 gal (20 l)
Engine Crankcase	11 gal (40 l)
Final Drives/Differential	21 gal (80 l)
Fuel Tank	148 gal (560 l)
Hydraulic System	87 gal (328 l)
Output Transfer Gear Box	6 gal (24 l)
Transmission	23 gal (85 l)
Sound Levels
Interior Cab	79 dB(A)
Standards
Brakes	SAE J/ISO 3450-1998
Cab - FOPS	SAE J231 JAN81 and ISO 3449-1992 Level II
Cab - ROPS	SAE J1040 May 1994 and ISO 3471-1994
Steering	ISO 5010 1992E
Steering System
Lock to Lock	4.75 seconds @ 60 rpm
Transmission
Forward - 1	5 mph (8 kph)
Forward - 2	7 mph (11 kph)
Forward - 3	10 mph (15 kph)
Forward - 4	13 mph (21 kph)
Forward - 5	18 mph (28 kph)
Forward - 6	24 mph (38 kph)
Forward - 7	32 mph (51 kph)
Max Speed	36 mph (58 kph)
Number of Forward Gears	8
Number of Reverse Gears	1
Reverse - 1	5 mph (8 kph)
Reverse - 2	7 mph (11 kph)
Turning Circle
Turning Dimensions - Aisle Width	212 in (538 cm)
Turning Dimensions - Clearance Radius	318 in (808 cm)
Turning Dimensions - Inside Radius	149 in (378 cm)
Turning Dimensions - SAE Turning Radius	294 in (747 cm)
Weights
Center Axle - empty	14,088 lbs (6,390 kg)
Center Axle - loaded	45,900 lbs (20,820 kg)
Front Axle - empty	40,014 lbs (18,150 kg)
Front Axle - loaded	48,480 lbs (21,990 kg)
Operating Weight	135,610 lbs (61,512 kg)
Rear Axle - empty	12,588 lbs (5,710 kg)
Rear Axle - loaded	44,401 lbs (20,140 kg)
Total Empty	66,690 lbs (30,250 kg)
Total Loaded	138,781 lbs (62,950 kg)
