    Equipment ↠ Caterpillar ↠ Off-Highway Trucks ↠ 2006 Caterpillar 740

    2006 Caterpillar 740 For Sale in Edmonton, Ab


    / Save to Watch List
    Apply for Financing

    Auction Pricing



       Auction Info: Starting on 2026-05-11   Click here to place a bid


    Ritchie Bros. Auctioneers

    Ritchie Bros. Auctioneers Dealer Info
    Ritchie Bros. Auctioneers Website
    Click here to email Ritchie Bros. Auctioneers.
    Click for Phone Number


    Machine Info:

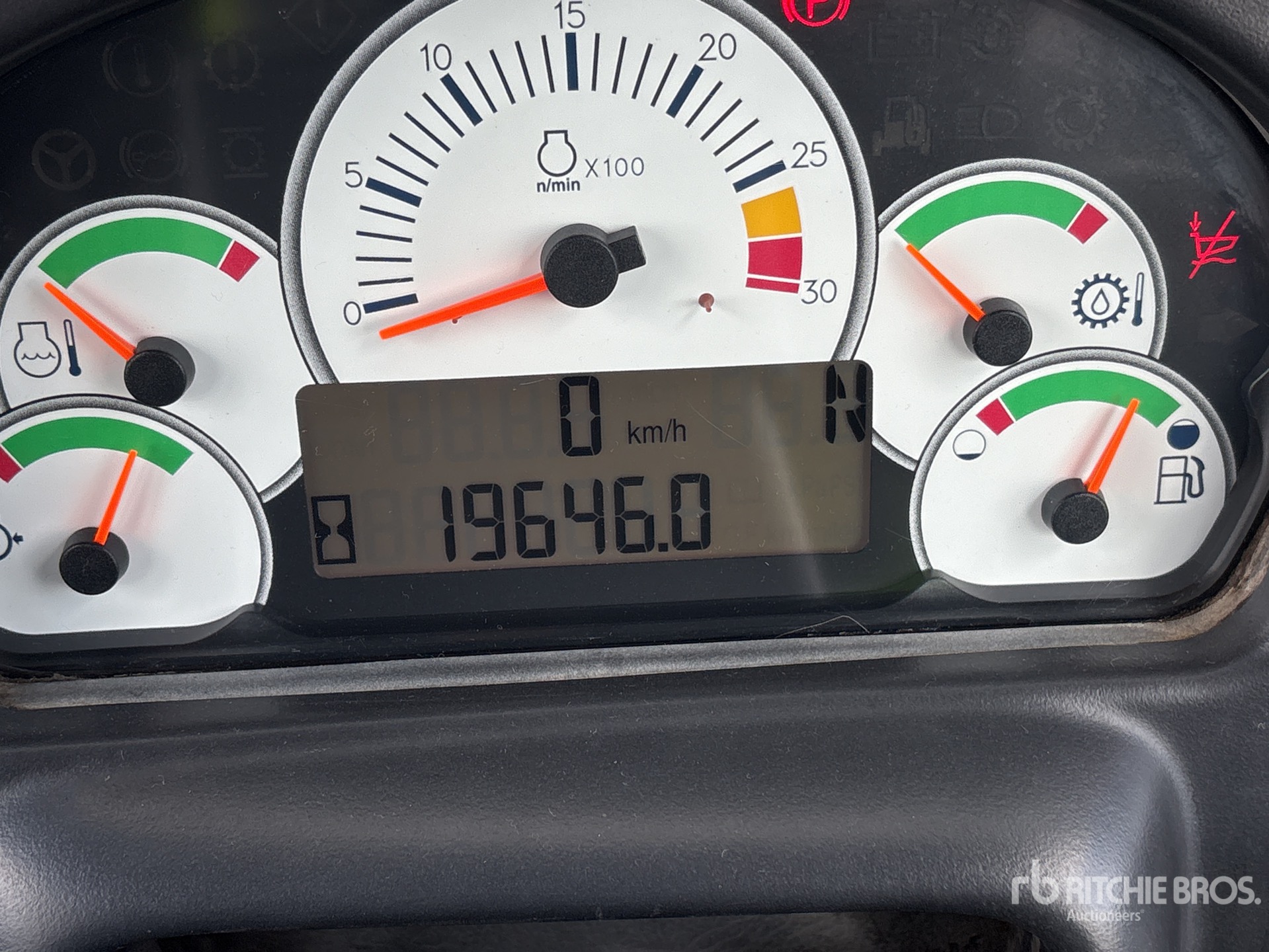

    Hours:19646

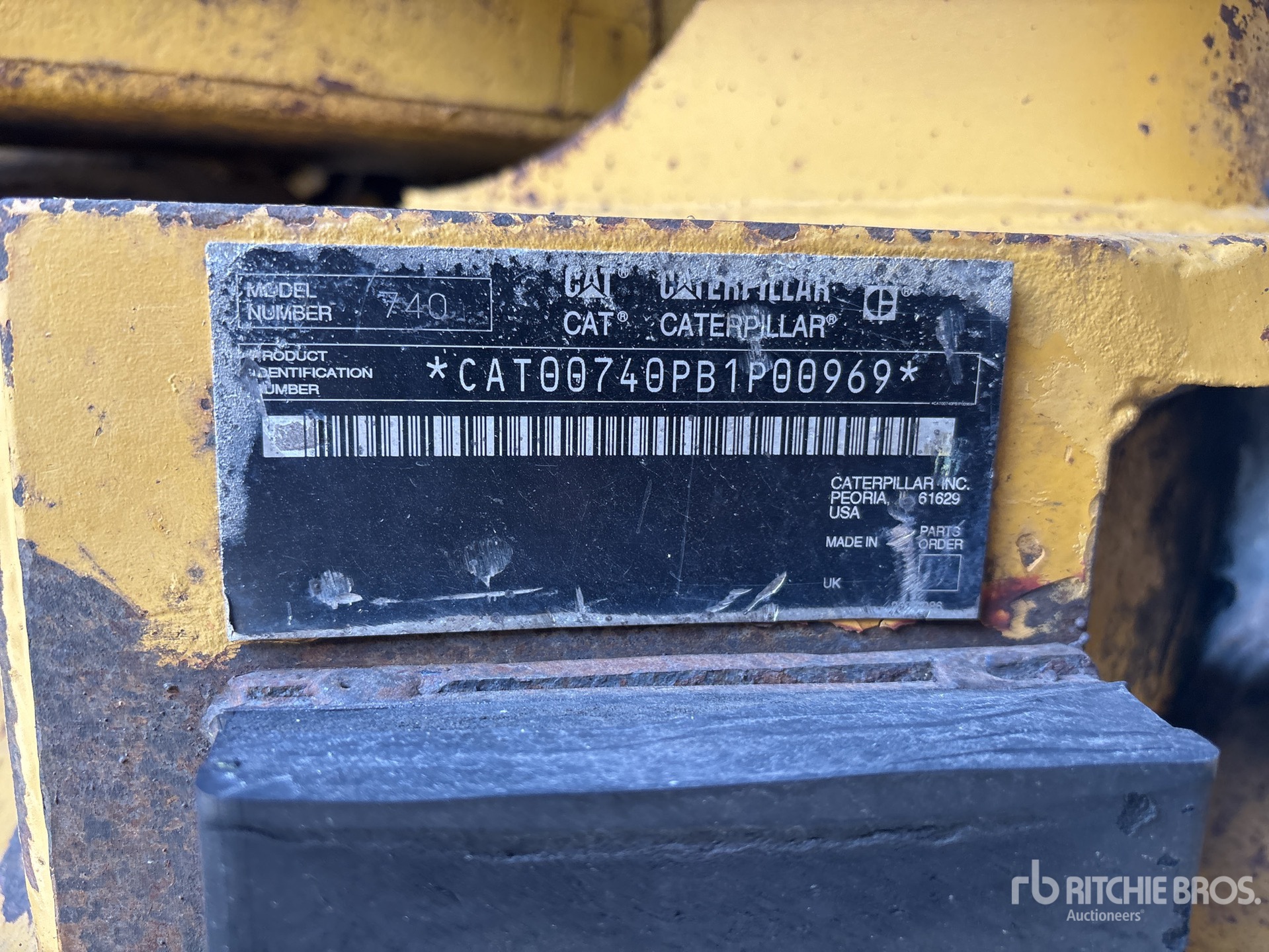

    Serial Number:CAT00740PB1P00969
    Machine Location:EDMONTON, AB

    Description:

    Air Conditioner, Air Ride Seat, 2005 US EPA Label, Heated Body, Steel Body Liner, 29.5R25 Tires Additional information available - Maintenance history - Located at 1700 Cobham Ave W, Cranbrook, BC V1C 6T3, CAN - Contact Riley @ 250.421.8347 for viewing hours - Removal date May 29, 2026 - Buyer responsible for loadout - This lot is subject to 7% BC PST - Please see deficiencies Closing Time: 2026-05-11 12:18:00 PM


    From the manufacturer:

    Supplied by HeavyEquipmentData.com →


    The Caterpillar 740 is a robust off-highway truck designed for heavy-duty hauling in mining, construction, and quarry applications. Featuring a high-capacity payload, the Cat 740 offers efficient material transport with advanced drivetrain technology and durable components. Its powerful engine delivers reliable performance while maintaining fuel efficiency. The truck's operator cabin provides enhanced visibility and ergonomic controls for improved safety and comfort. Equipped with advanced monitoring systems, the Caterpillar 740 ensures optimal uptime and maintenance management. This off-highway truck is engineered to handle challenging terrains and heavy loads, making it a preferred choice for large-scale earthmoving and material handling projects.
    Articulating/Rigid
    Articulating/Rigid Articulated
    Body Capacities
    Heaped (SAE 2:1) 31 cu yd (24 cu m)
    Struck 24 cu yd (19 cu m)
    Tailgate Heaped SAE 2:1 34 cu yd (26 cu m)
    Tailgate Struck 26 cu yd (20 cu m)
    Body Hoist
    Lower Time 7 seconds
    Raise Time 12 seconds
    Body Plate Thickness
    Base 1 in (2 cm)
    Front 0 in (1 cm)
    Scow 1 in (2 cm)
    Side 1 in (1 cm)
    Dimensions
    Dump Ground Clearance 2 ft (1 m)
    Dump Height 23 ft (7 m)
    Ground Clearance 2 ft (1 m)
    Overall Height 12 ft (4 m)
    Overall Length 36 ft (11 m)
    Overall Width 11 ft (3 m)
    Wheelbase 17 ft (5 m)
    DRIVE SYSTEM
    Drive Config 6x6
    Dump
    Capacity - Heaped 30 cu yd (23 cu m)
    Capacity - Struck 23 cu yd (17 cu m)
    Dump Angle 70 degrees
    Lower Time 7 seconds
    Raise Time 12 seconds
    Rated Payload 83,776 lbs (38,000 kg)
    Engine
    Aspiration Turbocharged
    Bore 5 in (14 cm)
    Displacement 926 cu in (15,174 cu cm)
    Engine Model Cat C15 ACERT
    Gross Power 464 hp (346 kw)
    Gross Power - SAE J1995 469 hp (350 kw)
    Make Cat
    Net Power 445 hp (332 kw)
    Net Power - EEC 80/1269 458 hp (342 kw)
    Net Power - ISO 9249 458 hp (342 kw)
    Net Power - SAE J1349 453 hp (338 kw)
    Number of Cylinders 6
    Power Measured @ 1,700 rpm
    Stroke 7 in (17 cm)
    General Specifications
    Articulated/Rigid (Since 2019) A
    Drive Configuration (Since 2019) 6WD
    Engine Type (Since 2019) Cat C15 ACERT
    Mfg. Model (Since 2019) 740
    Operating Weight Pounds (Kgs) (Since 2019) 71,377 (32,376)
    Planetary Powershift Transmission (Since 2019) Powershift w/ lockup torque converter
    Rated Payload Tons (Metric Tons) (Since 2019) 40 (36.3)
    Operating Specifications
    Cooling System Fluid Capacity 21 gal (80 l)
    Engine Oil Capacity 10 gal (38 l)
    Fuel Capacity 148 gal (560 l)
    Hydraulic System Fluid Capacity 62 gal (233 l)
    Tire Size 29.5R25
    Transmission Fluid Capacity 19 gal (72 l)
    Operating Weights
    Center Axle - Empty 15,873 lbs (7,200 kg)
    Center Axle - Loaded 53,683 lbs (24,350 kg)
    Center Axle - Rated Load 37,809 lbs (17,150 kg)
    Front Axle - Empty 42,770 lbs (19,400 kg)
    Front Axle - Loaded 54,234 lbs (24,600 kg)
    Front Axle - Rated Load 11,464 lbs (5,200 kg)
    Rear Axle - Empty 14,330 lbs (6,500 kg)
    Rear Axle - Loaded 52,139 lbs (23,650 kg)
    Rear Axle - Rated Load 37,809 lbs (17,150 kg)
    Total - Empty 72,973 lbs (33,100 kg)
    Total - Loaded 160,055 lbs (72,600 kg)
    Total - Rated Load 87,083 lbs (39,500 kg)
    Service Refill Capacities
    Cooling System 21 gal (80 l)
    Engine Crankcase 10 gal (36 l)
    Final Drives/Differential 19 gal (72 l)
    Fuel Tank 141 gal (532 l)
    Hydraulic System 87 gal (328 l)
    Output Transfer Gear Box 5 gal (18 l)
    Transmission 19 gal (72 l)
    Sound Levels
    Interior Cab 79 dB(A)
    Standards
    Brakes ISO 3450 - 1996
    Cab - FOPS ISO 3449 Level II - 2005
    Cab - ROPS ISO 3471 - 2008
    Steering ISO 5010 - 2007
    Transmission
    Forward - 1 6 mph (9 kph)
    Forward - 2 8 mph (12 kph)
    Forward - 3 10 mph (16 kph)
    Forward - 4 14 mph (22 kph)
    Forward - 5 19 mph (30 kph)
    Forward - 6 25 mph (40 kph)
    Forward - 7 34 mph (55 kph)
    Max Speed 34 mph (55 kph)
    Number of Forward Gears 7
    Number of Reverse Gears 2
    Reverse - 1 5 mph (8 kph)
    Reverse - 2 7 mph (12 kph)
    Weights
    Center Axle - empty 15,543 lbs (7,050 kg)
    Center Axle - loaded 52,062 lbs (23,615 kg)
    Front Axle - empty 42,792 lbs (19,410 kg)
    Front Axle - loaded 53,528 lbs (24,280 kg)
    Operating Weight 151,760 lbs (68,837 kg)
    Rear Axle - empty 14,066 lbs (6,380 kg)
    Rear Axle - loaded 50,585 lbs (22,945 kg)
    Total Empty 72,400 lbs (32,840 kg)
    Total Loaded 156,176 lbs (70,840 kg)
