Equipment ↠ Caterpillar ↠ Scrapers ↠ 1997 Caterpillar 613C SERIES II

1997 Caterpillar 613C SERIES II For Sale in Chicago, Il

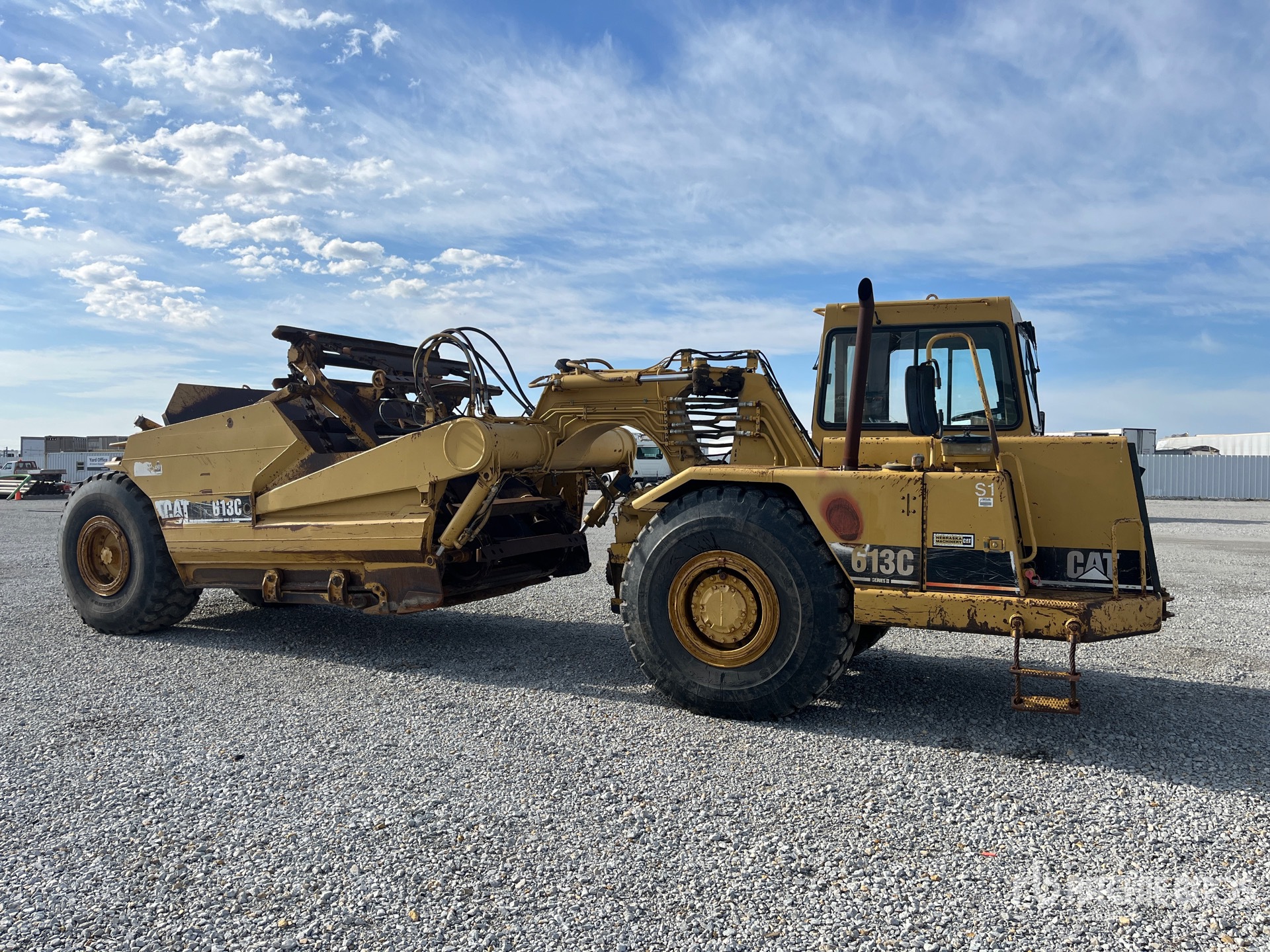

Name: 1997 Caterpillar 613C SERIES II
Brand: Caterpillar
SKU: 87413390
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

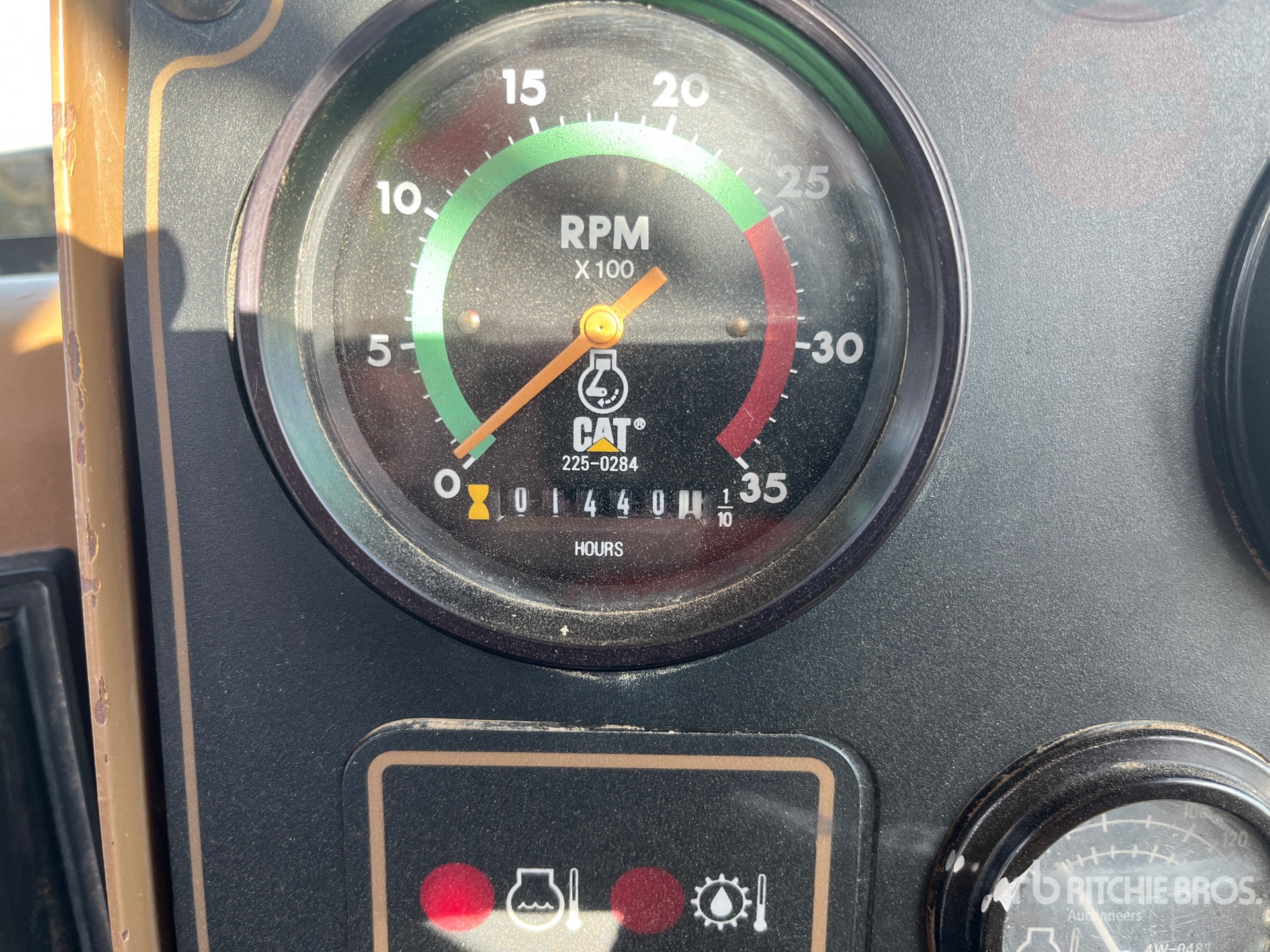

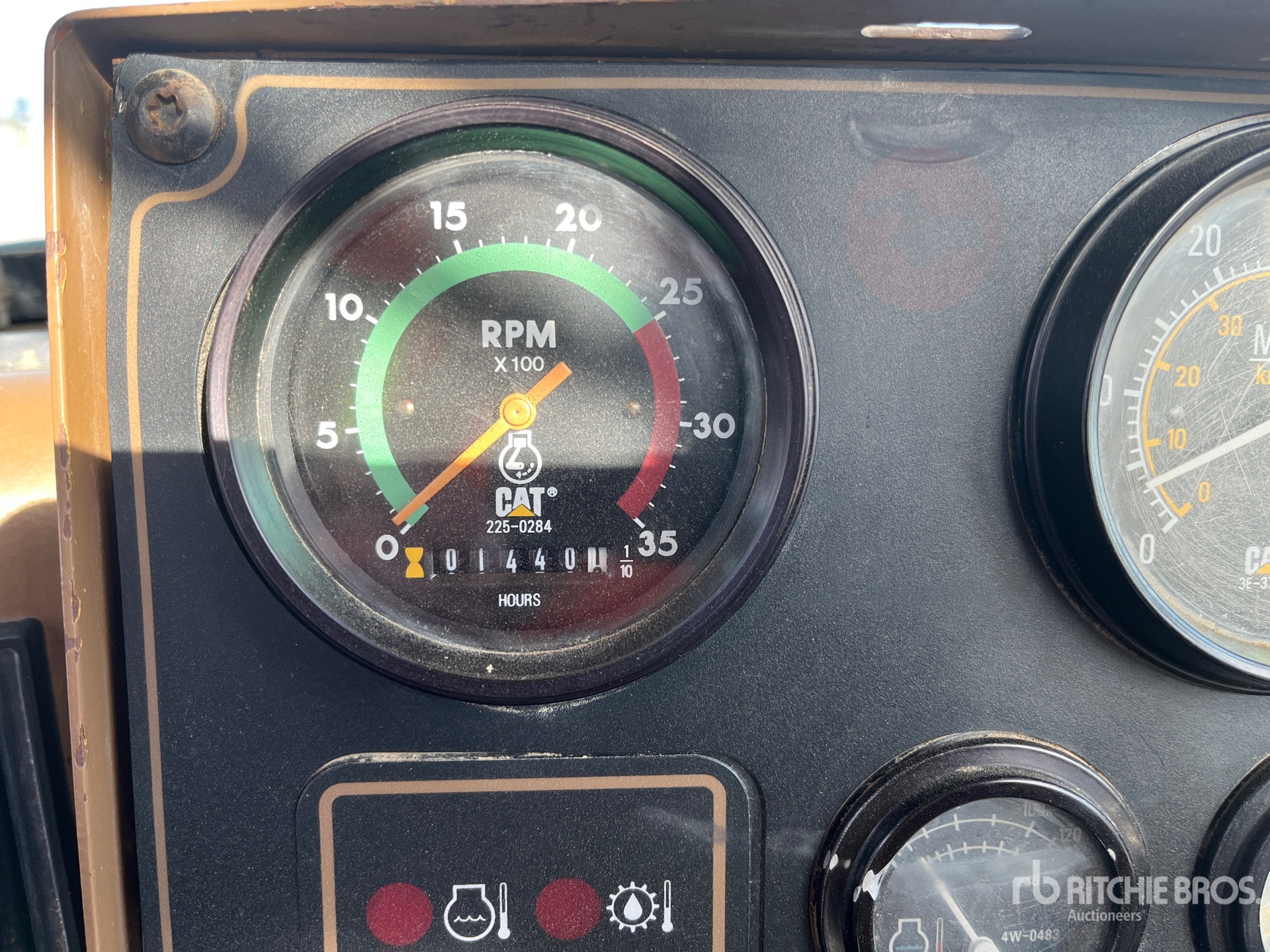

Hours:	1440

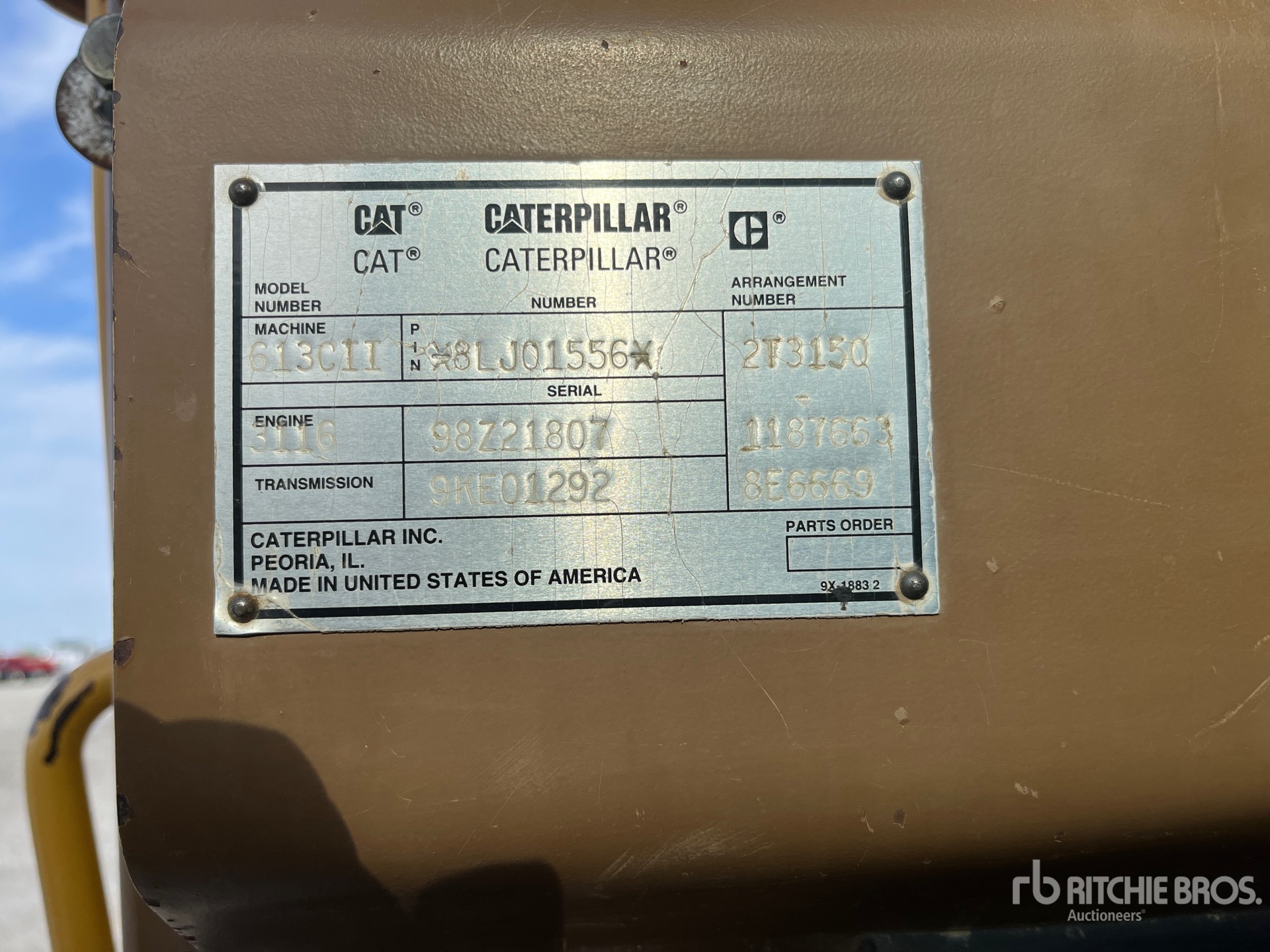

Serial Number:	8LJ01556
Machine Location:	CHICAGO, IL

Description:

Enclosed Cab, Air Ride Seat, 23.5R25 Tires Closing Time: 2026-05-12 09:46:45 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bowl
Heaped Capacity	11 cu yd (8 cu m)
Struck Capacity	9 cu yd (7 cu m)
Width of Cut	8 ft (2 m)
Dimensions
Front of Tractor to Front Axle	98 in (250 cm)
Height - Overall Shipping	122 in (310 cm)
Height - Scraper Blade Maximum	23 in (57 cm)
Height to Top of Suspended Cab	10 ft (3 m)
Length - Overall Machine	399 in (1,013 cm)
Overall Height	10 ft (3 m)
Rear Axle - Rear of Machine	48 in (123 cm)
Tractor Ground Clearance	2 ft (1 m)
Wheel Base	21 ft (6 m)
Wheelbase	21 ft (6 m)
Width - Outside Rear Tires	96 in (244 cm)
Width - Overall Machine	96 in (244 cm)
Width - Rear Tire Center Lines	71 in (180 cm)
Elevator
Length - Flights	66 in (168 cm)
Length - Overall	96 in (244 cm)
Length of Flights	6 ft (2 m)
Max Working Speed	279 ft/min (85 m/min)
Number of Flights	15
Spacing of Flights	16 in (41 cm)
Width - Flight Face	7 in (18 cm)
Width of Flight Face	7 in (17 cm)
Engine
Bore	4 in (11 cm)
Displacement	403 cu in (6,604 cu cm)
Flywheel Power - Tractor/Scraper	131 kW (175)
Gross Power - Gears 1-2	187 hp (139 kw)
Net Power	175 hp (131 kw)
Net Power - Gears 1-2	175 hp (131 kw)
Net Power - Gears 3-8	175 hp (131 kw)
Stroke	5 in (13 cm)
Tractor Engine	Cat 3116
Hydraulic System
Bowl Cylinder Bore	4 in (10 cm)
Bowl Cylinder Stroke	17 in (42 cm)
Ejector Cylinder Bore	4 in (9 cm)
Ejector Cylinder Stroke	36 in (91 cm)
Scraper Circuit	27 gpm (102 lpm)
Steering Circuit	22 gpm (83 lpm)
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	10 gal (39 l)
Engine Oil Capacity	5 gal (20 l)
Engine Oil Fluid Capacity	5 gal (20 l)
Operating Voltage	24 volts
Tire Size	23.5R25
Wheel Coolant Fluid Capacity - each	2 gal (6 l)
Scraper Bowl
Capacity - Struck	9 cu yd (7 cu m)
Depth of Cut - Maximum	6 in (16 cm)
Depth of Spread - Maximum	15 in (37 cm)
Ground Clearance - Maximum	18 in (45 cm)
Rated Load	26,400 lbs (11,975 kg)
Scraper Capacity - Heaped	11 cu yd (8 cu m)
Width - Cut - To Router Bits	8 in (20 cm)
Scraper Engine
Displacement	403 cu in (6,601 cu cm)
Service Refill Capacities
Cooling System	10 gal (39 l)
Crankcase	5 gal (20 l)
Differential	5 gal (19 l)
Final Drive - Each	2 gal (6 l)
Fuel Tank	66 gal (250 l)
Hydraulic Reservoir	26 gal (100 l)
Transmission	9 gal (35 l)
Tractor Engine
Aspiration	turbocharged
Displacement	403 cu in (6,604 cu cm)
Gross Power	187 hp (139 kw)
Make	Caterpillar
Net Power	175 hp (131 kw)
Power Measured @	2,300 rpm
Transmission
1 Forward	2 mph (4 kph)
2 Forward	4 mph (6 kph)
3 Forward	6 mph (9 kph)
4 Forward	9 mph (14 kph)
5 Forward	15 mph (24 kph)
6 Forward	22 mph (35 kph)
Max Speed Reverse	2 mph (4 kph)
Number of Forward Gears	6
Number of Reverse Gears	1
Reverse	2 mph (3 kph)
Top Speed - Loaded	22 mph (35 kph)
Transmission Type	powershift manual transmission
Weights
Front Axle	21,100 lbs (9,571 kg)
Front Axle Weight - Loaded	29,438 lbs (13,353 kg)
Rear Axle	12,550 lbs (5,693 kg)
Rear Axle - Weight - Loaded	30,612 lbs (13,885 kg)
Total Operating - Loaded	60,050 lbs (27,238 kg)
