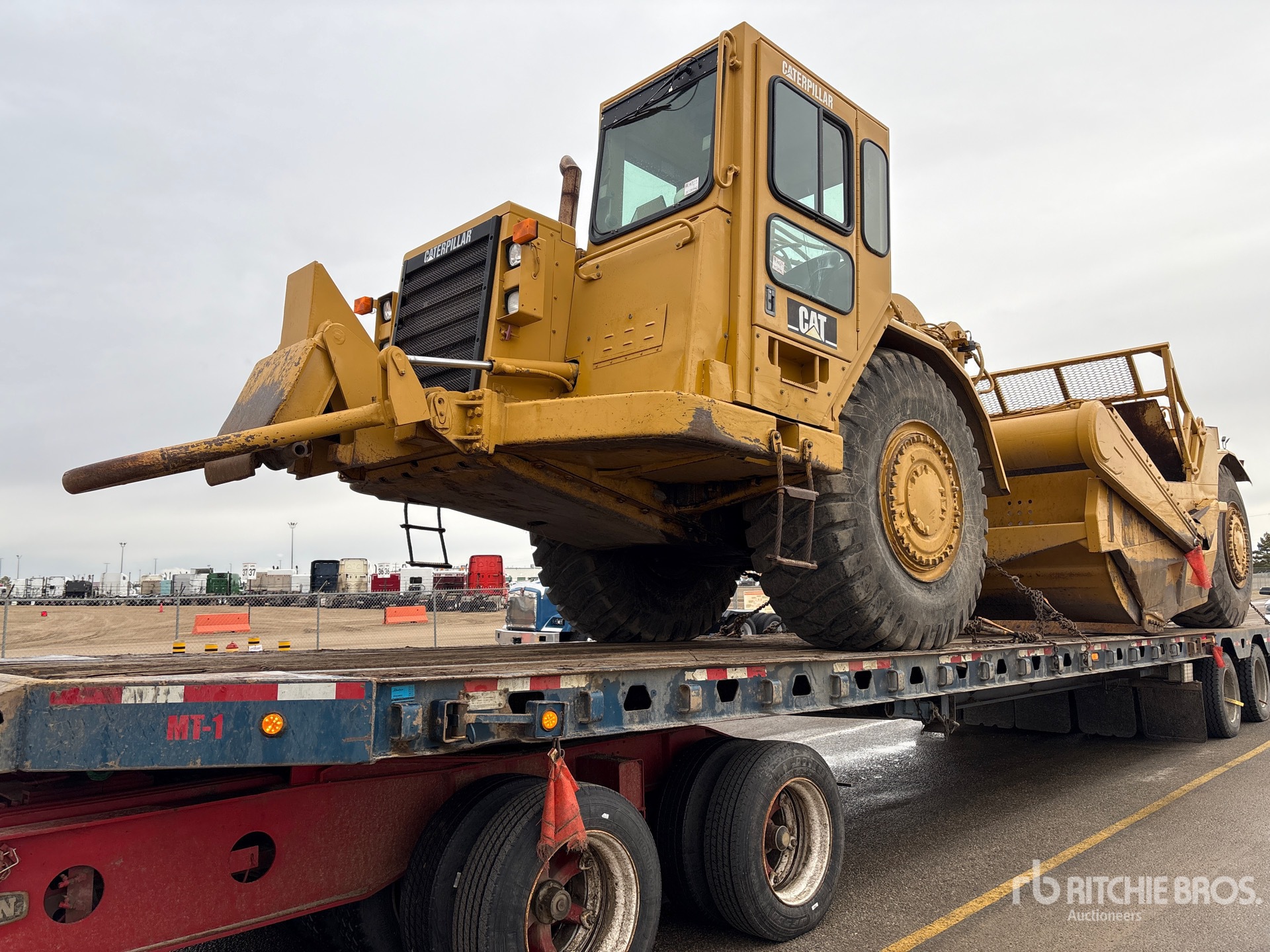

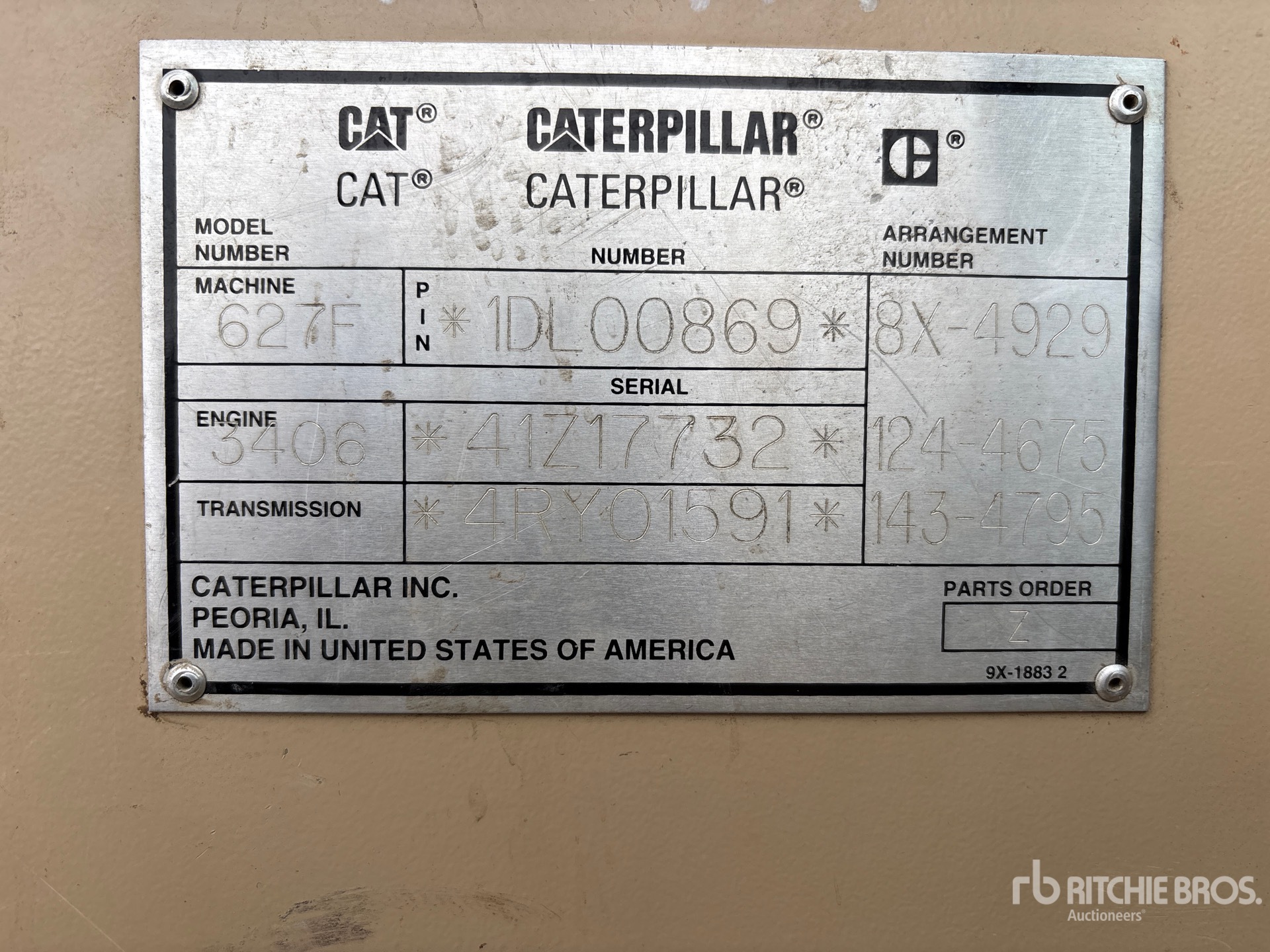

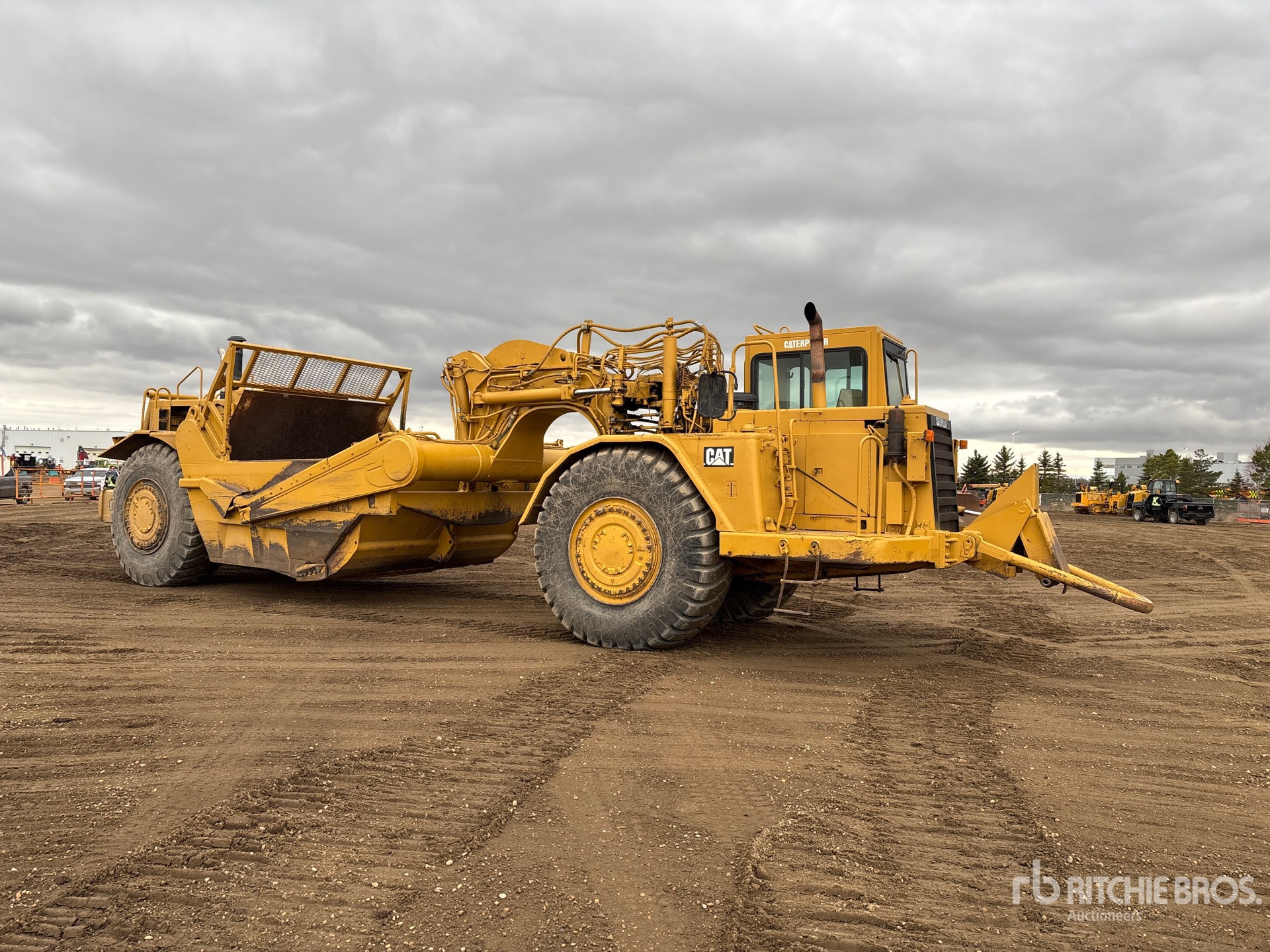

| Bowl |
|
Heaped Capacity |
26 cu yd (20 cu m)
|
|
Struck Capacity |
18 cu yd (14 cu m)
|
|
Width of Cut |
10 ft (3 m)
|
| Dimensions |
|
Axle to Vertical Hitch Pin |
17 in (43 cm)
|
|
Bail Length - Maximum (Push-Pull) |
60 in (152 cm)
|
|
Extended Push Block (Push-Pull) |
110 in (279 cm)
|
|
Front of Tractor to Front Axle |
11 in (27 cm)
|
|
Ground Clearance - Tractor |
2 in (5 cm)
|
|
Height - Overall Shipping |
146 in (371 cm)
|
|
Height - Scraper Blade Maximum |
21 in (53 cm)
|
|
Height - Top of Cab |
11 ft (3 m)
|
|
Length - Overall Machine |
507 in (1,288 cm)
|
|
Overall Height |
12 ft (4 m)
|
|
Overall Length |
42 ft (13 m)
|
|
Overall Width |
11 ft (3 m)
|
|
Rear Axle - Rear of Machine |
85 in (216 cm)
|
|
Wheel Base |
25 ft (8 m)
|
|
Width - Inside of Bowl |
116 in (295 cm)
|
|
Width - Outside Rear Tires |
120 in (305 cm)
|
|
Width - Overall Machine |
136 in (345 cm)
|
|
Width - Rear Tire Center Lines |
87 in (221 cm)
|
|
Width - Tractor |
117 in (297 cm)
|
| Engine |
|
Scraper Engine |
3,306 |
|
Tractor Engine |
3306 / 3406C |
| Hydraulic System |
|
Apron Cylinder Bore |
7 in (19 cm)
|
|
Apron Cylinder Stroke |
24 in (61 cm)
|
|
Bowl Cylinder Bore |
6 in (15 cm)
|
|
Bowl Cylinder Stroke |
32 in (81 cm)
|
|
Cushion Hitch Circuit |
9 gpm (35 lpm)
|
|
Ejector Cylinder Bore |
7 in (17 cm)
|
|
Ejector Cylinder Stroke |
61 in (155 cm)
|
|
Relief Valve - Implement Circuit |
2,150 psi |
|
Relief Valve - Steering Circuit |
2,250 psi |
|
Scraper Circuit |
66 gpm (248 lpm)
|
|
Secondary Steering Circuit |
37 gpm (140 lpm)
|
|
Steering Circuit |
52 gpm (197 lpm)
|
| Operating Specifications |
|
Fuel Capacity |
262 gal (992 l)
|
|
Hydraulic System Fluid Capacity |
37 gal (140 l)
|
|
Tire Size |
33.25-R29 MX XRB 2 |
| Scraper Bowl |
|
Apron Closure Force |
24,075 lbs (10,920 kg)
|
|
Apron Opening |
70 in (178 cm)
|
|
Capacity - Struck |
14 cu yd (11 cu m)
|
|
Cutting Edge Thickness |
1 in (3 cm)
|
|
Depth of Cut - Maximum |
13 in (33 cm)
|
|
Depth of Spread - Maximum |
21 in (52 cm)
|
|
Ground Clearance - Maximum |
21 in (52 cm)
|
|
Hyd. Penetration Force - 621G |
48,375 lbs (21,943 kg)
|
|
Rated Load |
48,000 lbs (21,772 kg)
|
|
Scraper Capacity - Heaped |
20 cu yd (15 cu m)
|
|
Width - Cut - To Router Bits |
119 in (302 cm)
|

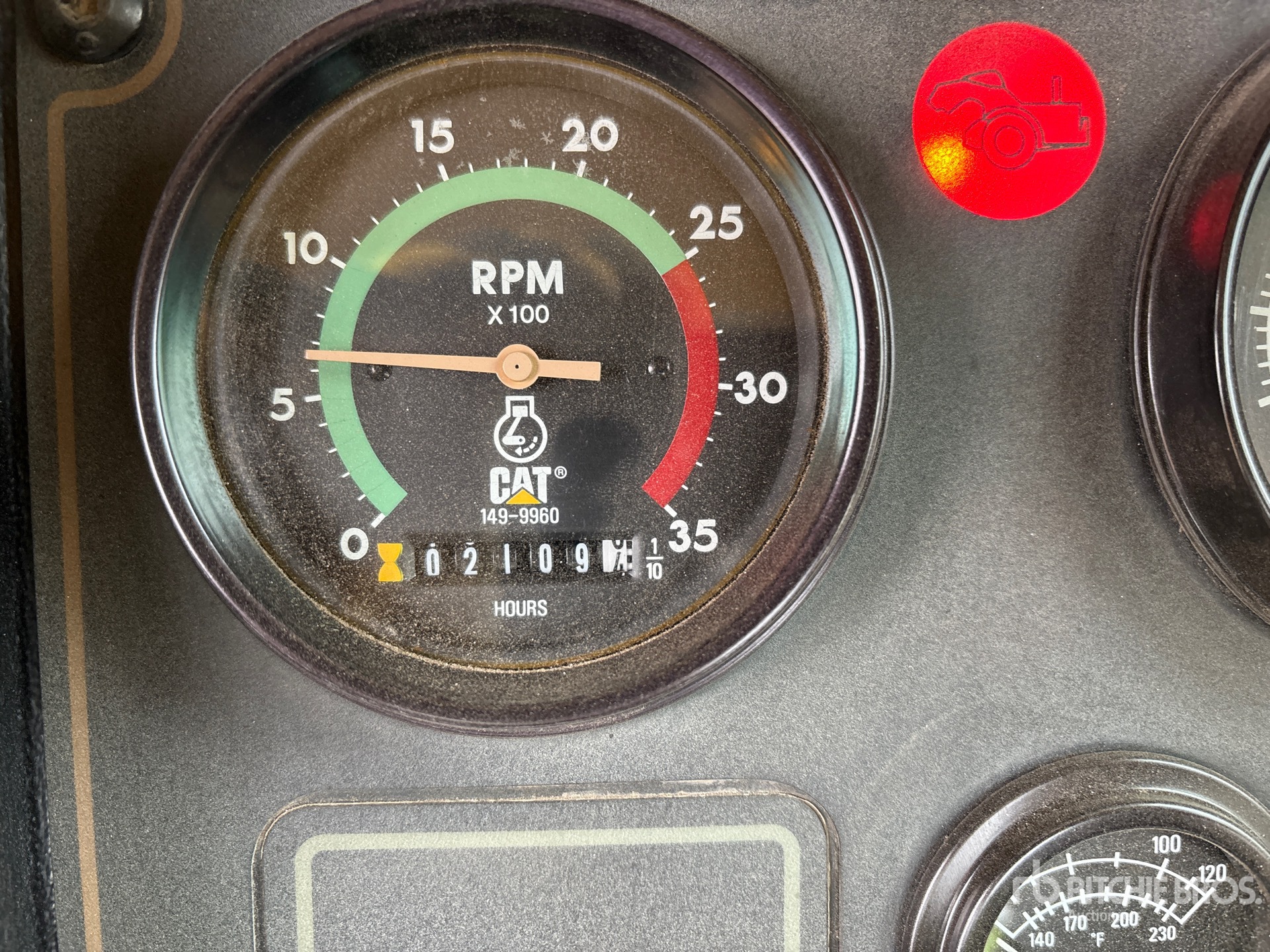

| Scraper Engine |
|
Bore |
5 in (12 cm)
|
|
Displacement |
638 cu in (10,455 cu cm)
|
|
Gross Power |
246 hp (183 kw)
|
|
Gross Power - Gear 1 |
246 hp (183 kw)
|
|
Make |
Caterpillar |
|
Net Power - Gear 1 |
225 hp (168 kw)
|
|
Power Measured @ |
2,200 rpm |
|
Stroke |
6 in (15 cm)
|
| Service Refill Capacities - Tractor |
|
Cooling System |
22 gal (83 l)
|
|
Crankcase |
10 gal (36 l)
|
|
Differential |
43 gal (163 l)
|
|
Final Drive - Each |
5 gal (19 l)
|
|
Hydraulic Reservoir |
37 gal (140 l)
|
|
Transmission |
19 gal (72 l)
|
|
Wheel Coolant - Each |
12 gal (45 l)
|
| Steering System |
|
Steering Angle - Left |
85 degrees |
|
Steering Angle - Right |
90 degrees |
|
Width - 180 degrees Turn |
36 ft (11 m)
|
| Tractor Engine |
|
Bore |
5 in (14 cm)
|
|
Caterpillar Net Power |
330 hp (246 kw)
|
|
Displacement |
893 cu in (14,634 cu cm)
|
|
EEC 80/1269 |
330 hp (246 kw)
|
|
Gross Power |
347 hp (259 kw)
|
|
ISO 9249 |
330 hp (246 kw)
|
|
Net Power |
327 hp (244 kw)
|
|
Net Power - Gears 1-2 |
330 hp (246 kw)
|
|
SAE J1349 |
327 hp (244 kw)
|
|
Stroke |
7 in (17 cm)
|
| Transmission |
|
1 Forward |
3 mph (5 kph)
|
|
2 Forward |
6 mph (9 kph)
|
|
3 Forward |
7 mph (11 kph)
|
|
4 Forward |
10 mph (15 kph)
|
|
5 Forward |
13 mph (21 kph)
|
|
6 Forward |
18 mph (28 kph)
|
|
7 Forward |
24 mph (38 kph)
|
|
8 Forward |
32 mph (51 kph)
|
|
Number of Forward Gears |
8 |
|
Number of Reverse Gears |
1 |
|
Reverse |
6 mph (9 kph)
|
| Weights |
|
Operating Weight |
84,050 lbs (38,124 kg)
|
|
Total Operating - Loaded |
80,599 lbs (36,559 kg)
|
| Weights - Standard, Tandem |
|
Front Axle |
49,590 lbs (22,494 kg)
|
|
Front Axle Weight - Loaded |
64,708 lbs (29,351 kg)
|
|
Rear Axle |
34,460 lbs (15,631 kg)
|
|
Rear Axle - Weight - Loaded |
67,350 lbs (30,549 kg)
|
|
Scraper Shipping |
32,669 lbs (14,818 kg)
|
|
Total Operating - Empty |
84,050 lbs (38,124 kg)
|
|
Total Operating - Loaded |
132,057 lbs (59,900 kg)
|
|
Total Shipping |
83,768 lbs (37,997 kg)
|
|
Tractor Shipping |
51,098 lbs (23,178 kg)
|
