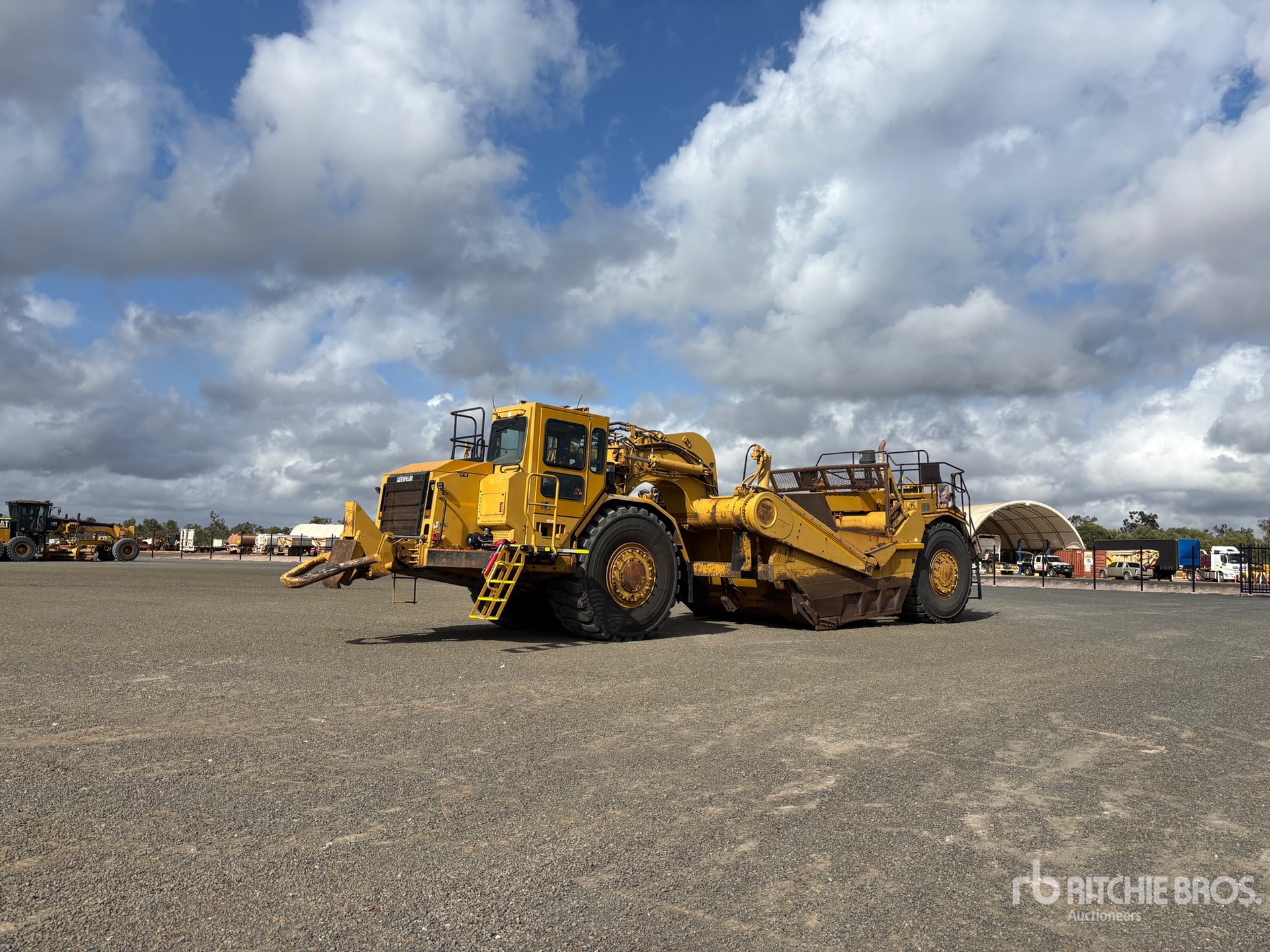

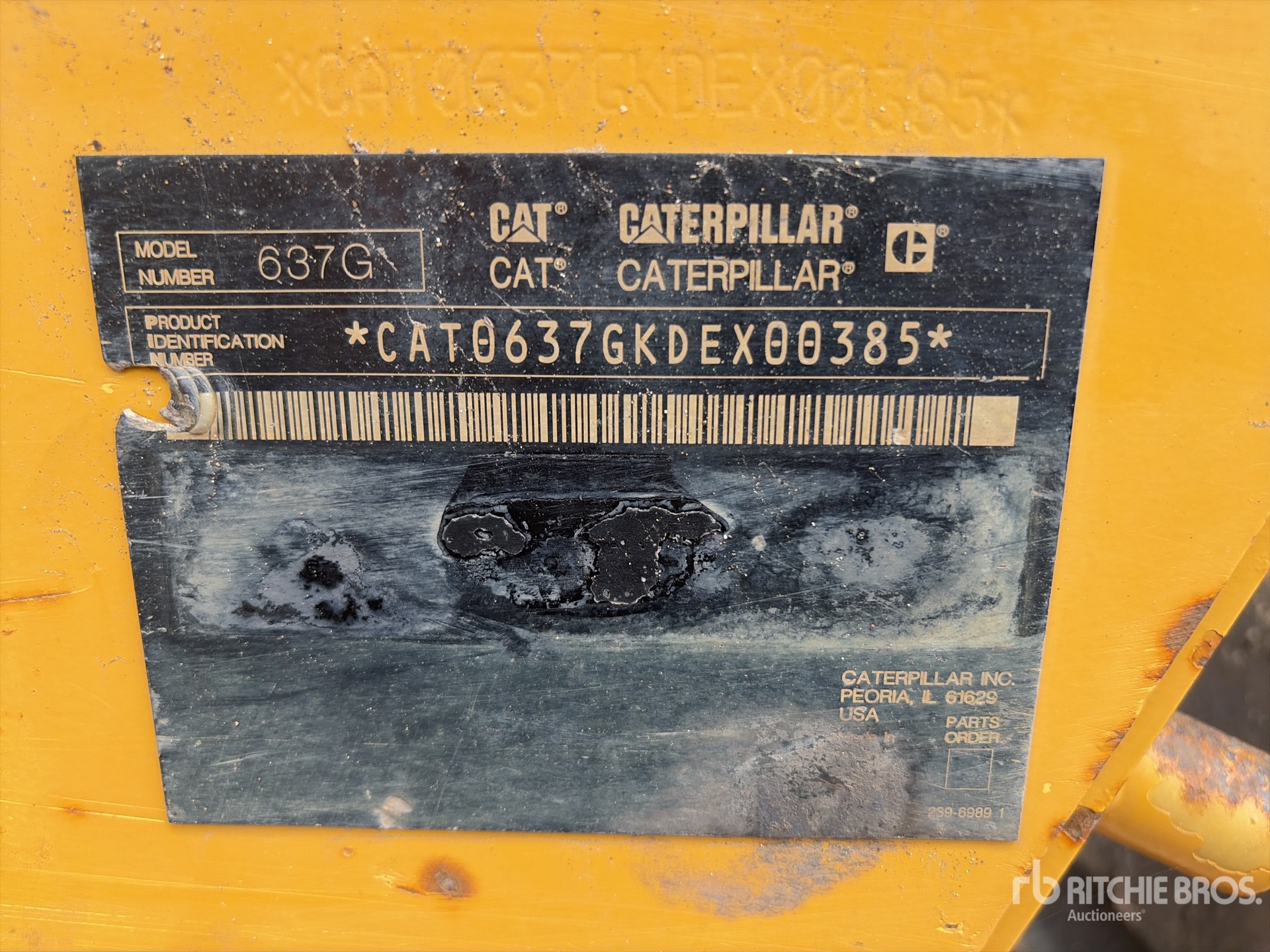

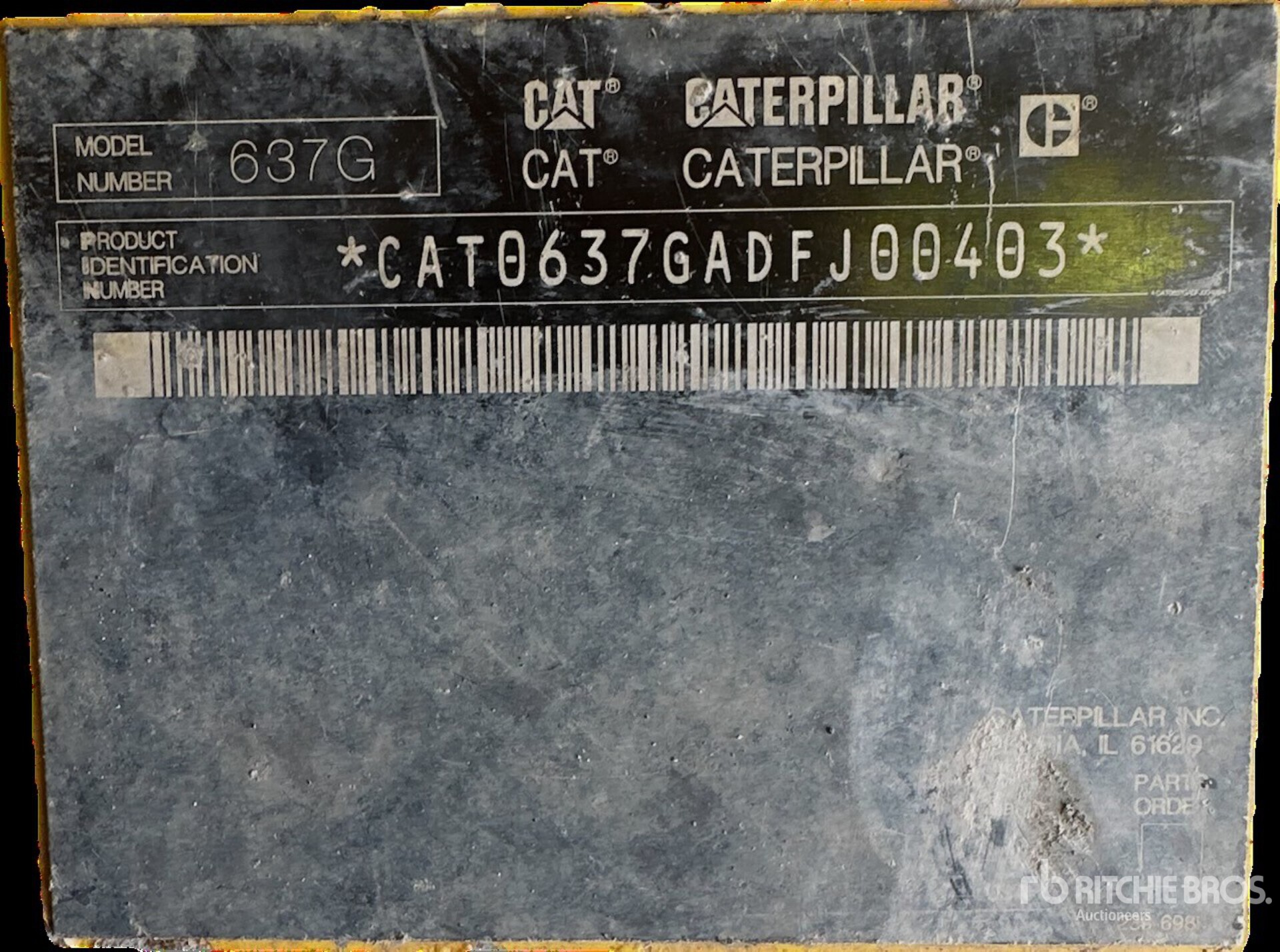

| Bowl |
|
Heaped Capacity |
31 cu yd (24 cu m)
|
|
Max Depth of Cut |
17 in (44 cm)
|
|
Rated Payload |
75,000 lbs (34,019 kg)
|
|
Struck Capacity |
21 cu yd (16 cu m)
|
|
Width of Cut |
12 ft (4 m)
|
| Dimensions |
|
Axle to Vertical Hitch Pin |
22 in (55 cm)
|
|
Bail Length - Maximum (Push-Pull) |
195 in (496 cm)
|
|
Extended Push Block (Push-Pull) |
108 in (274 cm)
|
|
Front of Tractor to Front Axle |
135 in (344 cm)
|
|
Ground Clearance - Tractor |
26 in (67 cm)
|
|
Height - Overall Shipping |
169 in (429 cm)
|
|
Height - Scraper Blade Maximum |
22 in (55 cm)
|
|
Height - Top of Cab |
12 ft (4 m)
|
|
Length - Overall Machine |
573 in (1,456 cm)
|
|
Overall Height |
14 ft (4 m)
|
|
Overall Length |
48 ft (15 m)
|
|
Overall Width |
13 ft (4 m)
|
|
Rear Axle - Rear of Machine |
96 in (243 cm)
|
|
Tractor Ground Clearance |
2 ft (1 m)
|
|
Wheel Base |
29 ft (9 m)
|
|
Wheelbase |
29 ft (9 m)
|
|
Width - Inside of Bowl |
134 in (340 cm)
|
|
Width - Outside Rear Tires |
143 in (364 cm)
|
|
Width - Overall Machine |
155 in (394 cm)
|
|
Width - Rear Tire Center Lines |
97 in (246 cm)
|
|
Width - Tractor |
137 in (348 cm)
|
| Engine |
|
Flywheel Power - Tractor/Scraper |
373 kw (500) / 211 kW (283) |
|
Scraper Engine |
Cat C9 with ACERT Technology |
|
Tractor Engine |
Cat C18 with ACERT Technology |
| Hydraulic System |
|
Apron Cylinder Bore |
8 in (21 cm)
|
|
Apron Cylinder Stroke |
29 in (73 cm)
|
|
Bowl Cylinder Bore |
7 in (19 cm)
|
|
Bowl Cylinder Stroke |
34 in (87 cm)
|
|
Compensator Settings - Cushion Hitch Circuit |
2,320 psi |
|
Cushion Hitch Circuit |
9 gpm (34 lpm)
|
|
Ejector Cylinder Bore |
8 in (21 cm)
|
|
Ejector Cylinder Stroke |
74 in (188 cm)
|
|
Relief Valve - Implement Circuit |
2,030 psi |
|
Relief Valve - Steering Circuit |
1,987 psi |
|
Scraper Circuit |
91 gpm (344 lpm)
|
|
Secondary Steering Circuit |
100 gpm (379 lpm)
|
|
Steering Circuit |
100 gpm (379 lpm)
|

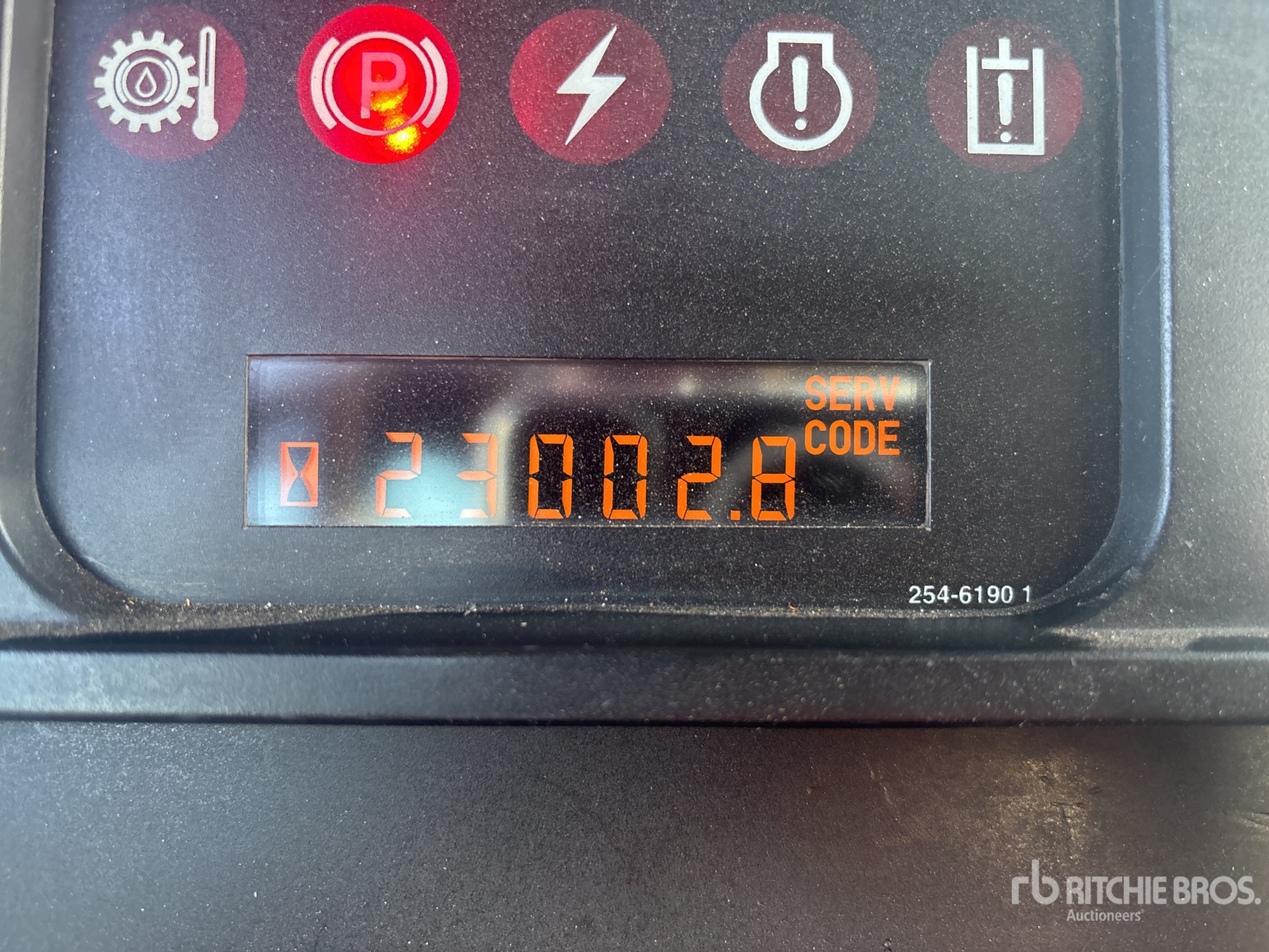

| Operating Specifications |
|
Alternator Supplied Amperage |
75 amps |
|
Cooling System Fluid Capacity |
52 gal (197 l)
|
|
Differential Fluid Capacity |
41 gal (153 l)
|
|
Engine Oil Fluid Capacity |
19 gal (72 l)
|
|
Fuel Capacity |
335 gal (1,268 l)
|
|
Hydraulic System Fluid Capacity |
50 gal (189 l)
|
|
Operating Voltage |
24 volts |
|
Rated Load |
76,000 lbs (34,473 kg)
|
|
Scraper Capacity - Heaped |
50 cu yd (38 cu m)
|
|
Scraper Capacity - Struck |
41 cu yd (31 cu m)
|
|
Tire Size |
37.50-R35 |
|
Top Speed - Loaded |
33 mph (53 kph)
|
|
Transmission Fluid Capacity |
46 gal (173 l)
|
|
Wheel Coolant Fluid Capacity - each |
39 gal (148 l)
|
| Scraper Bowl |
|
Apron Closure Force |
38,250 lbs (17,350 kg)
|
|
Apron Opening |
79 in (201 cm)
|
|
Capacity - Struck |
24 cu yd (18 cu m)
|
|
Cutting Edge Thickness |
1 in (3 cm)
|
|
Depth of Cut - Maximum |
17 in (44 cm)
|
|
Depth of Spread - Maximum |
19 in (48 cm)
|
|
Ground Clearance - Maximum |
22 in (55 cm)
|
|
Hyd. Penetration Force - 621G |
81,000 lbs (36,741 kg)
|
|
Rated Load |
82,260 lbs (37,313 kg)
|
|
Scraper Capacity - Heaped |
34 cu yd (26 cu m)
|
|
Width - Cut - To Router Bits |
138 in (351 cm)
|
| Scraper Engine |
|
Bore |
5 in (11 cm)
|
|
Displacement |
538 cu in (8,816 cu cm)
|
|
Gross Power |
270 hp (201 kw)
|
|
Gross Power - Gear 1 |
274 hp (204 kw)
|
|
Make |
Caterpillar |
|
Net Power - Gear 1 |
249 hp (186 kw)
|
|
Stroke |
6 in (15 cm)
|
| Service Refill Capacities - Scraper |
|
Cooling System |
20 gal (76 l)
|
|
Differential |
3 gal (12 l)
|
|
Final Drive - Each |
5 gal (19 l)
|
|
Transmission |
19 gal (72 l)
|
|
Wheel Coolant - Each |
20 gal (75 l)
|
| Service Refill Capacities - Tractor |
|
Cooling System |
29 gal (110 l)
|
|
Crankcase |
12 gal (45 l)
|
|
Differential |
39 gal (148 l)
|
|
Final Drive - Each |
6 gal (23 l)
|
|
Hydraulic Reservoir |
50 gal (190 l)
|
|
Transmission |
29 gal (110 l)
|
|
Wheel Coolant - Each |
20 gal (75 l)
|
|
Windshield Washer |
2 gal (6 l)
|
| Standards |
|
Brakes |
Meets ISO |
| Steering System |
|
Hydraulic Output |
100 gpm (379 lpm)
|
|
Steering Angle - Left |
85 degrees |
|
Steering Angle - Right |
90 degrees |
|
Width - 180 degrees Turn |
40 ft (12 m)
|
| Tractor Engine |
|
Bore |
5 in (14 cm)
|
|
Displacement |
1,099 cu in (18,009 cu cm)
|
|
Flywheel Power - Tractor/Scraper |
336 kW (450) / 186 kW (249) |
|
Gross Power |
515 hp (384 kw)
|
|
Gross Power - Gears 3-8 |
519 hp (387 kw)
|
|
Make |
Caterpillar |
|
Net Power - Gears 1-2 |
450 hp (336 kw)
|
|
Net Power - Gears 3-8 |
485 hp (362 kw)
|
|
Stroke |
6 in (15 cm)
|
| Transmission |
|
1 Forward |
3 mph (5 kph)
|
|
2 Forward |
6 mph (10 kph)
|
|
3 Forward |
8 mph (12 kph)
|
|
4 Forward |
10 mph (17 kph)
|
|
5 Forward |
14 mph (22 kph)
|
|
6 Forward |
19 mph (30 kph)
|
|
7 Forward |
25 mph (41 kph)
|
|
8 Forward |
34 mph (55 kph)
|
|
Max Speed Forward |
34 mph (55 kph)
|
|
Max Speed Reverse |
6 mph (10 kph)
|
|
Number of Forward Gears |
8 |
|
Number of Reverse Gears |
1 |
|
Reverse |
6 mph (10 kph)
|
|
Top Speed - Loaded |
33 mph (53 kph)
|
| Weights |
|
Front Axel - loaded |
92,975 lbs (42,173 kg)
|
|
Front Axle - empty |
67,700 lbs (30,708 kg)
|
|
Operating Weight |
114,744 lbs (52,047 kg)
|
|
Operating Weight - Loaded - Approximate |
194,909 lbs (88,409 kg)
|
|
Rear Axle - empty |
47,045 lbs (21,339 kg)
|
|
Rear Axle - loaded |
96,770 lbs (43,894 kg)
|
|
Total Operating - empty |
114,745 lbs (52,048 kg)
|
|
Total Operating - Loaded |
189,745 lbs (86,067 kg)
|
| Weights - Push-Pull |
|
Front Axle |
69,670 lbs (31,602 kg)
|
|
Front Axle - Loaded |
98,139 lbs (44,515 kg)
|
|
Rear Axle |
48,414 lbs (21,960 kg)
|
|
Rear Axle - Loaded |
102,145 lbs (46,332 kg)
|
|
Scraper Shipping |
47,601 lbs (21,591 kg)
|
|
Total Operating - Empty |
118,084 lbs (53,562 kg)
|
|
Total Operating - Loaded |
200,284 lbs (90,847 kg)
|
|
Total Shipping |
116,100 lbs (52,662 kg)
|
|
Tractor Shipping |
68,499 lbs (31,071 kg)
|
| Weights - Standard, Tandem |
|
Front Axle |
67,700 lbs (30,708 kg)
|
|
Front Axle Weight - Loaded |
96,503 lbs (43,773 kg)
|
|
Rear Axle |
47,044 lbs (21,339 kg)
|
|
Rear Axle - Weight - Loaded |
100,441 lbs (45,559 kg)
|
|
Scraper Shipping |
46,231 lbs (20,970 kg)
|
|
Total Operating - Empty |
114,744 lbs (52,047 kg)
|
|
Total Operating - Loaded |
196,944 lbs (89,332 kg)
|
|
Total Shipping |
112,760 lbs (51,147 kg)
|
|
Tractor Shipping |
66,529 lbs (30,177 kg)
|
