Equipment ↠ Caterpillar ↠ Scrapers ↠ 2001 Caterpillar 651E

2001 Caterpillar 651E For Sale in Ocana, Esp

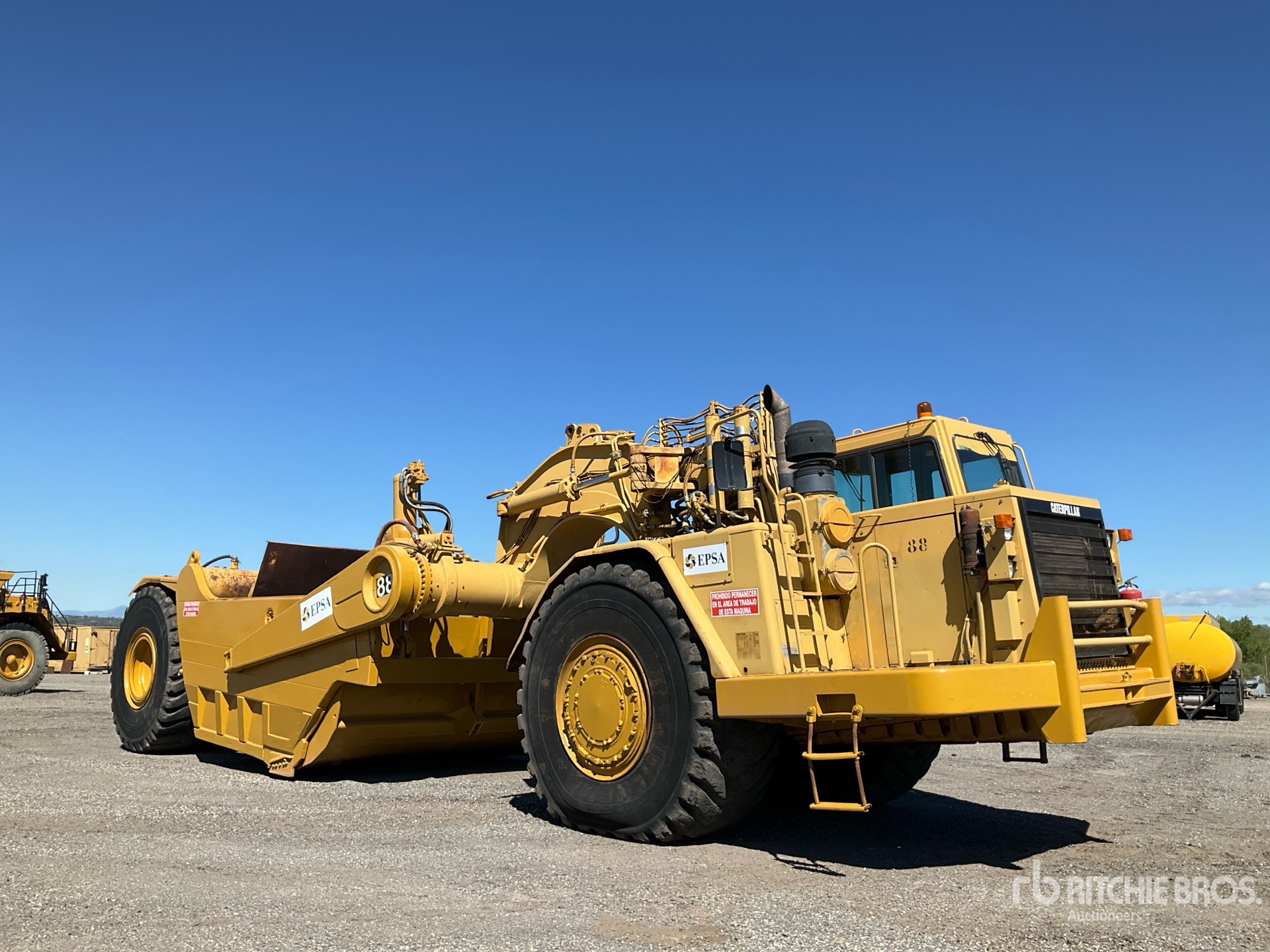

Name: 2001 Caterpillar 651E
Brand: Caterpillar
SKU: 86998183
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-05 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

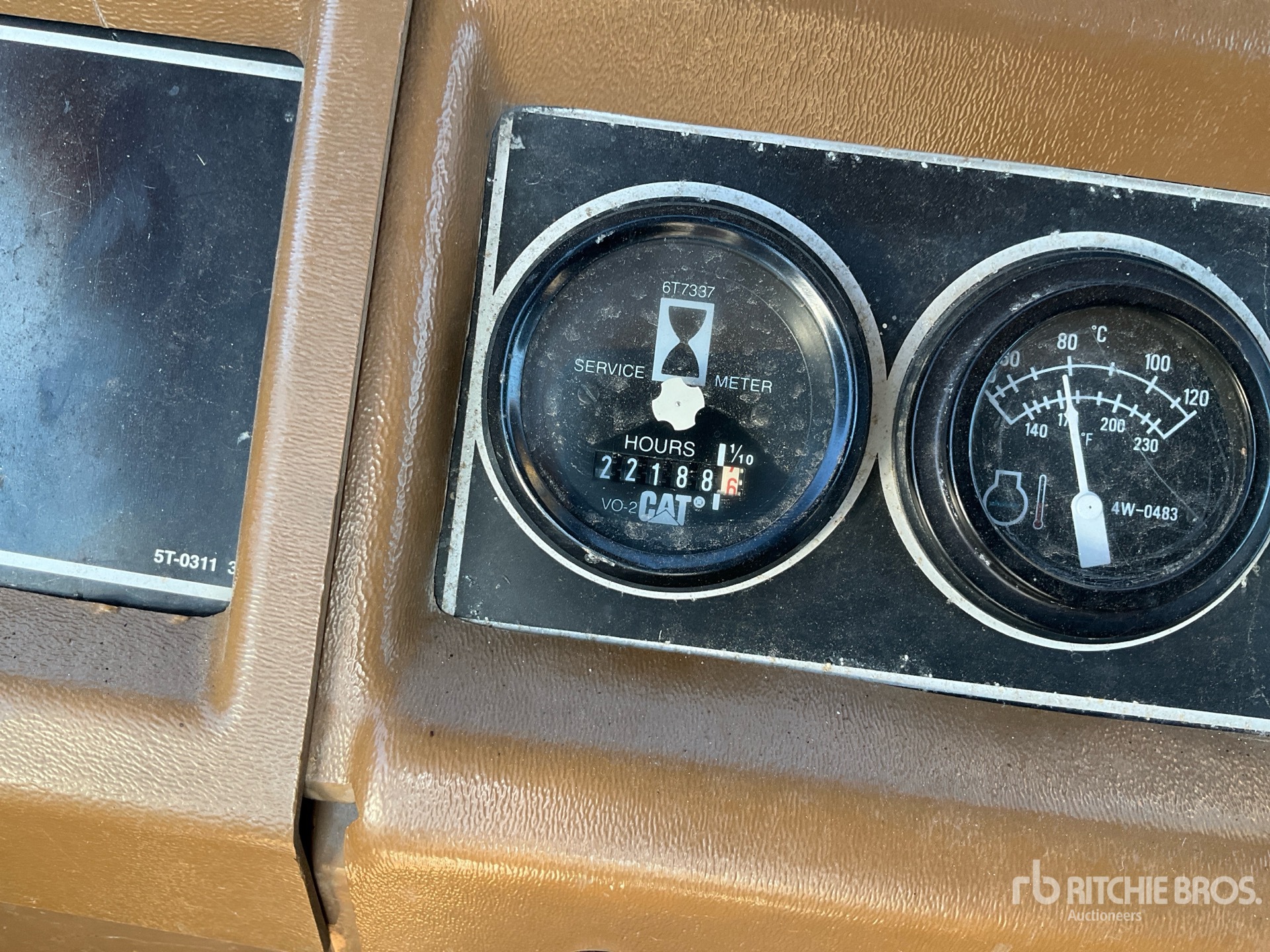

Hours:	22188

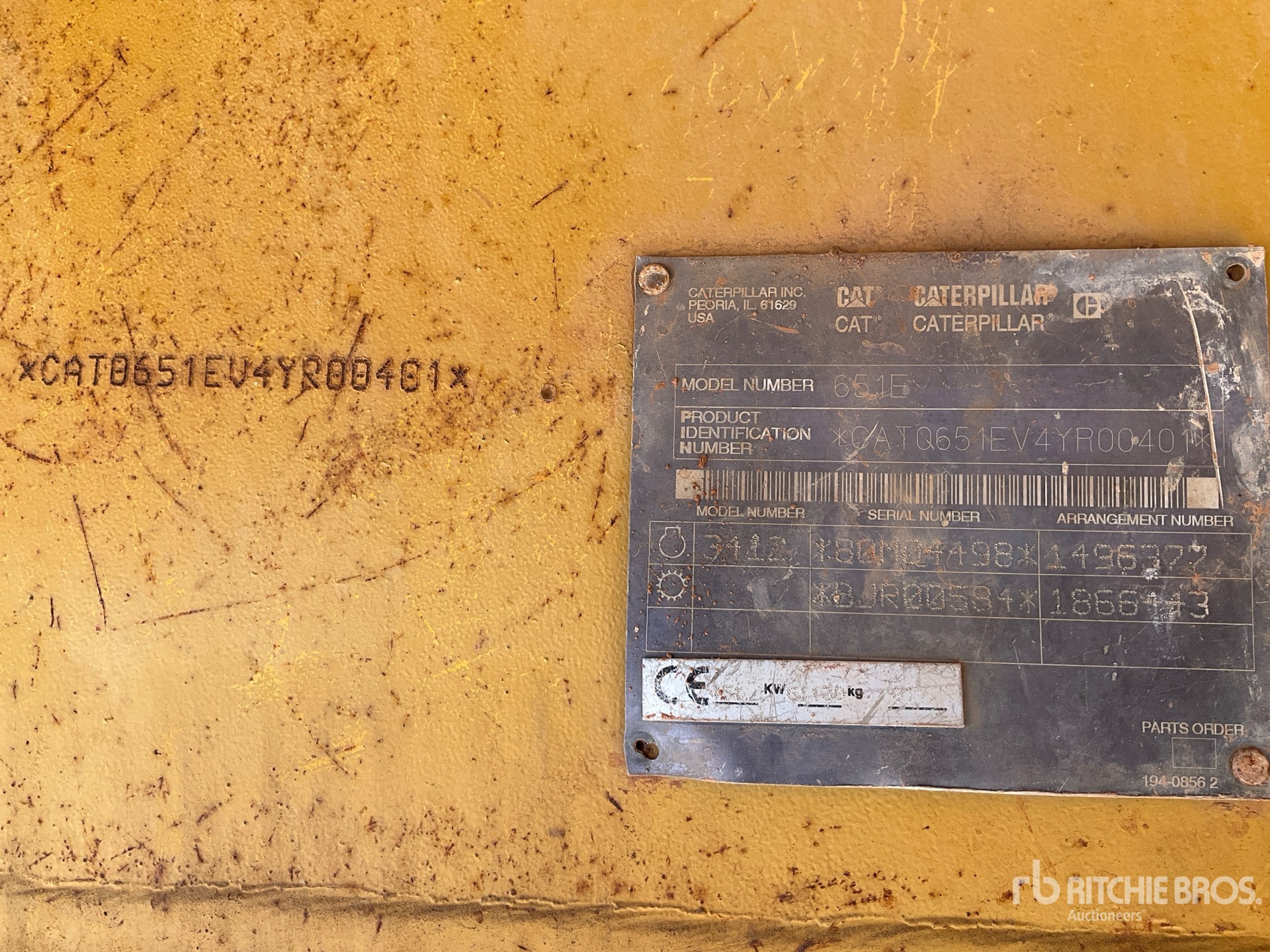

Serial Number:	CAT0651EV4YR00401
Machine Location:	OCANA, ESP

Description:

Enclosed Cab, Air Conditioner, Fast Fuel System COMES WITH IRONCLAD ASSURANCE. SUBJECT TO MADRID SALES TAX. Closing Time: 2026-05-12 10:32:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bowl
Heaped Capacity	44 cu yd (34 cu m)
Max Depth of Cut	26 in (66 cm)
Rated Payload	104,058 lbs (47,200 kg)
Struck Capacity	32 cu yd (25 cu m)
Width of Cut	13 ft (4 m)
Dimensions
Front of Tractor to Front Axle	148 in (377 cm)
Height - Overall Shipping	185 in (471 cm)
Height - Scraper Blade Maximum	27 in (68 cm)
Height - Top of Cab	13 ft (4 m)
Length - Overall Machine	637 in (1,618 cm)
Overall Height	16 ft (5 m)
Overall Length	53 ft (16 m)
Overall Width	14 ft (4 m)
Rear Axle - Rear of Machine	96 in (244 cm)
Wheel Base	33 ft (10 m)
Wheelbase	33 ft (10 m)
Width - Inside of Bowl	154 in (391 cm)
Width - Overall Machine	171 in (434 cm)
Width - Rear Tire Center Lines	111 in (281 cm)
Width - Tractor	142 in (360 cm)
Engine
Tractor Engine	3412E
Hydraulic System
Apron Cylinder Bore	9 in (24 cm)
Apron Cylinder Stroke	30 in (76 cm)
Bowl Cylinder Bore	9 in (24 cm)
Bowl Cylinder Stroke	38 in (95 cm)
Compensator Settings - Cushion Hitch Circuit	2,640 psi
Cushion Hitch Circuit	10 gpm (38 lpm)
Ejector Cylinder Stroke	77 in (195 cm)
Relief Valve - Implement Circuit	2,000 psi
Relief Valve - Steering Circuit	1,960 psi
Scraper Circuit	153 gpm (579 lpm)
Secondary Steering Circuit	61 gpm (232 lpm)
Steering Circuit	115 gpm (435 lpm)
Operating Specifications
Fuel Capacity	260 gal (985 l)
Tire Size	37.5R39 Radial (E-3)
Scraper Bowl
Apron Closure Force	39,200 lbs (17,781 kg)
Apron Opening	92 in (234 cm)
Capacity - Struck	32 cu yd (24 cu m)
Cutting Edge Thickness	2 in (5 cm)
Depth of Cut - Maximum	17 in (44 cm)
Depth of Spread - Maximum	23 in (58 cm)
Ground Clearance - Maximum	23 in (58 cm)
Hyd. Penetration Force - 621G	121,000 lbs (54,885 kg)
Rated Load	104,000 lbs (47,174 kg)
Scraper Capacity - Heaped	44 cu yd (34 cu m)
Width - Cut - To Router Bits	151 in (385 cm)
Service Refill Capacities - Tractor
Cooling System	37 gal (140 l)
Crankcase	18 gal (68 l)
Differential	35 gal (132 l)
Final Drive - Each	6 gal (23 l)
Hydraulic Reservoir	79 gal (299 l)
Transmission	36 gal (136 l)
Wheel Coolant - Each	34 gal (129 l)
Steering System
Ground-Driven Secondary Steering System	61 gpm (232 lpm)
Hydraulic Output	153 gpm (578 lpm)
Steering Angle - Left	85 degrees
Steering Angle - Right	90 degrees
Width - 180 degrees Turn	45 ft (14 m)
Tractor Engine
Bore	5 in (14 cm)
Caterpillar Net Power	550 hp (410 kw)
Displacement	1,649 cu in (27,022 cu cm)
EEC 80/1269	550 hp (410 kw)
Flywheel Power - Tractor/Scraper	410 kW (550)
Gross Power	550 hp (410 kw)
Gross Power - Gears 3-8	632 hp (471 kw)
ISO 9249	550 hp (410 kw)
Make	Caterpillar
Net Power - Gears 1-2	550 hp (410 kw)
Net Power - Gears 3-8	605 hp (451 kw)
SAE J1349	544 hp (406 kw)
Stroke	6 in (15 cm)
Transmission
1 Forward	3 mph (5 kph)
2 Forward	6 mph (9 kph)
3 Forward	7 mph (11 kph)
4 Forward	9 mph (15 kph)
5 Forward	13 mph (20 kph)
6 Forward	17 mph (28 kph)
7 Forward	23 mph (37 kph)
8 Forward	31 mph (50 kph)
Max Speed Forward	31 mph (50 kph)
Number of Forward Gears	8
Reverse	6 mph (9 kph)
Weights
Front Axel - loaded	126,369 lbs (57,320 kg)
Front Axle - empty	88,685 lbs (40,227 kg)
Operating Weight	134,760 lbs (61,126 kg)
Rear Axle - empty	45,686 lbs (20,723 kg)
Rear Axle - loaded	112,061 lbs (50,830 kg)
Total Operating - empty	134,372 lbs (60,950 kg)
Total Operating - Loaded	238,430 lbs (108,150 kg)
Weights - Standard, Tandem
Front Axle	88,460 lbs (40,125 kg)
Front Axle Weight - Loaded	126,543 lbs (57,399 kg)
Rear Axle	46,300 lbs (21,001 kg)
Rear Axle - Weight - Loaded	112,217 lbs (50,901 kg)
Scraper Shipping	64,991 lbs (29,479 kg)
Total Operating - Empty	134,760 lbs (61,126 kg)
Total Operating - Loaded	238,760 lbs (108,300 kg)
Total Shipping	132,717 lbs (60,199 kg)
Tractor Shipping	67,726 lbs (30,720 kg)
