Equipment ↠ Caterpillar ↠ Skid Steer Loaders ↠ 2002 Caterpillar 226

2002 Caterpillar 226 For Sale in Phoenix, Az

Name: 2002 Caterpillar 226
Brand: Caterpillar
SKU: 87416142
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

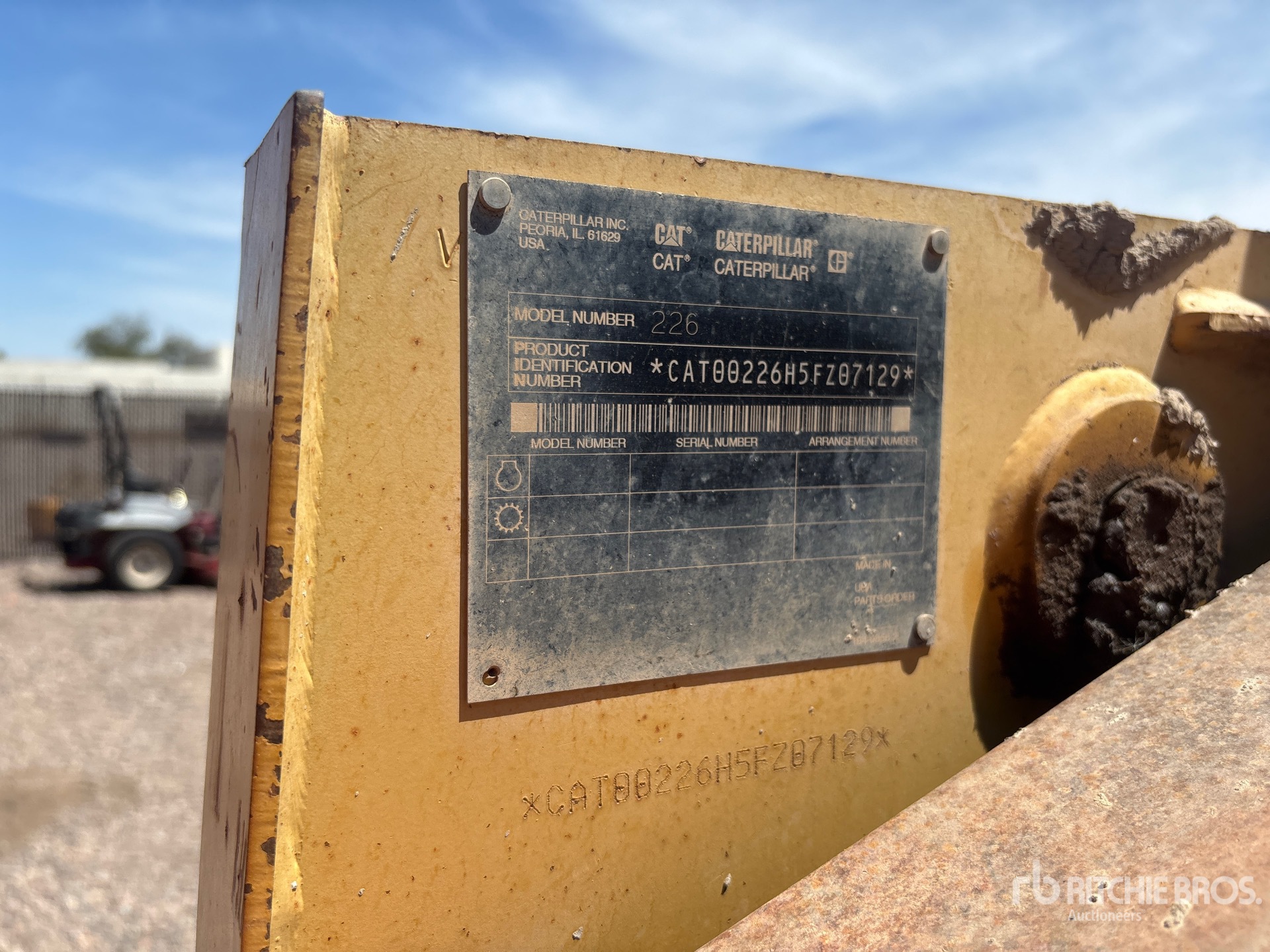

Serial Number:	CAT00226H5FZ07129
Machine Location:	PHOENIX, AZ

Description:

Located in Lane 1 Spot 6, Open Operator Station, Aperture Tires, 60 in Bucket ***Inoperable***, Buyer's Responsible for Removal of This Item Closing Time: 2026-05-21 04:44:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 226 is a compact skid steer loader designed for material handling, grading, loading, and general construction tasks. Part of Caterpillar's skid steer lineup, the 226 features a rigid frame, lift arms, and a small turning radius for operation in confined spaces. It is commonly used in landscaping, agriculture, site preparation, and utility work. The machine is typically equipped with a diesel engine, hydraulic attachment capability, and a cab or canopy configuration depending on specification. The Caterpillar 226 is recognized for its maneuverability, attachment versatility, and suitability for light to medium-duty jobsite applications.

Cab
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
ROPS	SAE J1040 MAY94 and ISO3471:1994
Dimensions
Bucket Pin Height - Carry Position	9 in (23 cm)
Bucket Pin Height - Maximum Lift	9 ft (3 m)
Bumper Overhang - Rear Axle	38 in (97 cm)
Clearance at Max Lift and Dump	7 ft (2 m)
Clearance at Maximum Lift and Dump	85 in (216 cm)
Ground Clearance	8 in (20 cm)
Length - With Bucket on Ground	127 in (323 cm)
Length - Without Bucket	99 in (251 cm)
Length w/o Bucket	8 ft (3 m)
Length with Bucket	11 ft (3 m)
Maximum Overall Height	146 in (371 cm)
Reach - Maximum Lift/Dump	20 in (51 cm)
Reach at Max Lift and Dump	22 in (55 cm)
Turning Radius from Center - inc bucket	79 in (202 cm)
Vehicle Width over Tires	60 in (152 cm)
Wheel Base	3 ft (1 m)
Wheelbase	3 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Bore	4 in (10 cm)
Displacement	183 cu in (2,999 cu cm)
Engine Make	Caterpillar
Engine Model	Cat 3034C
Net Flywheel Power	41 hp (31 kw)
Number of Cylinders	4
Power Measured @	2,600 rpm
Stroke	4 in (10 cm)
Hydraulic System
Hydraulic Flow	Standard flow
Loader Hydraulic Flow	15 gpm (57 lpm)
Loader Hydraulic Pressure	3,300 psi
Pump Flow Capacity	15 gpm (58 lpm)
Loader
Bucket Capacity	1 cu yd (0 cu m)
Operating Load Rating	1,500 lbs (680 kg)
Tipping Angle	2,710 degrees
Operating Specifications
Breakout Force - Lift Cylinder	3,136 lbs (1,422 kg)
Breakout Force - Tilt Cylinder	3,903 lbs (1,770 kg)
Fuel Capacity	16 gal (60 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed	7 mph (11 kph)
Operating Speed	7 mph (11 kph)
Operational Weight	5,830 lbs (2,644 kg)
Rated Operating Capacity	1,500 lbs (680 kg)
Rated Operating Capacity with Optional Counterweight	1,600 lbs (726 kg)
Tipping Load	3,000 lbs (1,361 kg)
Service Refill Capacities
Chain Box - Each Side	2 gal (6 l)
Cooling System	3 gal (10 l)
Engine Crankcase	2 gal (9 l)
Fuel Tank	17 gal (64 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Weights
Operating Weight	5,645 lbs (2,561 kg)
