Equipment ↠ Caterpillar ↠ Skid Steer Loaders ↠ 2008 Caterpillar 232B

2008 Caterpillar 232B For Sale in Aberdeen, SD

Name: 2008 Caterpillar 232B
Brand: Caterpillar
SKU: 87003924
Price: 21900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $21,900.00 USD

Apply for Financing

JGE Inc.

JGE Inc. Dealer Info

Click here to email JGE Inc..

Click for Phone Number

Machine Info:

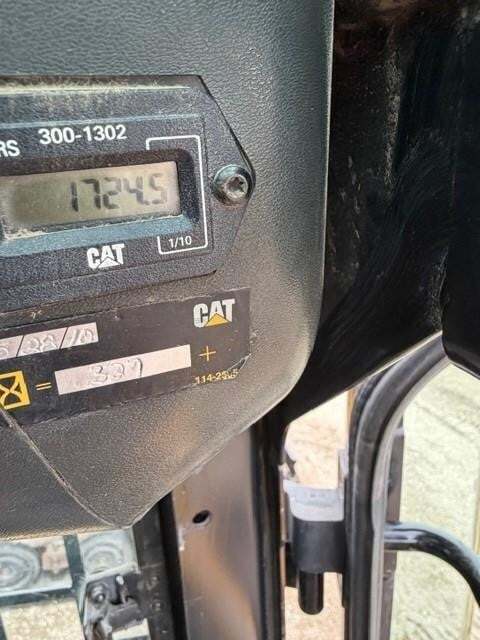

Hours:	1725
Stock Number:	CAT0232BCSCH03339
Machine Location:	ABERDEEN, SD
More Information:	https://jgeinc.com/inventory/skid+steers/2008-caterpillar-232b-aberdeen-sd-69dfd2be37274a3c560b709a/

Description:

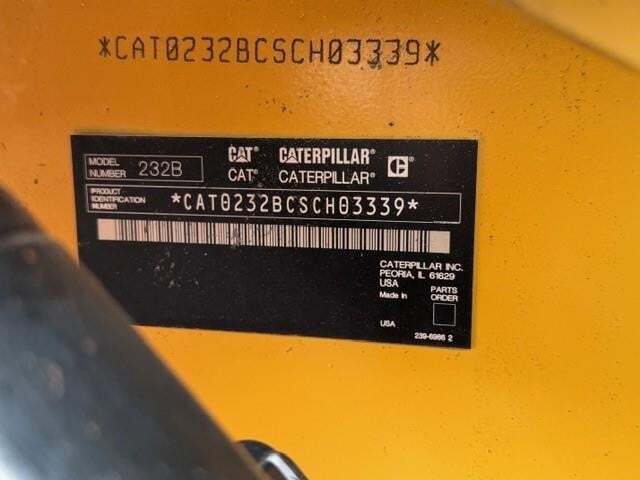

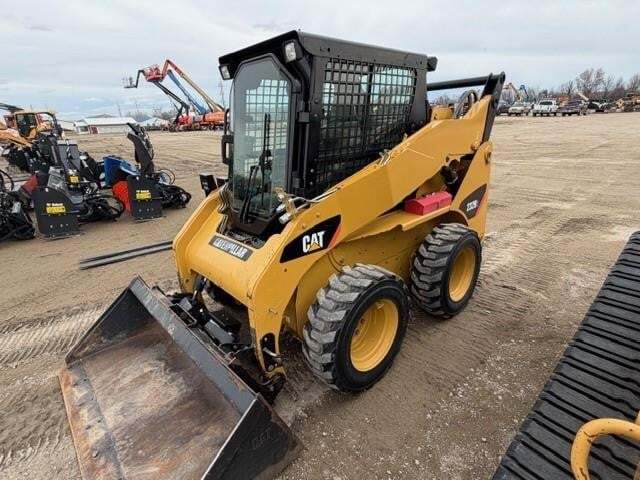

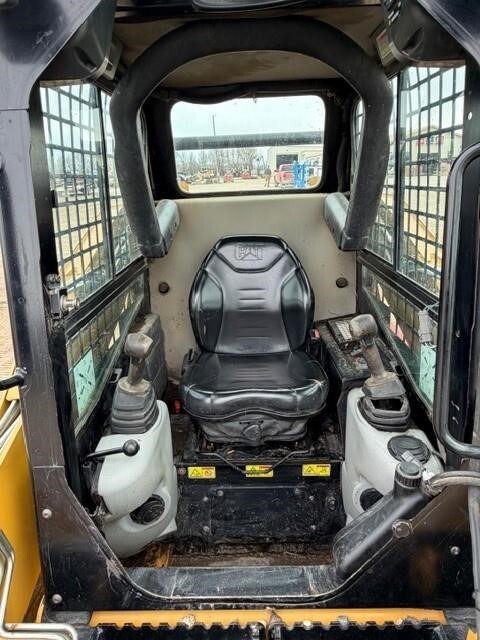

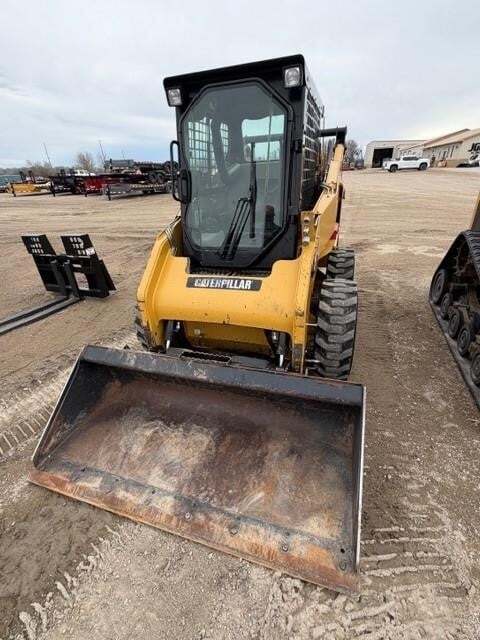

2008 CATERPILLAR, 232B Skid Steers - Wheel, Just traded in. this is a nice Cat 232B skid steer with cab and heat. It does have quick attach and comes with the used bucket shown. Call before this low houred skid steer is gone!Serial Number: CAT0232BCSCH03339

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Cab
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
ROPS	SAE J1040 MAY94 and ISO3471:1994
Dimensions
Bucket Pin Height - Carry Position	10 in (25 cm)
Bucket Pin Height - Maximum Lift	10 ft (3 m)
Bumper Overhang - Rear Axle	39 in (99 cm)
Clearance at Max Lift and Dump	7 ft (2 m)
Clearance at Maximum Lift and Dump	88 in (224 cm)
Ground Clearance	6 in (15 cm)
Height - Top of Cab	7 ft (2 m)
Length - With Bucket on Ground	135 in (343 cm)
Length - Without Bucket	109 in (277 cm)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	11 ft (3 m)
Maximum Overall Height	153 in (389 cm)
Maximum Reach - With Arms Parallel	48 in (123 cm)
Reach - Maximum Lift/Dump	30 in (76 cm)
Reach at Max Lift and Dump	30 in (77 cm)
Turn Radius from Center - Bucket	87 in (222 cm)
Turn Radius from Center - Coupler	57 in (144 cm)
Turn Radius from Center - Rear	61 in (154 cm)
Turning Radius from Center - inc bucket	88 in (222 cm)
Turning Radius from Center - machine rear	61 in (155 cm)
Vehicle Width over Tires	60 in (152 cm)
Wheel Base	4 ft (1 m)
Wheelbase	4 ft (1 m)
Width Over Tires	5 ft (2 m)
Engine
Bore	3 in (8 cm)
Engine Make	Caterpillar
Engine Model	Cat 3024C
Engine Power - ISO 14396	51 hp (38 kw)
Gross Power - SAE J1995	52 hp (39 kw)
Net Flywheel Power	49 hp (37 kw)
Net Power - EEC 80/1269	50 hp (37 kw)
Net Power - ISO 9249 EEC	50 hp (37 kw)
Net Power - SAE 1349	49 hp (37 kw)
Stroke	4 in (10 cm)
Hydraulic System
Hydraulic Flow (1)	Standard flow
Hydraulic Flow (2)	Standard
Hydraulic Power	28 hp (21 kw)
Loader Hydraulic Flow	16 gpm (59 lpm)
Loader Hydraulic Pressure	3,100 psi
Pump Flow Capacity	16 gpm (60 lpm)
Relief Valve Pressure	3,104 psi
Loader
Breakout Force	4,059 psi
Operating Load Rating	1,748 lbs (793 kg)
Tipping Angle	3,501 degrees
Operating Specifications
Alternator Supplied Amperage	65 amps
Breakout Force - Lift Cylinder	3,841 lbs (1,742 kg)
Breakout Force - Tilt Cylinder	4,059 lbs (1,841 kg)
Chain Box Fluid Capacity - each side	2 gal (6 l)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Fluid Capacity	2 gal (8 l)
Fuel Capacity	17 gal (65 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed	7 mph (11 kph)
Operating Voltage	12 volts
Operational Weight	6,660 lbs (3,021 kg)
Rated Operating Capacity	1,750 lbs (794 kg)
Rated Operating Capacity with Optional Counterweight	1,795 lbs (814 kg)
Tipping Load	3,955 lbs (1,794 kg)
Tire Size	10x16.5 8PR
Power Train
Travel Speed Forward	7 mph (11 kph)
Travel Speed Reverse	7 mph (11 kph)
Service Refill Capacities
Chain Box - Each Side	2 gal (6 l)
Cooling System	3 gal (10 l)
Engine Crankcase	2 gal (8 l)
Fuel Tank	17 gal (64 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Weights
Operating Weight	6,661 lbs (3,021 kg)
