Equipment ↠ Caterpillar ↠ Skid Steer Loaders ↠ 2005 Caterpillar 236B

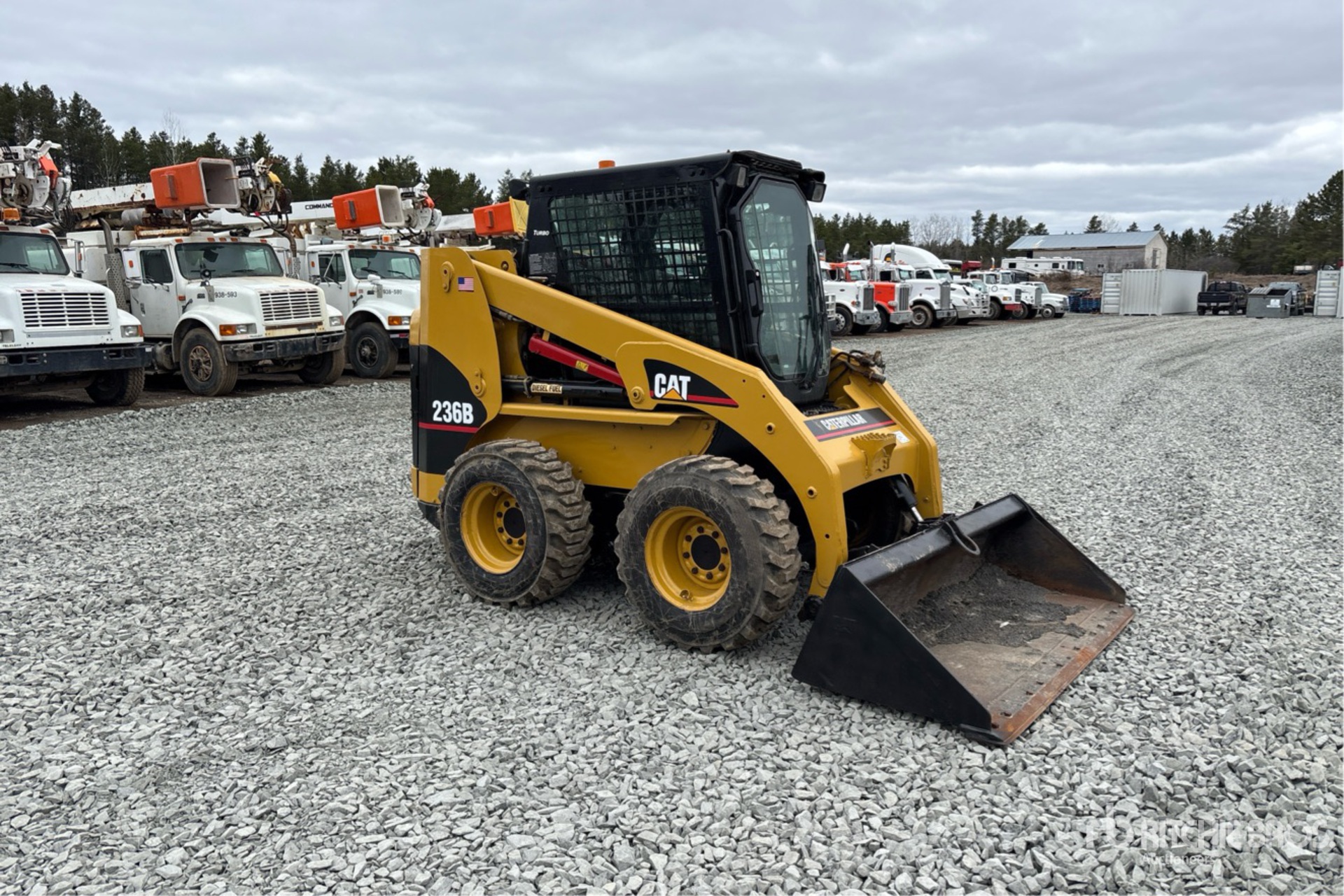

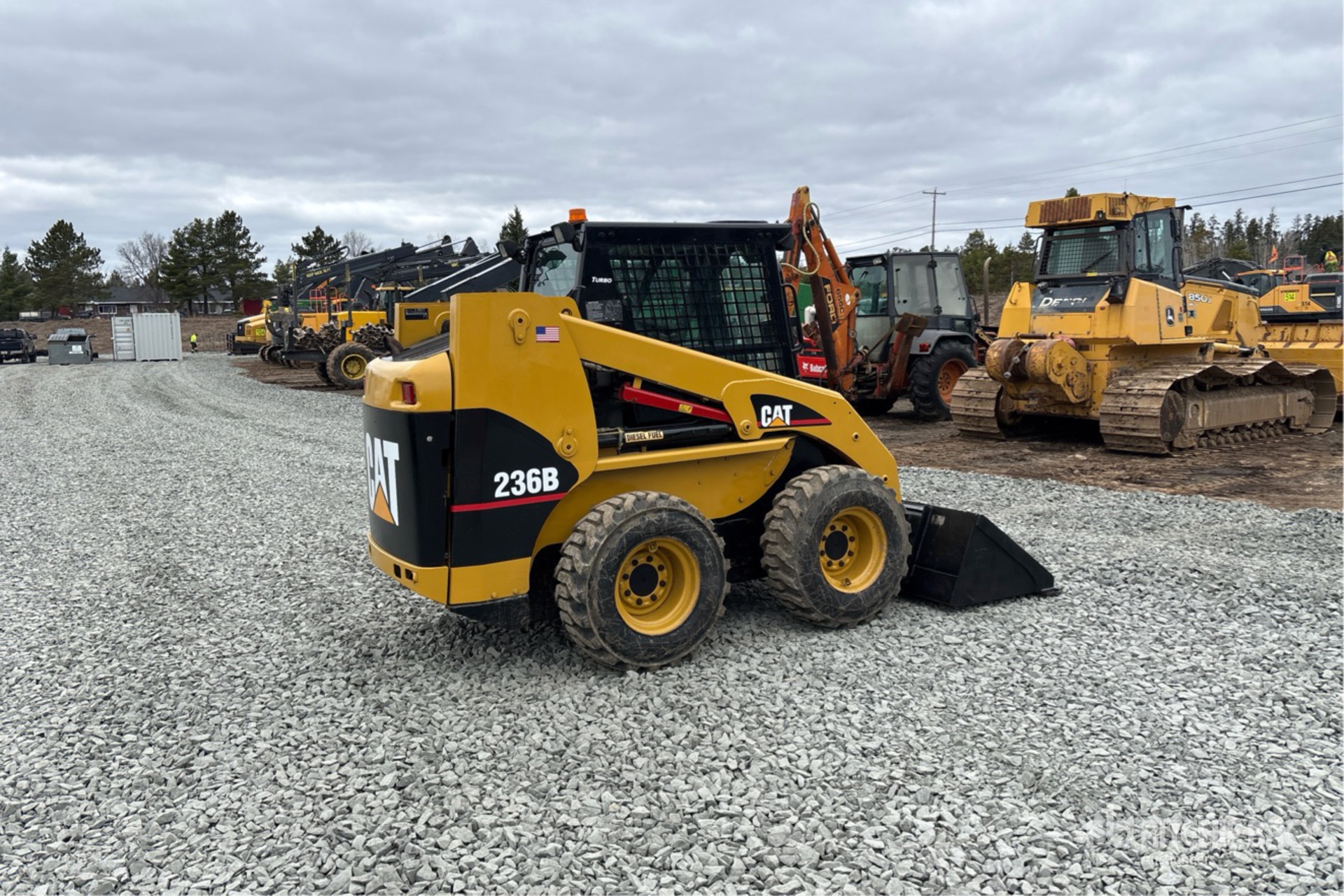

2005 Caterpillar 236B For Sale in Toronto, On

Name: 2005 Caterpillar 236B
Brand: Caterpillar
SKU: 87612807
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

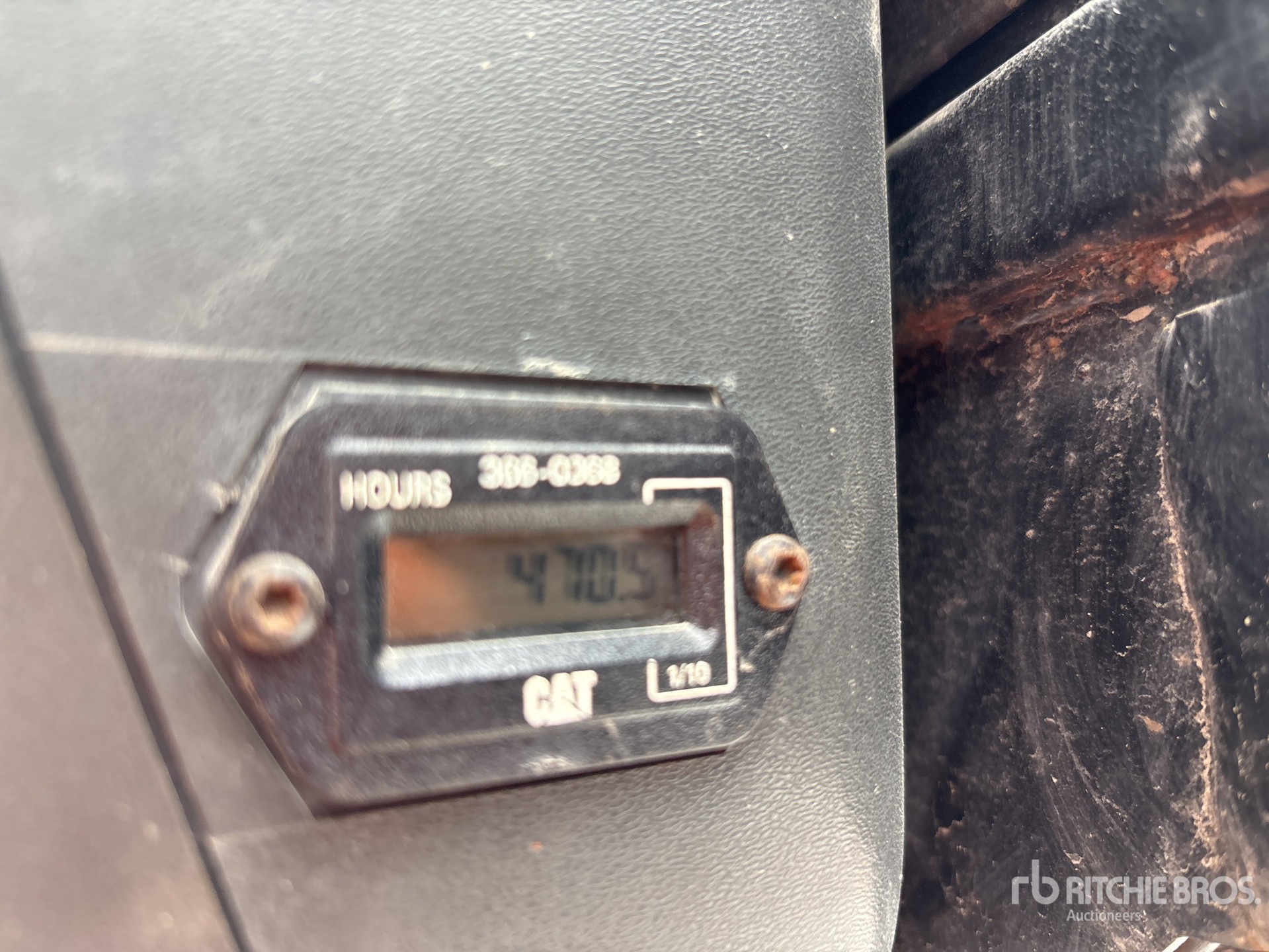

Hours:	470
Serial Number:	CAT0236BCHEN02795
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, Joystick Steering, 7 Pin Electric Kit, Manual Quick Coupler, Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 236B is a compact skid steer loader designed for versatile material handling and construction tasks. Featuring a robust engine and hydraulic system, the 236B delivers reliable performance in tight spaces. Its compact size and maneuverability make it suitable for landscaping, agriculture, and light construction applications. The skid steer loader offers easy attachment compatibility, enhancing its functionality for digging, lifting, grading, and loading operations. With durable construction and operator-focused controls, the Caterpillar 236B skid steer loader provides efficient productivity on job sites requiring compact equipment. It remains a popular choice for contractors seeking a dependable skid steer loader model.

Cab
FOPS	SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional)
ROPS	SAE J1040 MAY94 and ISO 3471:1994
Dimensions
Bucket Pin Height - Carry Position	10 in (25 cm)
Bucket Pin Height - Maximum Lift	10 ft (3 m)
Bumper Overhang - Rear Axle	41 in (104 cm)
Clearance at Max Lift and Dump	8 ft (2 m)
Clearance at Maximum Lift and Dump	94 in (239 cm)
Ground Clearance	9 in (24 cm)
Height - Top of Cab	7 ft (2 m)
Length - With Bucket on Ground	138 in (351 cm)
Length - Without Bucket	110 in (279 cm)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	12 ft (4 m)
Maximum Overall Height	156 in (396 cm)
Maximum Reach - With Arms Parallel	53 in (135 cm)
Reach - Maximum Lift/Dump	21 in (53 cm)
Reach at Max Lift and Dump	21 in (54 cm)
Turn Radius from Center - Bucket	83 in (211 cm)
Turn Radius from Center - Coupler	52 in (132 cm)
Turn Radius from Center - Rear	64 in (163 cm)
Turning Radius from Center - inc bucket	83 in (210 cm)
Turning Radius from Center - machine rear	64 in (162 cm)
Vehicle Width over Tires	66 in (168 cm)
Wheel Base	4 ft (1 m)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Aspiration	turbocharged
Bore	4 in (9 cm)
Engine Make	Caterpillar
Engine Model	Cat 3044C DIT
Engine Power - ISO 14396	71 hp (53 kw)
Gross Power - SAE J1995	73 hp (54 kw)
Net Flywheel Power	70 hp (52 kw)
Net Power - EEC 80/1269	71 hp (53 kw)
Net Power - ISO 9249 EEC	71 hp (53 kw)
Net Power - SAE 1349	70 hp (52 kw)
Stroke	5 in (12 cm)
Hydraulic System
Hydraulic Flow	Standard flow
Hydraulic Power	43 hp (32 kw)
Loader Hydraulic Flow	22 gpm (83 lpm)
Loader Hydraulic Pressure	3,335 psi
Pump Flow Capacity	22 gpm (83 lpm)
Relief Valve Pressure	3,336 psi
Loader
Breakout Force	5,483 psi
Operating Load Rating	1,748 lbs (793 kg)
Tipping Angle	3,497 degrees
Operating Specifications
Alternator Supplied Amperage	90 amps
Breakout Force - Lift Cylinder	4,656 lbs (2,112 kg)
Breakout Force - Tilt Cylinder	5,484 lbs (2,488 kg)
Chain Box Fluid Capacity - each side	2 gal (7 l)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	24 gal (90 l)
Hydraulic System Fluid Capacity	14 gal (52 l)
Max Speed	8 mph (12 kph)
Operating Voltage	12 volts
Operational Weight	7,006 lbs (3,178 kg)
Rated Operating Capacity	1,750 lbs (794 kg)
Rated Operating Capacity with Optional Counterweight	1,850 lbs (839 kg)
Tipping Load	4,012 lbs (1,820 kg)
Tire Size	12x16.5 10PR
Power Train
Travel Speed Forward	8 mph (12 kph)
Travel Speed Forward - 2-Speed Option	12 mph (19 kph)
Travel Speed Reverse	8 mph (12 kph)
Travel Speed Reverse - 2-Speed Option	12 mph (19 kph)
Service Refill Capacities
Chain Box - Each Side	2 gal (7 l)
Cooling System	3 gal (10 l)
Engine Crankcase	3 gal (10 l)
Fuel Tank	24 gal (90 l)
Hydraulic System	14 gal (52 l)
Hydraulic Tank	9 gal (35 l)
Weights
Operating Weight	7,007 lbs (3,178 kg)
