Equipment ↠ Caterpillar ↠ Skid Steer Loaders ↠ 2008 Caterpillar 272C

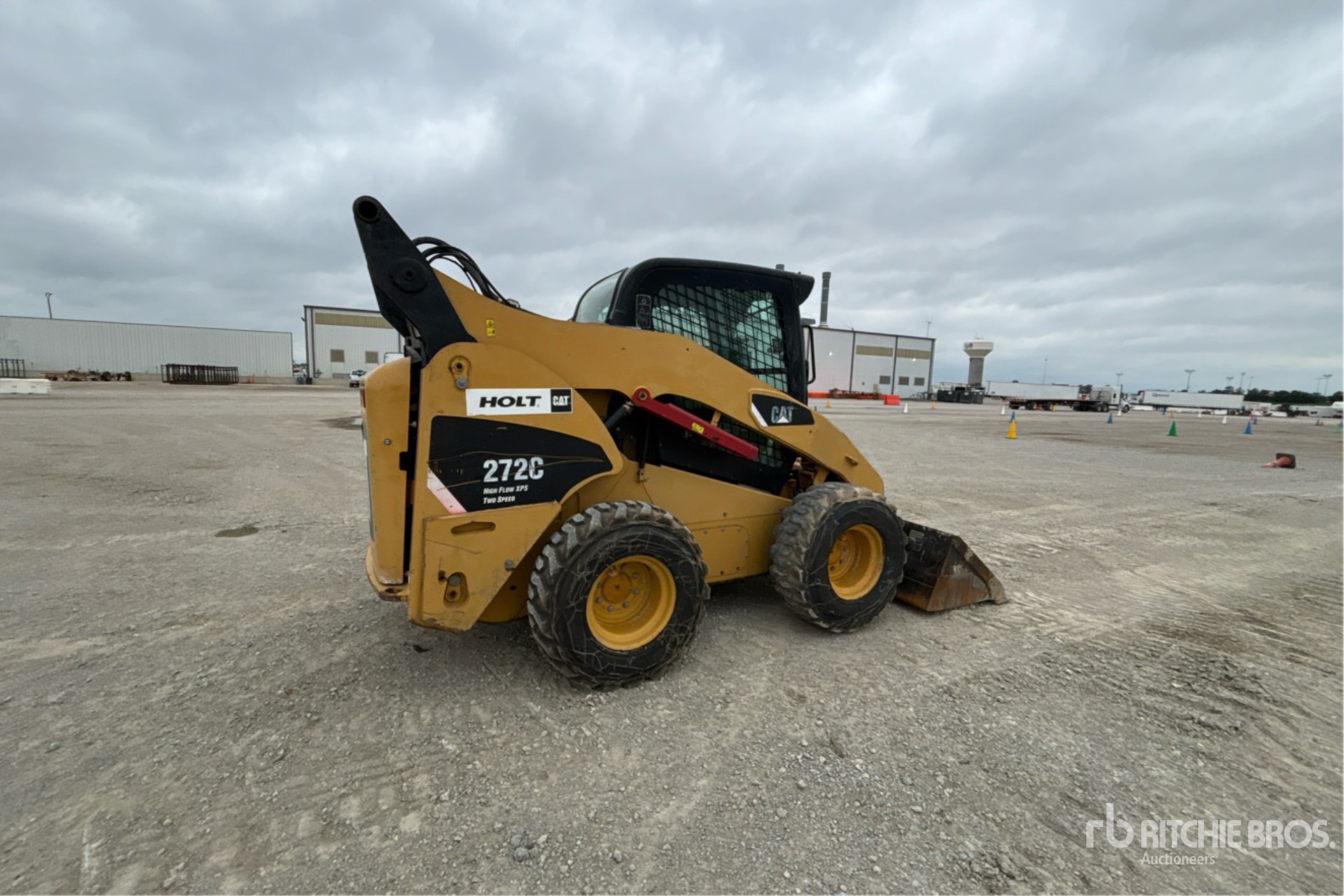

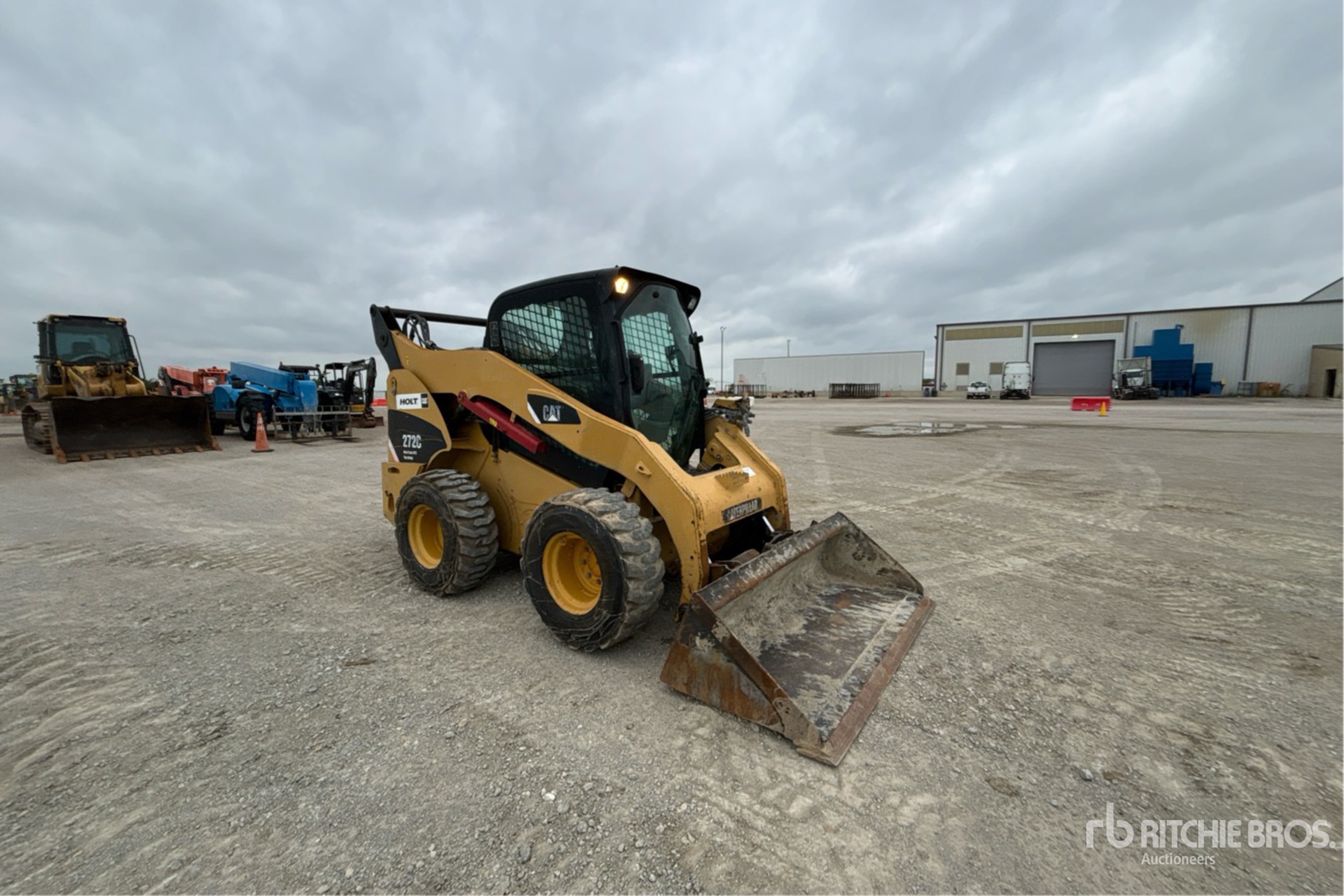

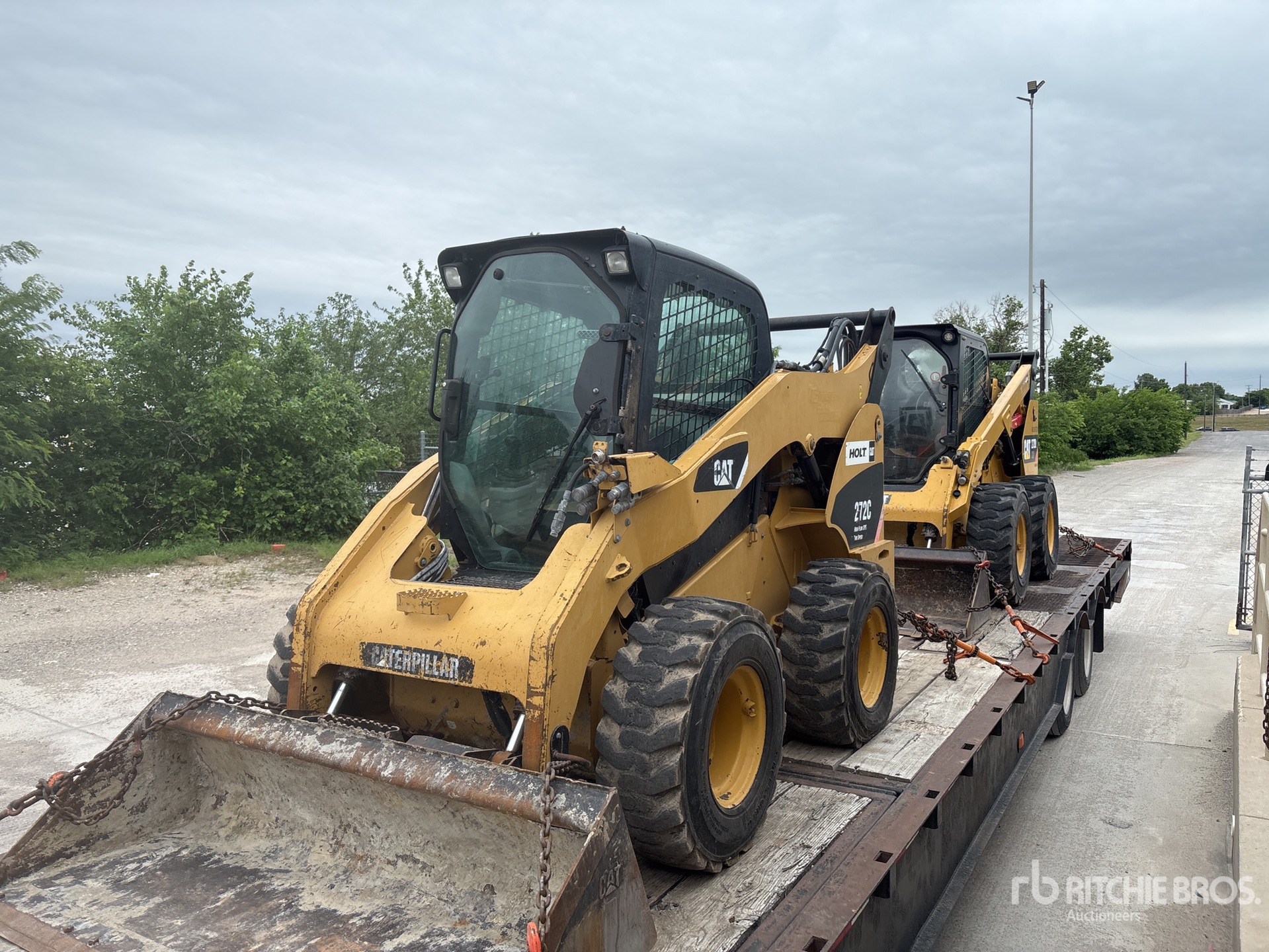

2008 Caterpillar 272C For Sale in Fort Worth, Tx

Name: 2008 Caterpillar 272C
Brand: Caterpillar
SKU: 87403181
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

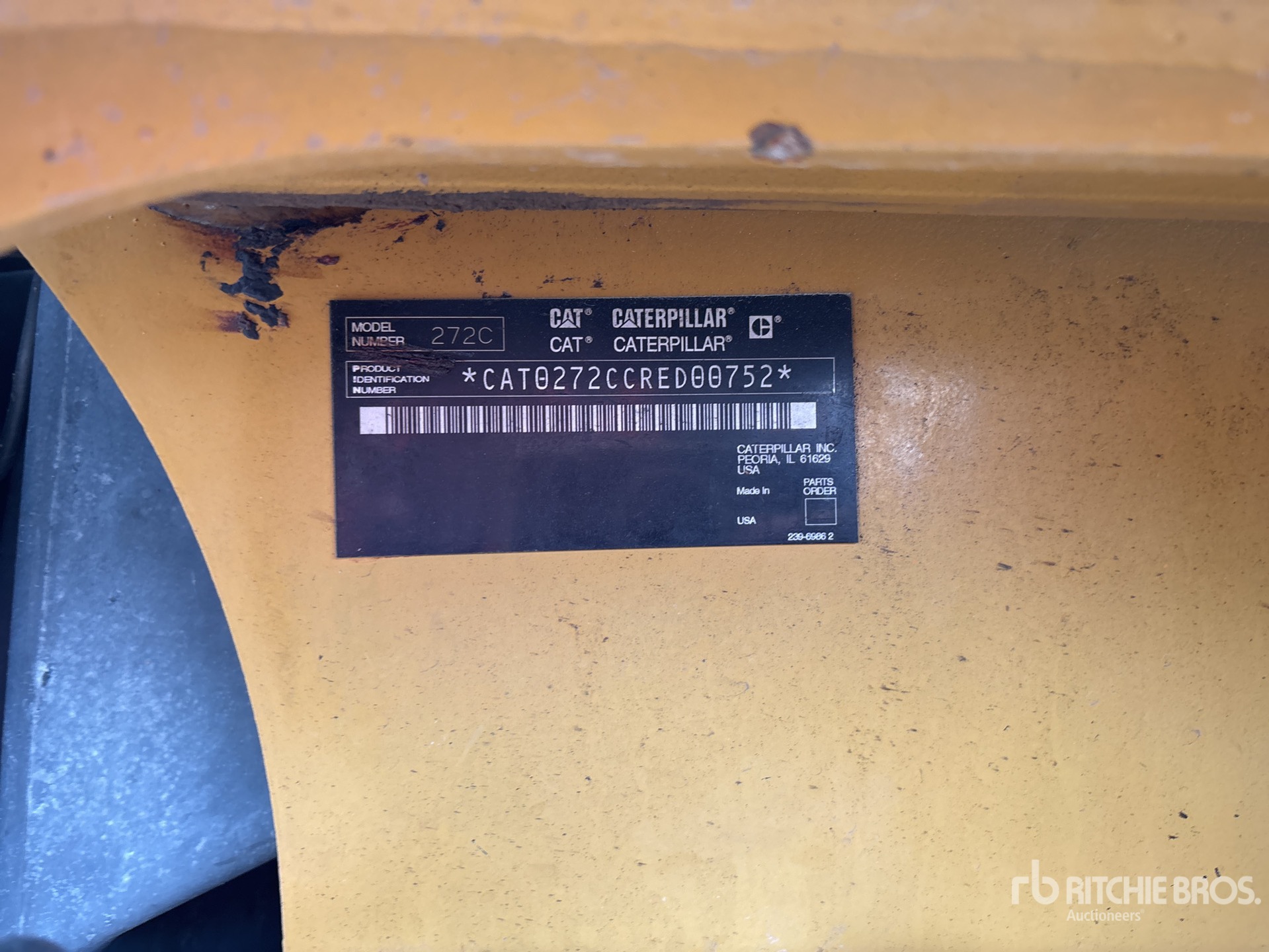

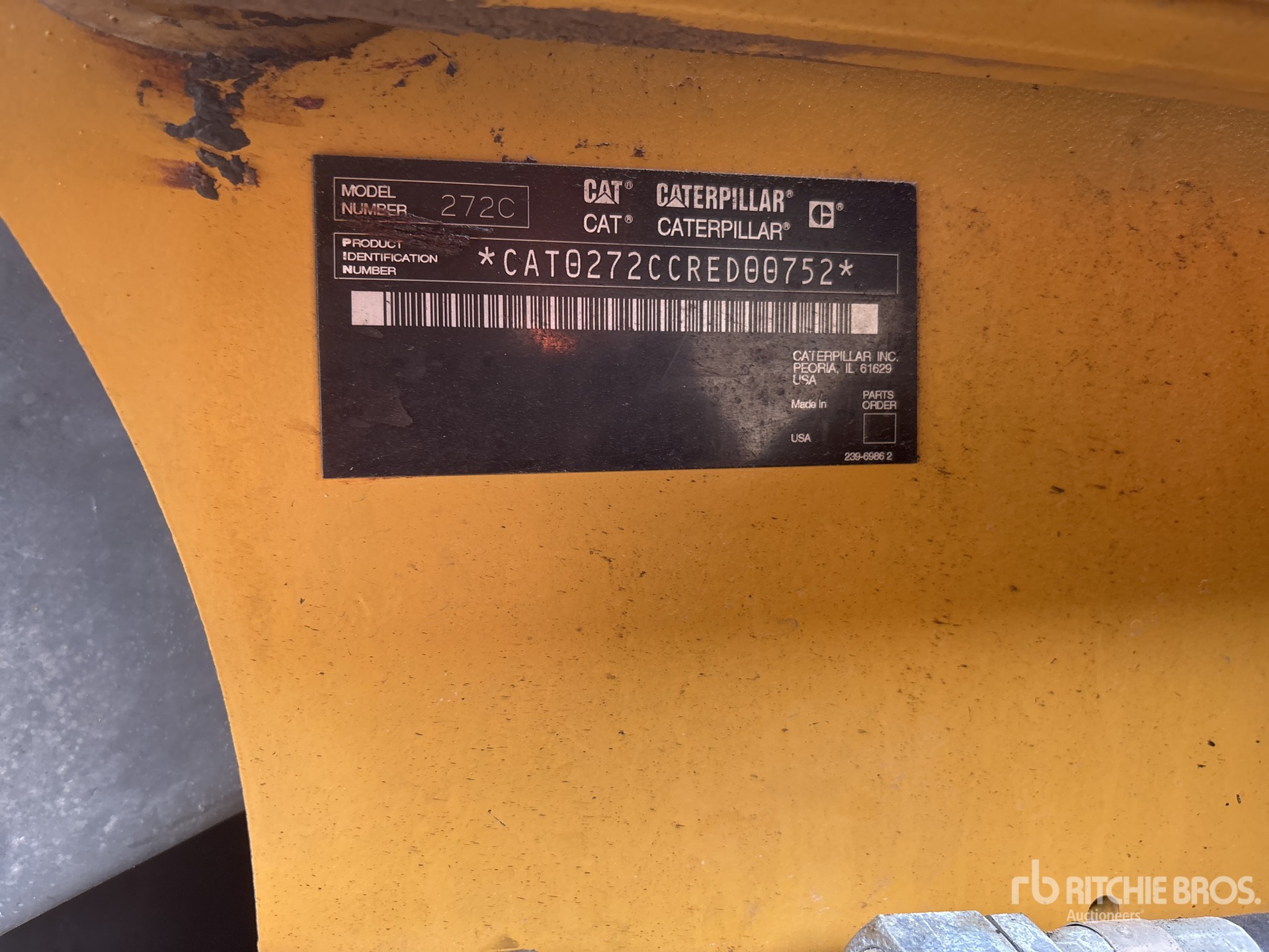

Serial Number:	CAT0272CCRED00752
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 6 Spot 6, Enclosed Cab, Air Conditioner, Joystick Steering, 7 Pin Electric Kit, Hydraulic Coupler, 74 in Bucket, Counterweight Kit April 2026 - Cat Dash Monitor Replaced, Last Hour Meter Record at Replacement - 3465 Hours Closing Time: 2026-05-13 10:10:02 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 272C is a versatile skid steer loader designed for construction, landscaping, and material handling applications. Featuring a powerful Cat engine, the 272C delivers reliable performance and fuel efficiency. Its compact size and tight turning radius enhance maneuverability in confined spaces. The machine offers advanced hydraulic systems for smooth, precise control of attachments, increasing productivity across various tasks. The operator cabin provides improved visibility and ergonomic controls for comfort during extended use. Durable construction and easy maintenance contribute to reduced downtime. The Caterpillar 272C skid steer loader is suitable for heavy-duty jobs requiring strength, agility, and operator efficiency.

Cab
FOPS	SAE J1043 SEPT87 ISO 3449:1992 Level I
FOPS Level II	SAE J231 JAN81 ISO 3449:1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471:1994
Dimensions
Bucket Pin Height - Carry Position	8 in (20 cm)
Bucket Pin Height - Maximum Lift	11 ft (3 m)
Bucket Pin Reach - Maximum Lift	15 in (37 cm)
Bumper Overhang - Rear Axle	43 in (109 cm)
Clearance at Max Lift and Dump	8 ft (3 m)
Clearance at Maximum Lift and Dump	98 in (249 cm)
Departure Angle	26 degrees
Ground Clearance	9 in (22 cm)
Height - Top of Cab	7 ft (2 m)
Length - With Bucket on Ground	151 in (383 cm)
Length - Without Bucket	123 in (312 cm)
Length w/o Bucket	11 ft (3 m)
Length with Bucket	13 ft (4 m)
Maximum Dump Angle	51 degrees
Maximum Overall Height	162 in (411 cm)
Maximum Reach - With Arms Parallel	50 in (127 cm)
Rack Back Angle - Maximum Height	83 degrees
Reach - Maximum Lift/Dump	30 in (76 cm)
Reach at Max Lift and Dump	30 in (76 cm)
Turn Radius from Center - Bucket	89 in (226 cm)
Turn Radius from Center - Coupler	57 in (145 cm)
Turn Radius from Center - Rear	71 in (180 cm)
Turning Radius from Center - inc bucket	102 in (258 cm)
Turning Radius from Center - machine rear	58 in (148 cm)
Vehicle Width over Tires	66 in (168 cm)
Wheel Base	5 ft (1 m)
Wheelbase	5 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Bore	4 in (9 cm)
Displacement	201 cu in (3,294 cu cm)
Engine Make	Caterpillar
Engine Model	Cat C3.4 DIT
Engine Power - ISO 14396	93 hp (69 kw)
Gross Power - SAE J1995	94 hp (70 kw)
Net Flywheel Power	90 hp (67 kw)
Net Power - EEC 80/1269	91 hp (68 kw)
Net Power - ISO 9249 EEC	91 hp (68 kw)
Net Power - SAE 1349	90 hp (67 kw)
Number of Cylinders	4
Power Measured @	2,500 rpm
Stroke	5 in (12 cm)
Hydraulic System
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Hydraulic Power	43 hp (32 kw)
Loader Hydraulic Flow	22 gpm (83 lpm)
Loader Hydraulic Pressure	3,335 psi
Maximum Loader Hydraulic Flow	33 gpm (125 lpm)
Maximum Loader Hydraulic Pressure	4,061 psi
Pump Flow Capacity	22 gpm (83 lpm)
Relief Valve Pressure	3,335 psi
Loader
Breakout Force	7,315 psi
Bucket Capacity	1 cu yd (0 cu m)
Operating Load Rating	3,250 lbs (1,474 kg)
Operating Width	66 in (168 cm)
Tipping Angle	6,500 degrees
Operating Specifications
Alternator Supplied Amperage	90 amps
Breakout Force - Tilt Cylinder	7,315 lbs (3,318 kg)
Chain Box Fluid Capacity - each side	3 gal (11 l)
Cooling System Fluid Capacity	4 gal (14 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	26 gal (98 l)
Hydraulic System Fluid Capacity	15 gal (57 l)
Max Speed	7 mph (12 kph)
Operating Voltage	12 volts
Operational Weight	8,292 lbs (3,761 kg)
Rated Operating Capacity	3,250 lbs (1,474 kg)
Rated Operating Capacity with Optional Counterweight	3,480 lbs (1,579 kg)
Tipping Load	6,500 lbs (2,948 kg)
Power Train
Travel Speed Forward	7 mph (12 kph)
Travel Speed Forward - 2-Speed Option	10 mph (16 kph)
Travel Speed Reverse	7 mph (12 kph)
Travel Speed Reverse - 2-Speed Option	10 mph (16 kph)
Service Refill Capacities
Chain Box - Each Side	3 gal (11 l)
Cooling System	4 gal (14 l)
Engine Crankcase	3 gal (10 l)
Fuel Tank	26 gal (98 l)
Hydraulic System	15 gal (57 l)
Hydraulic Tank	11 gal (42 l)
Weights
Operating Weight	8,362 lbs (3,793 kg)
