Equipment ↠ Caterpillar ↠ Smooth Drum Rollers ↠ 2006 Caterpillar CB-224E

2006 Caterpillar CB-224E For Sale in Toronto, On

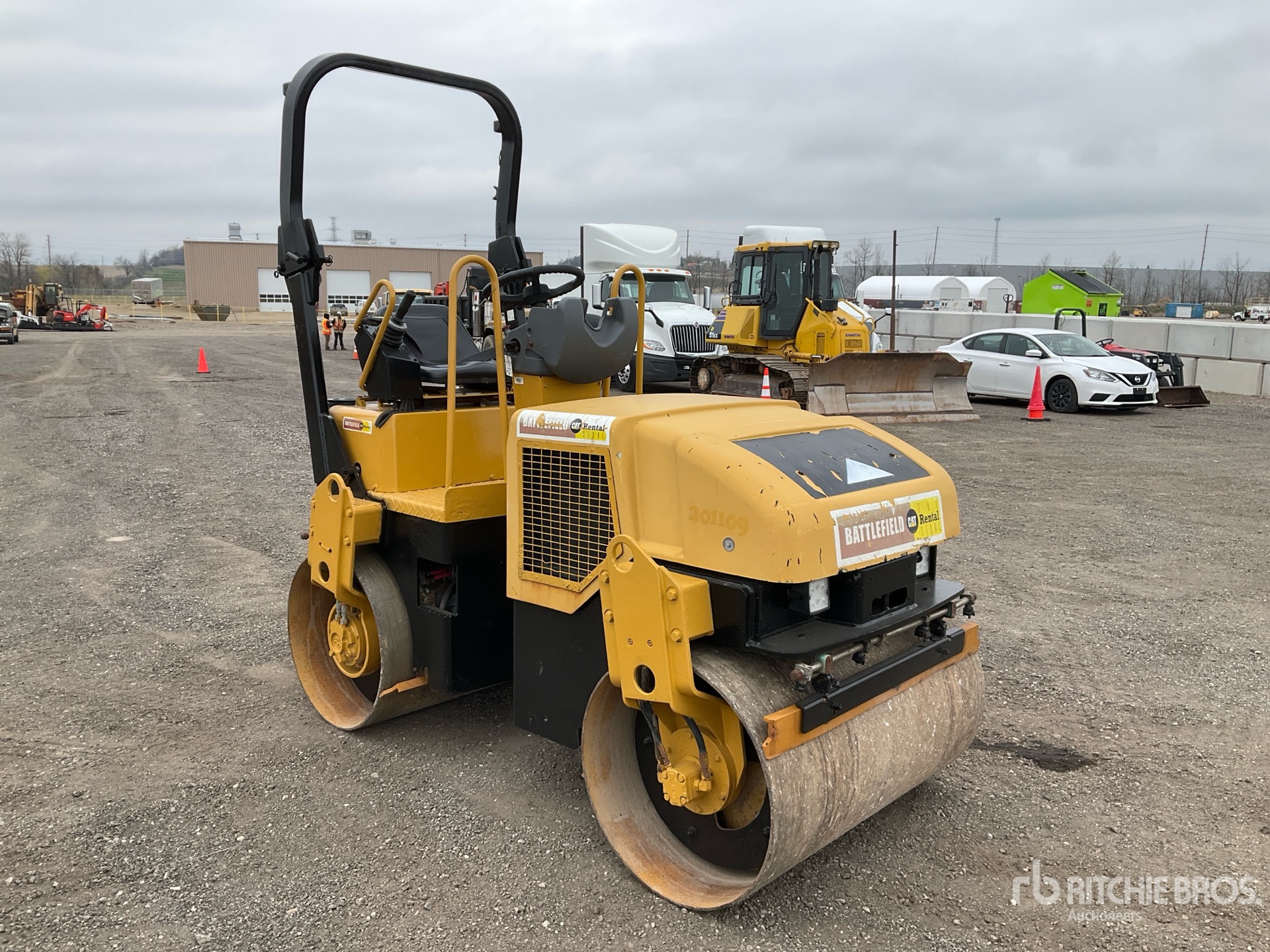

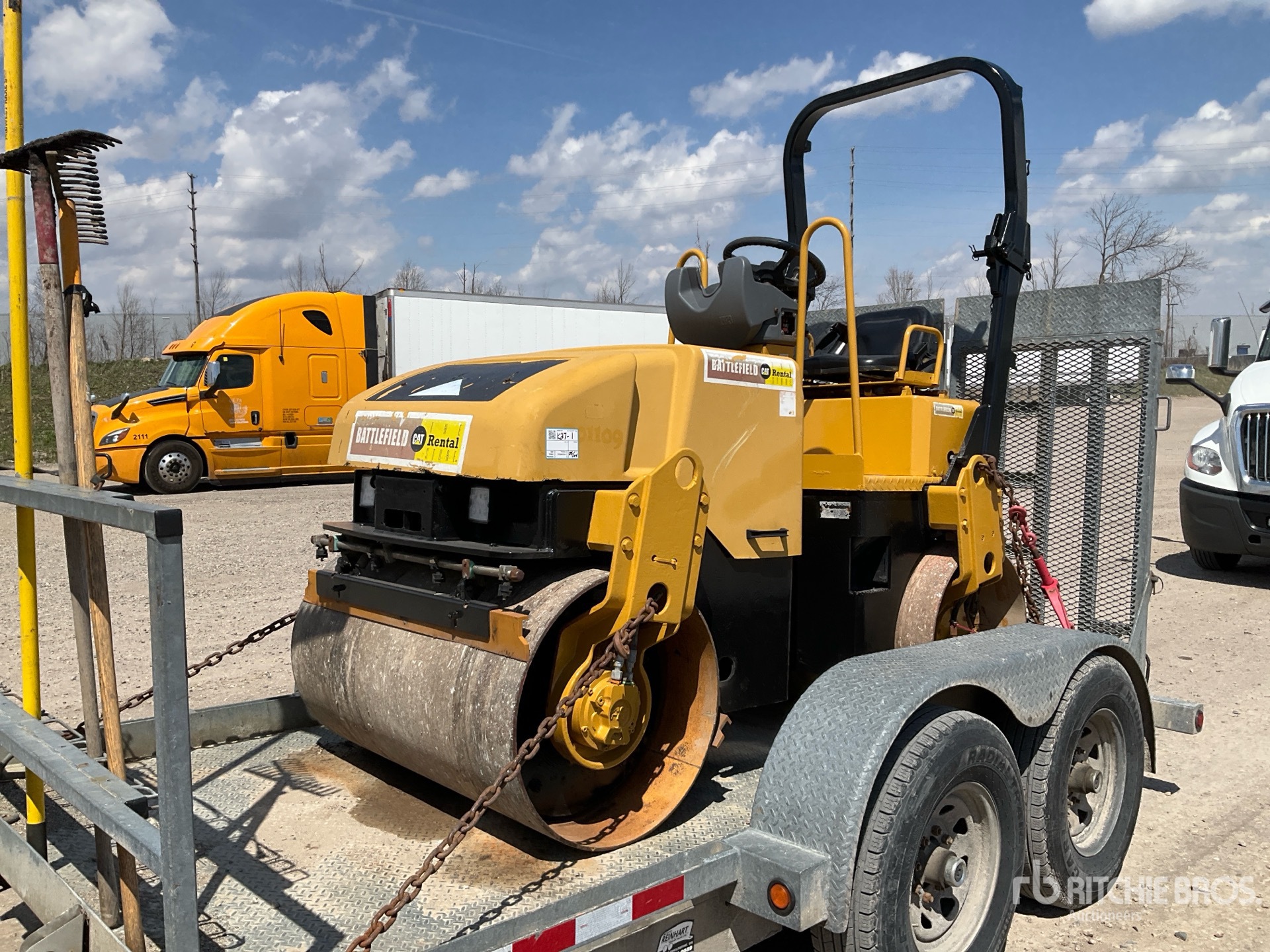

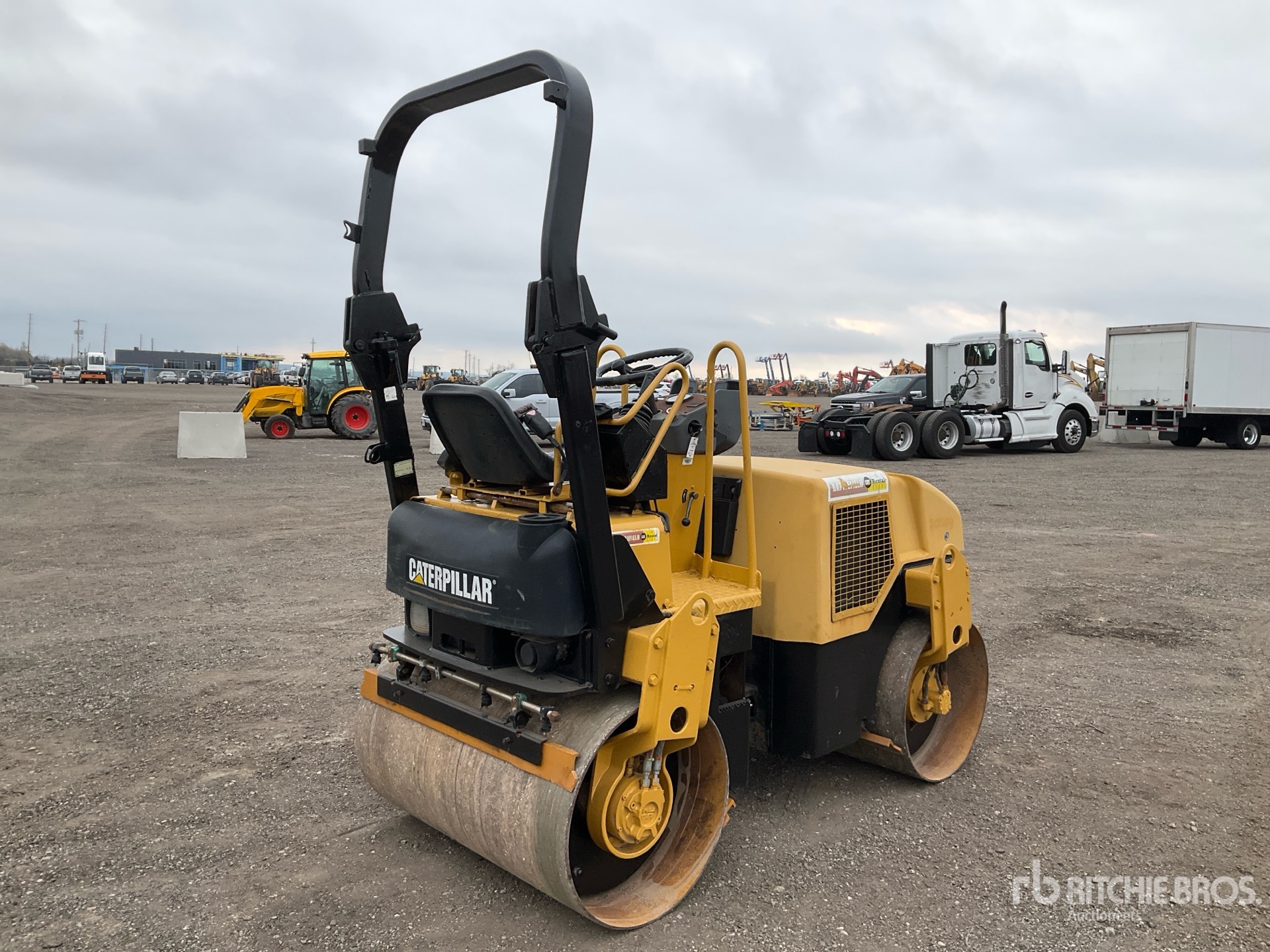

Name: 2006 Caterpillar CB-224E
Brand: Caterpillar
SKU: 87613265
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

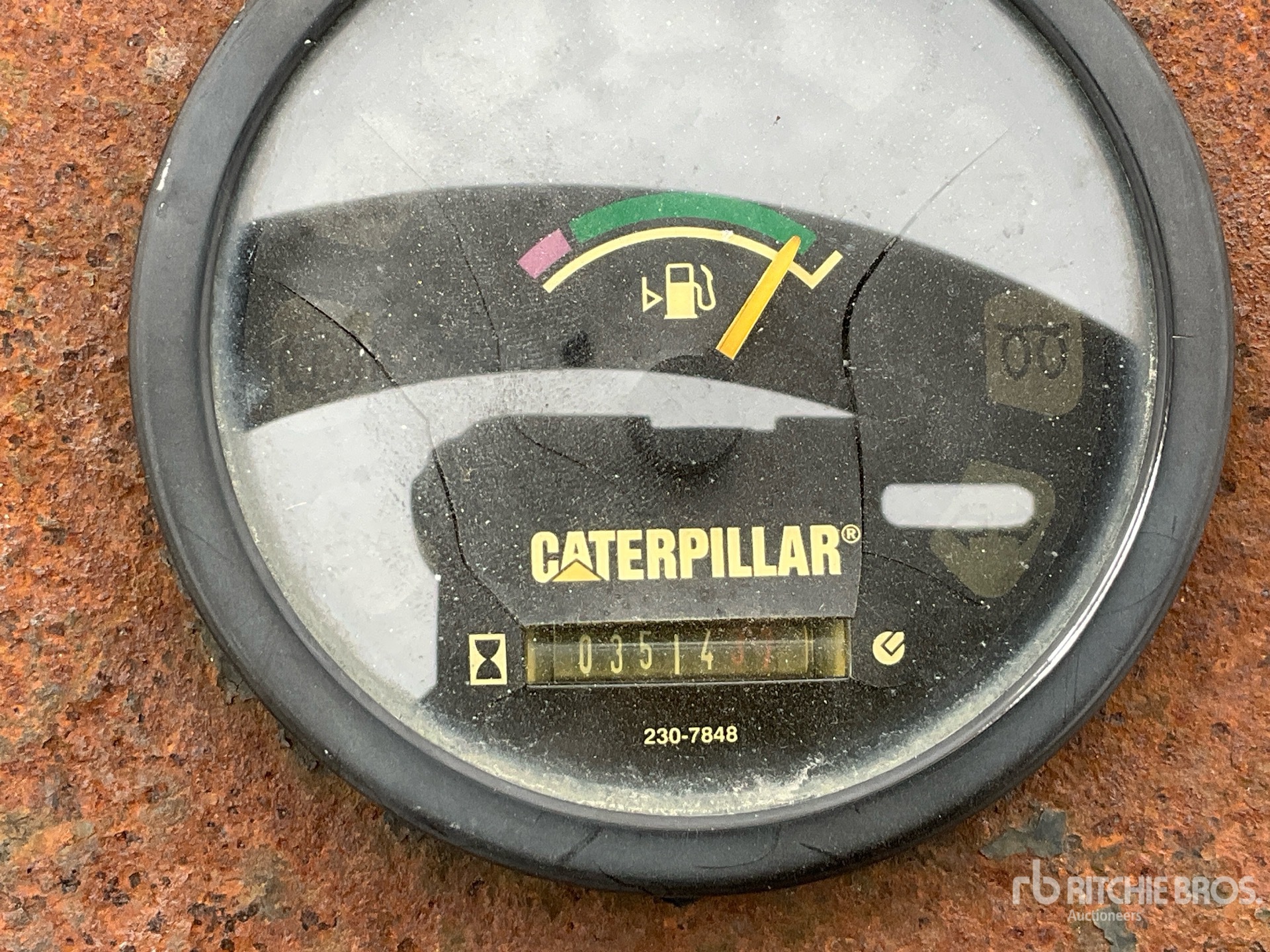

Hours:	3514

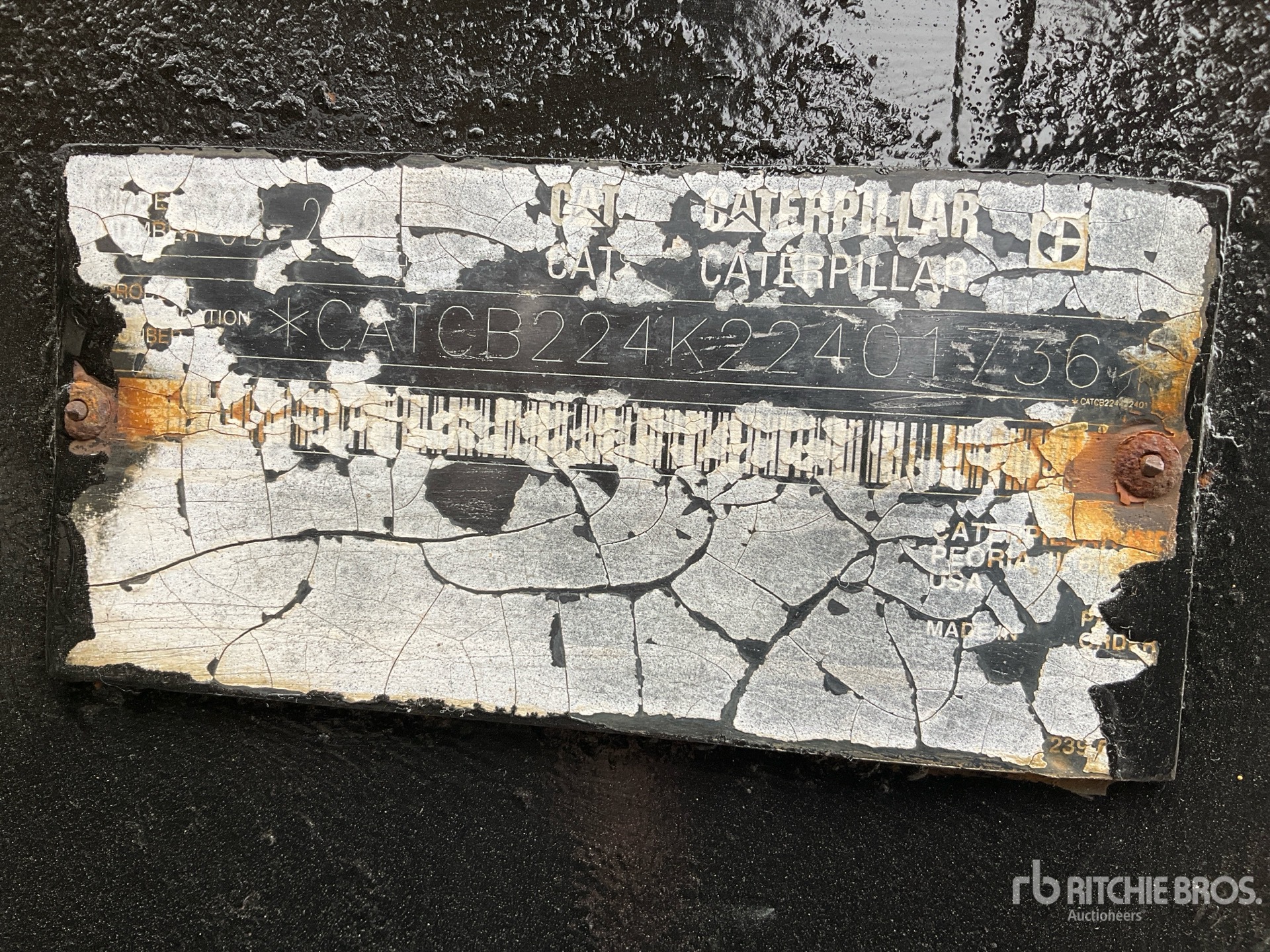

Serial Number:	CATCB224K22401736
Machine Location:	TORONTO, ON

Description:

Open Operator Station, 2005 US EPA Label, Perkins 3 Cylinder 24.4 kW 1.5 L Diesel Engine, 47 in Compaction Width Closing Time: 2026-05-20 09:28:45 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Compaction Width	47 in (119 cm)
Ground Clearance	10 in (25 cm)
Height - Steering Wheel	69 in (175 cm)
Height - Top of Cab	9 ft (3 m)
Height - Top of ROPS/FOPS	102 in (259 cm)
Overall Length	8 ft (2 m)
Overall Width	4 ft (1 m)
Turning Radius - Inside	95 in (241 cm)
Wheel Base	6 ft (2 m)
Wheelbase	6 in (14 cm)
Drum
Centrifugal Force - Med	7,059 lbs (3,202 kg)
Drum Diameter	28 in (70 cm)
Nominal Amplitude - Med	0 in (0 cm)
Static Linear Load	157 lbs in
Vibration Frequency 1	63 vpm
Engine
Aspiration	naturally aspirated
Bore	3 in (8 cm)
Displacement	91 cu in (1,496 cu cm)
Make	Caterpillar
Net Power	31 hp (23 kw)
Net Power - ISO 9249	41 hp (30 kw)
Stroke	4 in (9 cm)
Operating Specifications
Alternator Supplied Amperage	55 amps
Curb Clearance	21 in (53 cm)
Engine Oil Capacity	2 gal (6 l)
Fuel Capacity	12 gal (47 l)
Ground Clearance	1 ft (0 m)
Hydraulic System Fluid Capacity	8 gal (30 l)
Max Speed	6 mph (10 kph)
Operating Voltage	12 volts
Operating Weight	5,798 lbs (2,630 kg)
Operating Width	51 in (130 cm)
Travel Speed - Maximum	6 mph (10 kph)
Turning Radius - Inside Drum Edge	1,140 in (2,896 cm)
Turning Radius - Outside Drum Edge	142 in (361 cm)
Service Refill Capacities
Fuel Tank Capacity	12 gal (47 l)
Water Spray Tank Capacity	39 gal (148 l)
Vibratory System
Centrifugal Force per Drum - Maximum	6,975 lbs (3,164 kg)
Drum Diameter	28 in (70 cm)
Eccentric Weight Drive	Hydraulic
Nominal Amplitude - High	0 in (0 cm)
Vibration Selection	Front rear or both
Weights
Operating Weight - With ROPS/FOPS	5,800 lbs (2,631 kg)
