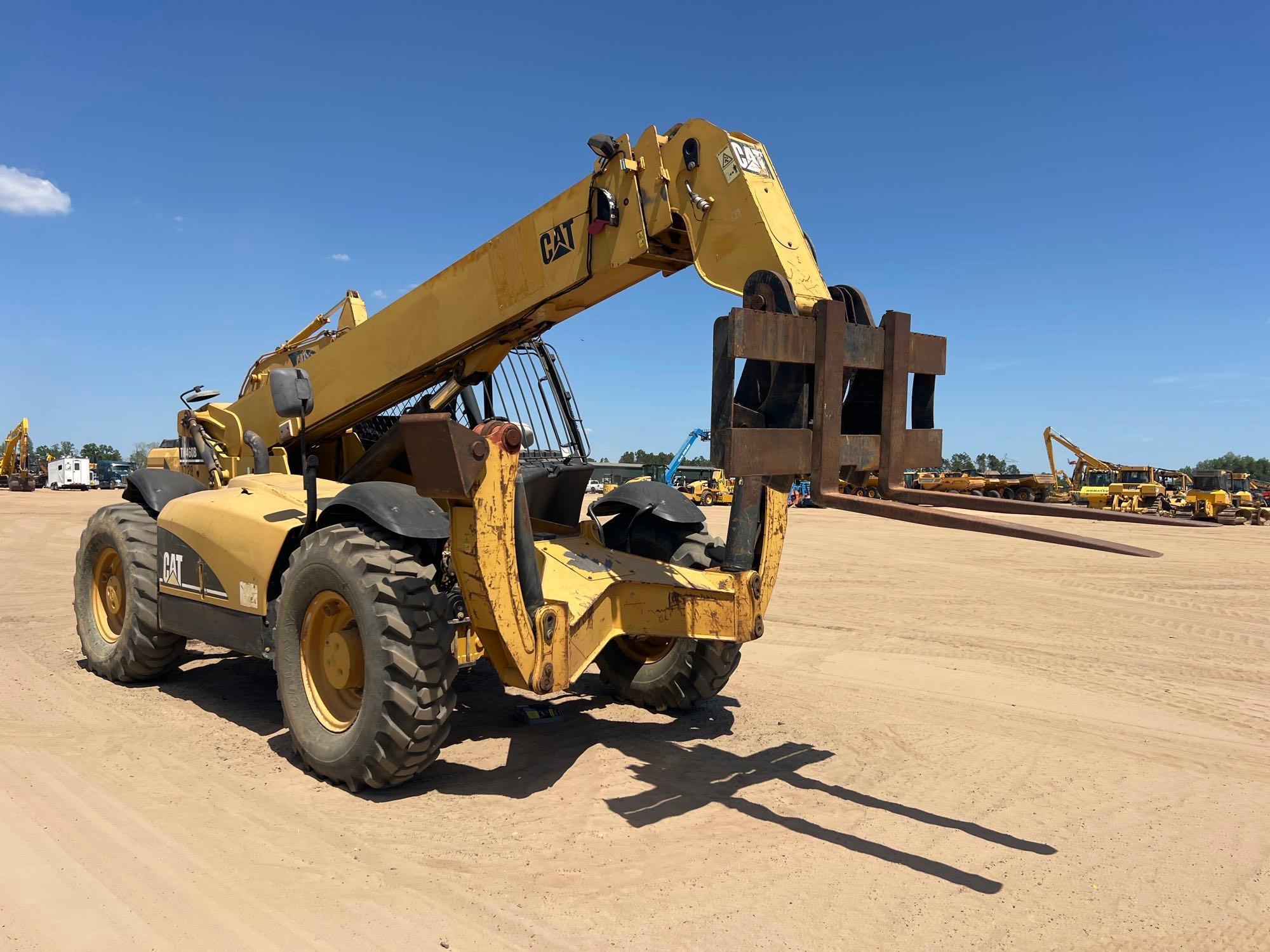

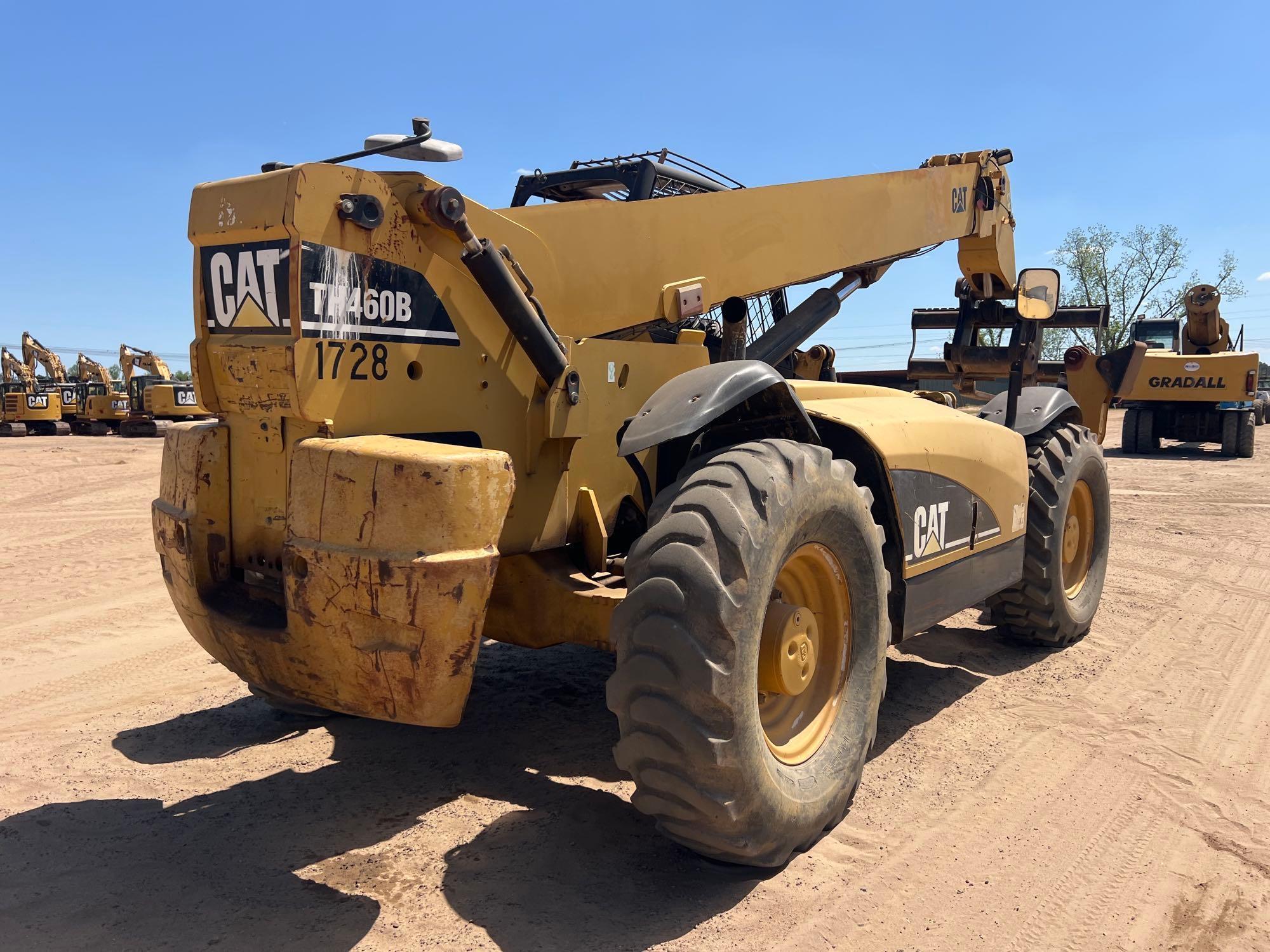

Caterpillar TH460B For Sale in Hazlehurst, GA

Name: Caterpillar TH460B
Brand: Caterpillar
SKU: 86955379
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-14 Click here to place a bid

Rebel Auction Co., Inc.

Rebel Auction Co., Inc. Dealer Info

Rebel Auction Co., Inc. Website

Click here to email Rebel Auction Co., Inc..

Click for Phone Number

Machine Info:

Machine Location:	HAZLEHURST, GA
More Information:	https://www.proxibid.com/heavy-construction-equipment/lifts/2005-caterpillar-th460b-telescopic-forklift/lotInformation/100350965?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=65056

Description:

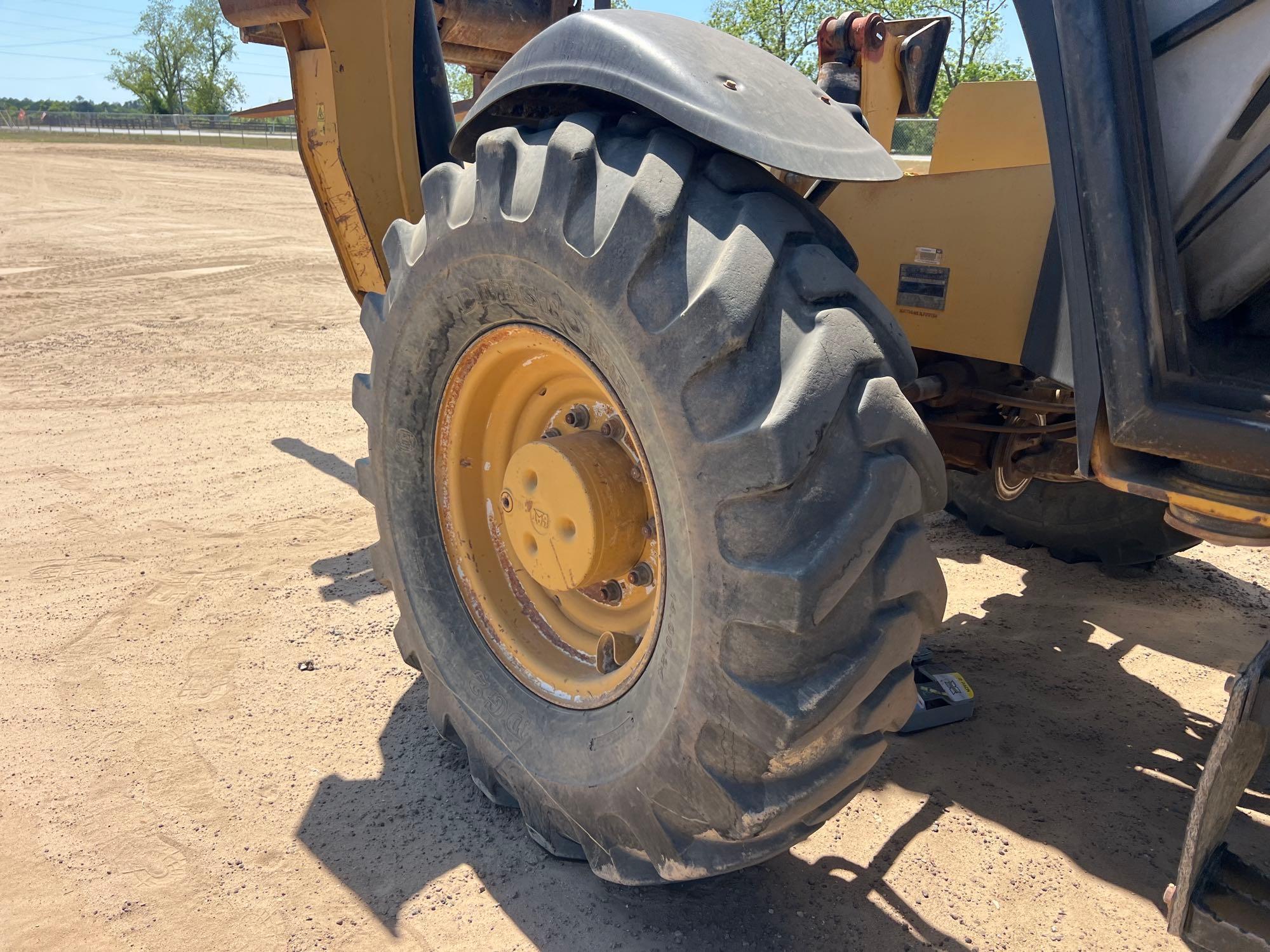

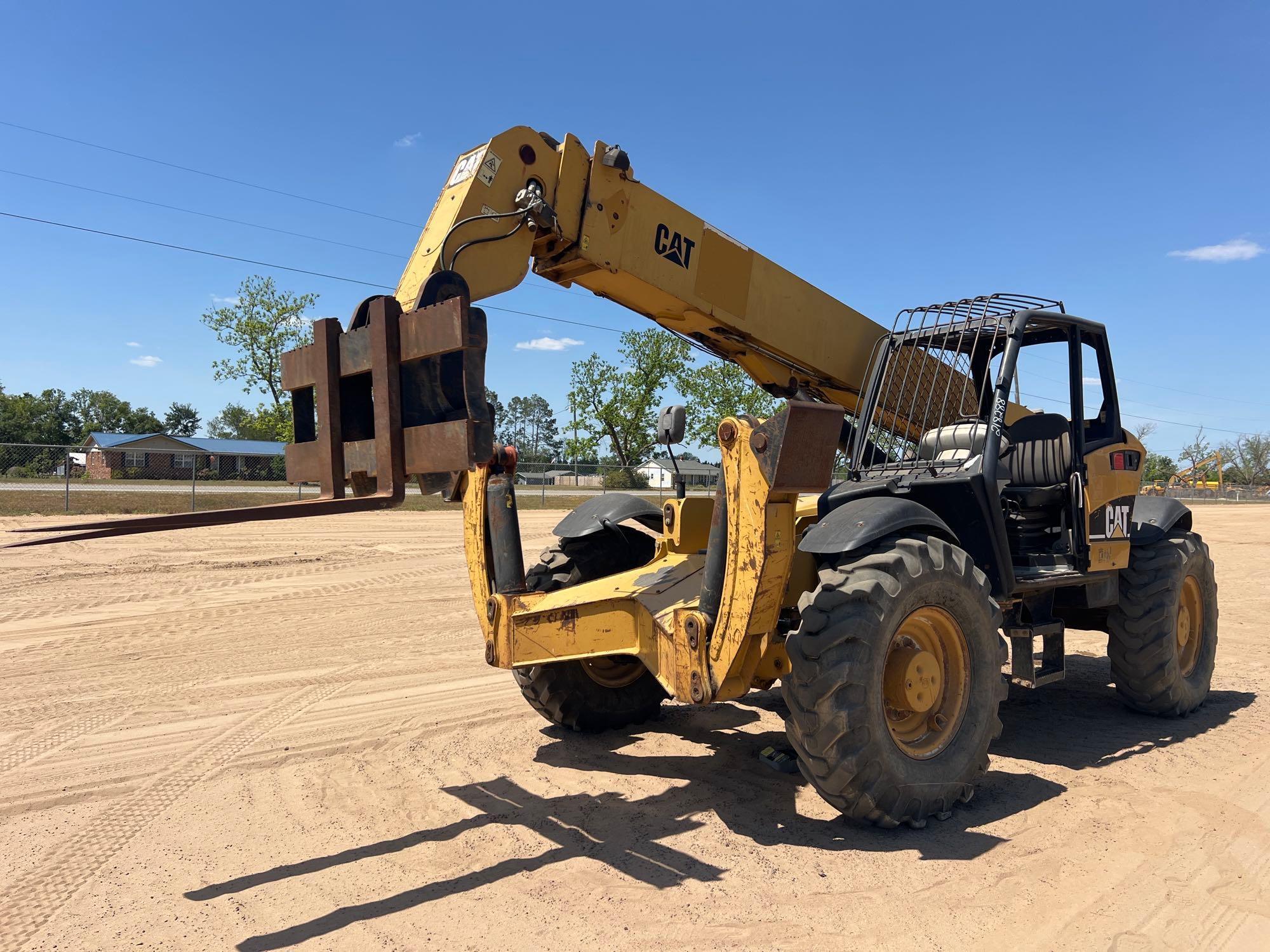

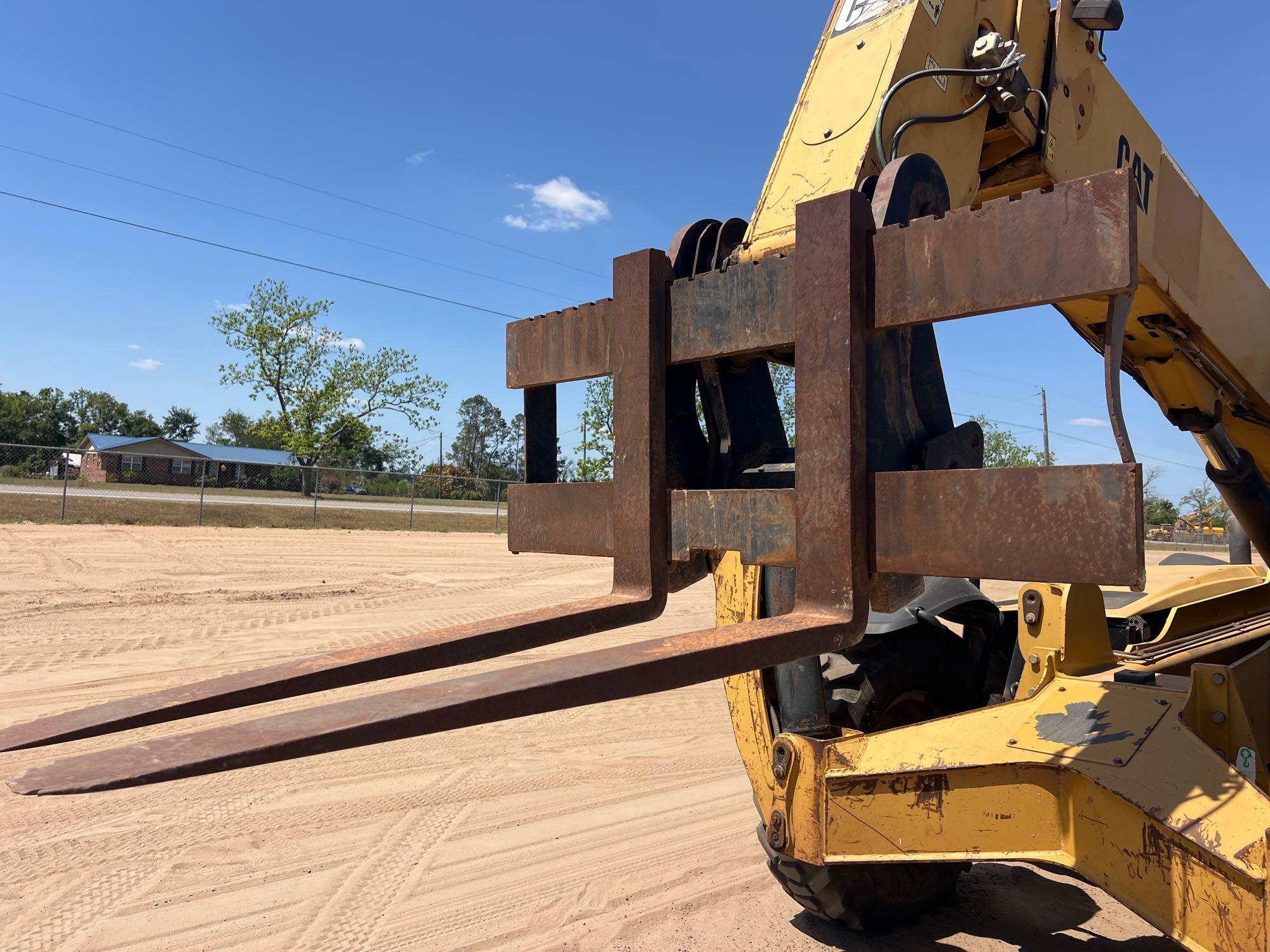

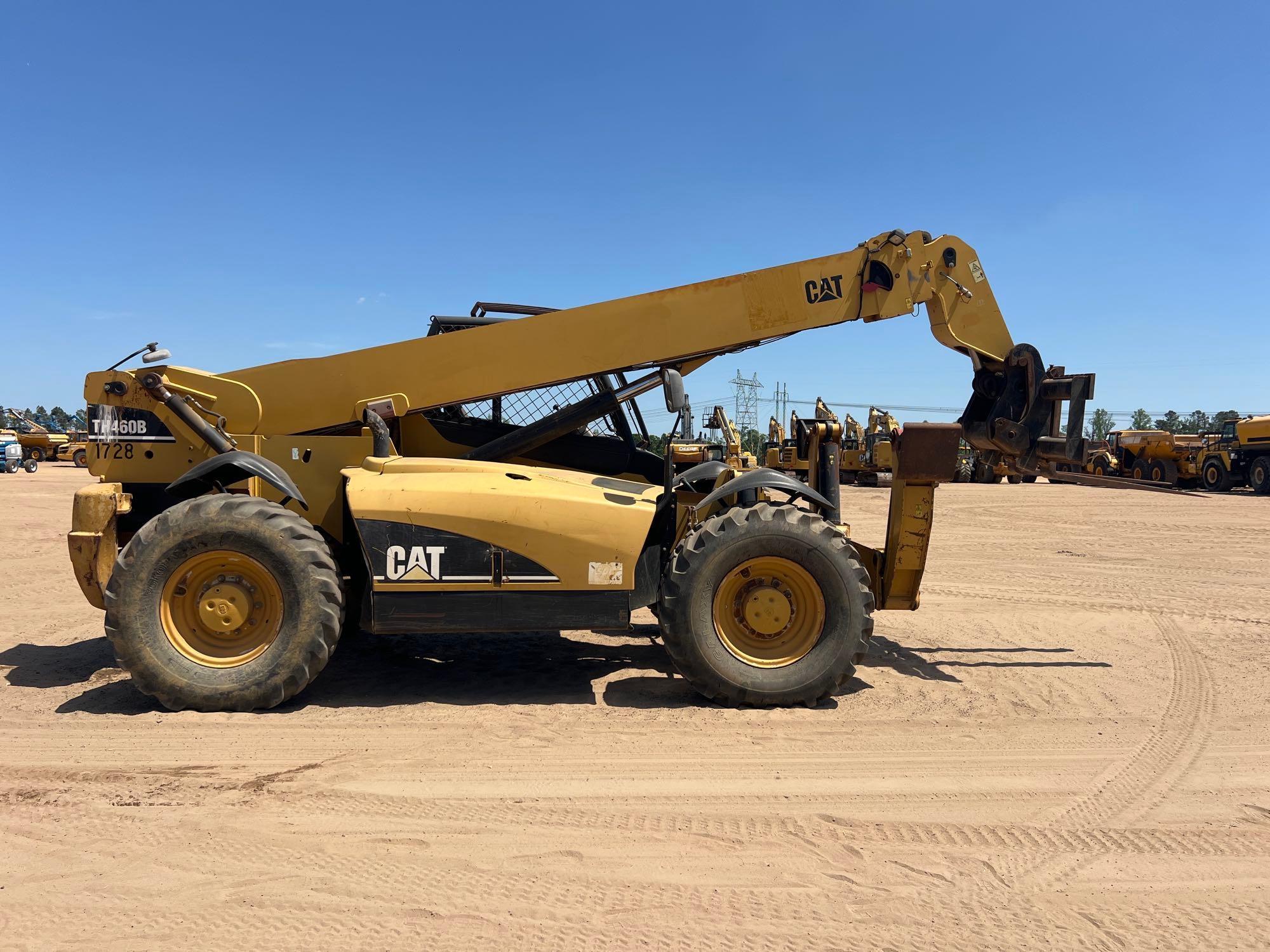

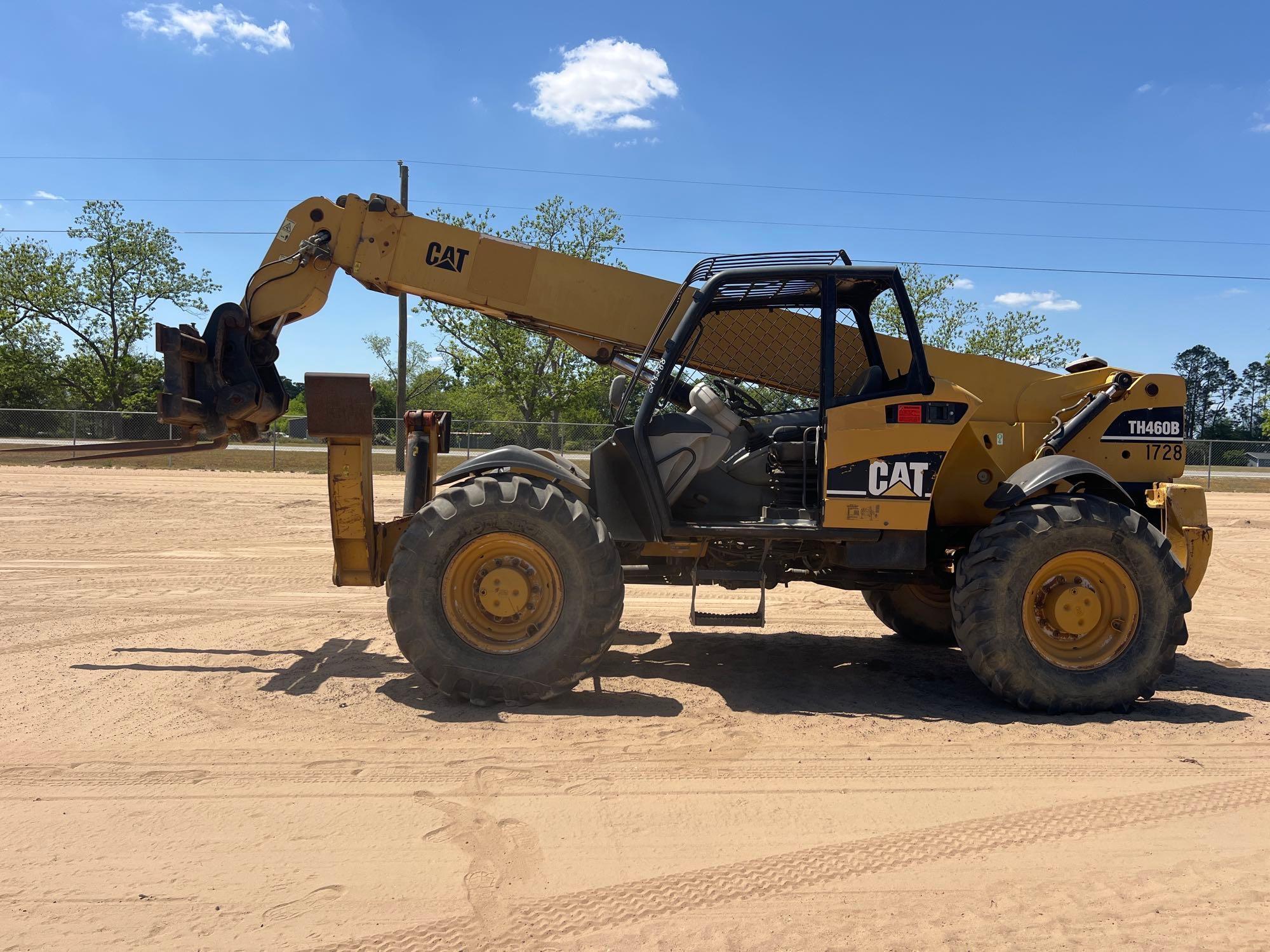

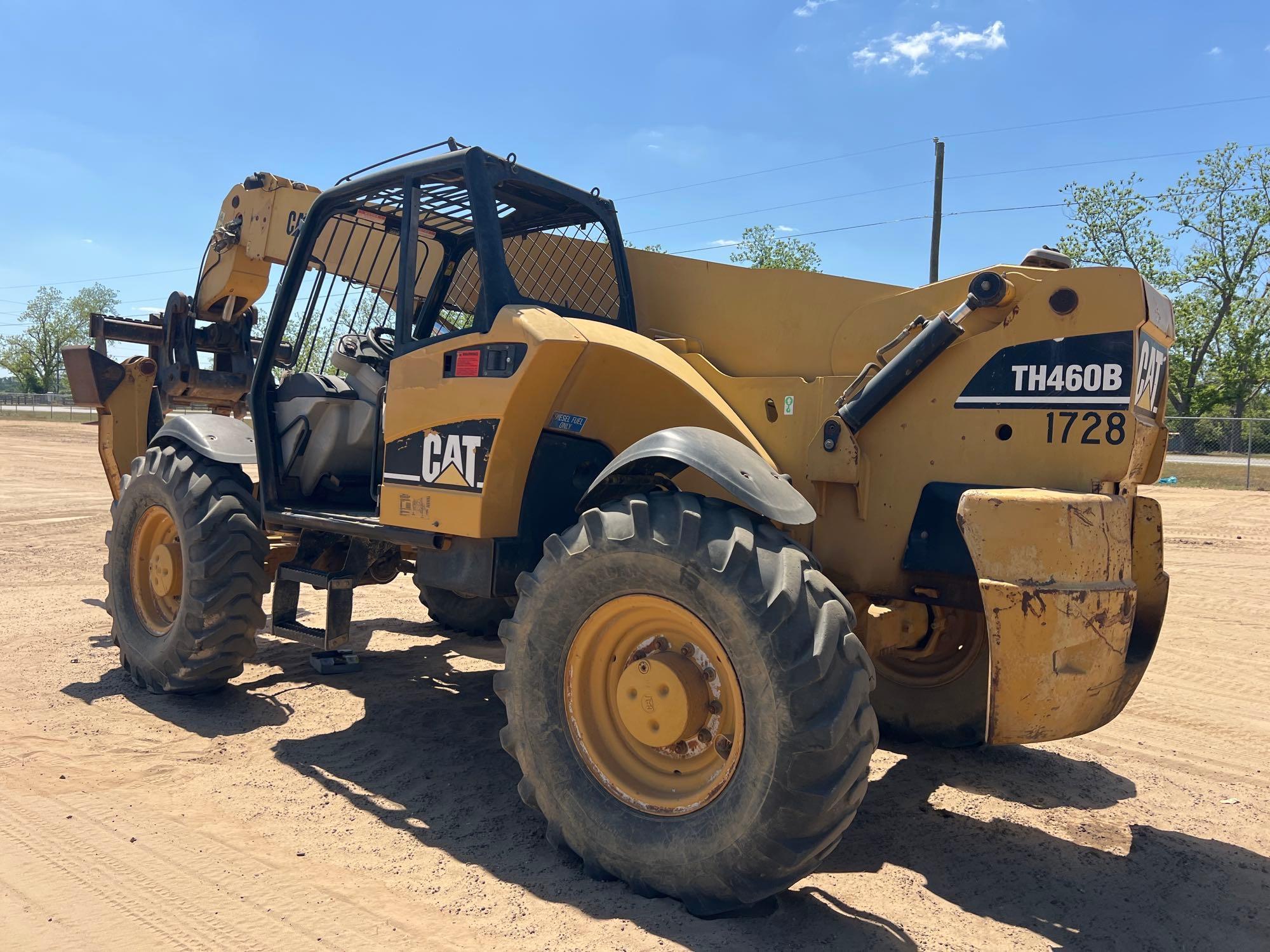

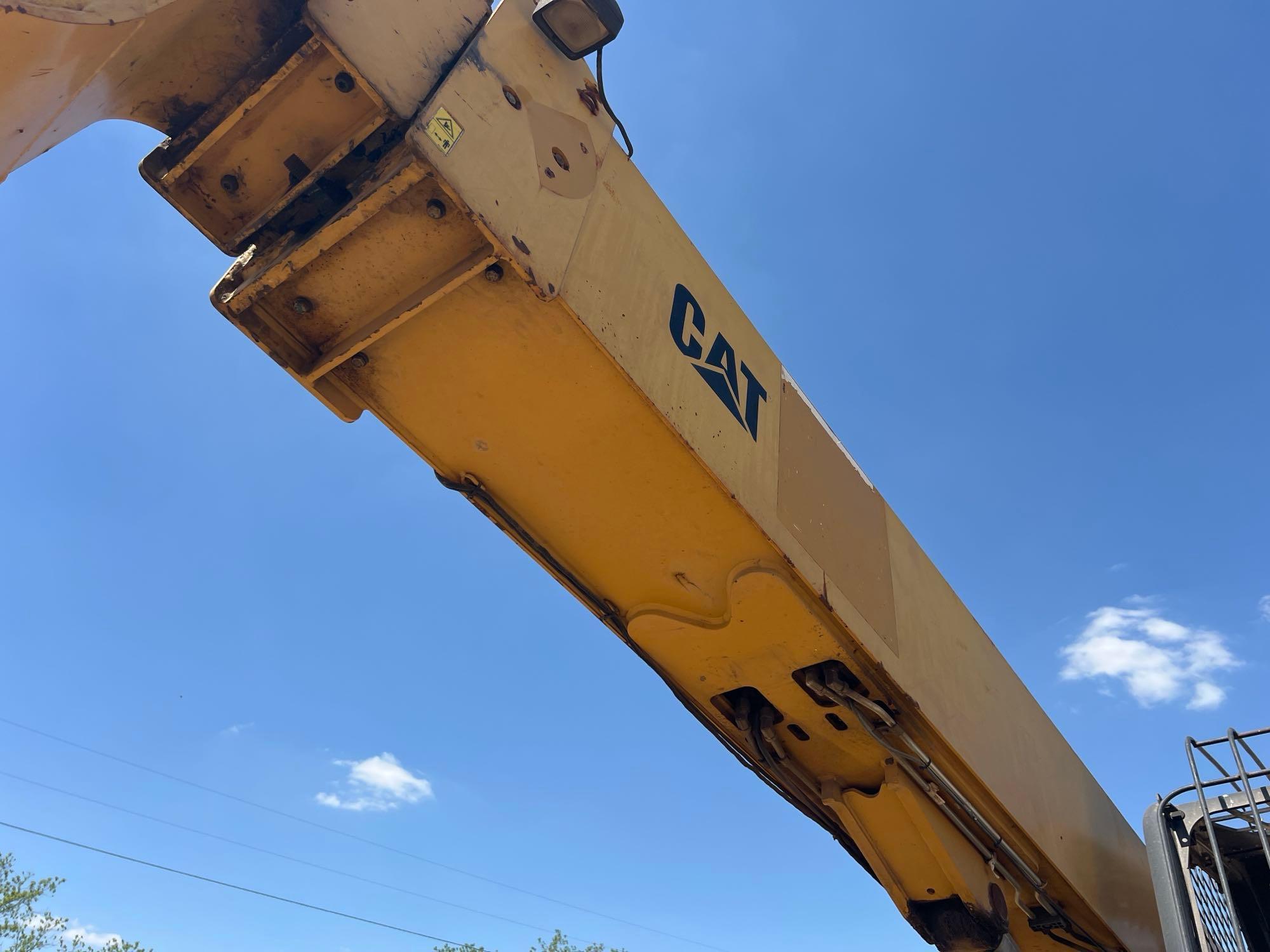

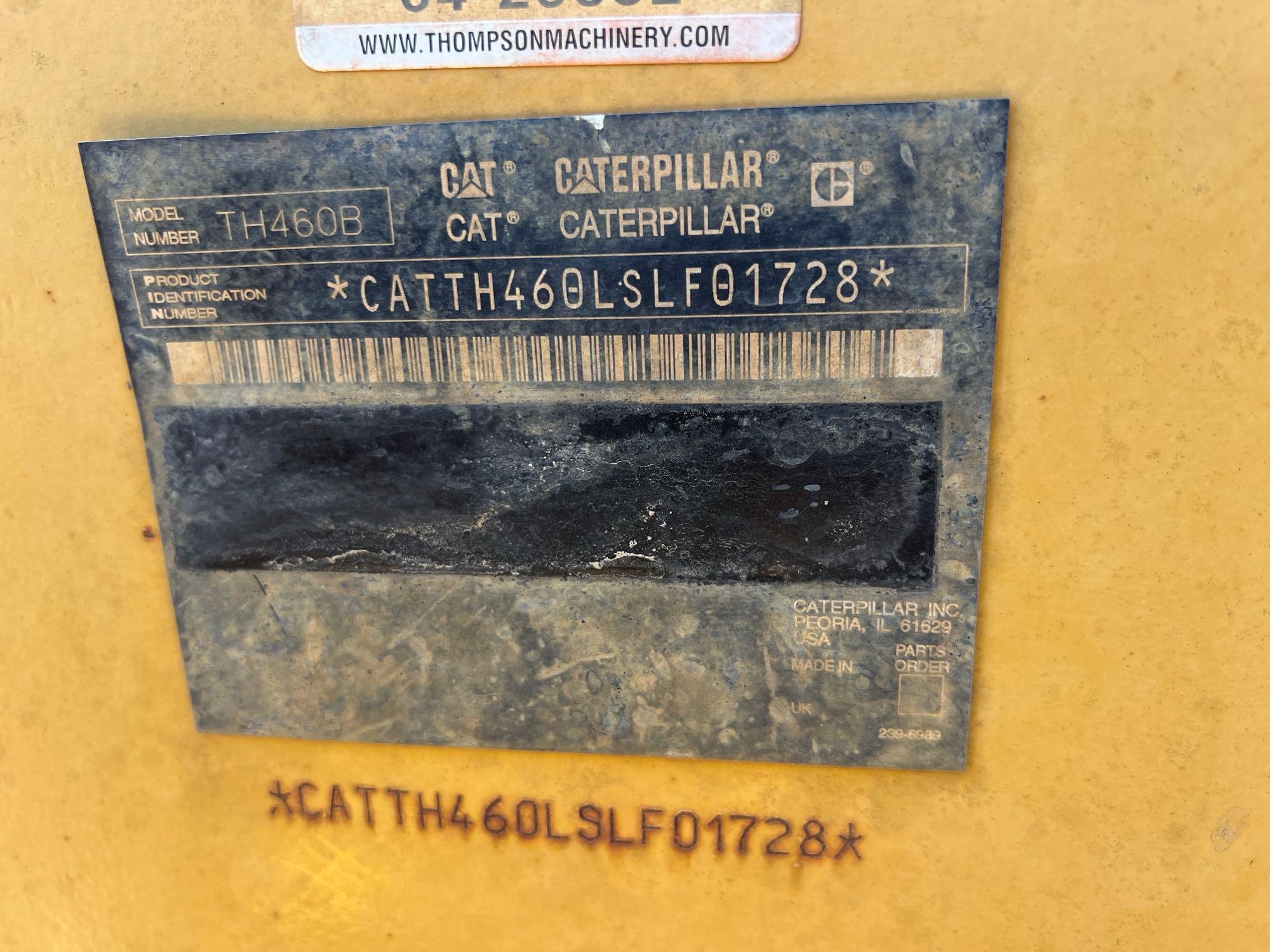

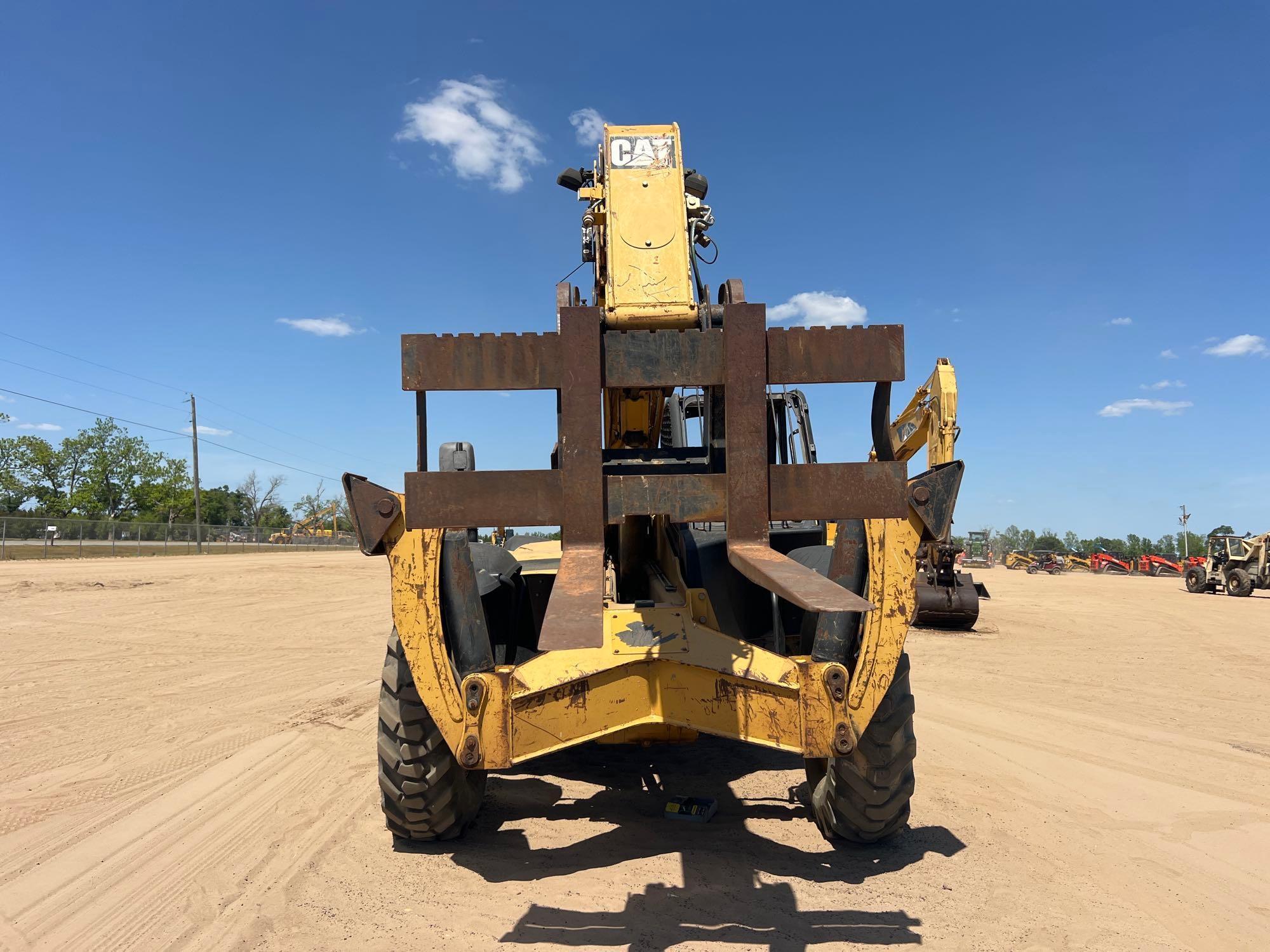

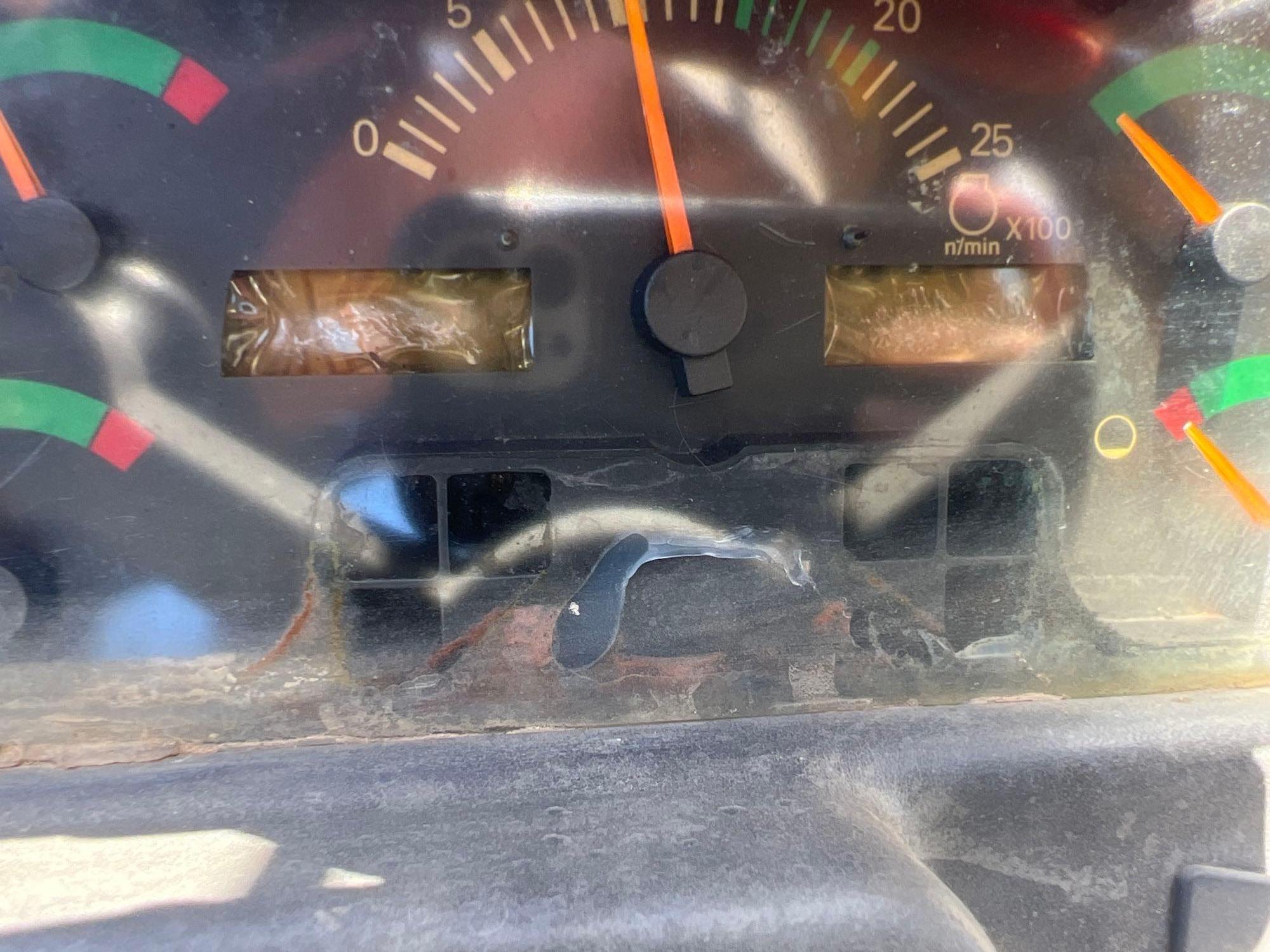

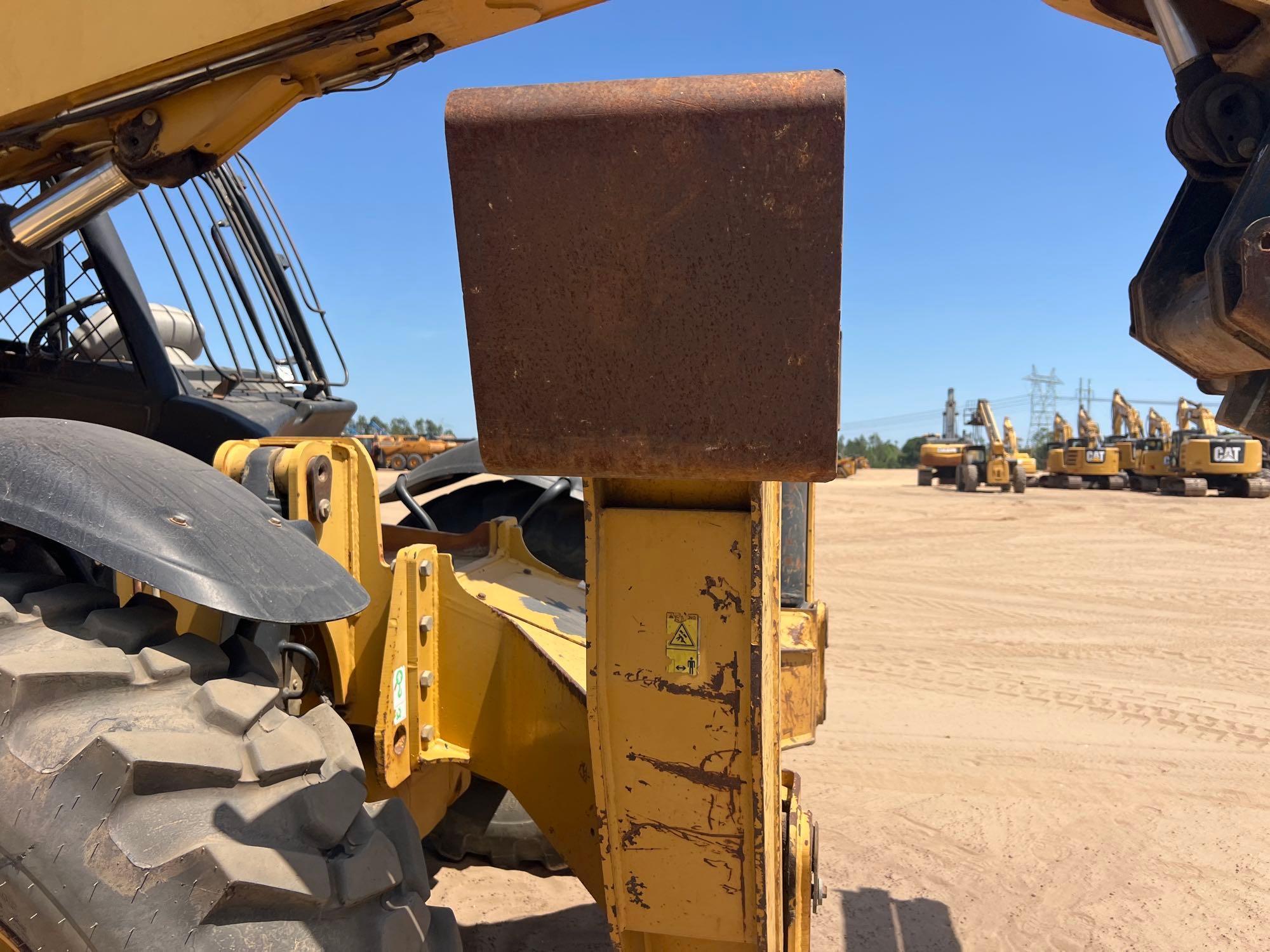

(HRS UNREADABLE) OROPS, TELESCOPIC BOOM, AUX HYD, 48" FORKS, 9000 LB CAP, OUTRIGGERS, 14.00-24 TIRES, 4X4X4, S/N- CATTH460LSLF01728

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom Performance
Boom Down	13 seconds
Boom Up	17 seconds
Combined - Down and In	20 seconds
Combined - Up and Out	36 seconds
Crowd Backward	3 seconds
Crowd Forward - Dump	3 seconds
Tele In	14 seconds
Tele Out	14 seconds
Brakes
Foot Brake	4-wheel
Dimensions
Ground Clearance	20 in (52 cm)
Height	8 ft (3 m)
Height - Top of Hood	81 in (206 cm)
Length - Fork Face	20 ft (6 m)
Length - Front of Tire	17 ft (5 m)
Length to Fork Face	22 ft (7 m)
Overall Height	8 ft (3 m)
Rear - Overhang	4 ft (1 m)
Turning Radius - Over Forks	18 ft (5 m)
Turning Radius - Over Tires	13 ft (4 m)
Turning Radius Outside Tires	13 ft (4 m)
Wheel Base	11 ft (3 m)
Wheelbase	11 ft (3 m)
Width Over Tires	8 ft (3 m)

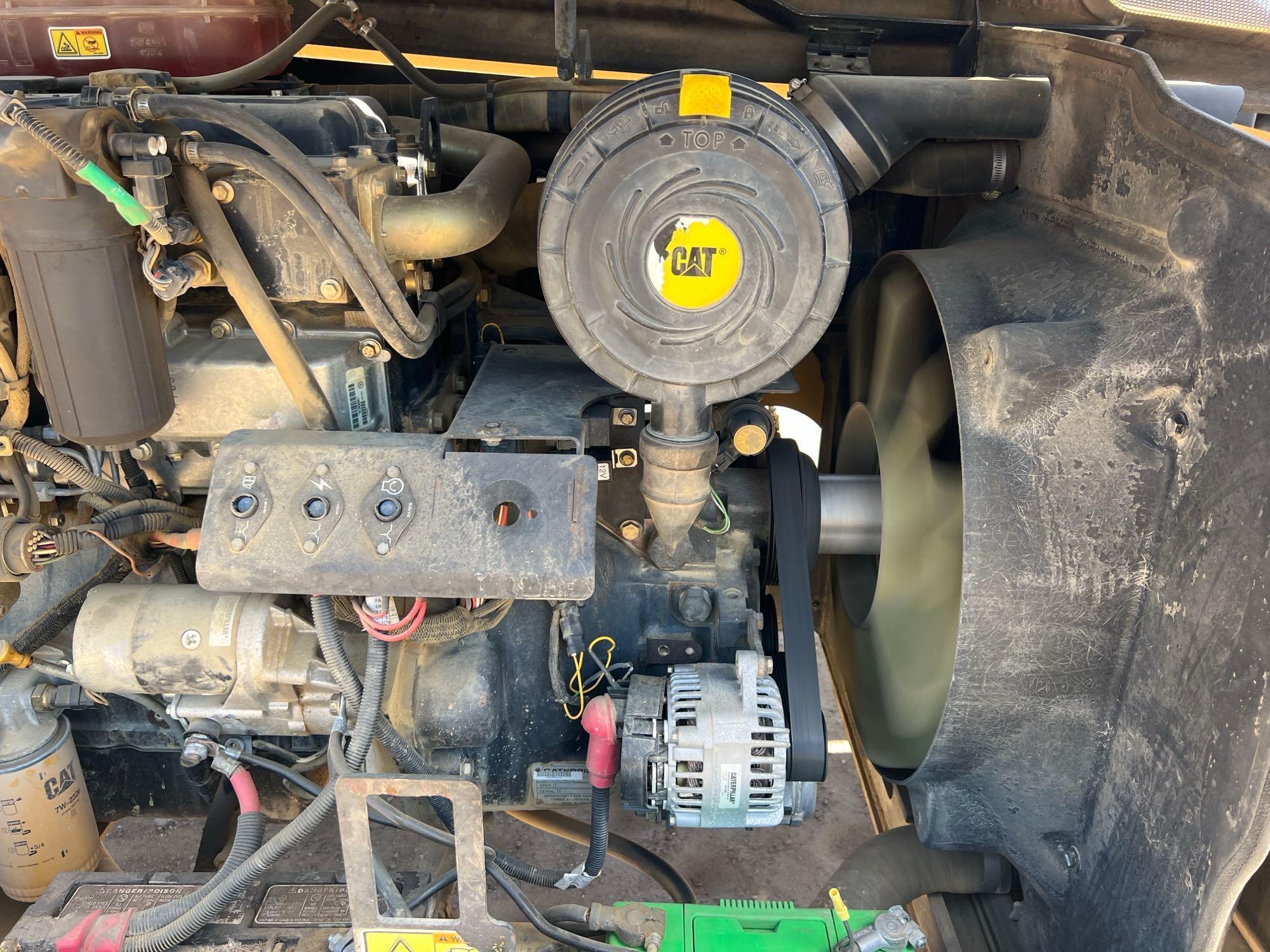

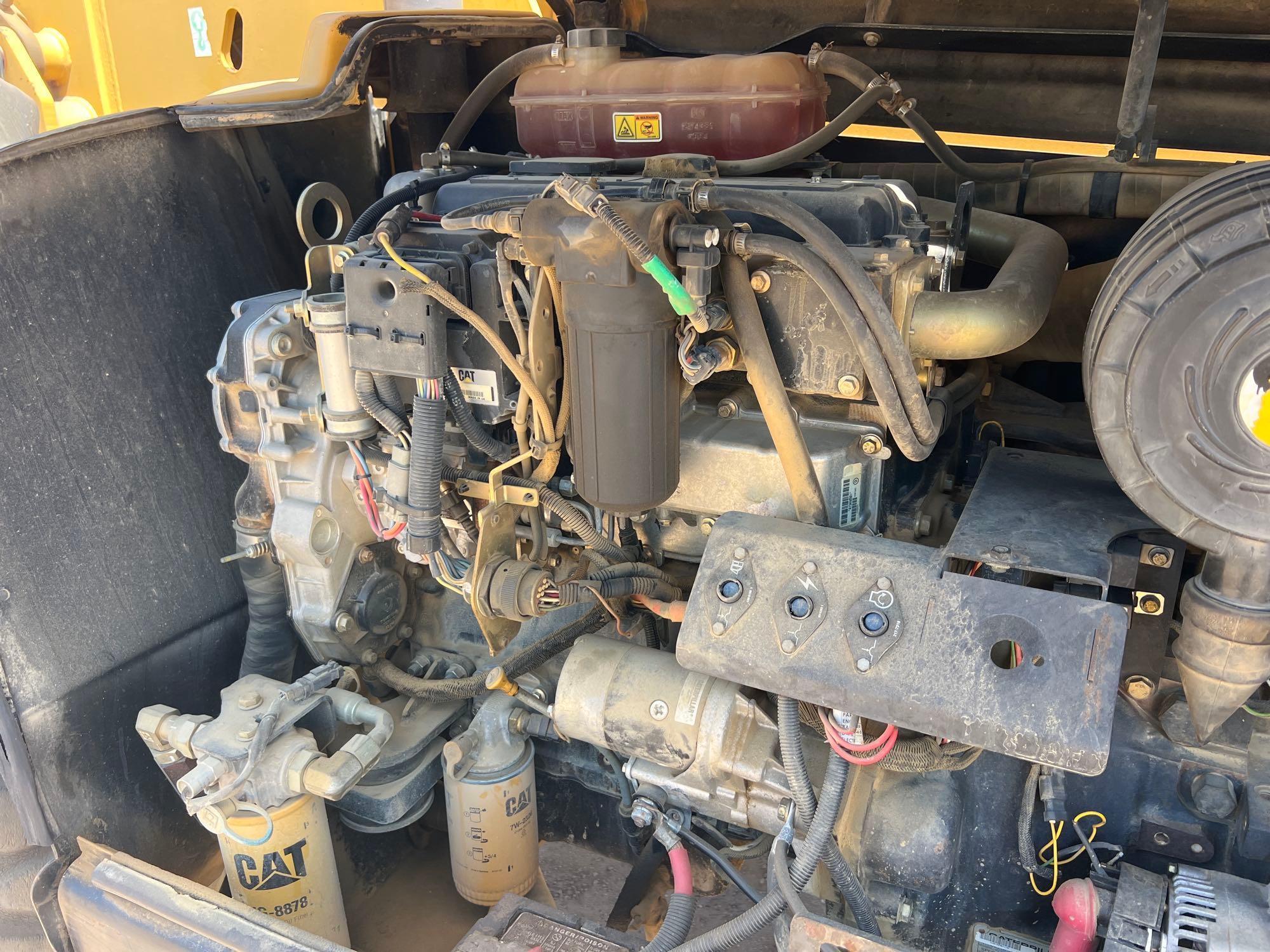

Engine
Bore	4 in (10 cm)
Displacement	268 cu in (4,392 cu cm)
Engine Model	Cat 3054E
Gross Power	99 hp (74 kw)
Max Torque	303 lbs ft (410 nm)
Maximum Torque	303 lbs ft (411 nm)
Net Power	95 hp (71 kw)
Power Measured @	2,200 rpm
Stroke	5 in (13 cm)
Torque Measured @	1,400 rpm
Hydraulic System
Auxiliary Hydraulic Supply	24 gpm (91 lpm)
Maximum Pump Flow	40 gpm (151 lpm)
Maximum System Pressure	3,625 psi
Pump Flow Capacity	30 gpm (113 lpm)
Relief Valve Pressure	3,626 psi
Lift System
Max Forward Reach	30 ft (9 m)
Max Lift Capacity	8,819 lbs (4,000 kg)
Max Lift Height	44 ft (14 m)
Max Load at Max Height	8,819 lbs (4,000 kg)
Max Load at Max Reach	3,307 lbs (1,500 kg)
Operating Specifications
Alternator Supplied Amperage	90 amps
Fuel Capacity	27 gal (100 l)
Hydraulic System Fluid Capacity	17 gal (65 l)
Load at Maximum Height - No Stabilizers	3,000 lbs (1,361 kg)
Load at Maximum Height - Stabilizers Down	9,000 lbs (4,082 kg)
Load at Maximum Height - Stabilizers Up	3,000 lbs (1,361 kg)
Load at Maximum Reach - No Stabilizers	1,700 lbs (771 kg)
Load at Maximum Reach - Stabilizers Down	4,000 lbs (1,814 kg)
Maximum Forward Reach	30 ft (9 m)
Maximum Lift Height	44 ft (14 m)
Operating Voltage	12 volts
Operating Weight	23,149 lbs (10,500 kg)
Rated Load Capacity	9,000 lbs (4,082 kg)

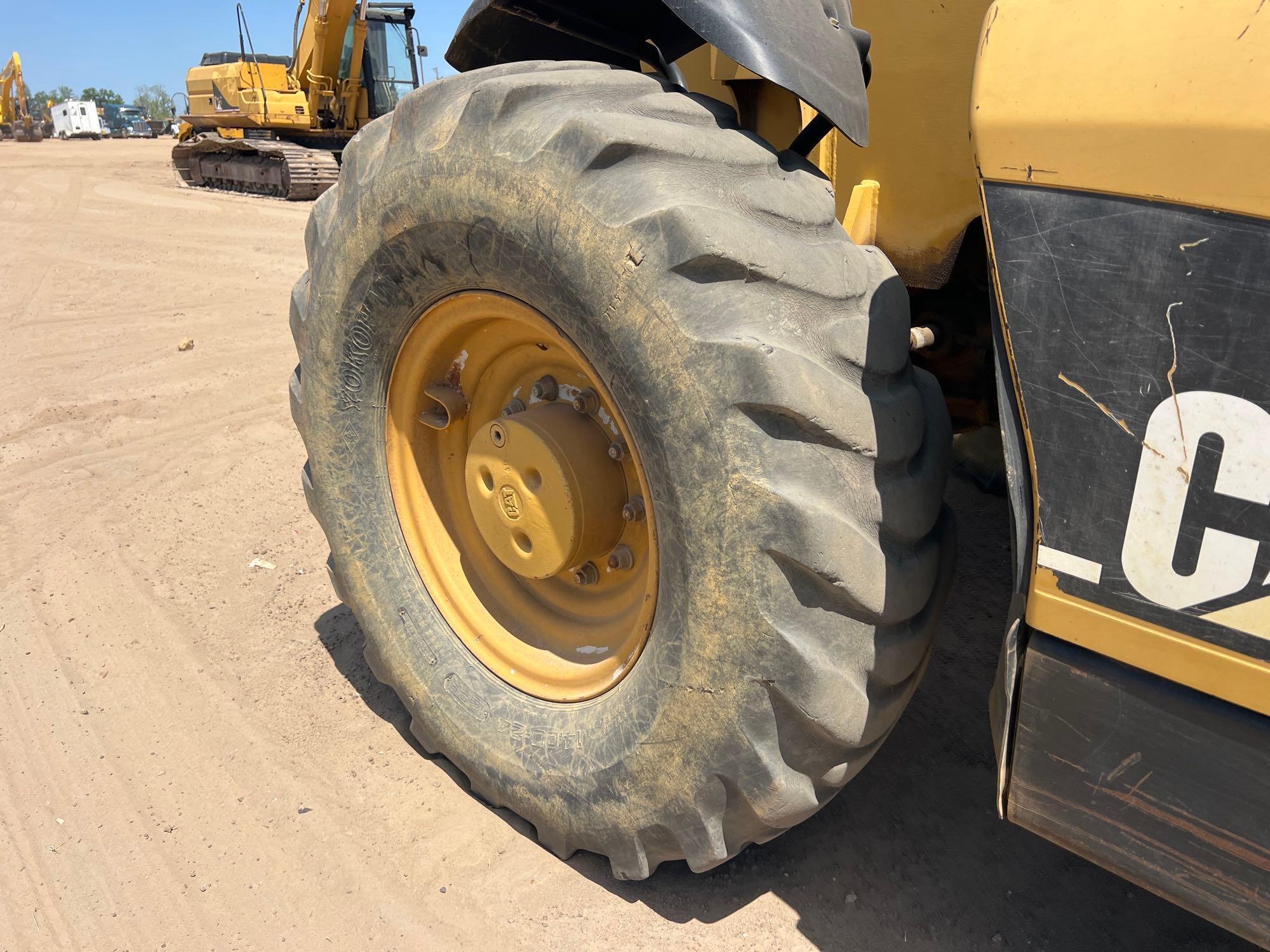

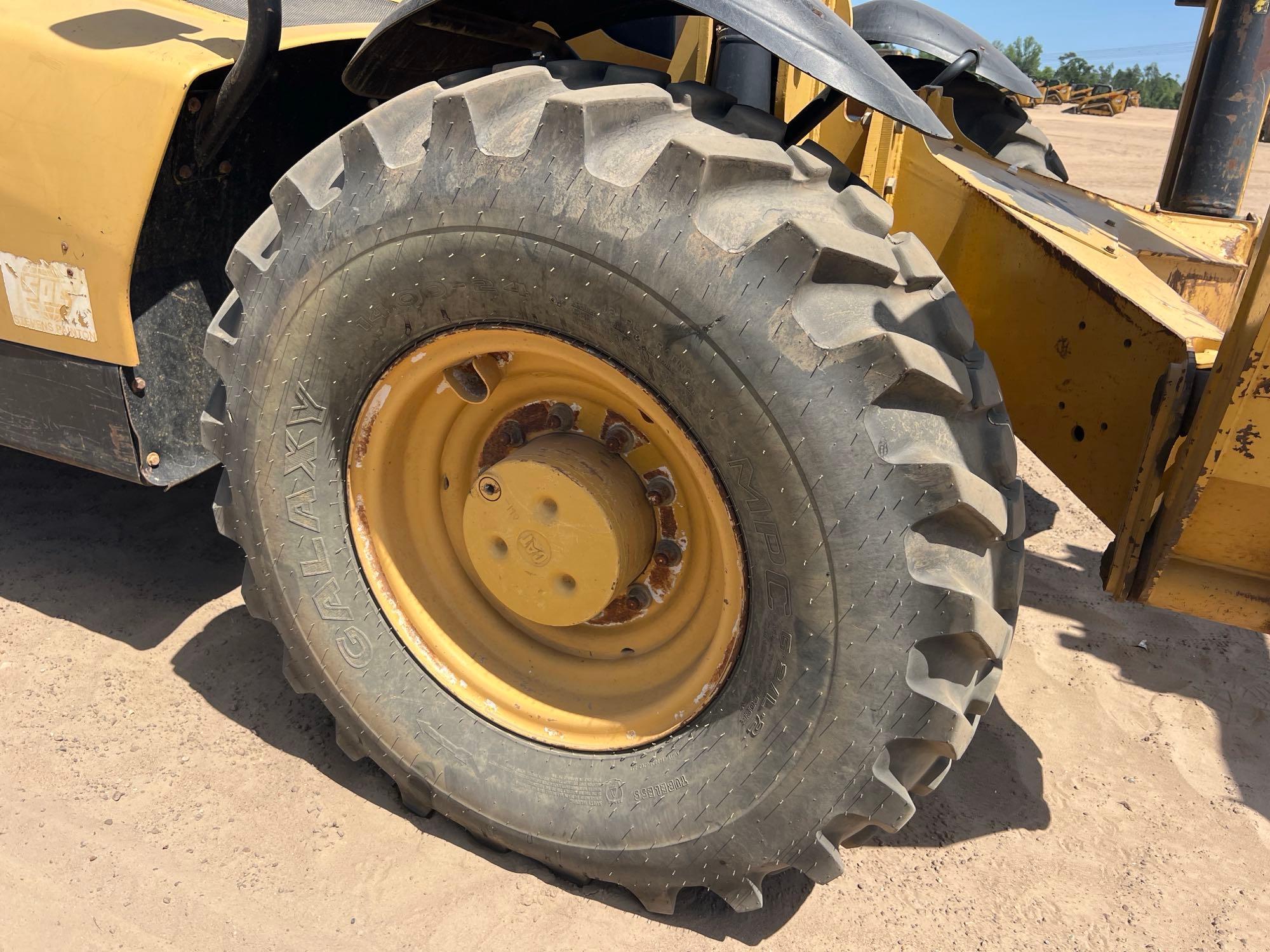

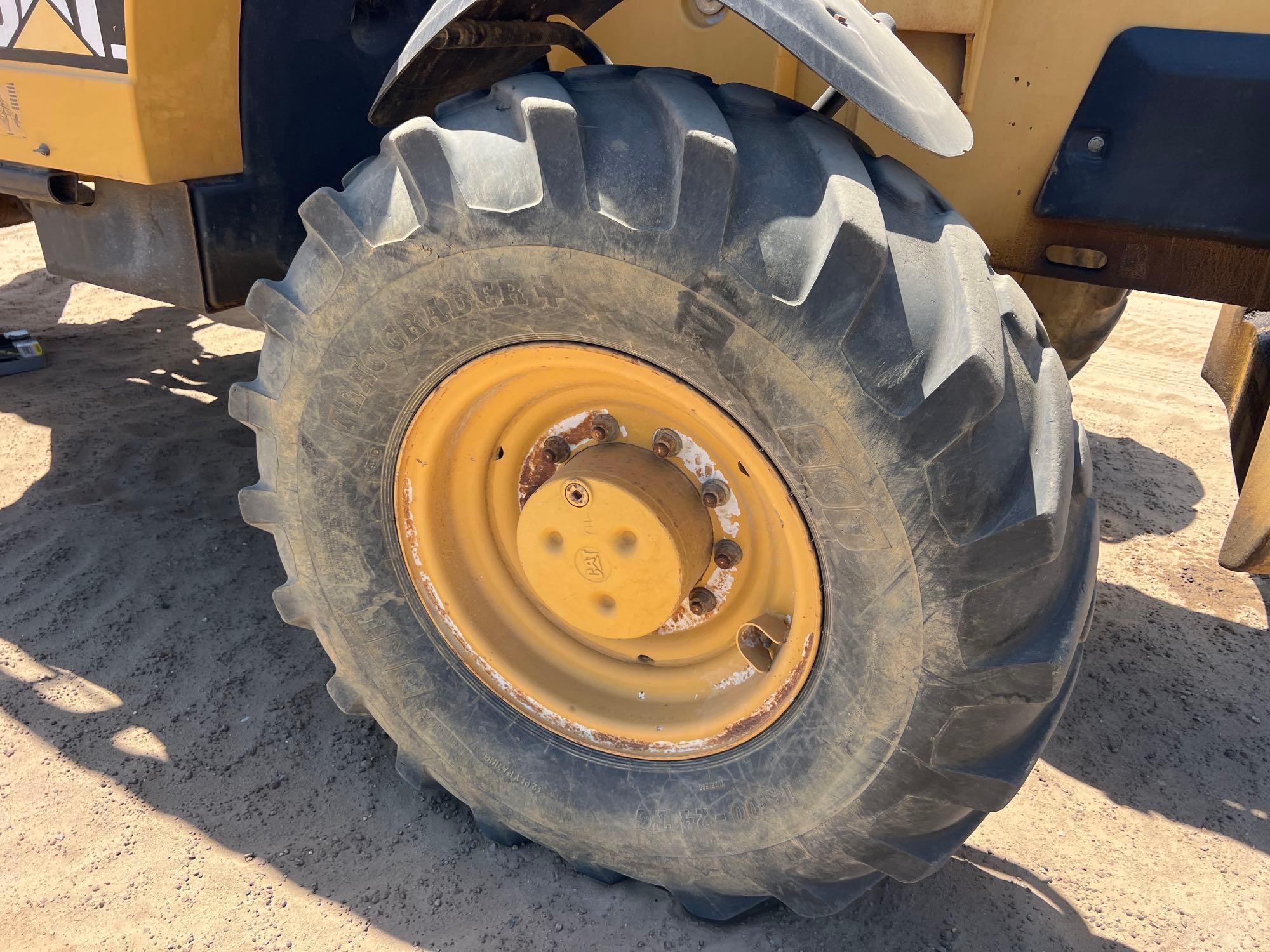

Tire Size	14.00-24
Top Travel Speed	25 mph (40 kph)
Service Refill Capacities
Fuel Tank	23 gal (87 l)
Hydraulic Tank	15 gal (57 l)
Transmission
Max Speed - forward	20 mph (32 kph)
Max Speed - reverse	13 mph (20 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Speeds
Forward - 1	4 mph (6 kph)
Forward - 2	7 mph (11 kph)
Forward - 3	13 mph (21 kph)
Forward - 4	25 mph (40 kph)
Reverse - 1	4 mph (6 kph)
Reverse - 2	7 mph (11 kph)
Reverse - 3	13 mph (21 kph)
Weights
Operating Weight	24,978 lbs (11,330 kg)
