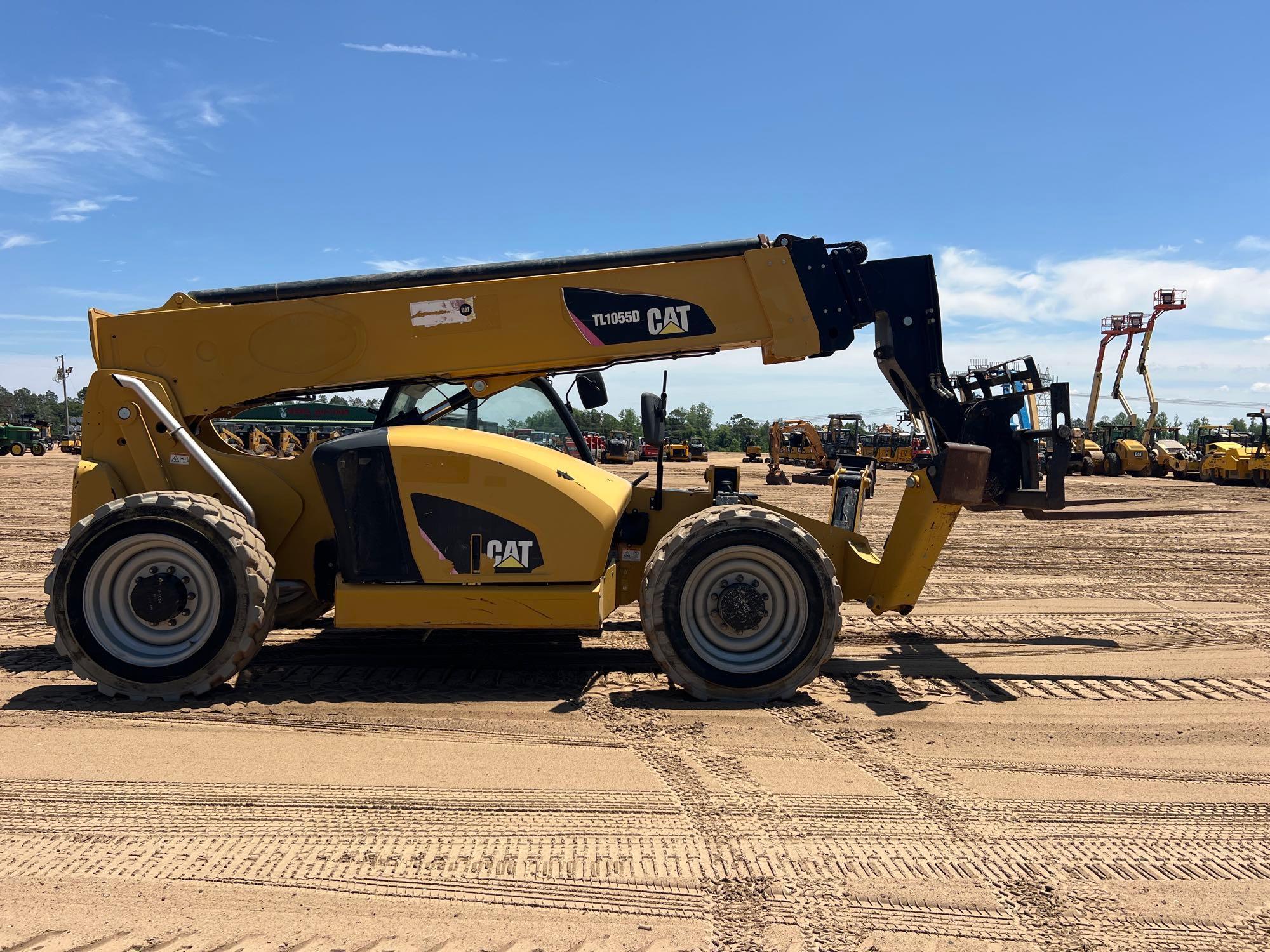

Caterpillar TL1055 For Sale in Hazlehurst, GA

Name: Caterpillar TL1055
Brand: Caterpillar
SKU: 87392696
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-14 Click here to place a bid

Rebel Auction Co., Inc.

Rebel Auction Co., Inc. Dealer Info

Rebel Auction Co., Inc. Website

Click here to email Rebel Auction Co., Inc..

Click for Phone Number

Machine Info:

Machine Location:	HAZLEHURST, GA
More Information:	https://www.proxibid.com/heavy-construction-equipment/lifts/2018-caterpillar-tl1055d-telescopic-forklift/lotInformation/100646862?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=65056

Description:

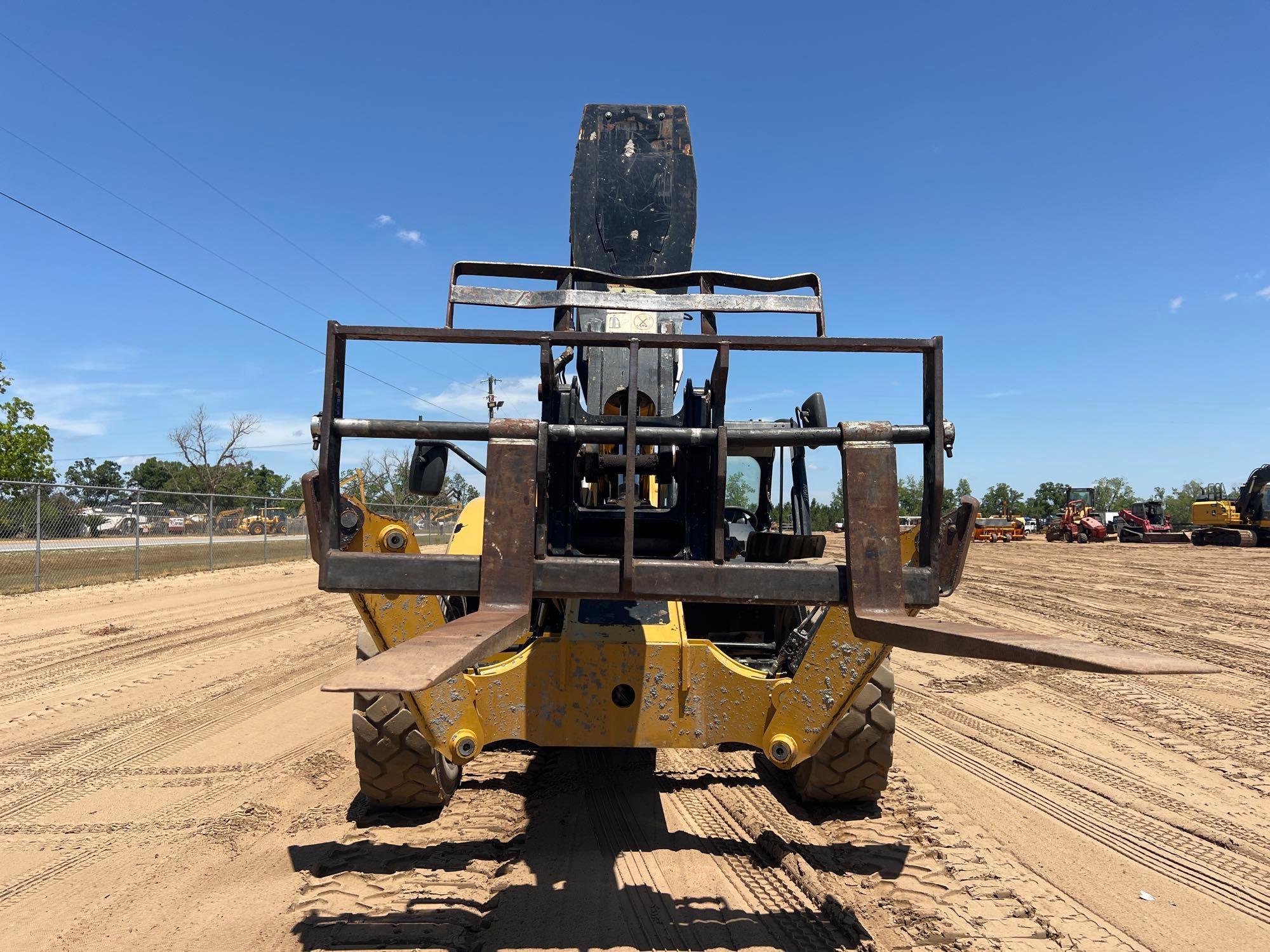

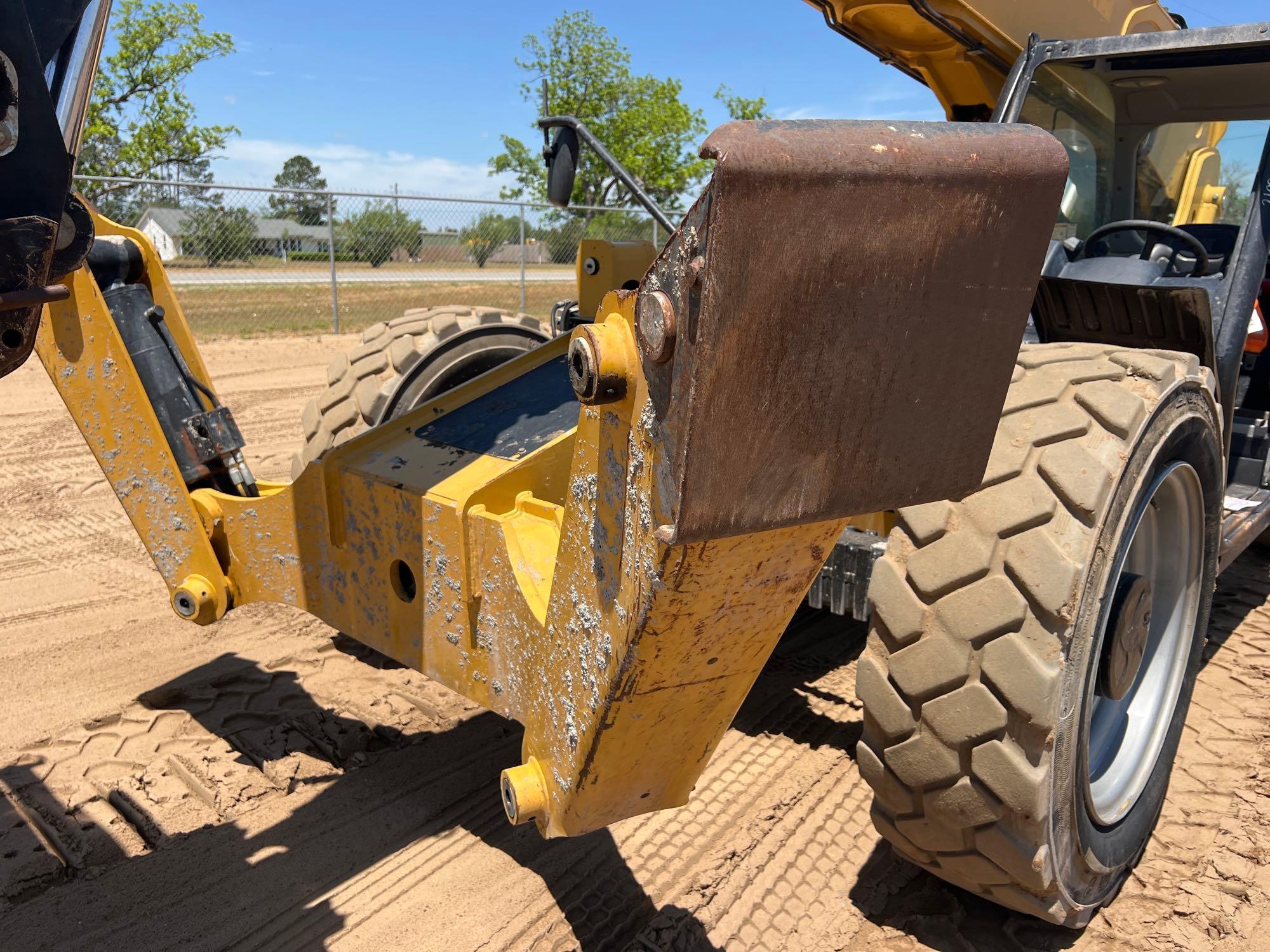

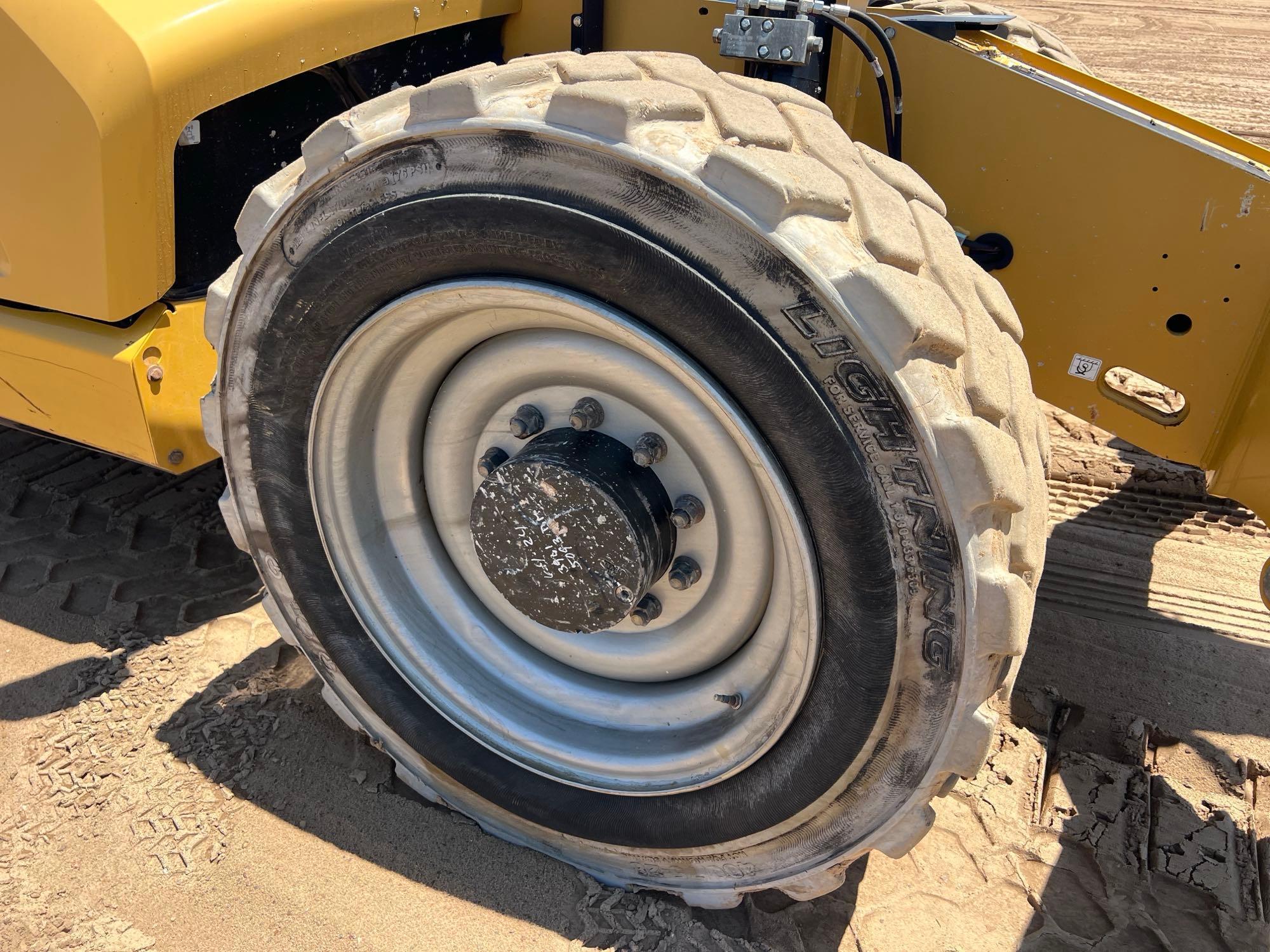

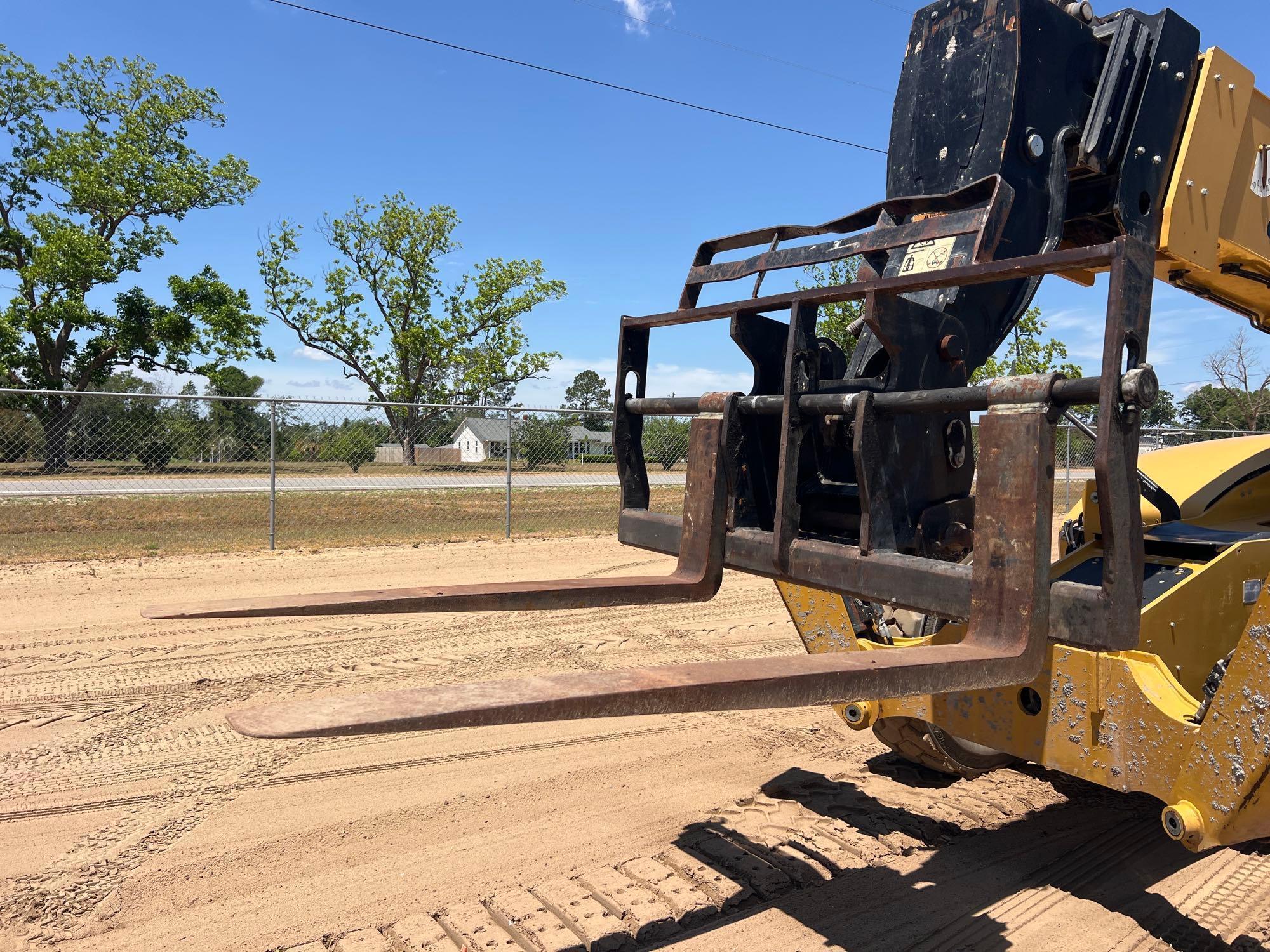

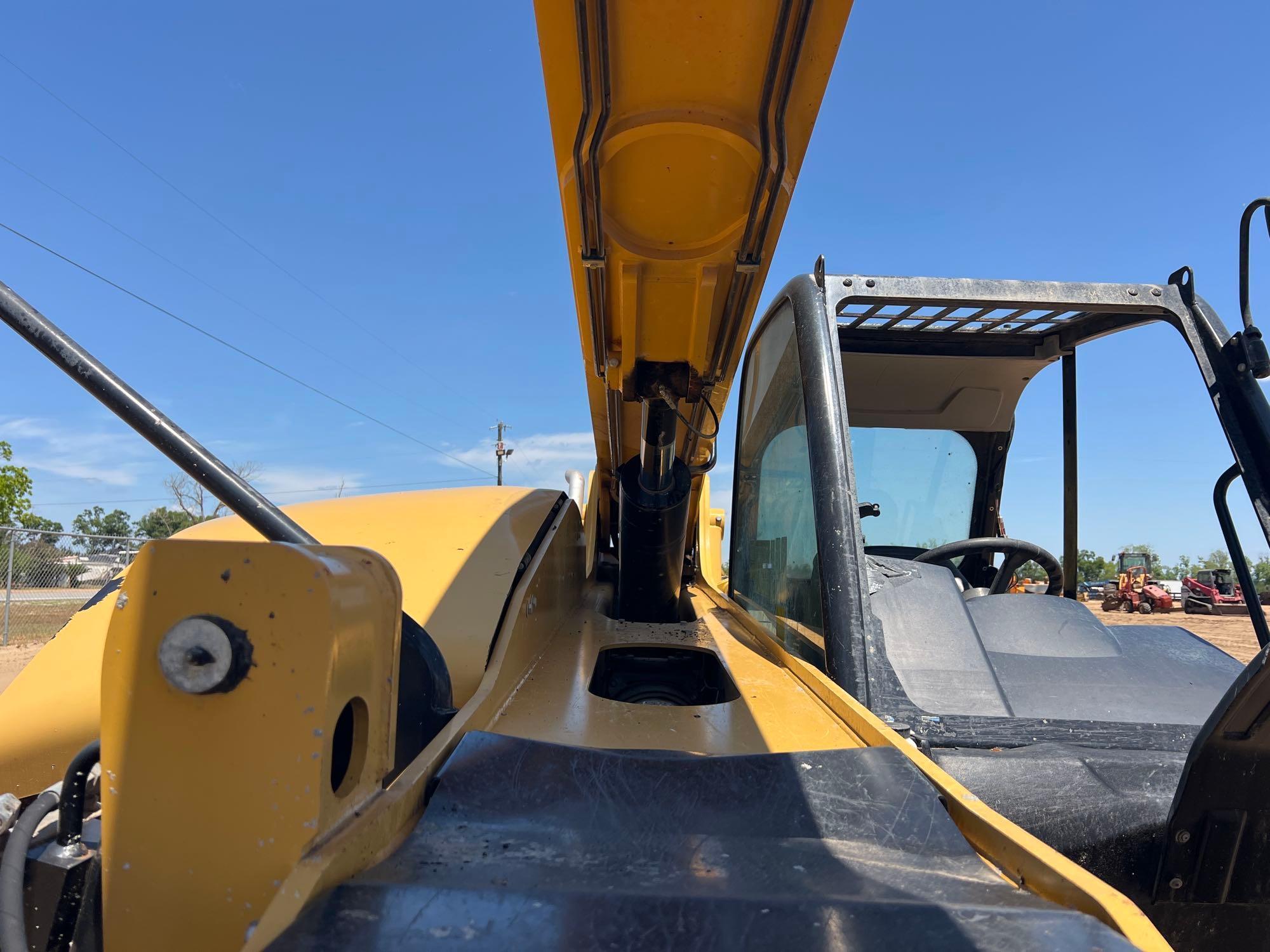

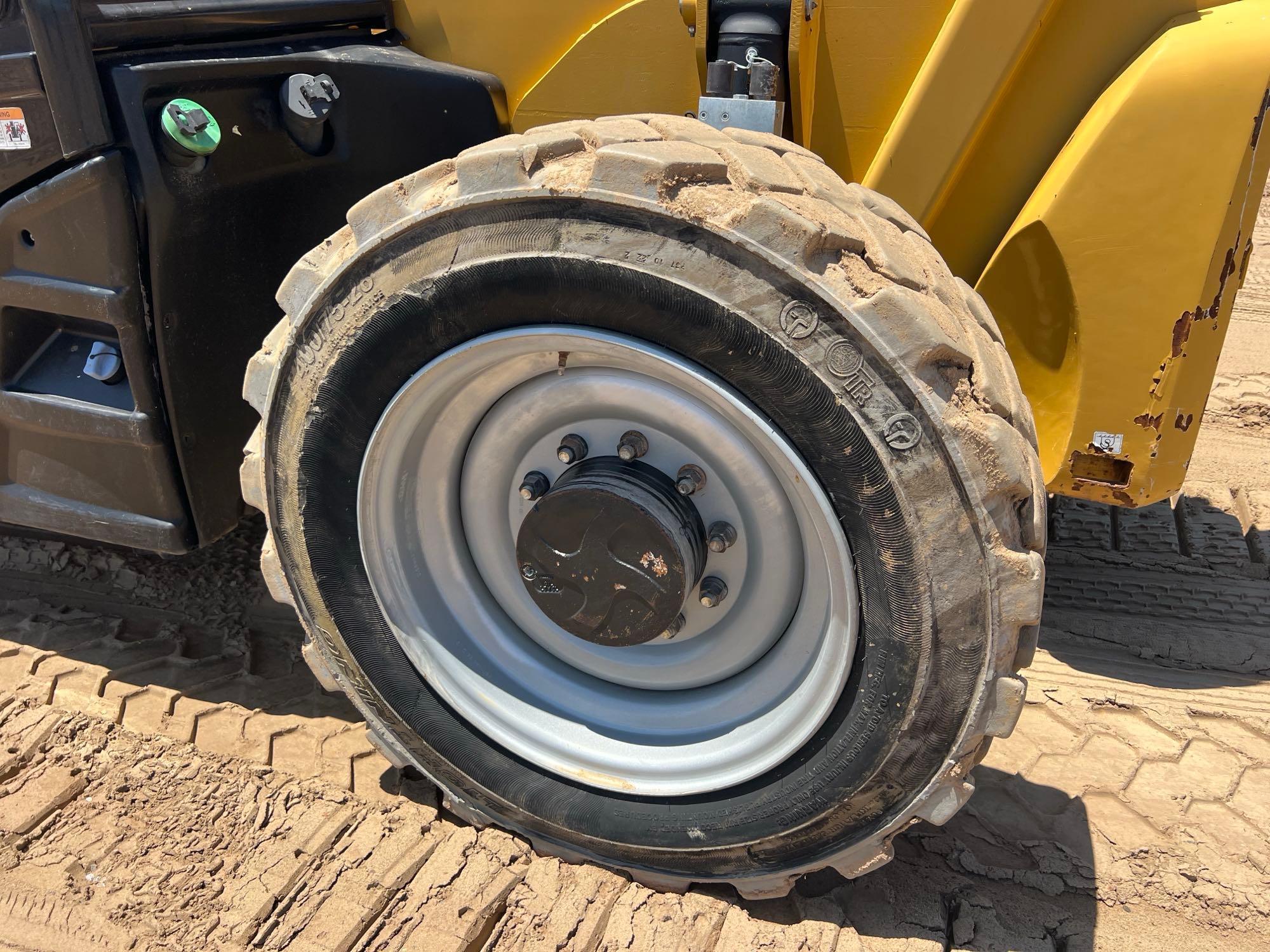

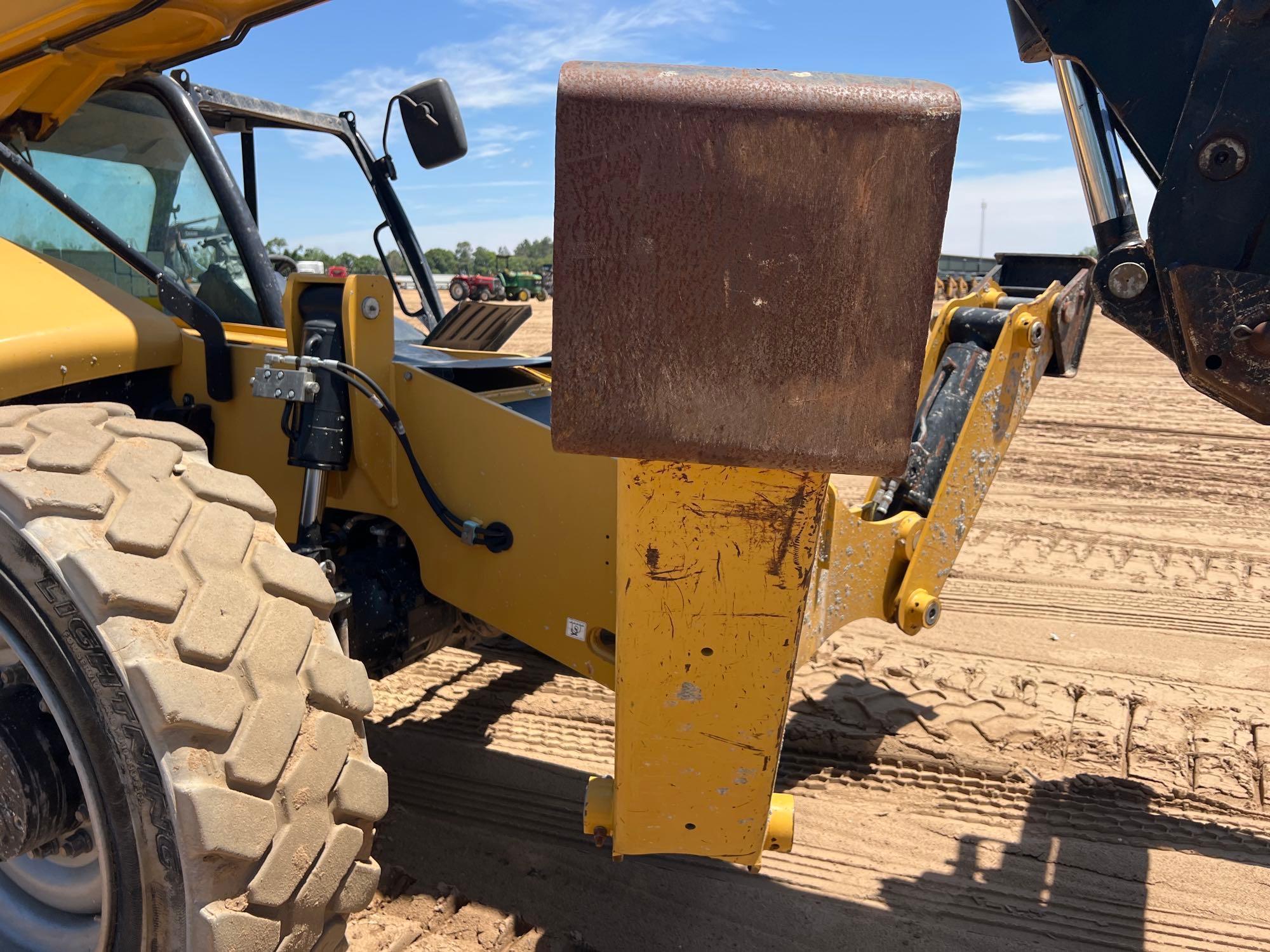

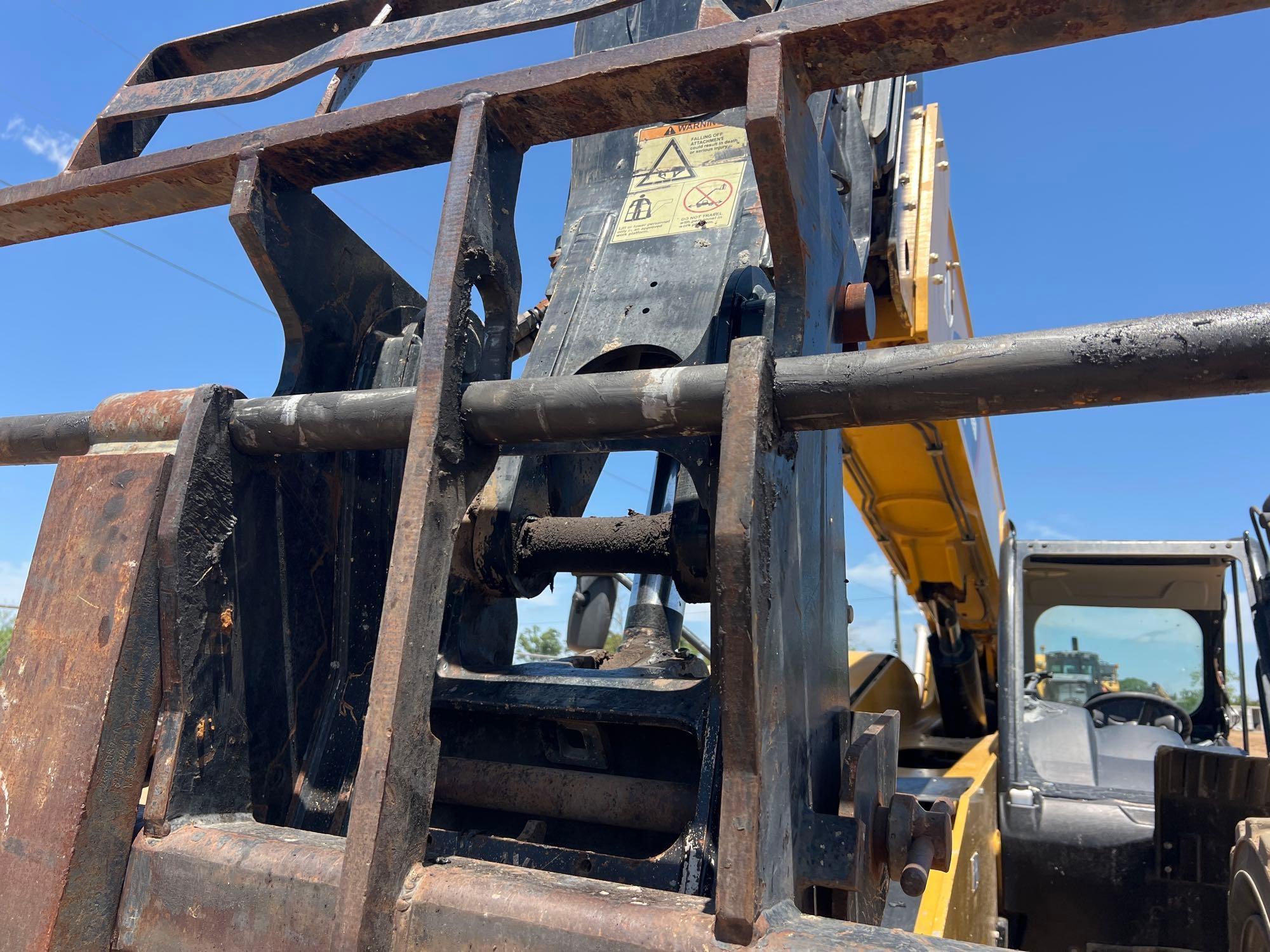

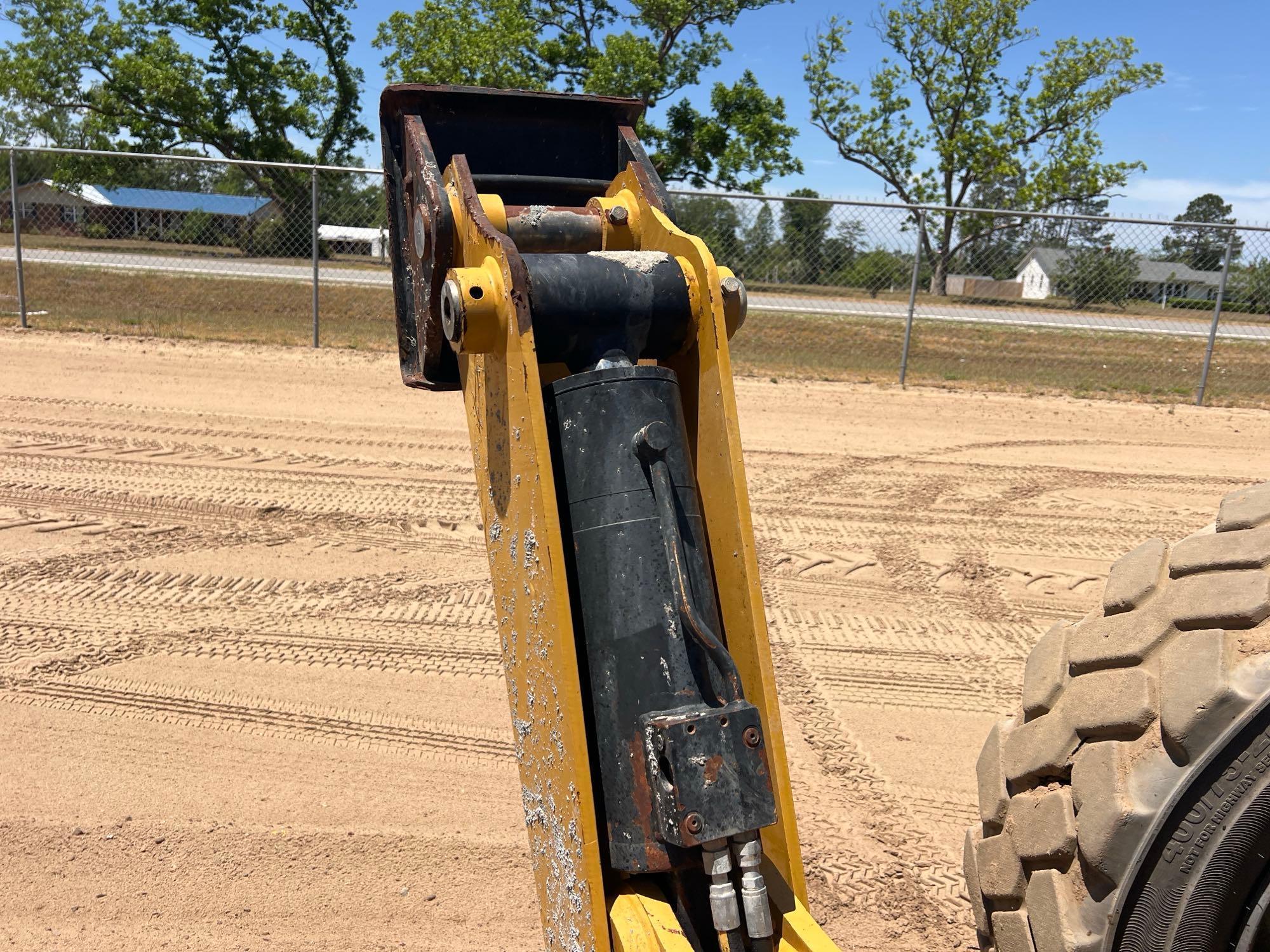

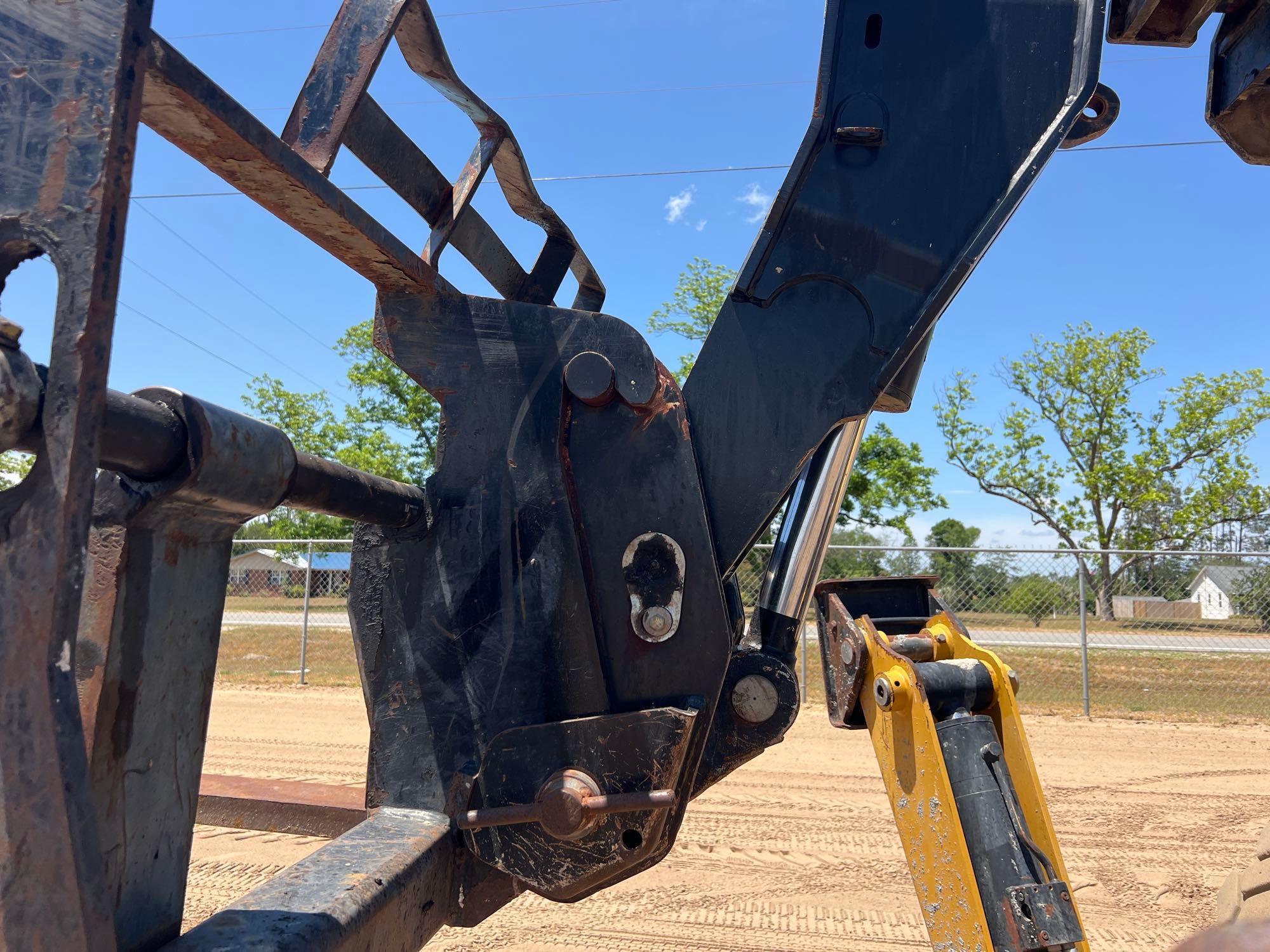

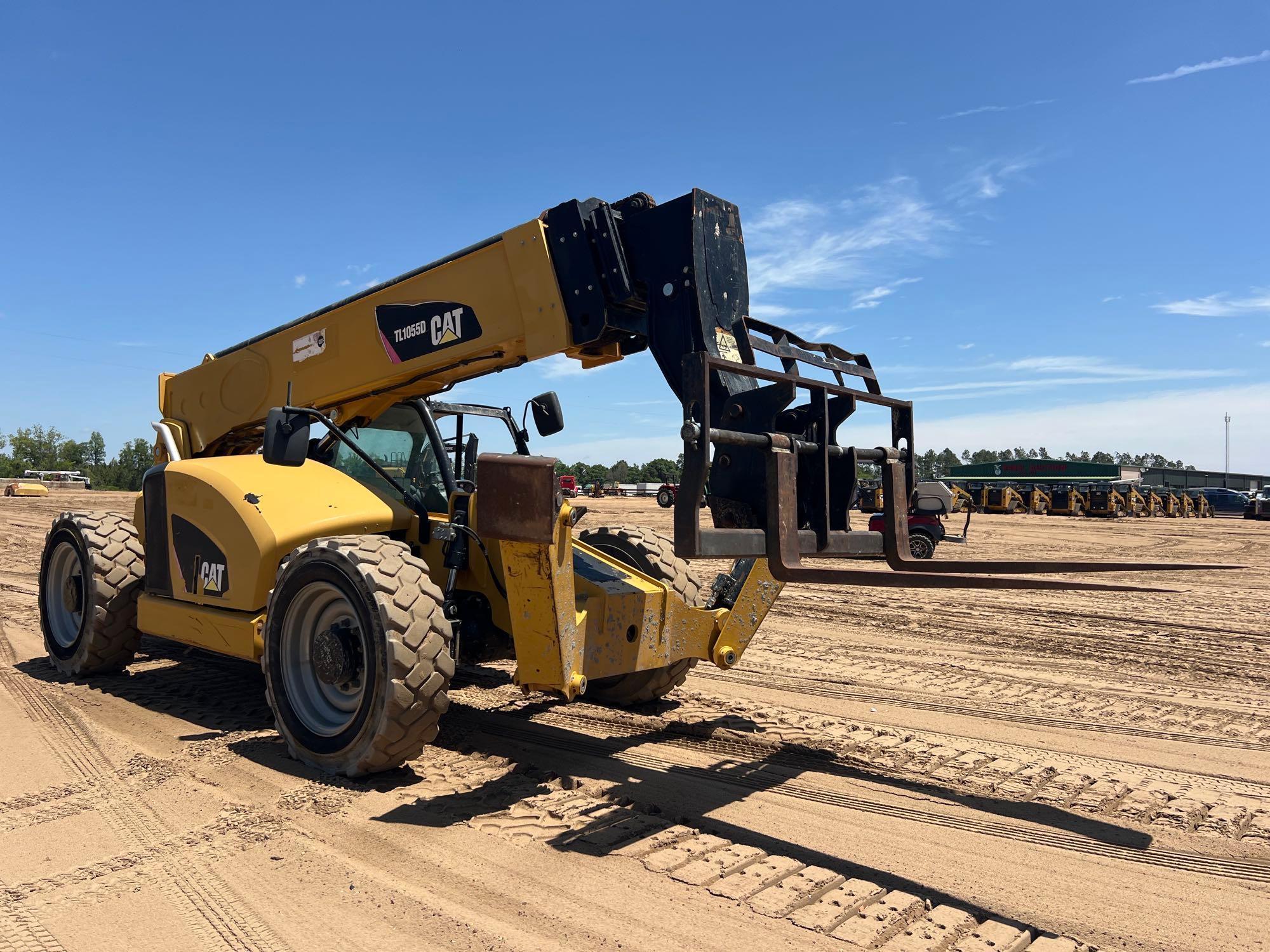

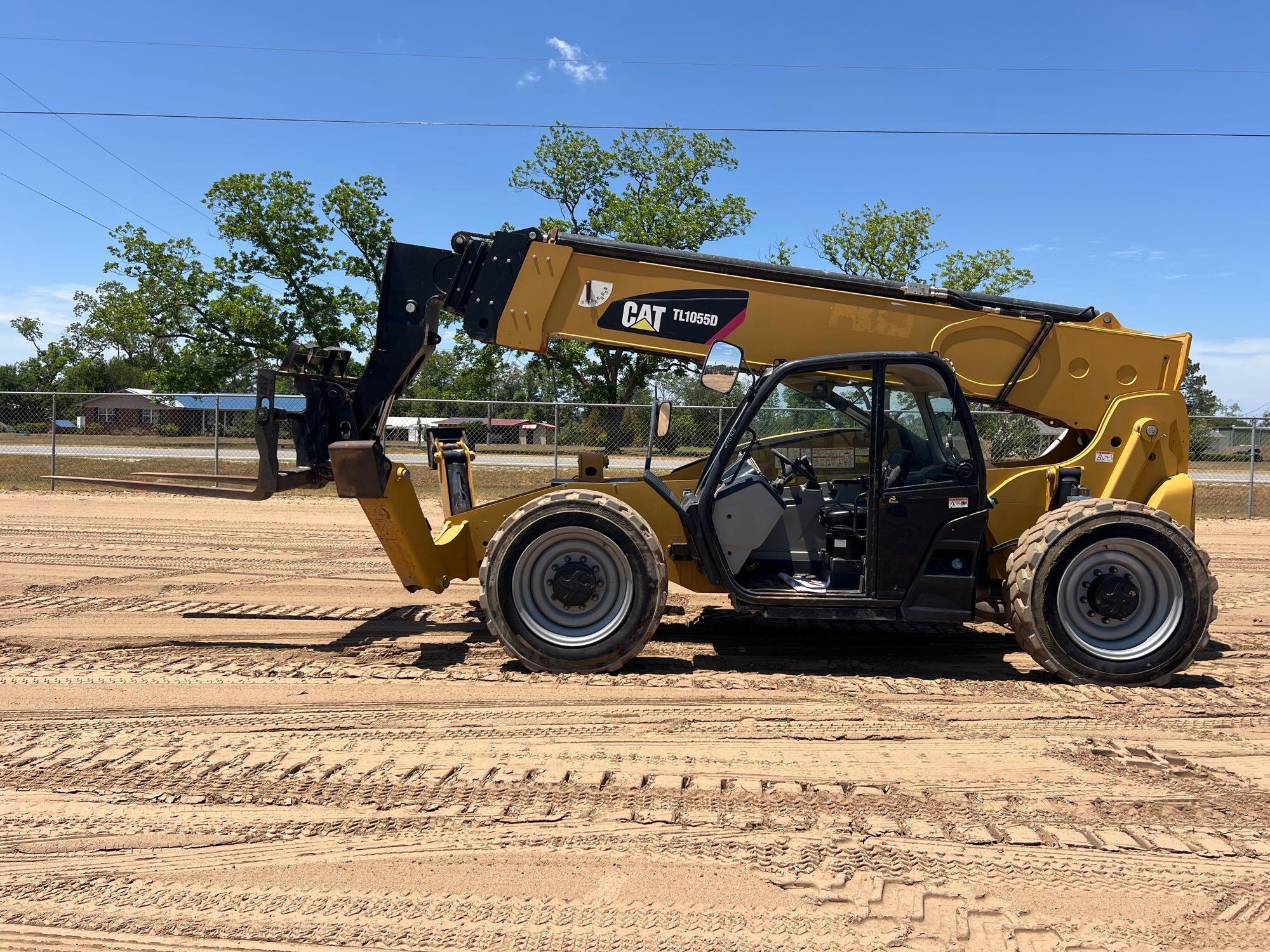

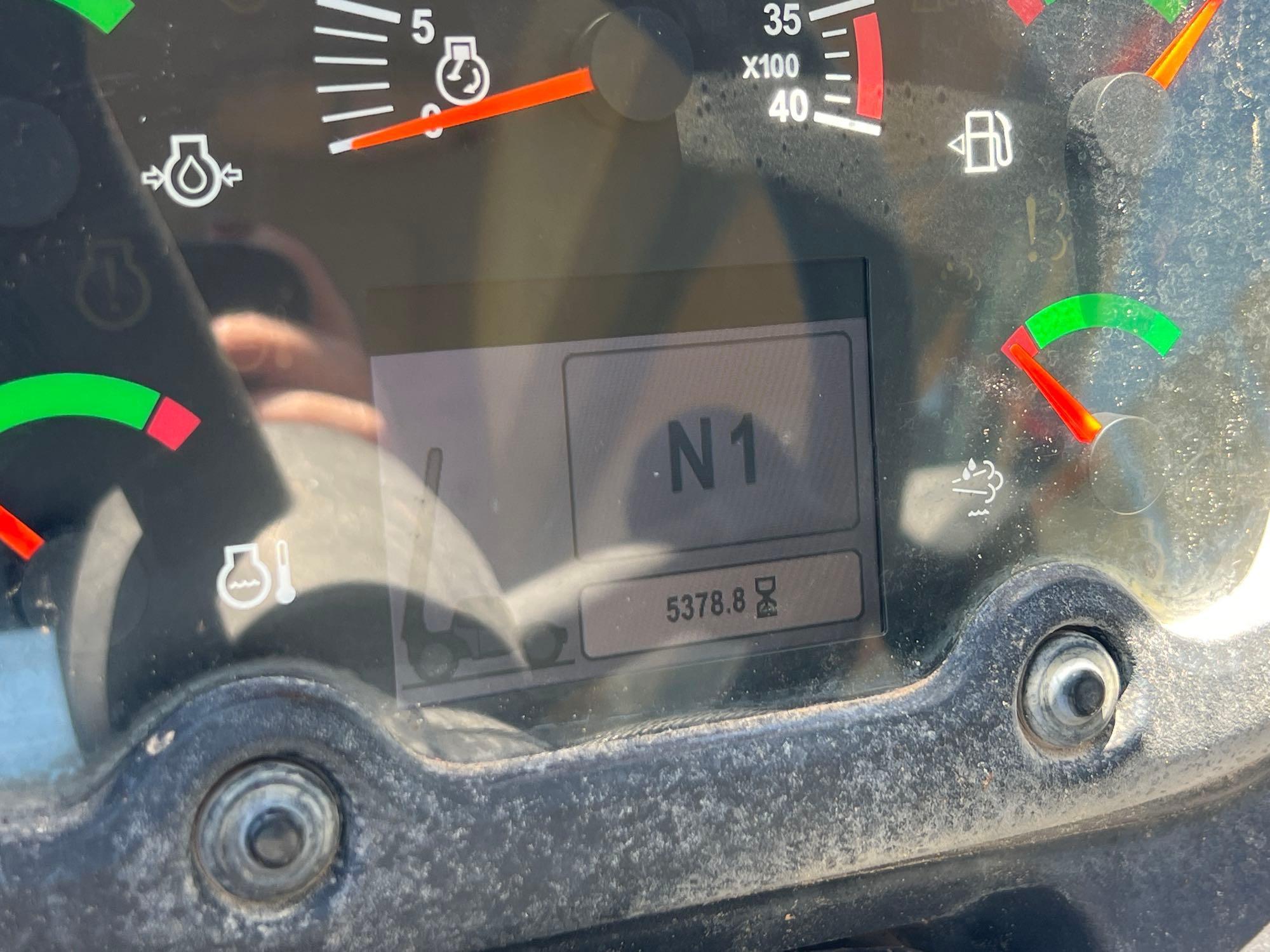

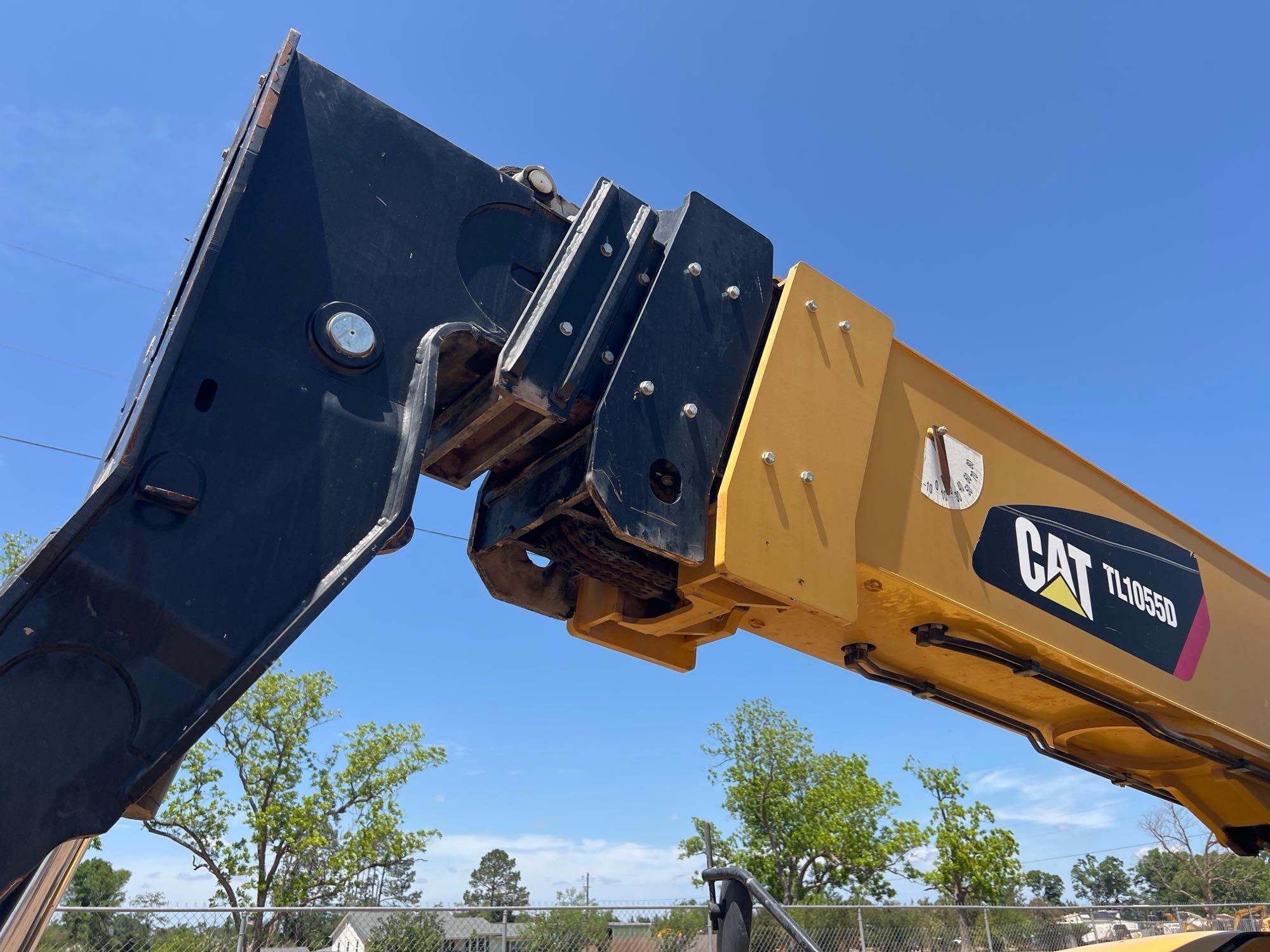

(HRS SHOW- 5376) OROPS, AUX HYD, TELESCOPIC BOOM W/60" FORKS, OUTRIGGERS, 100000# CAP, 400/75-28 TIRES

From the manufacturer:

Supplied by HeavyEquipmentData.com →

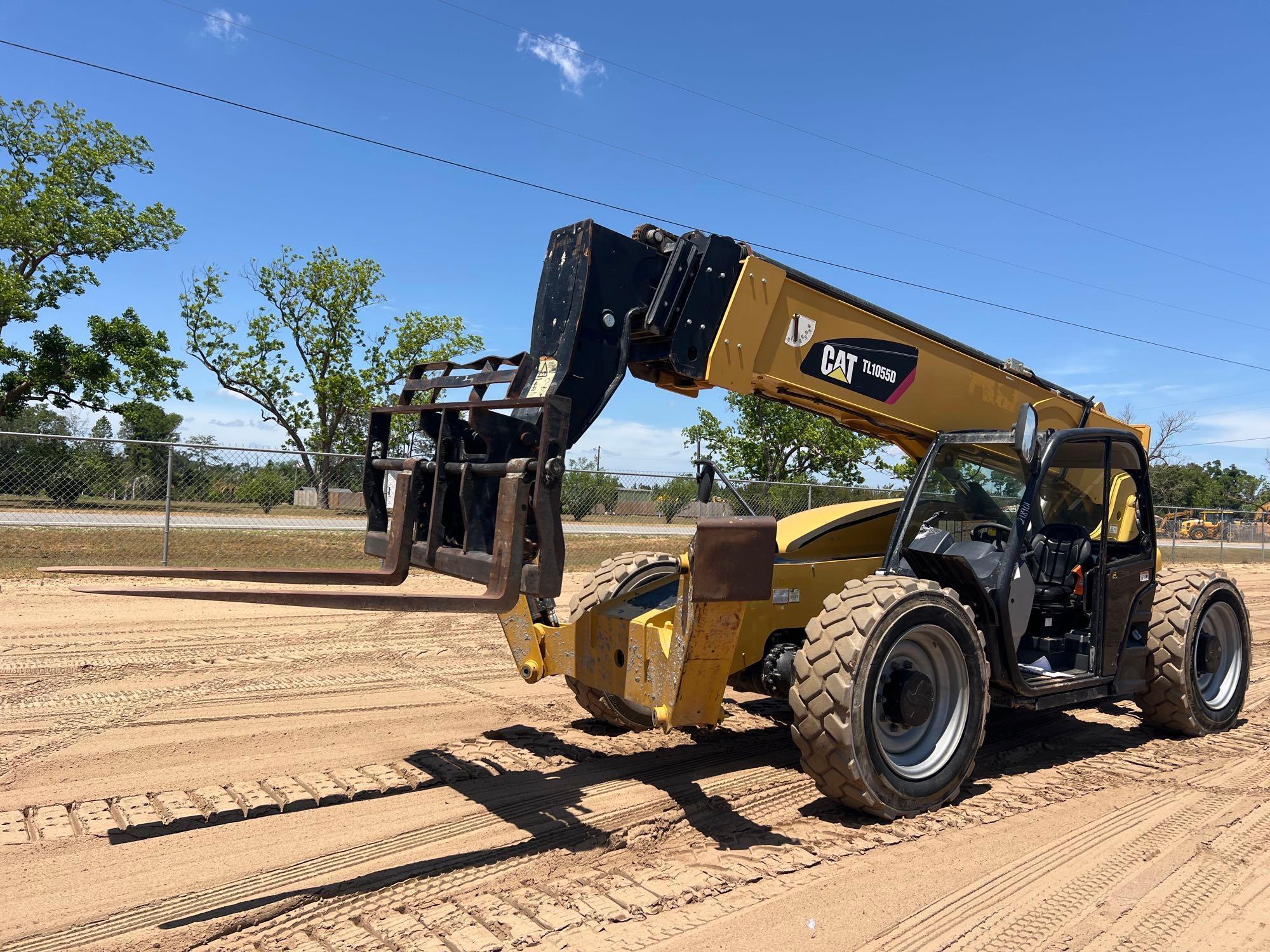

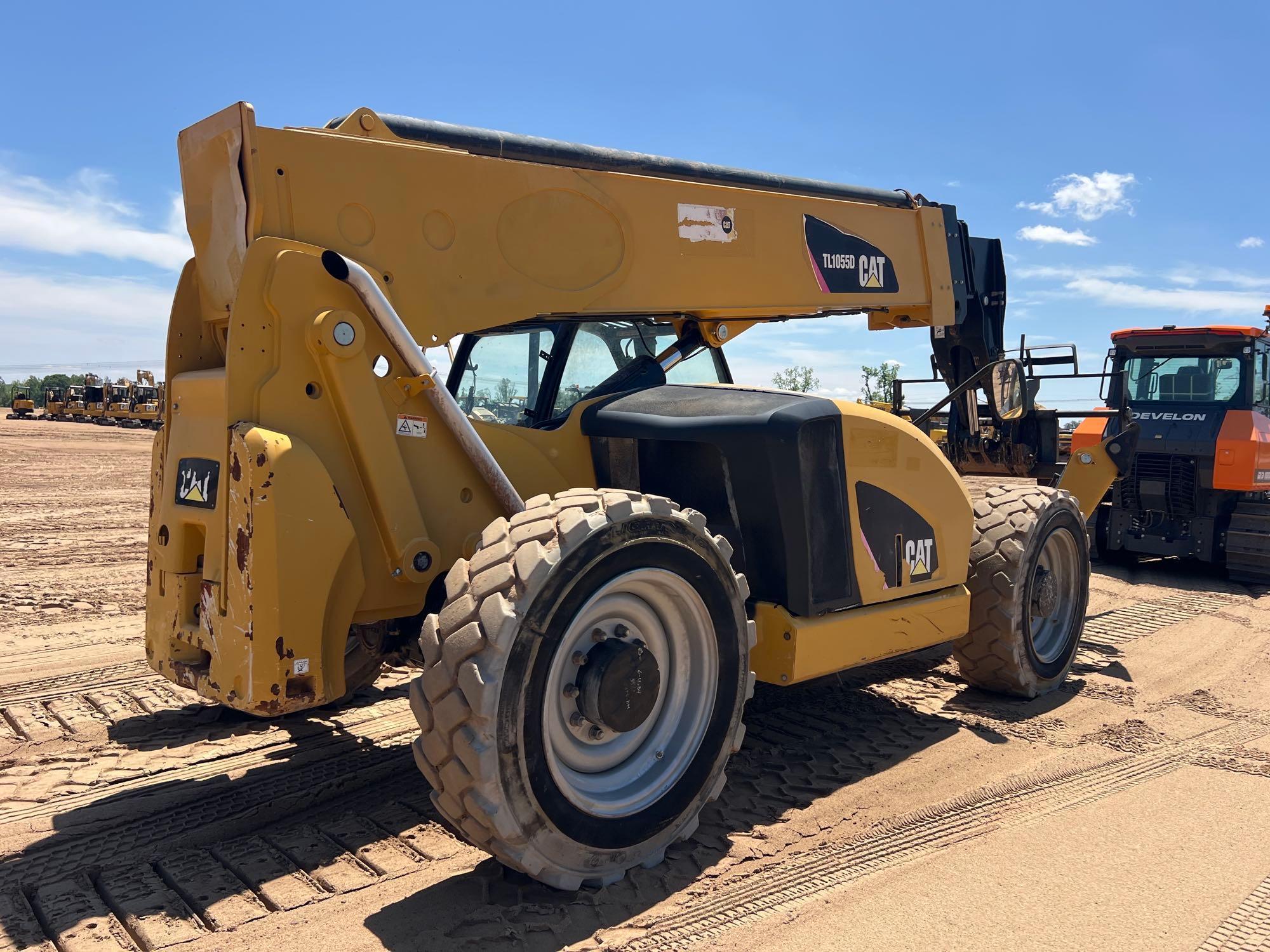

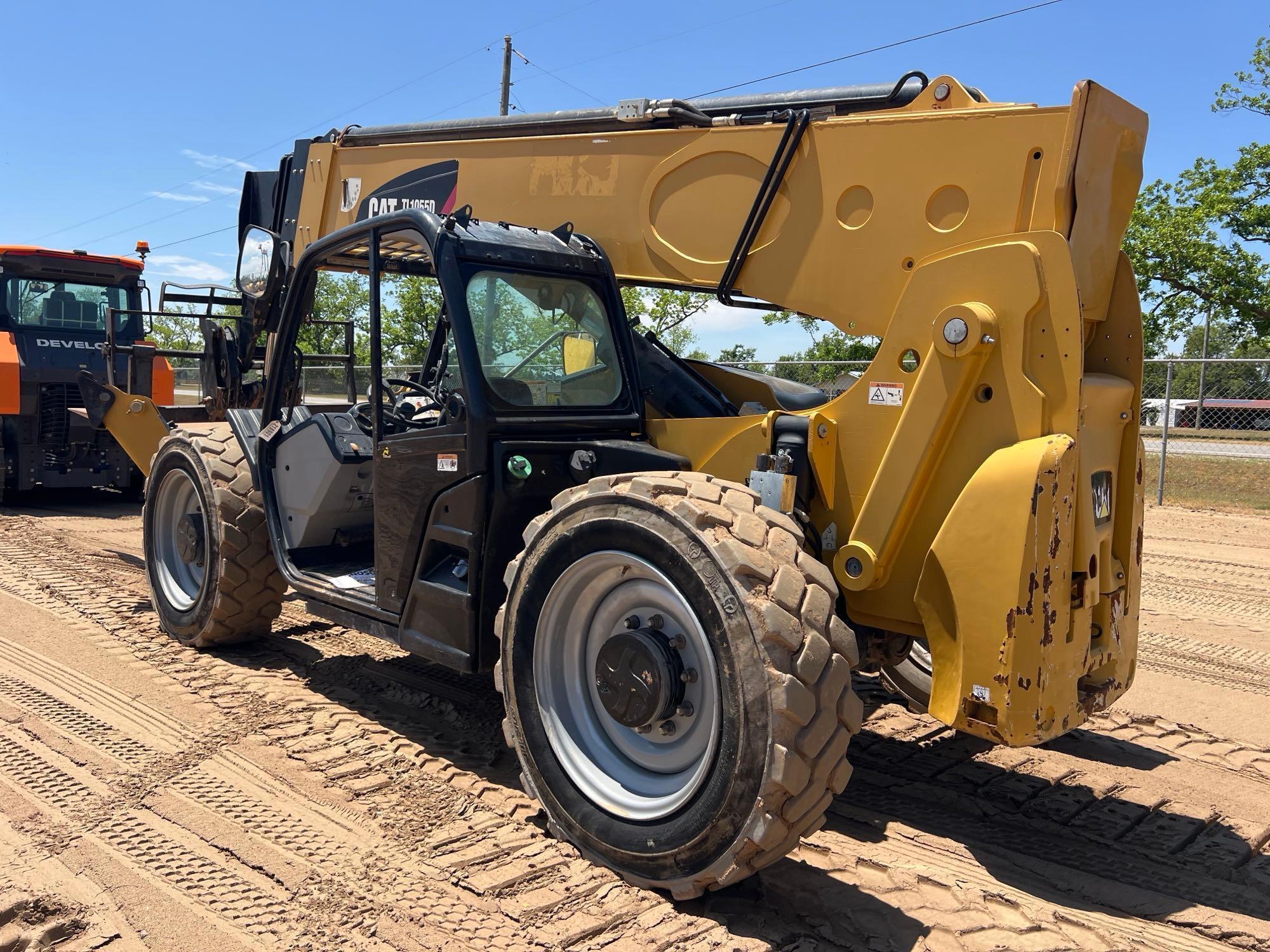

The Caterpillar TL1055 is a telehandler designed for material handling, lifting, and placement tasks on construction and industrial sites. It features a telescopic boom for extended reach and load positioning, making it suitable for moving palletized materials, jobsite supplies, and other heavy loads in confined or elevated areas. The TL1055 is commonly used in building construction, agriculture, and general material handling applications. Caterpillar telehandlers are known for combining lift height, reach, and maneuverability in a single machine configuration. The TL1055 model is part of Caterpillar's telehandler lineup for operators requiring versatile lifting performance and site mobility.

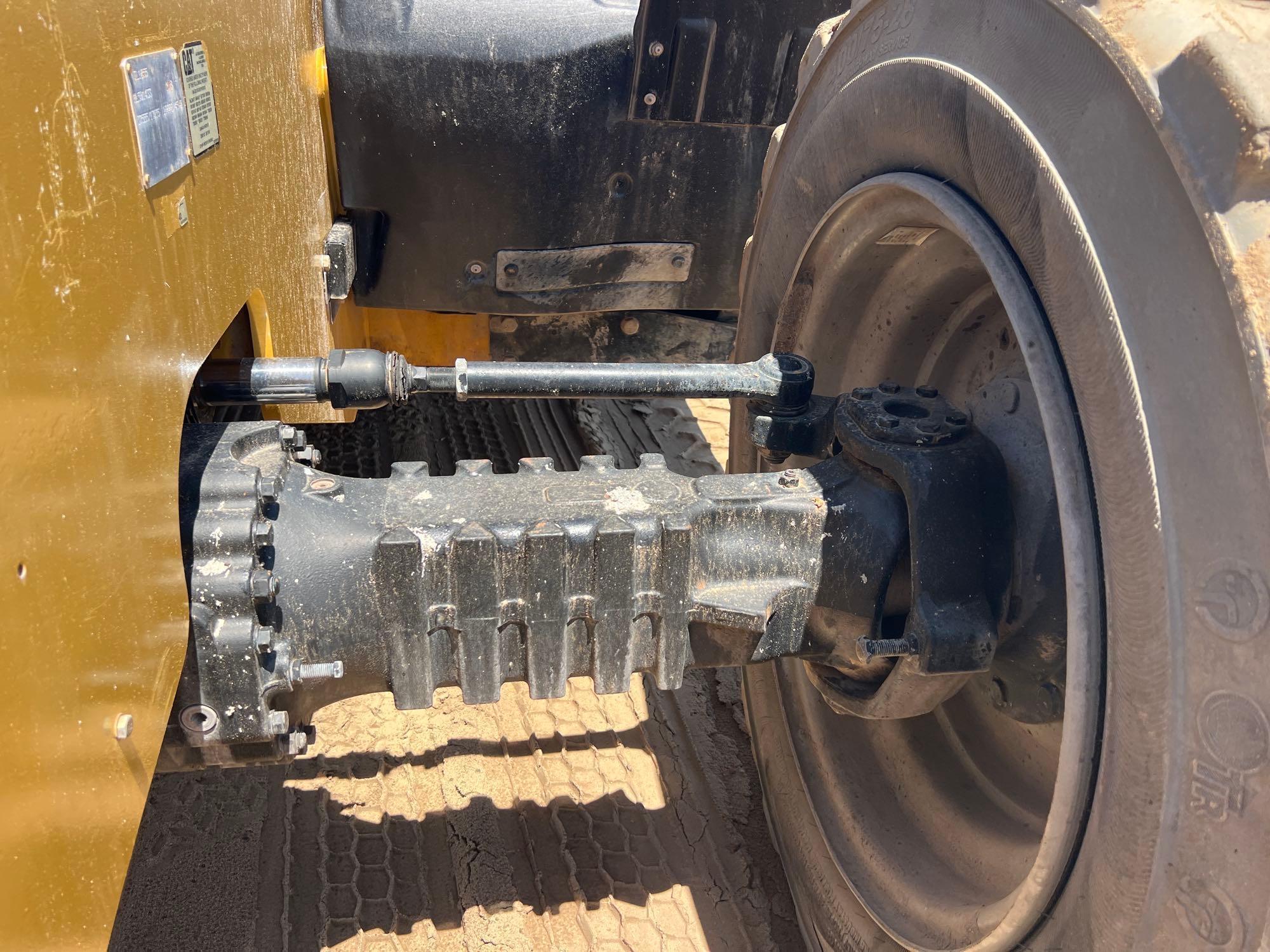

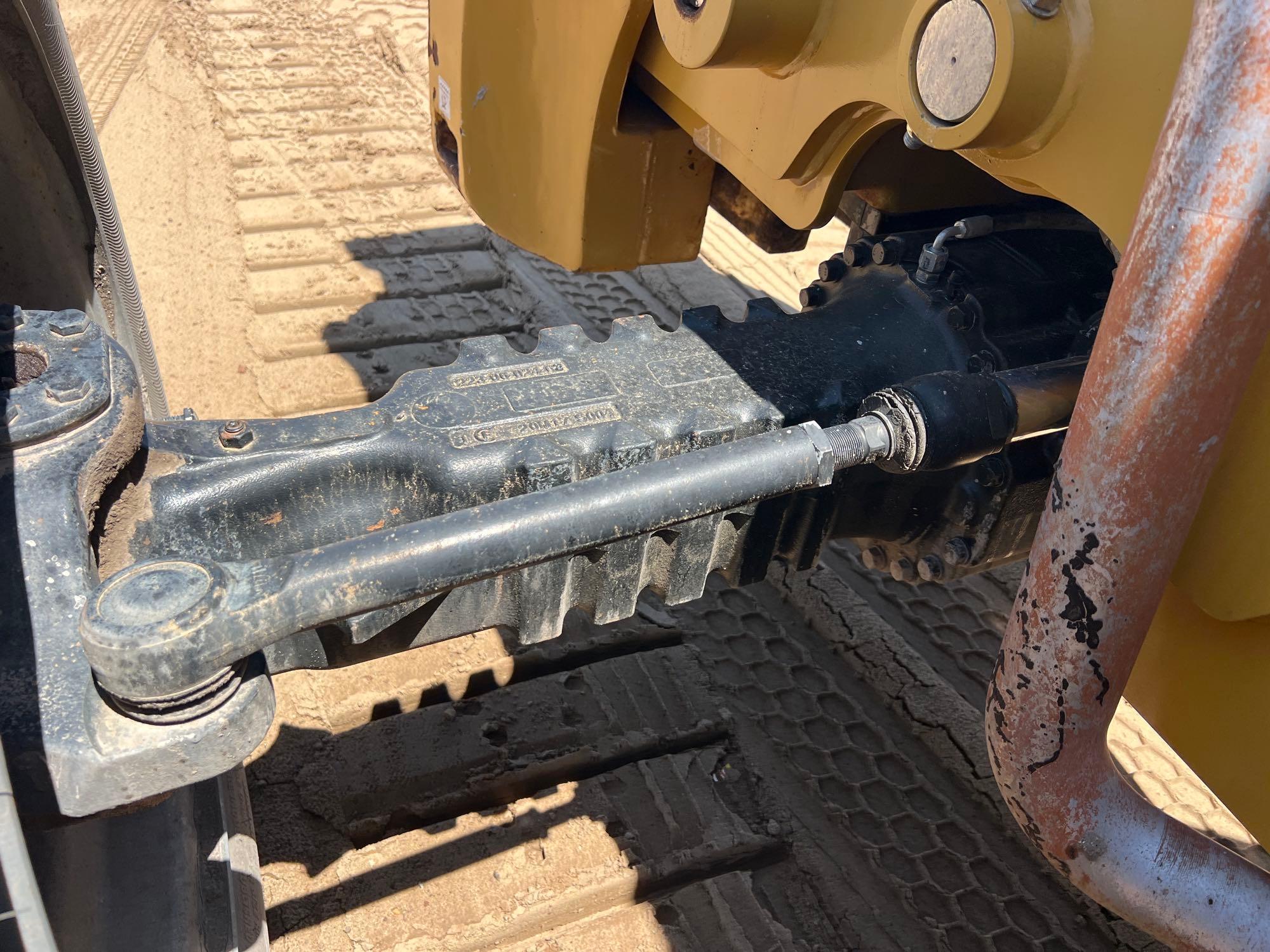

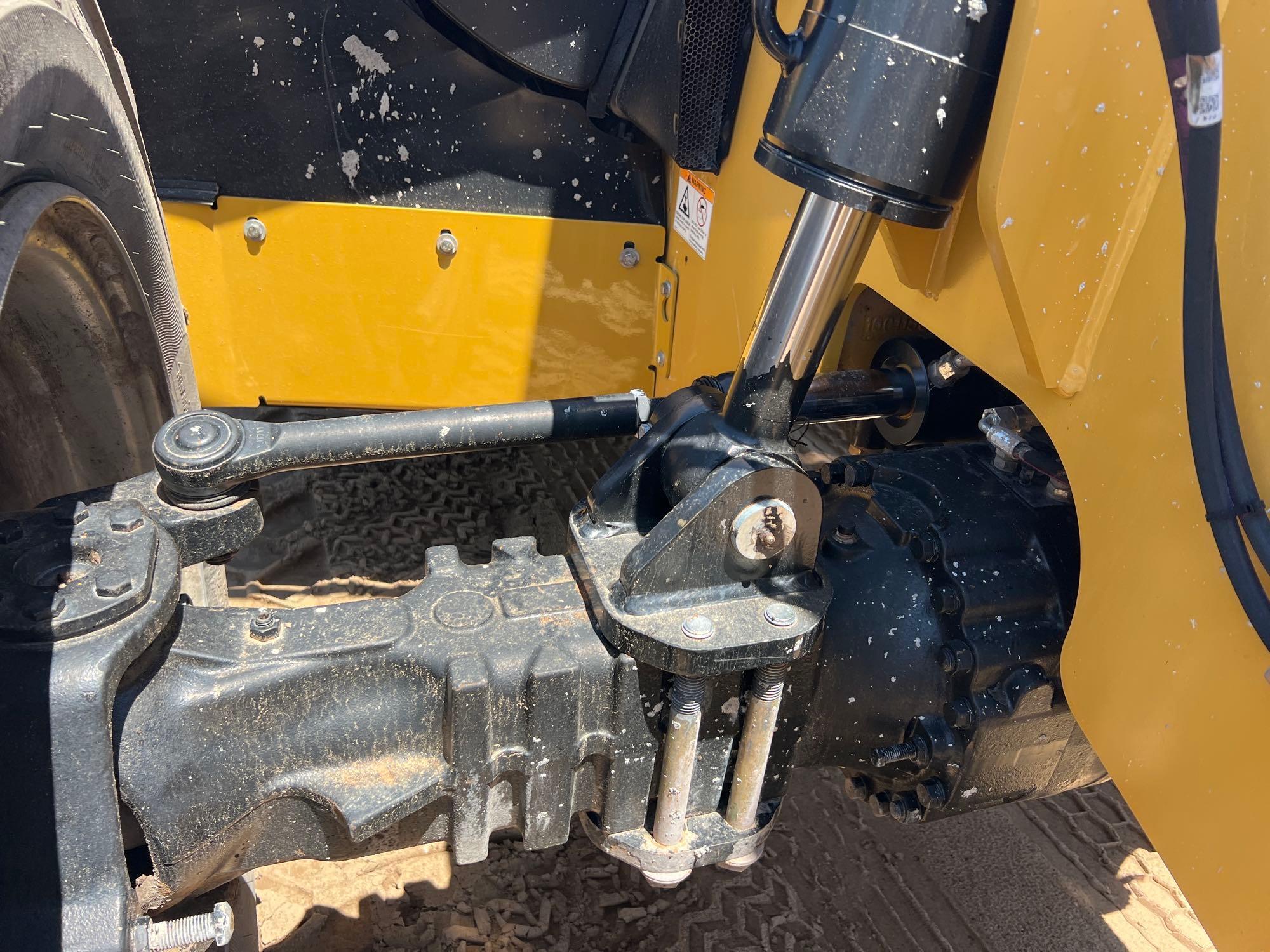

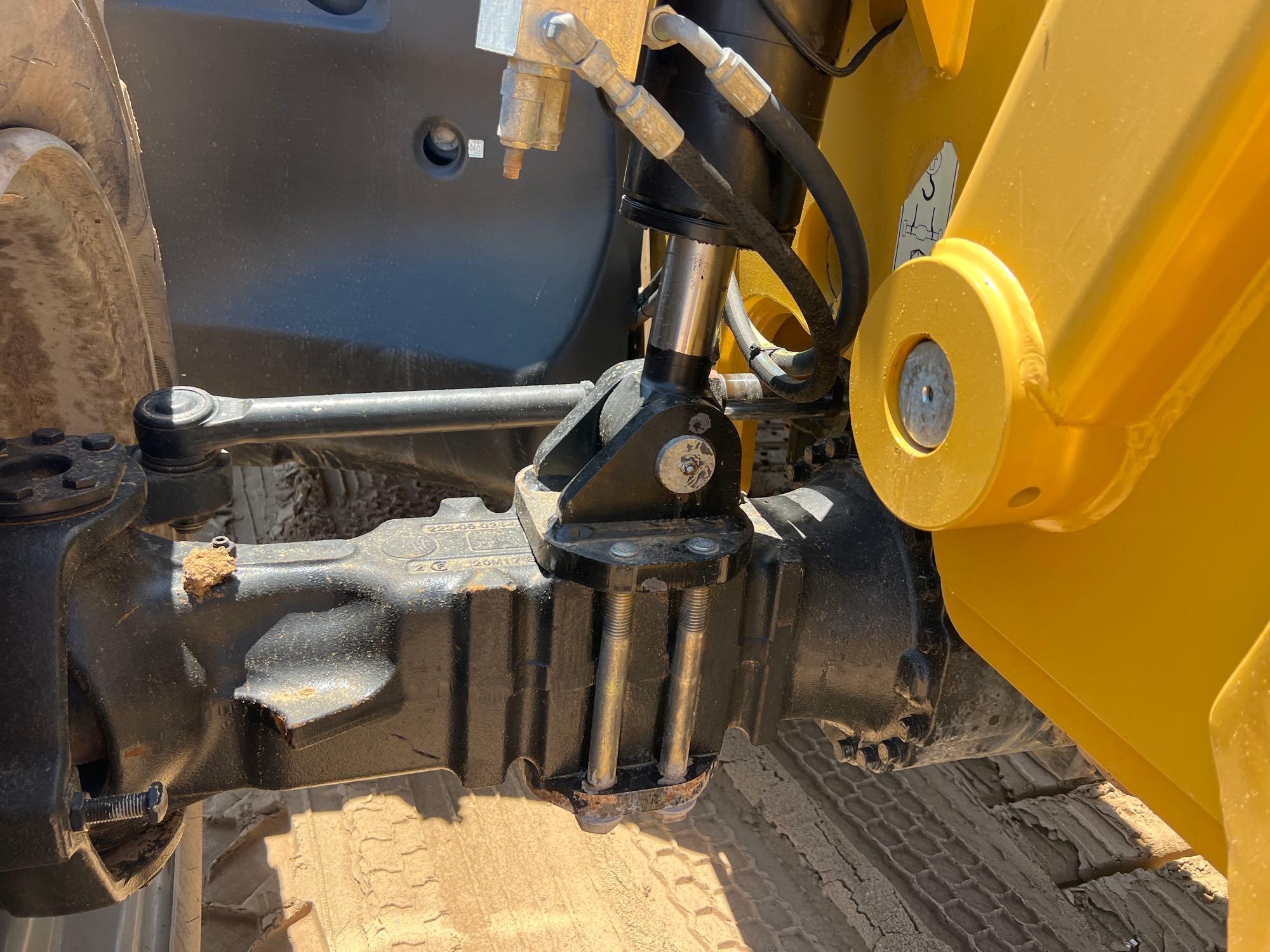

Axles
Manufacturer	Dana
Boom Performance
Boom Down	14 seconds
Boom Up	16 seconds
Drawbar Pull - Basic	20,000 lbs (9,072 kg)
Tele In	14 seconds
Tele Out	18 seconds
Brakes
Features	Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes - mechanical on front axle
Parking Brake	mechanical on front axle
Dimensions
Ground Clearance	18 in (46 cm)
Height	8 ft (3 m)
Length to Fork Face	21 ft (6 m)
Length to Fork Face	21 ft (6 m)
Overall Height	8 ft (3 m)
Turning Radius - Over Tires	14 ft (4 m)
Turning Radius Outside Tires	14 ft (4 m)
Wheel Base	12 ft (4 m)
Wheelbase	12 ft (4 m)
Width Over Tires	8 ft (3 m)

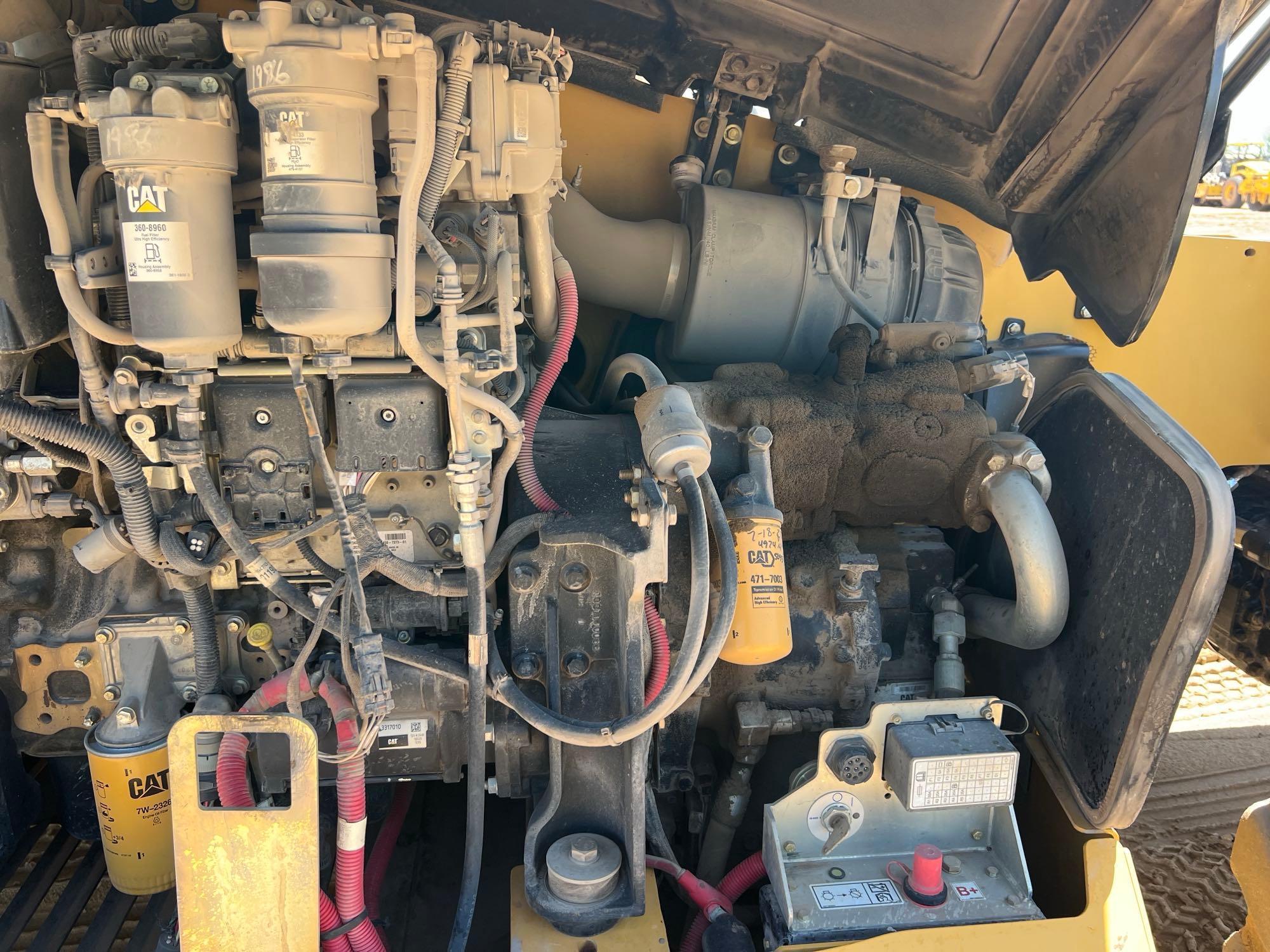

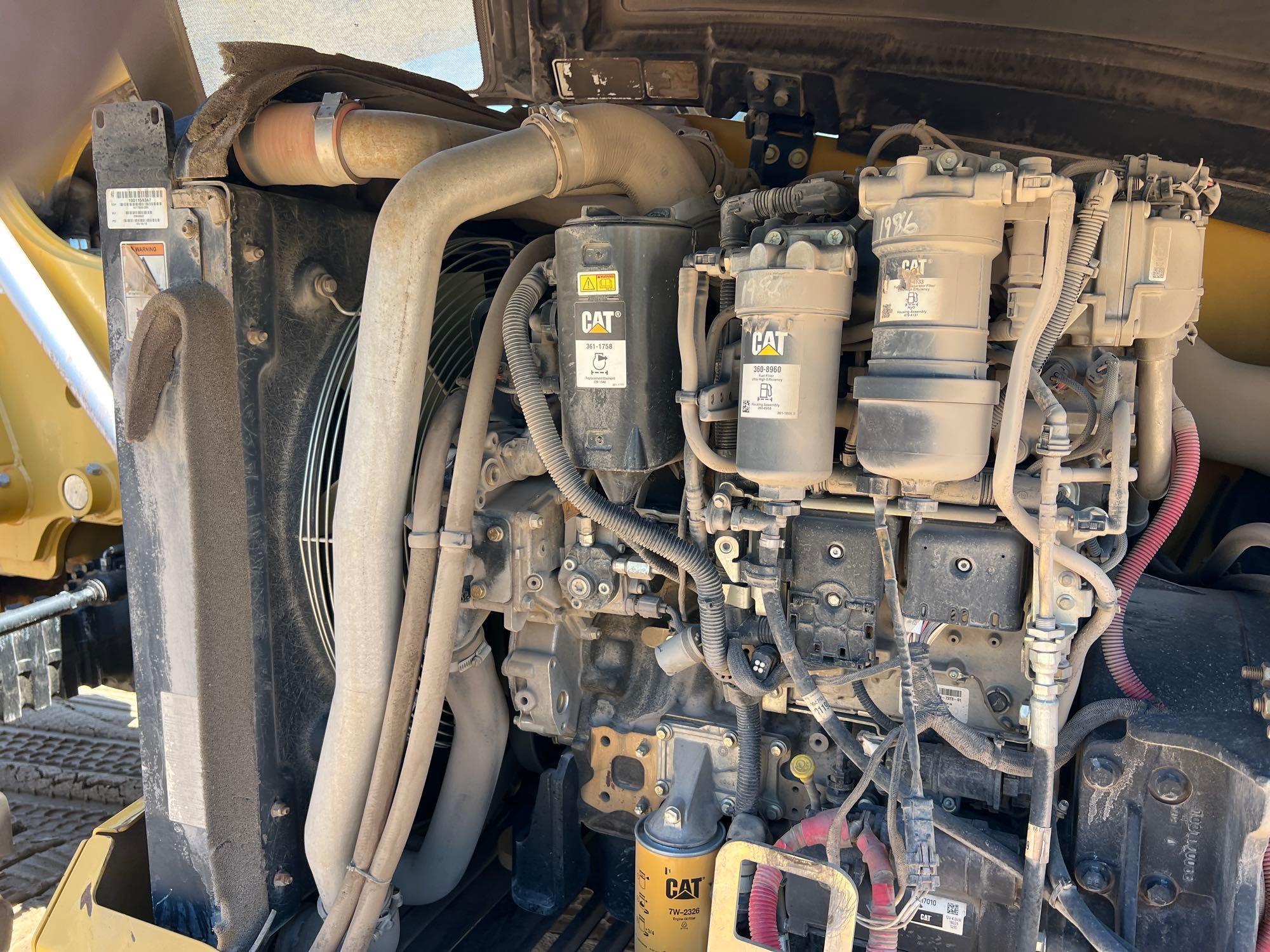

Engine
Bore	4 in (11 cm)
Displacement	269 cu in (4,408 cu cm)
Engine Model	Cat C4.4 EDITAAC Tier 3
Engine Model (Since 2023)	C3.6
Engine Model (Since 2024)	Cat C3.6TA
Gross Power	125 hp (93 kw)
Gross Power	125 hp (93 kw)
Gross power ISO 14396 (Since 2024)	74 hp (55 kw)
Gross power option ISO 14396 (Since 2024)	115 hp (86 kw)
Net Power	119 hp (89 kw)
Net Power	119 hp (89 kw)
Stroke	5 in (13 cm)
General Specifications
Gross Power (Since 2023)	134 hp (100 kw)
Hydraulic System
Pump Type	Load sensing piston
Instrumentation
Features	Volt meter hourmeter engine oil pressure gauge fuel gauge water temperature gauge
Lift System
Max Lift Capacity	10,000 lbs (4,536 kg)
Max Load at Max Height	5,000 lbs (2,268 kg)
Max Load at Max Reach	3,000 lbs (1,361 kg)
Maximum Forward Reach	43 ft (13 m)
Maximum Forward Reach	43 ft (13 m)
Maximum Forward Reach (Since 2023)	42 ft (13 m)
Maximum Forward Reach (Since 2024)	41 ft (13 m)
Maximum Lift Height	55 ft (17 m)
Maximum Lift Height	55 ft (17 m)
Maximum Lift Height (Since 2023)	55 ft (17 m)
Maximum lift height (Since 2024)	55 ft (17 m)
Operating Specifications
Auxiliary hydraulic flow (Since 2024)	15 gpm (55 lpm)
Auxiliary hydraulic pressure (Since 2024)	4,061 psi
Fuel Capacity	38 gal (144 l)
Hydraulic System Fluid Capacity	60 gal (227 l)
Load at Maximum Height	5,000 lbs (2,268 kg)
Load at Maximum Height - Stabilizers Down	5,000 lbs (2,268 kg)
Load at Maximum Reach	2,500 lbs (1,134 kg)
Load at Maximum Reach - Stabilizers Down	2,500 lbs (1,134 kg)
Load Capacity (Since 2023)	10,000 lbs (4,536 kg)
Rated Load Capacity	10,000 lbs (4,536 kg)
Travel speed forward	19 mph (30 kph)
Travel speed forward	19 mph (30 kph)
Travel speed forward (Since 2023)	21 mph (34 kph)
Travel speed forward (Since 2024)	18 mph (29 kph)

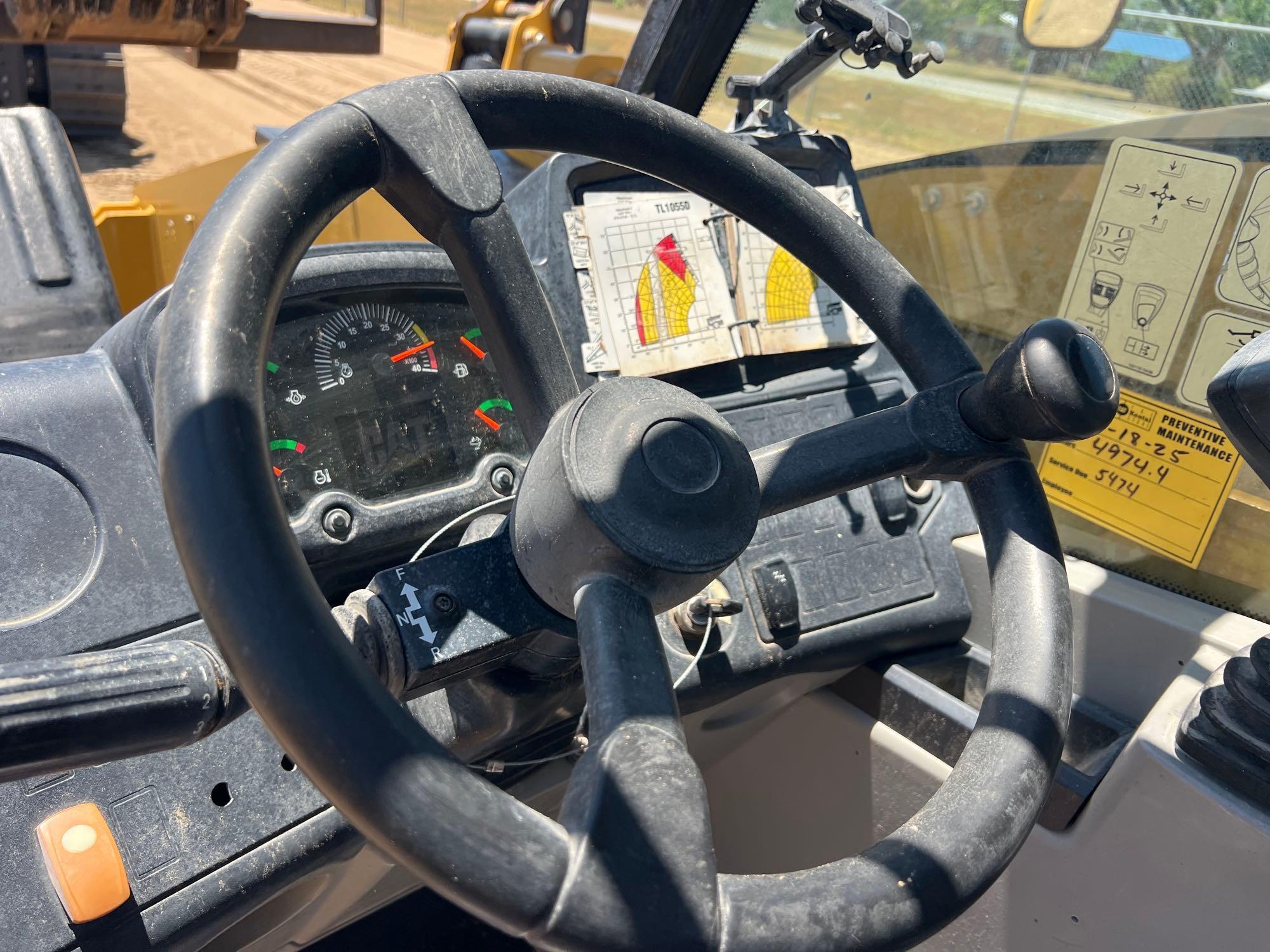

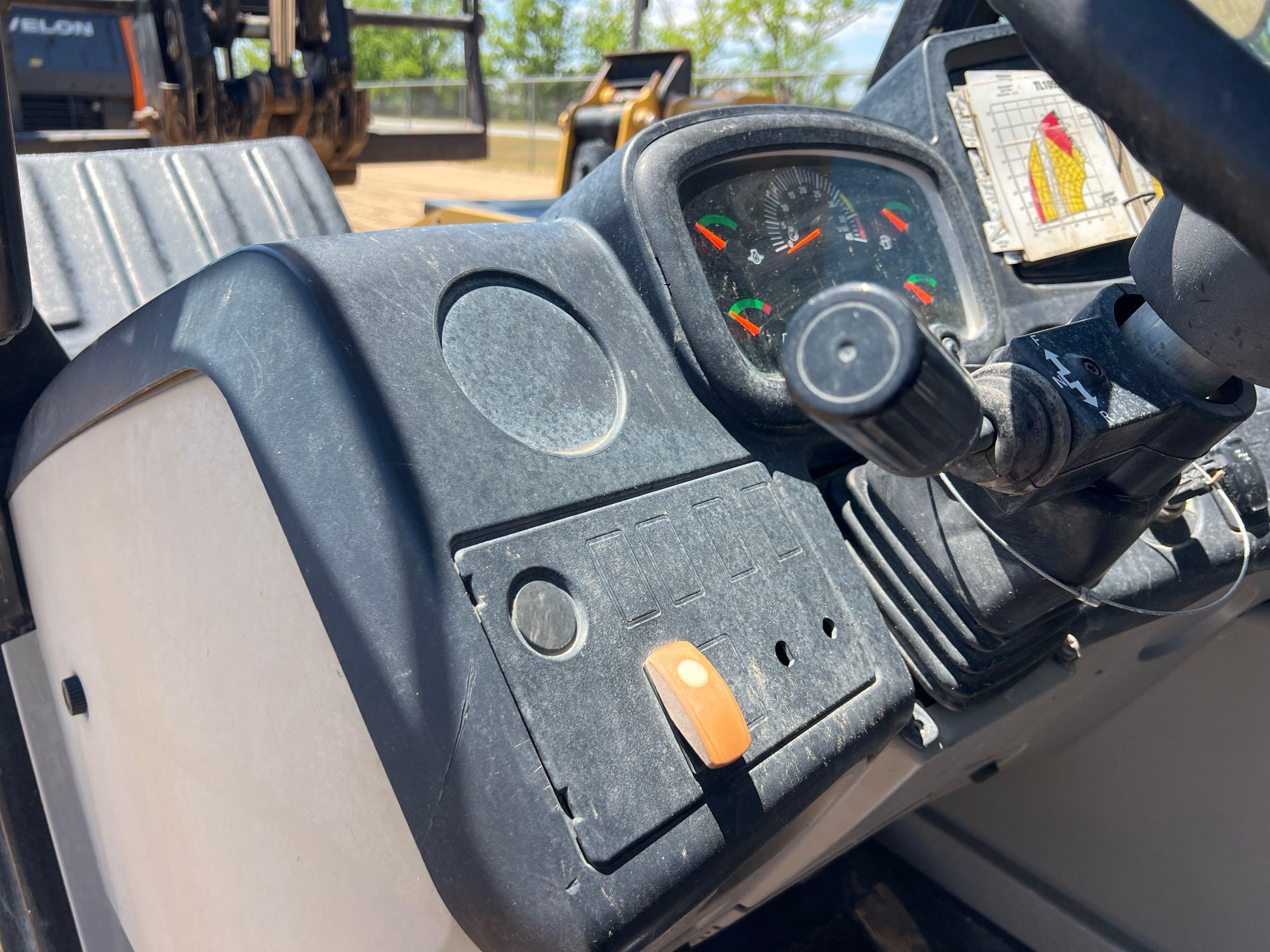

Operator Station

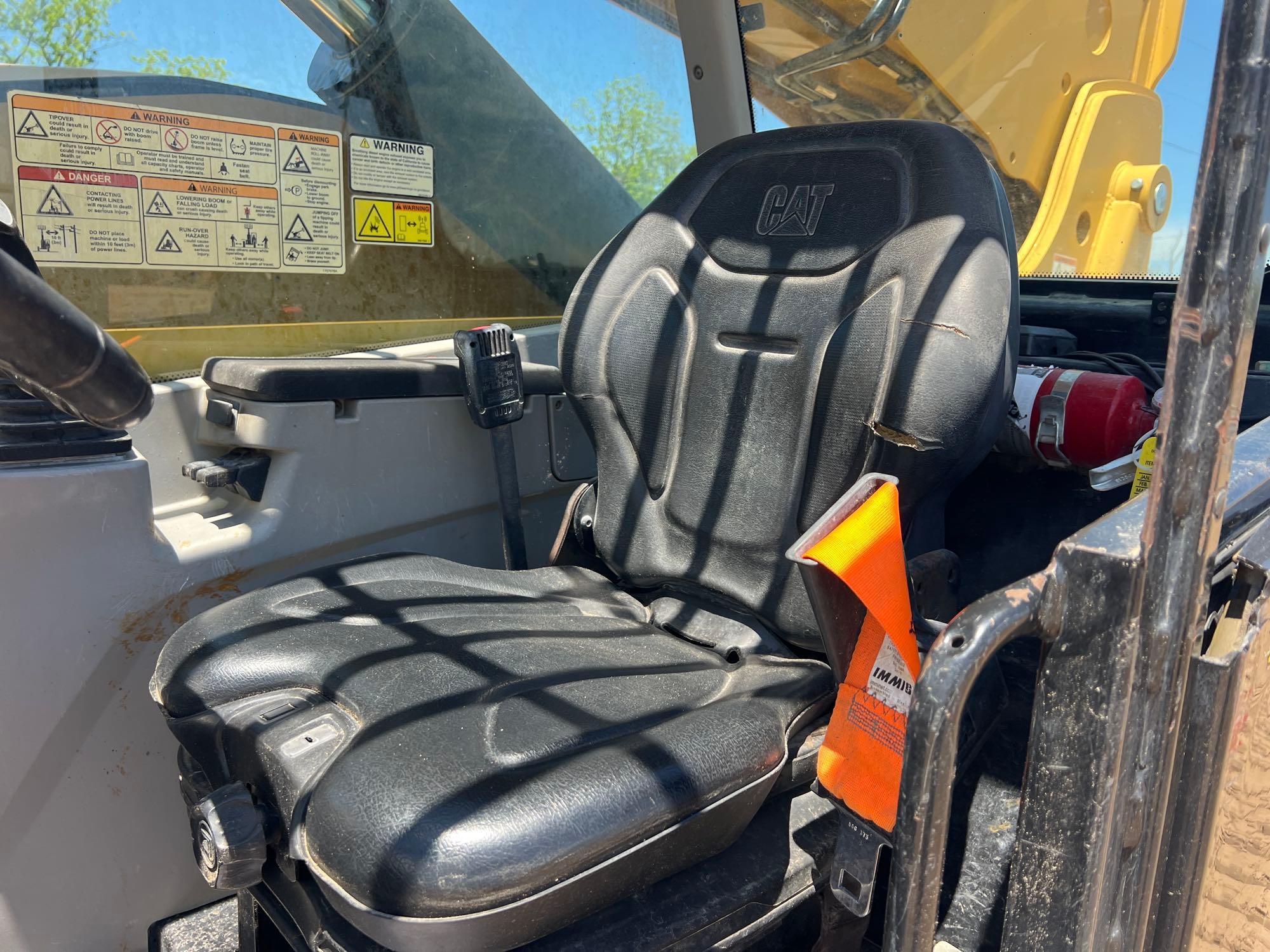

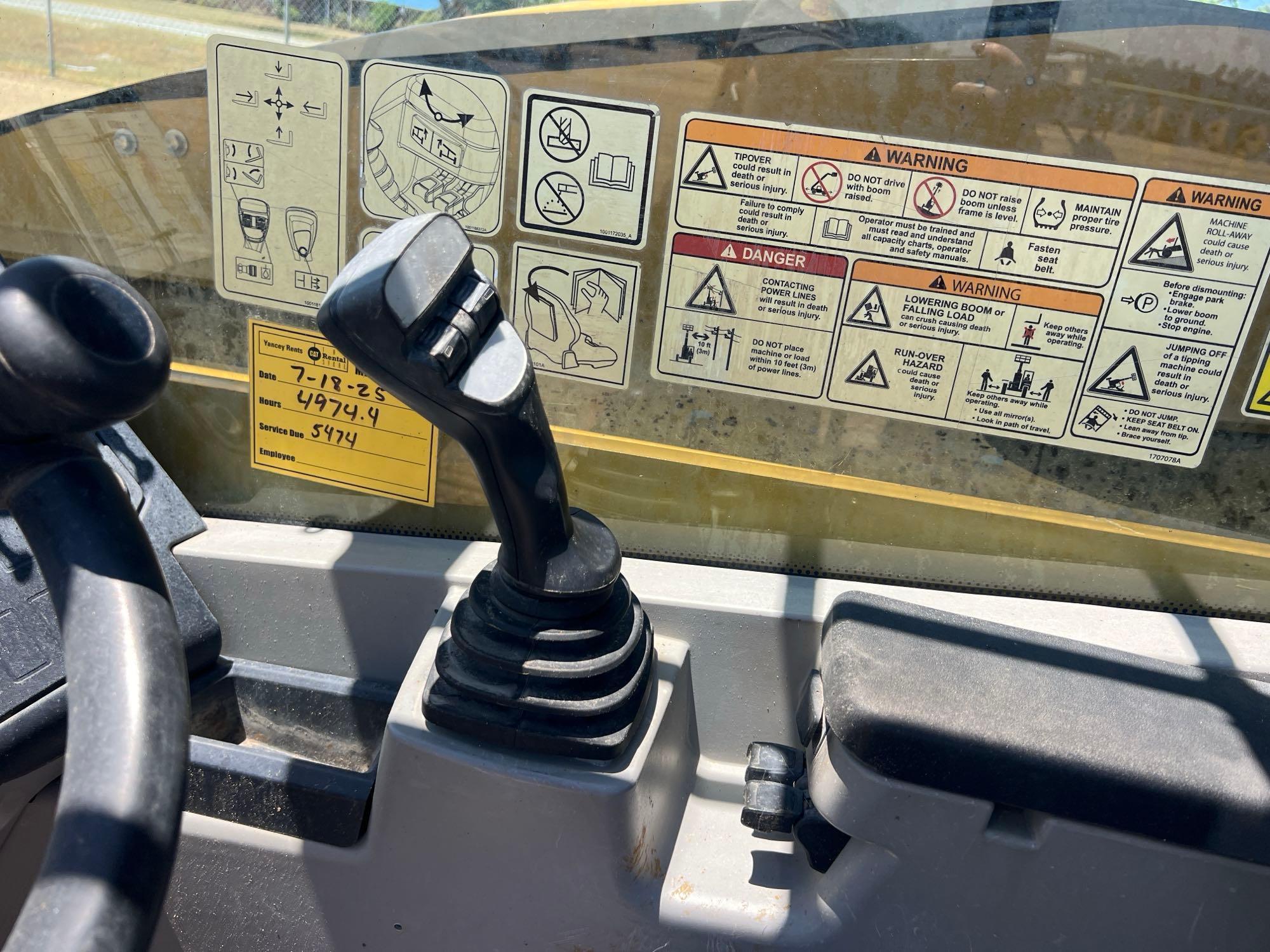

Features	Vinyl suspension seat single electronic joystick spacious interior ergonomic cab
Service Refill Capacities
Fuel Tank	38 gal (144 l)
Hydraulic System	60 gal (227 l)
Hydraulic Tank	60 gal (227 l)

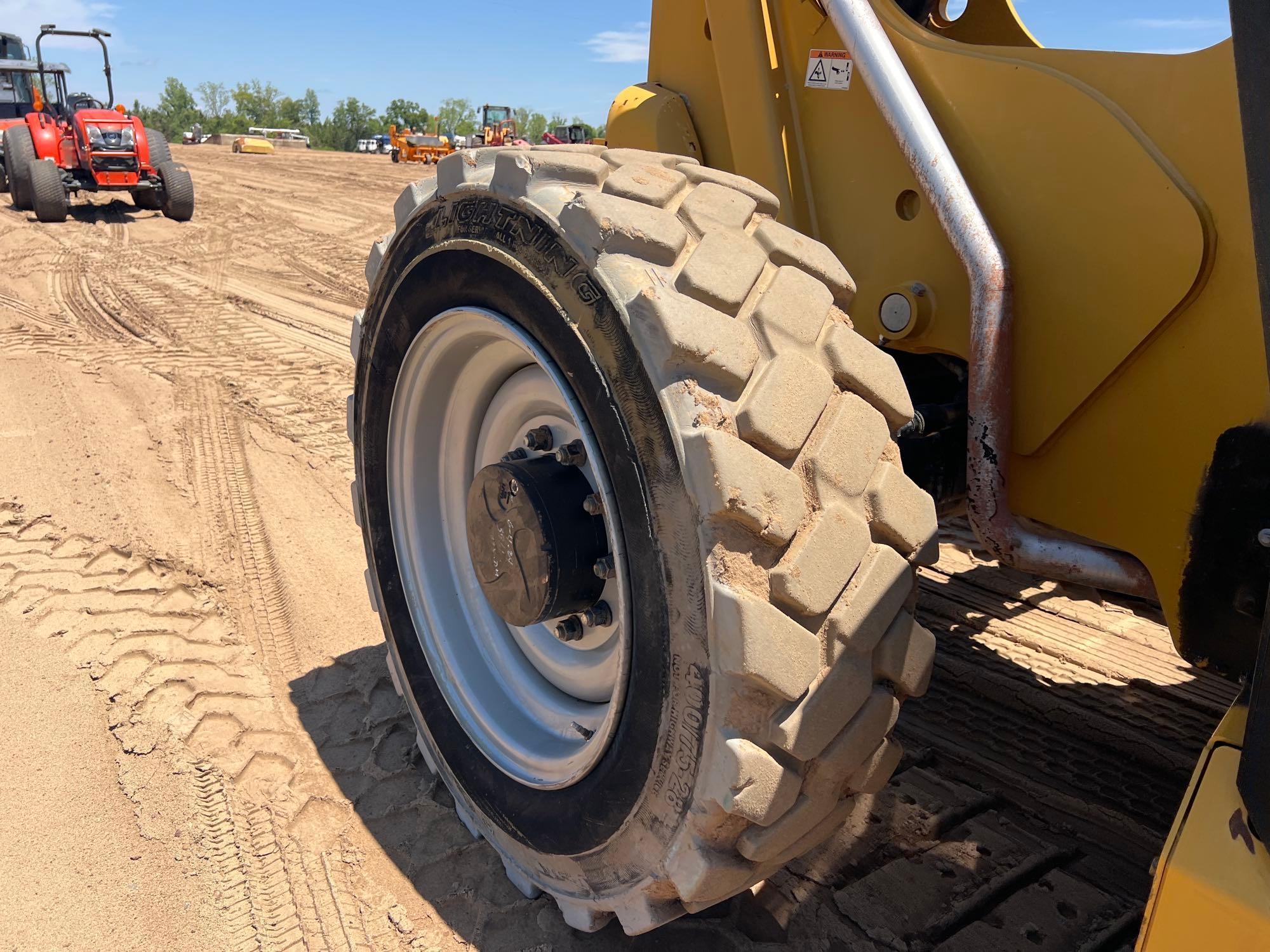

Tires

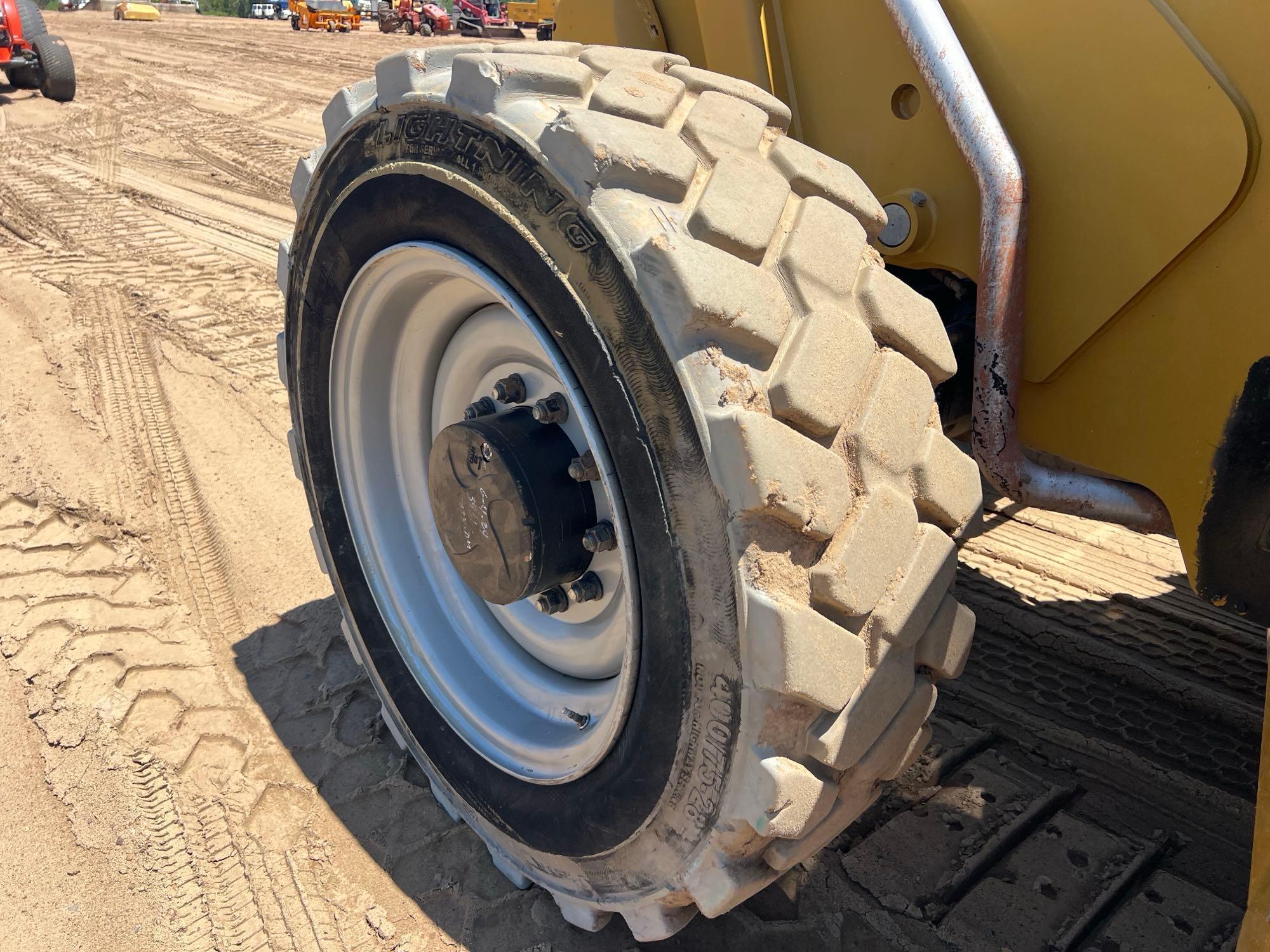

Optional Construction	14.00 x 24 Foam Filled Rock Lug or Solid
Standard	14.00 x 24 - 12 PR
Weights
Operating Weight	34,700 lbs (15,740 kg)
Operating Weight	34,910 lbs (15,835 kg)
Operating Weight (Since 2023)	31,700 lbs (14,379 kg)
Operating weight (Since 2024)	29,838 lbs (13,534 kg)
