2008 Caterpillar TL642 For Sale in Stanton, TX

Name: 2008 Caterpillar TL642
Brand: Caterpillar
SKU: 87649698
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-19 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

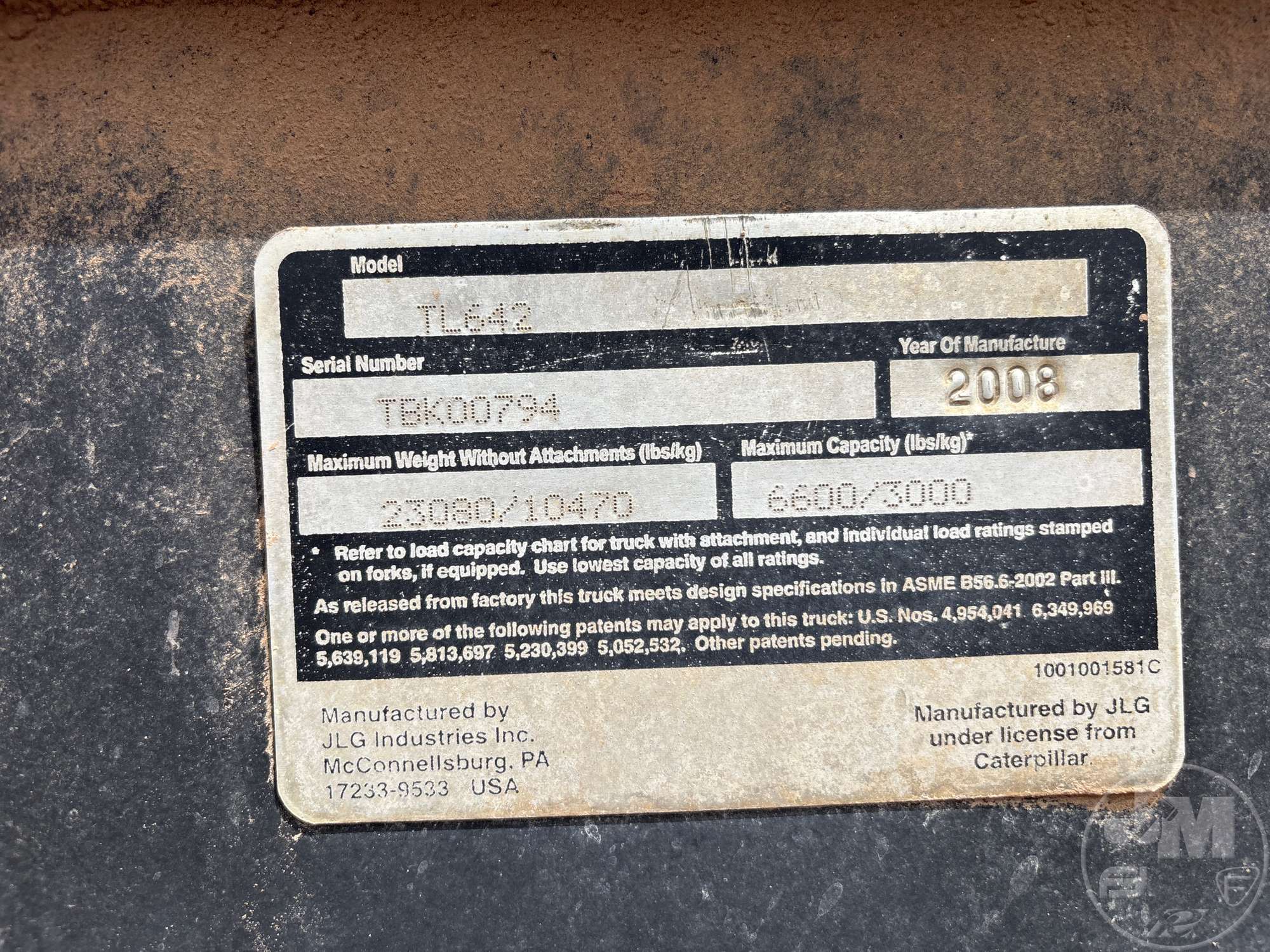

Serial Number:	TBK00794
Machine Location:	STANTON, TX
More Information:	https://www.jeffmartinauctioneers.com/auctions/1240/lot/325793-2008-CATERPILLAR-TL642-6000-LB-TELESCOPIC-FORKLIFT-SN%3A-TBK00794

Description:

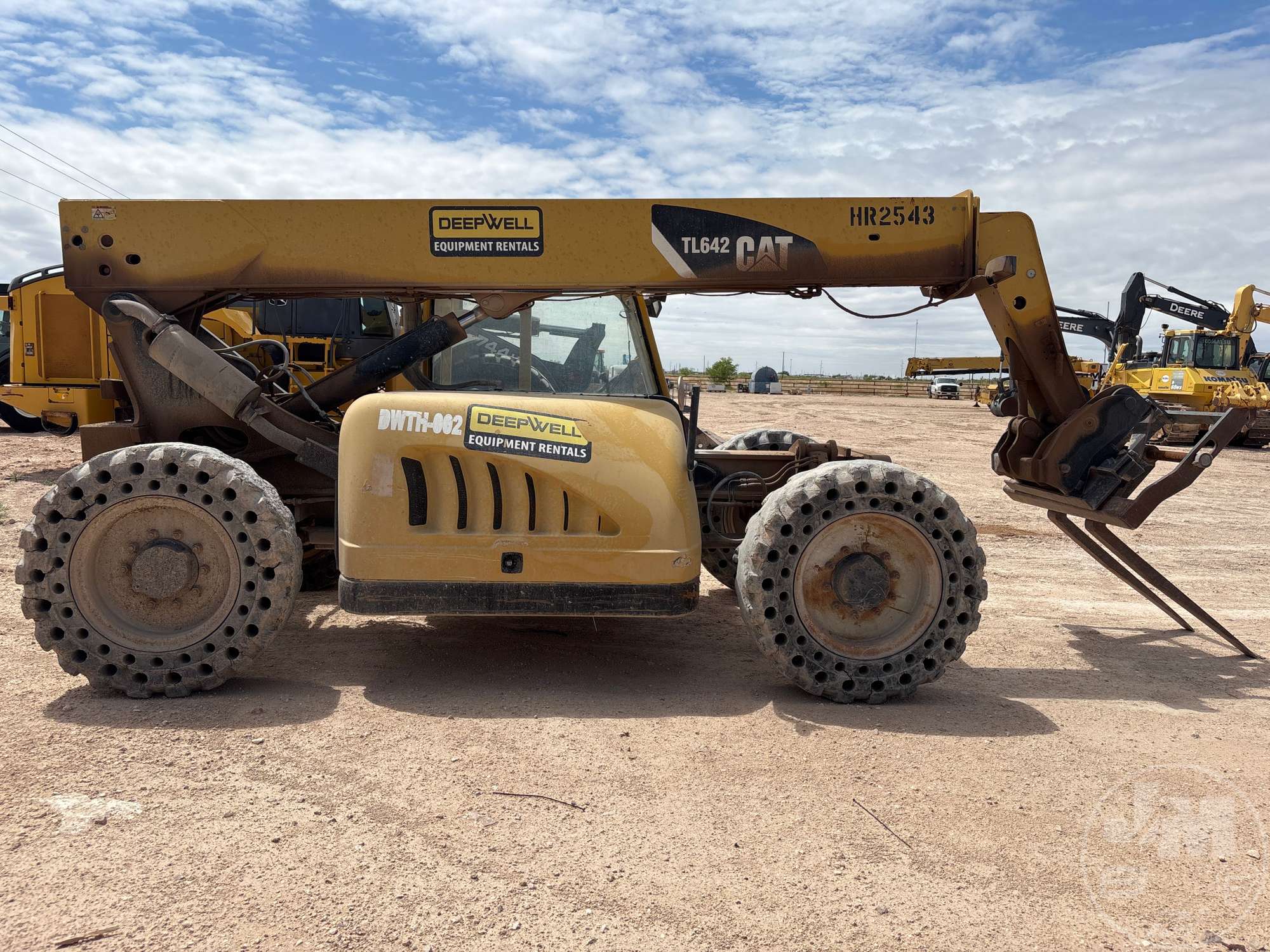

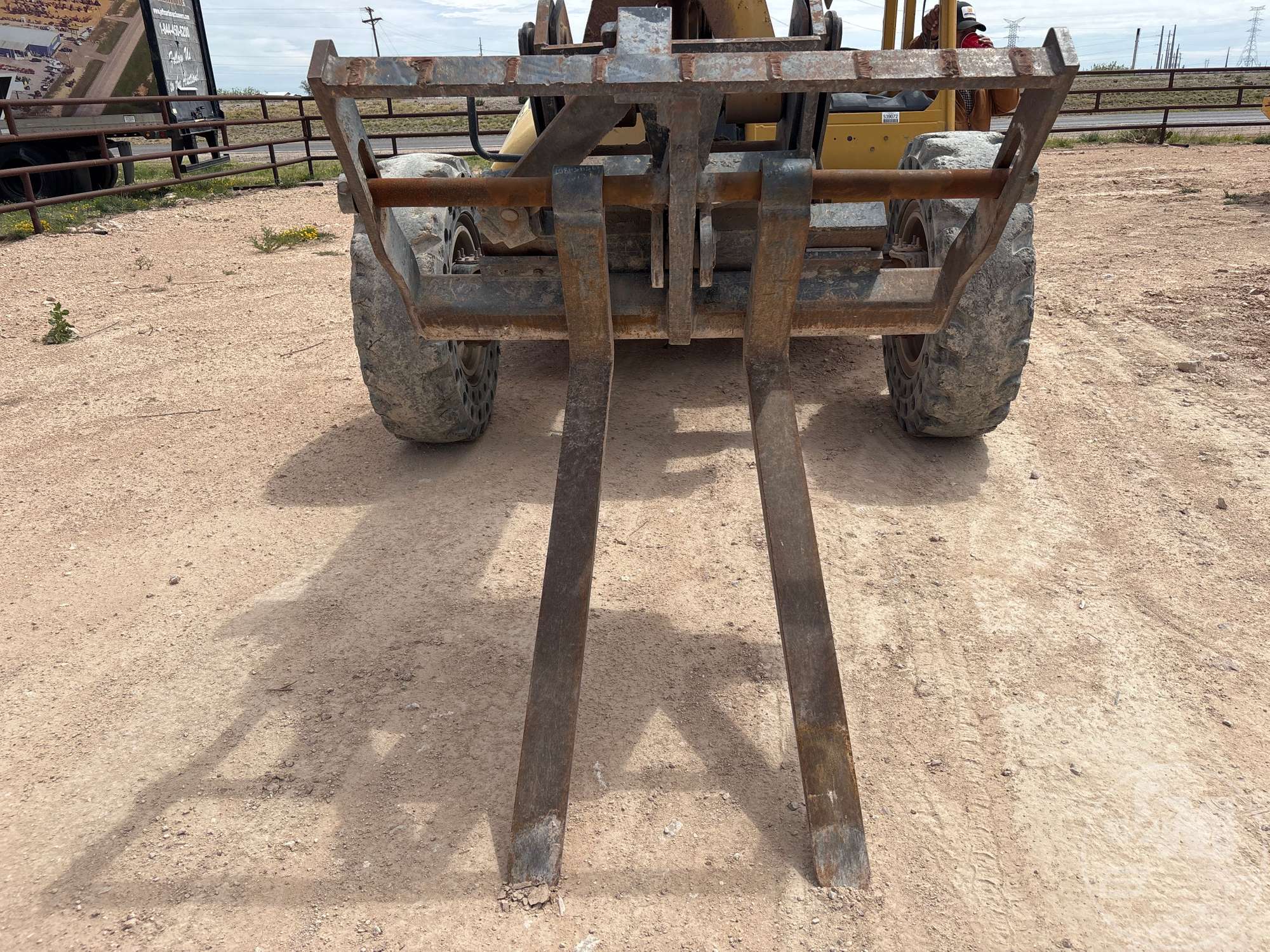

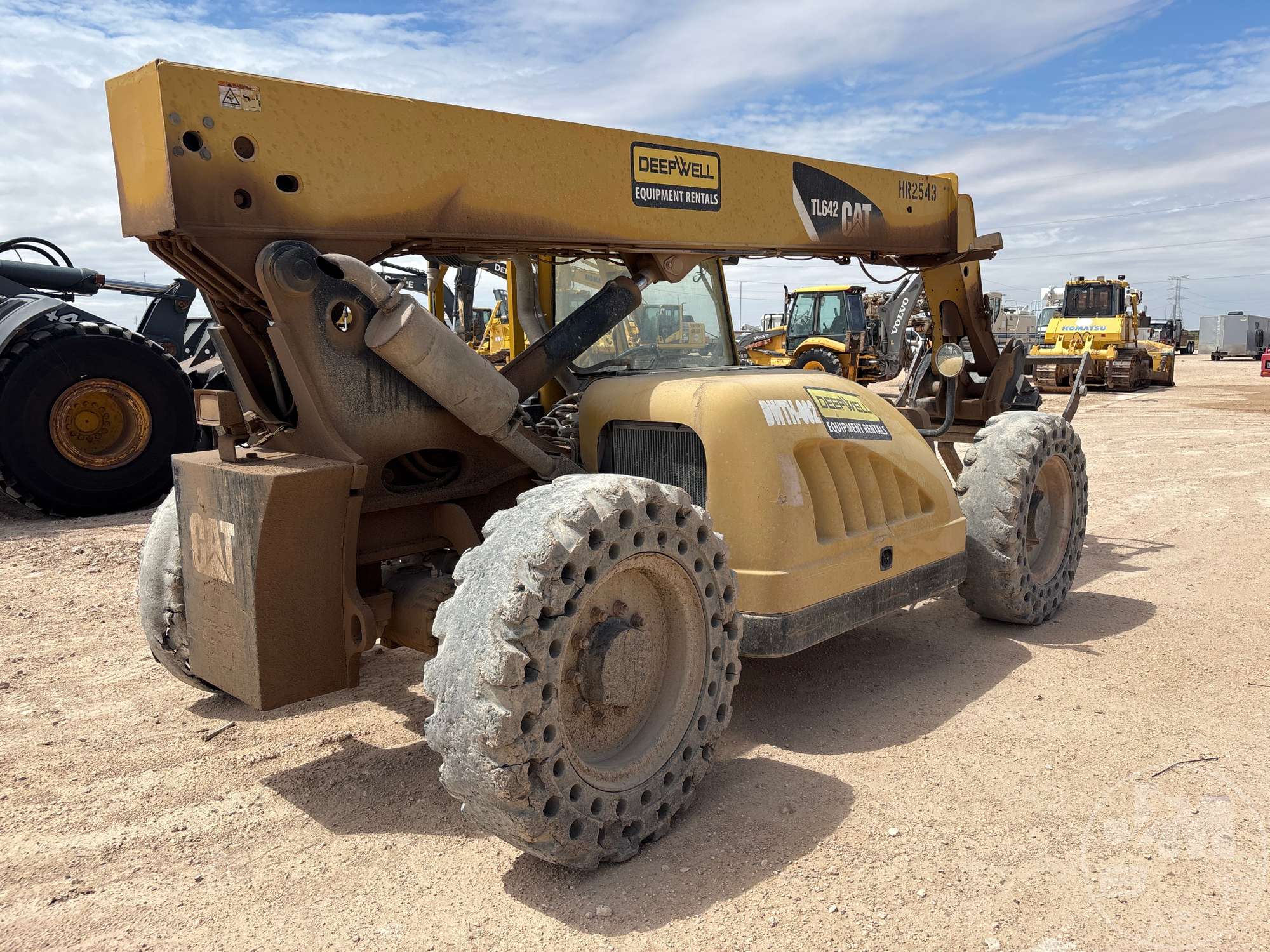

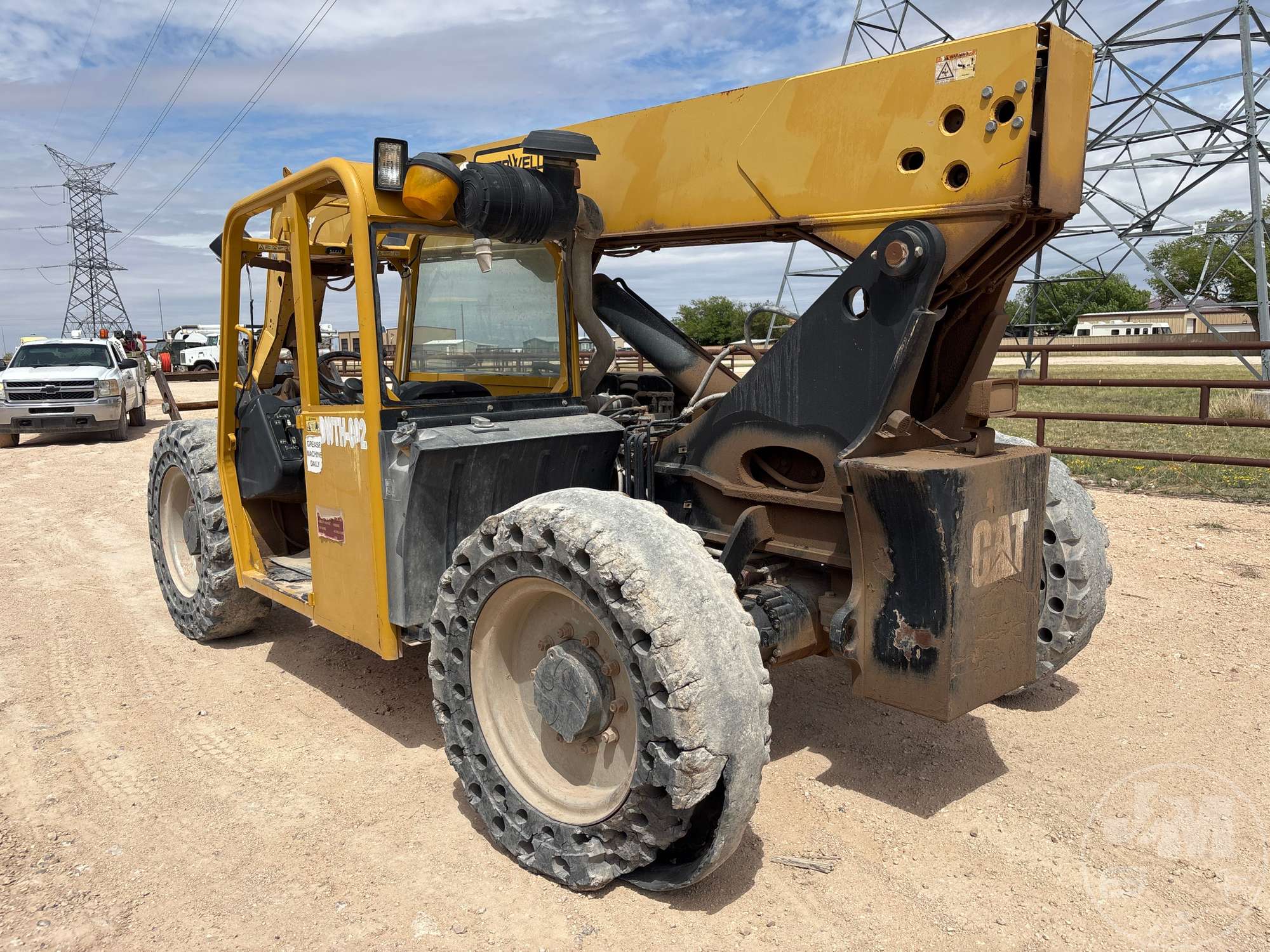

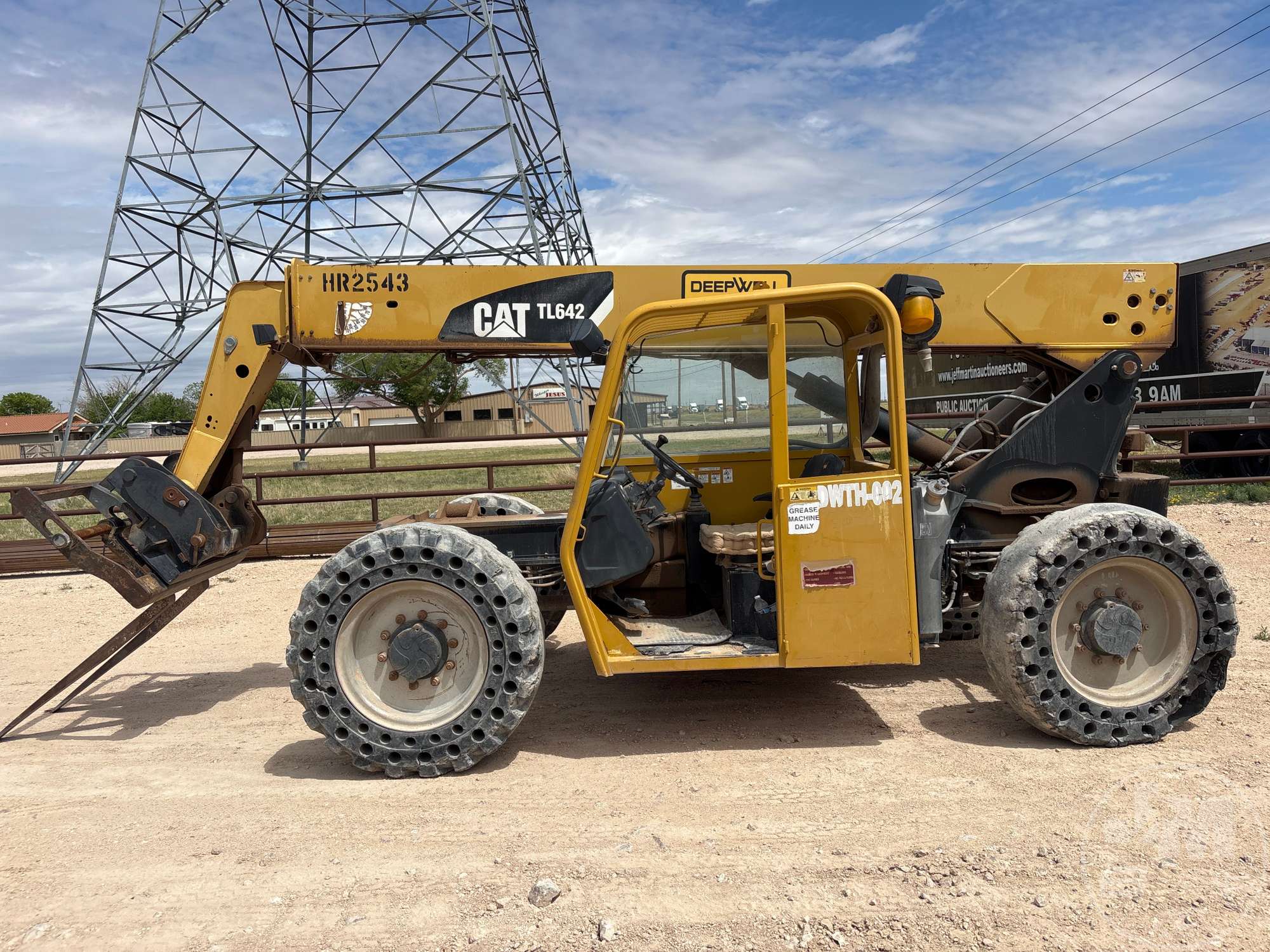

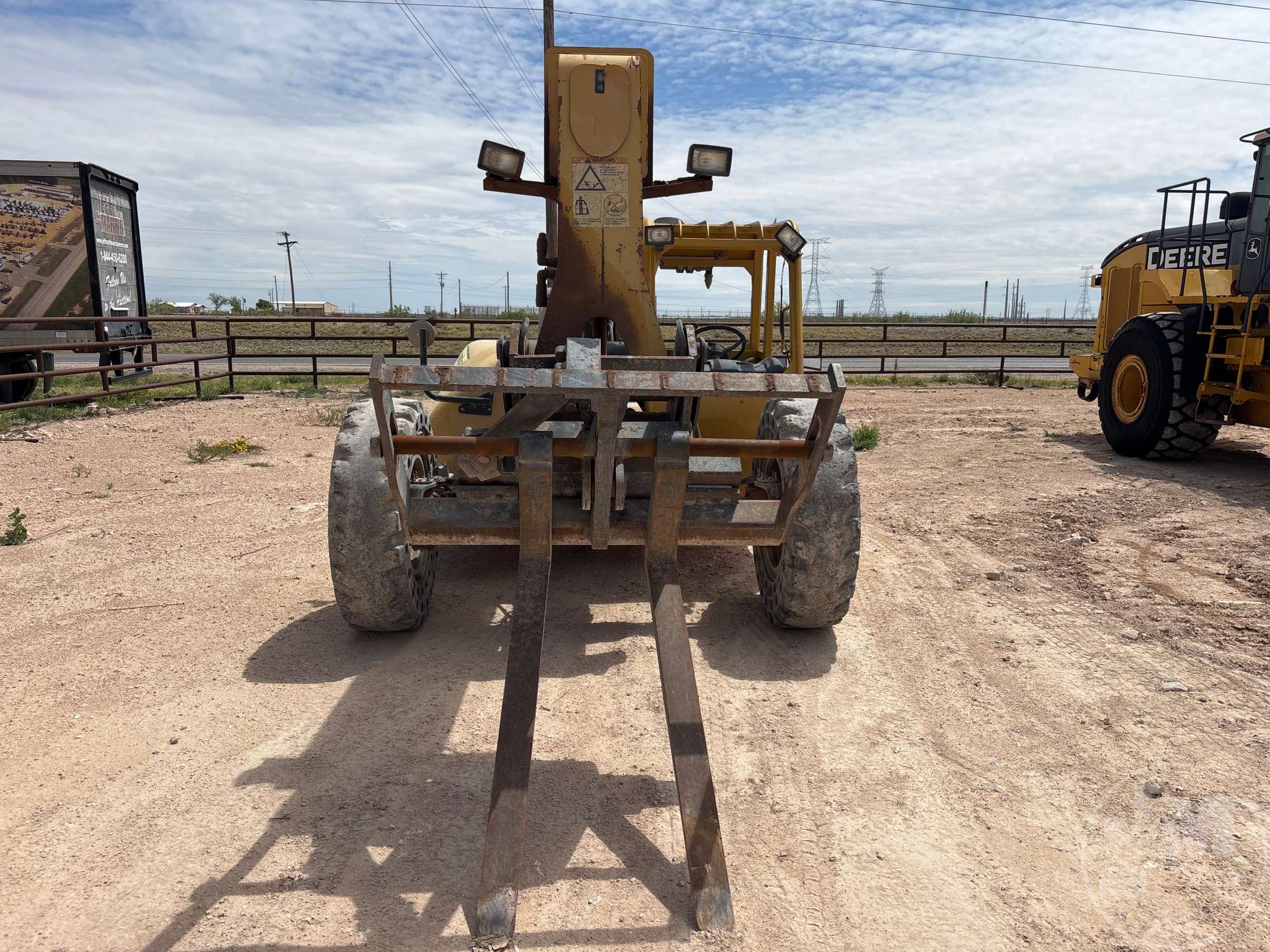

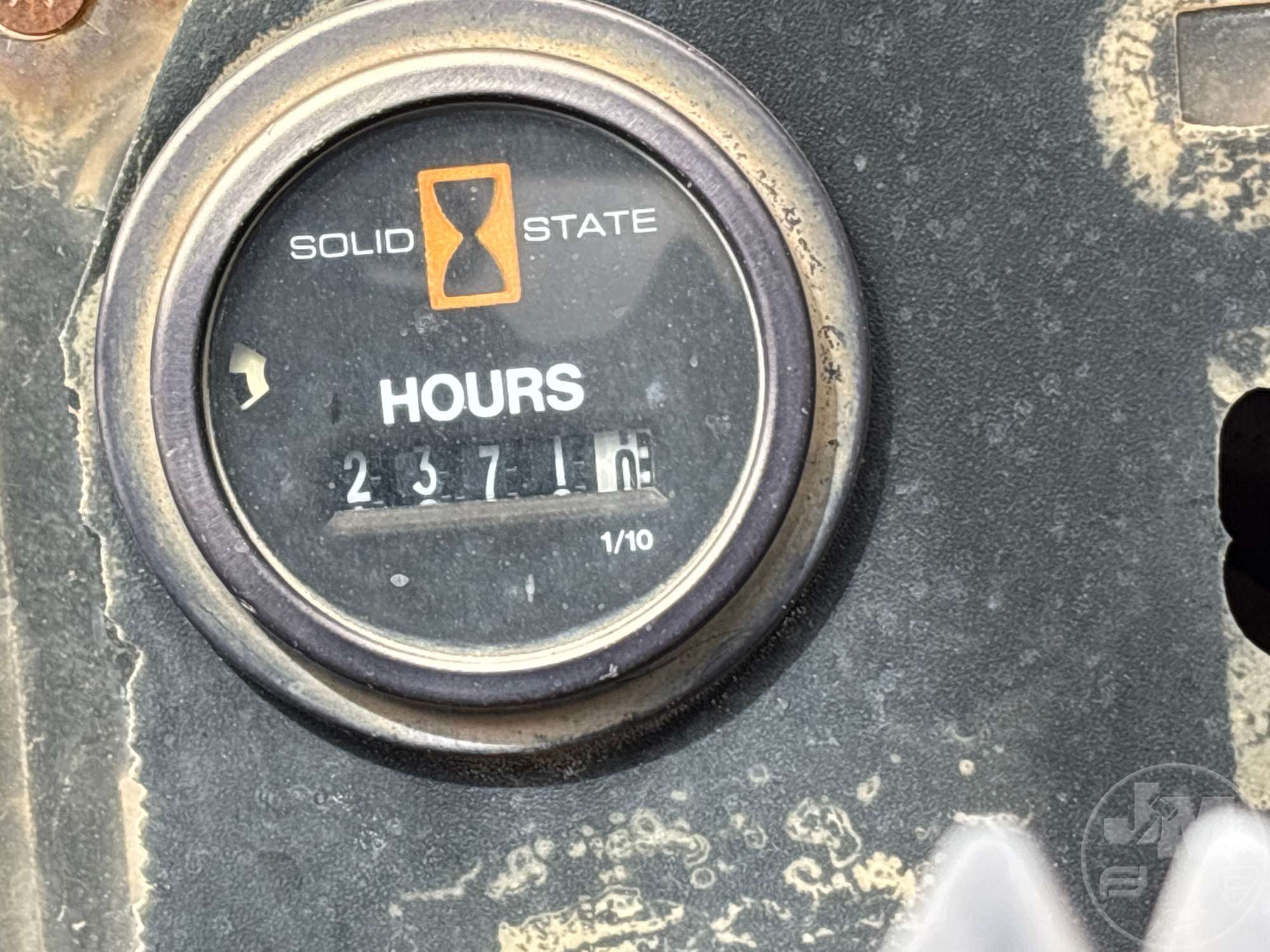

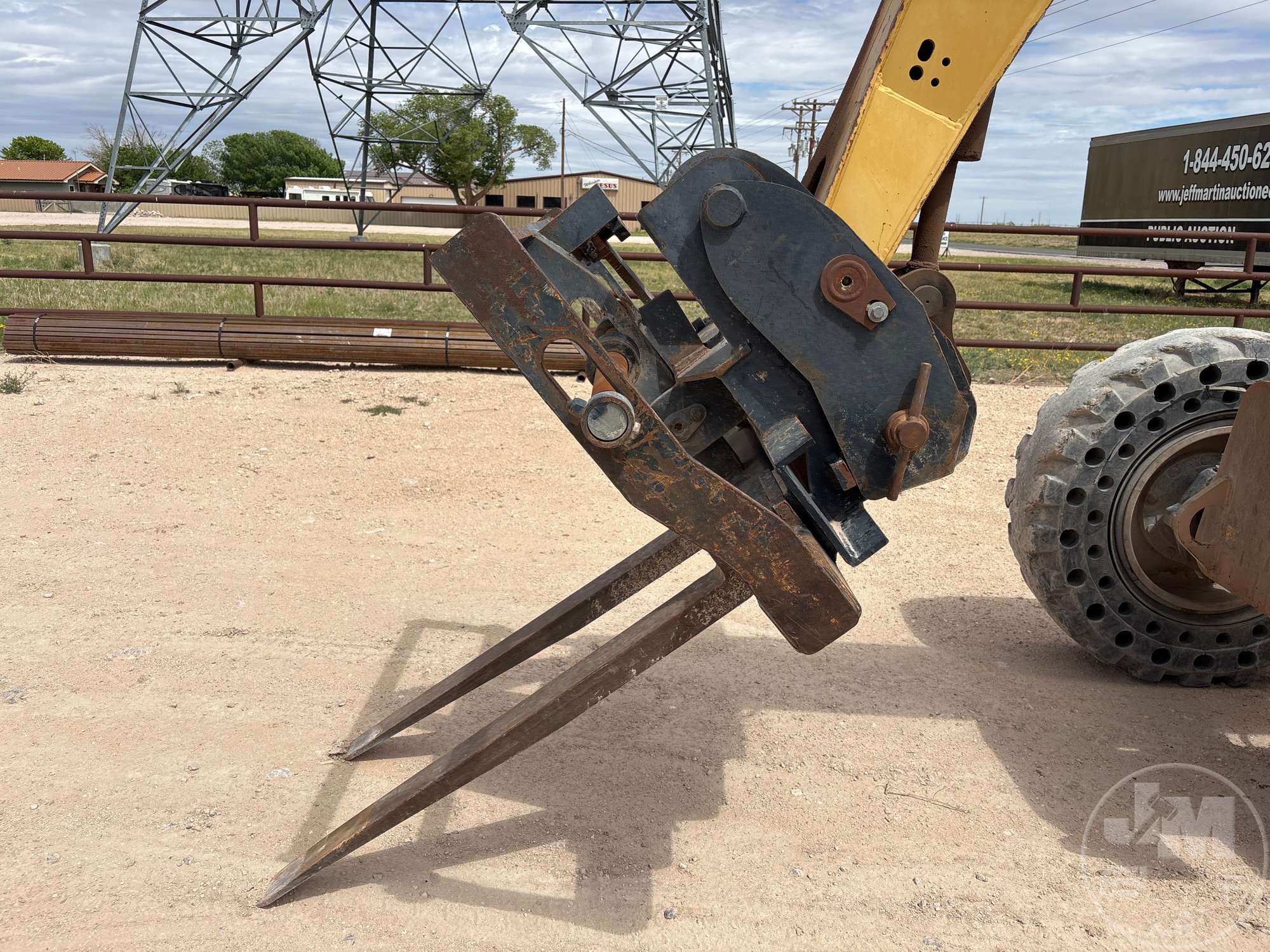

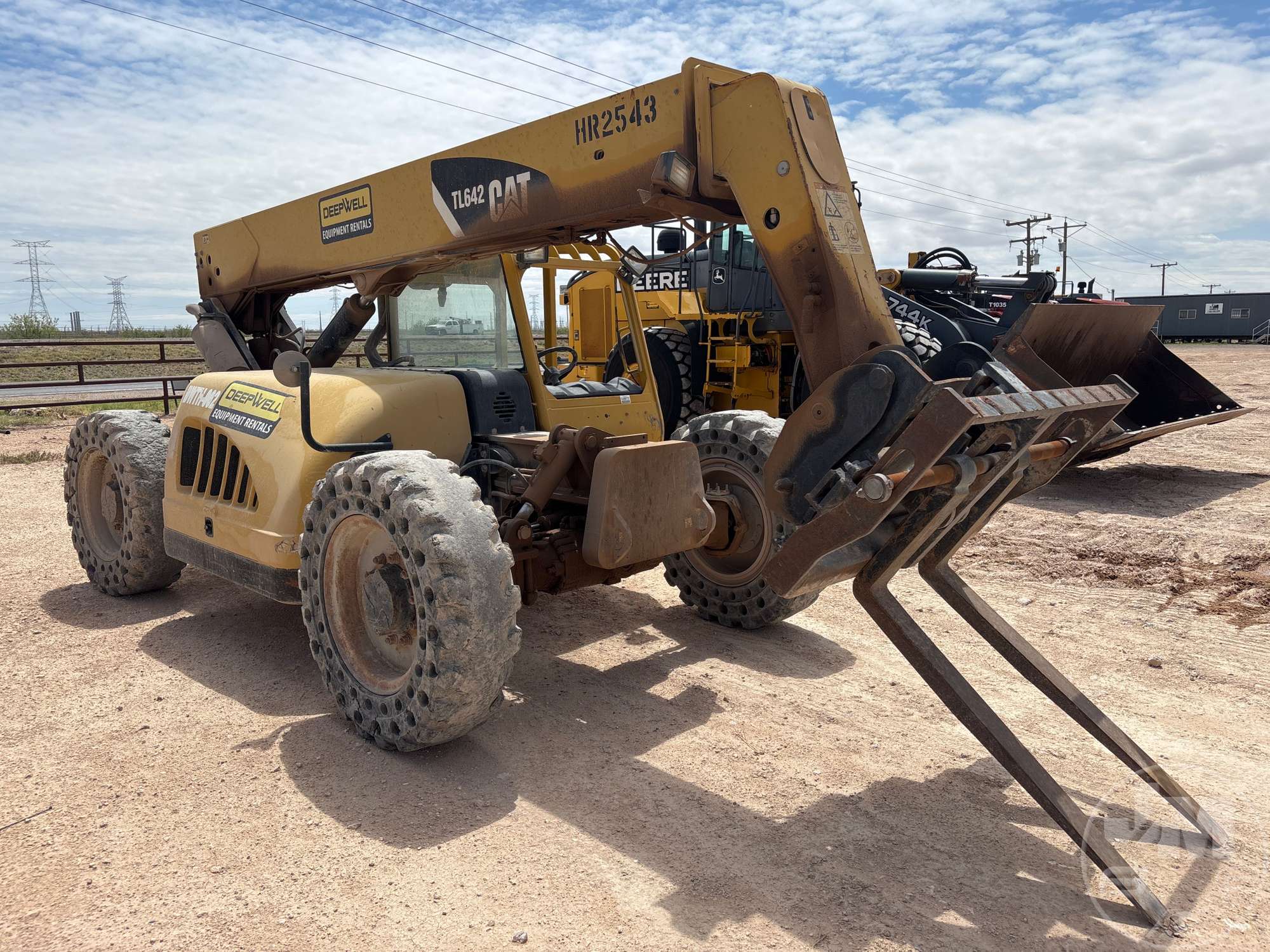

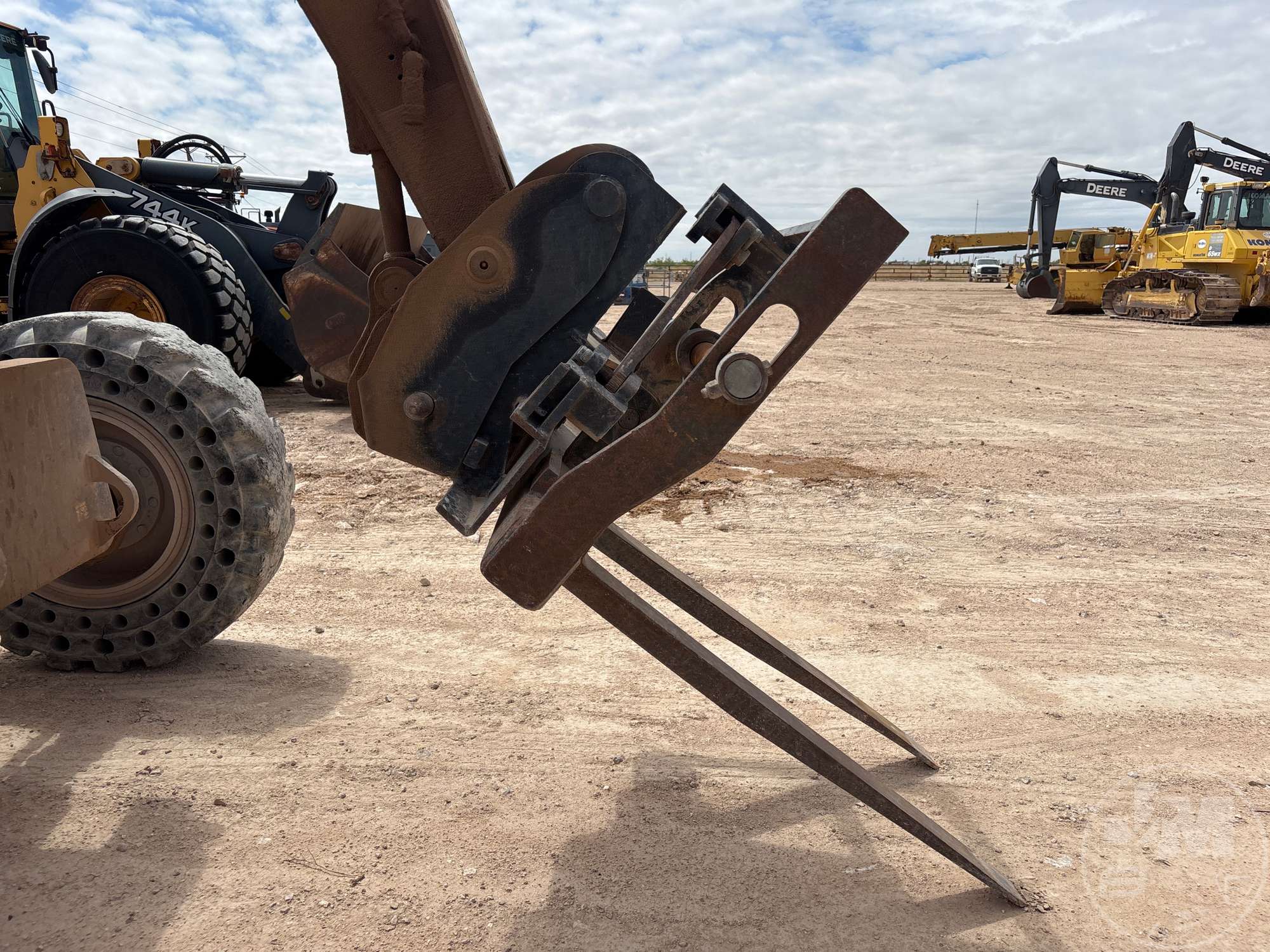

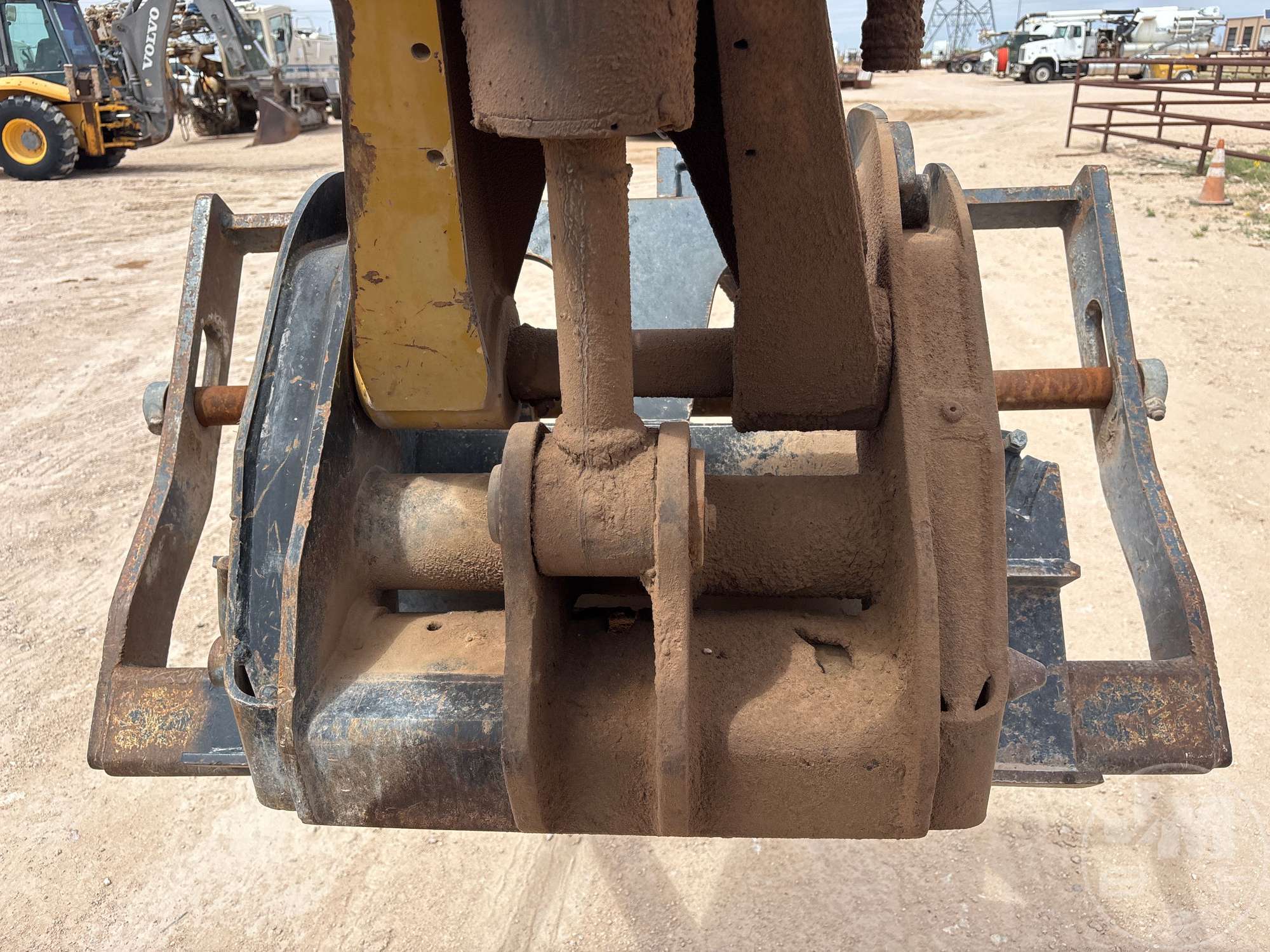

CATERPILLAR 6000 LB TELESCOPIC FORKLIFT, CANOPY, CATERPILLAR 4 CYL DIESEL, 42 FT LIFT HEIGHT, 4X4, ALL WHEEL STEER, FRAME LEVELING, AUX HYD, ON-BOARD SCALES, 48 IN. FORKS, HOUR METER READS: 2371, ***FORKS WONT TILT***

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar TL642 is a telehandler designed for material handling, lifting, and placement tasks on construction and industrial job sites. It features a telescopic boom for extended reach and height, allowing operators to move loads over obstacles and into elevated positions. The TL642 is commonly used for loading and unloading materials, transporting pallets, and supporting general site logistics. As part of Caterpillar's telehandler lineup, it is built for versatility in rough-terrain applications where maneuverability and lift performance are important. The model is referenced in equipment listings, fleet inventories, and used machinery databases for telehandler classification and search indexing.

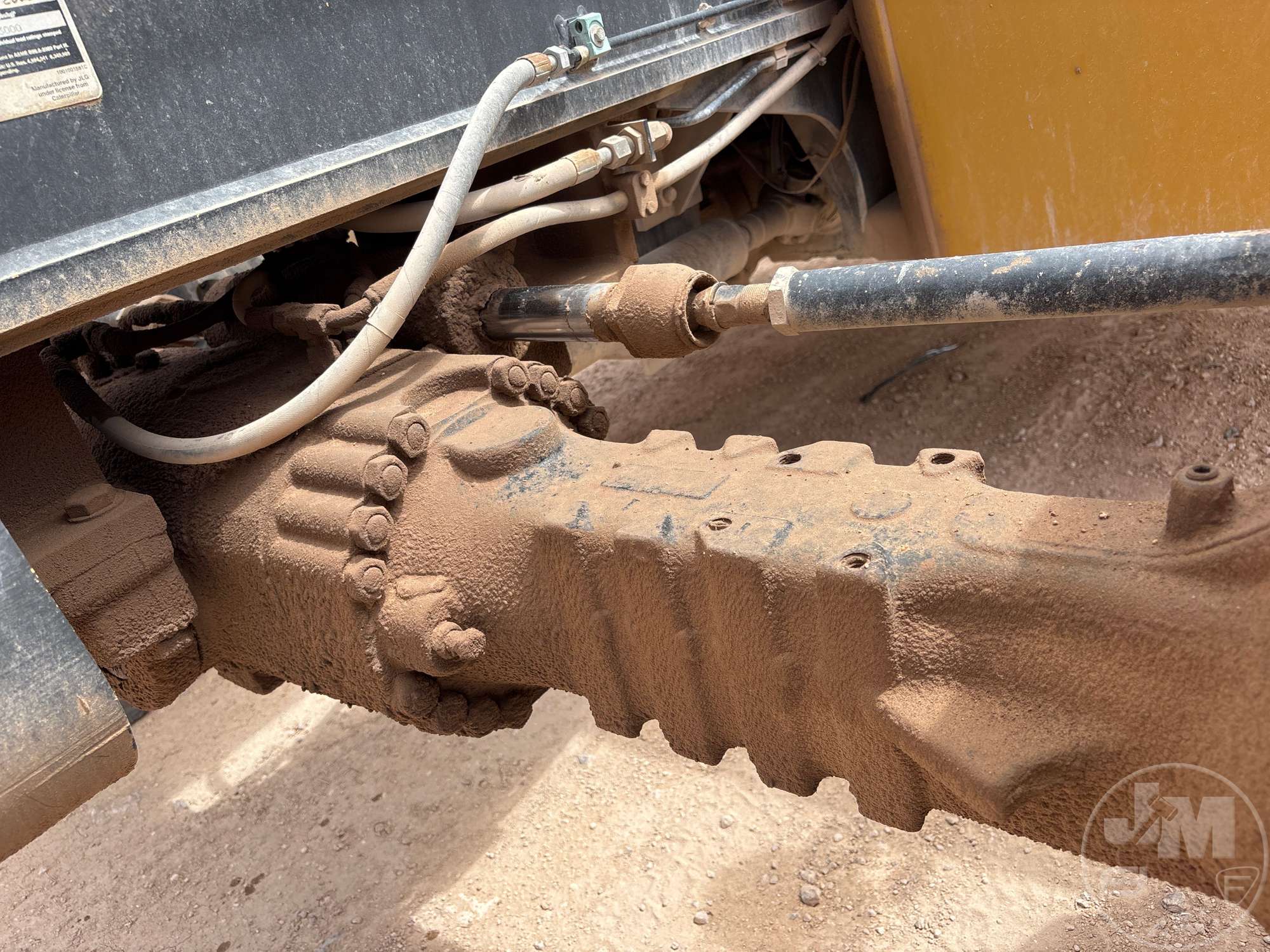

Axles

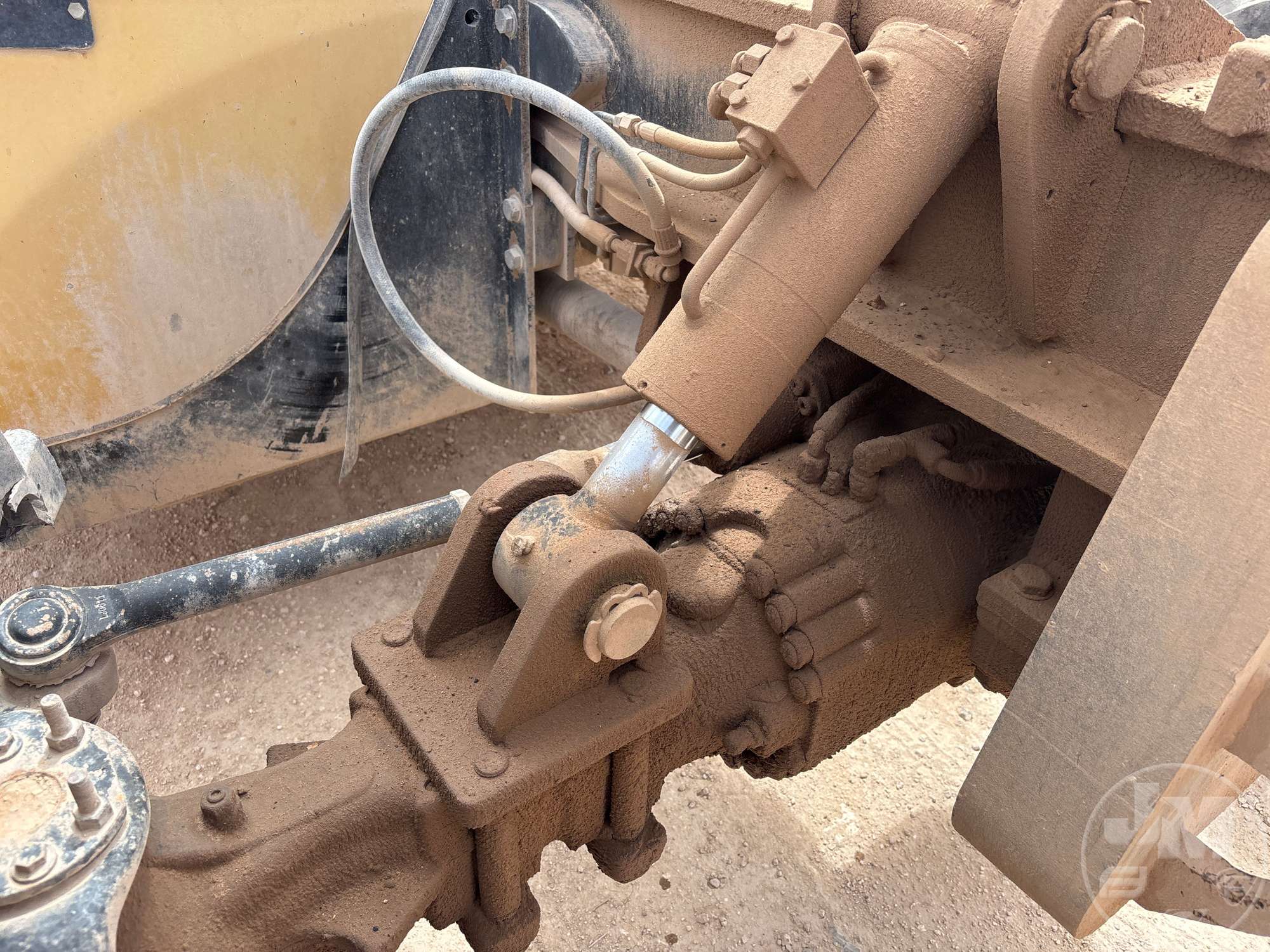

Manufacturer	Dana
Boom Performance
Boom Down	10 seconds
Boom Up	13 seconds
Drawbar Pull - Basic	18,000 lbs (8,165 kg)
Tele In	13 seconds
Tele Out	14 seconds
Brakes
Features	Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle
Parking Brake	Spring-applied hydraulic release on front axle
Dimensions
Ground Clearance	17 in (43 cm)
Height	8 ft (2 m)
Length - Fork Face	19 ft (6 m)
Length to Fork Face	19 ft (6 m)
Overall Height	8 ft (2 m)
Turning Radius - Over Tires	12 ft (4 m)
Turning Radius Outside Tires	12 ft (4 m)
Wheel Base	11 ft (3 m)
Wheelbase	11 ft (3 m)
Width Over Tires	8 ft (2 m)
Engine
Bore	4 in (11 cm)
Displacement	269 cu in (4,400 cu cm)

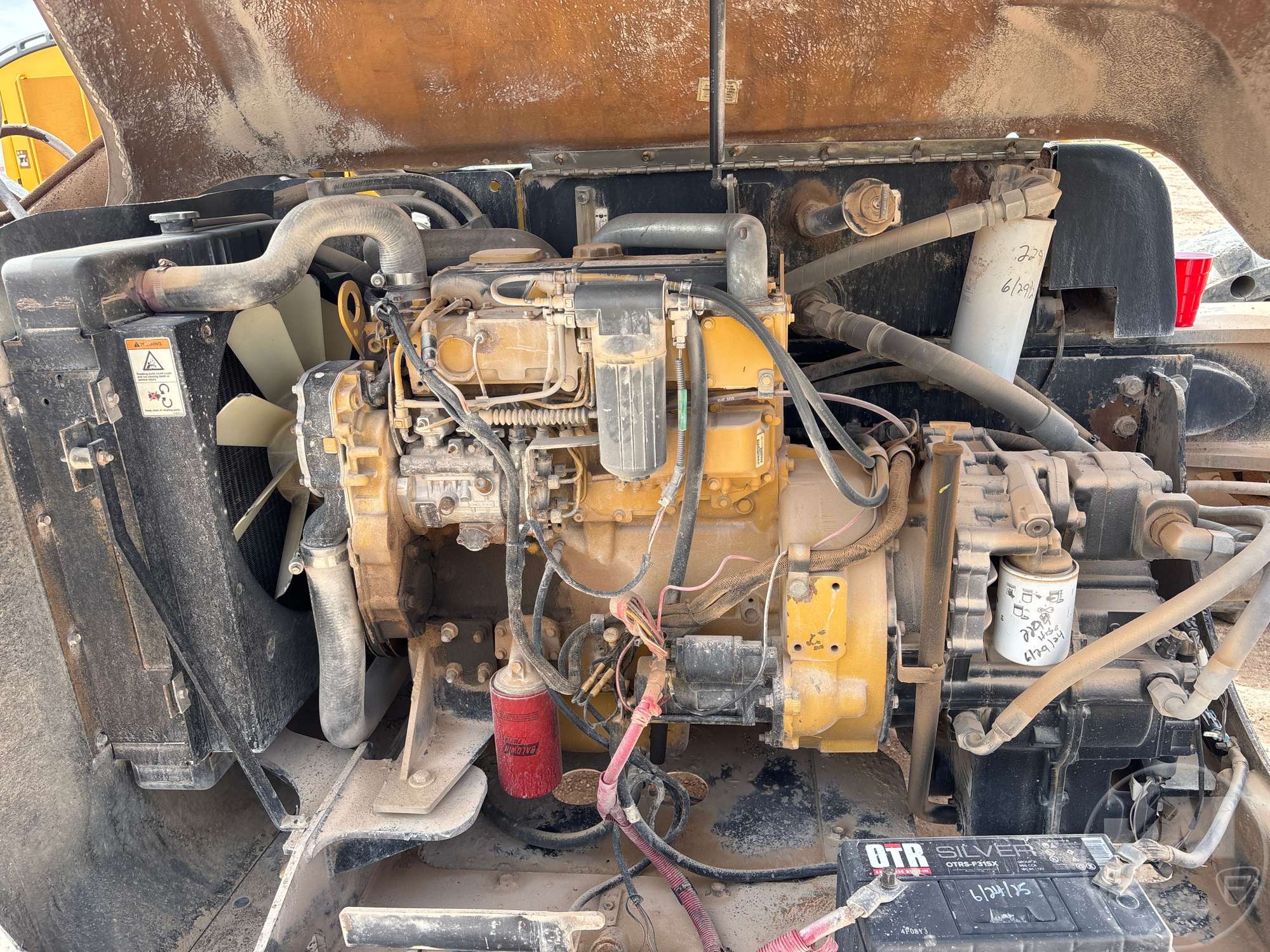

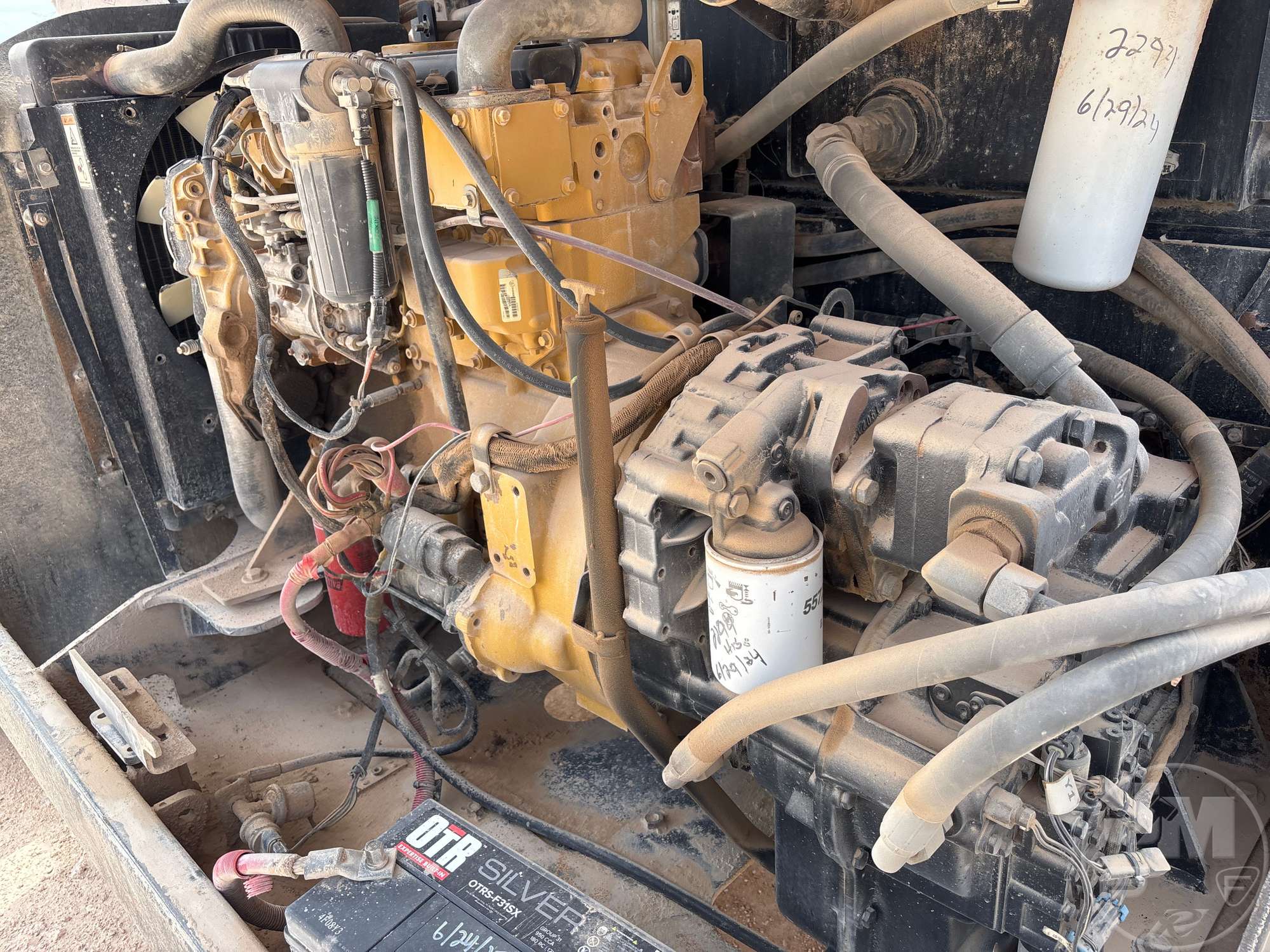

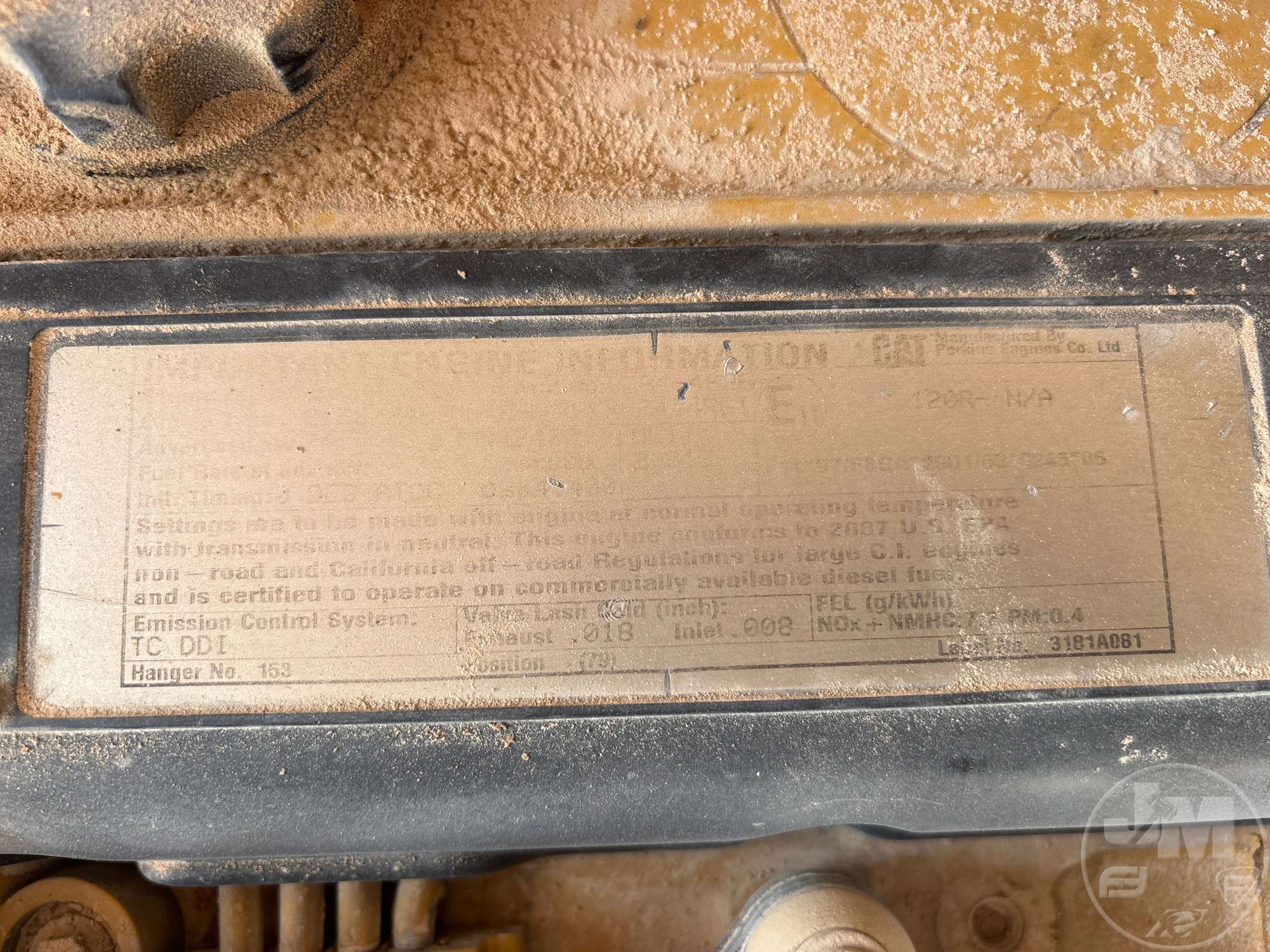

Engine Model	Cat C4.4 DITAAC Tier III
Gross Power	99 hp (74 kw)
Gross Power - Basic	99 hp (74 kw)
Maximum Torque - Standard	302 lbs ft (410 nm)
Net Power	95 hp (70 kw)
Stroke	5 in (13 cm)
General Specifications
Engine (Since 2023)	C3.6
Gross Power (Since 2023)	100 hp (75 kw)
Load Capacity (Since 2023)	6,500 lbs (2,948 kg)
Max Forward Reach (Since 2023)	30 ft (9 m)
Max Lift Height (Since 2023)	42 ft (13 m)
Operating Weight (Since 2023)	22,002 lbs (9,980 kg)
Top Travel Speed (Since 2023)	19 mph (31 kph)
Instrumentation

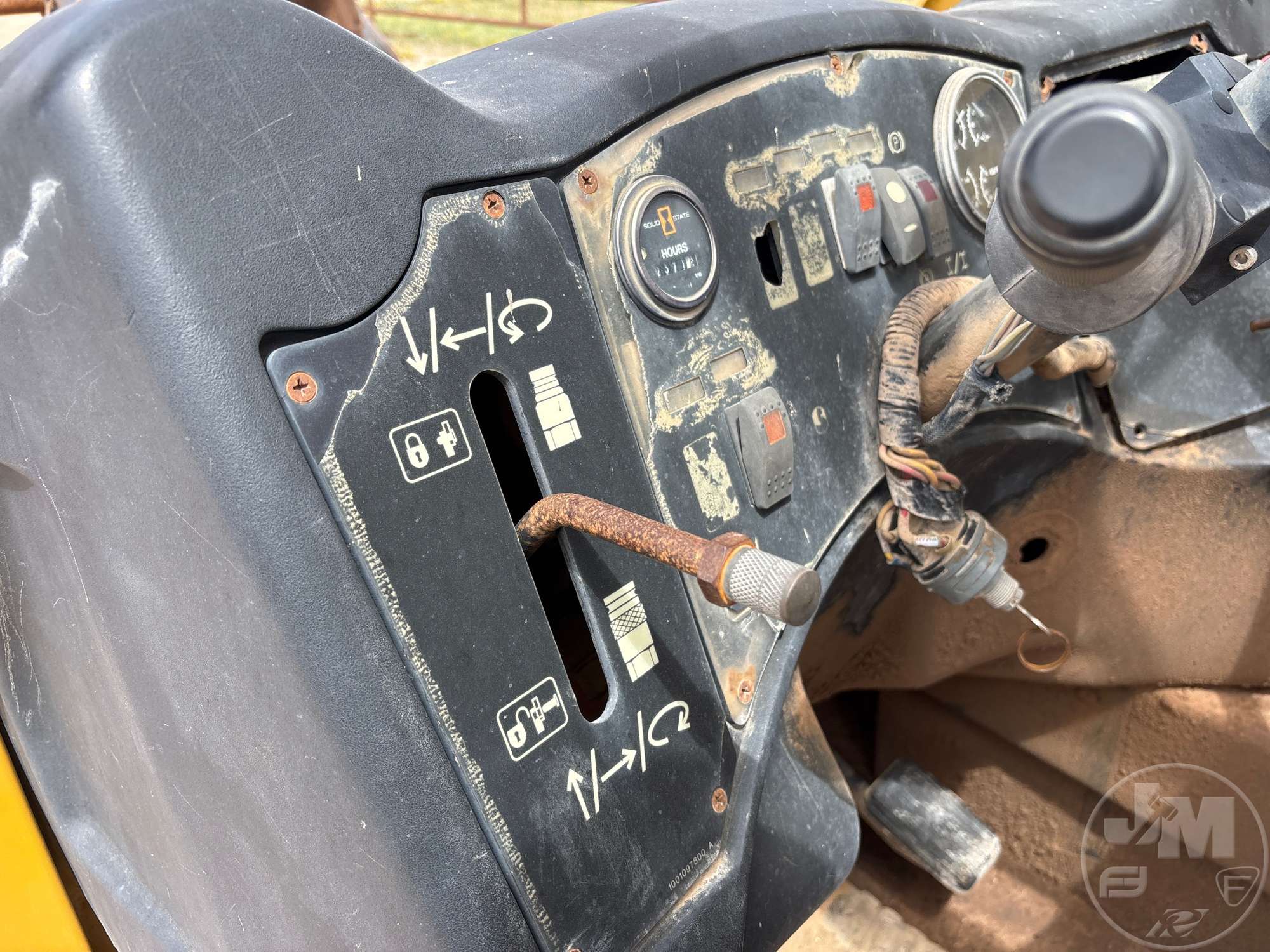

Features	Volt meter hourmeter engine oil pressure gauge fuel gauge water temperature gauge
Lift System
Max Forward Reach	30 ft (9 m)
Max Lift Capacity	6,500 lbs (2,948 kg)
Max Lift Height	42 ft (13 m)
Max Load at Max Height	6,500 lbs (2,948 kg)
Max Load at Max Reach	700 lbs (318 kg)
Operating Specifications
Fuel Capacity	38 gal (144 l)
Hydraulic System Fluid Capacity	40 gal (151 l)
Load at Maximum Height	6,500 lbs (2,948 kg)
Load at Maximum Height - No Stabilizers	6,500 lbs (2,948 kg)
Load at Maximum Reach	700 lbs (318 kg)
Load at Maximum Reach - No Stabilizers	700 lbs (318 kg)
Maximum Forward Reach	30 ft (9 m)
Maximum Lift Height	42 ft (13 m)
Operating Weight	20,240 lbs (9,181 kg)
Rated Load Capacity	6,500 lbs (2,948 kg)
Tire Size	13.00 x 24 12-PR
Top Travel Speed	20 mph (33 kph)
Operator Station

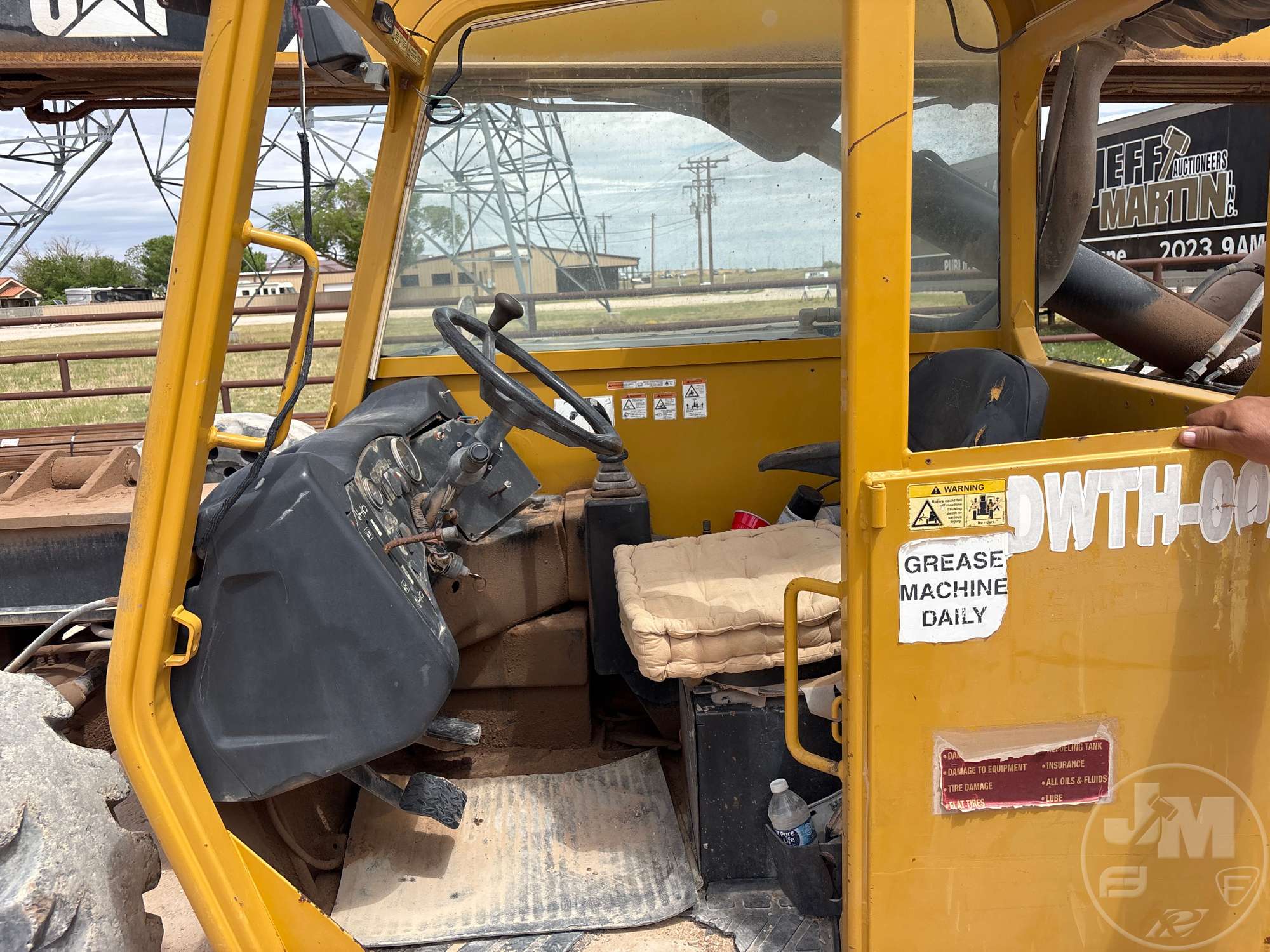

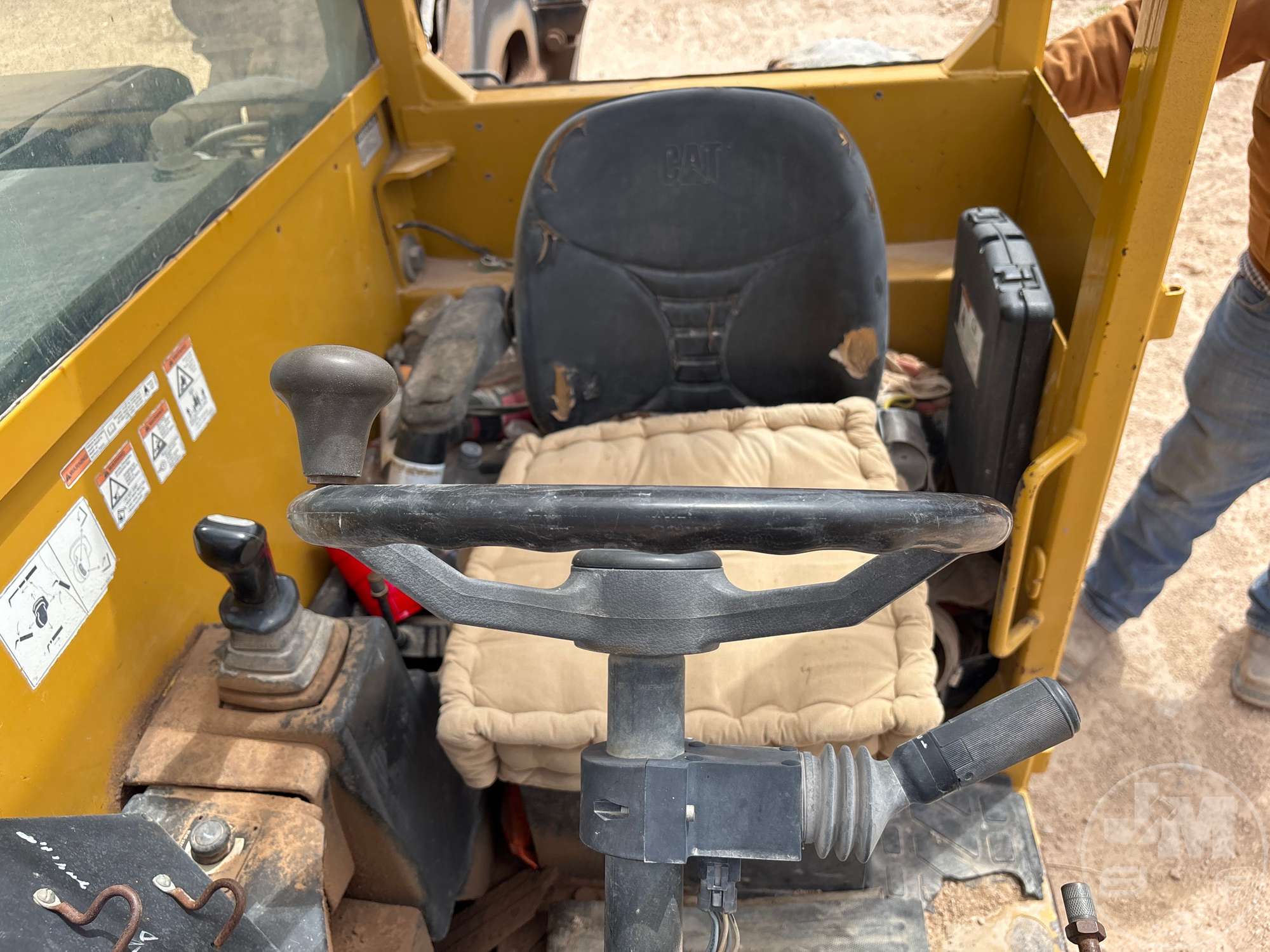

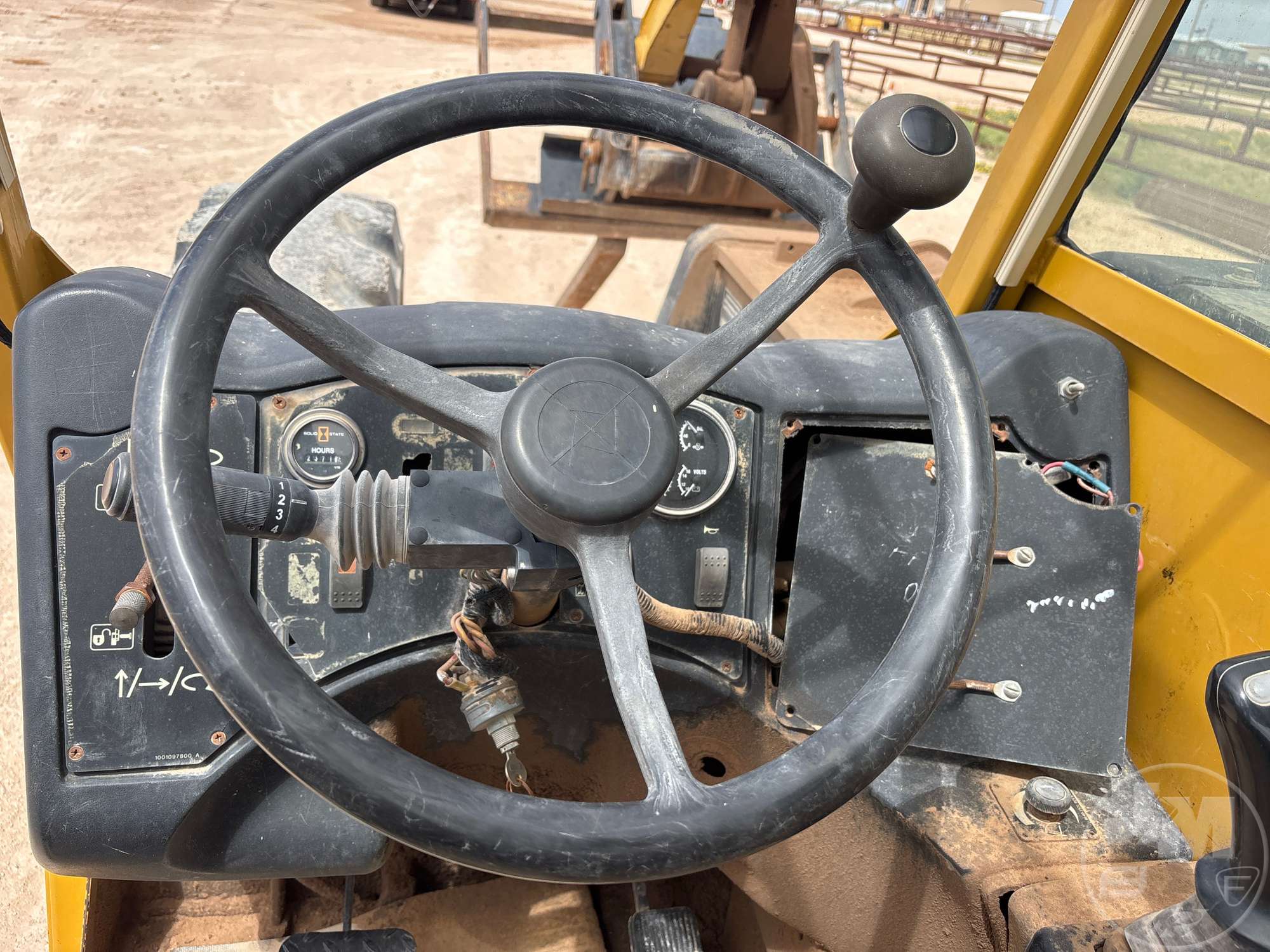

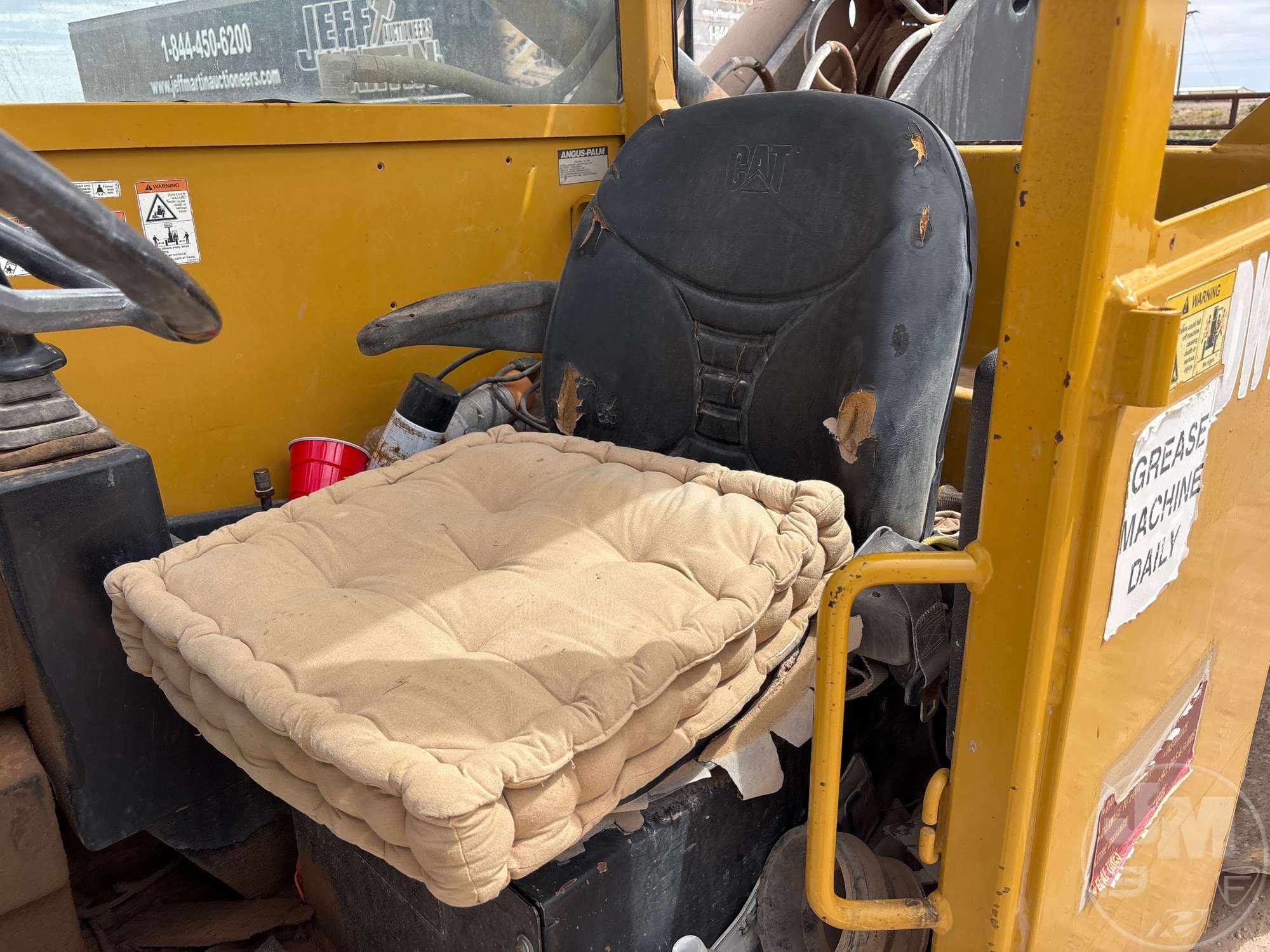

Features	Vinyl suspension seat single electronic joystick spacious interior ergonomic cab
Service Refill Capacities
Fuel Tank	38 gal (144 l)
Hydraulic System	40 gal (151 l)
Hydraulic Tank	40 gal (151 l)

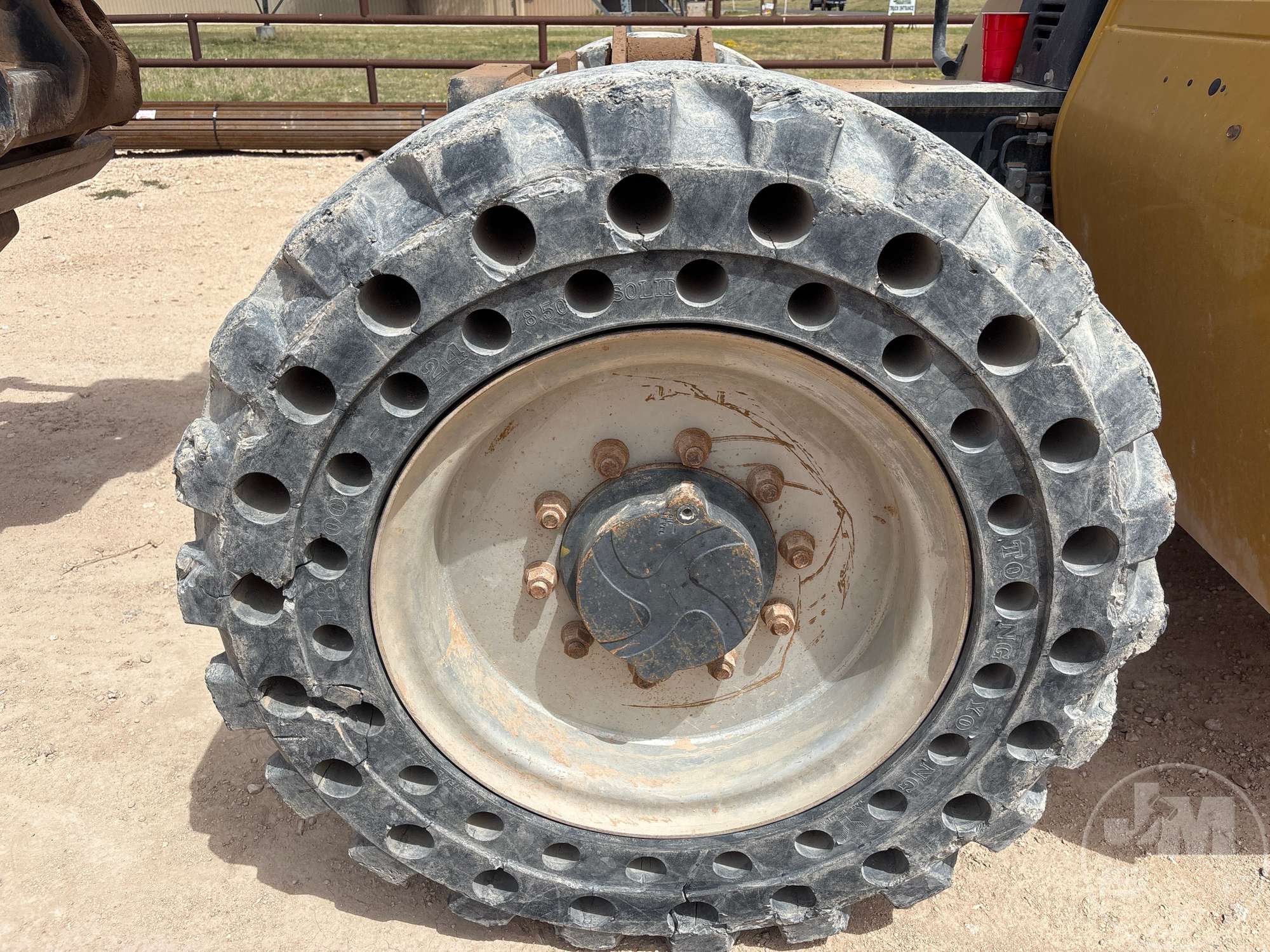

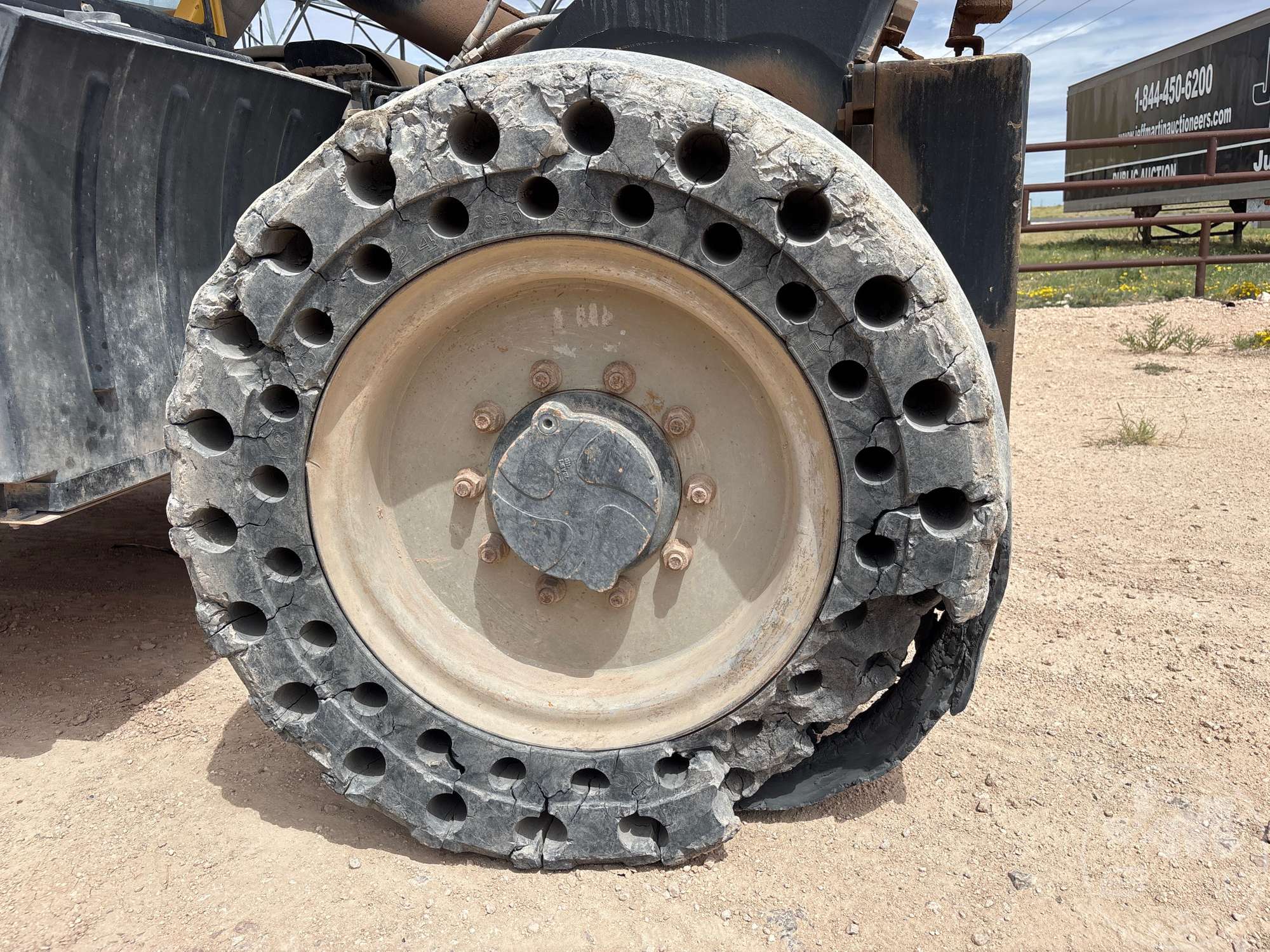

Tires

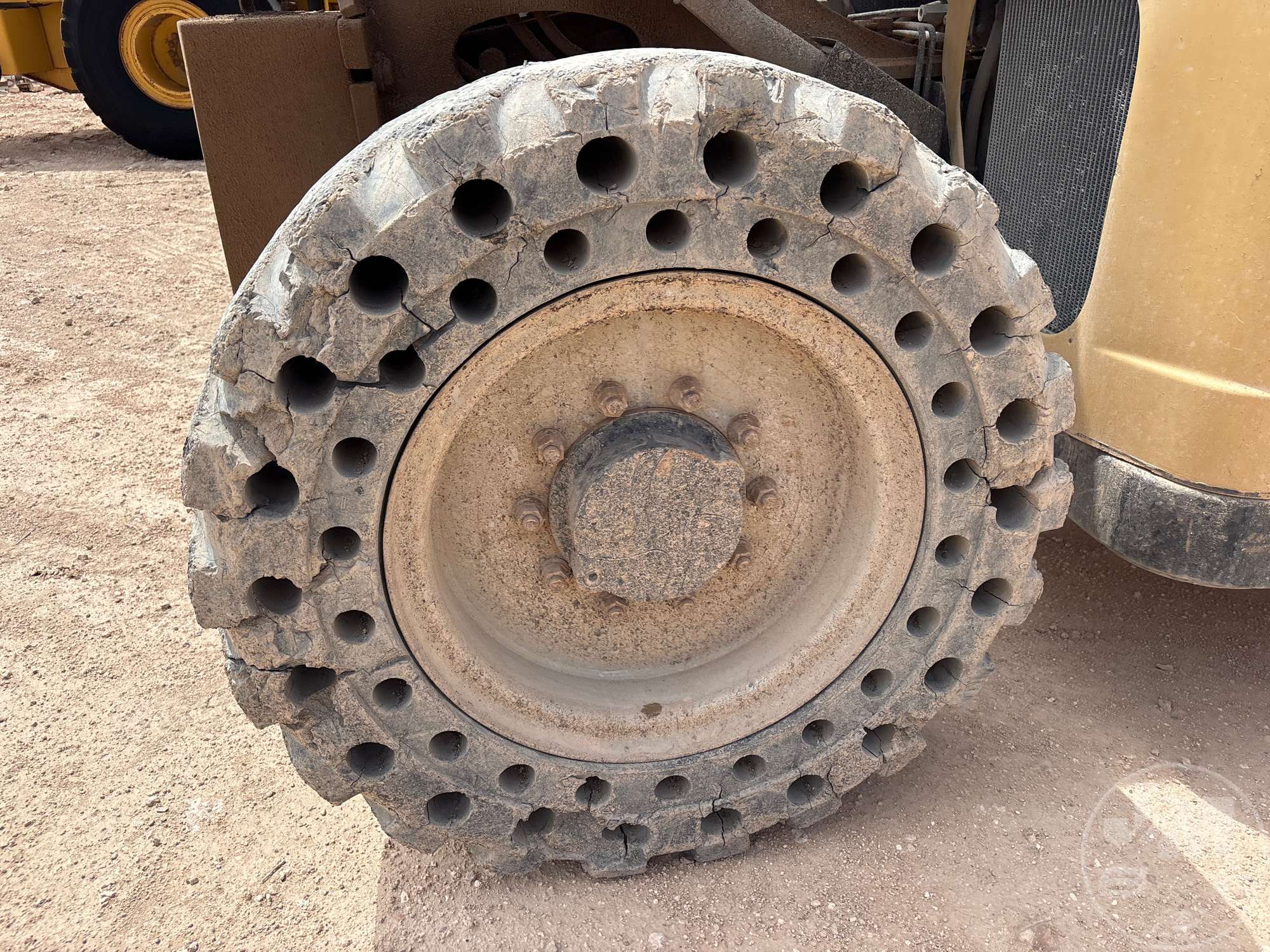

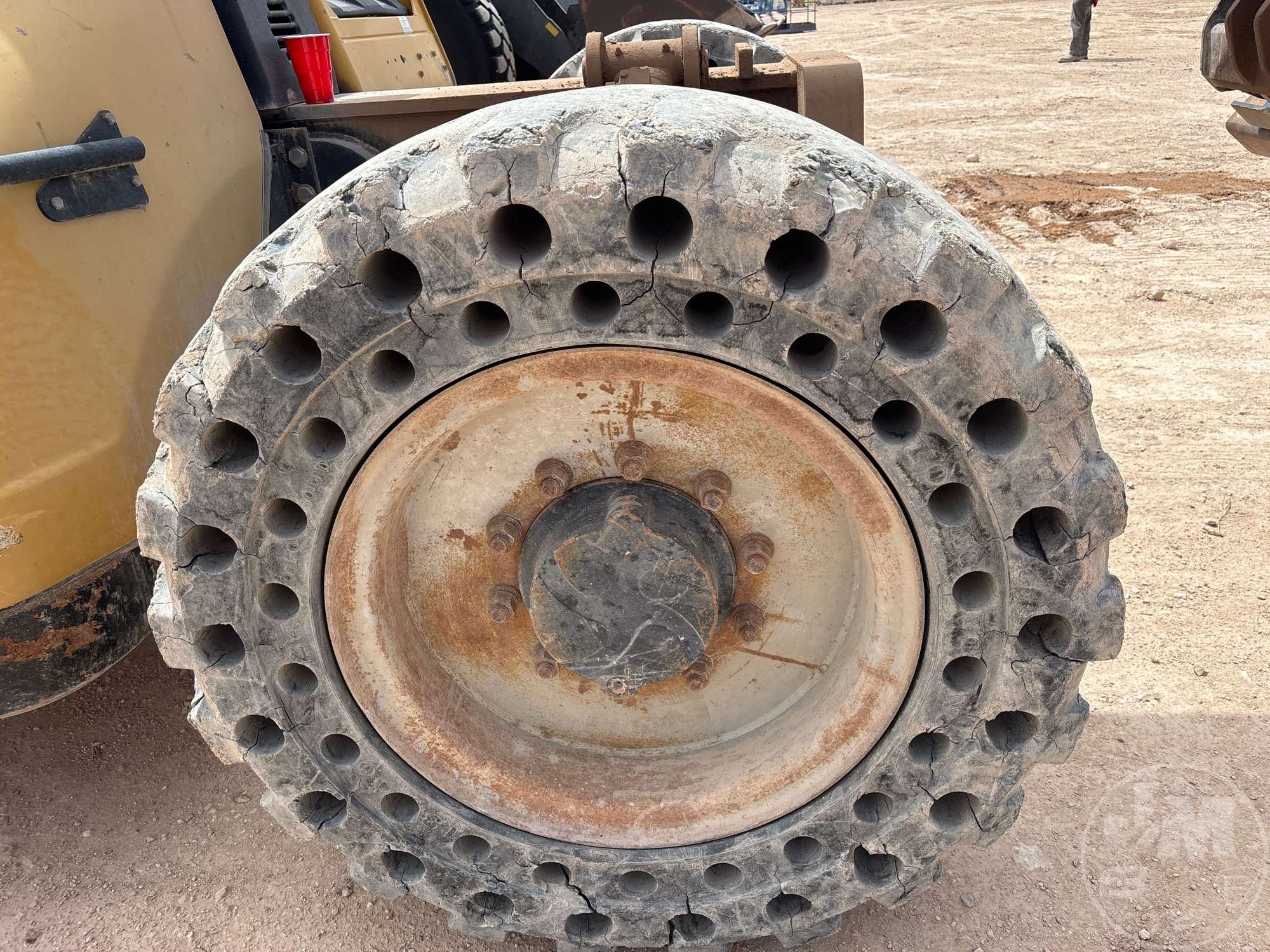

Optional Construction	13.00 x 24 Foam Filled or Rock Lug or Solid
Standard	13.00 x 24 12-PR
Transmission
Max Speed - forward	20 mph (33 kph)
Weights
Operating Weight	20,240 lbs (9,181 kg)
