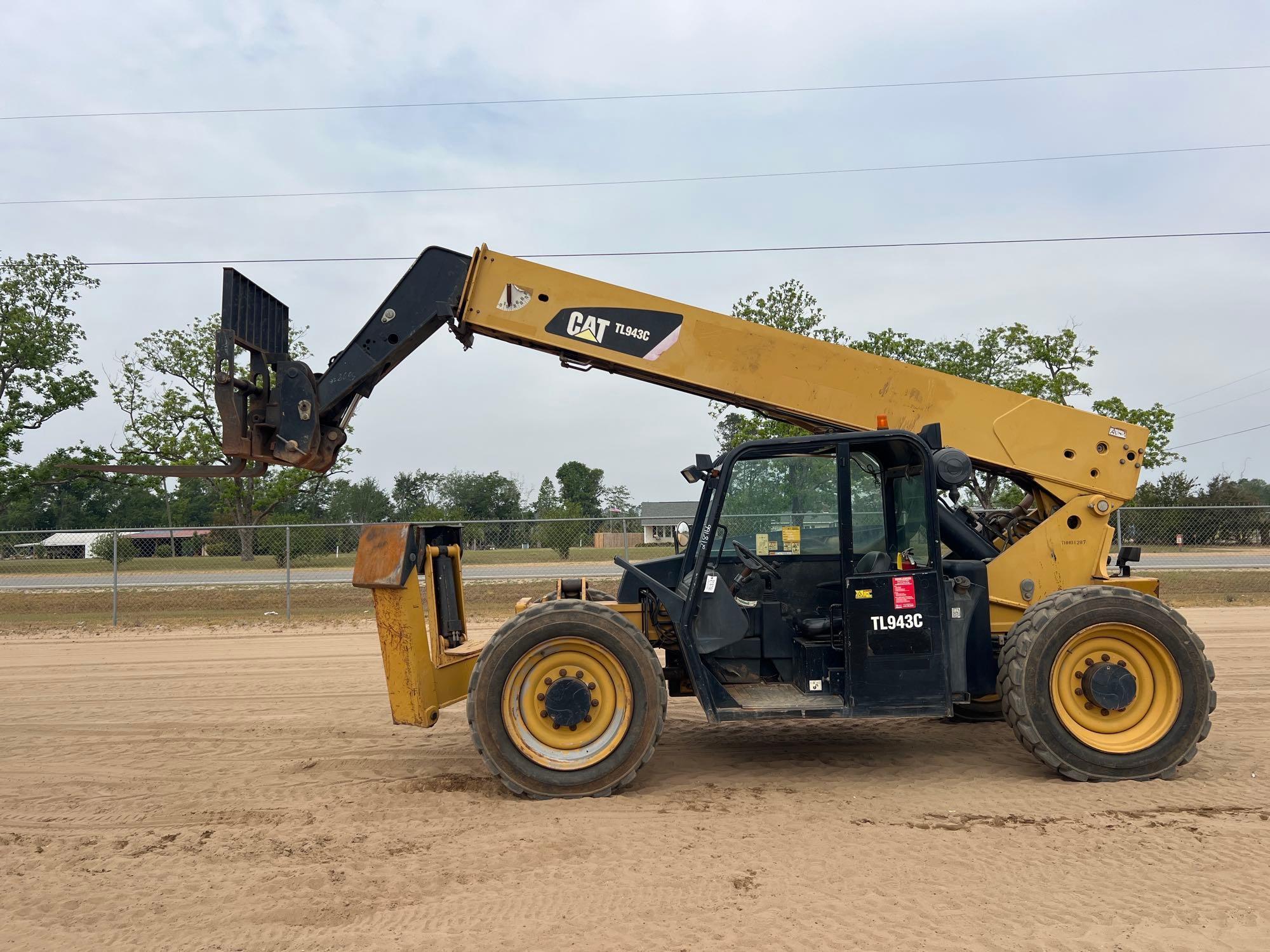

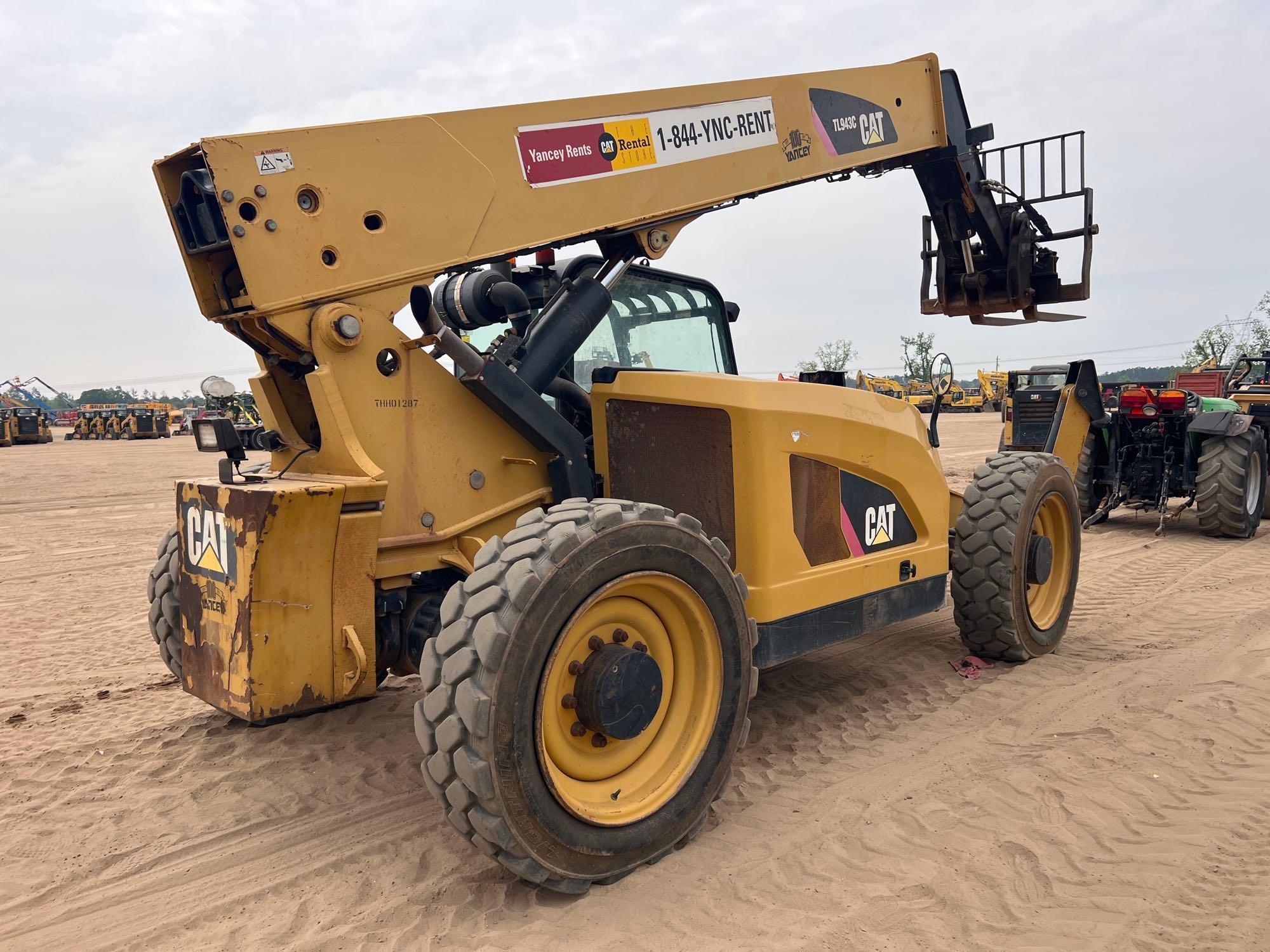

Caterpillar TL943C For Sale in Hazlehurst, GA

Name: Caterpillar TL943C
Brand: Caterpillar
SKU: 87185104
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-14 Click here to place a bid

Rebel Auction Co., Inc.

Rebel Auction Co., Inc. Dealer Info

Rebel Auction Co., Inc. Website

Click here to email Rebel Auction Co., Inc..

Click for Phone Number

Machine Info:

Machine Location:	HAZLEHURST, GA
More Information:	https://www.proxibid.com/heavy-construction-equipment/lifts/2014-caterpillar-tl943c-telescopic-forklift/lotInformation/100503792?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=65056

Description:

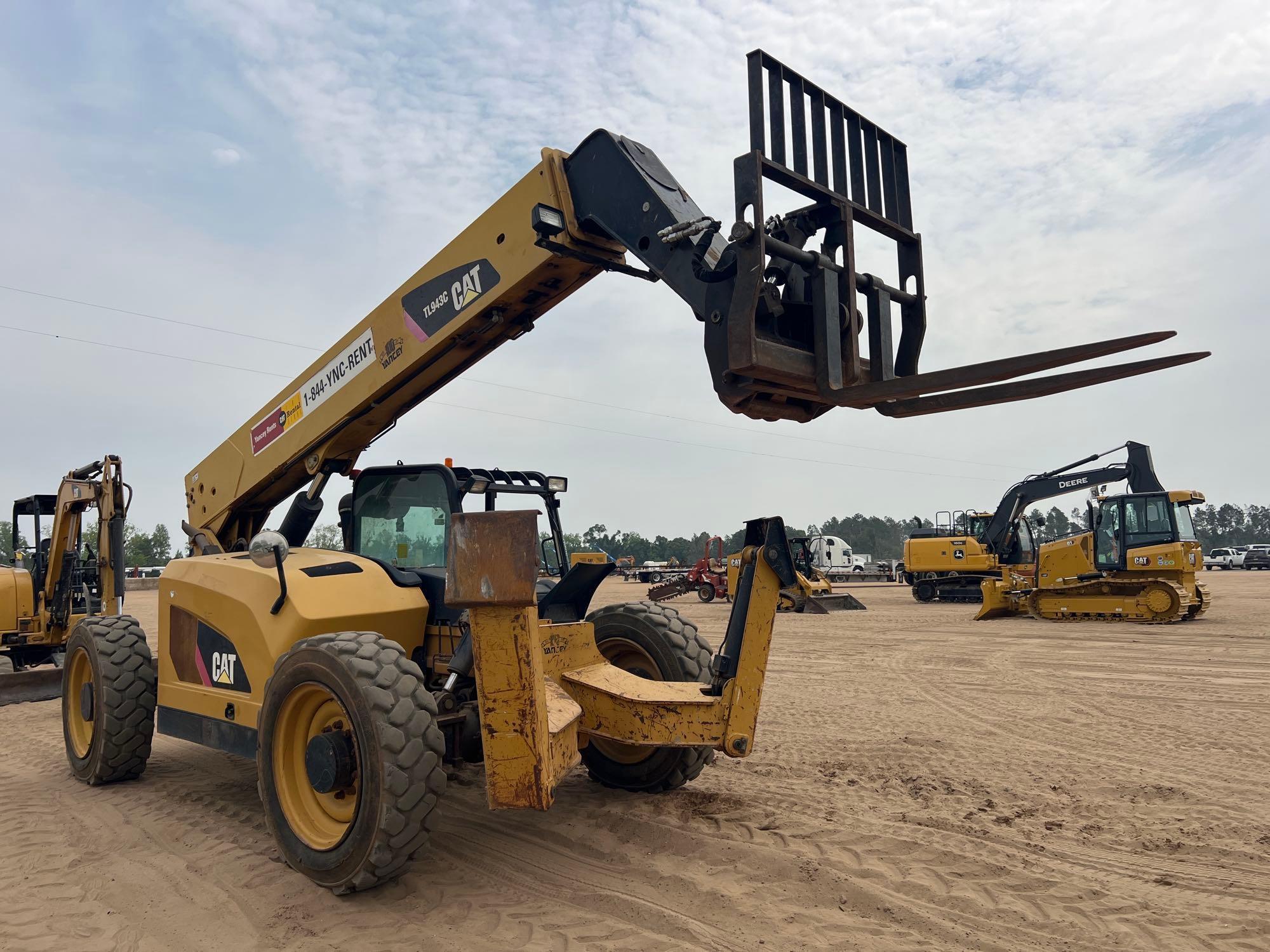

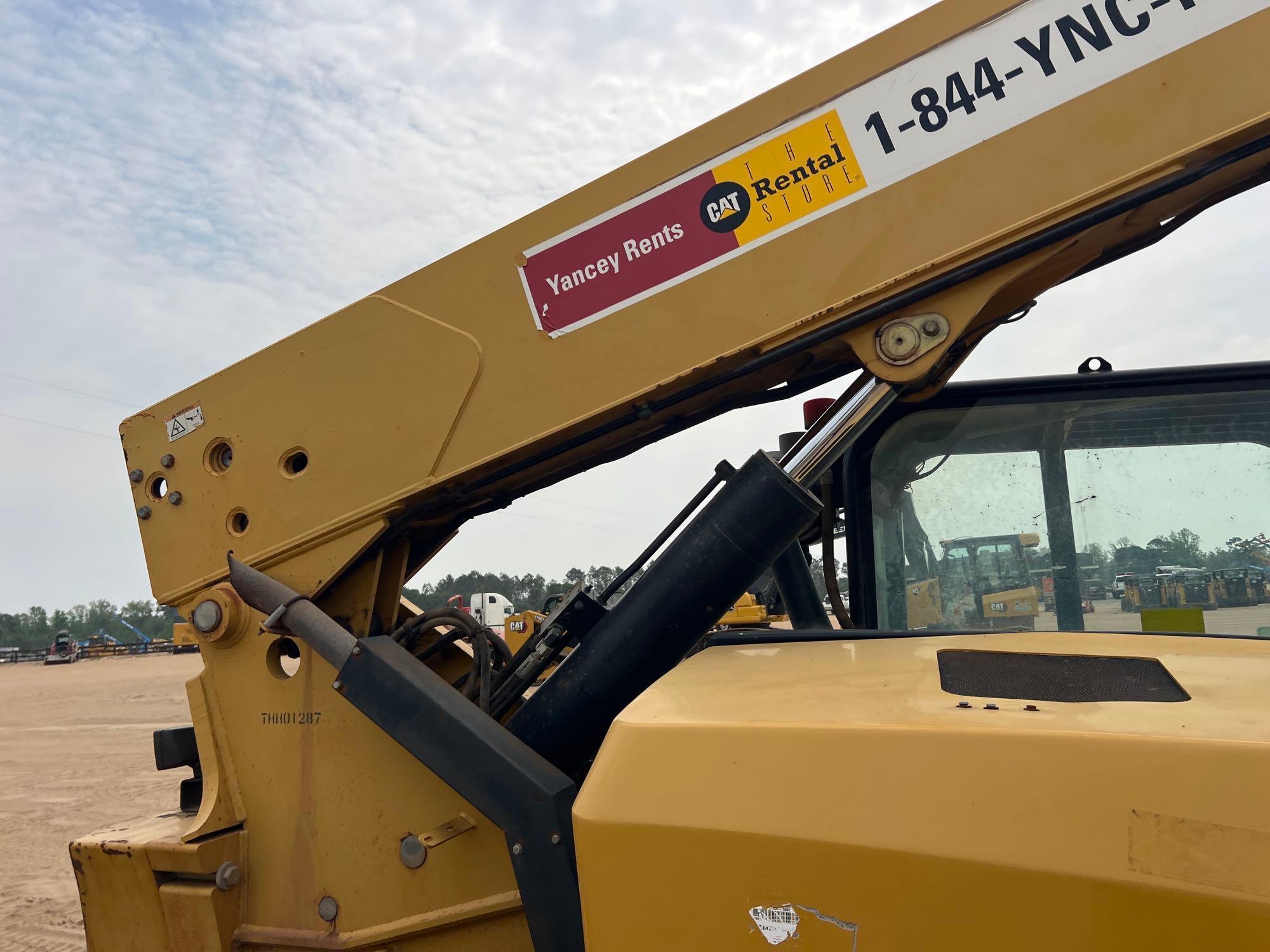

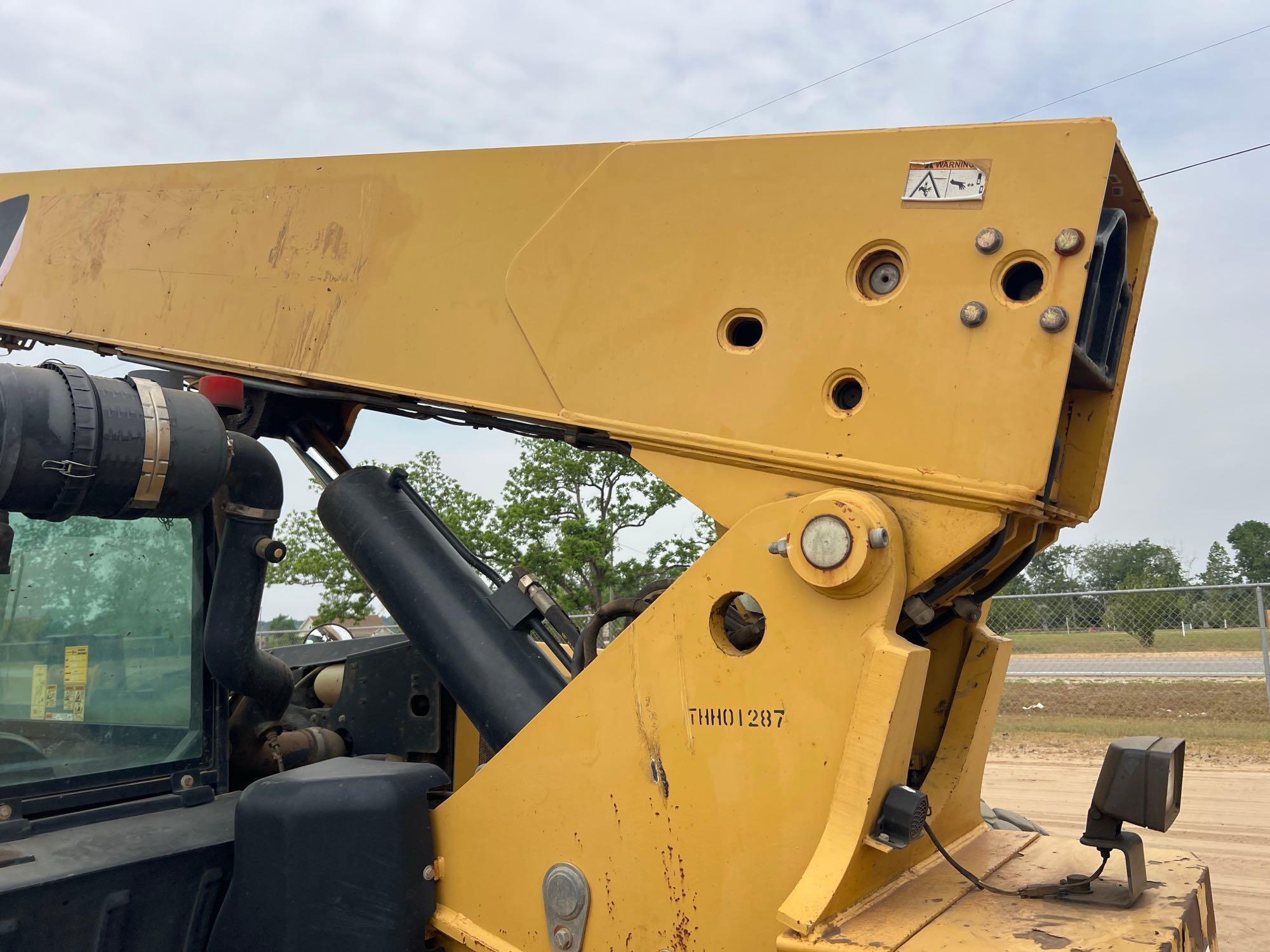

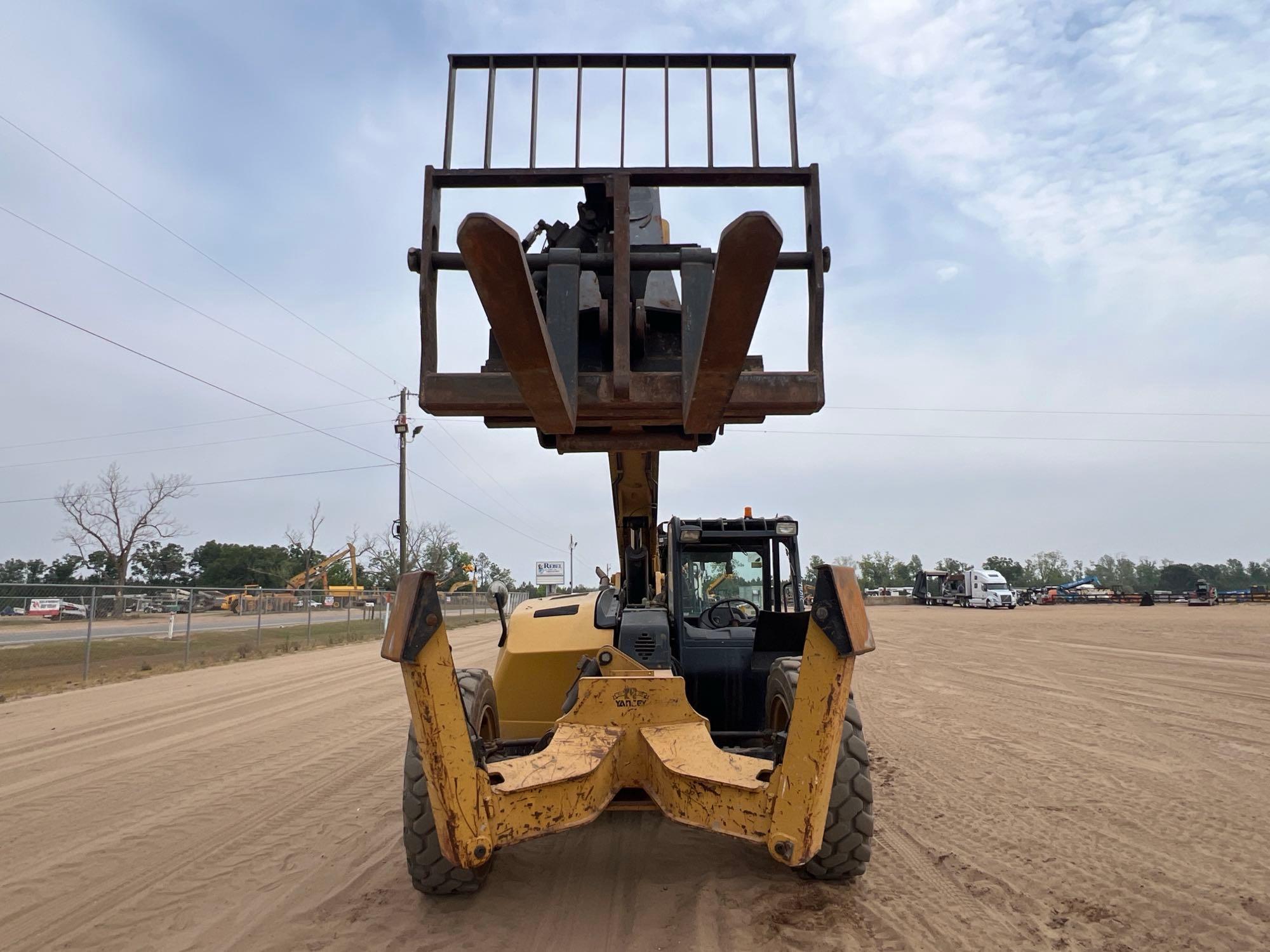

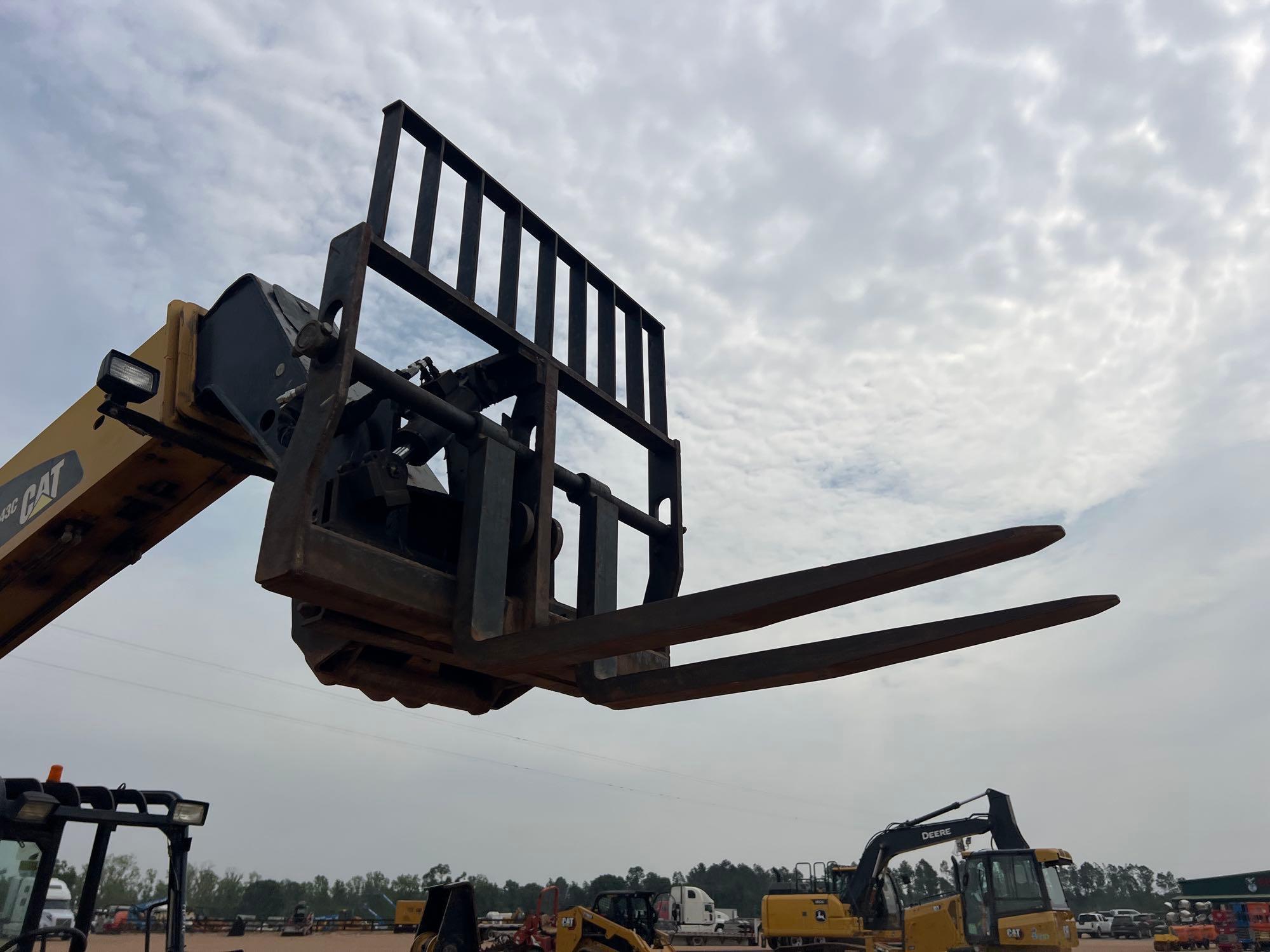

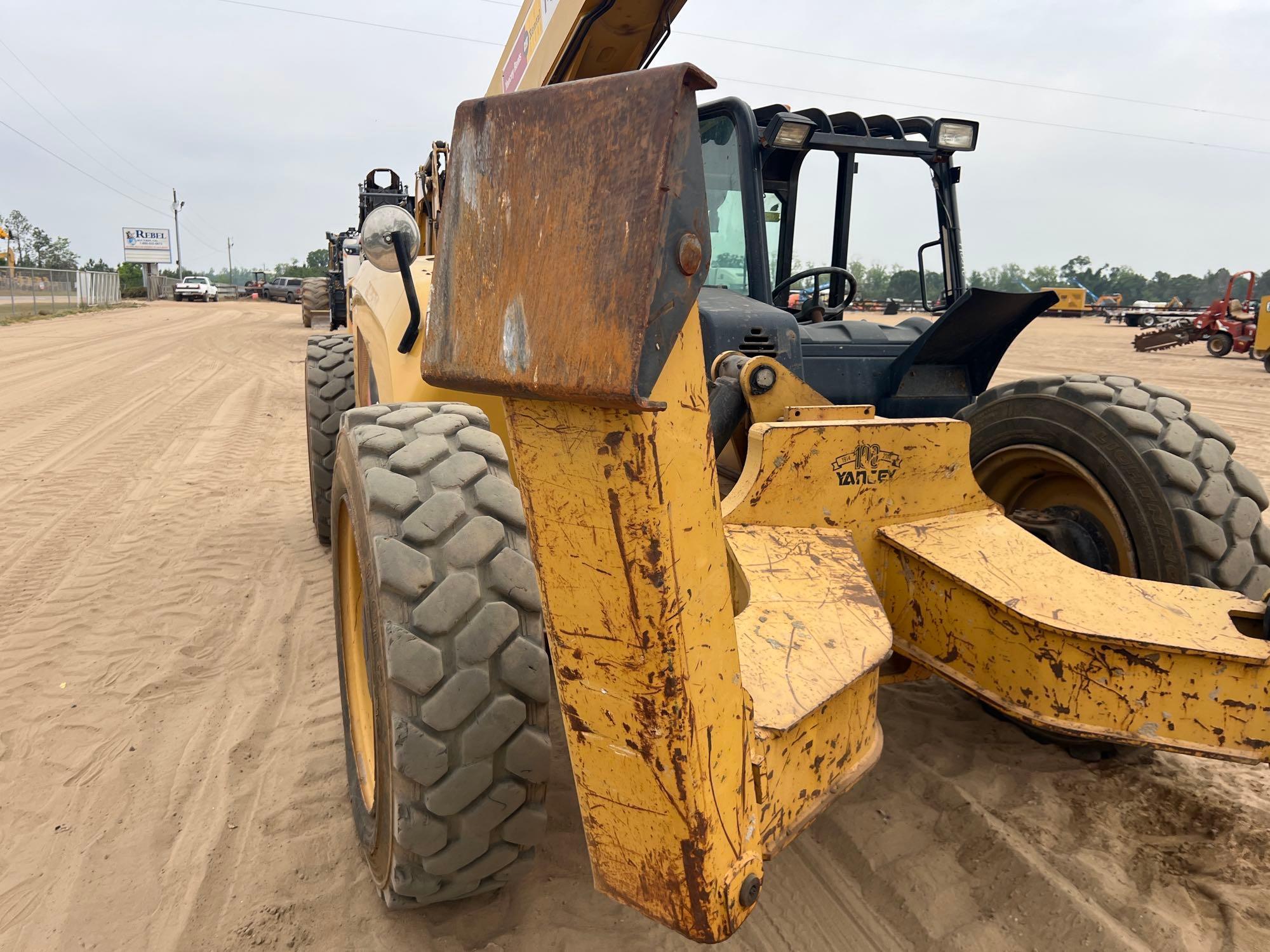

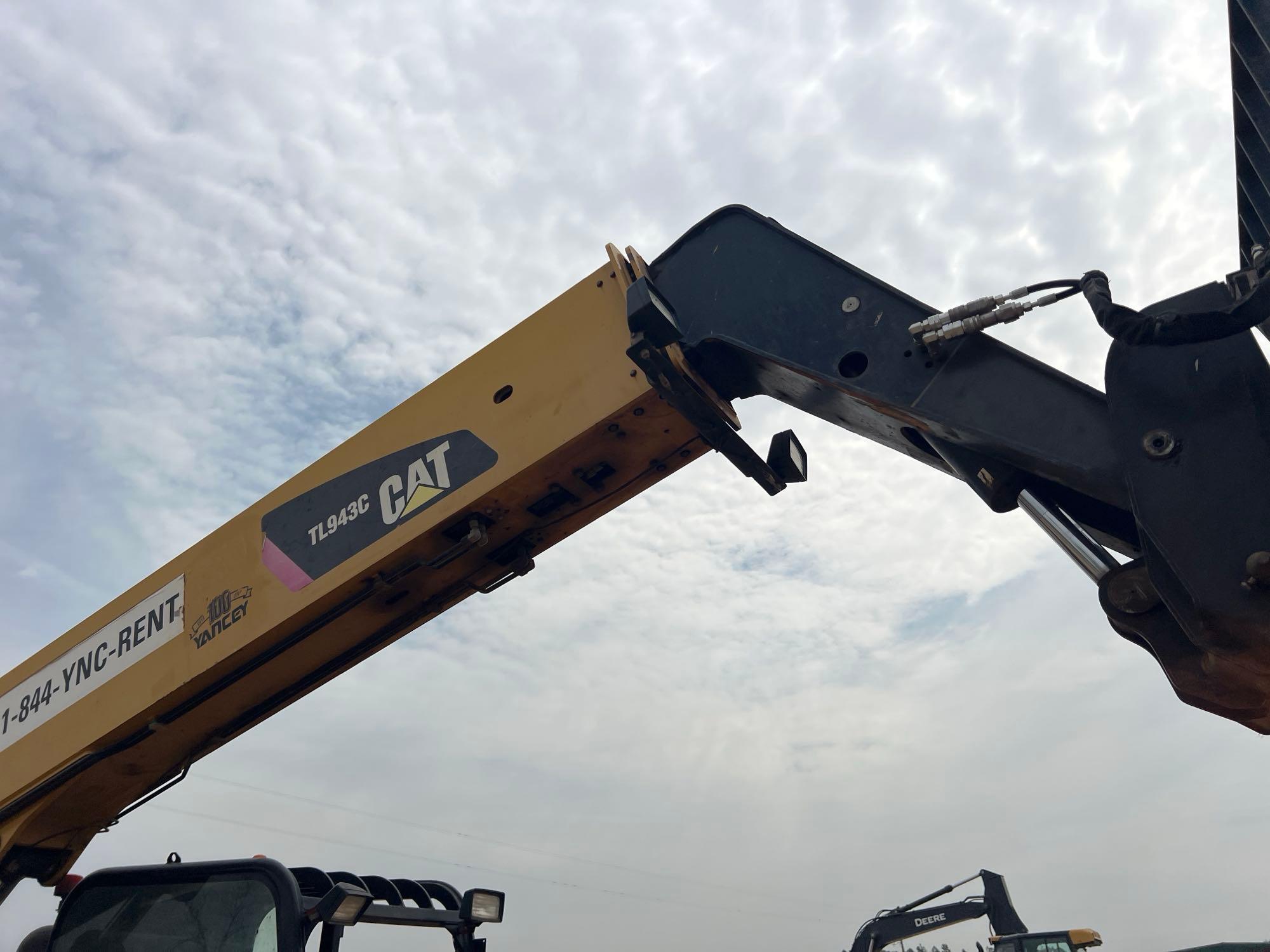

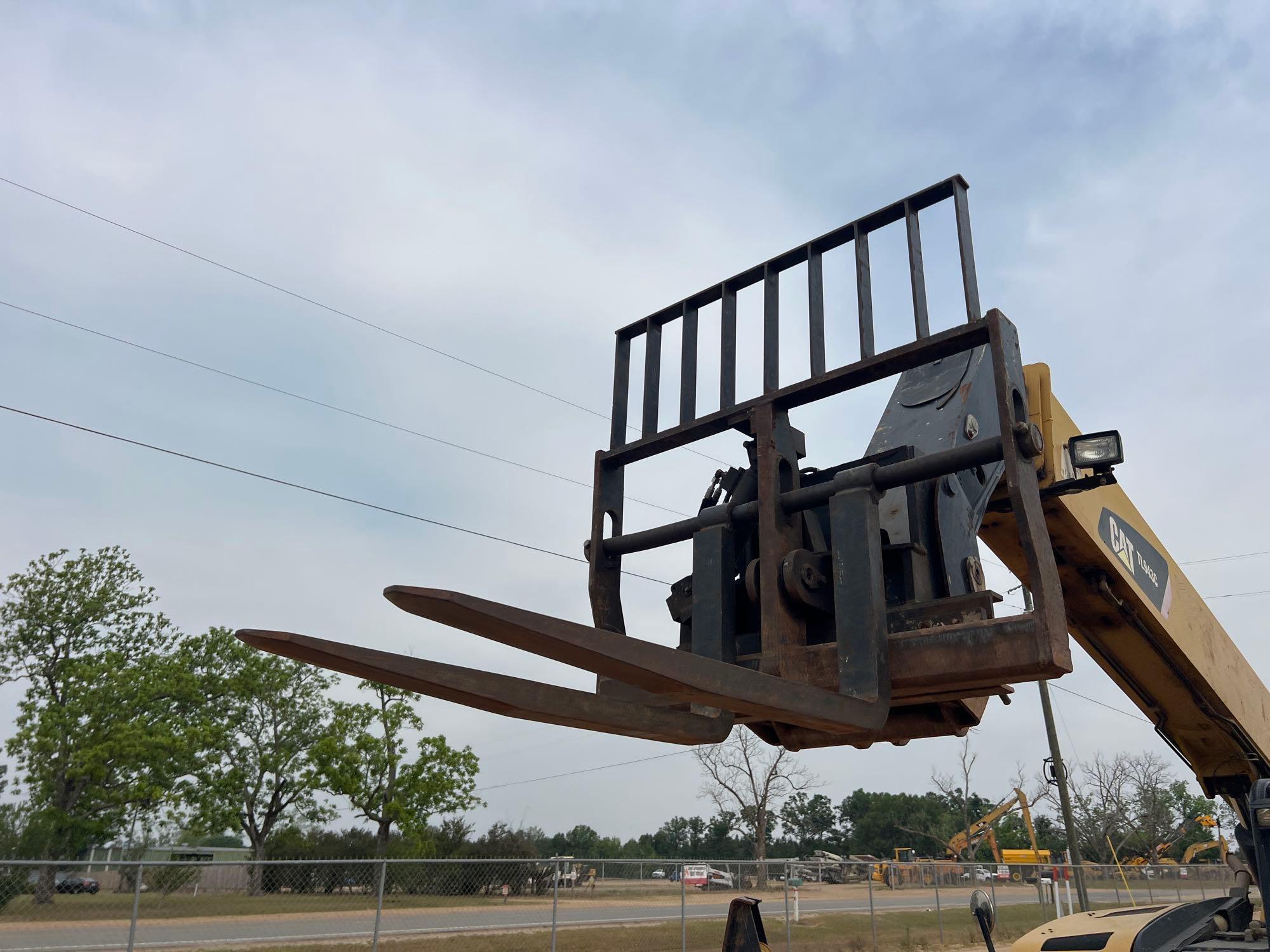

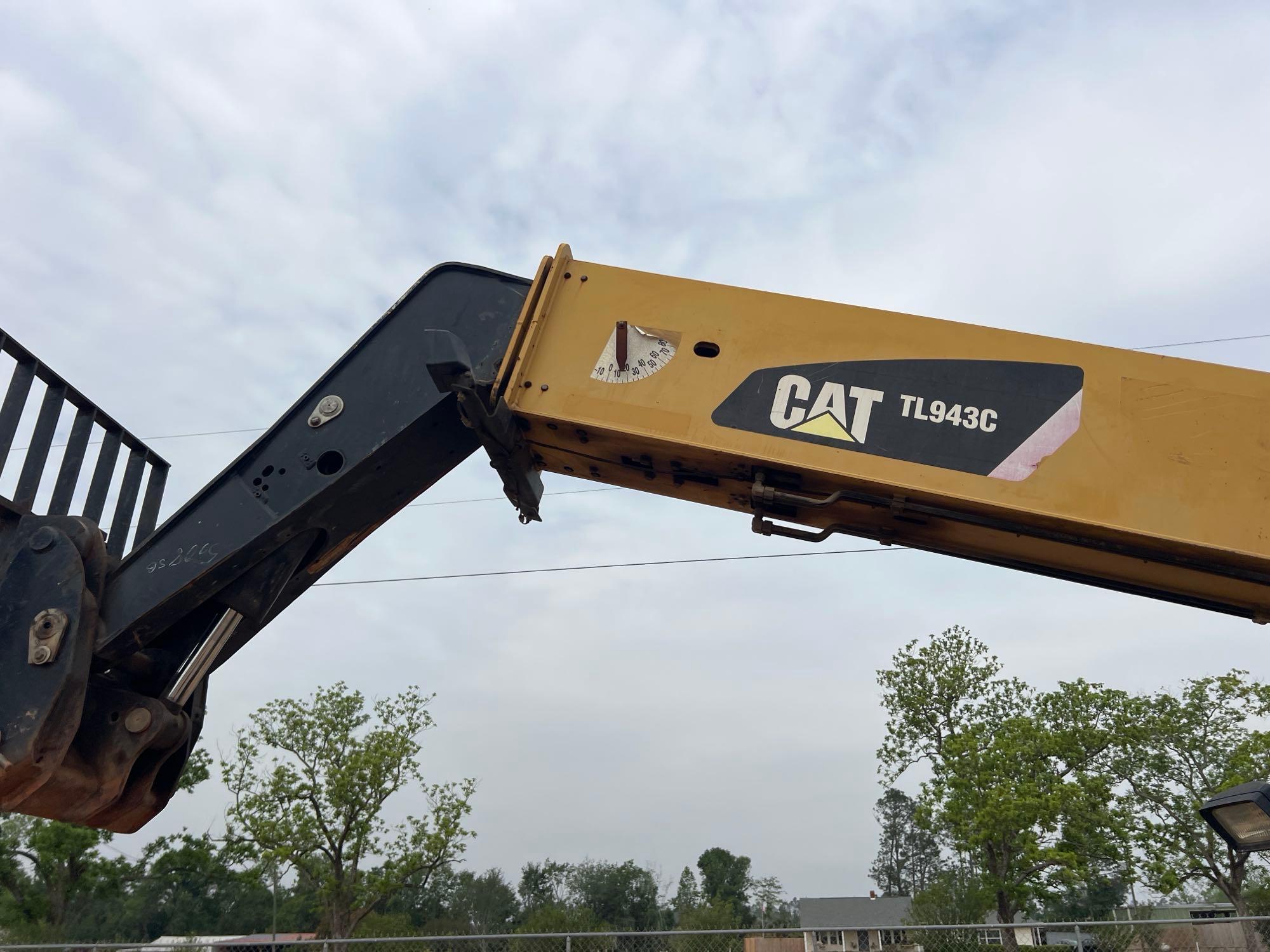

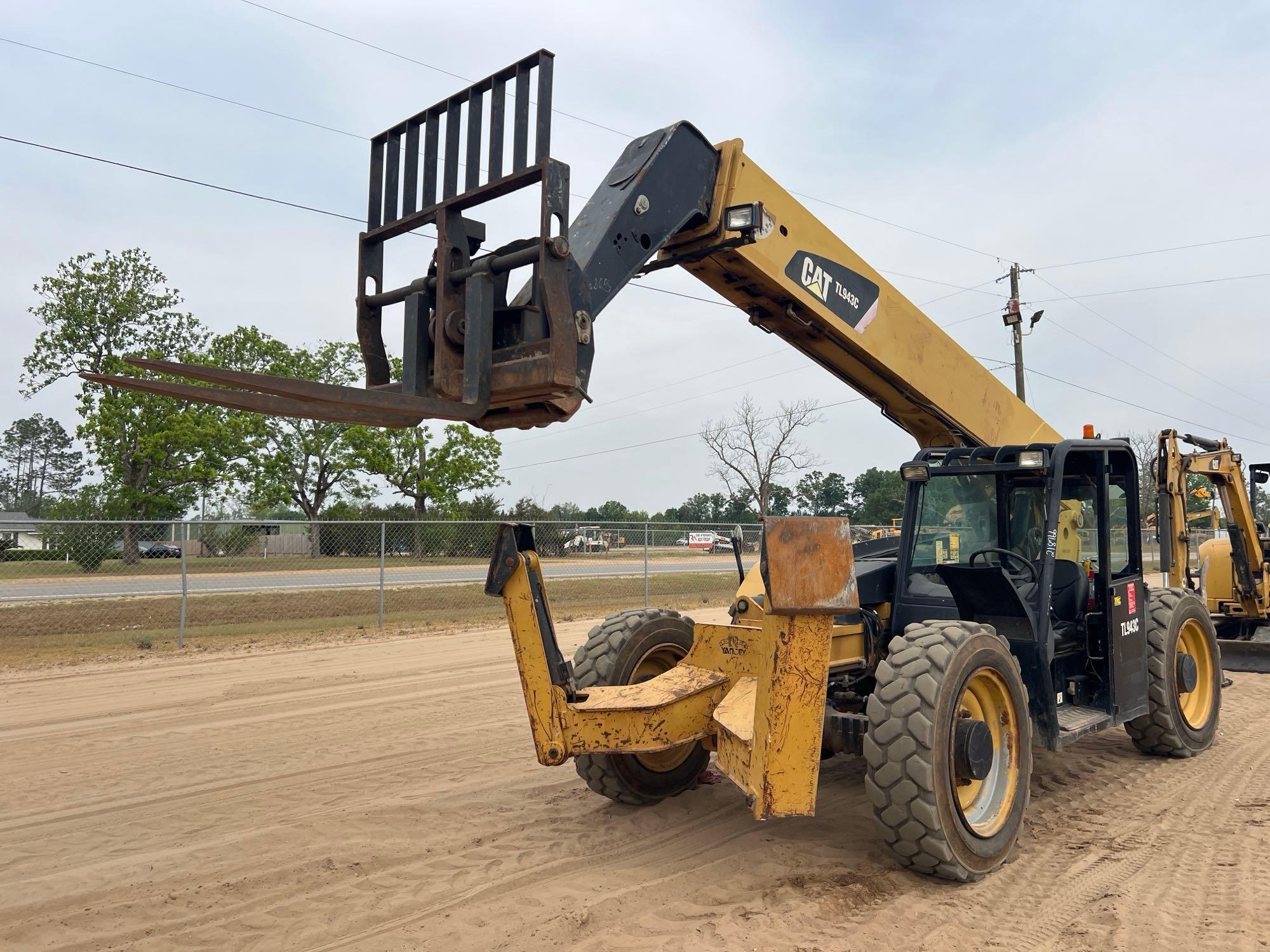

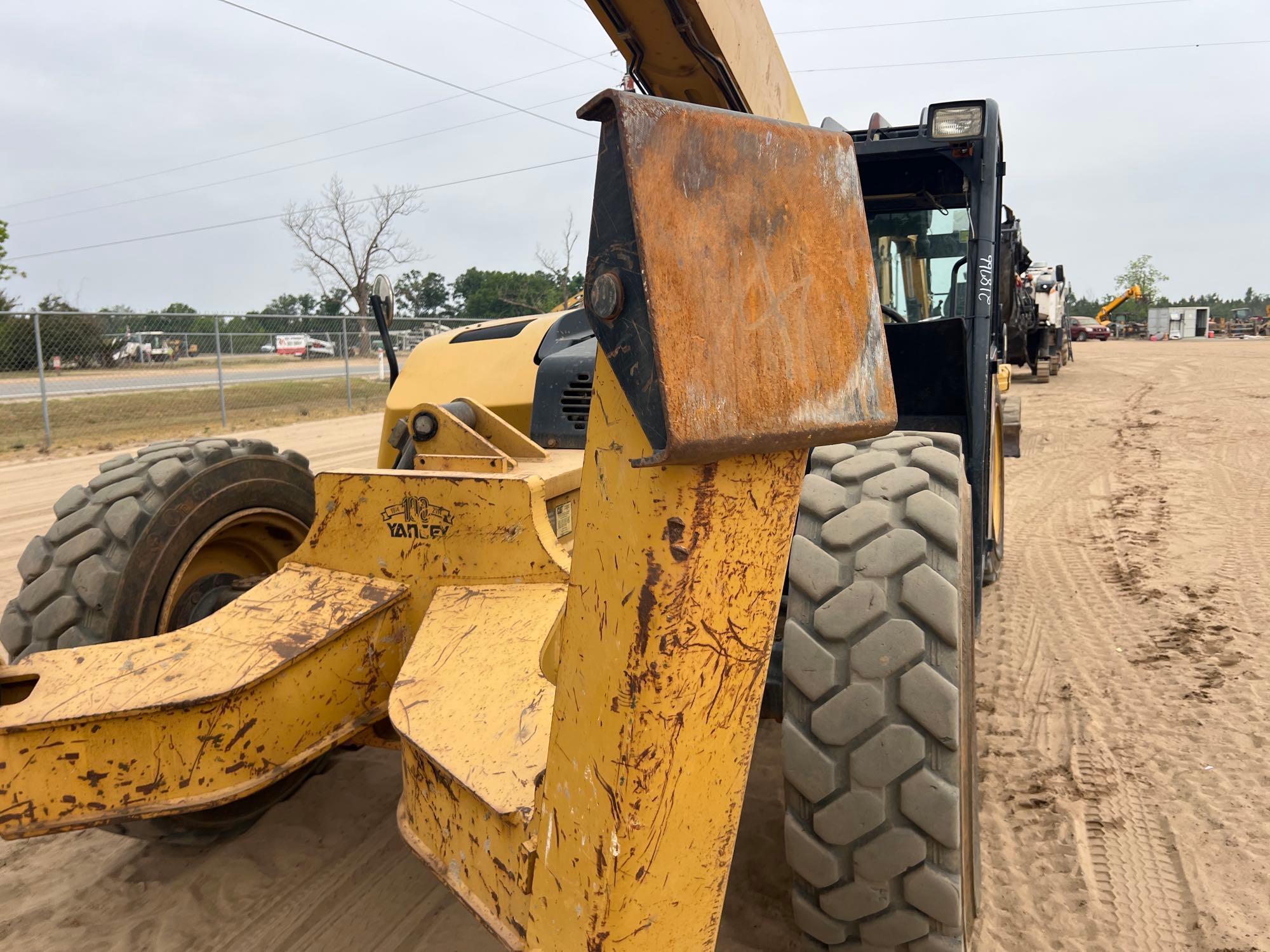

(HRS SHOW 3742) OROPS, AUX HYD, 4X4X4, TELESCOPIC BOOM W/ 48" FORKS, OUTRIGGERS, 9000# CAP, S/N- THH01287

From the manufacturer:

Supplied by HeavyEquipmentData.com →

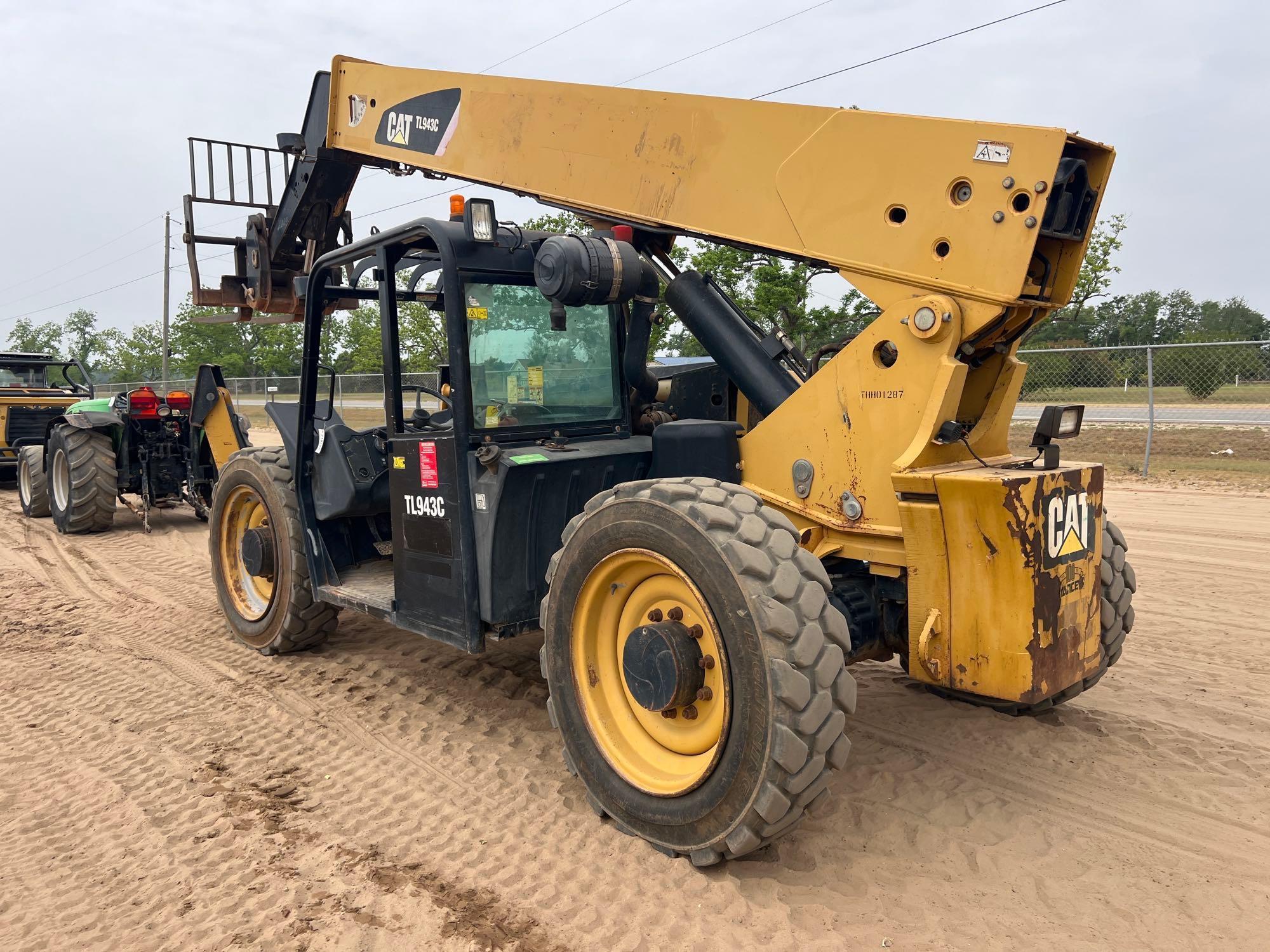

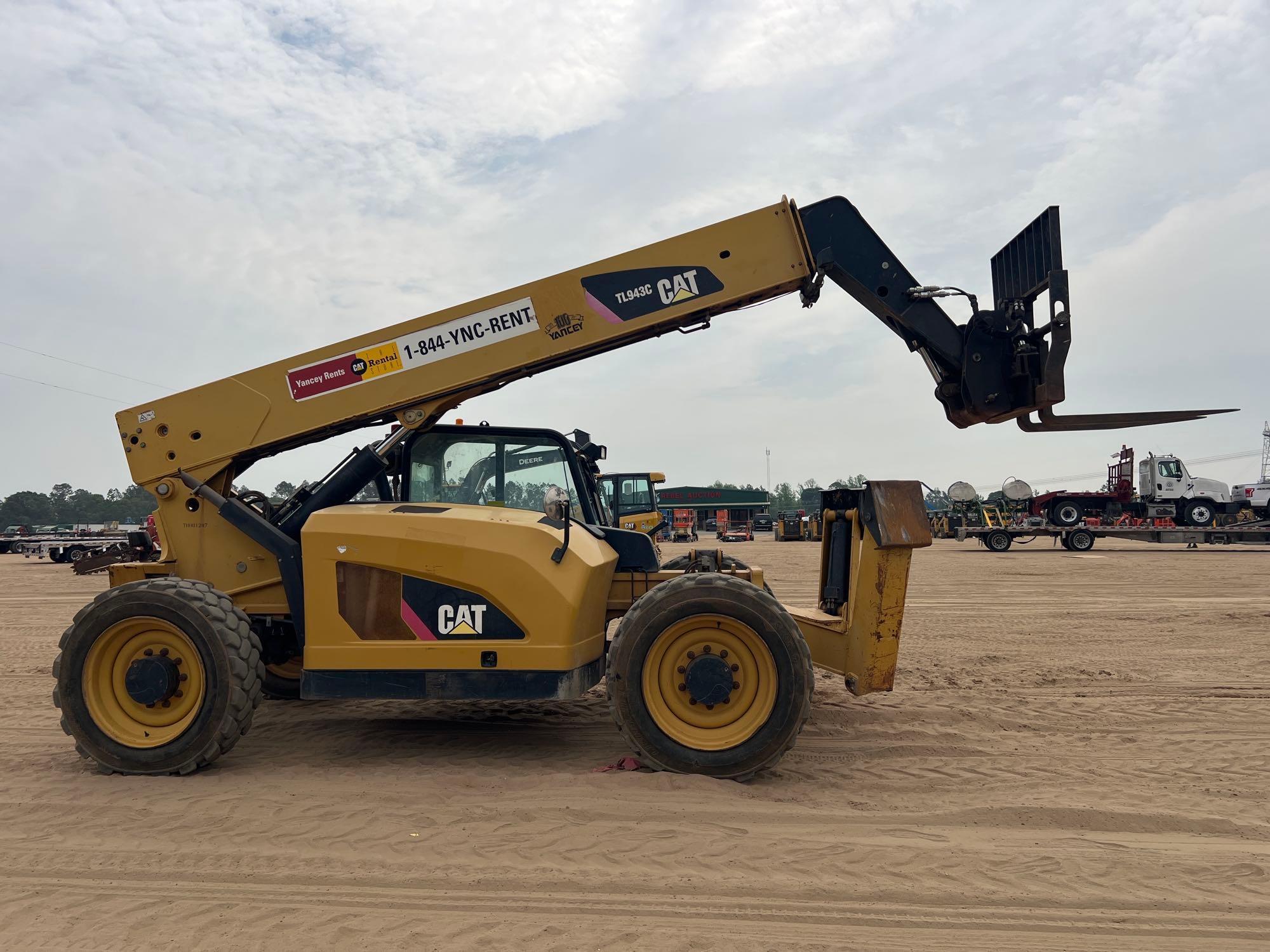

The Caterpillar TL943C is a versatile telehandler designed for heavy lifting and material handling in construction, agriculture, and industrial applications. Featuring a robust engine and advanced hydraulic system, the TL943C delivers reliable performance and precise load control. Its telescopic boom extends reach and height capabilities, enhancing operational efficiency on job sites. The telehandler offers a spacious operator cabin with ergonomic controls for improved comfort and safety. Equipped with all-terrain tires and four-wheel drive, the Caterpillar TL943C ensures stability and maneuverability across various terrains. This model supports multiple attachments, making it adaptable for diverse lifting, loading, and placement tasks.

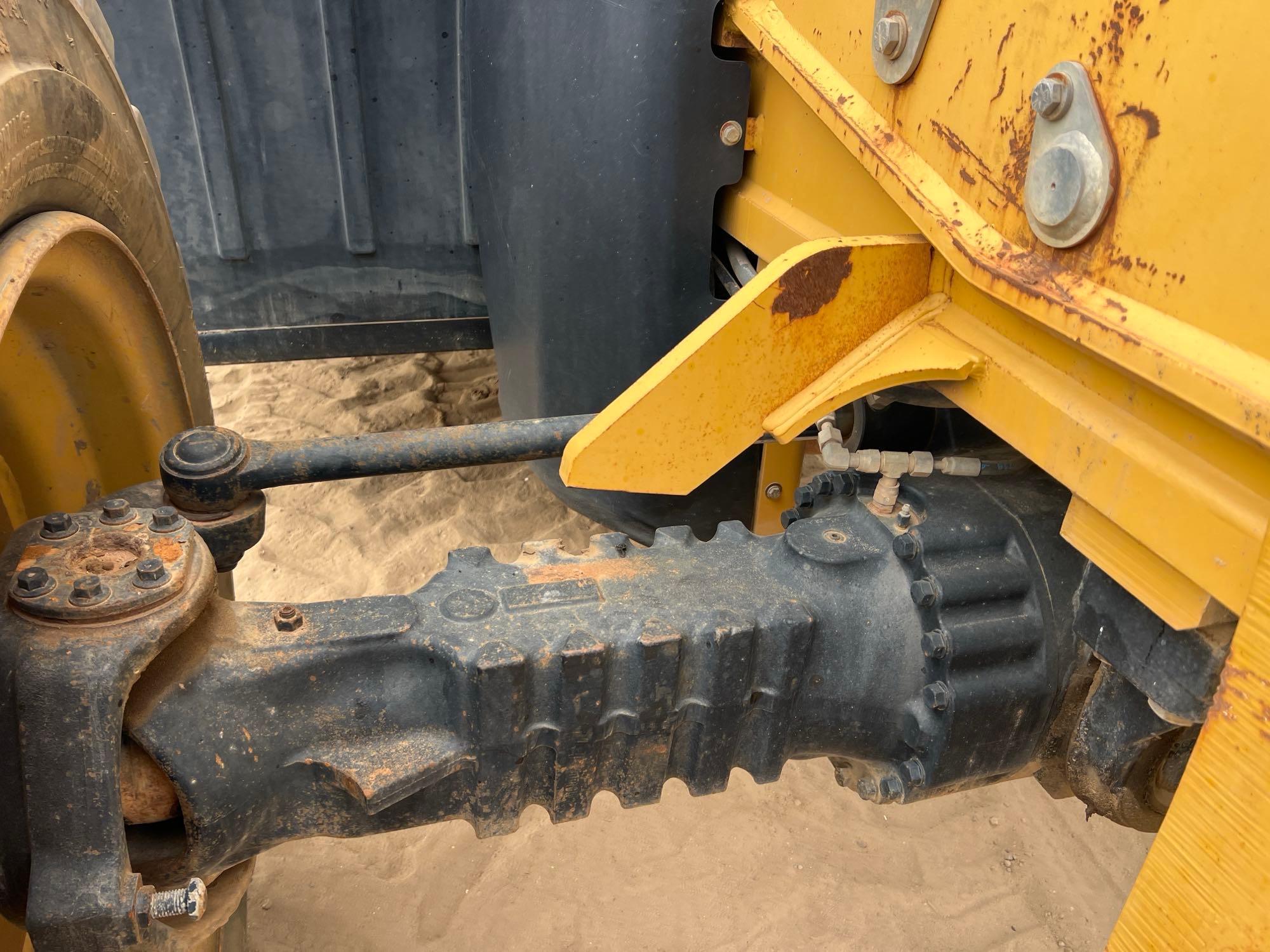

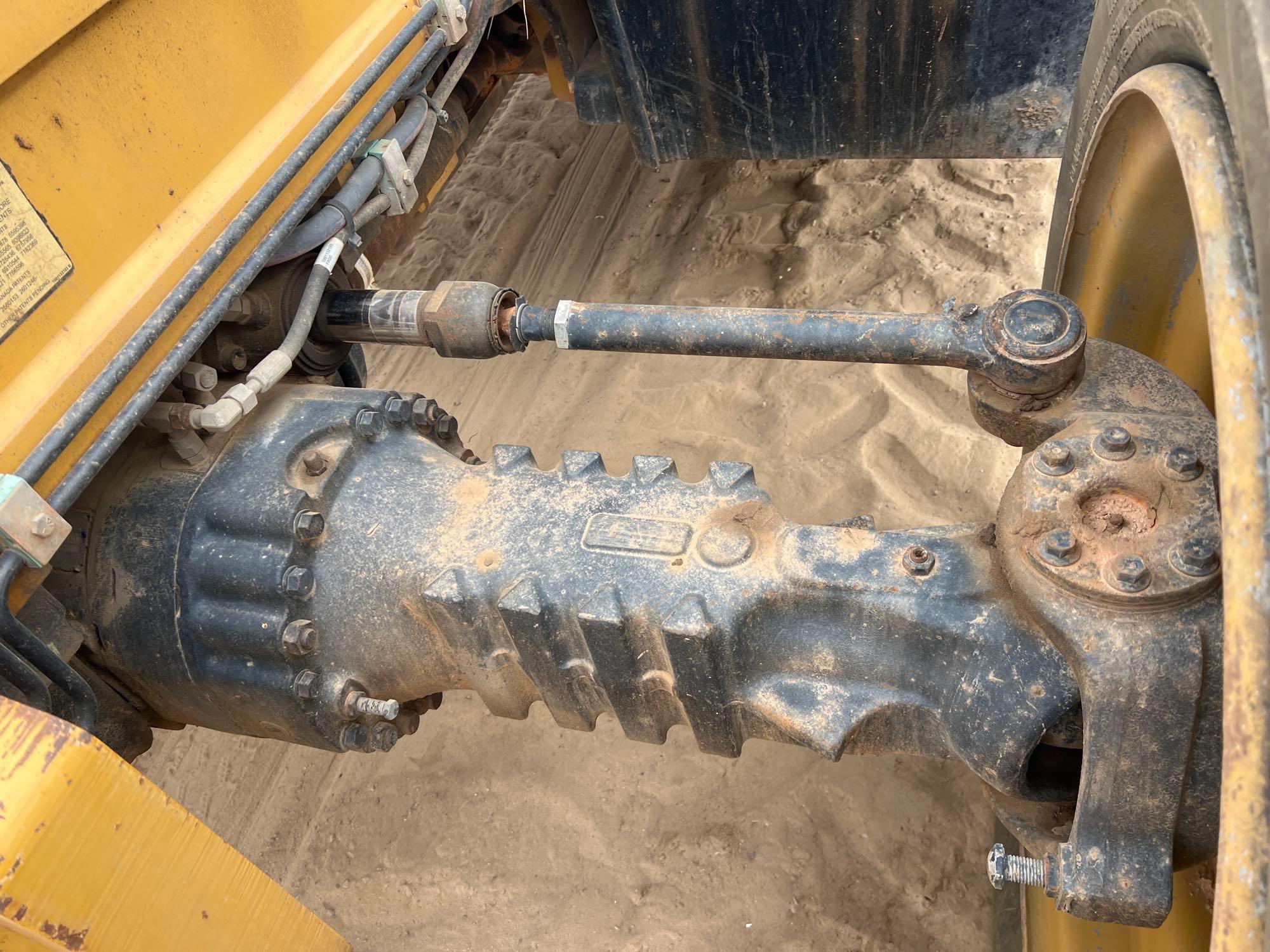

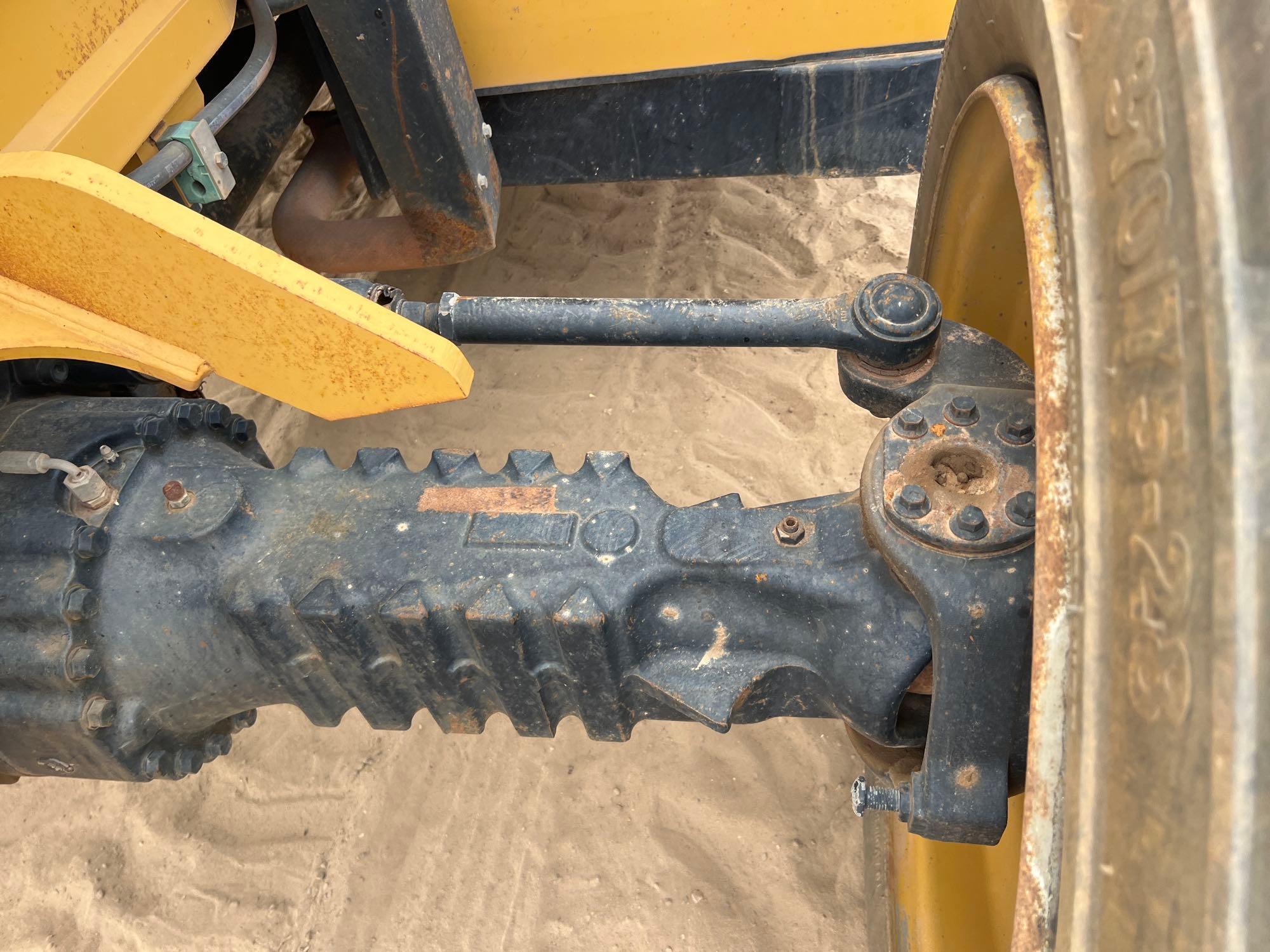

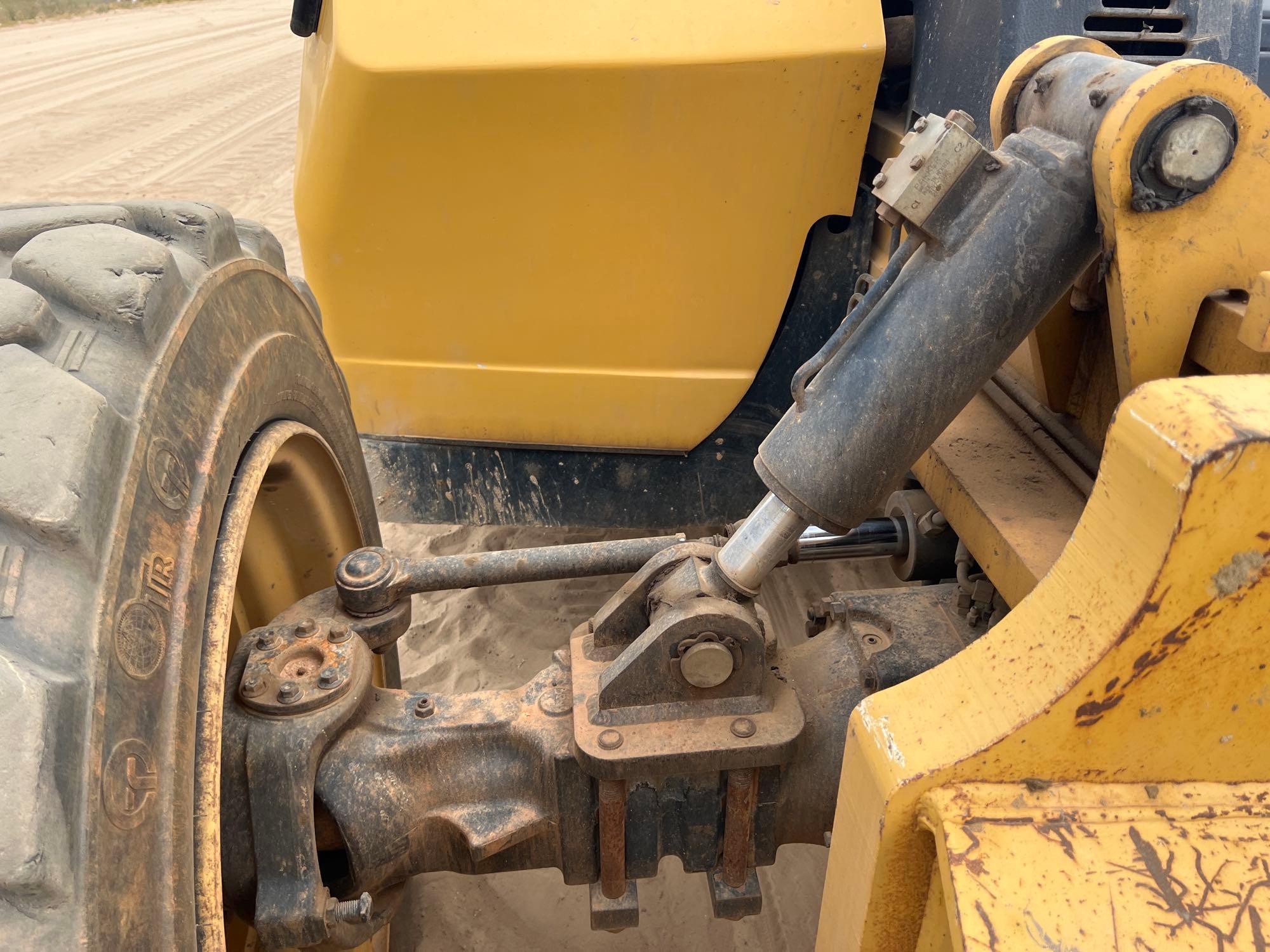

Axles
Manufacturer	Dana
Boom Performance
Boom Down	10 seconds
Boom Up	14 seconds
Drawbar Pull - Basic	22,619 lbs (10,260 kg)
Tele In	17 seconds
Tele Out	15 seconds
Brakes
Features	Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle
Parking Brake	Spring-applied hydraulic release on front axle
Dimensions
Ground Clearance	19 in (49 cm)
Height	8 ft (2 m)
Length - Fork Face	21 ft (6 m)
Length to Fork Face	21 ft (6 m)
Overall Height	8 ft (2 m)
Turning Radius - Over Tires	12 ft (4 m)
Turning Radius Outside Tires	12 ft (4 m)
Wheel Base	11 ft (3 m)
Wheelbase	11 ft (3 m)
Width Over Tires	8 ft (2 m)

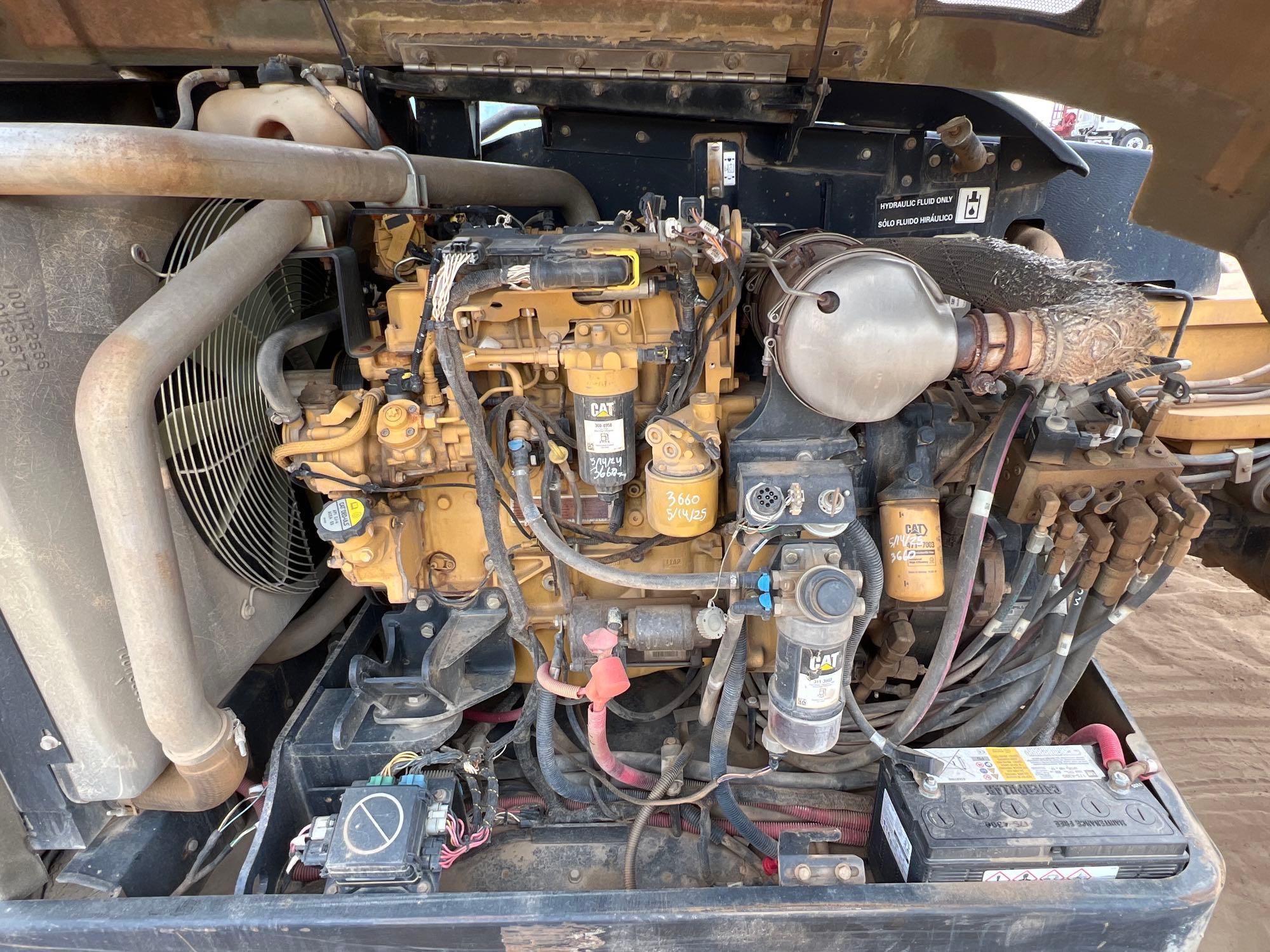

Engine
Bore	4 in (10 cm)
Displacement	208 cu in (3,400 cu cm)
Engine Make	CATERPILLAR
Engine Model	Cat C3.4B Tier 4 Interim
Gross Power	111 hp (83 kw)
Gross Power - Basic	111 hp (83 kw)
Max Torque	332 lbs ft (450 nm)
Maximum Torque - Standard	302 lbs ft (410 nm)
Stroke	4 in (11 cm)
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	10 gpm (38 lpm)
Pump Type	Tandem gear pump
Relief Valve Pressure	4,000 psi
Instrumentation

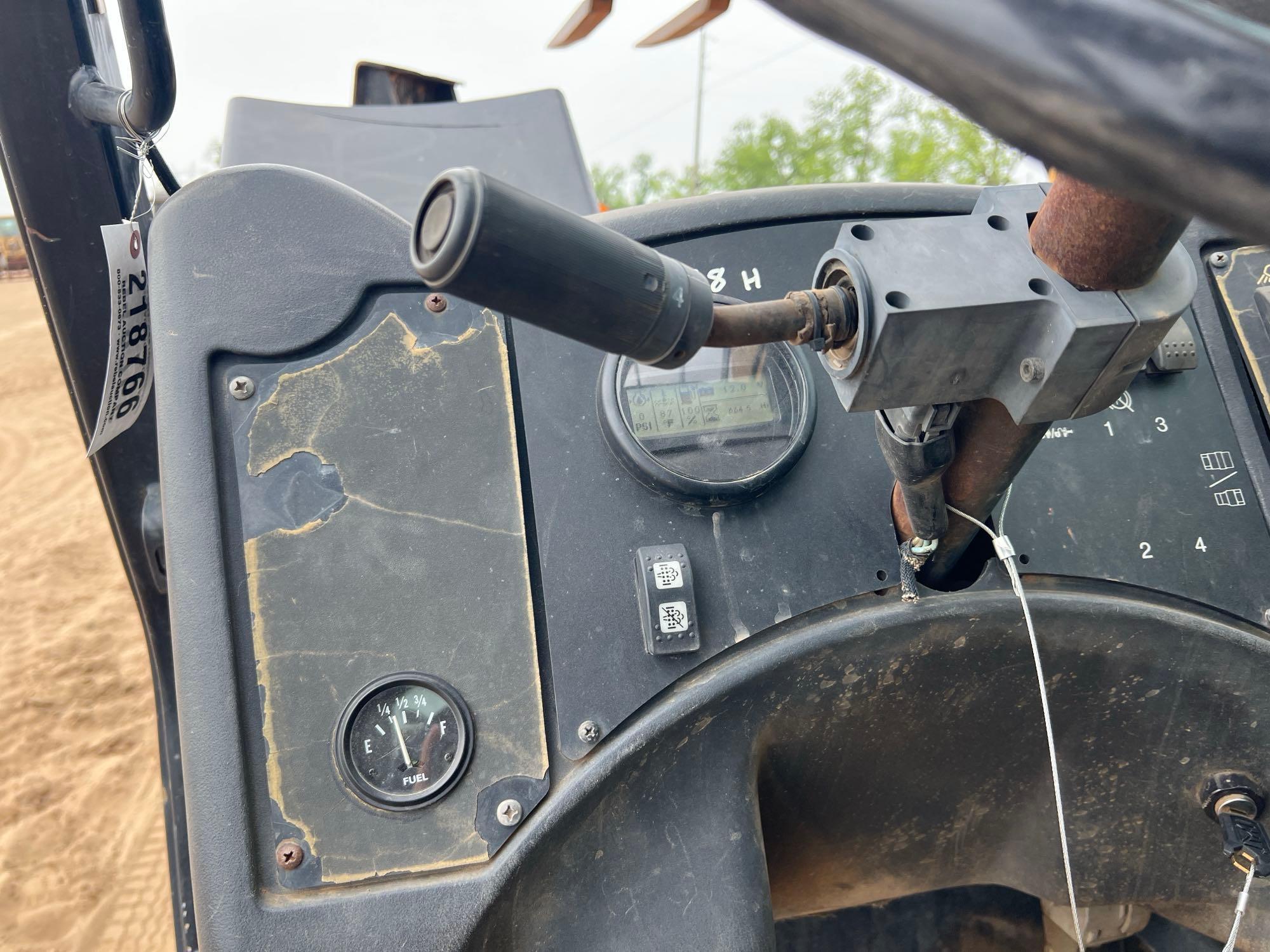

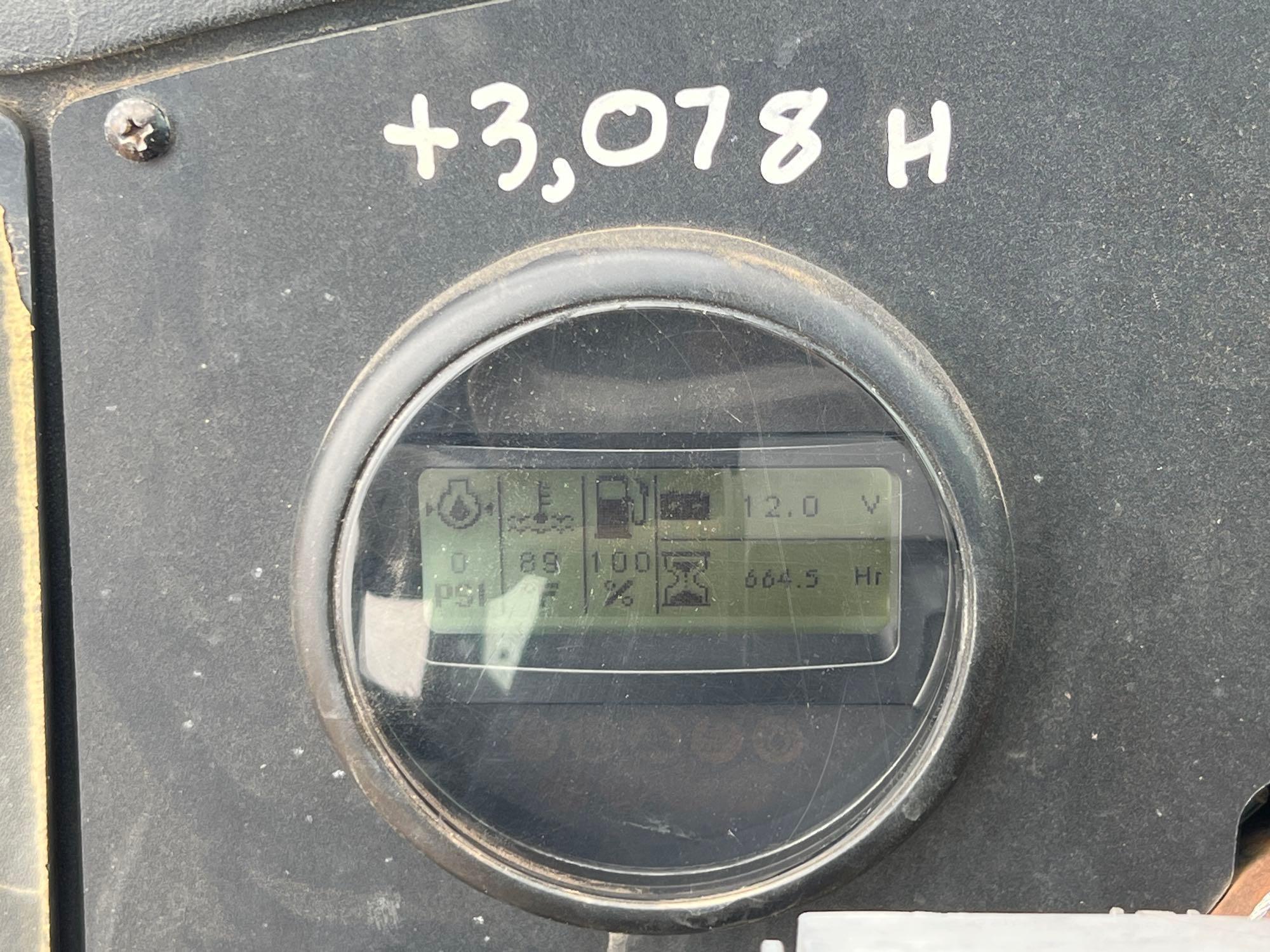

Features	Volt meter hourmeter engine oil pressure gauge fuel gauge water temperature gauge
Lift System
Max Forward Reach	32 ft (10 m)
Max Lift Capacity	8,999 lbs (4,082 kg)
Max Lift Height	43 ft (13 m)
Max Load at Max Height	7,000 lbs (3,175 kg)
Max Load at Max Reach	1,199 lbs (544 kg)
Operating Specifications
Drawbar Pull	26,000 lbs (11,793 kg)
Fuel Capacity	38 gal (144 l)
Hydraulic System Fluid Capacity	42 gal (157 l)
Load at Maximum Height	7,000 lbs (3,175 kg)
Load at Maximum Height - No Stabilizers	7,000 lbs (3,175 kg)
Load at Maximum Reach	1,200 lbs (544 kg)
Load at Maximum Reach - No Stabilizers	1,200 lbs (544 kg)
Maximum Forward Reach	32 ft (10 m)
Maximum Lift Height	43 ft (13 m)
Operating Weight	26,526 lbs (12,032 kg)
Rated Load Capacity	9,000 lbs (4,082 kg)
Tire Size	370/75-28 Duraforce MT
Top Travel Speed	20 mph (33 kph)

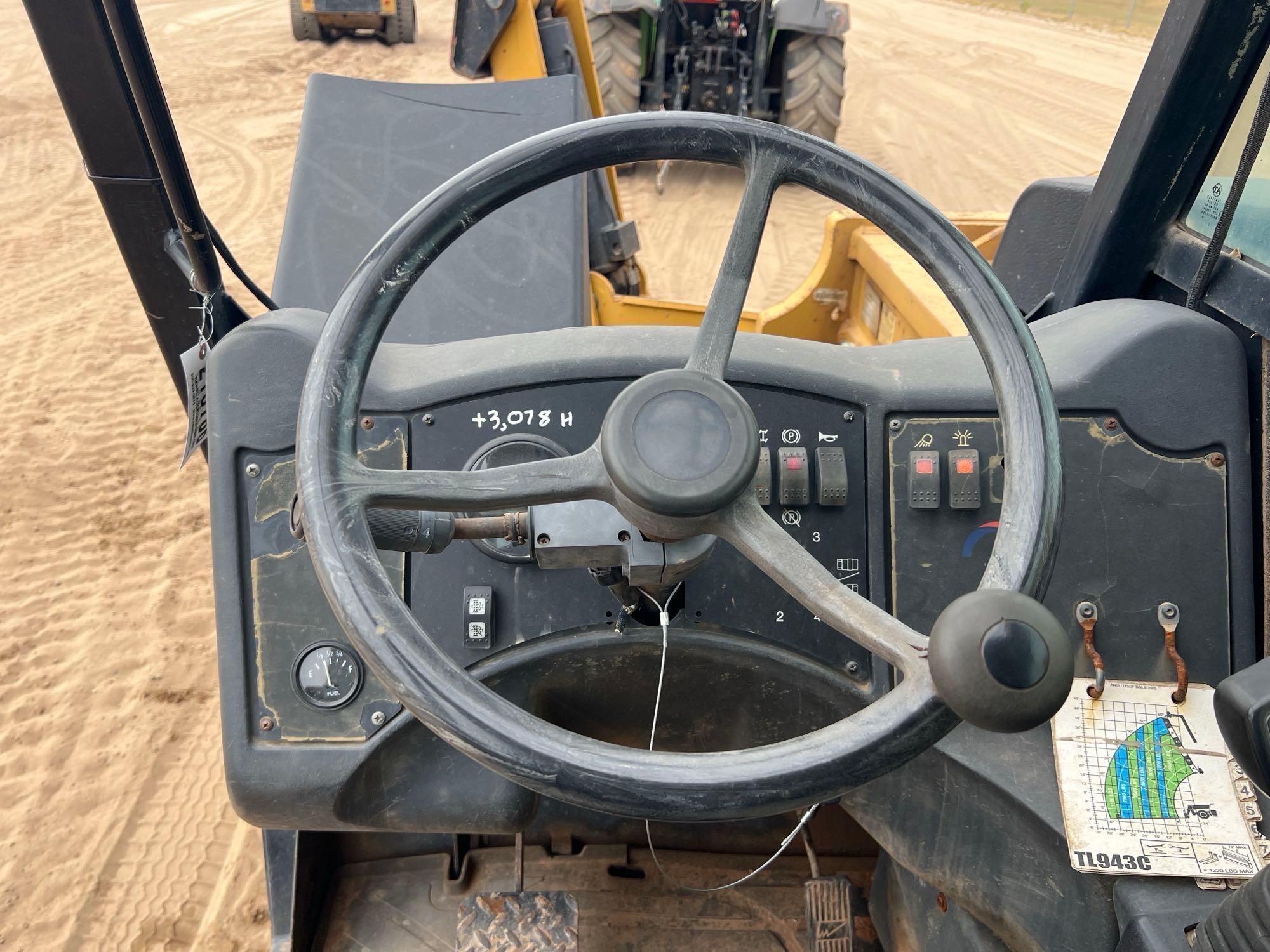

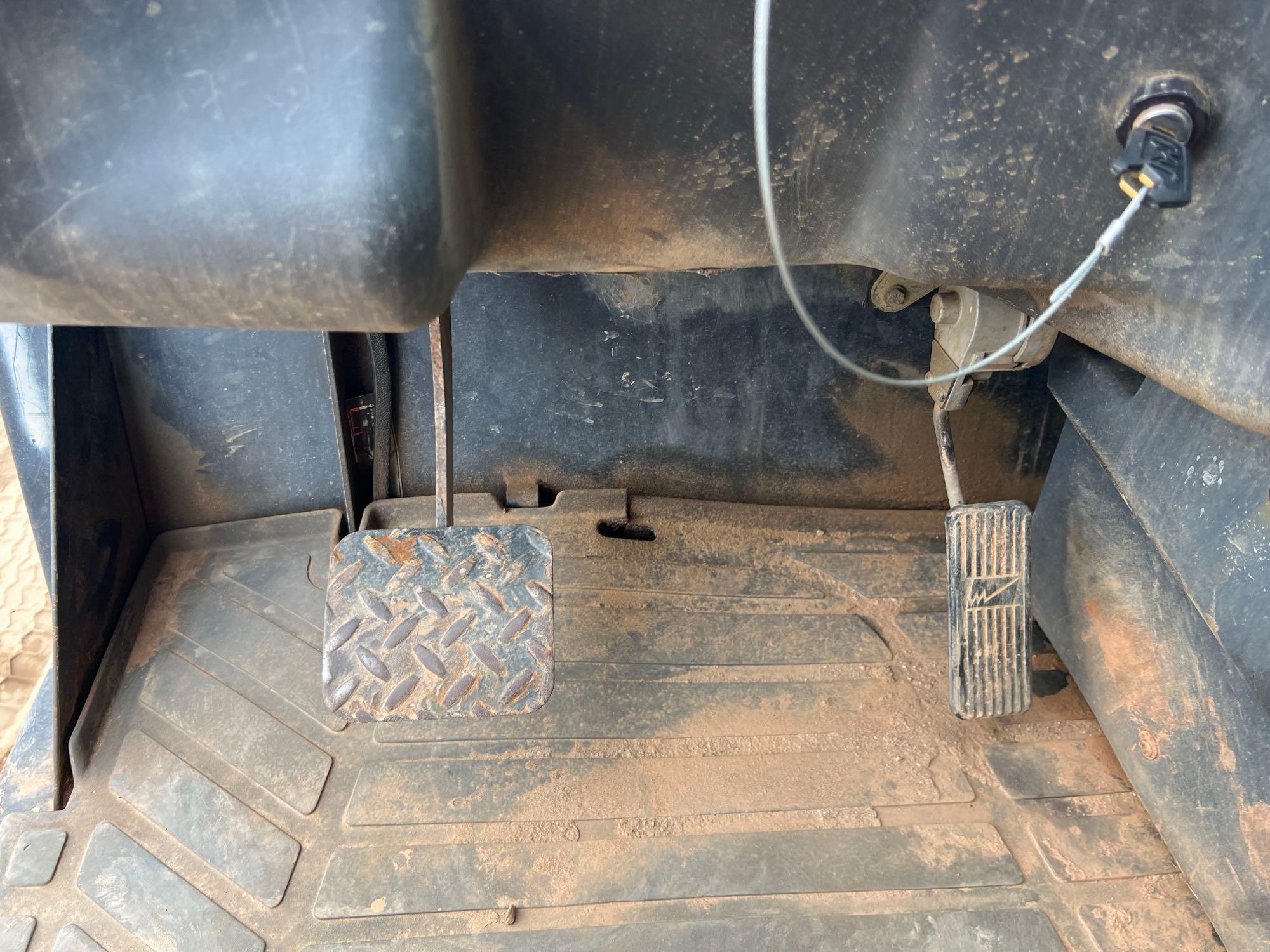

Operator Station

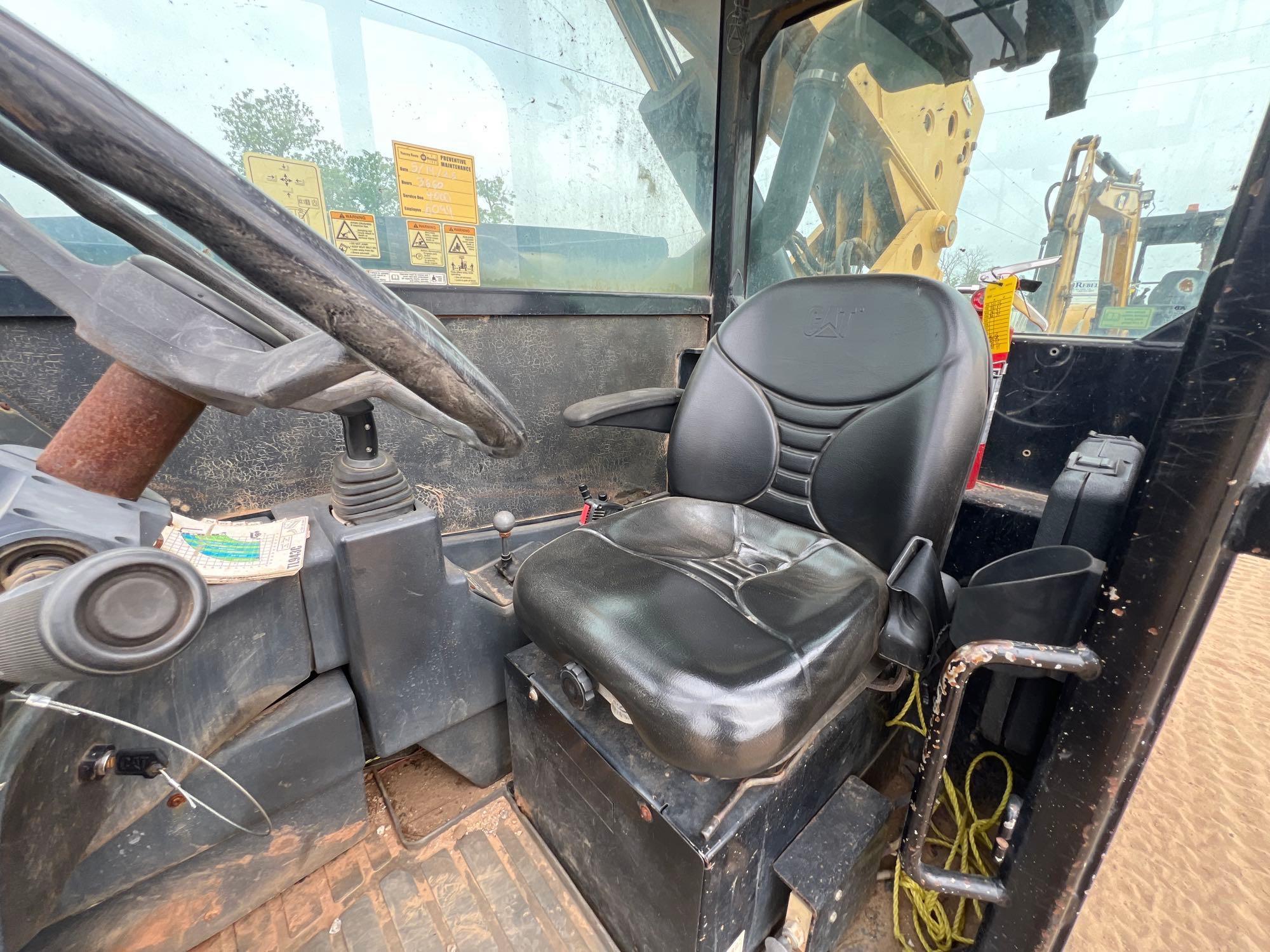

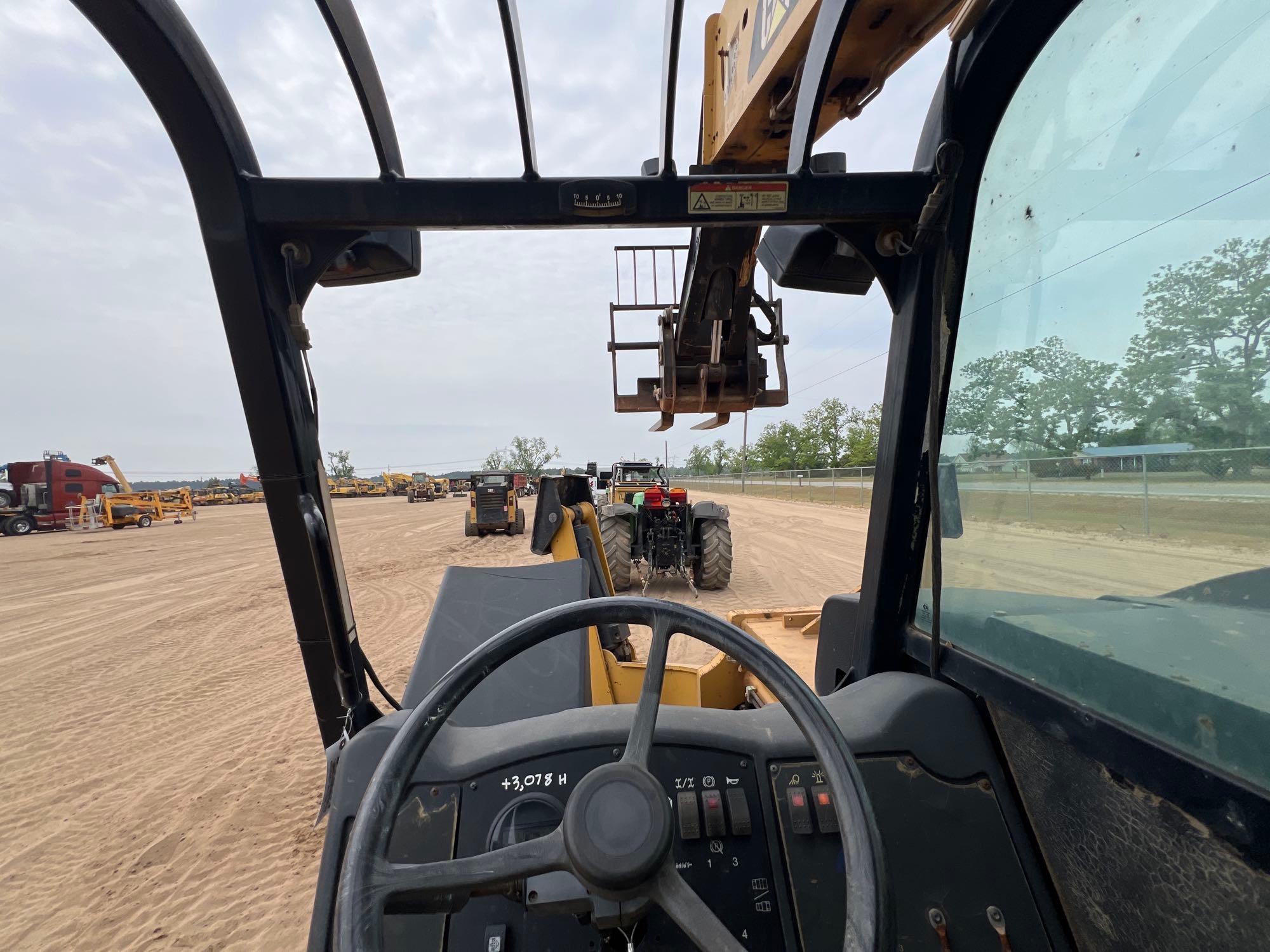

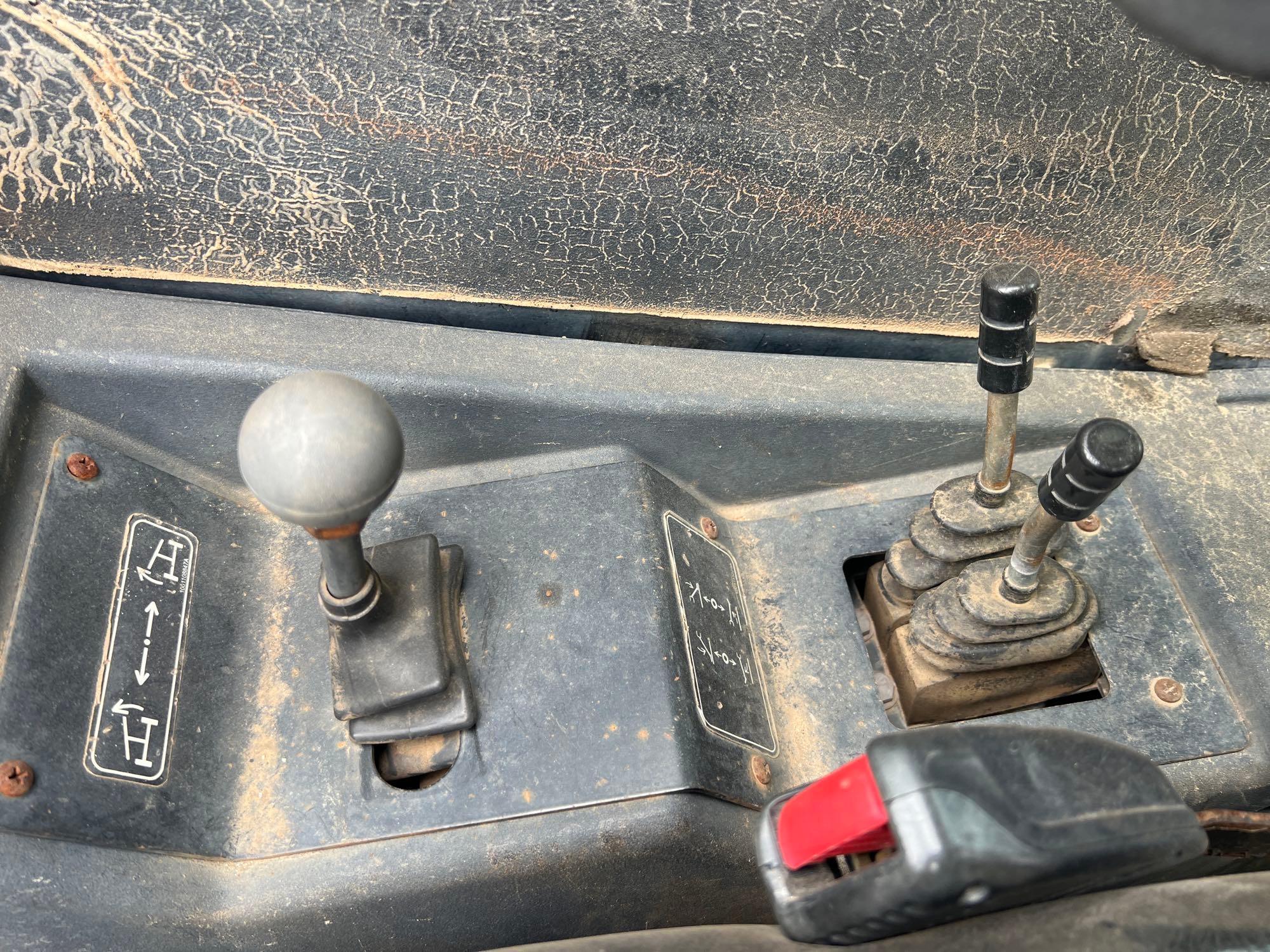

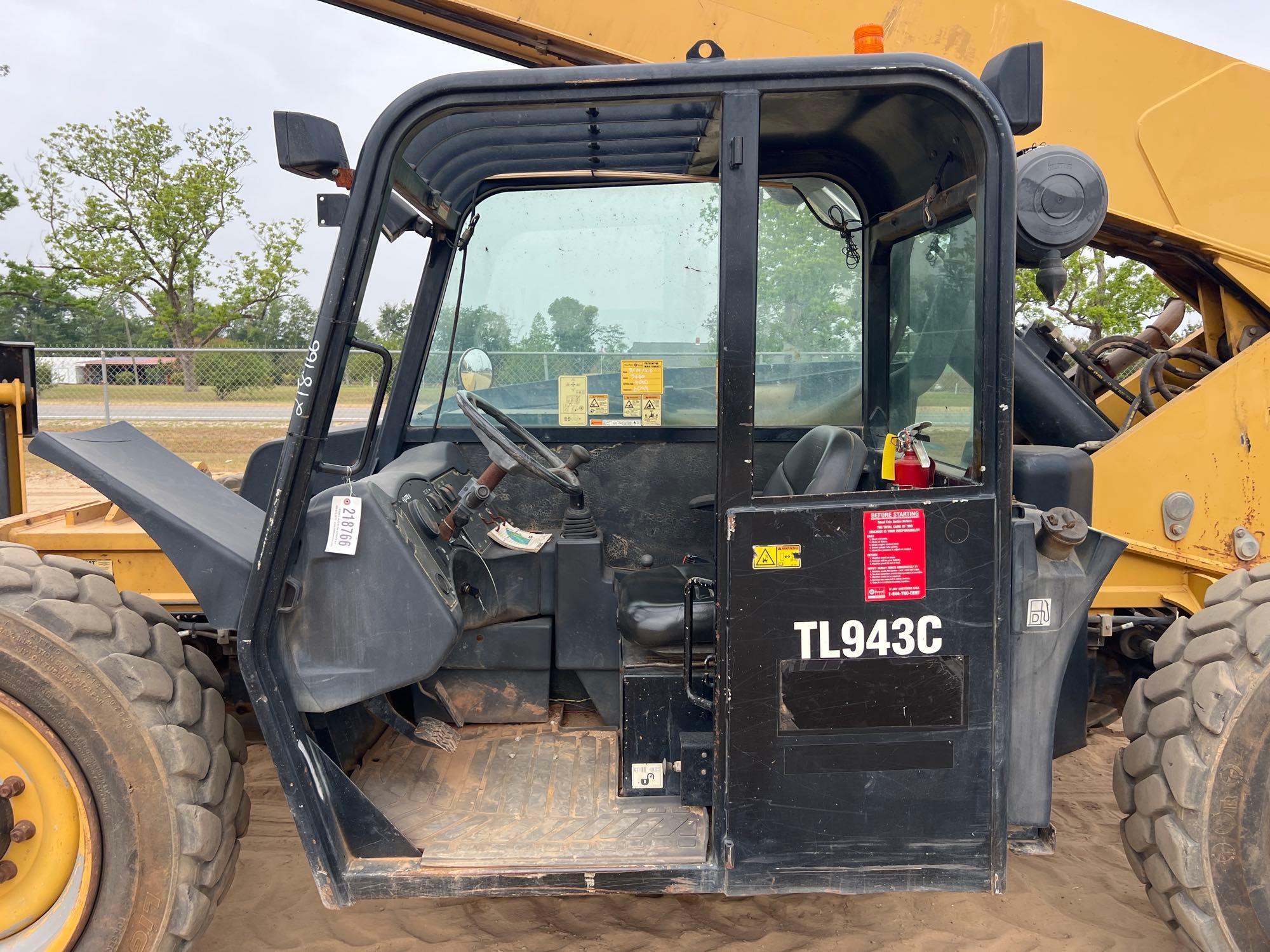

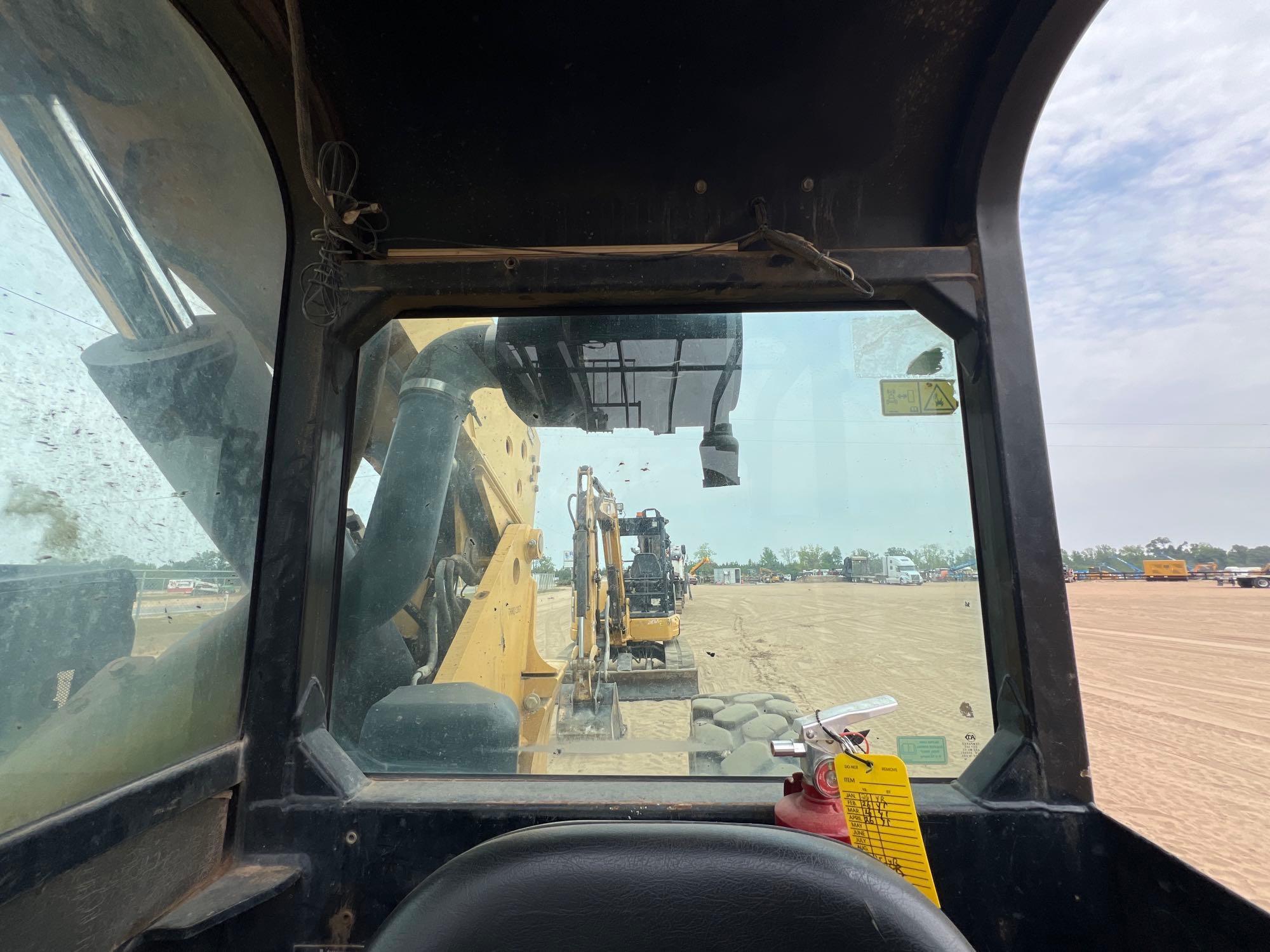

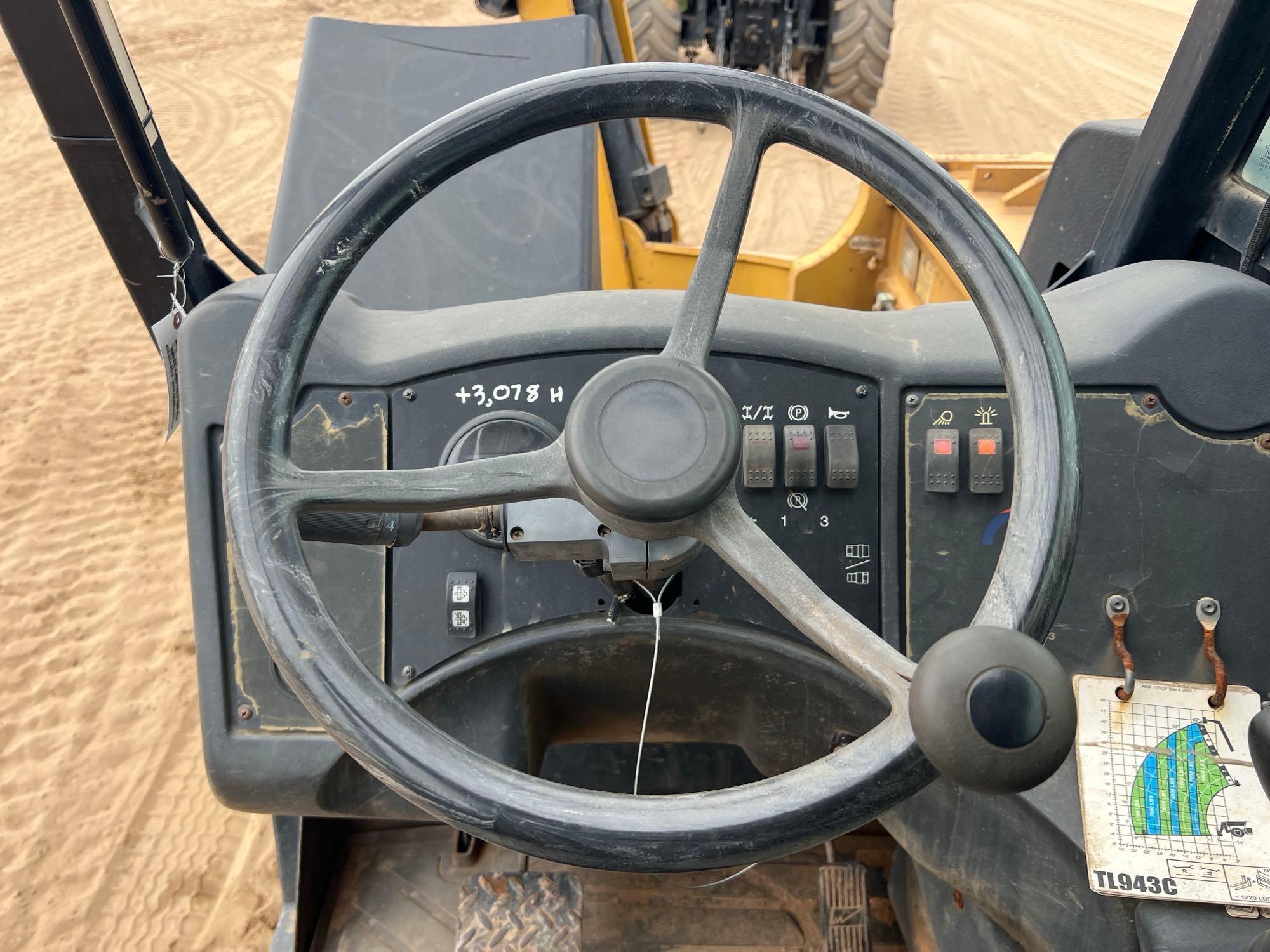

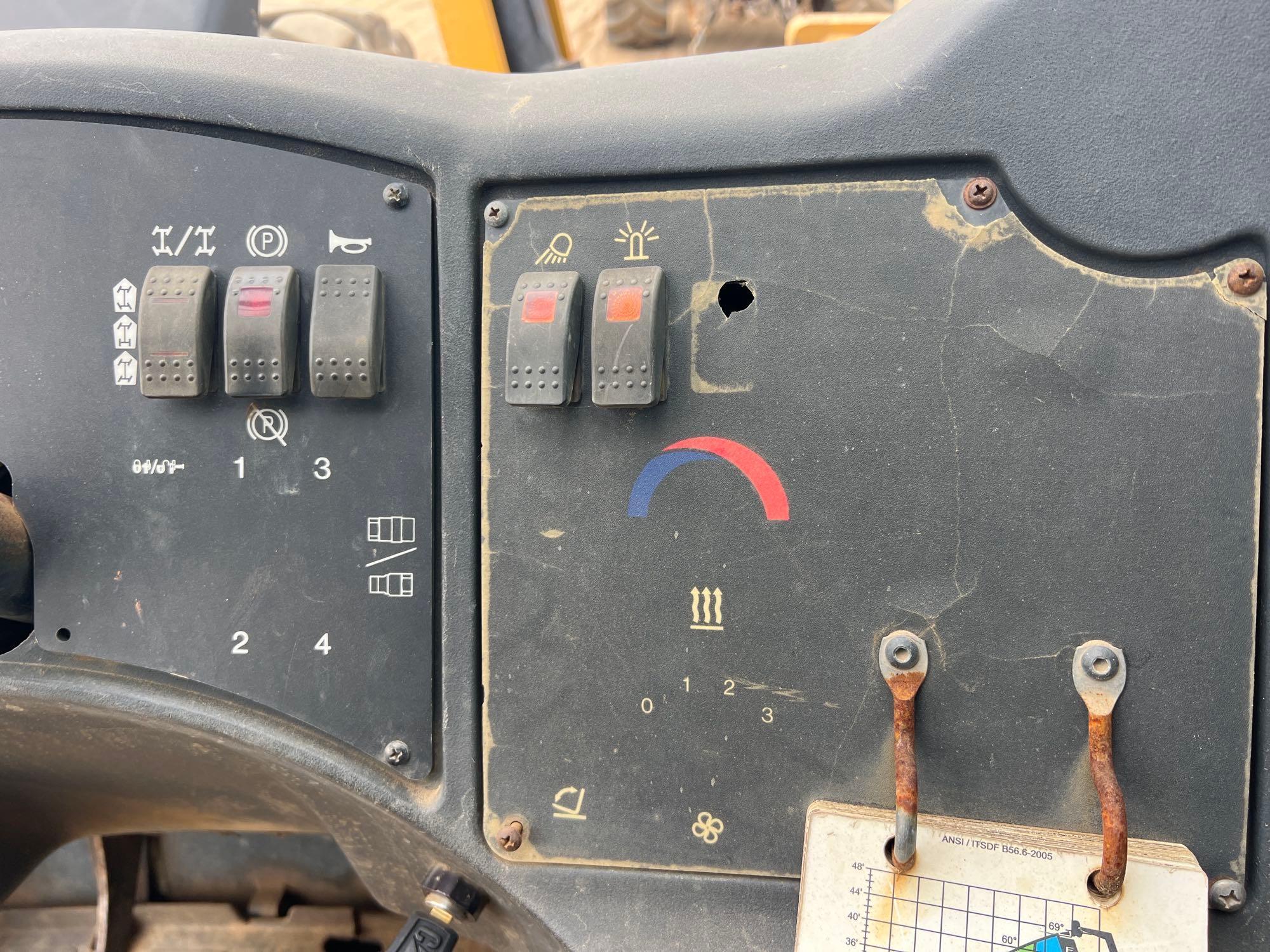

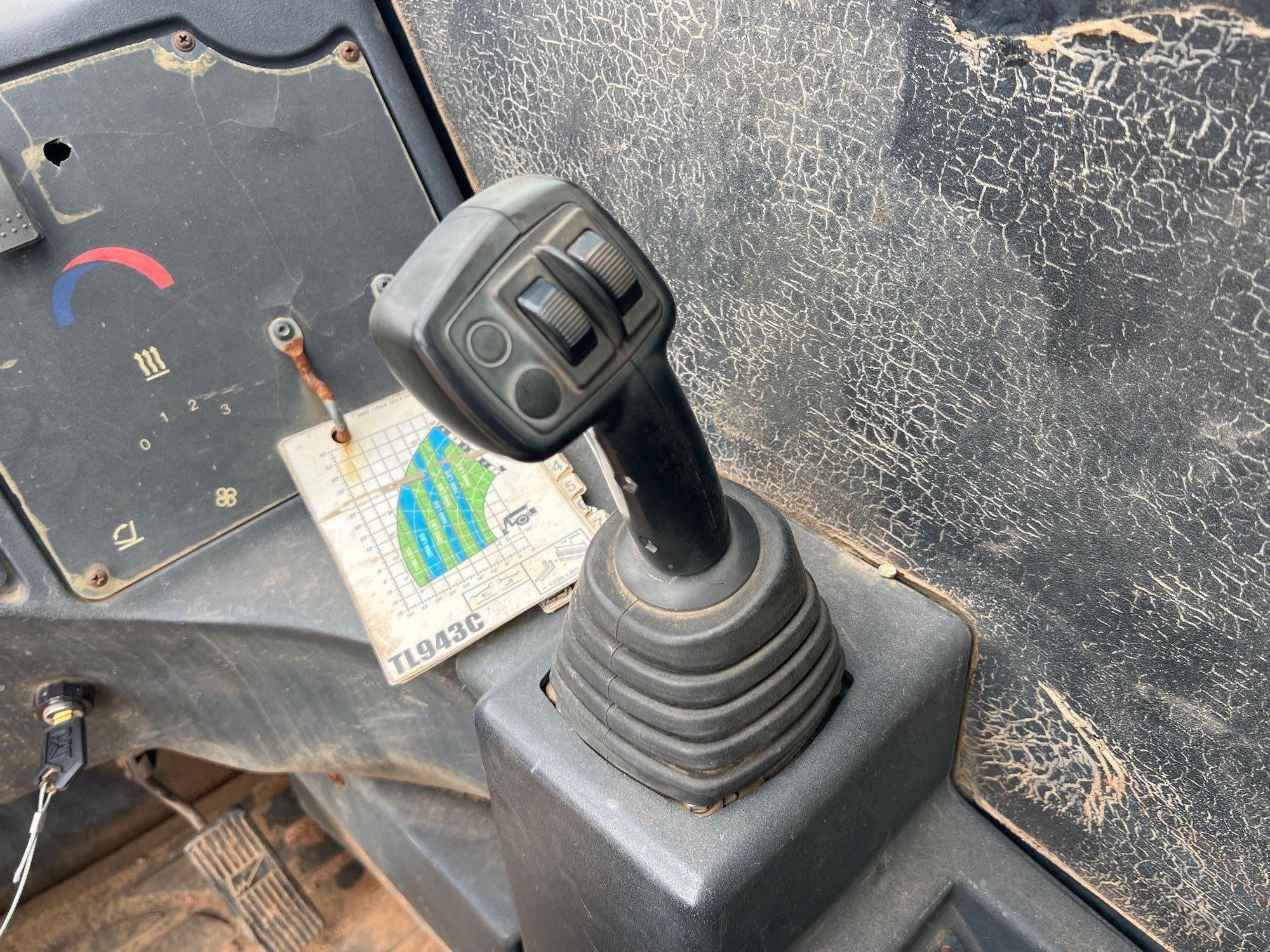

Features	Vinyl suspension seat single electronic joystick spacious interior ergonomic cab
Service Refill Capacities
Fuel Tank	38 gal (144 l)
Hydraulic Tank	42 gal (157 l)

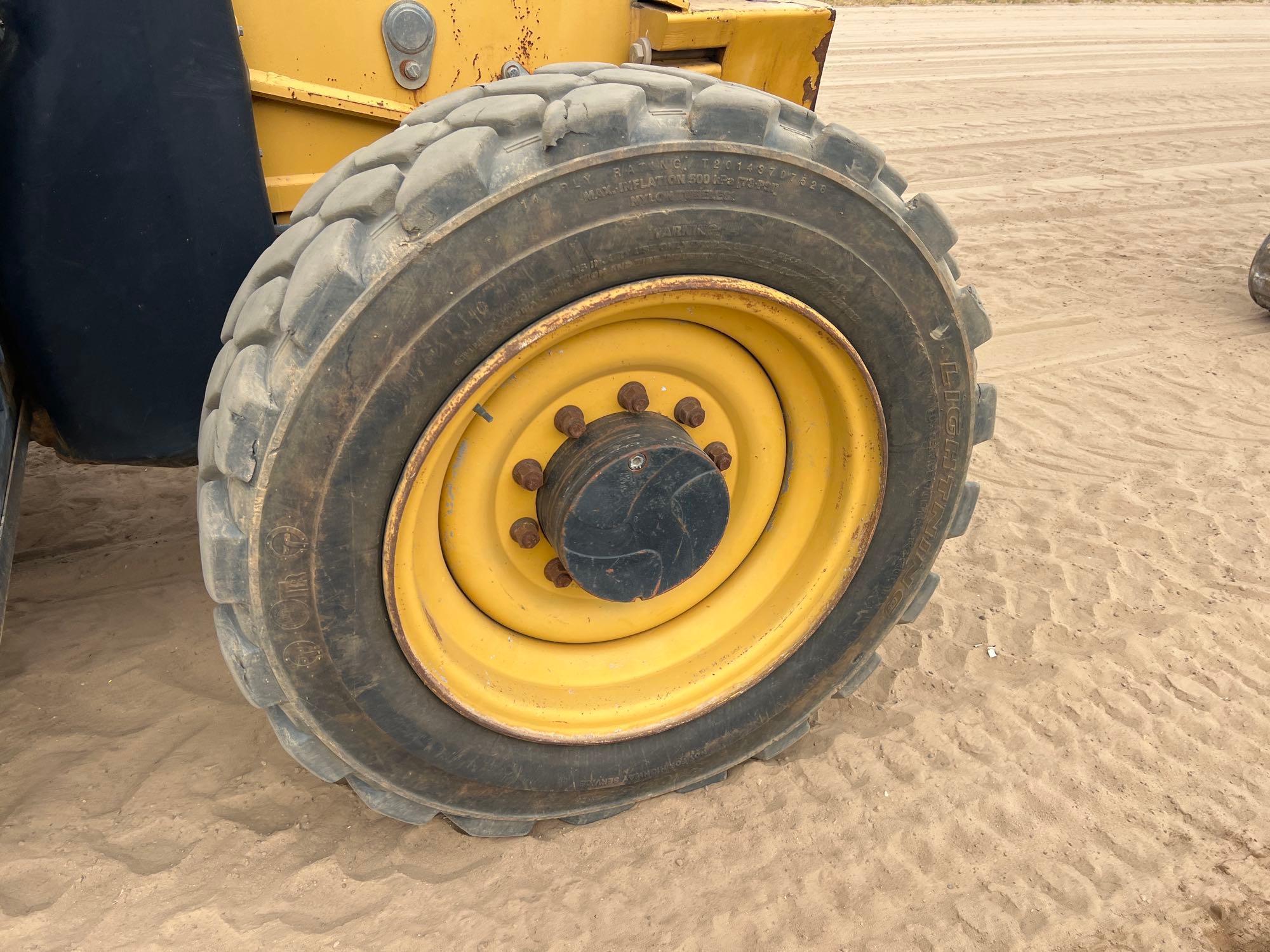

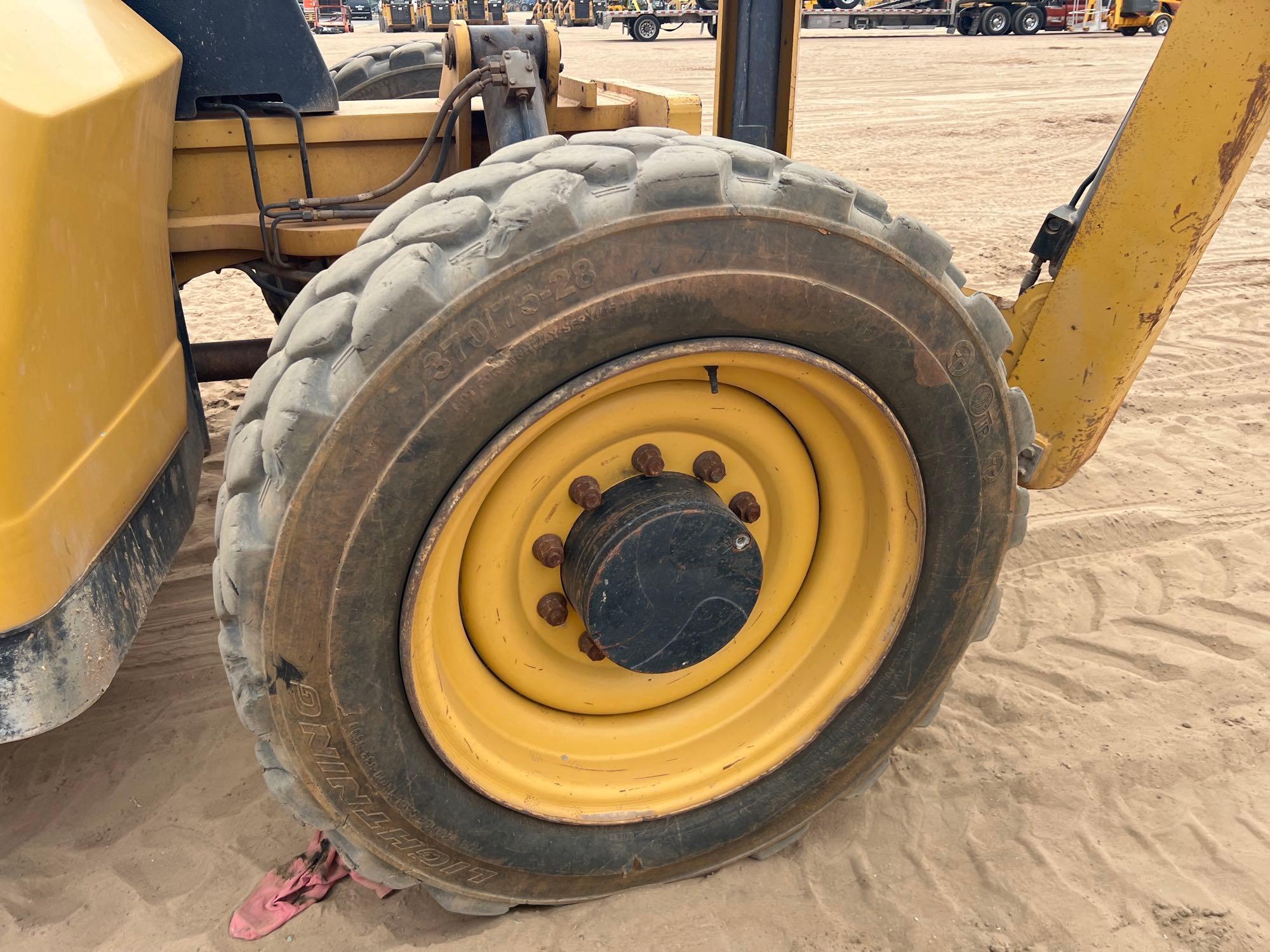

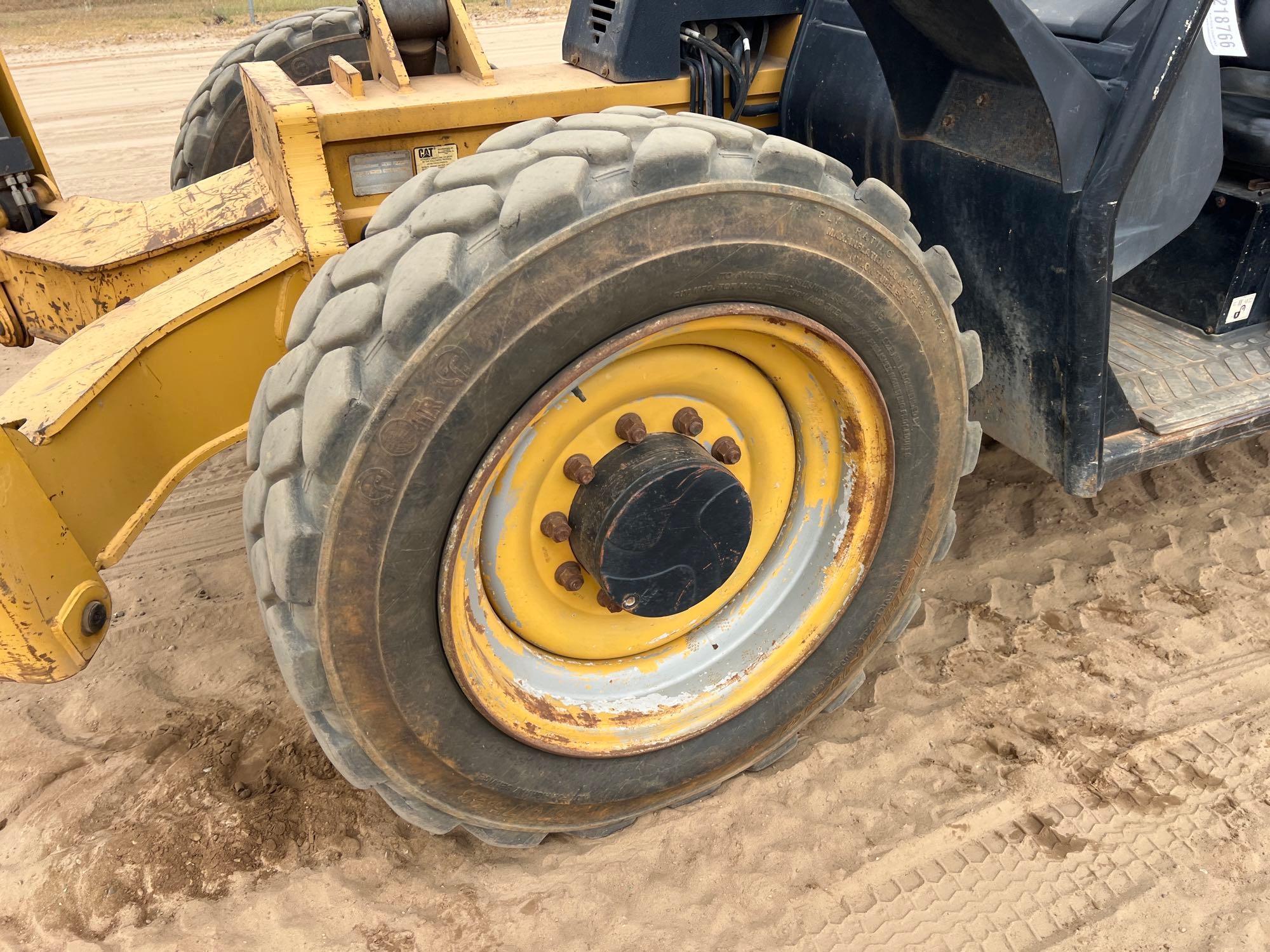

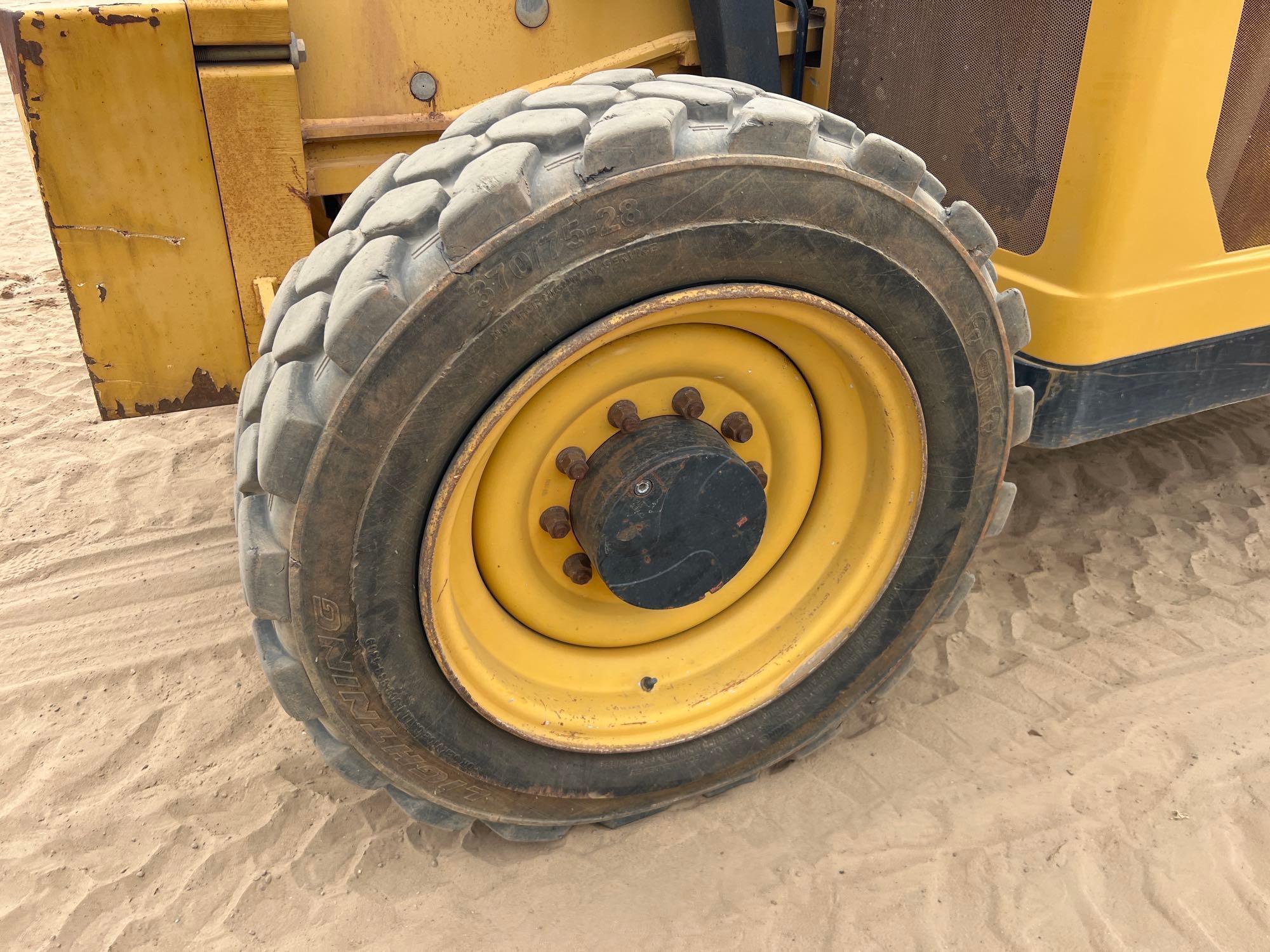

Tires
Optional Construction	13.00 x 24 Foam Filled or Rock Lug or Solid
Standard	13.00 x 24 12-PR
Transmission
Max Speed - forward	20 mph (33 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Weights
Operating Weight	26,525 lbs (12,032 kg)
