2012 Caterpillar 906H For Sale in Edmonton, Ab

Name: 2012 Caterpillar 906H
Brand: Caterpillar
SKU: 87455445
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

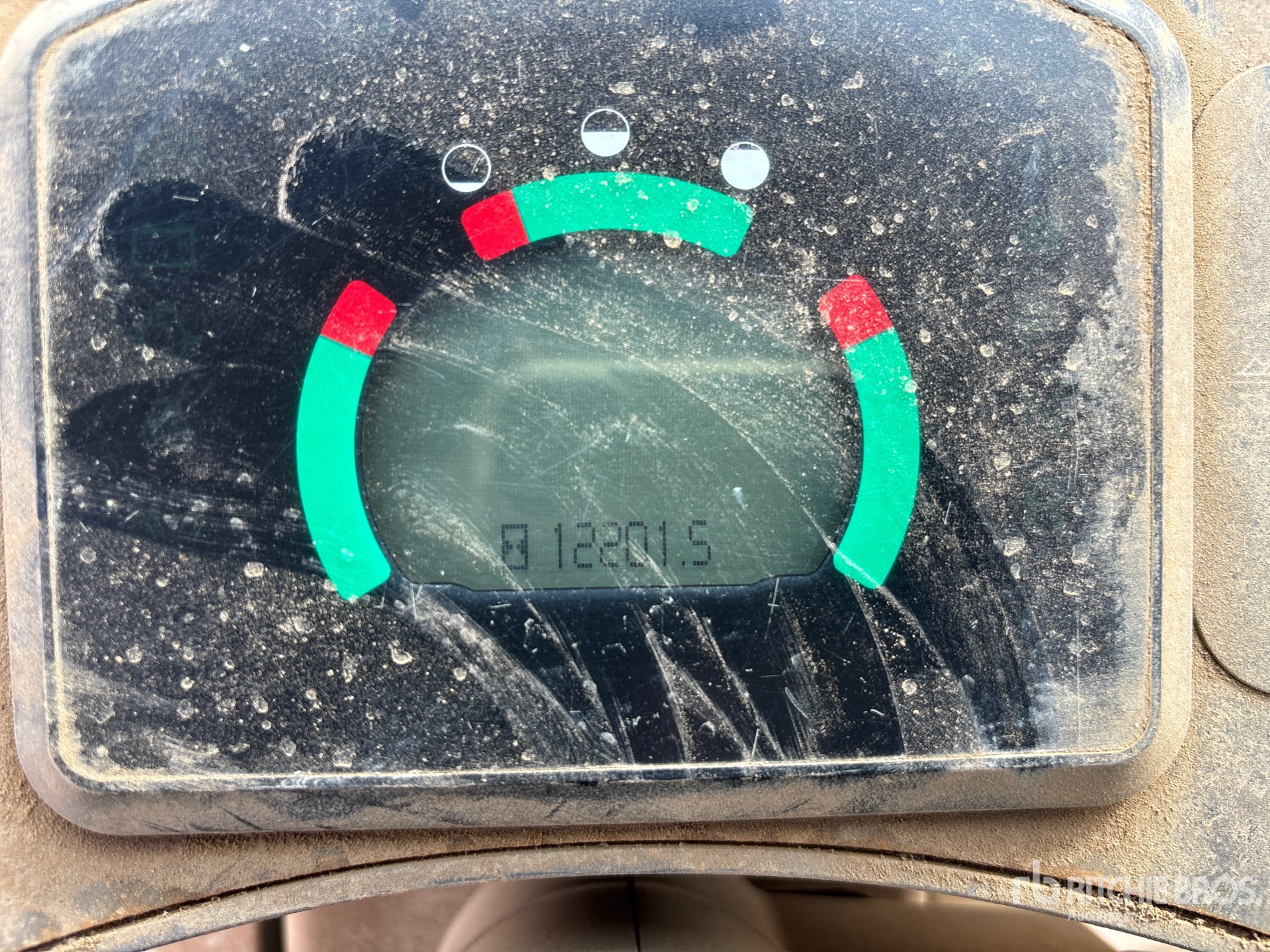

Hours:	12201

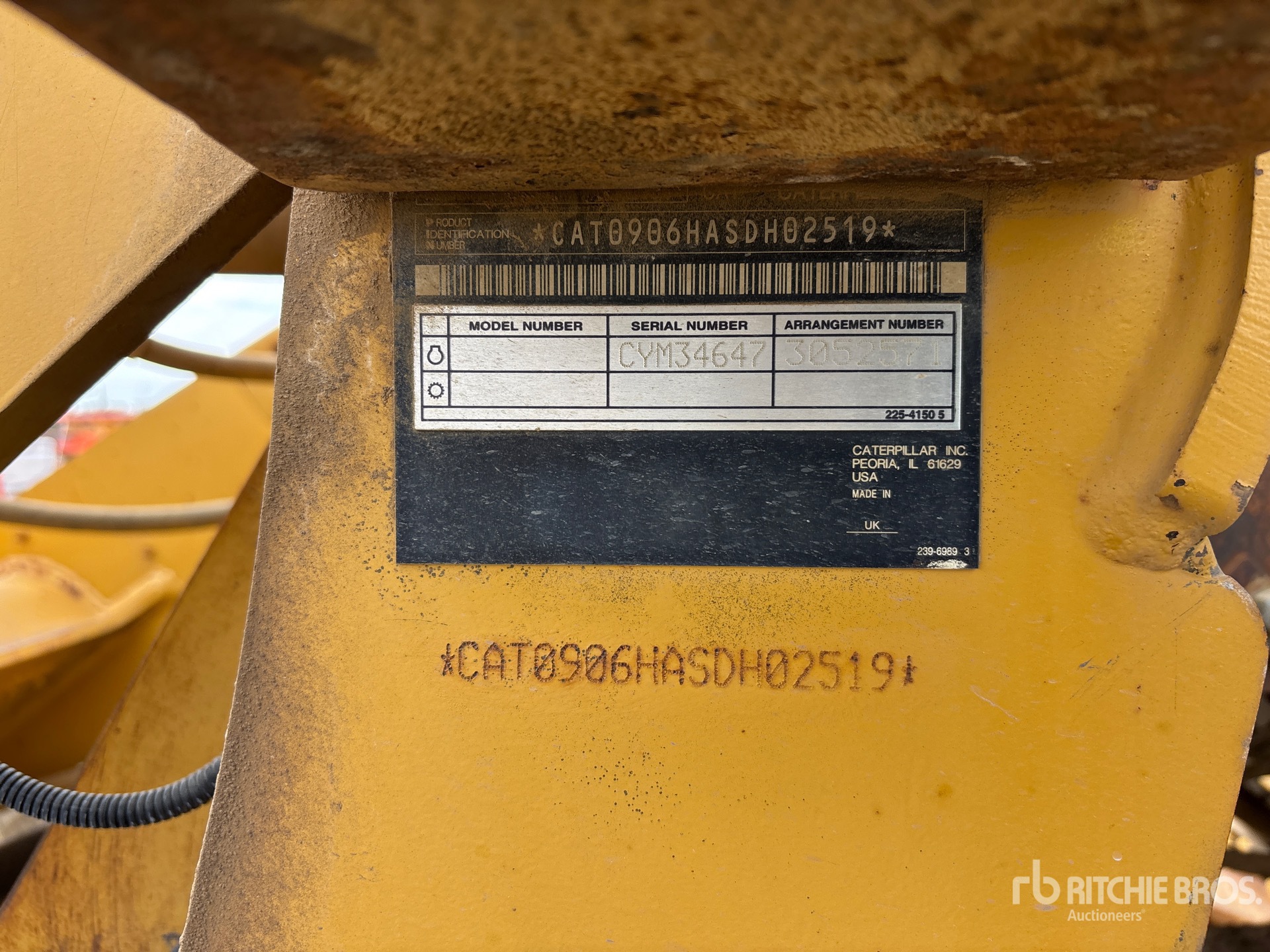

Serial Number:	CAT0906HASDH02519
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Ride Control, Autoshift, Auxiliary Hydraulics, Hydraulic Coupler, 340/80R18 Tires Closing Time: 2026-05-11 10:44:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 906H is a compact wheel loader designed for material handling, loading, and site support applications. It is part of Caterpillar's H-series compact loader lineup and is commonly used in construction, landscaping, agriculture, and municipal work. The 906H features articulated steering, a front-mounted loader arm, and a bucket attachment system for moving soil, aggregate, pallets, and other bulk materials. Its compact size supports maneuverability in confined areas while maintaining loader capability for general-purpose tasks. The model is recognized for its utility in light-duty loading operations and compatibility with a range of worksite attachments.

Bucket
Bucket Capacities	1 - 2 cu yd (1 - 1 cu m)
Bucket Capacity - heaped	1 cu yd (1 cu m)
Bucket Width	6 ft (2 m)
Dump Clearance at Max Raise	8 ft (2 m)
Cab
FOPS	SAE J/ISO 3449 APR98 Level II ISO 3449 1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471-1994
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (2 m)
Hinge Pin - Max Height	11 ft (3 m)
Length with Bucket on Ground	18 ft (6 m)
Reach at Max Lift and Dump	3 ft (1 m)
Wheel Base	7 ft (2 m)
Wheelbase	7 ft (2 m)
Width Over Tires	6 ft (2 m)
Engine
Bore	4 in (9 cm)
Displacement	203 cu in (3,327 cu cm)
EEC 80/1269 Rating	71 hp (53 kw)
Engine Model	C3.4
Gross Power	74 hp (55 kw)
ISO 9249 Rating	71 hp (53 kw)
Make	Cat
Net Power	70 hp (52 kw)
Power Measured @	2,500 rpm
SAE J1349 Rating	70 hp (52 kw)
Stroke	5 in (12 cm)
Hydraulic System
Dump Time	2 seconds
Lower Time	4 seconds
Main Relief	3,400 psi
Pump Flow Capacity	22 gpm (83 lpm)
Raise Time	5 seconds
Relief Valve Setting	3,400 psi
Operating Specifications
Alternator Supplied Amperage	90 amps
Breakout Force	9,442 lbs (4,283 kg)
Cooling System Fluid Capacity	6 gal (24 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	14 gal (52 l)
Full Turn Static Tipping Load - Bucket	6,967 lbs (3,160 kg)
Hydraulic System Fluid Capacity	22 gal (84 l)
Operating Voltage	12 volts
Operating Weight	12,412 lbs (5,630 kg)
Rack Back - Transport Position	52 degrees
Rated Bucket Capacity	1 cu yd (1 cu m)
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm (20 in) Load Center, Transport 100 mm (4 in) Above Ground)	5,997 lbs (2,720 kg)
Static Tipping Weight	8,786 lbs (3,985 kg)
Straight Tipping Load - Bucket	8,785 lbs (3,985 kg)
Tire Size	405/70 R18
Turning Radius	7 ft (2 m)
Service Refill Capacities
Cooling System	6 gal (24 l)
Engine Oil	3 gal (10 l)
Fuel Tank	14 gal (52 l)
Hydraulic System	22 gal (84 l)
Transmission
Max Speed - Forward	13 mph (20 kph)
Max Speed - Reverse	13 mph (20 kph)
Number of Forward Gears	2
Number of Reverse Gears	2
Transmission Type	Hydrostatic
Travel Speed 1	4 mph (7 kph)
Travel Speed 2	12 mph (20 kph)
Weights
Operating Weight	12,412 lbs (5,630 kg)
Operational Weight	12,412 lbs (5,630 kg)
