2003 Caterpillar 924G For Sale in Chicago, Il

Name: 2003 Caterpillar 924G
Brand: Caterpillar
SKU: 86788785
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

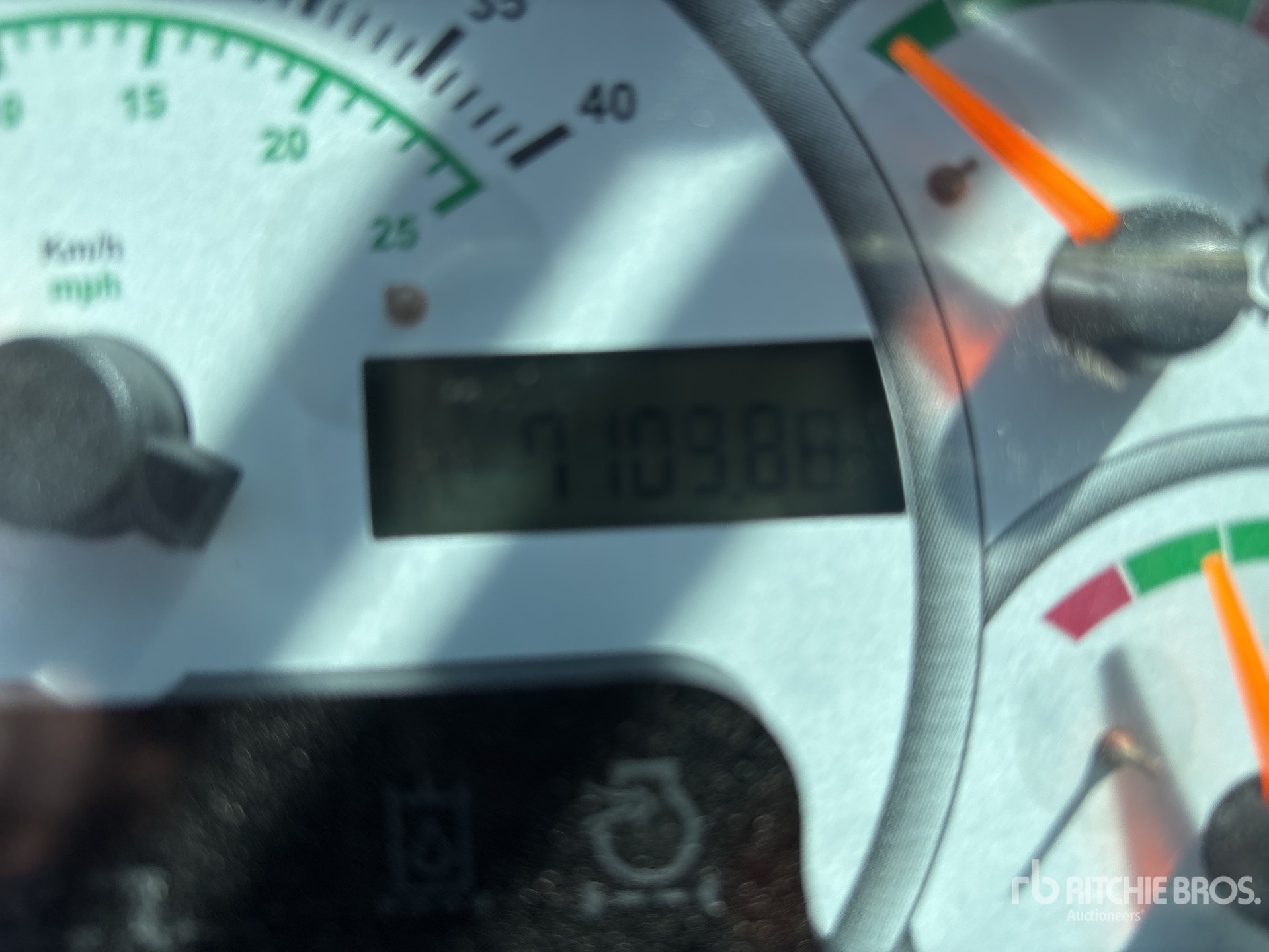

Hours:	7109

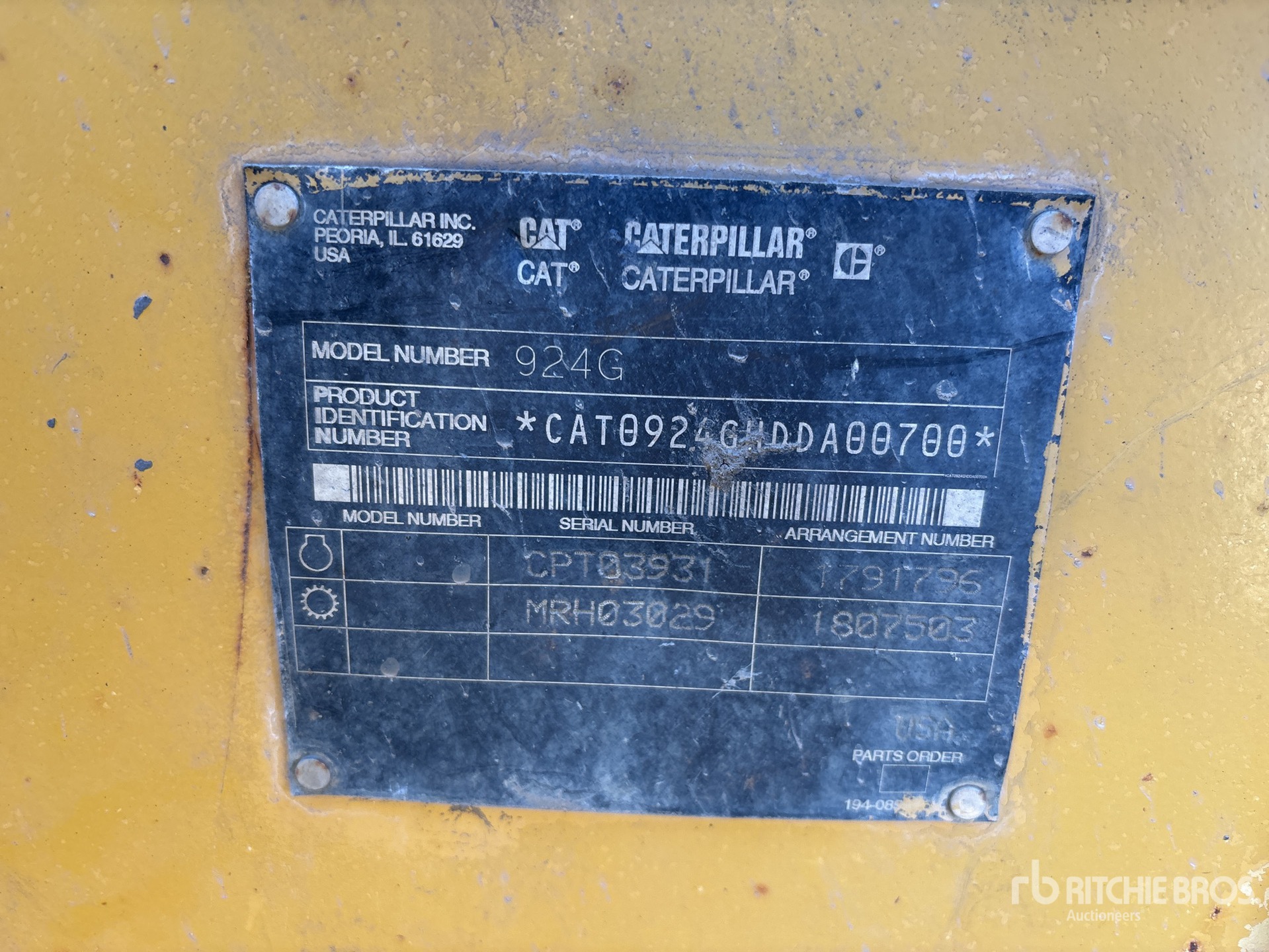

Serial Number:	CAT0924GHDDA00700
Machine Location:	CHICAGO, IL

Description:

Located in Lane 3 Spot 7, Enclosed Cab, Air Conditioner, 100 in Bucket, 20.5R25 Tires Closing Time: 2026-05-12 09:44:45 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 924G is a versatile wheel loader designed for medium-duty material handling and construction tasks. Featuring a robust engine and advanced hydraulic system, the 924G delivers reliable performance and fuel efficiency. Its compact size and maneuverability make it suitable for tight job sites, while the spacious operator cabin ensures comfort and visibility. Commonly used in construction, landscaping, agriculture, and industrial applications, the Caterpillar 924G wheel loader excels in loading, lifting, and transporting materials such as soil, gravel, and debris. Durable components and easy maintenance contribute to its long service life and operational uptime.

Axles
Axle Oscillation	12 degrees
Bucket
Bucket Capacities	2 - 3 cu yd (2 - 2 cu m)
Bucket Capacity - struck	2 cu yd (2 cu m)
Bucket Width	8 ft (3 m)
Cab
FOPS	SAE J231 JAN81 ISO 3449-1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471-1994
Dimensions
Bucket Pin Height - Maximum Lift	12 ft (4 m)
Carry Height	1 ft (0 m)
Centerline of Front Axle to Hitch	5 ft (1 m)
Digging Depth	4 in (10 cm)
Dump Angle at Maximum Lift	45 degrees
Dump Clearance at Maximum Lift - 45 degrees	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Height - Center of Axle	2 ft (1 m)
Height - Top of Hood	85 in (216 cm)
Height - Top of ROPS/FOPS	11 ft (3 m)
Hinge Pin - Max Height	12 ft (4 m)
Length - Rear Axle to Bumper	6 ft (2 m)
Length w/ Bucket on Ground	24 ft (7 m)
Length with out Forks on Ground	25 ft (8 m)
Length with Bucket on Ground	23 ft (7 m)
Overall Height	16 ft (5 m)
Overall Height - Bucket Raised	16 ft (5 m)
Overall Length	23 ft (7 m)
Rack Back Angle - Carry	48 degrees
Rack Back Angle - Maximum Lift	58 degrees
Reach at Maximum Lift and 45 degrees Dump	2 ft (1 m)
Wheel Base	9 ft (3 m)
Wheel Base Length	9 ft (3 m)
Wheelbase	9 ft (3 m)
Width - Over Tires	8 ft (2 m)
Width Over Tires	8 ft (2 m)
Engine
Bore	4 in (10 cm)
Power Measured @	2,300 rpm
Rated Net Power	129 hp (96 kw)
Stroke	5 in (13 cm)
Hydraulic System
Relief Valve Setting	3,757 psi
Loader Hydraulic System
Bore (1)	4 in (11 cm)
Bore (2)	5 in (12 cm)
Dump	1 seconds
Lower, Empty, Float Down	3 seconds
Pump Flow - Implement Pump	40 gpm (152 lpm)
Raise	5 seconds
Stroke (1)	30 in (75 cm)
Stroke (2)	21 in (52 cm)
Total	9 seconds
Operating Specifications
Alternator Supplied Amperage	80 amps
Articulation Angle	40 degrees
Breakout Force	21,727 lbs (9,855 kg)
Cooling System Fluid Capacity	11 gal (40 l)
Dump Clearance at Full Lift and 45 degrees Dump Angle	9 ft (3 m)
Engine Oil Capacity	5 gal (20 l)
Engine Oil Fluid Capacity	5 gal (20 l)
Front Axle/Diff Fluid Capacity	6 gal (21 l)
Front Diff Fluid Capacity	6 gal (21 l)
Operating Voltage	24 volts
Reach - Full Lift and 45 degrees Dump	2 ft (1 m)
Rear Axle Oscillation	12 degrees
Rear Axle/Diff Fluid Capacity	6 gal (21 l)
Rear Diff Fluid Capacity	6 gal (21 l)
Static Tipping Load - Full Turn	15,163 lbs (6,878 kg)
Static Tipping Weight	17,359 lbs (7,874 kg)
Transmission Fluid Capacity	6 gal (23 l)
Turning Radius	17 ft (5 m)
Service Refill Capacities
Cooling System	11 gal (41 l)
Crankcase	4 gal (16 l)
Front	6 gal (21 l)
Fuel Tank	59 gal (225 l)
Hydraulic Tank	19 gal (70 l)
Rear	6 gal (21 l)
Transmission	6 gal (23 l)
Steering System
Maximum Working Pressure	3,000 psi
Minimum Turning Radius - Over Tires	200 in (508 cm)
Steering Angle - Each Direction	40 degrees
Steering Cylinder, Two, Bore	3 in (7 cm)
Tires
Size	17.5-25PR (L-2)
Tread Width	6 ft (2 m)
Transmission
Max Speed - Reverse	14 mph (22 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	countershaft
Weights
Operating Weight	23,920 lbs (10,850 kg)
