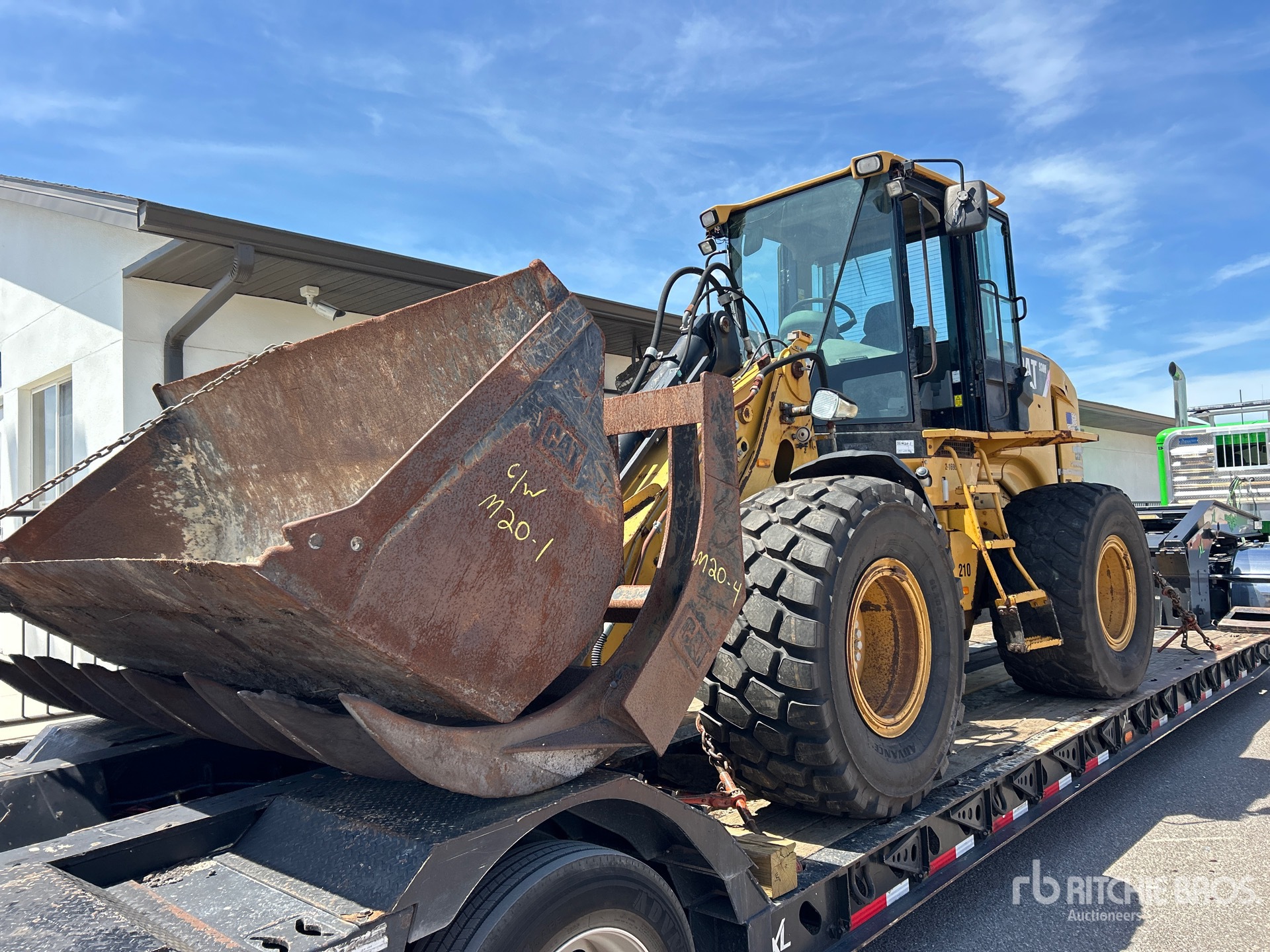

The Caterpillar 930H is a wheel loader designed for material handling, stockpiling, truck loading, and general construction applications. It is part of Caterpillar's H-series lineup and is commonly used in aggregate yards, agriculture, waste handling, and industrial sites. The 930H features a front-mounted loader arm, articulated steering, and a diesel powertrain built for loader productivity and maneuverability in confined work areas. Typical configurations may include a general-purpose bucket, quick coupler, and auxiliary hydraulics for attachments. The model is recognized for its balance of lift capacity, breakout force, and operator visibility in mid-size wheel loader operations.

Bucket
Bucket Capacity - struck	3 cu yd (2 cu m)
Bucket Width	8 ft (3 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Hinge Pin Max Height	13 ft (4 m)
Length w/ Bucket on Ground	25 ft (8 m)
Length with out Forks on Ground	26 ft (8 m)
Length with Bucket on Ground	25 ft (8 m)
Max Lift Height	13 ft (4 m)
Reach at Max Height and Dump	3 ft (1 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Displacement	403 cu in (6,604 cu cm)
Engine Model	C6.6
Make	Cat
Max Torque	547 lbs ft (742 nm)
Number of Cylinders	6
Power Measured @	2,300 rpm
Hydraulic System
Dump Time	2 seconds
Lower Time	3 seconds
Pump Flow Capacity	58 gpm (220 lpm)
Pump Type	Impement Pump
Raise Time	5 seconds
Relief Valve Setting	3,755 psi
Operating Specifications
Cooling System Fluid Capacity	11 gal (40 l)
Engine Oil Capacity	4 gal (15 l)
Engine Oil Fluid Capacity	4 gal (15 l)
Front Axle/Diff Fluid Capacity	7 gal (26 l)
Front Diff Fluid Capacity	7 gal (26 l)
Operating Weight	28,725 lbs (13,029 kg)
Rated Bucket Capacity	3 cu yd (2 cu m)
Rear Axle/Diff Fluid Capacity	7 gal (25 l)
Rear Diff Fluid Capacity	7 gal (25 l)
Static Tipping Load - Bucket	19,933 lbs (9,041 kg)
Static Tipping Load - Forks	15,977 lbs (7,247 kg)
Static Tipping Weight	18,321 lbs (8,310 kg)
Tire Size	20.5R25 L3 XHA
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	15 mph (24 kph)
Max Speed Forward	24 mph (38 kph)
Max Speed Reverse	15 mph (24 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Standard Transmission max travel speed
Weights
Operational Weight	28,684 lbs (13,011 kg)
