Equipment ↠ Caterpillar ↠ Wheel Loaders ↠ 2014 Caterpillar 930K

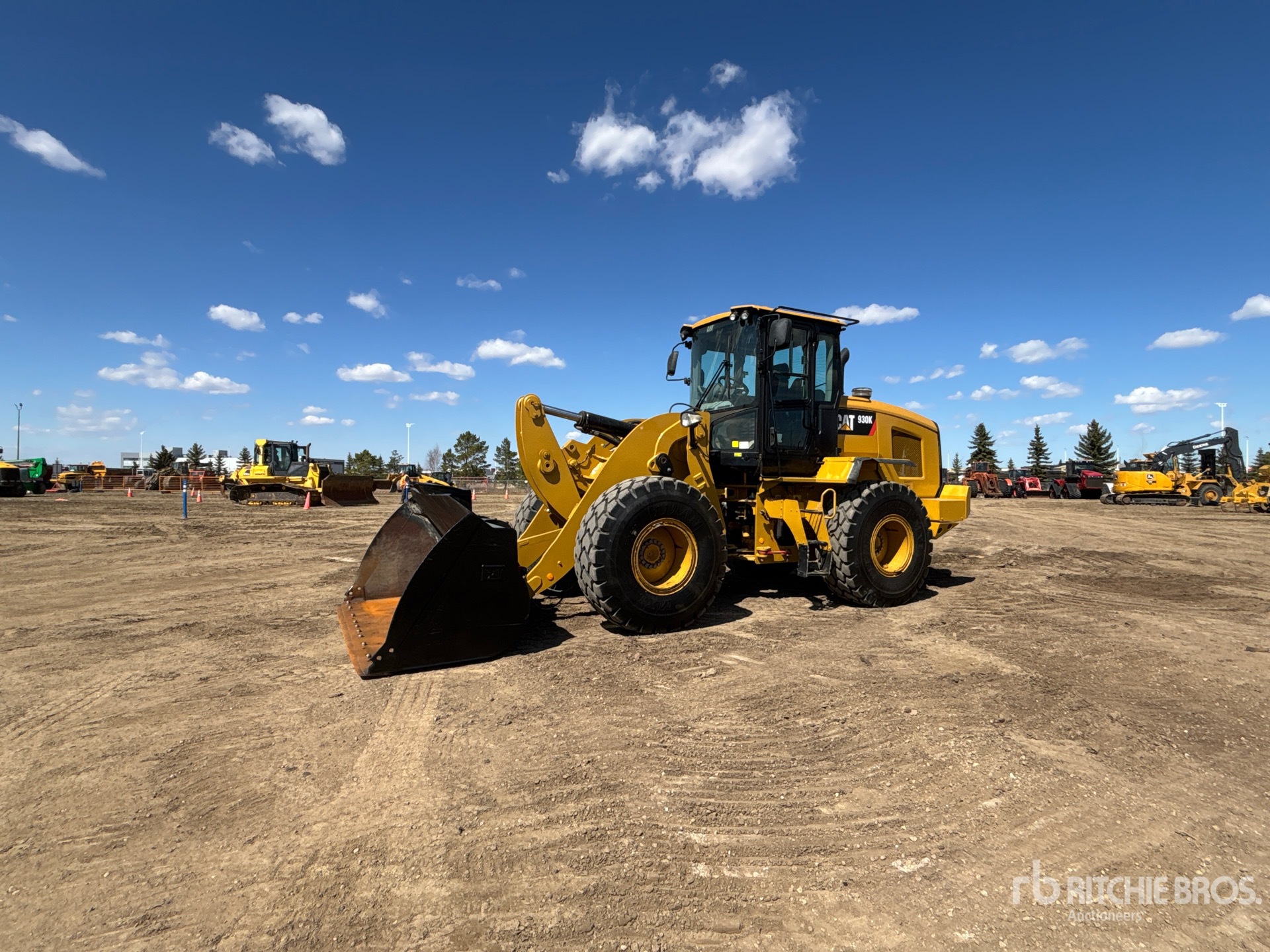

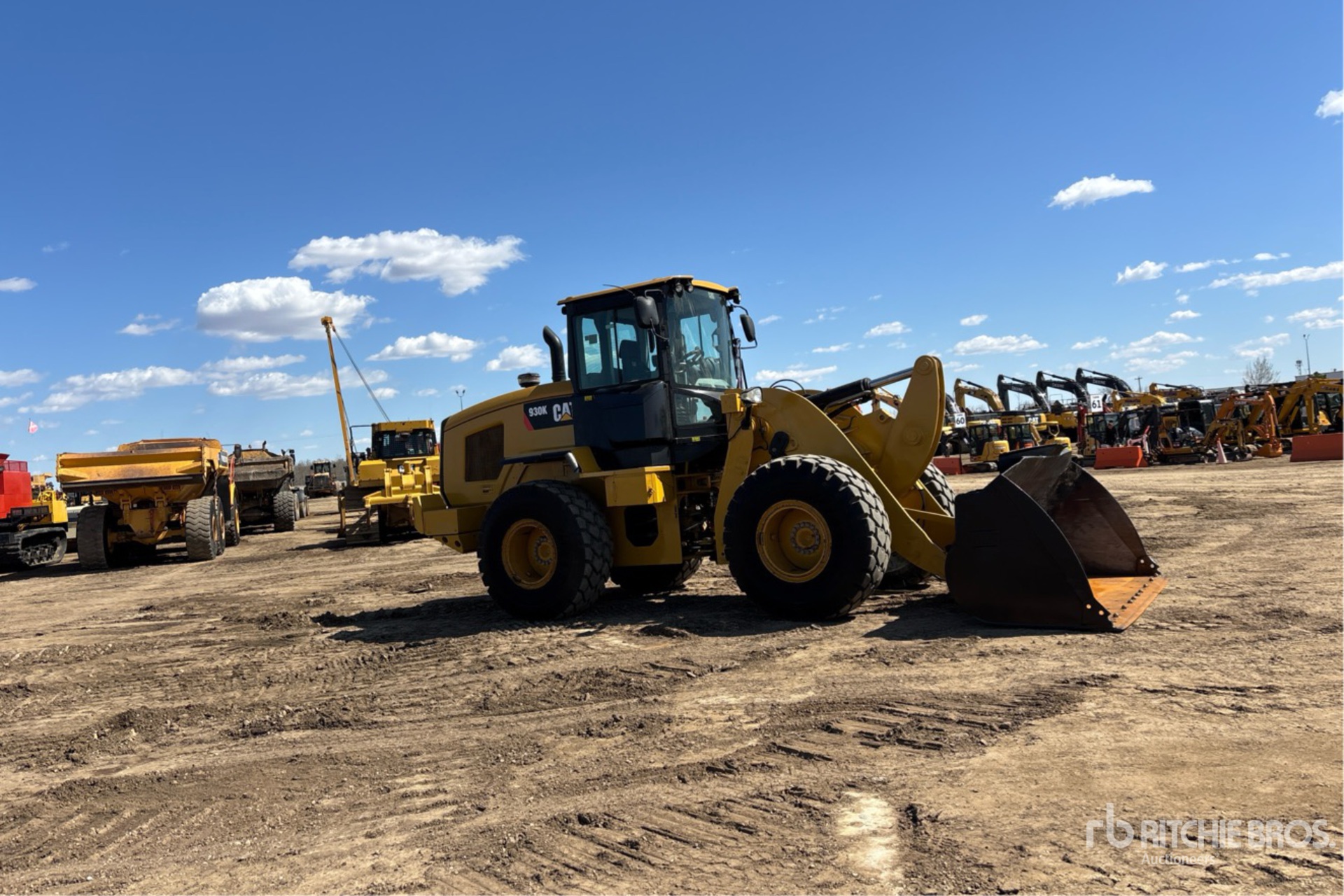

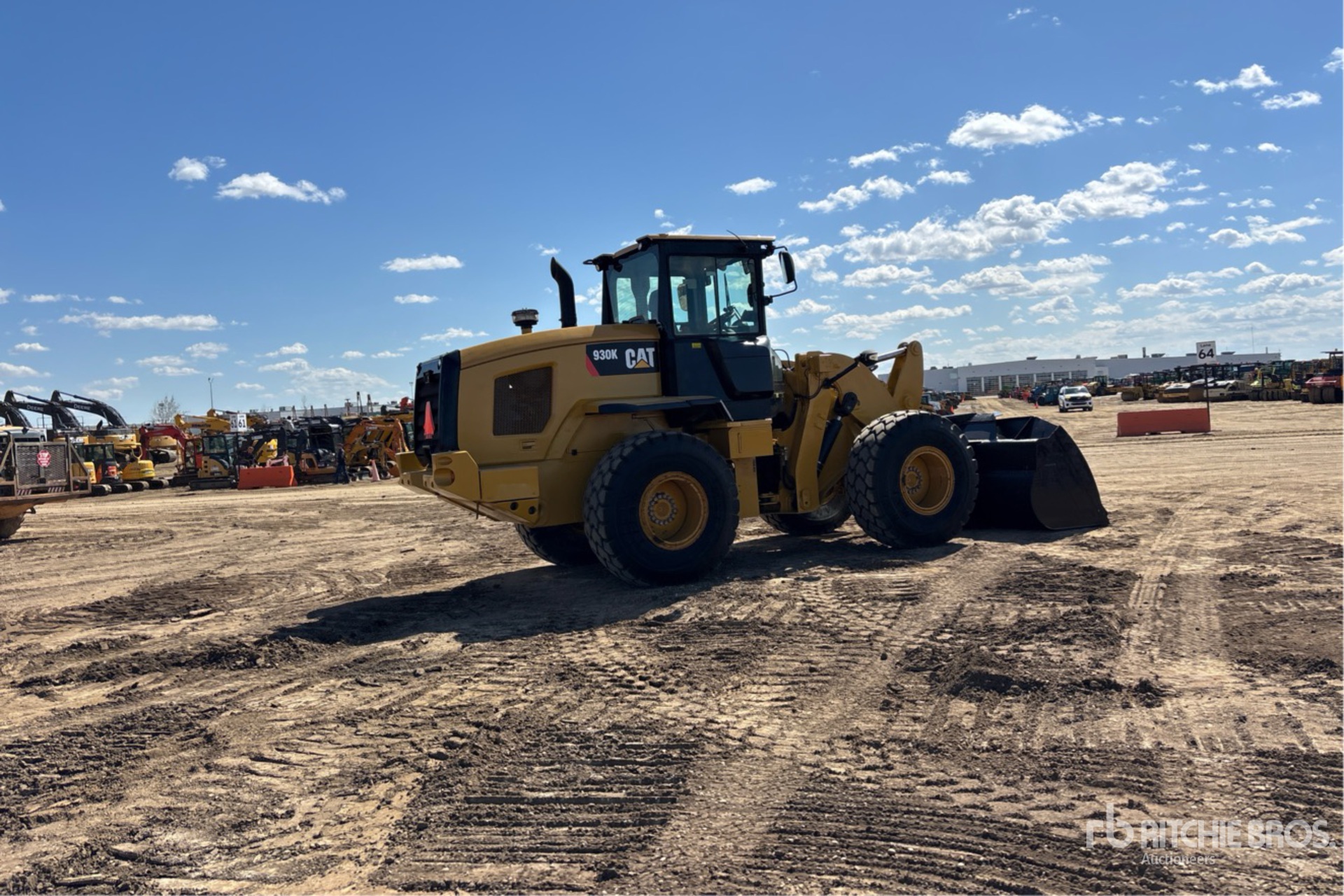

2014 Caterpillar 930K For Sale in Edmonton, Ab

Name: 2014 Caterpillar 930K
Brand: Caterpillar
SKU: 87399362
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

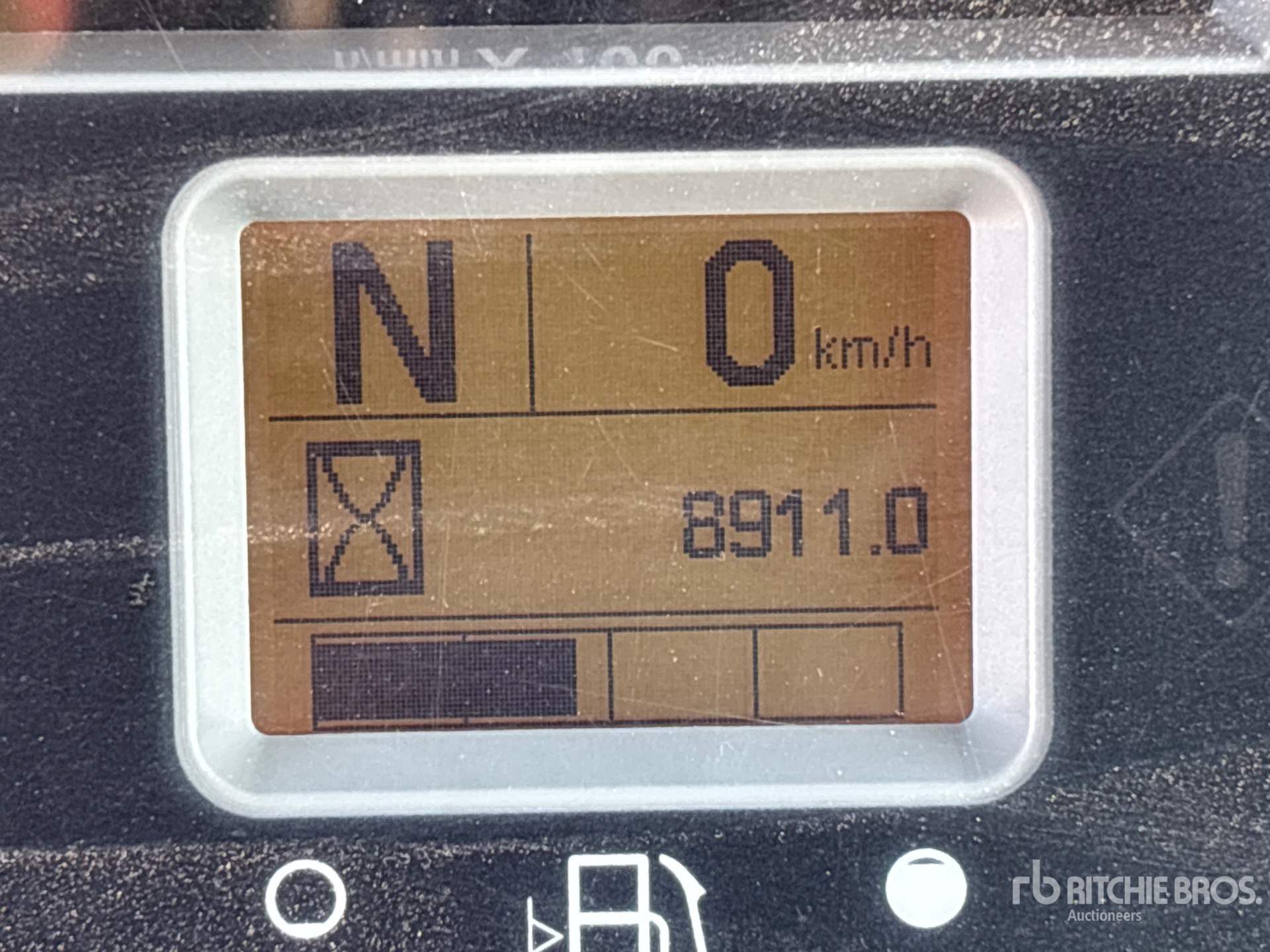

Hours:	8911

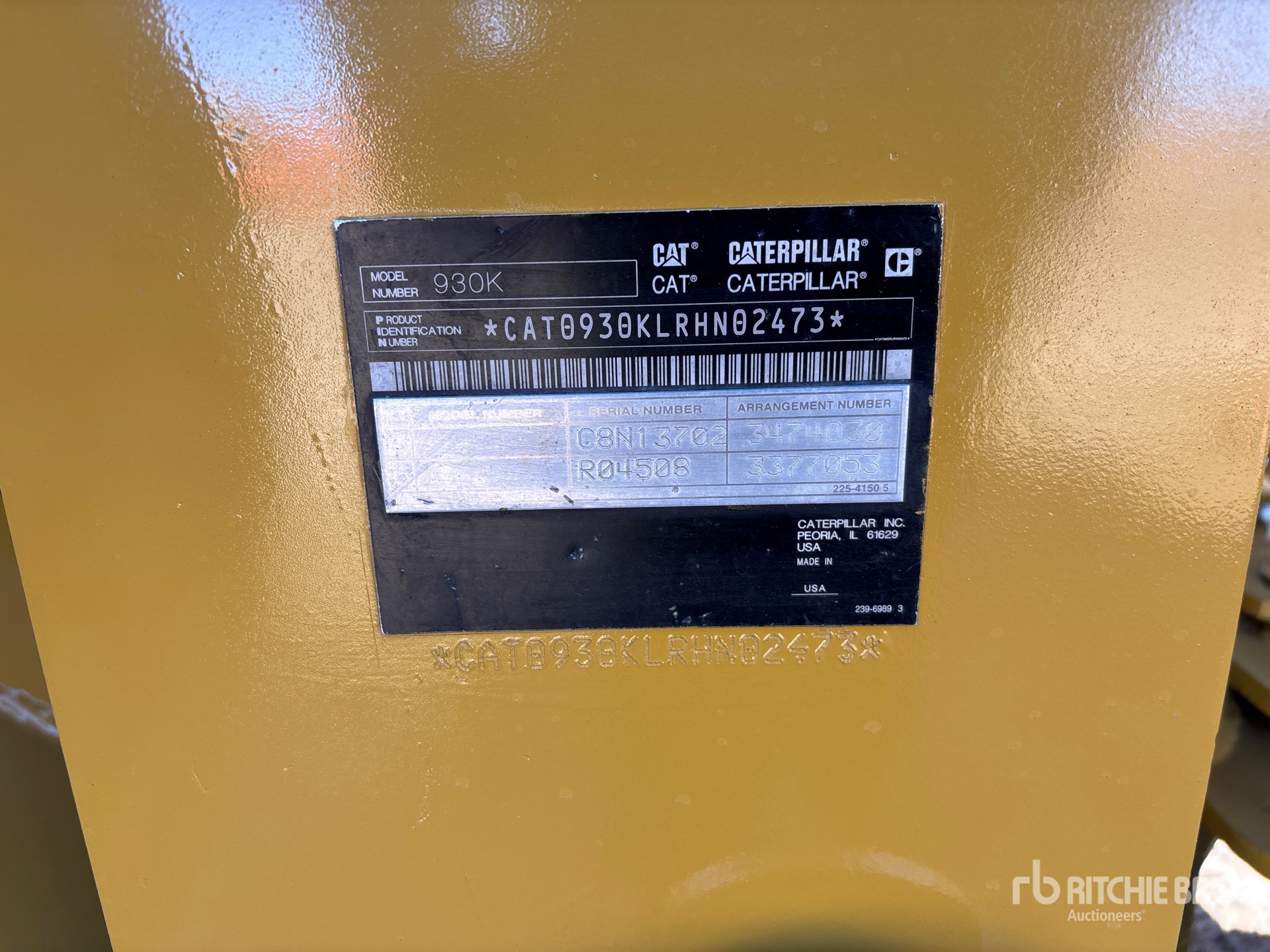

Serial Number:	CAT0930KLRHN02473
Machine Location:	EDMONTON, AB

Description:

Located in Lane 62 Spot 34, Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Ride Control, Autoshift, 2013 US EPA Label, CARB Compliant, Auxiliary Hydraulics, Fusion Coupler, 106 in Bucket, 20.5R25 Tires, "NOTICE-TO-US-BIDDERS: this asset is likely exempt from US import tariffs as it was manufactured in the US. Bidders are responsible for confirming with their customs broker." Closing Time: 2026-05-11 10:22:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 930K is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of Caterpillar's K Series and is commonly used in aggregate yards, roadwork, agriculture, and industrial sites. The 930K features a hydrostatic transmission, articulated steering, and a front-end loader configuration for efficient maneuverability and cycle performance. Typical uses include moving soil, gravel, sand, and other bulk materials. The machine is known for its operator-focused cab, visibility, and compatibility with a range of buckets and attachments. The Caterpillar 930K is a mid-size wheel loader built for versatile jobsite productivity.

Bucket
Bucket Capacities	7 cu yd (5 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Cab
FOPS	SAE J/ISO 3449 APR98 Level II ISO 3449 1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471-1994
Dimensions
Bucket Pin Height - Maximum Lift	13 ft (4 m)
Carry Height	2 ft (0 m)
Centerline of Front Axle to Hitch	5 ft (1 m)
Digging Depth	4 in (10 cm)
Dump Angle at Maximum Lift	49 degrees
Dump Clearance at Maximum Lift - 45 degrees	9 ft (3 m)
Height - Center of Axle	2 ft (1 m)
Height - Top of ROPS/FOPS	11 ft (3 m)
Length - Rear Axle to Bumper	7 ft (2 m)
Overall Height - Bucket Raised	17 ft (5 m)
Overall Length	25 ft (8 m)
Rack Back Angle - Carry	45 degrees
Rack Back Angle - Maximum Lift	54 degrees
Reach at Maximum Lift and 45 degrees Dump	3 ft (1 m)
Wheel Base	10 ft (3 m)
Engine
Bore	4 in (10 cm)
Displacement	402 cu in (6,588 cu cm)
EEC 80/1269	156 hp (116 kw)
Engine Model	C7.1 ACERT
Gross Power	154 hp (115 kw)
Net Power	152 hp (113 kw)
Net Torque	551 lbs ft (747 nm)
Number of Cylinders	6
Rated Net Power	154 hp (115 kw)
Stroke	5 in (13 cm)
Hydraulic System
Dump Time	2 seconds
Lower Time	3 seconds
Pump Flow Capacity	50 gpm (189 lpm)
Raise Time	6 seconds
Relief Valve Setting	3,626 psi
Loader Hydraulic System
Bore (1)	5 in (12 cm)
Bore (2)	6 in (15 cm)
Dump	2 seconds
Hydraulic Cycle Time	9 seconds
Lower, Empty, Float Down	3 seconds
Pump Flow - Implement Pump	50 gpm (189 lpm)
Raise	5 seconds
Stroke (1)	29 in (73 cm)
Stroke (2)	22 in (56 cm)
Total	9 seconds
Operating Specifications
Articulation Angle	40 degrees
Cooling System Fluid Capacity	9 gal (32 l)
Dump Clearance at Full Lift and 45 degrees Dump Angle	9 ft (3 m)
Front Axle/Diff Fluid Capacity	7 gal (26 l)
Fuel Capacity	52 gal (195 l)
Hydraulic System Fluid Capacity	44 gal (165 l)
Operating Weight	28,948 lbs (13,131 kg)
Rated Bucket Capacity	3 - 7 cu yd (2 - 5 cu m)
Reach - Full Lift and 45 degrees Dump	3 ft (1 m)
Rear Axle/Diff Fluid Capacity	7 gal (26 l)
Static Tipping Load - Full Turn	18,444 lbs (8,366 kg)
Tire Size	21
Transmission Fluid Capacity	2 gal (8 l)
Service Refill Capacities
Cooling System	8 gal (30 l)
Crankcase	5 gal (20 l)
Front	7 gal (26 l)
Fuel Tank	52 gal (195 l)
Hydraulic Tank	24 gal (90 l)
Rear	7 gal (25 l)
Transmission	2 gal (8 l)
Steering System
Maximum Working Pressure	3,500 psi
Steering Angle - Each Direction	40 degrees
Steering Articulation	40 degrees
Steering Cylinder, Two, Bore	3 in (7 cm)
Tires
Size	20.5 R25 radial (L-3)
Transmission
2 Forward	8 mph (13 kph)
3 Forward	17 mph (27 kph)
4 Forward	25 mph (40 kph)
Forward - 1	8 mph (13 kph)
Max Speed - Forward	25 mph (40 kph)
Max Speed - Reverse	25 mph (40 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Reverse - 1	8 mph (13 kph)
Weights
Operating Weight	30,479 lbs (13,825 kg)
Operational Weight	30,479 lbs (13,825 kg)
