Equipment ↠ Caterpillar ↠ Wheel Loaders ↠ 1992 Caterpillar 950F

1992 Caterpillar 950F For Sale in Edmonton, Ab

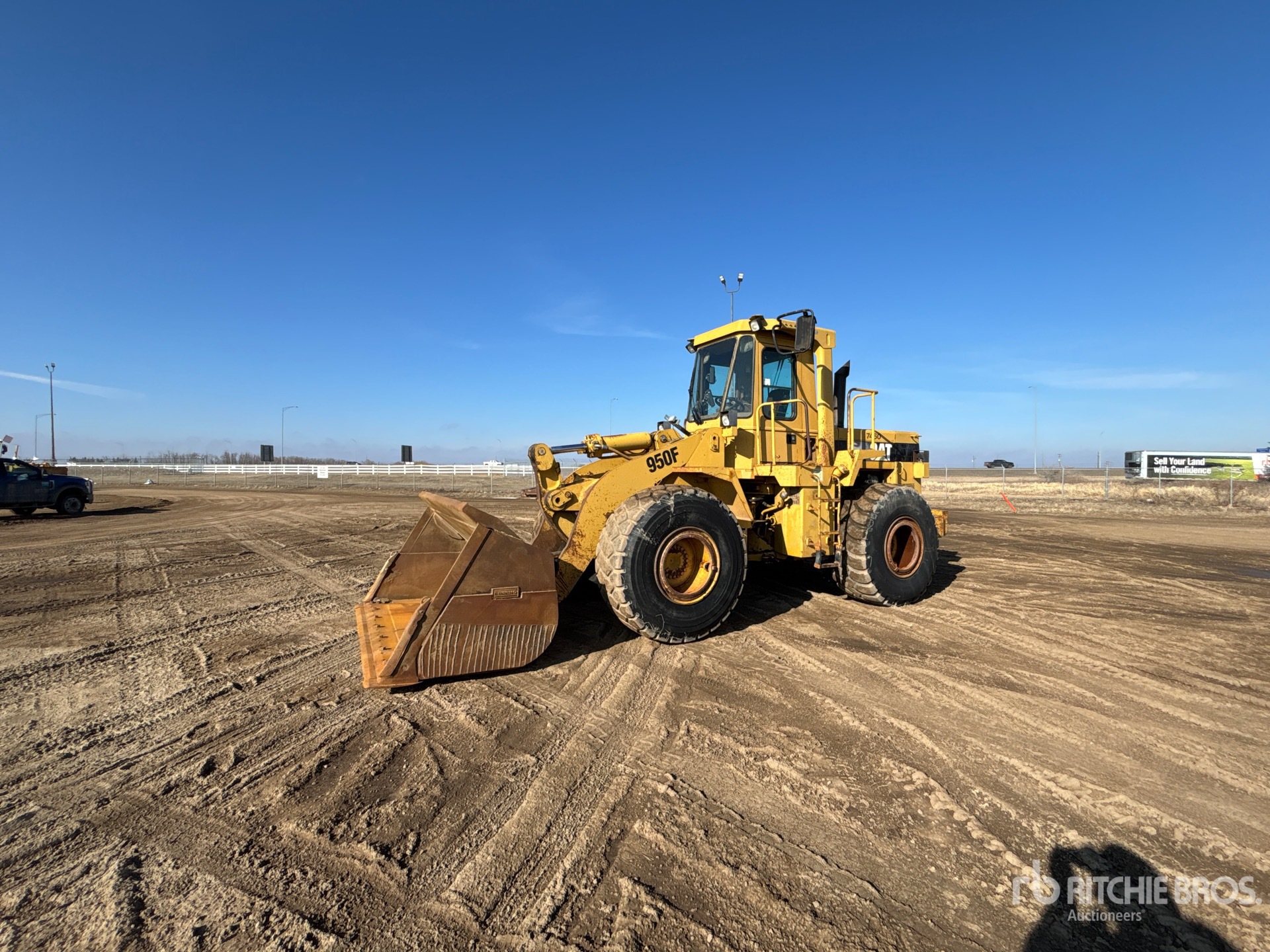

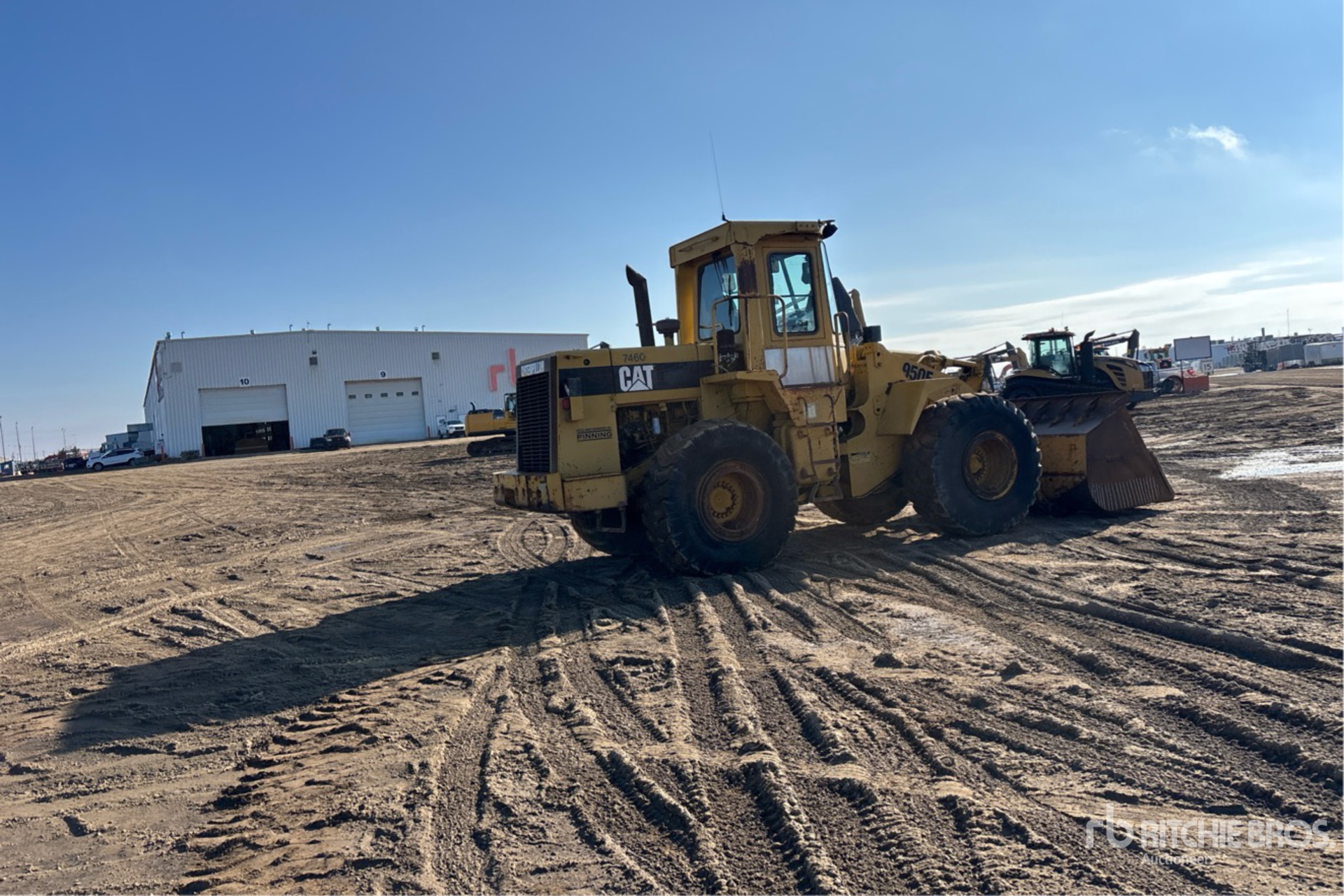

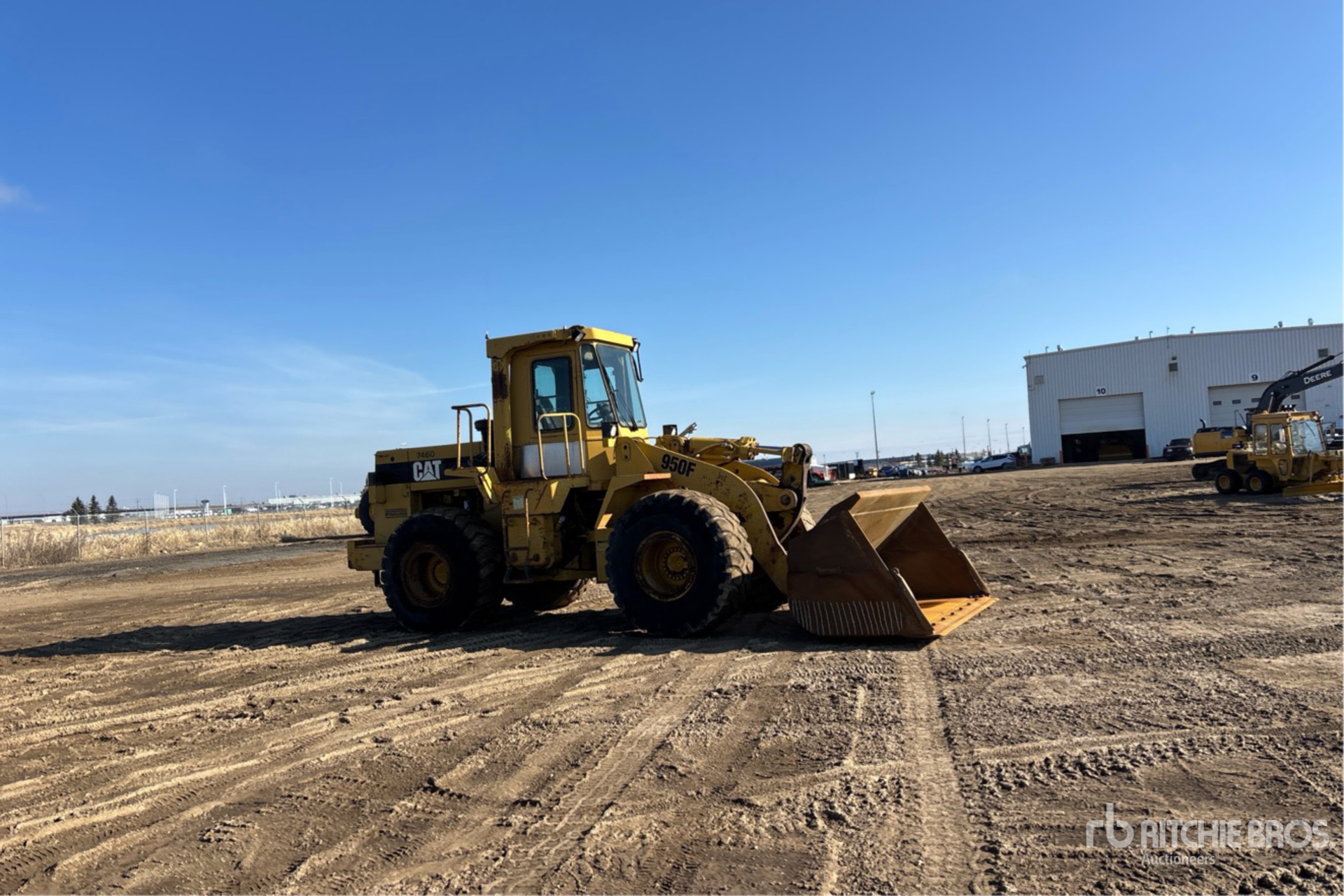

Name: 1992 Caterpillar 950F
Brand: Caterpillar
SKU: 86780437
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

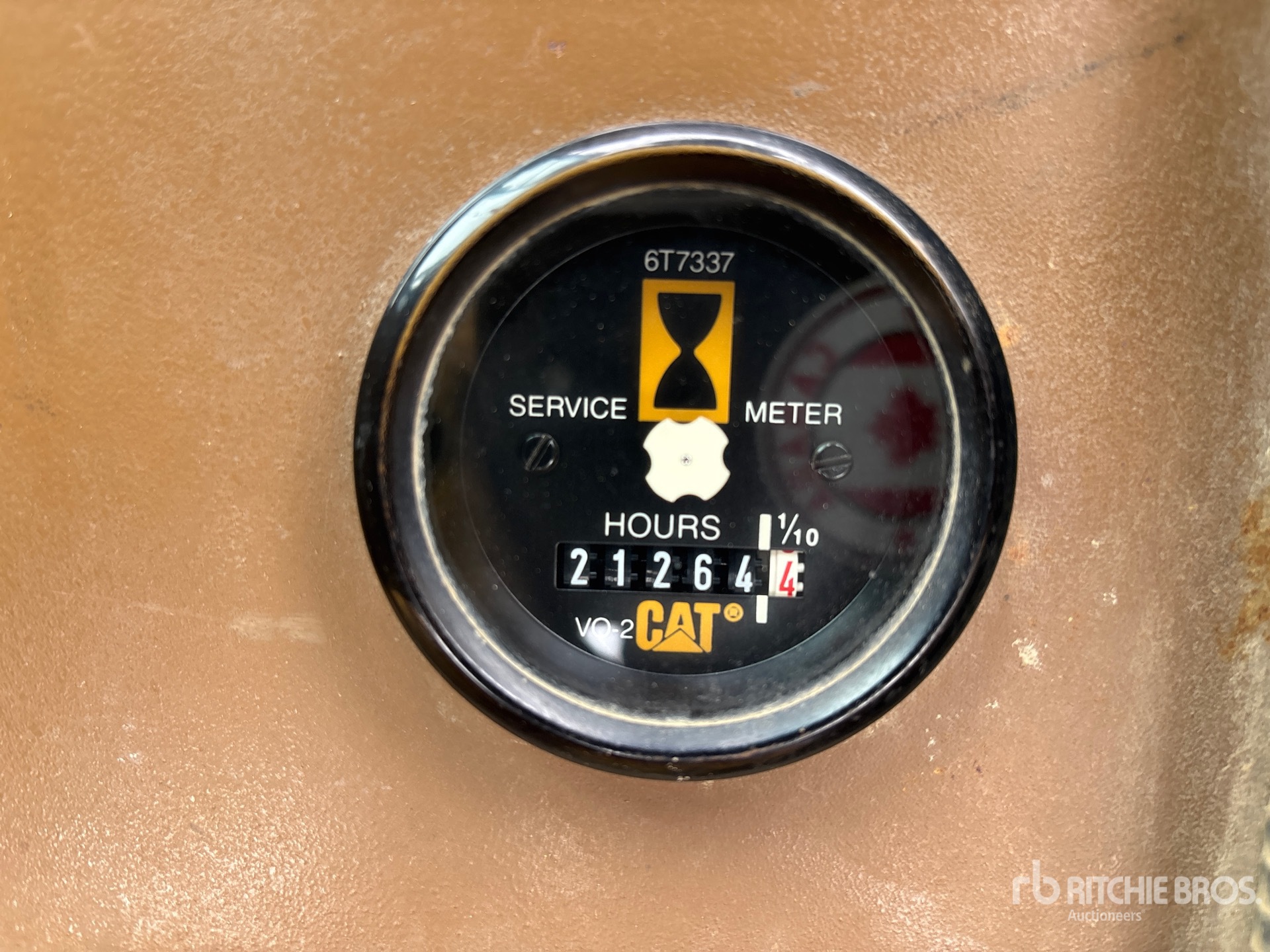

Hours:	21264

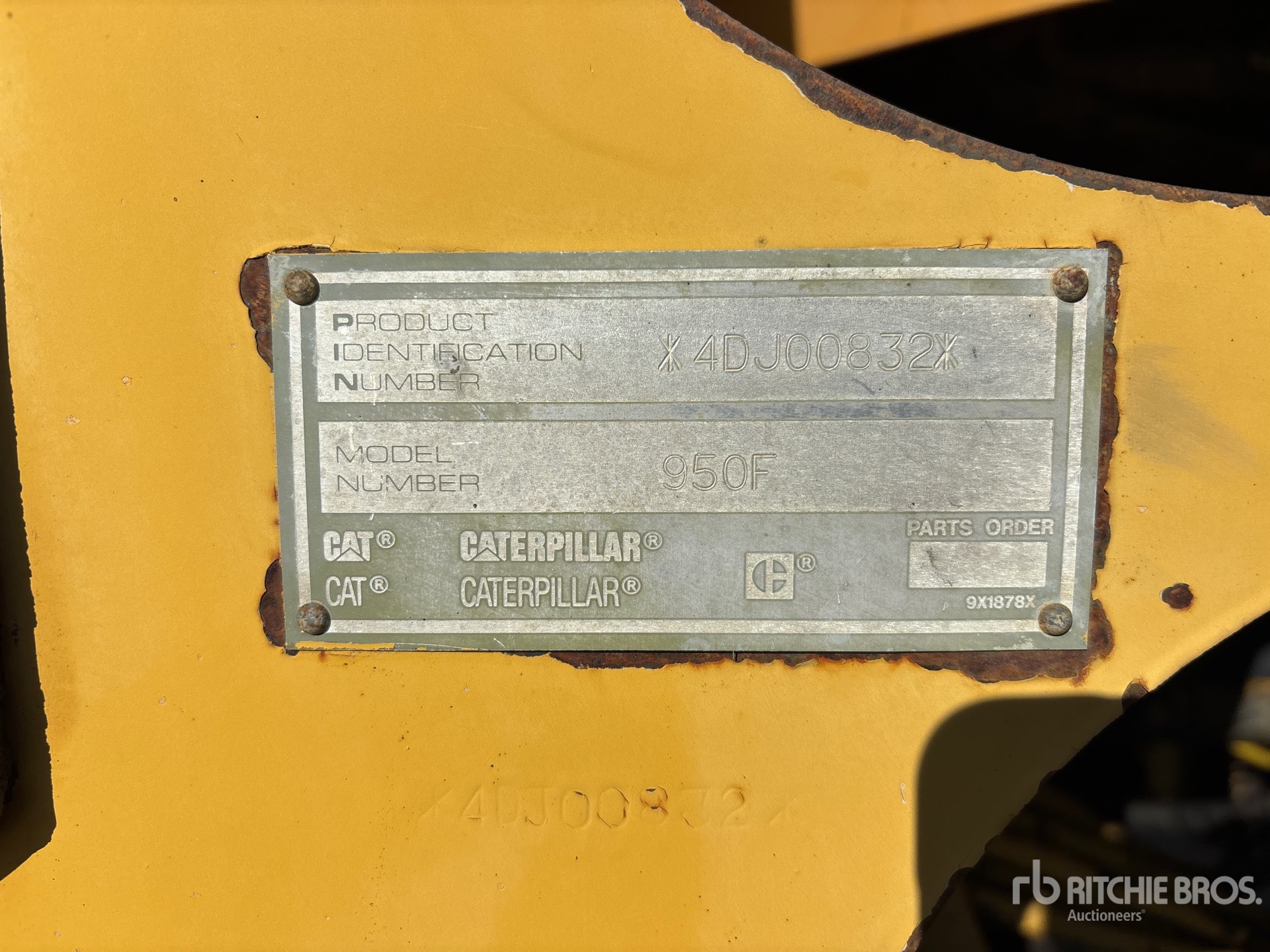

Serial Number:	4DJ00832
Machine Location:	EDMONTON, AB

Description:

Located in Lane 63 Spot 9, Enclosed Cab, Air Conditioner, Air Ride Seat, Autoshift, Loadrite On-Board Scale w/Printer, 108 in Bucket, 23.5R25 Tires Closing Time: 2026-05-11 10:38:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 950F is a versatile wheel loader designed for heavy-duty material handling and construction applications. Featuring a robust engine, advanced hydraulic system, and durable frame, the 950F delivers reliable performance in loading, lifting, and earthmoving tasks. Its ergonomic operator cabin enhances comfort and visibility, improving productivity on job sites. The wheel loader's efficient fuel consumption and easy maintenance reduce operating costs. Commonly used in construction, mining, and quarry operations, the Caterpillar 950F supports a range of attachments for increased functionality. This model is recognized for its balance of power, durability, and operational efficiency in medium to large-scale projects.

Bucket
Breakout Force	35,801 lbs (16,239 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	3 cu yd (3 cu m)
Bucket Width	9 ft (3 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	12 ft (4 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	403 cu in (6,601 cu cm)
Engine Model	3,116
Gross Power	180 hp (134 kw)
Net Power	170 hp (127 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Hydraulic System
Dump Time	2 seconds
Lower Time	3 seconds
Pump Flow Capacity	63 gpm (237 lpm)
Raise Time	7 seconds
Relief Valve Setting	3,000 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	13 gal (49 l)
Engine Oil Fluid Capacity	5 gal (20 l)
Front Axle/Diff Fluid Capacity	10 gal (36 l)
Fuel Capacity	59 gal (222 l)
Hydraulic System Fluid Capacity	41 gal (153 l)
Operating Voltage	24 volts
Operating Weight	34,679 lbs (15,730 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	10 gal (36 l)
Static Tipping Weight	23,243 lbs (10,543 kg)
Tire Size	23.5-25 12PR
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	21 ft (6 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	27 mph (43 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	Planetary powershift
