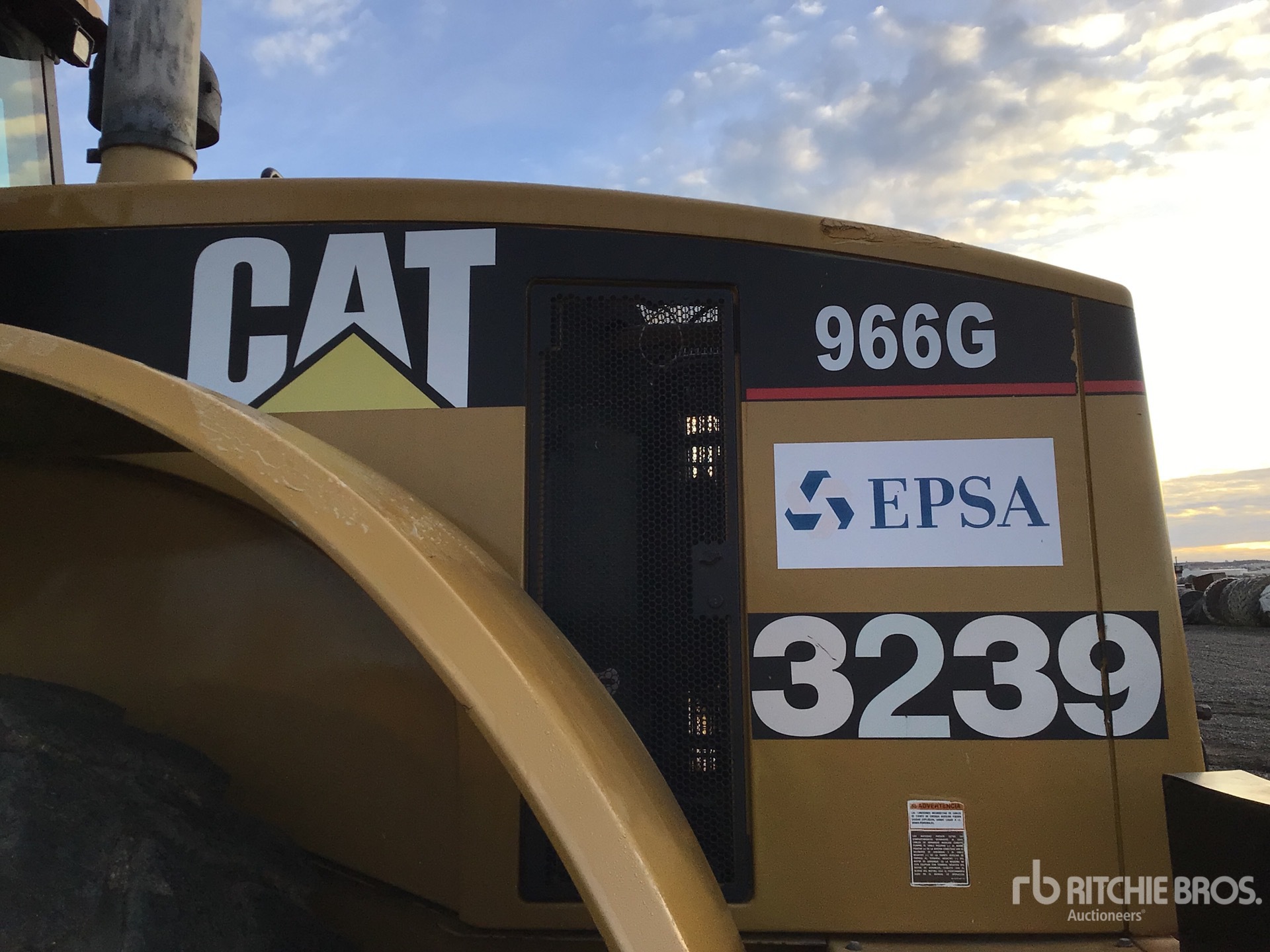

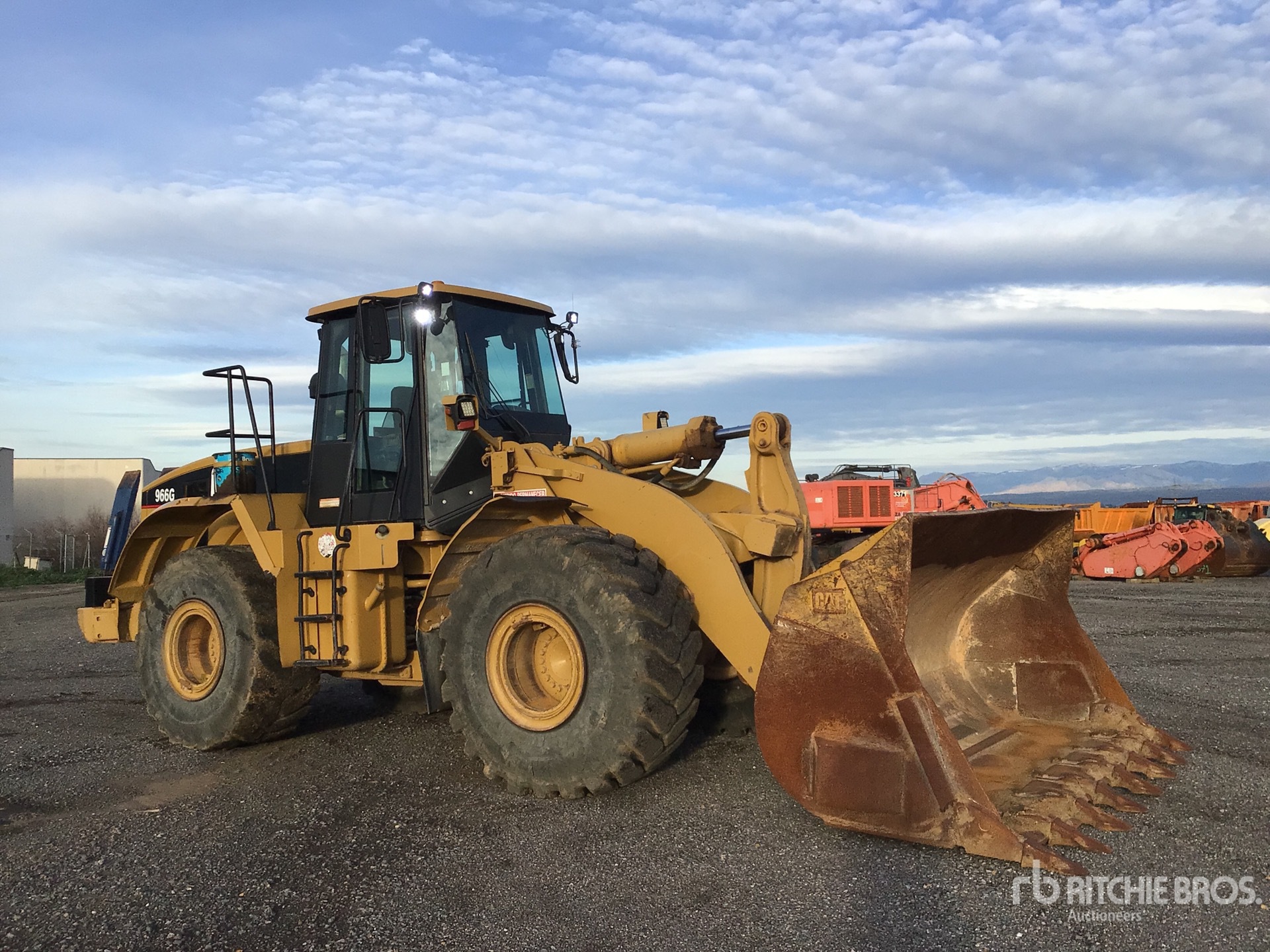

2003 Caterpillar 966G For Sale in Ocana, Esp


/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-05-05   Click here to place a bid



Machine Info:

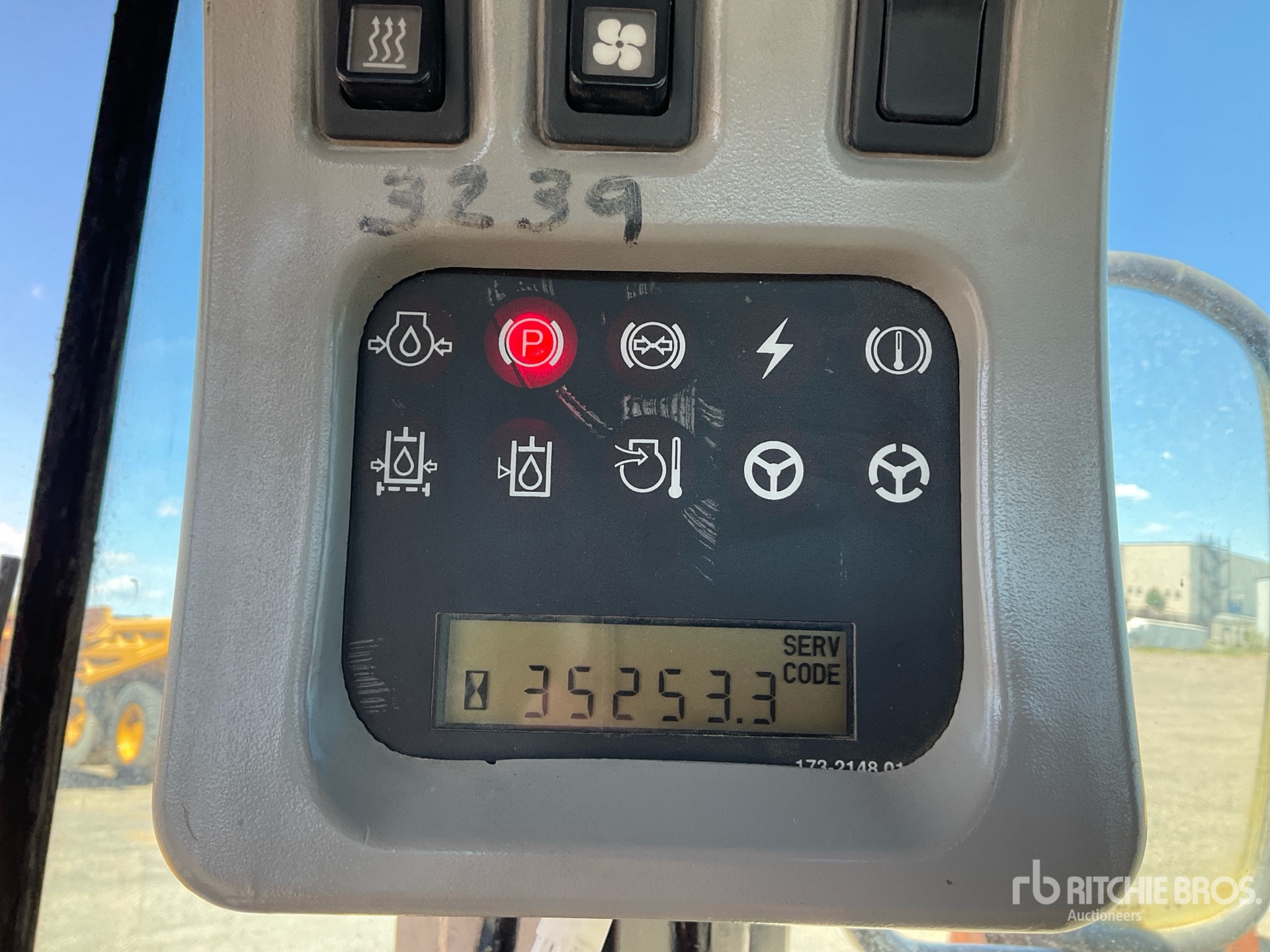

Hours:35253

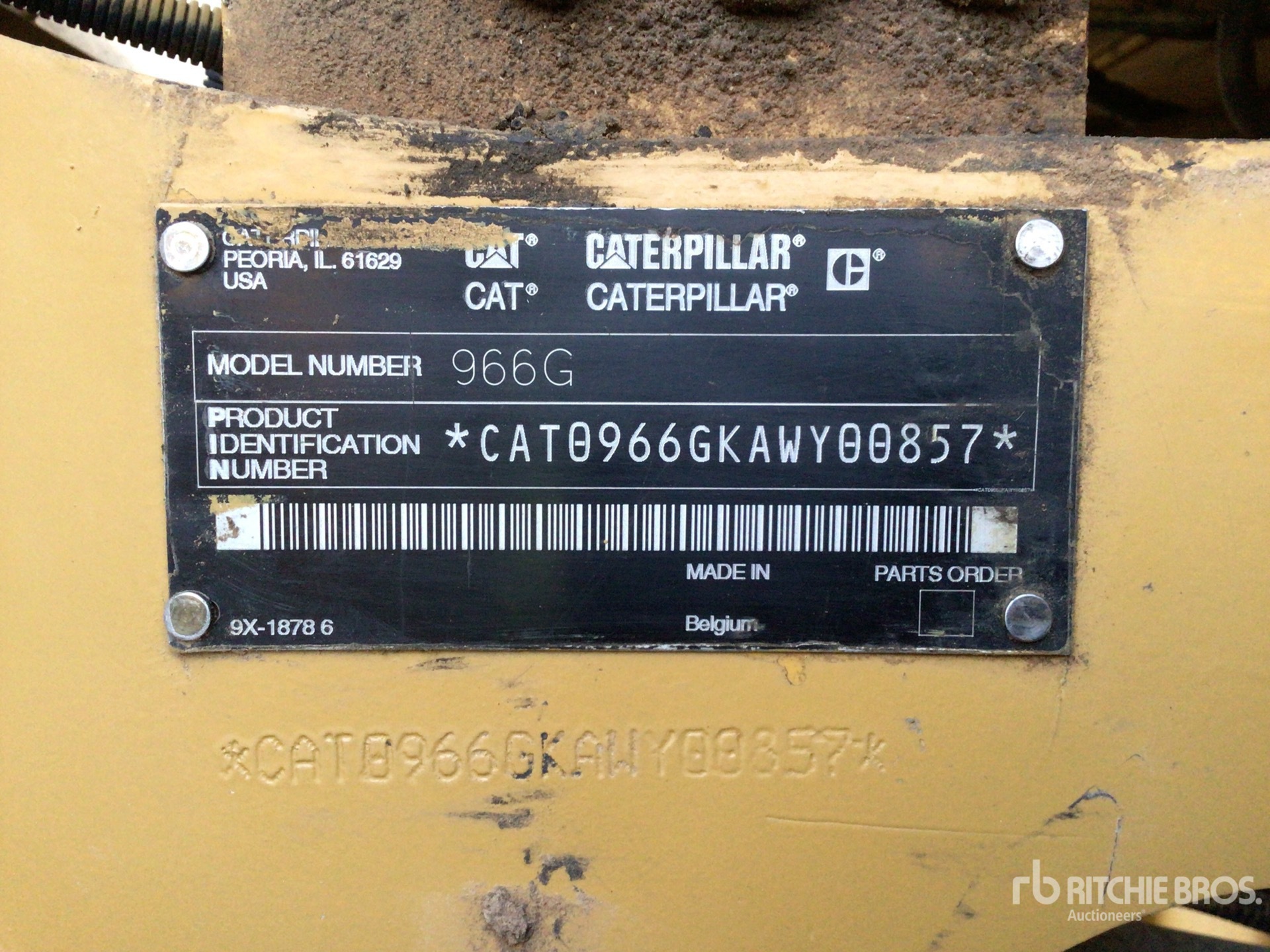

Serial Number:CAT0966GKAWY00857
Machine Location:OCANA, ESP

Description:

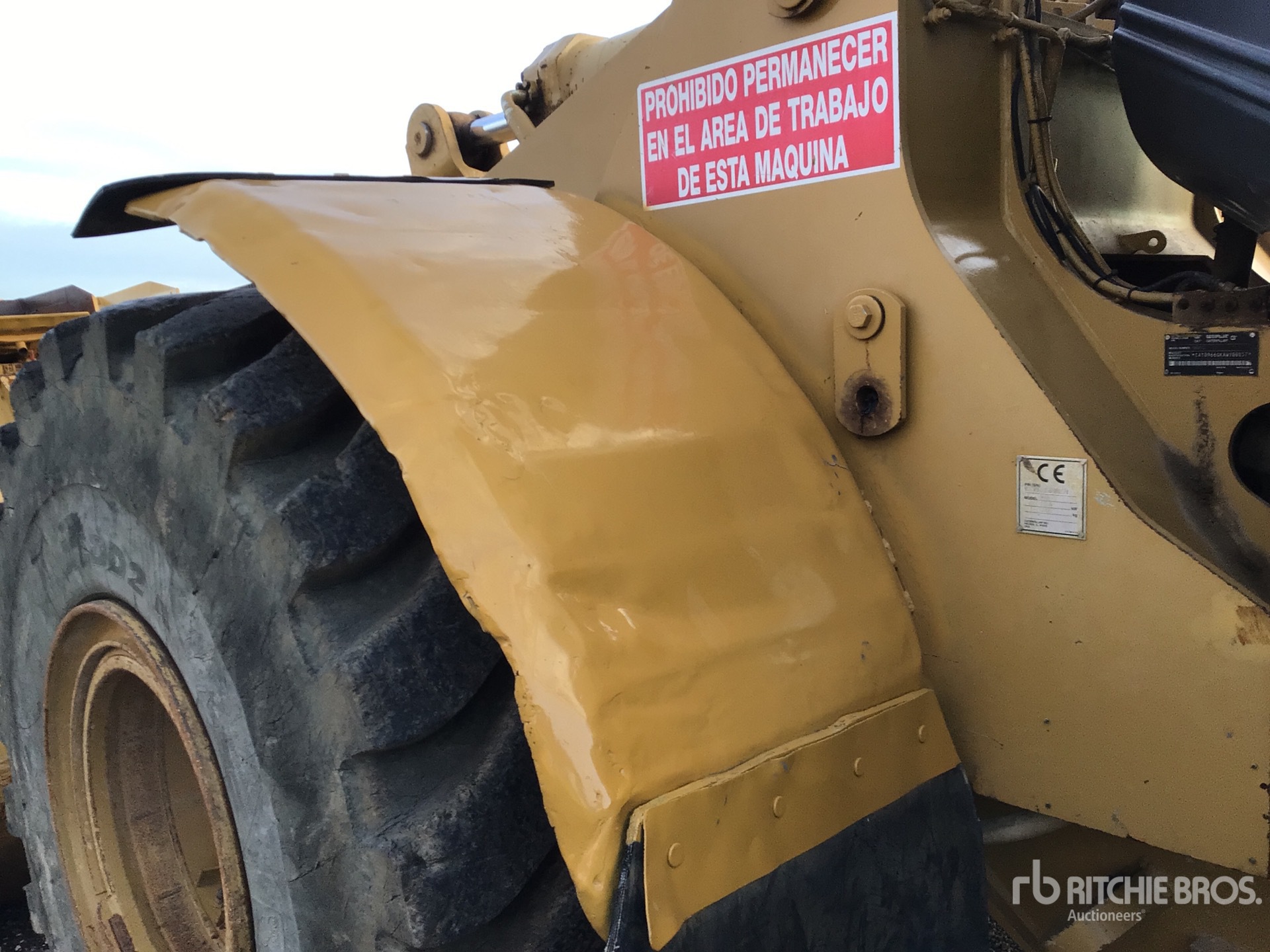

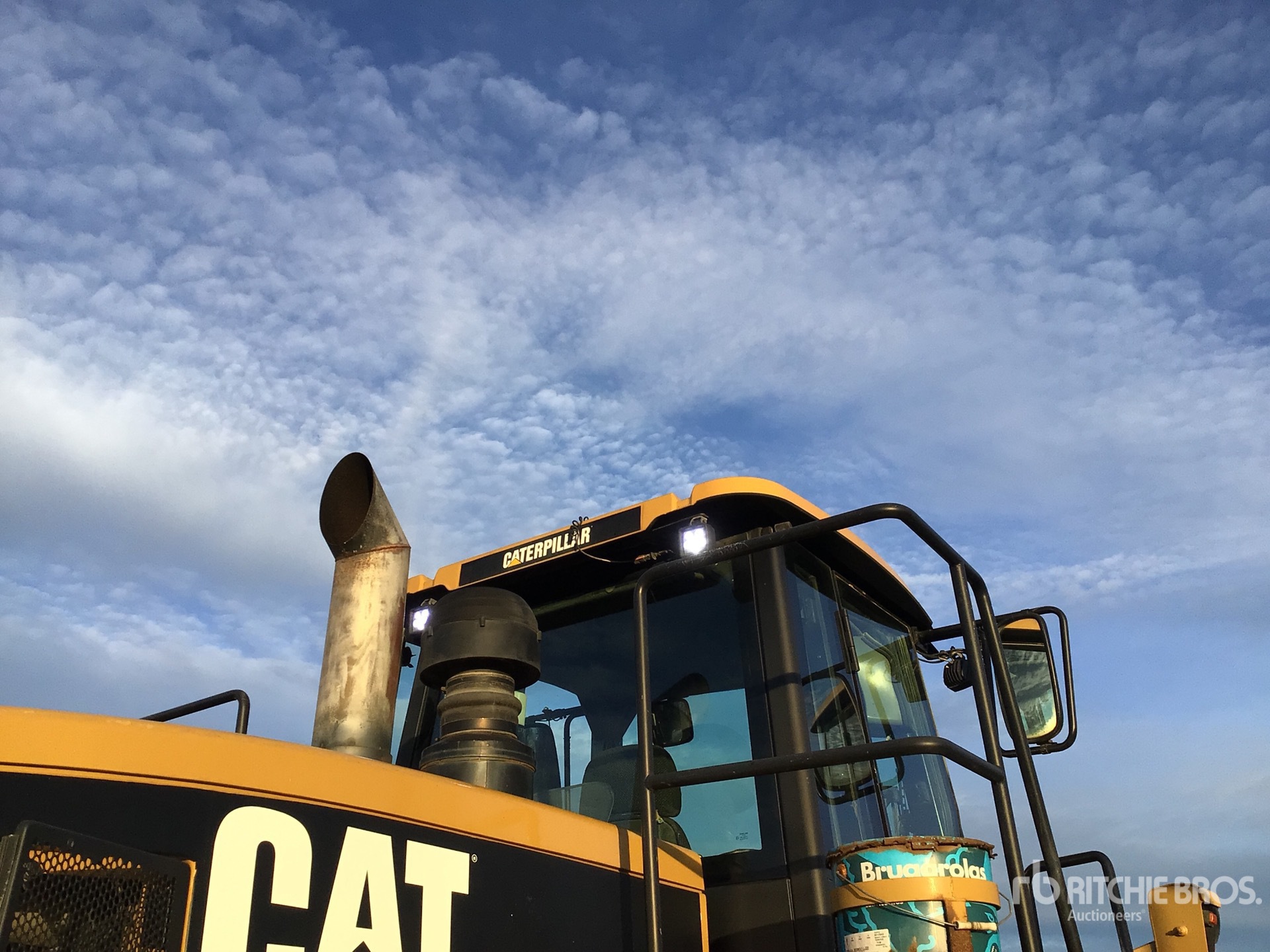

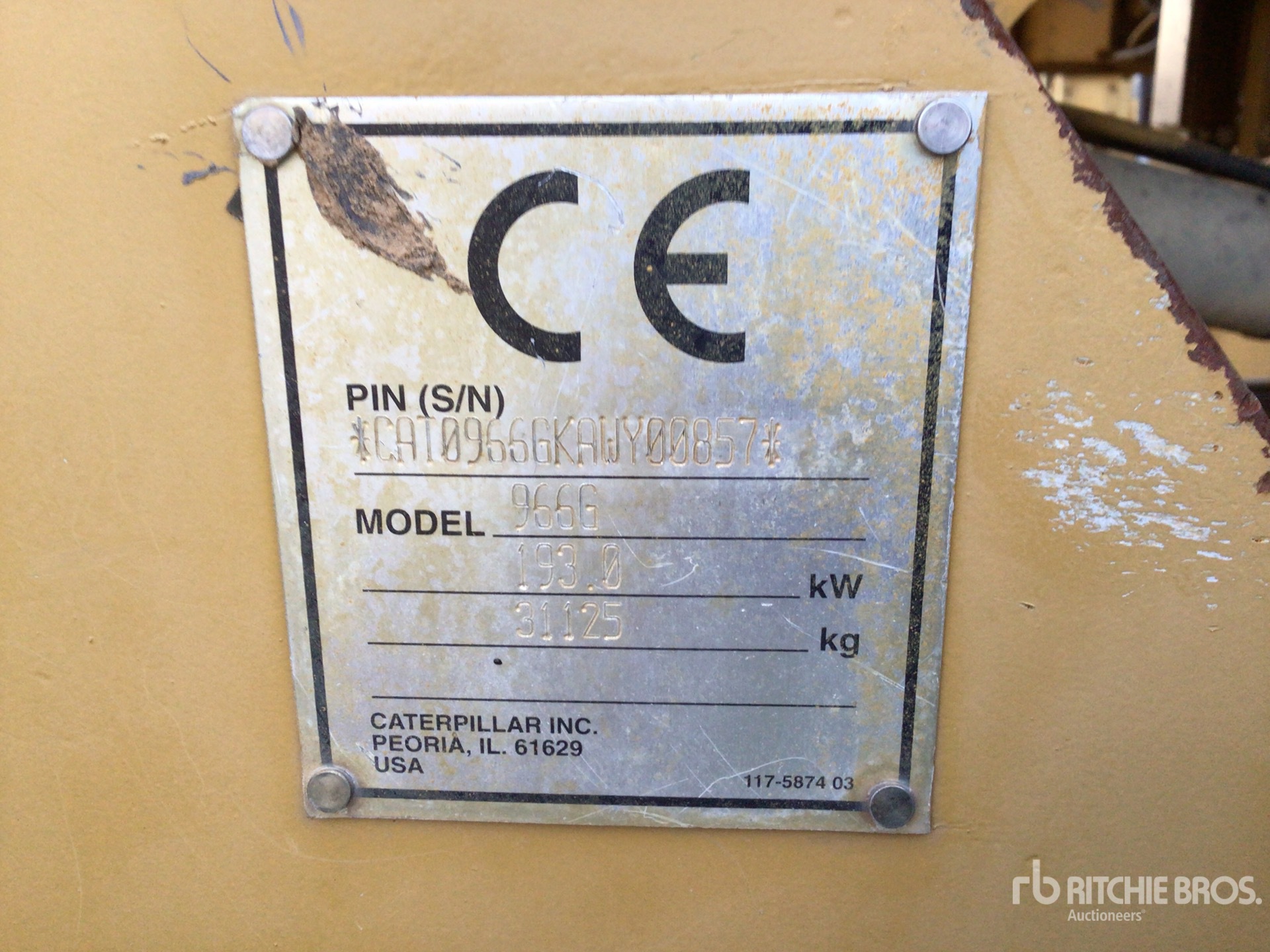

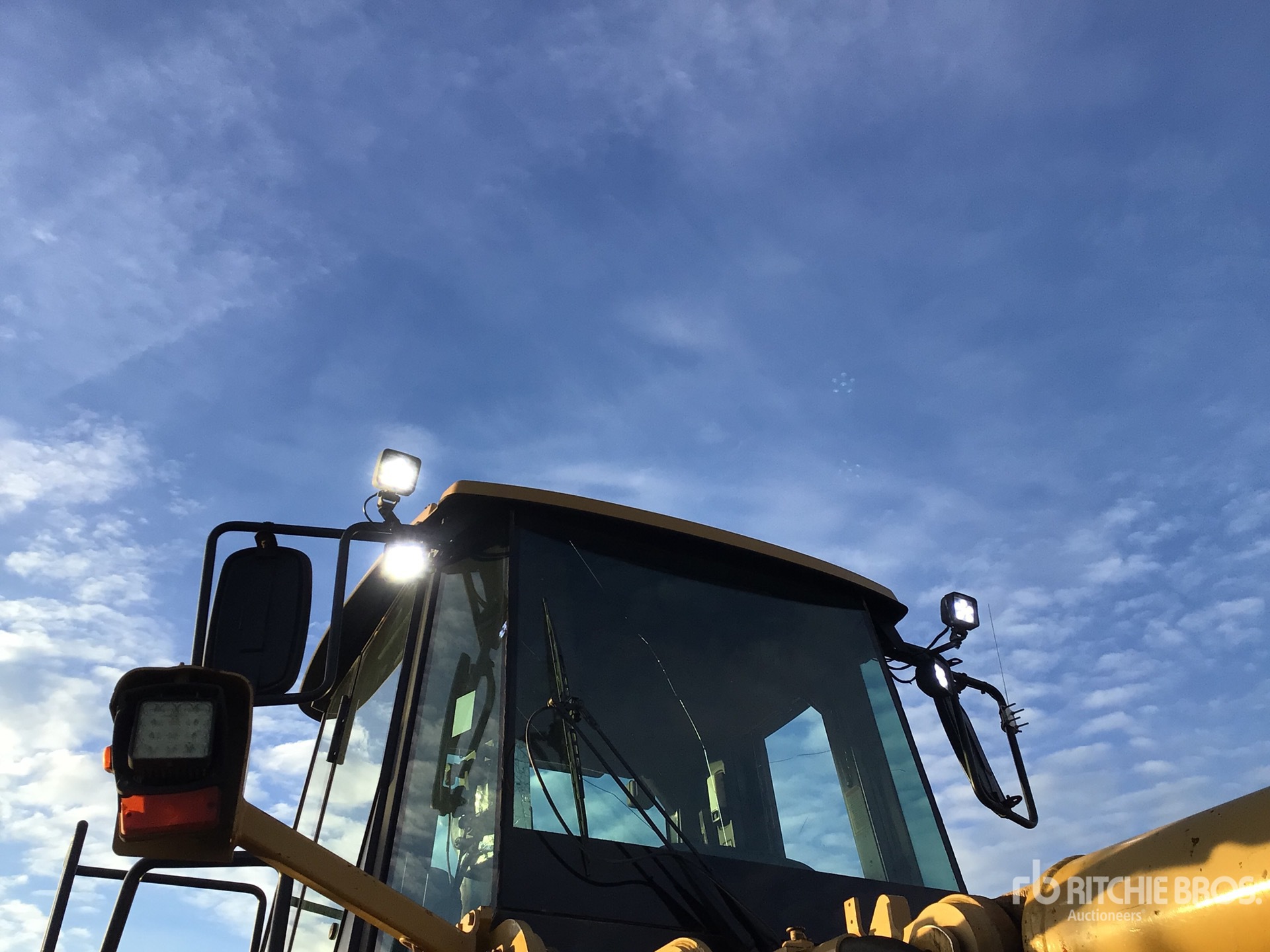

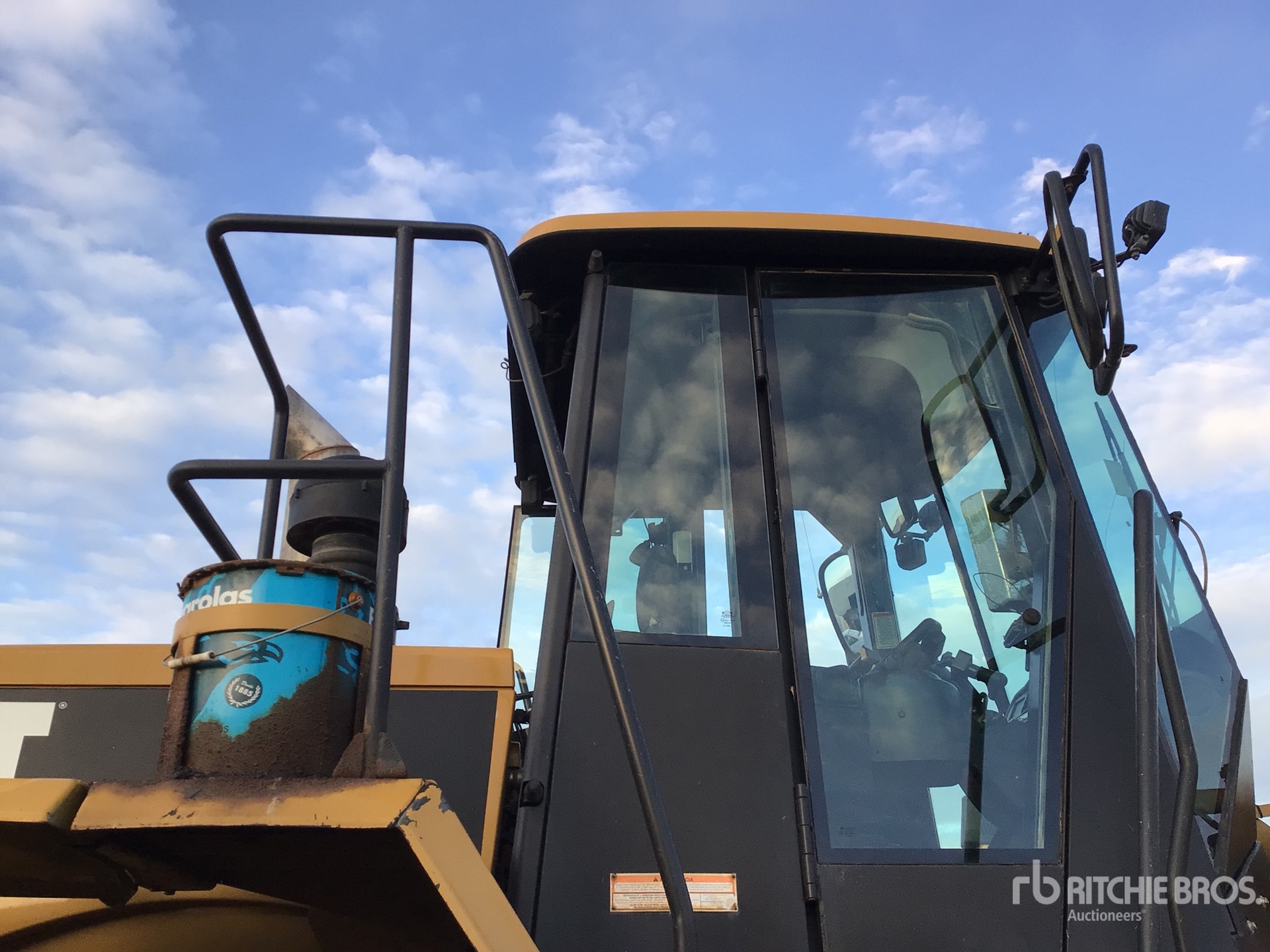

Enclosed Cab, Air Conditioner, Ride Control, Command Control Steering, On-Board Scale w/Printer, 2003 US EPA Label, 3200 mm Bucket, Fast Fuel System, 26.5-25 Tires, Emergency Steering, CE Marked. **COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE**, Closing Time: 2026-05-12 10:09:10 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar 966G is a versatile wheel loader designed for heavy-duty material handling and construction tasks. Featuring a robust engine and advanced hydraulic system, the 966G delivers reliable performance and efficient fuel consumption. Its durable frame and reinforced components ensure long service life in demanding environments. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and safety. Commonly used in mining, quarrying, and construction, the Caterpillar 966G wheel loader excels in loading, lifting, and transporting materials such as soil, gravel, and debris. This model supports various attachments, increasing its adaptability across multiple applications.
Axles
Front Fixed
Maximum Single-Wheel Rise and Fall 20 in (50 cm)
Rear Trunnion
Bucket
Breakout Force 44,120 lbs (20,013 kg)
Bucket Capacity - heaped 4 cu yd (3 cu m)
Bucket Width 10 ft (3 m)
Dump Clearance at Max Raise 10 ft (3 m)
Maximum Bucket Capacity 5 cu yd (4 cu m)
Dimensions
Ground Clearance 2 ft (0 m)
Height - Top of Cab 12 ft (4 m)
Length with Bucket on Ground 29 ft (9 m)
Reach at Max Lift and Dump 4 ft (1 m)
Width Over Tires 10 ft (3 m)
Engine
Displacement 638 cu in (10,462 cu cm)
Engine Model Cat 3306 DITA
Flywheel Power 235 hp (175 kw)
Gross Power 235 hp (175 kw)
Maximum Flywheel Power 253 hp (189 kw)
Net Power 253 hp (189 kw)
Number of Cylinders 6
Power Measured @ 2,200 rpm
Hydraulic System
Dump Time 1 seconds
Hydraulic Cycle Time - Dump 1 seconds
Hydraulic Cycle Time - Lower, Empty, Float Down 2 seconds
Hydraulic Cycle Time - Raise 7 seconds
Hydraulic Cycle Time - Total 10 seconds
Lower Time 2 seconds
Raise Time 7 seconds
Operating Specifications
Breakout Force 44,120 lbs (20,013 kg)
Dump Clearance 10 ft (3 m)
Fuel Capacity 108 gal (410 l)
Hydraulic System Fluid Capacity 55 gal (207 l)
Operating Weight 50,155 lbs (22,750 kg)
Static Tipping Load - Full Turn 30,870 lbs (14,002 kg)
Static Tipping Weight 34,732 lbs (15,754 kg)
Service Refill Capacities
Cooling System 21 gal (80 l)
Crankcase 7 gal (28 l)
Differential - Final Drives - Front 17 gal (64 l)
Differential - Final Drives - Rear 17 gal (64 l)
Fuel Tank - Standard 108 gal (410 l)
Hydraulic Tank 37 gal (140 l)
Transmission 13 gal (50 l)
Transmission
Forward - 1 5 mph (7 kph)
Forward - 2 8 mph (13 kph)
Forward - 3 14 mph (22 kph)
Forward - 4 23 mph (37 kph)
Max Speed - Forward 23 mph (37 kph)
Max Speed - Reverse 26 mph (42 kph)
Number of Forward Gears 4
Number of Reverse Gears 4
Reverse - 1 5 mph (8 kph)
Reverse - 2 9 mph (14 kph)
Reverse - 3 15 mph (25 kph)
Reverse - 4 26 mph (42 kph)
Travel Speed 23 mph (37 kph)
Weights
Operating Weight 50,410 lbs (22,866 kg)
