2011 Caterpillar 966K For Sale in Grand Prairie, TX

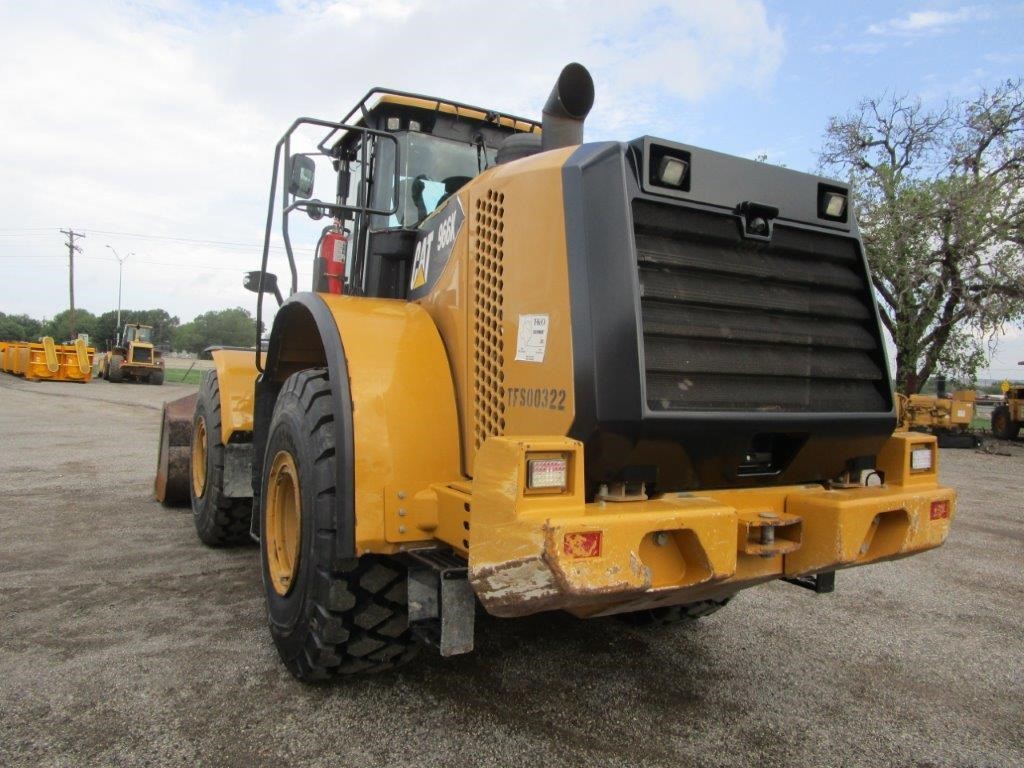

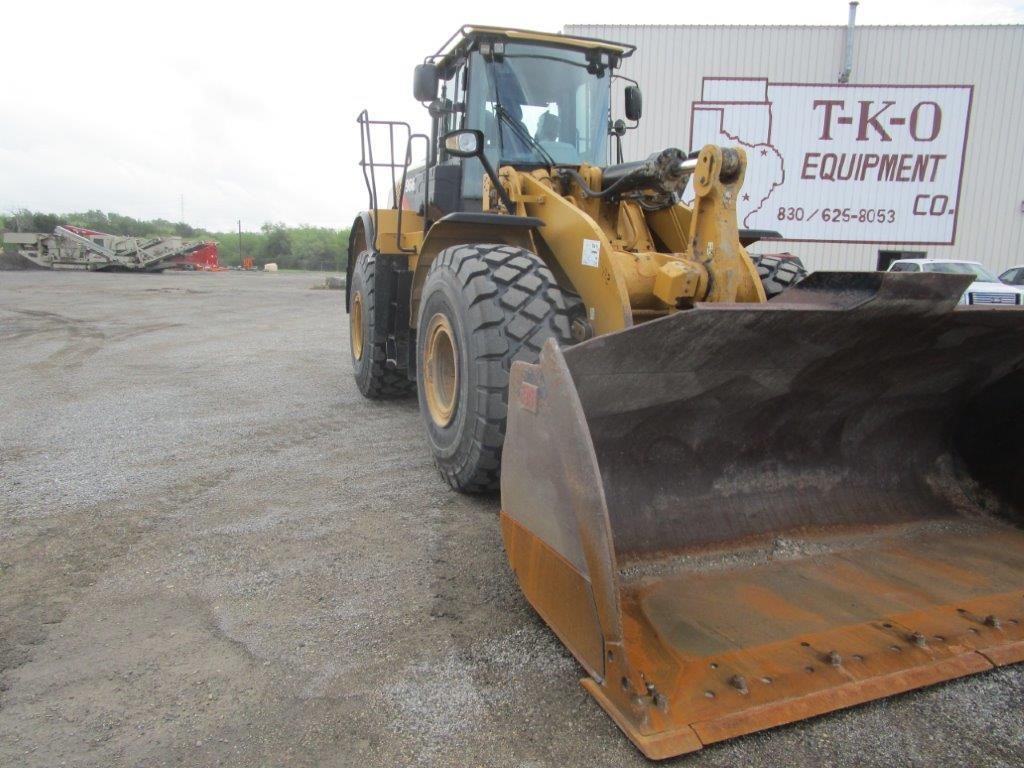

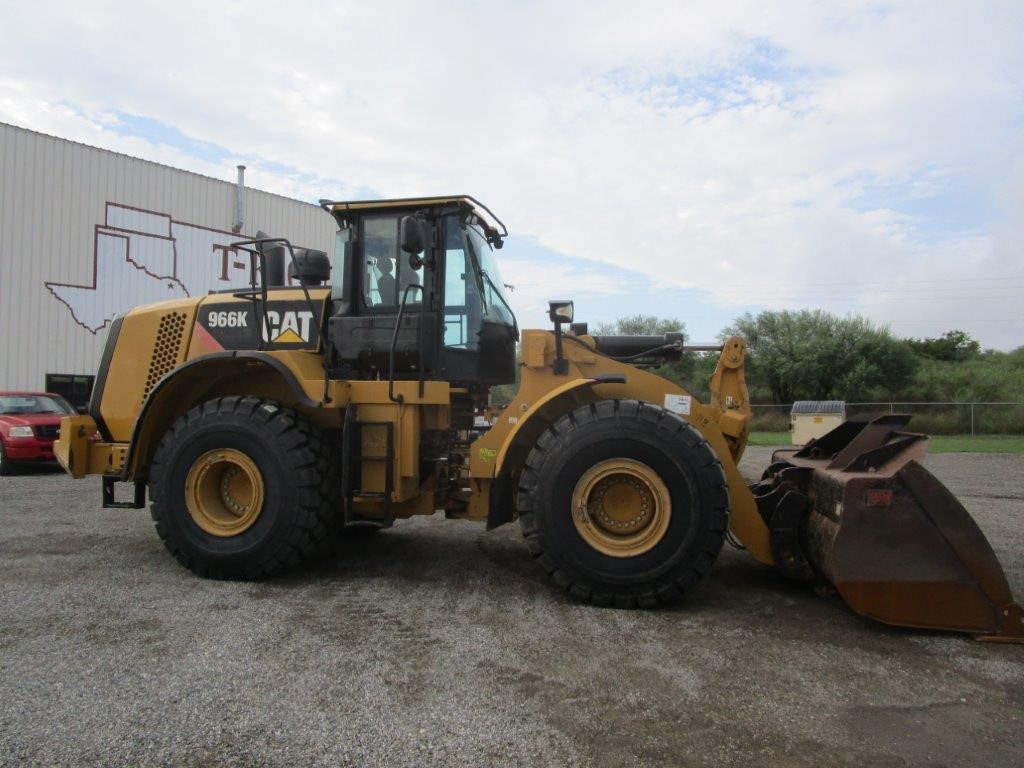

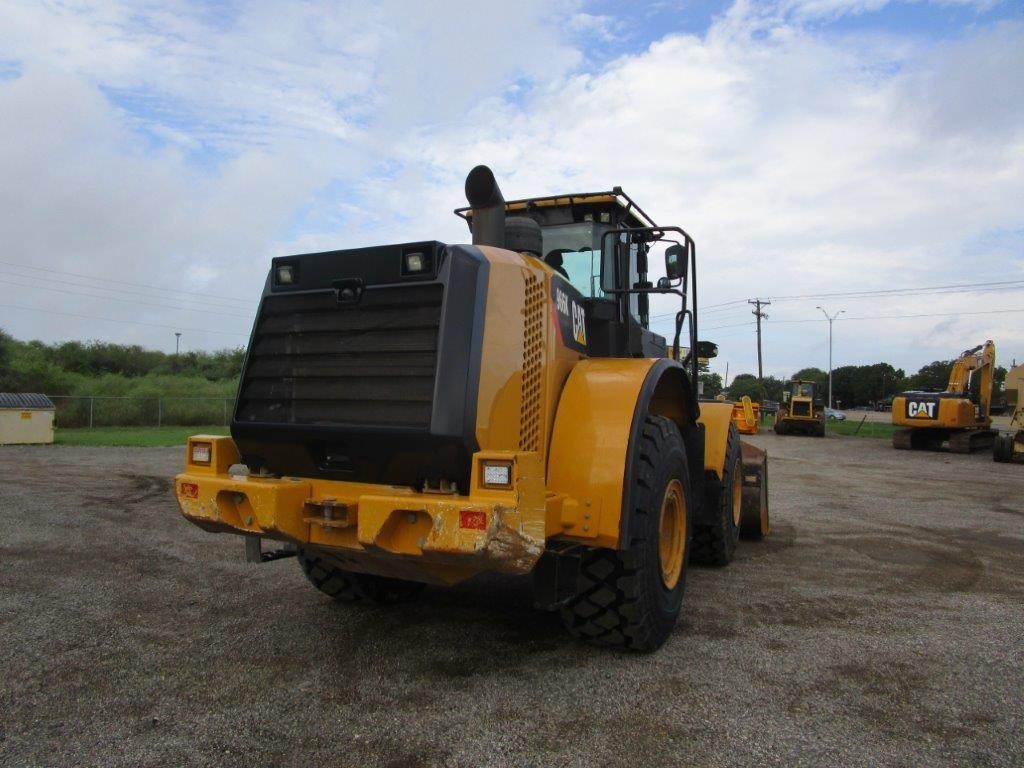

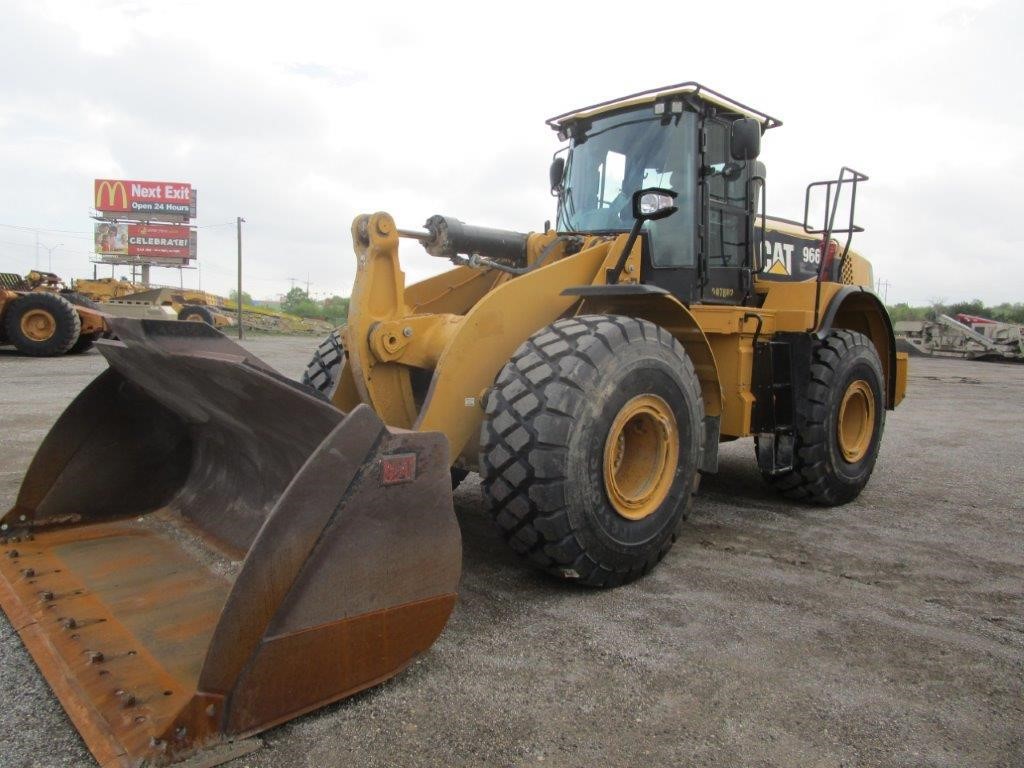

Name: 2011 Caterpillar 966K
Brand: Caterpillar
SKU: 87653530
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Call for Price

T-K-O Equipment Co.

T-K-O Equipment Co. Dealer Info

T-K-O Equipment Co. Website

Click here to email T-K-O Equipment Co..

Click for Phone Number

Machine Info:

Serial Number:	TFS322
Machine Location:	GRAND PRAIRIE, TX

Description:

GP Bucket, QC, Ride Control, Interim Tier IV Engine, EROPS, A/C, Heater, 26.5Rx25 Tires **Forks Available At Additional Cost

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 966K is a wheel loader designed for material handling, stockpiling, truck loading, and general earthmoving applications. It is part of Caterpillar's K Series and is commonly used in construction, quarry, aggregate, and industrial sites. The 966K features a diesel engine, articulated steering, hydraulic lift and tilt systems, and a front-mounted loader bucket for efficient loading and transport of bulk materials. It is built for productivity, operator visibility, and service access. The 966K is typically configured with a range of bucket and tire options to suit site conditions, material type, and production requirements.

Axles
Front	Fixed
Maximum Single-Wheel Rise and Fall	20 in (50 cm)
Rear	Oscillating ?13 degrees
Brakes
Brakes	Meet OSHA SAE J1473 OCT90 and ISO 3450-1985 required standards
Bucket
Bucket Capacities	12 cu yd (9 cu m)
Cab
ROPS/FOPS	Meets SAE and ISO standards
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	12 ft (4 m)
Length with Bucket on Ground	29 ft (9 m)
Wheelbase	11 ft (3 m)
Width Over Tires	10 ft (3 m)
Engine
Aspiration	TURBOCHARGED
Bore	5 in (11 cm)
Displacement	568 cu in (9,308 cu cm)
Engine Model	Cat C9.3 ACERT
Gross Power	286 hp (213 kw)
Maximum Net Power - 1,800 rpm - EEC 80/1269	267 hp (199 kw)
Maximum Net Power - 1,800 rpm - EEC 80/1269 - Metric	271 hp (202 kw)
Net Power	262 hp (195 kw)
Net Power - ISO 9249	267 hp (199 kw)
Number of Cylinders	6
Peak Net Torque - 1,400 rpm - SAE J1349	940 lbs ft (1,274 nm)
Power Measured @	1,800 rpm
Stroke	6 in (15 cm)
Torque Measured @	1,400 rpm
Torque Rise	38%
Hydraulic System
Dump Time	2 seconds
Hydraulic Cycle Time - Dump, at Maximum Raise	2 seconds
Hydraulic Cycle Time - Lower, Empty, Float Down	2 seconds
Hydraulic Cycle Time - Raise from Carry Position	6 seconds
Hydraulic Cycle Time - Total	10 seconds
Implement System - Maximum Operating Pressure	4,496 psi
Implement System - Optional 3rd Function Maximum Flow	79 gpm (300 lpm)
Implement System - Optional 3rd Function Maximum Pressure	3,000 psi
Lower Time	2 seconds
Pump Flow Capacity	81 gpm (305 lpm)
Pump Type	PISTON
Raise Time	6 seconds
Relief Valve Setting	1,000 psi
Steering System - Pump Type	Piston
Operating Specifications
Alternator Supplied Amperage	80 amps
Breakout Force	38,984 lbs (17,683 kg)
Cooling System Fluid Capacity	10 gal (39 l)
Engine Oil Fluid Capacity	9 gal (35 l)
Front Axle/Diff Fluid Capacity	17 gal (64 l)
Fuel Capacity	100 gal (380 l)
Hydraulic System Fluid Capacity	29 gal (110 l)
Operating Voltage	24 volts
Operating Weight	52,254 lbs (23,702 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	17 gal (64 l)
Static Tipping Weight	38,354 lbs (17,397 kg)
Tire Size	25
Transmission Fluid Capacity	12 gal (44 l)
Turning Radius	24 ft (7 m)
Service Refill Capacities
Cooling System	17 gal (65 l)
Crankcase	7 gal (25 l)
Differential - Final Drives - Front	17 gal (64 l)
Differential - Final Drives - Rear	17 gal (64 l)
Fuel Tank - Standard	101 gal (382 l)
Hydraulic Tank	52 gal (198 l)
Transmission	13 gal (50 l)
Sound
Standards	Standards
Tires
Tires	Choices
Transmission
Forward - 1	4 mph (7 kph)
Forward - 2	8 mph (13 kph)
Forward - 3	14 mph (22 kph)
Forward - 4	23 mph (37 kph)
Max Speed - Forward	23 mph (37 kph)
Max Speed - Reverse	23 mph (37 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Reverse - 1	5 mph (8 kph)
Reverse - 2	9 mph (14 kph)
Reverse - 3	15 mph (24 kph)
Reverse - 4	24 mph (38 kph)
Transmission Type	POWERSHIFT
Weights
Operating Weight	53,311 lbs (24,181 kg)
