Equipment ↠ Caterpillar ↠ Wheel Loaders ↠ 1996 Caterpillar 988F II

1996 Caterpillar 988F II For Sale in Scott Depot, WV

Name: 1996 Caterpillar 988F II
Brand: Caterpillar
SKU: 87653574
Price: 70000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $70,000.00 USD

Apply for Financing

Matson Machinery

Matson Machinery Dealer Info

Click here to email Matson Machinery.

Click for Phone Number

Machine Info:

Serial Number:	2ZR00212
Machine Location:	SCOTT DEPOT, WV

Description:

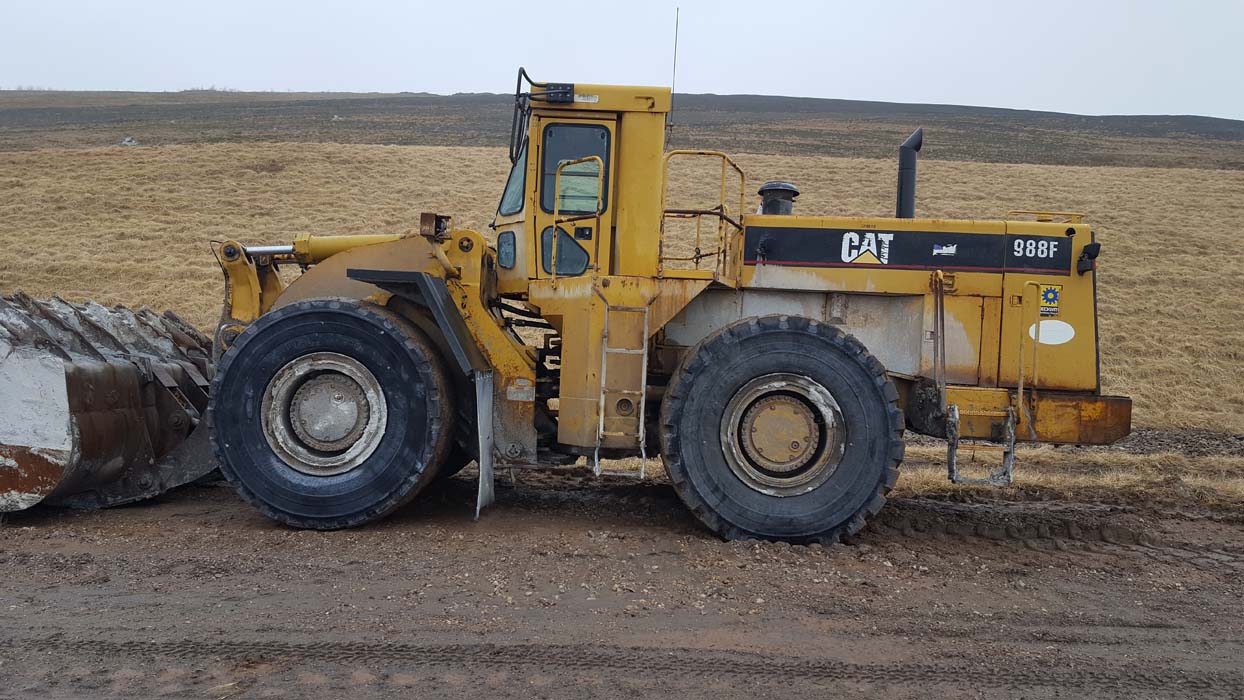

spade nose bucket w teeth, EROPS, fair appearance, runs well, 11000 hours on engine

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	82,282 lbs (37,323 kg)
Bucket Capacity - heaped	7 cu yd (5 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Bucket Width	12 ft (4 m)
Dump Clearance at Max Raise	11 ft (3 m)
Maximum Bucket Capacity	9 cu yd (7 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	14 ft (4 m)
Length with Bucket on Ground	36 ft (11 m)
Reach at Max Lift and Dump	5 ft (2 m)
Width Over Tires	12 ft (4 m)
Engine
Displacement	1,099 cu in (18,001 cu cm)
Engine Model	Cat 3408E
Gross Power	675 hp (503 kw)
Hydraulic Cycle Times
Raise	8 seconds
Hydraulic System
Dump Time	3 seconds
Lower Time	4 seconds
Raise Time	8 seconds
Operating Specifications
Breakout Force	129,661 lbs (58,813 kg)
Dump Clearance	14 ft (4 m)
Fuel Capacity	174 gal (659 l)
Hydraulic System Fluid Capacity	78 gal (295 l)
Operating Weight	100,703 lbs (45,678 kg)
Static Tipping Load - Full Turn	80,432 lbs (36,483 kg)
Static Tipping Weight	67,889 lbs (30,794 kg)
Service Refill Capacities
Fuel Tank	252 gal (954 l)
Transmission
Max Speed - Forward	22 mph (35 kph)
Max Speed - Reverse	15 mph (24 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
