2007 Caterpillar 988H For Sale in Maltby, Gbr

Name: 2007 Caterpillar 988H
Brand: Caterpillar
SKU: 87660292
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	50285

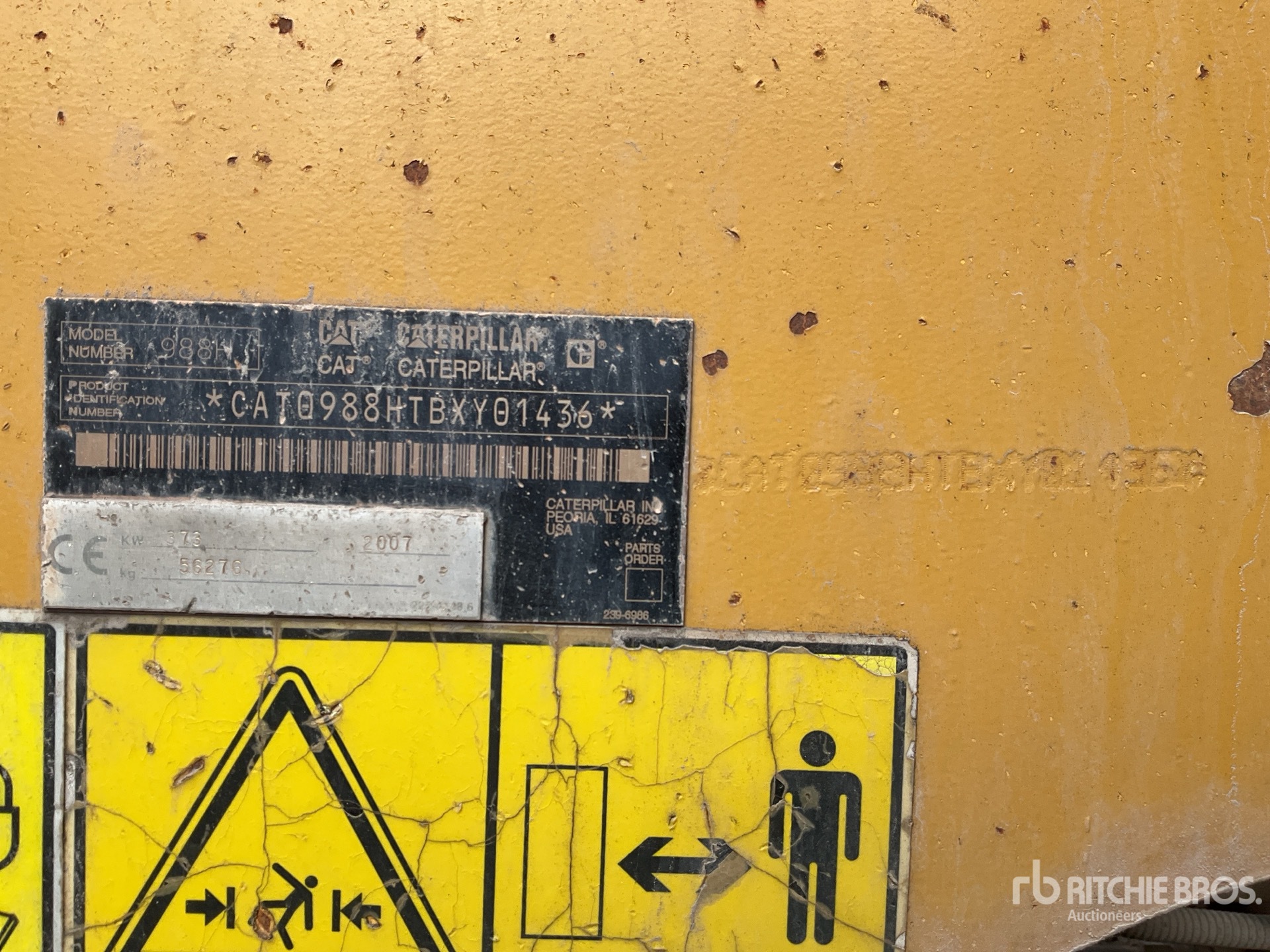

Serial Number:	BXY01436
Machine Location:	MALTBY, GBR

Description:

Closing Time: 2026-05-13 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 988H is a large wheel loader designed for high-production material handling in mining, quarry, aggregate, and heavy construction applications. Powered by a Caterpillar diesel engine and equipped with a robust powertrain, the 988H is built for loading trucks, stockpiling material, and moving bulk aggregates efficiently. It features a heavy-duty frame, articulated steering, and a large-capacity bucket option for demanding site conditions. The 988H is part of Caterpillar's 988 series of wheel loaders and is commonly used where durability, traction, and cycle performance are important. It remains a recognized model in the used heavy equipment market.

Axles
Front	Fixed
Maximum Single-Wheel Rise and Fall	22 in (57 cm)
Rear	Oscillating 13 degrees
Bucket
Breakout Force	85,068 lbs (38,586 kg)
Bucket Capacities	10 cu yd (8 cu m)
Bucket Capacity - heaped	8 cu yd (6 cu m)
Bucket Capacity - struck	7 cu yd (5 cu m)
Bucket Width	13 ft (4 m)
Maximum Bucket Capacity	10 cu yd (8 cu m)
Cab
Cab - ROPS/FOPS	Meets SAE and ISO standards
Sound Performance	Meets ANSI SAE and ISO standards
Dimensions
Height - Top of Cab	14 ft (4 m)
Height - Top of Exhaust	14 ft (4 m)
Hinge Pin - Max Height	19 ft (6 m)
Length with Bucket on Ground	40 ft (12 m)
Reach at Max Lift and Dump	7 ft (2 m)
Wheel Base Length	15 ft (5 m)
Wheelbase	15 ft (5 m)
Width Over Tires	12 ft (4 m)
Engine
Bore	6 in (14 cm)
Displacement	1,105 cu in (18,100 cu cm)
Engine Model	Cat C18 ACERT
Flywheel Power	501 hp (374 kw)
Gross Power	555 hp (414 kw)
Gross Power - ISO 3046-2	520 hp (388 kw)
Make	Cat
Net Power - EEC 80/1269	501 hp (374 kw)
Net Power - ISO 9249	501 hp (374 kw)
Number of Cylinders	6
Power Measured @	1,800 rpm
Stroke	7 in (18 cm)
Hydraulic Cycle Times
Dump	2 seconds
Raise	9 seconds
Total Hydraulic Cycle Time	16 seconds
Hydraulic System
Dump Time	2 seconds
Lower Time	4 seconds
Pump Flow Capacity	130 gpm (492 lpm)
Raise Time	9 seconds
Relief Valve Setting	4,500 psi
Loader Hydraulic System
Relief Valve Setting	5,075 psi
Relief Valve Setting - Low Idle	348 psi
Operating Specifications
Alternator Supplied Amperage	100 amps
Cooling System Fluid Capacity	27 gal (103 l)
Engine Oil Fluid Capacity	16 gal (60 l)
Front Axle/Diff Fluid Capacity	49 gal (185 l)
Fuel Capacity	188 gal (712 l)
Hinge Pin Height, Unloaded	16 ft (5 m)
Hydraulic System Fluid Capacity	71 gal (267 l)
Operating Voltage	24 volts
Rated Payload	27,558 lbs (12,500 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	49 gal (185 l)
Static Tipping Weight	76,776 lbs (34,825 kg)
Tire Size	35/65
Transmission Fluid Capacity	19 gal (70 l)
Turning Radius	28 ft (9 m)
Service Refill Capacities
Cooling System	27 gal (103 l)
Crankcase	16 gal (60 l)
Differential - Final Drives - Front	49 gal (185 l)
Differential - Final Drives - Rear	49 gal (185 l)
Fuel Tank	188 gal (712 l)
Hydraulic System - Tank Only	71 gal (267 l)
Hydraulic System Factory Fill	124 gal (470 l)
Transmission	19 gal (70 l)
Steering System
Steering	Meets SAE and ISO standards
Transmission
Converter Drive - Forward 1	4 mph (7 kph)
Converter Drive - Forward 2	7 mph (12 kph)
Converter Drive - Forward 3	13 mph (21 kph)
Converter Drive - Reverse 1	5 mph (8 kph)
Converter Drive - Reverse 2	8 mph (14 kph)
Converter Drive - Reverse 3	15 mph (24 kph)
Direct Drive - Forward 2	8 mph (12 kph)
Direct Drive - Forward 3	14 mph (22 kph)
Direct Drive - Forward 4	24 mph (39 kph)
Direct Drive - Reverse 1	5 mph (8 kph)
Direct Drive - Reverse 2	9 mph (14 kph)
Direct Drive - Reverse 3	16 mph (25 kph)
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	16 mph (25 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Weights
Operating Weight	128,328 lbs (58,209 kg)
