1997 Caterpillar 992G For Sale in Brooklyn, MS

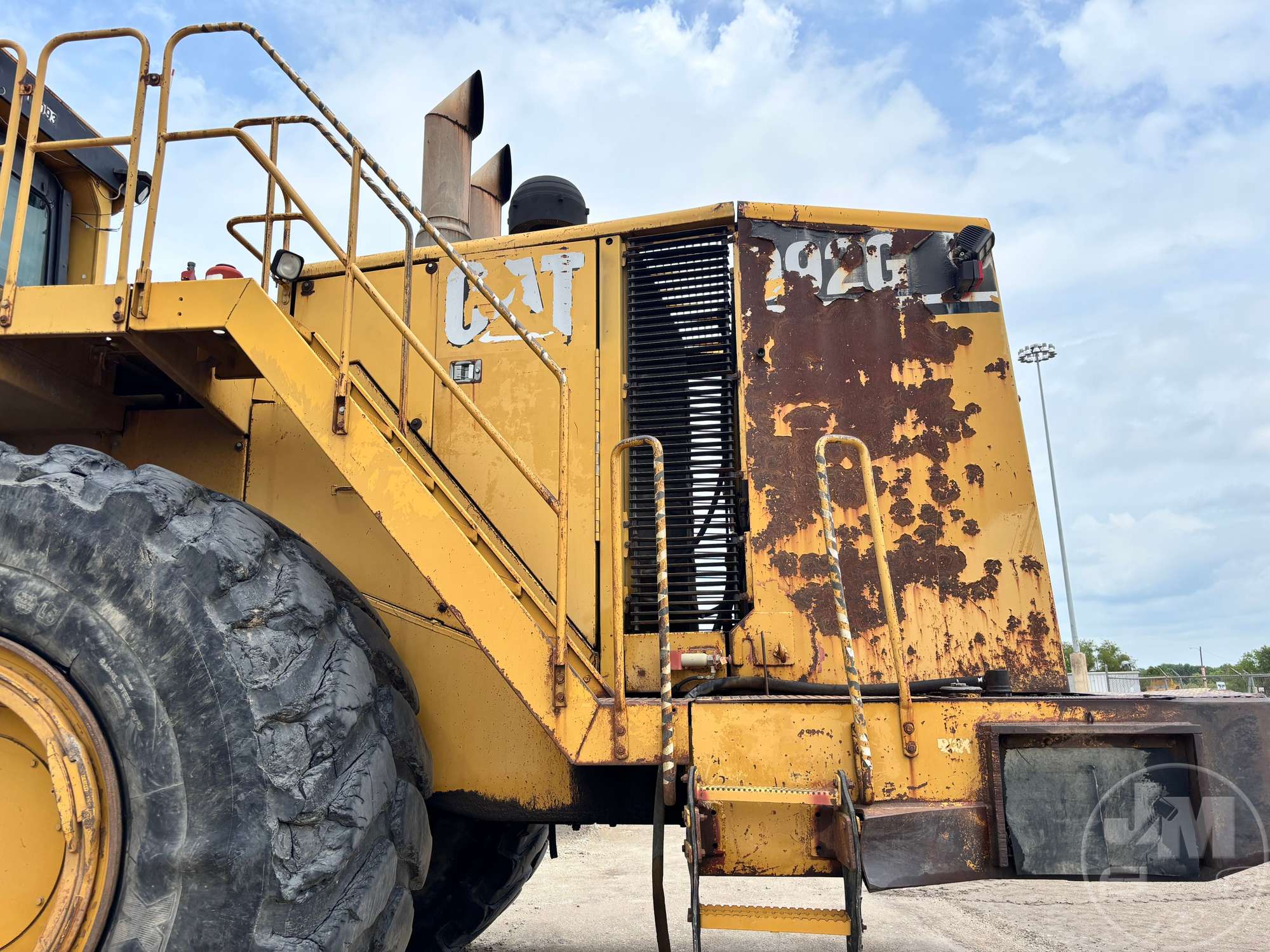

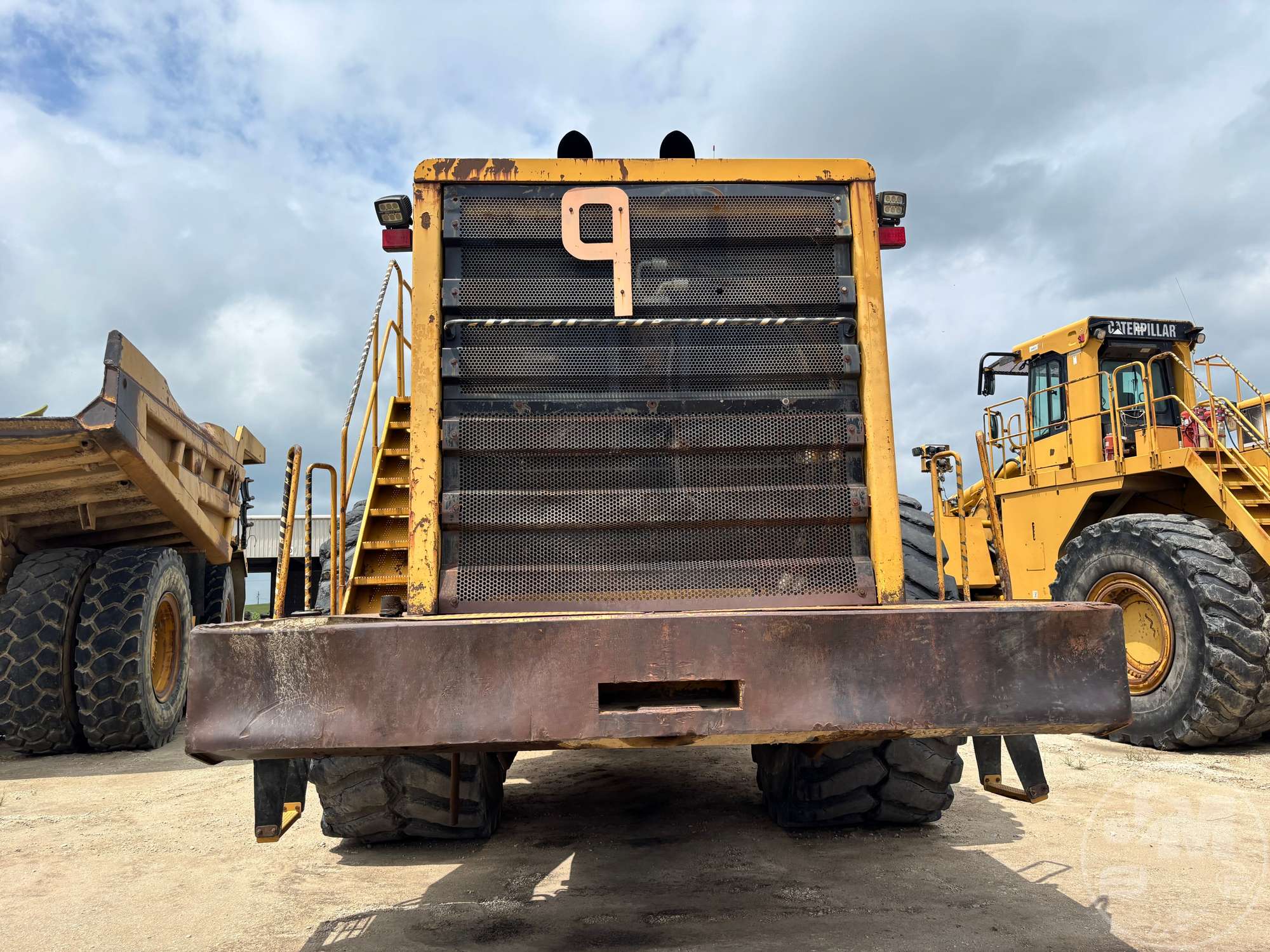

Name: 1997 Caterpillar 992G
Brand: Caterpillar
SKU: 87649788
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

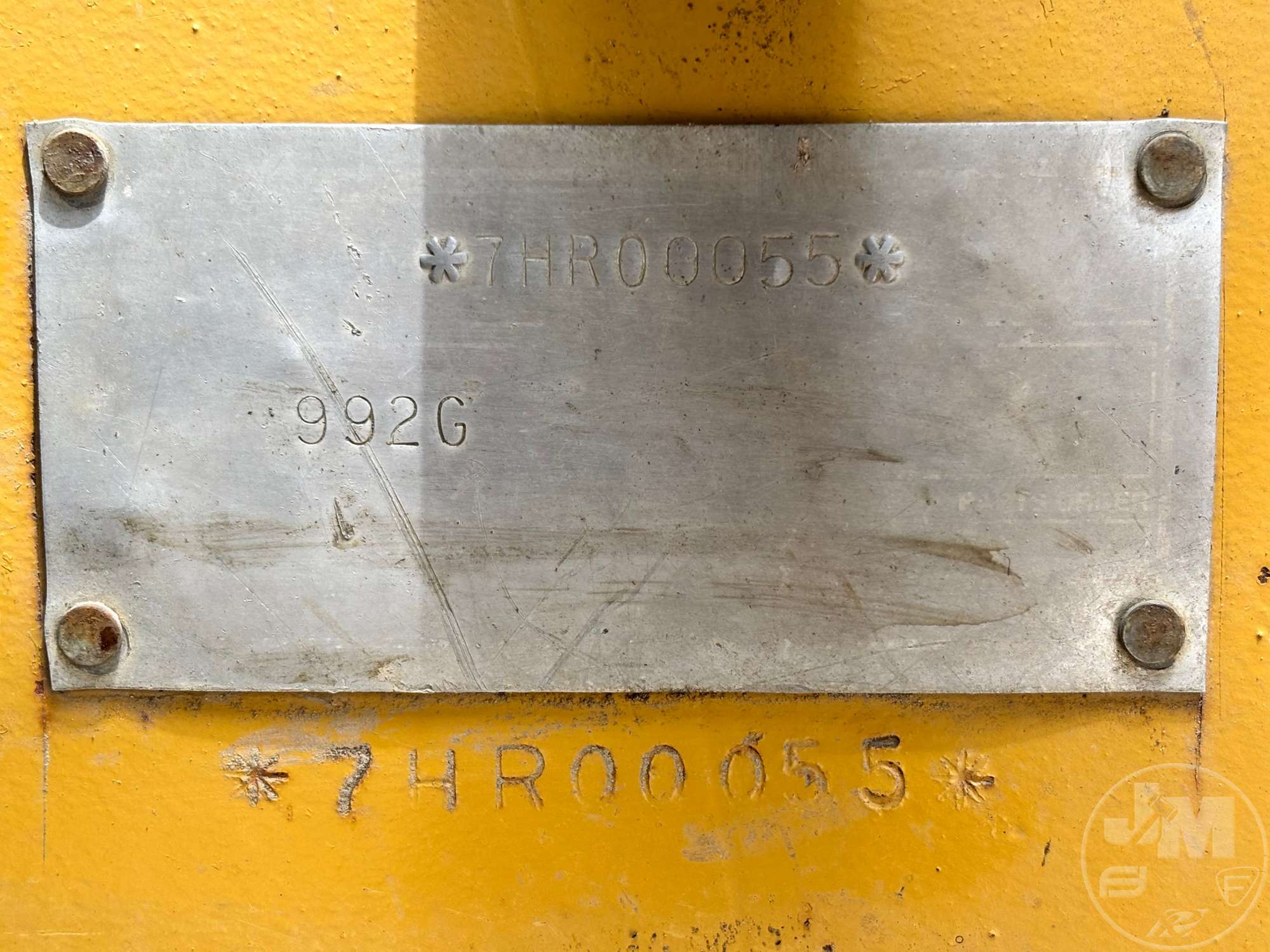

Serial Number:	7HR00055
Machine Location:	BROOKLYN, MS
More Information:	https://www.jeffmartinauctioneers.com/auctions/1223/lot/323970-1997-CAT-992G-WHEEL-LOADER-SN%3A-7HR00055

Description:

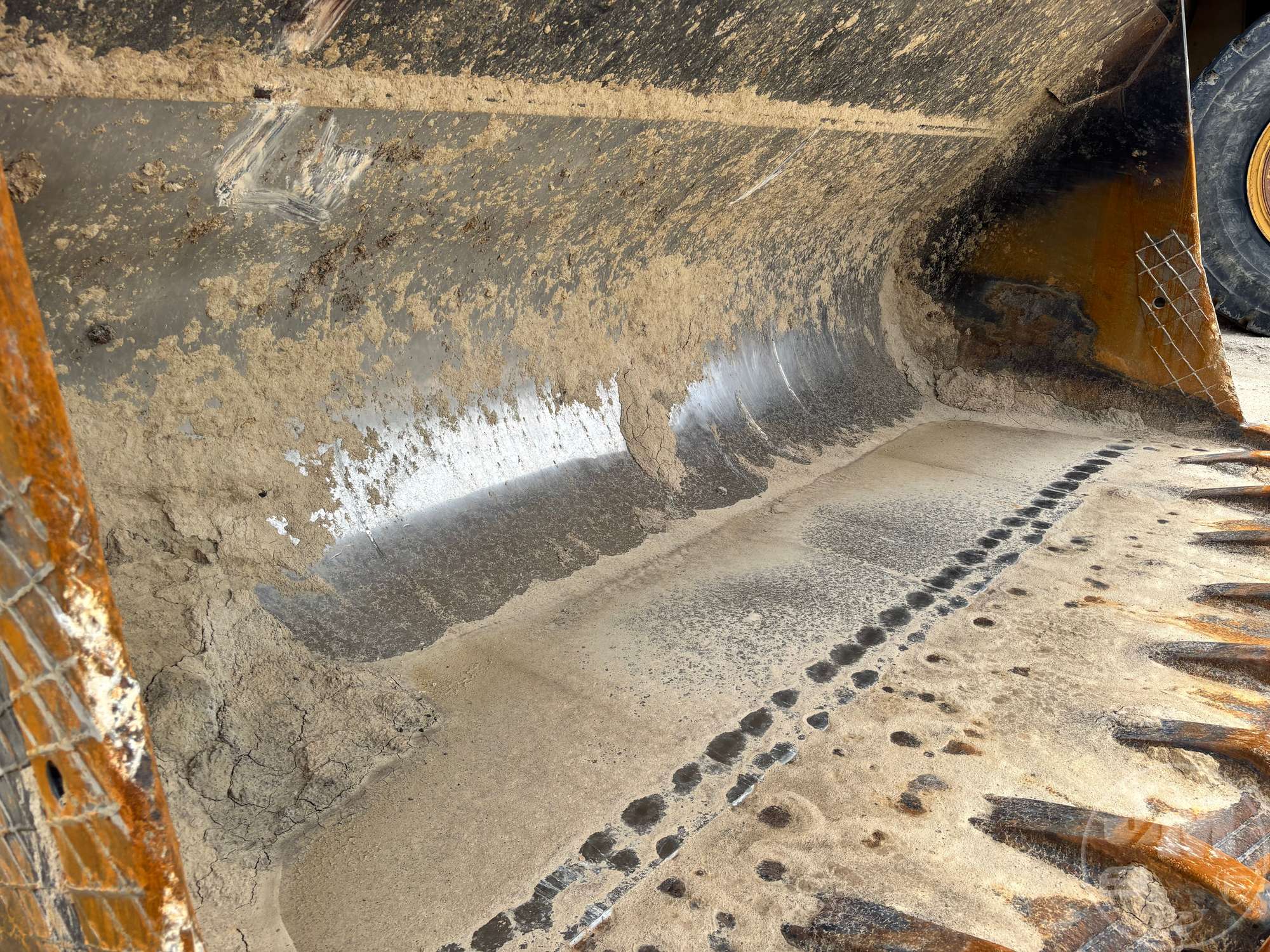

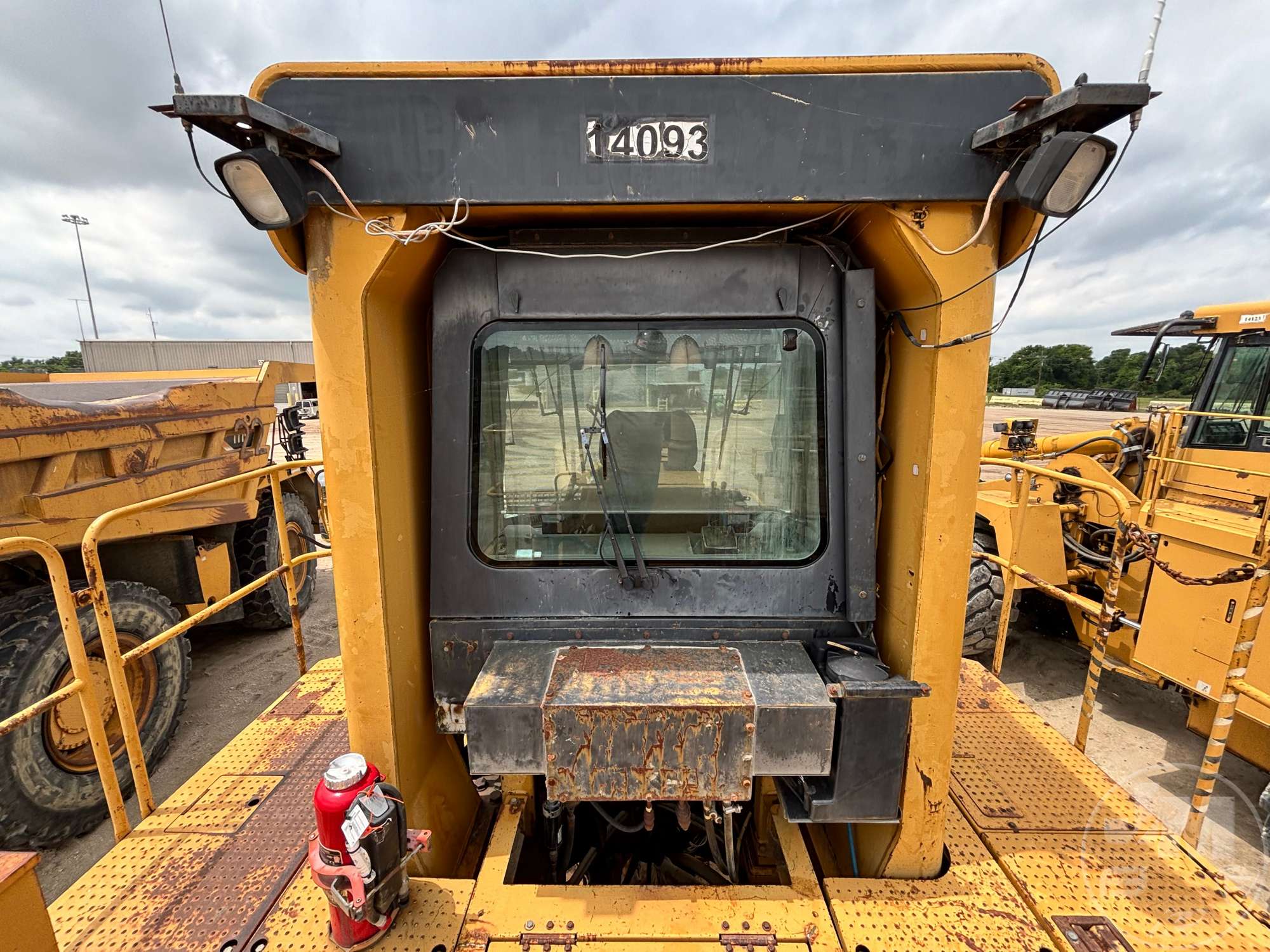

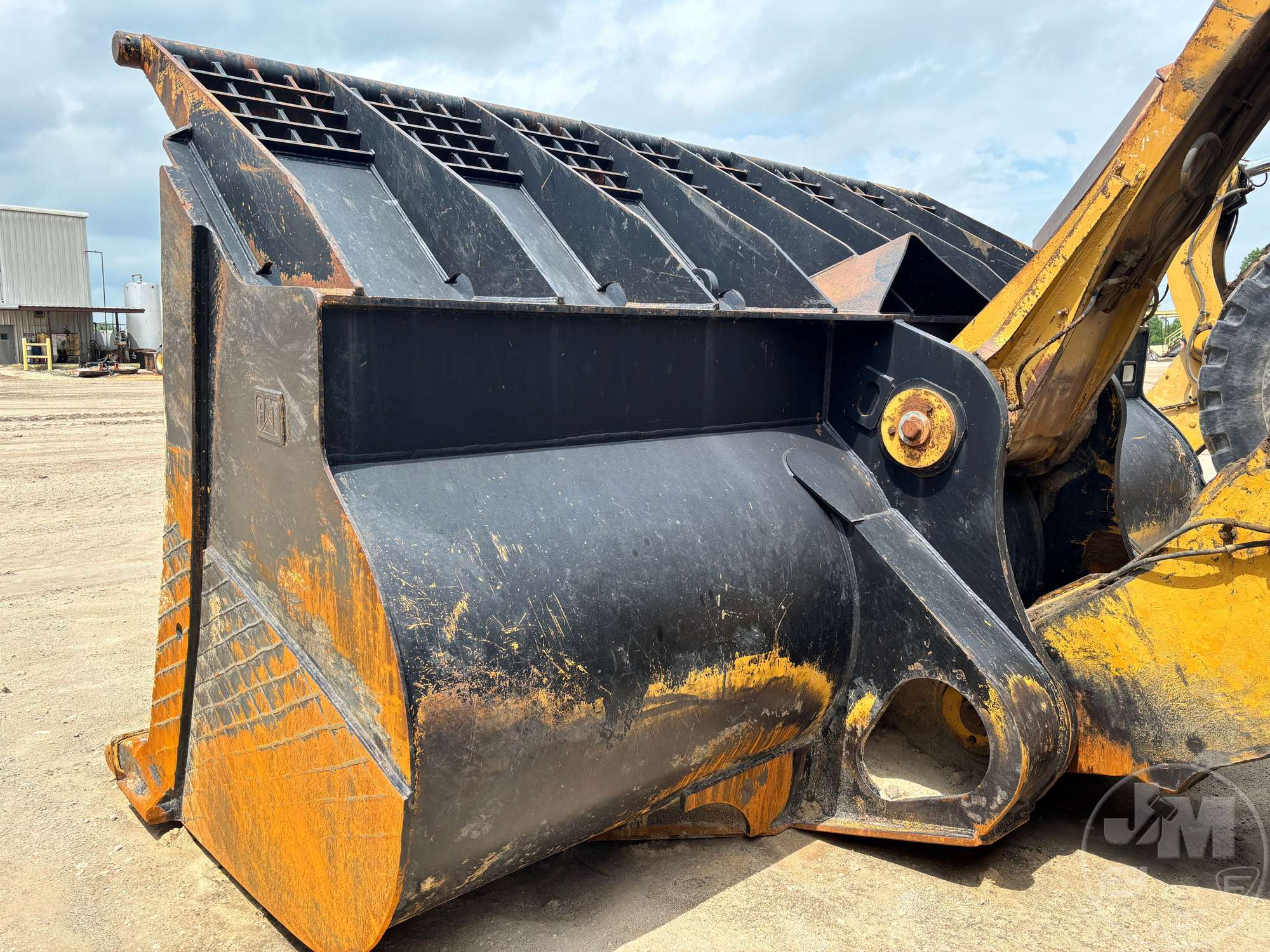

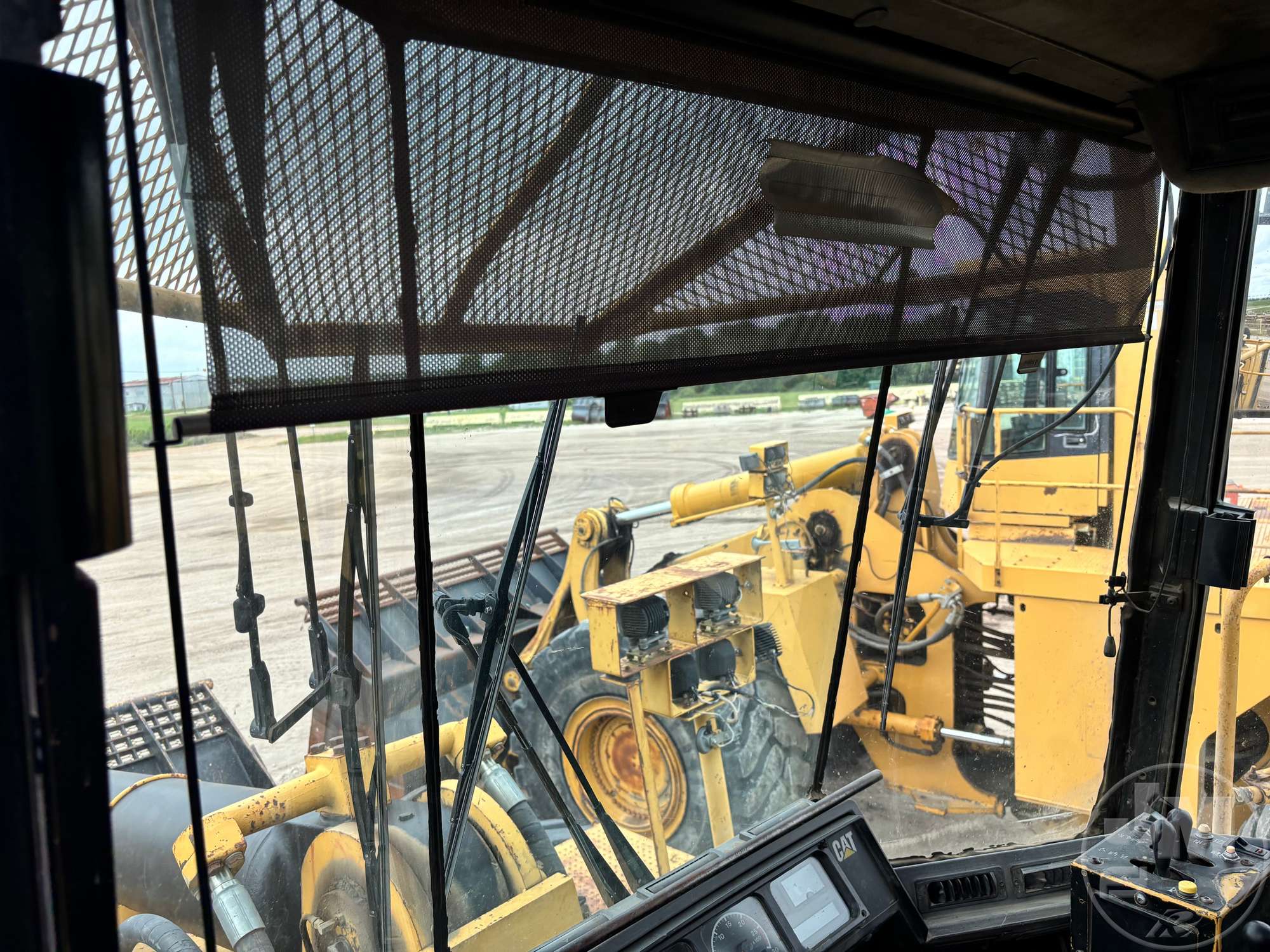

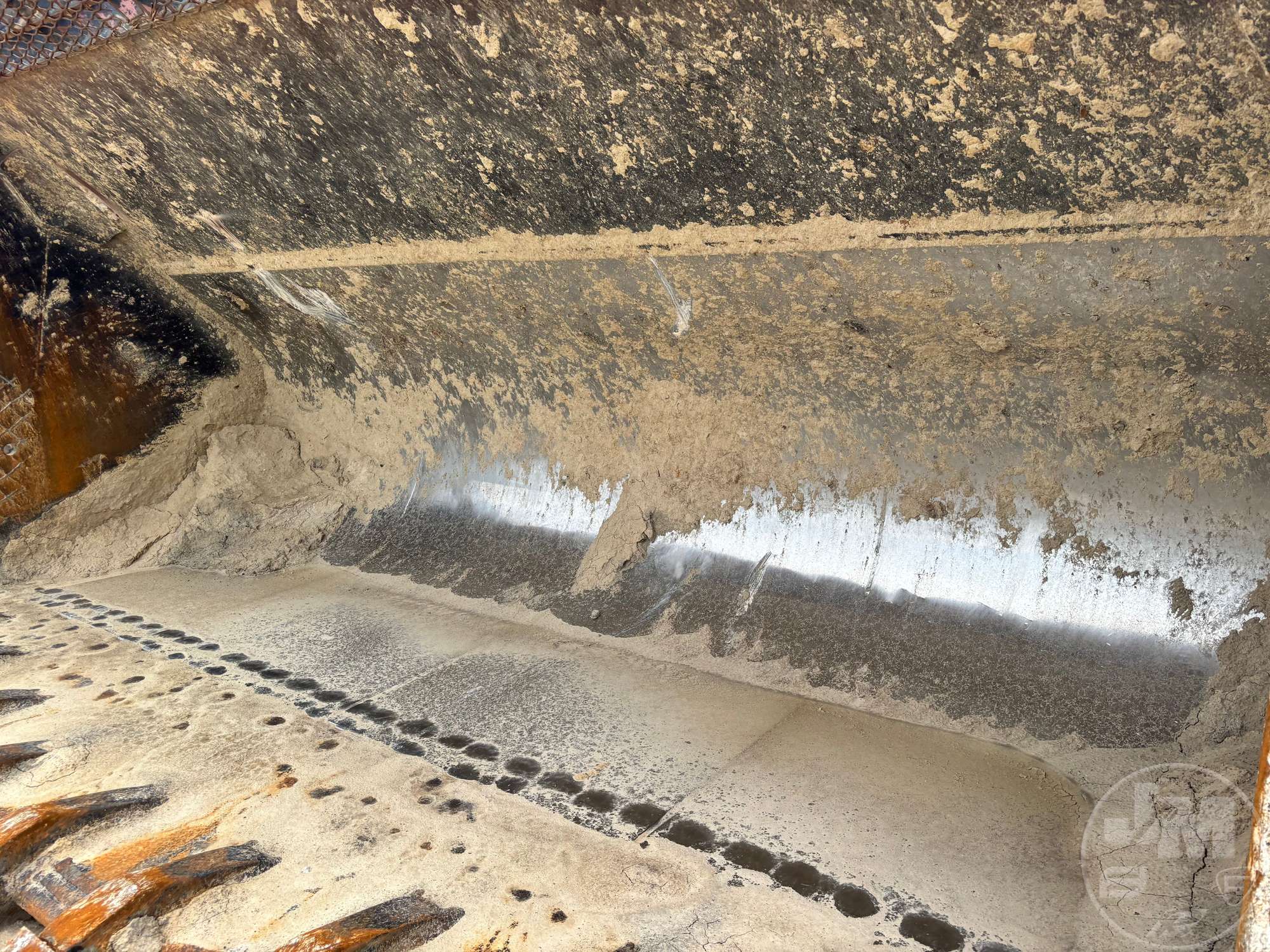

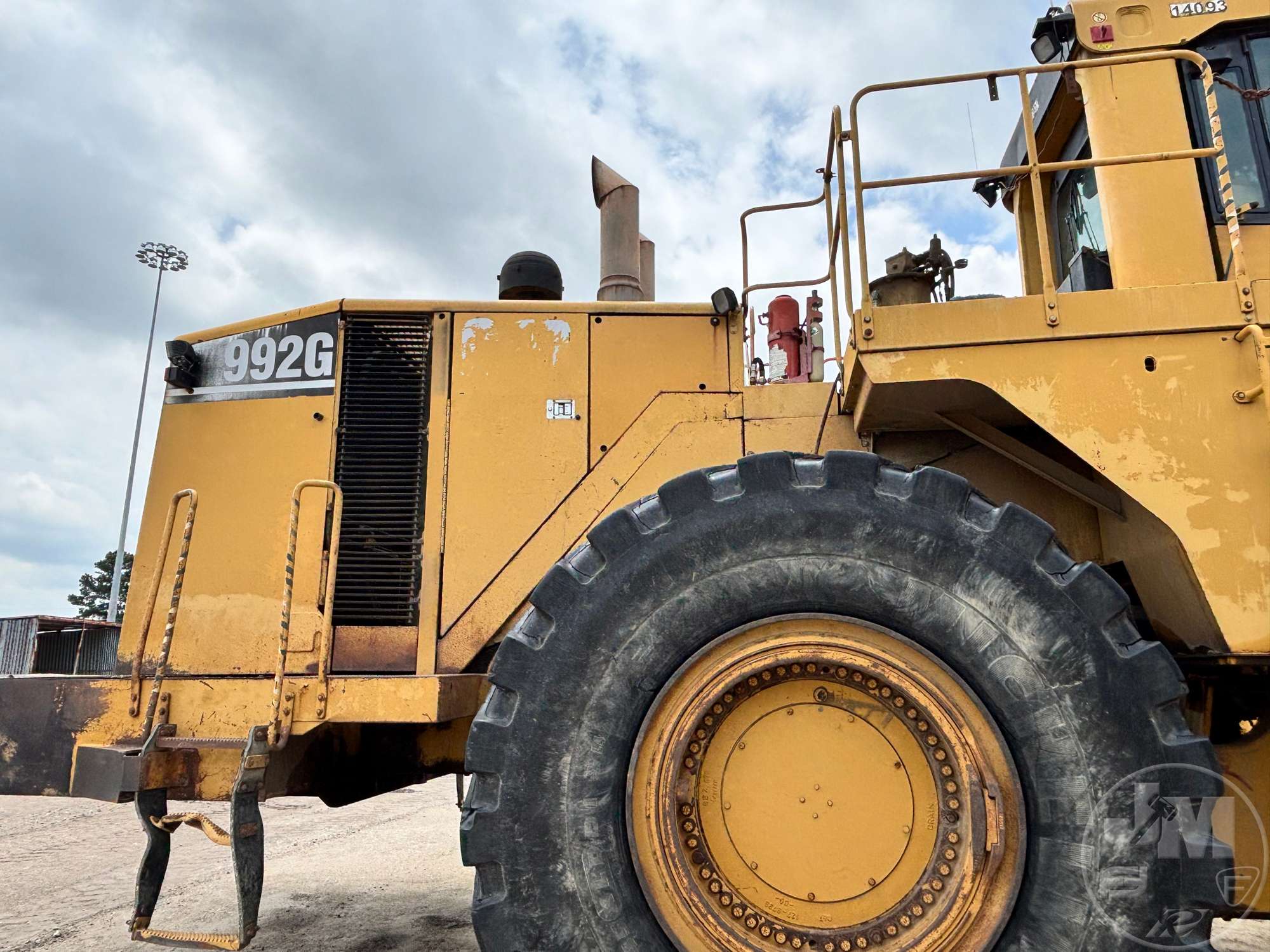

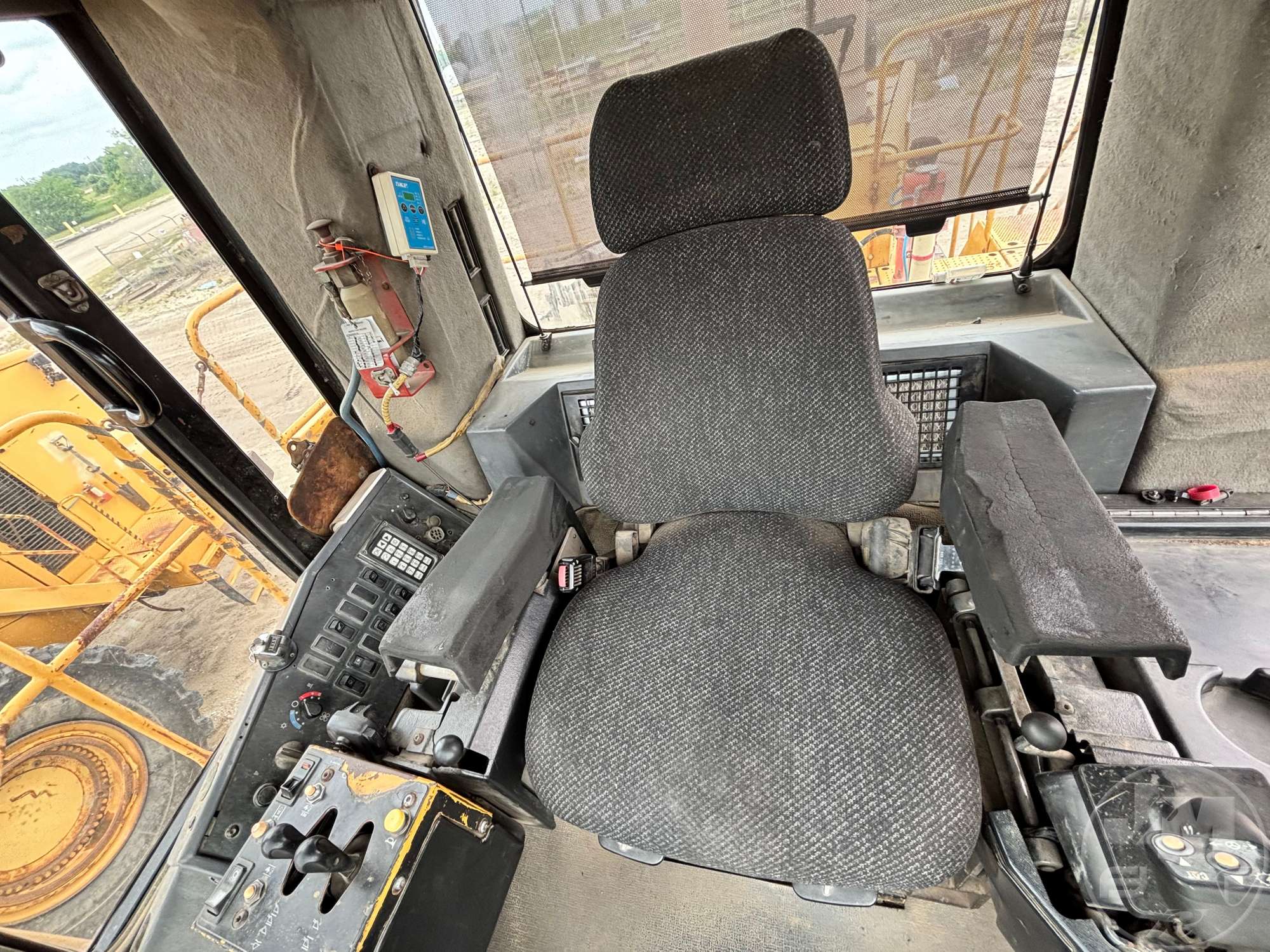

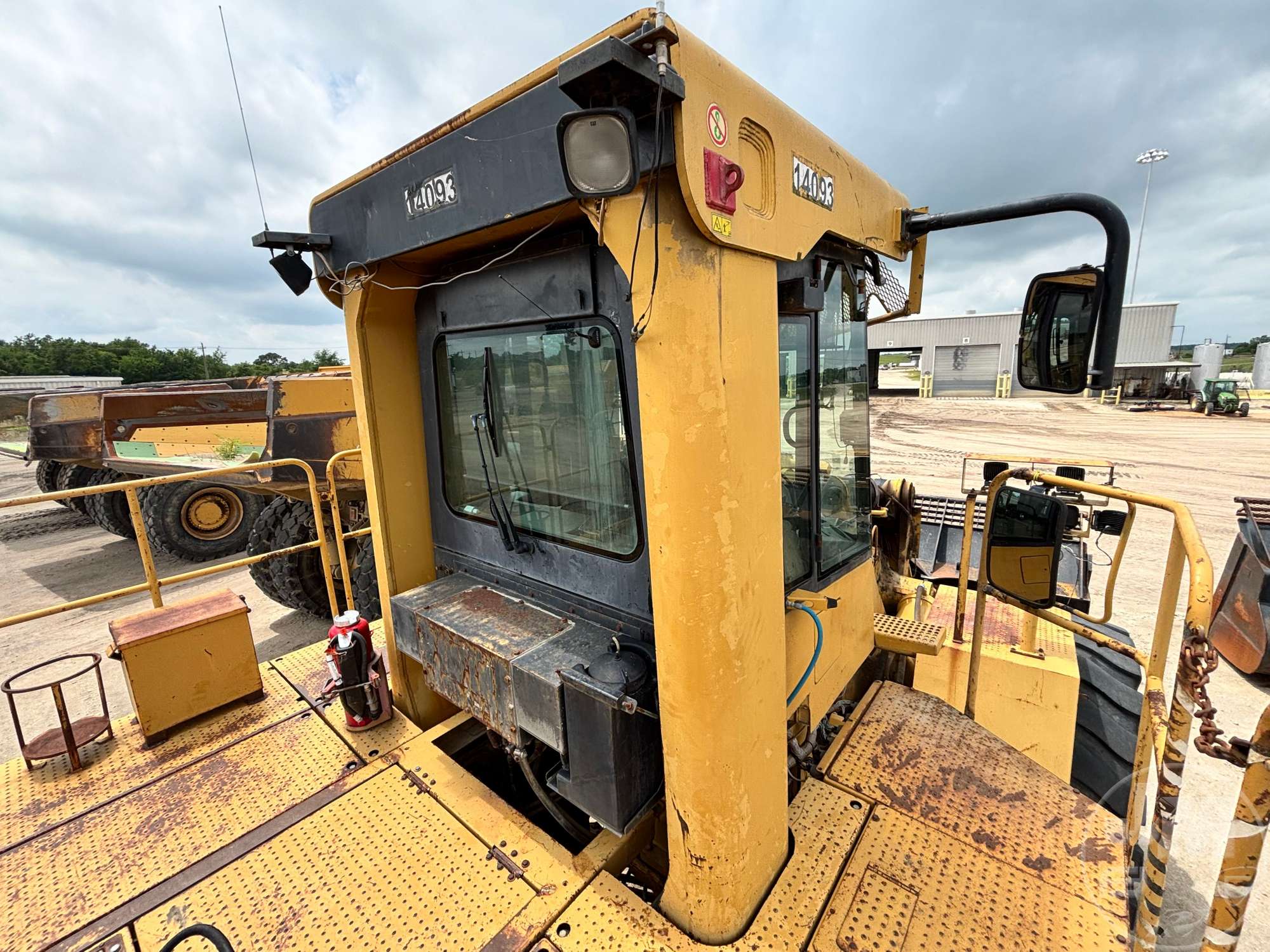

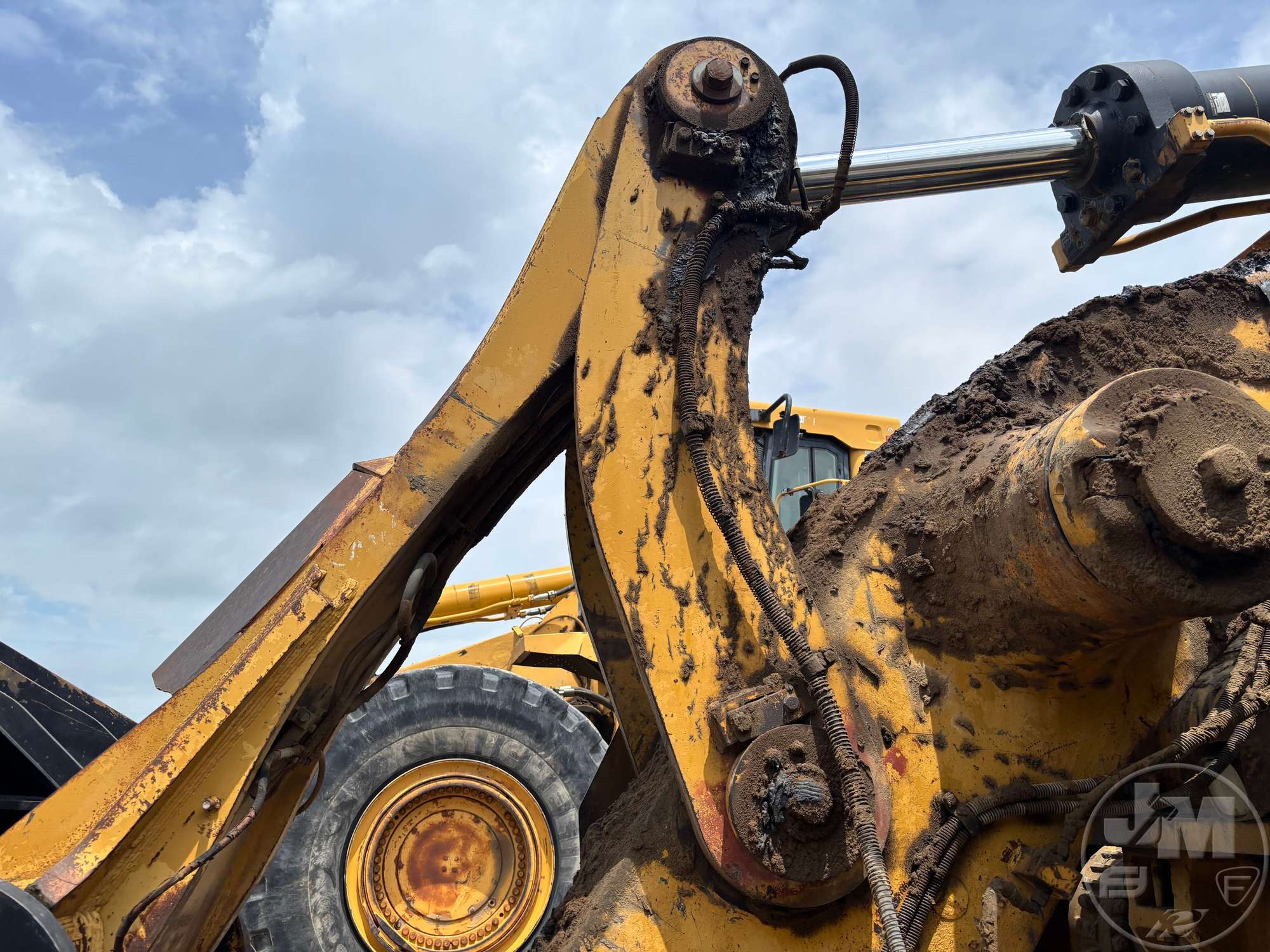

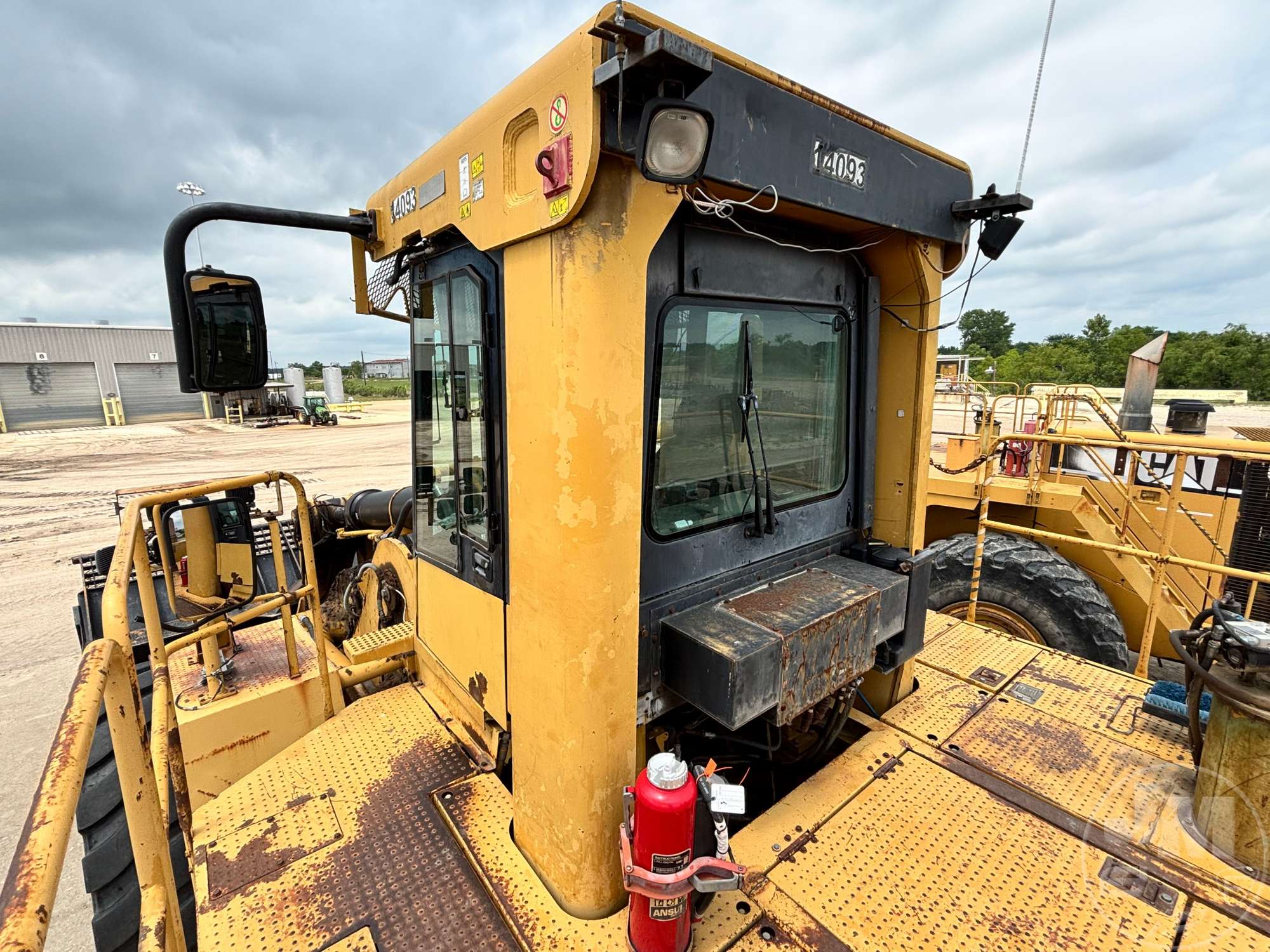

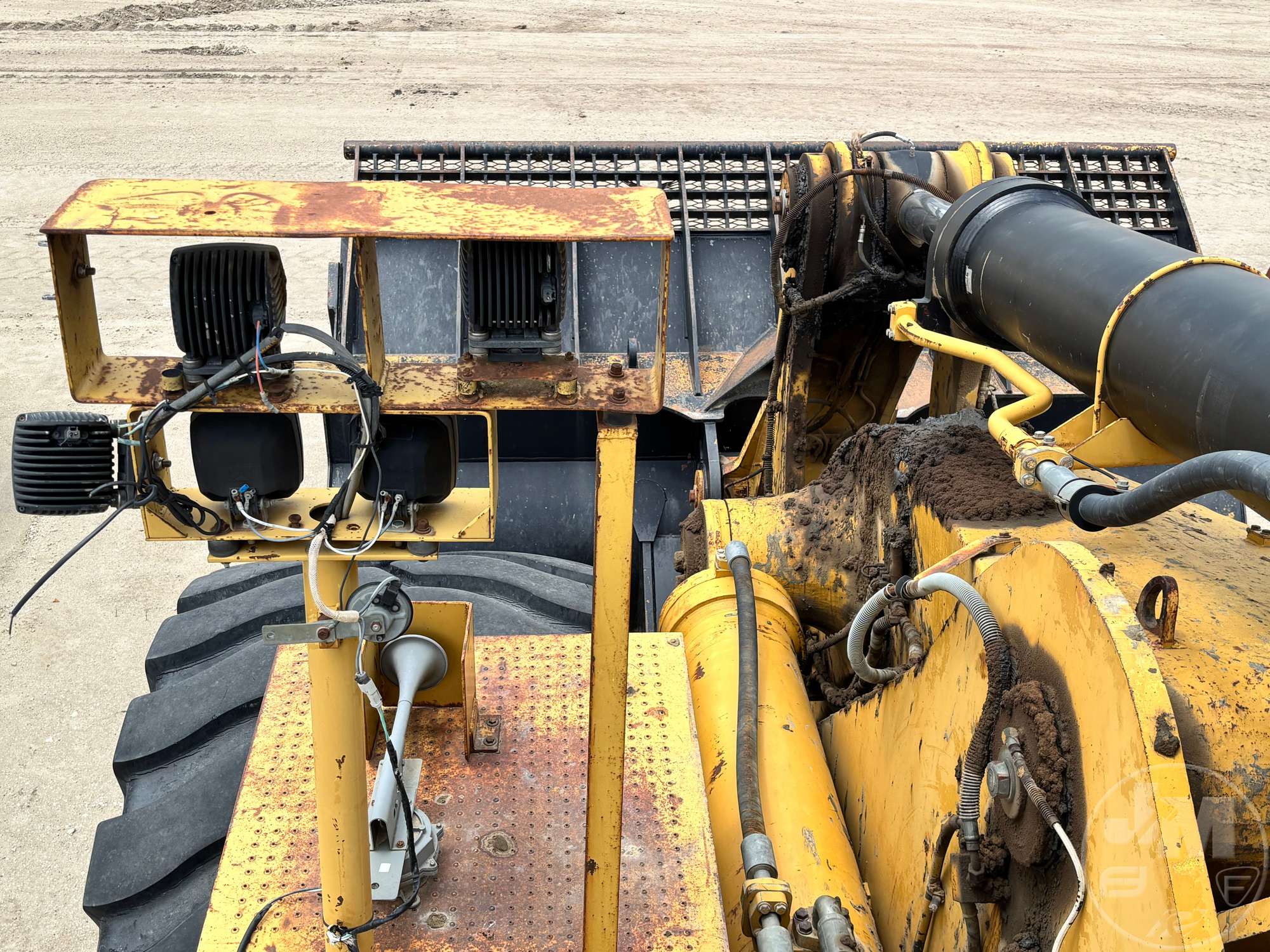

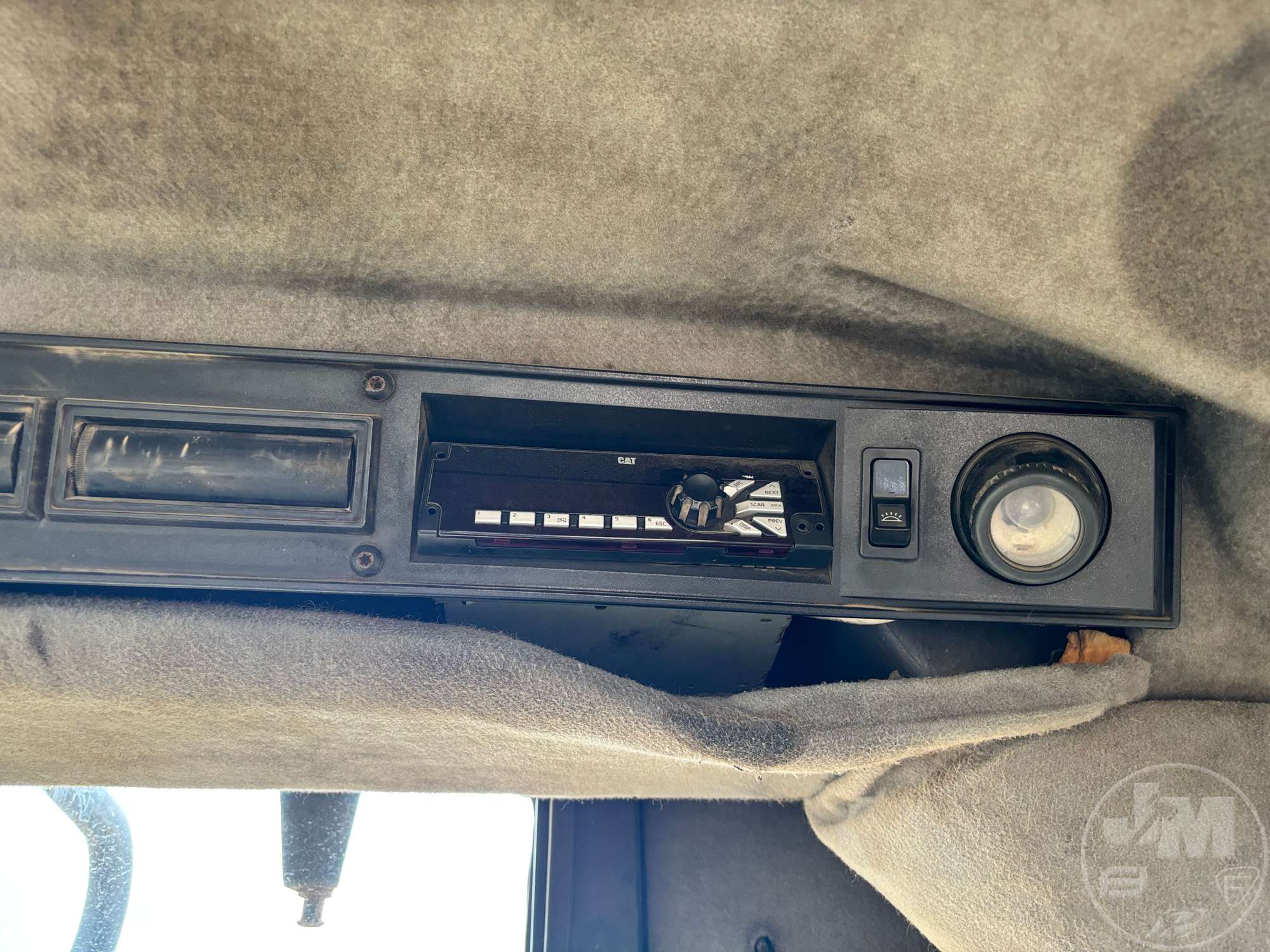

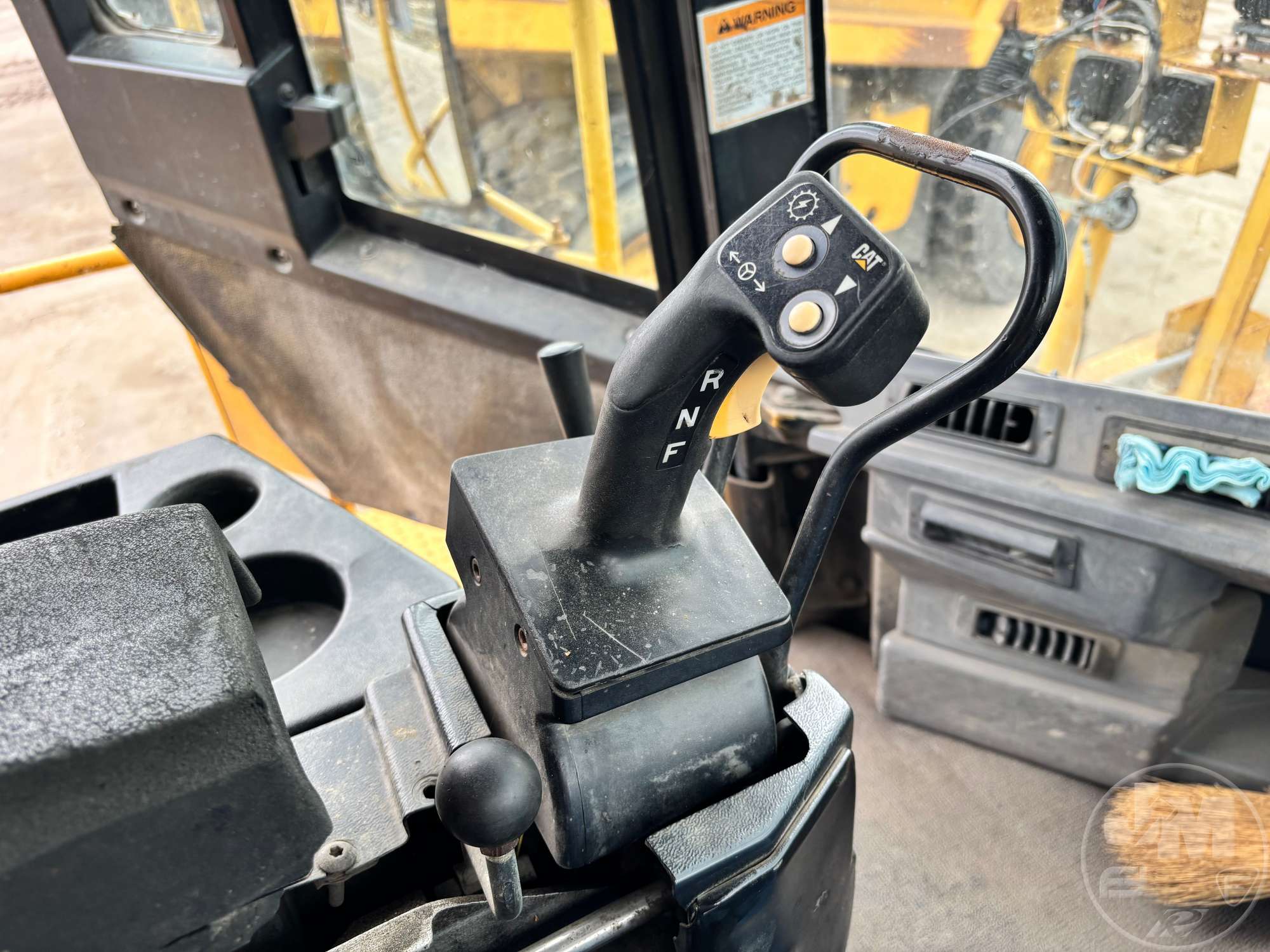

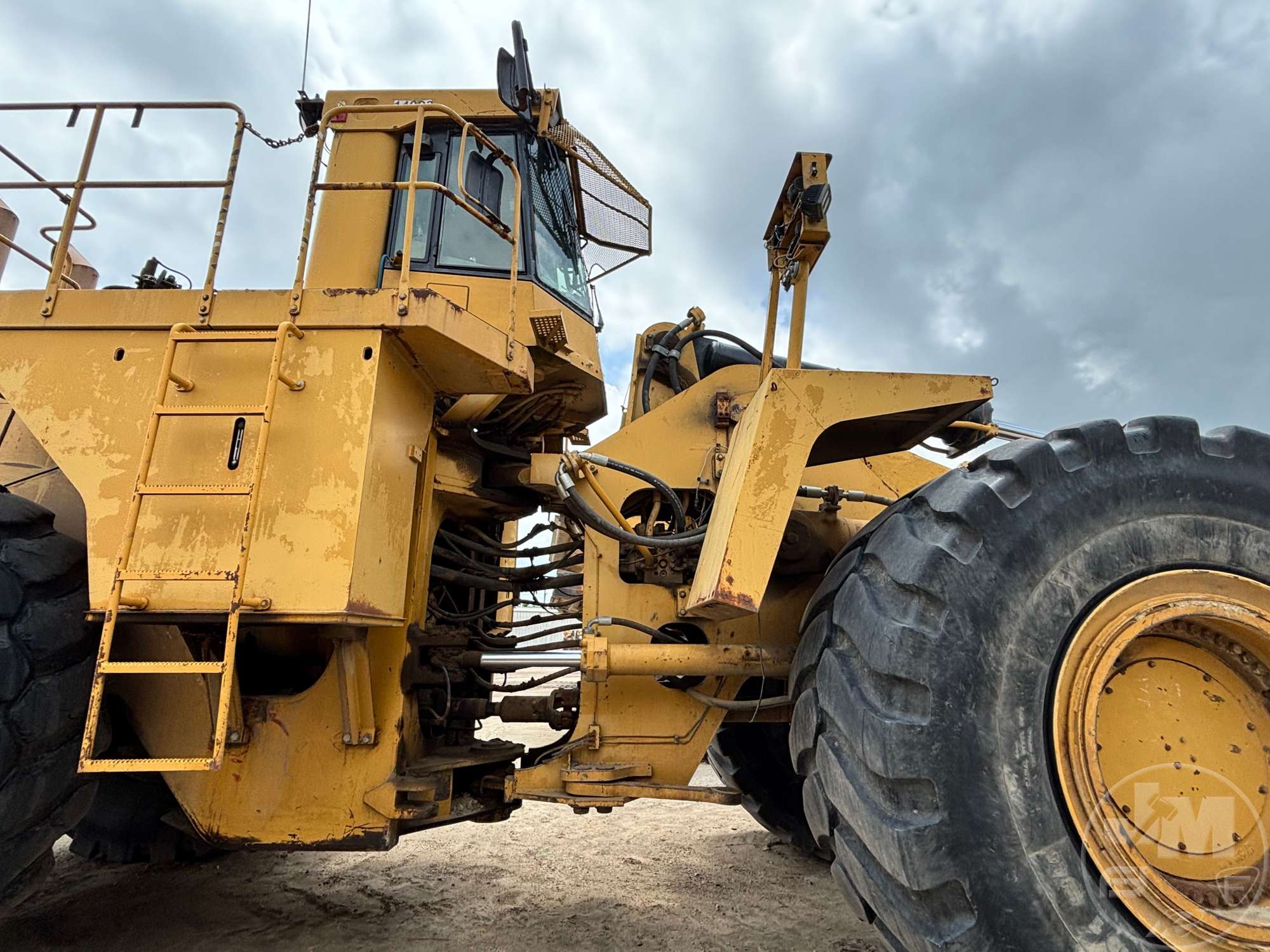

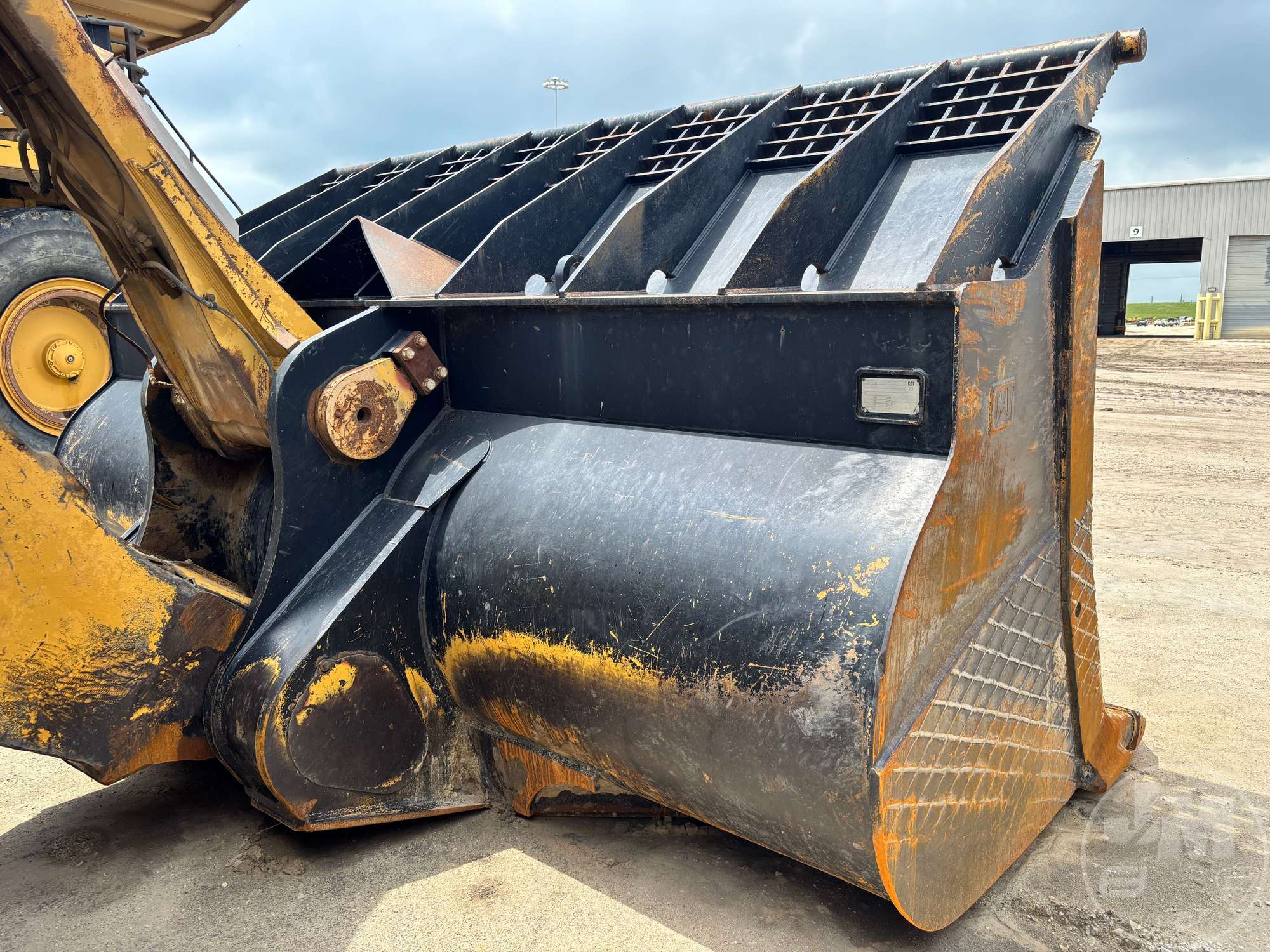

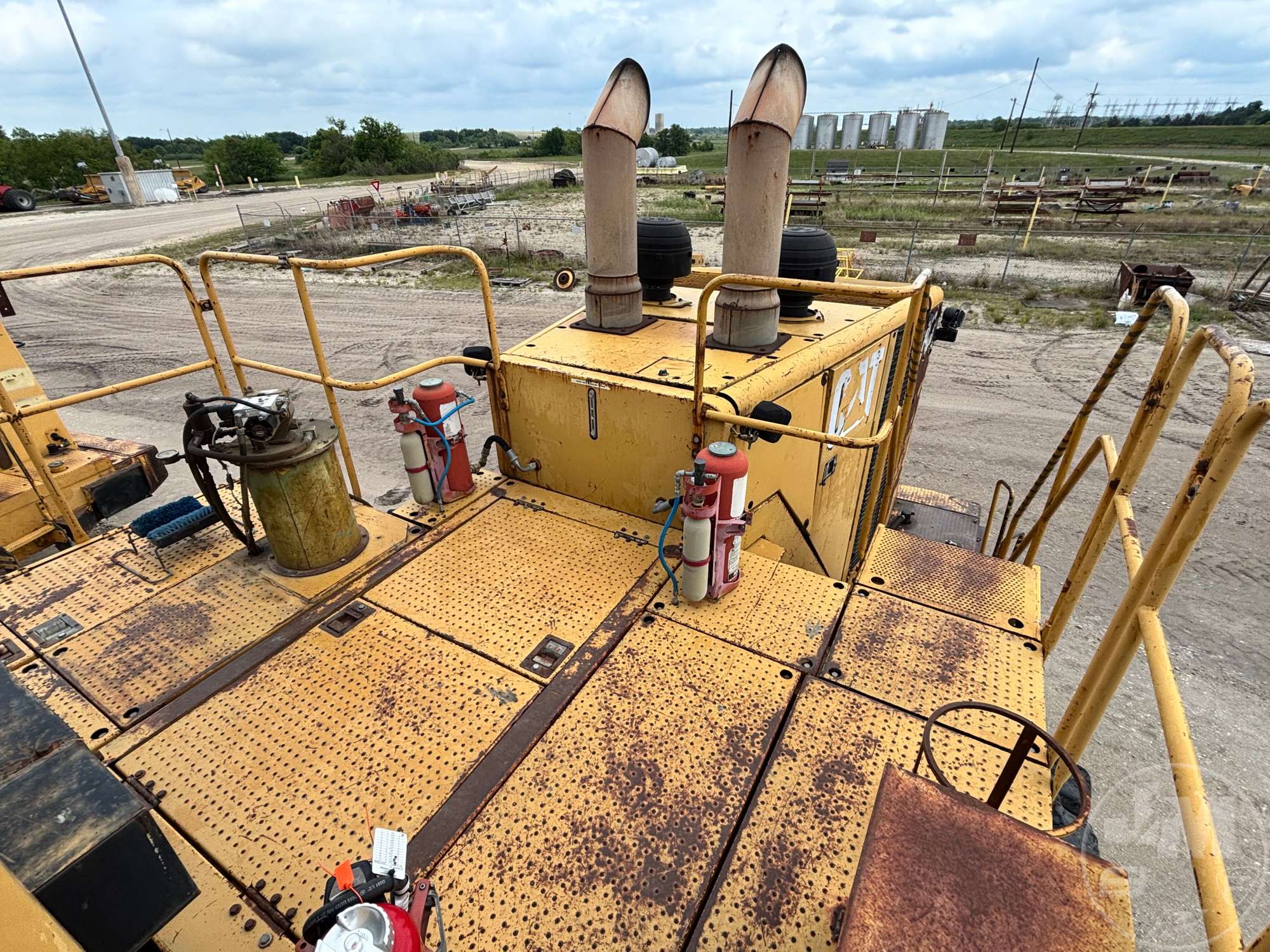

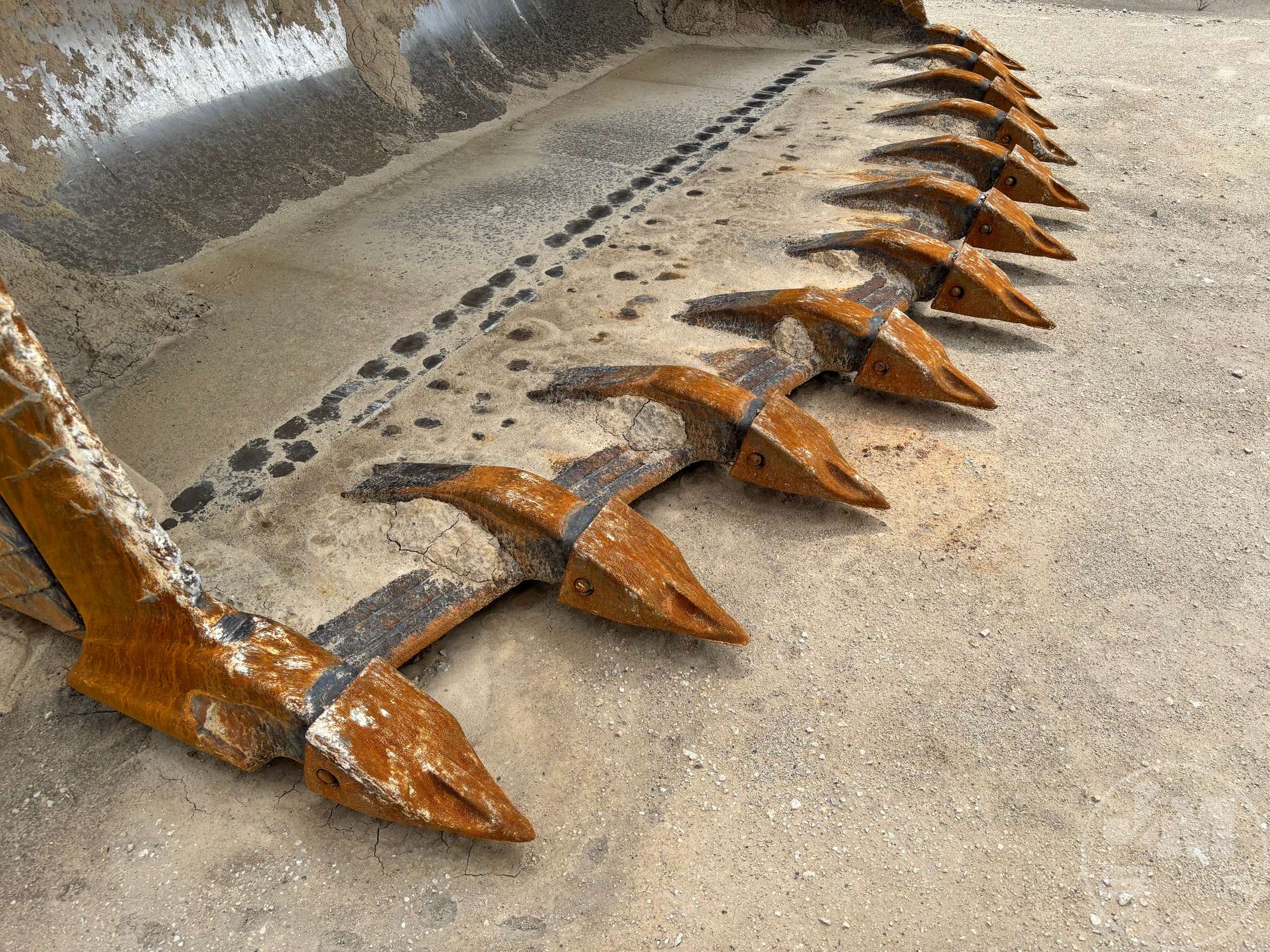

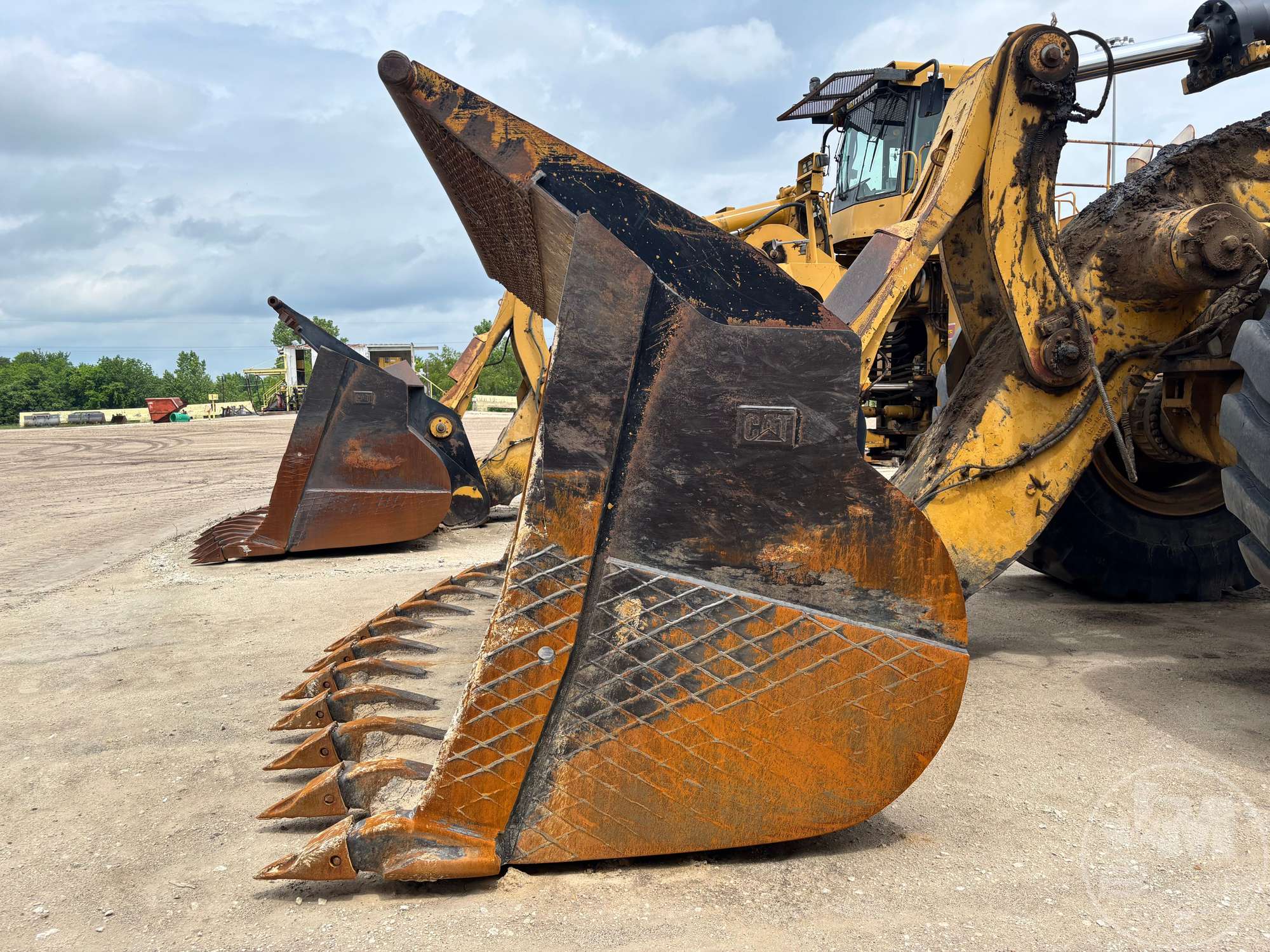

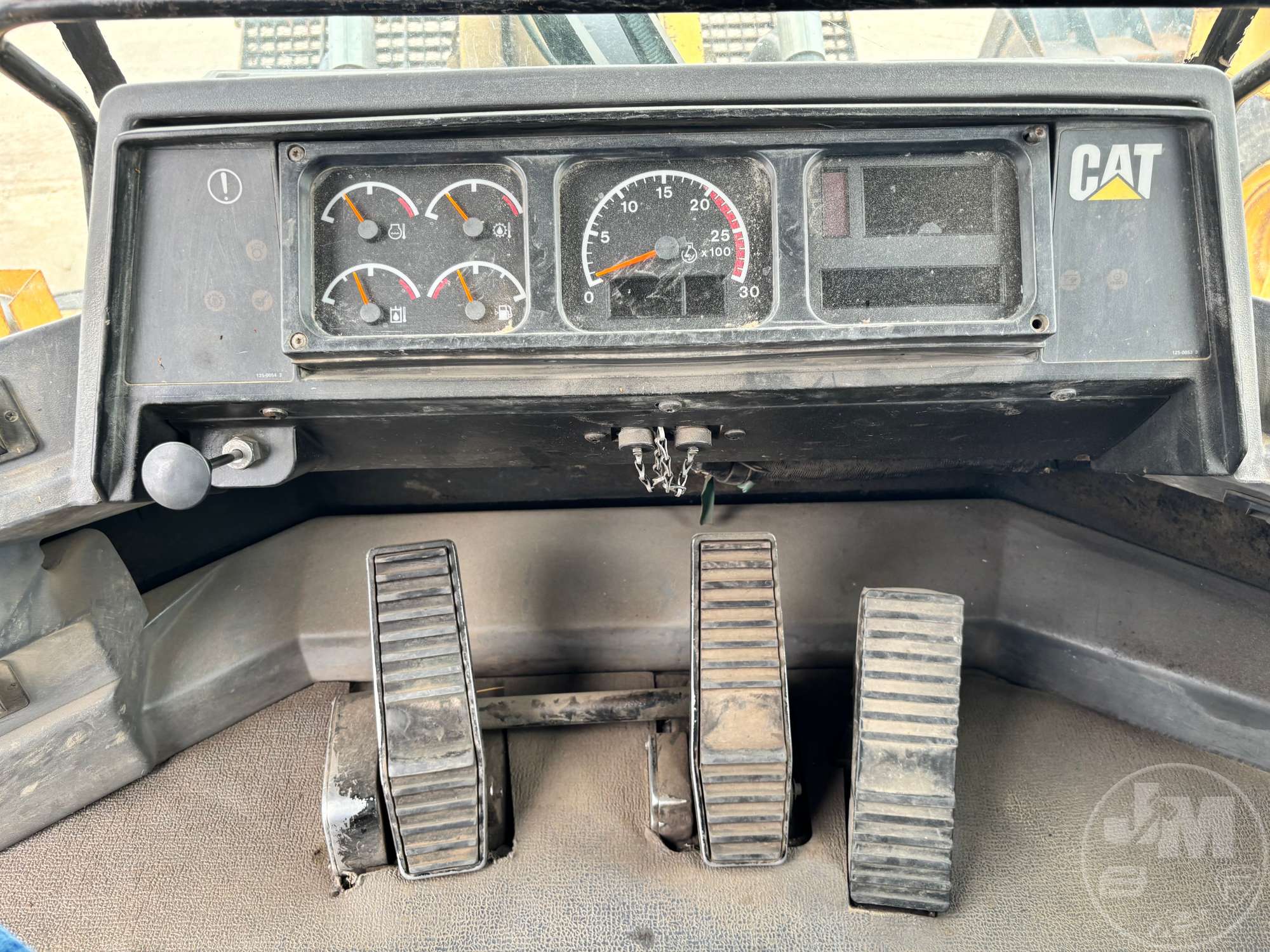

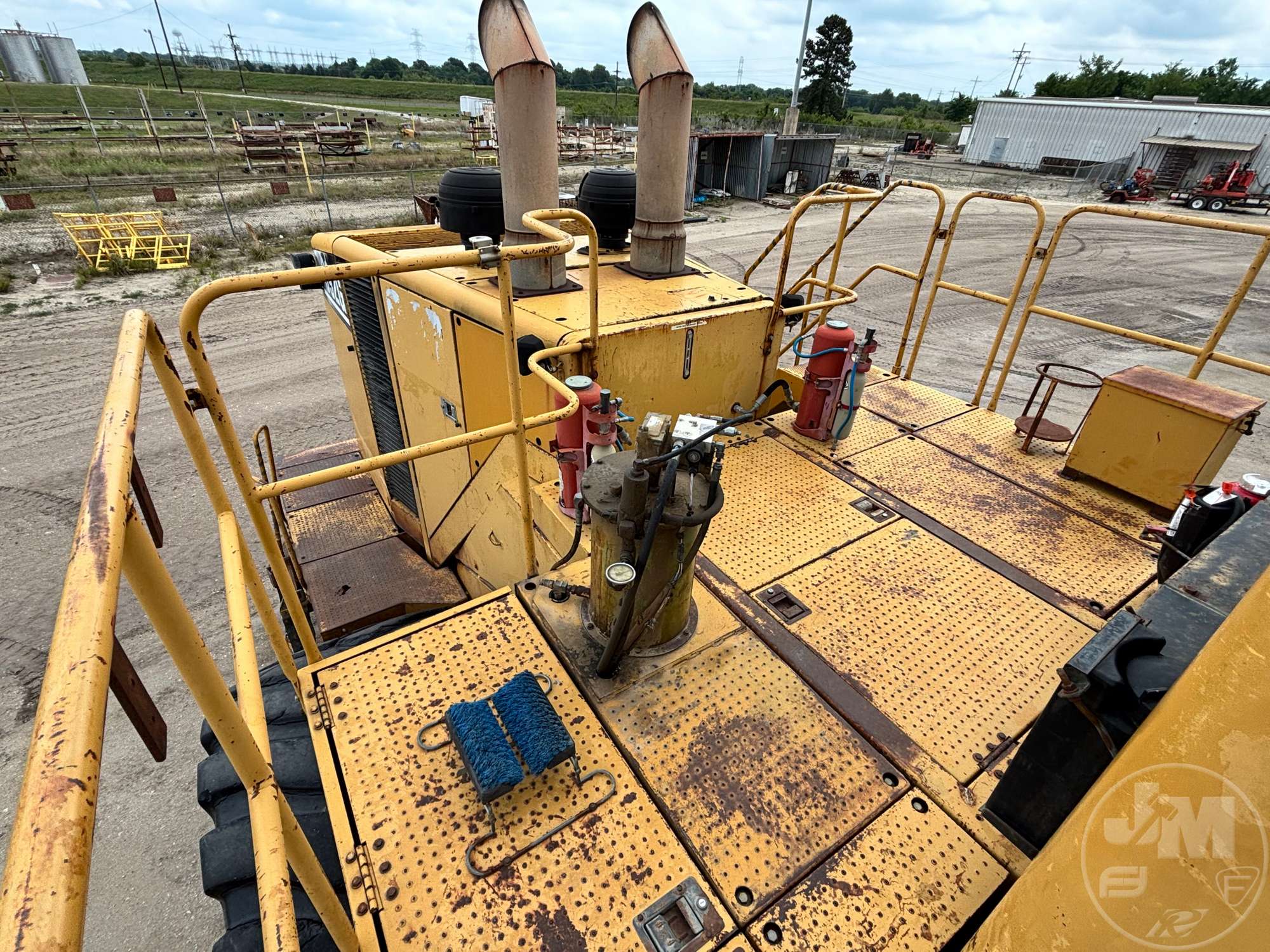

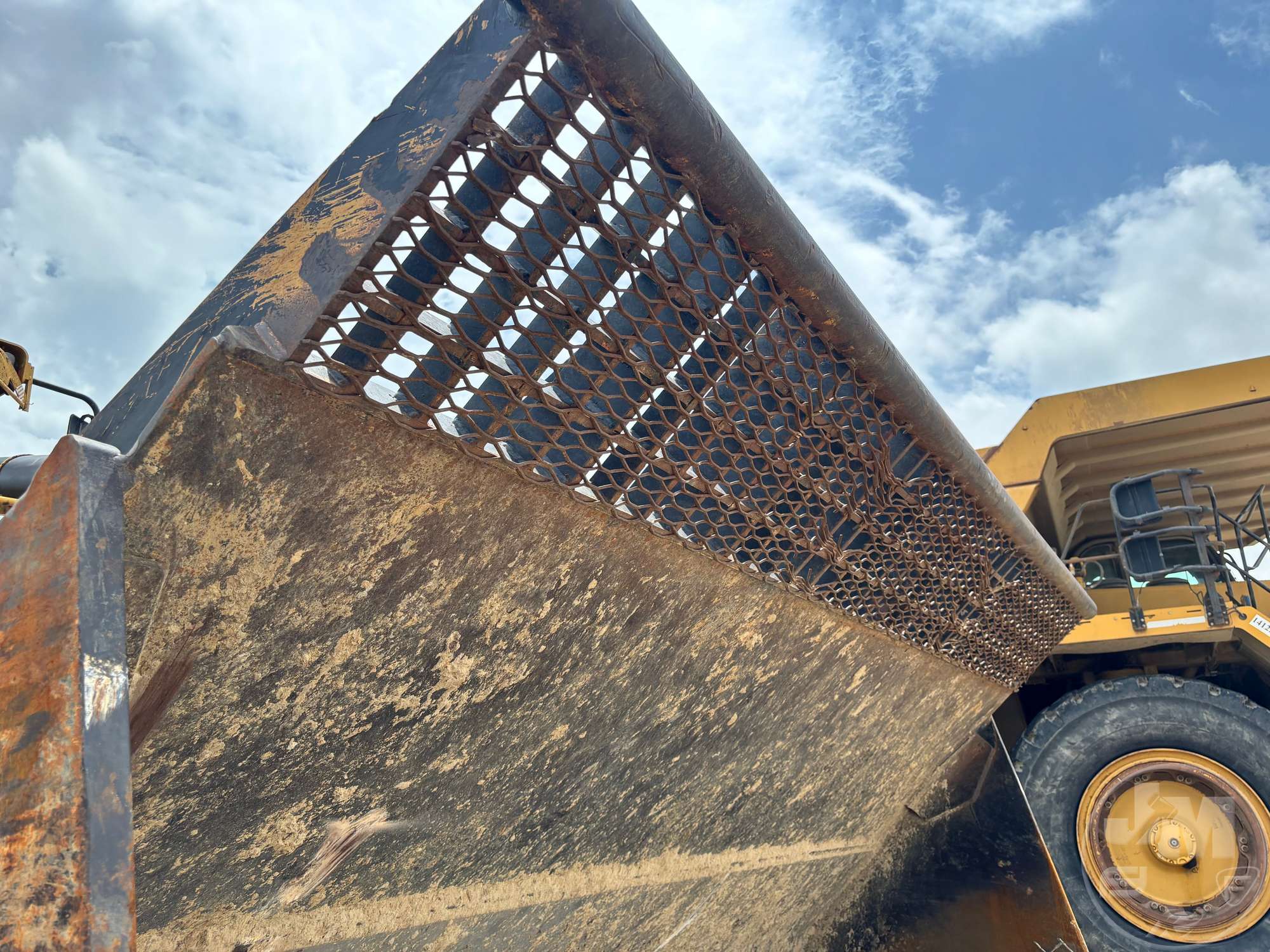

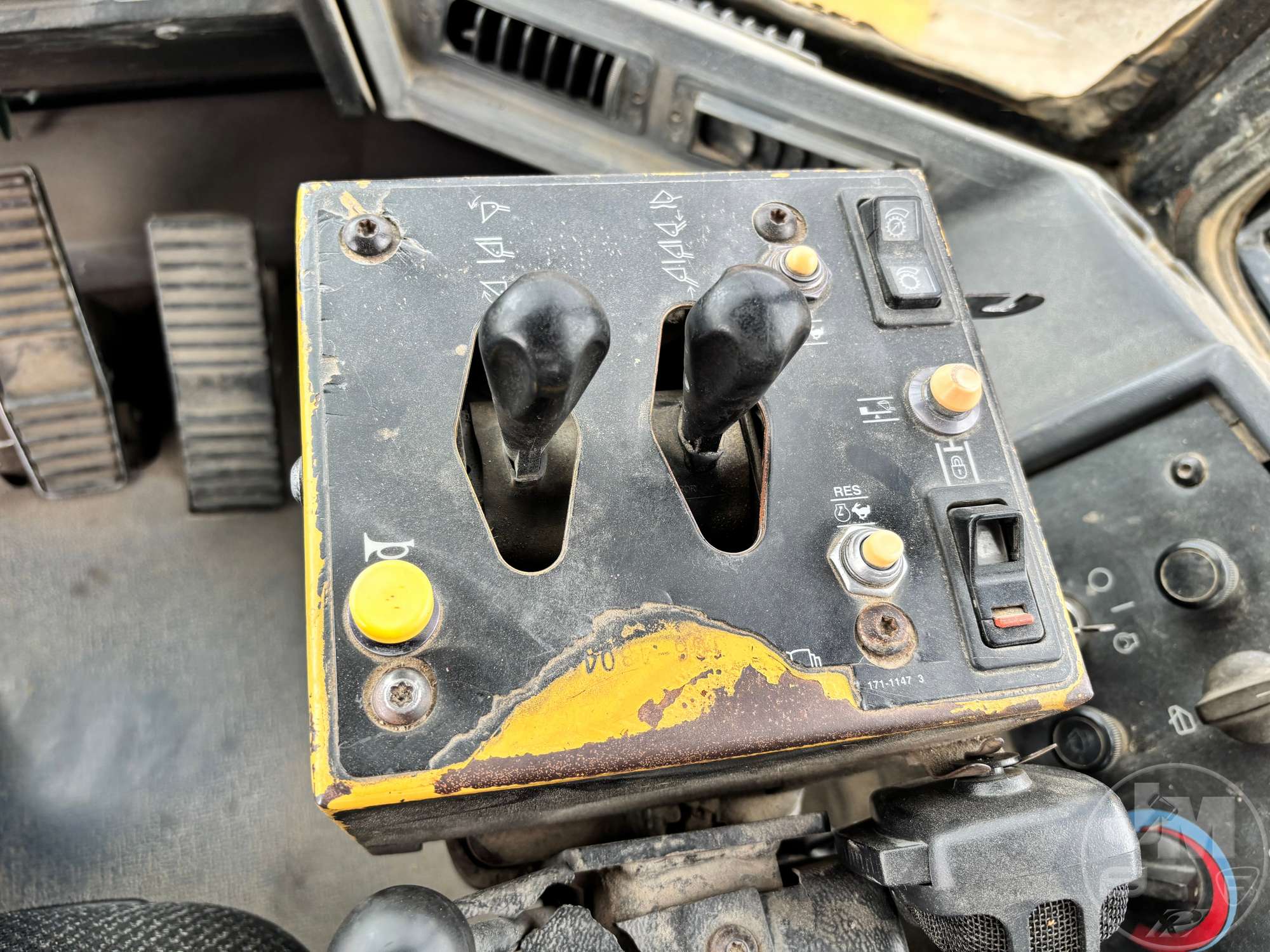

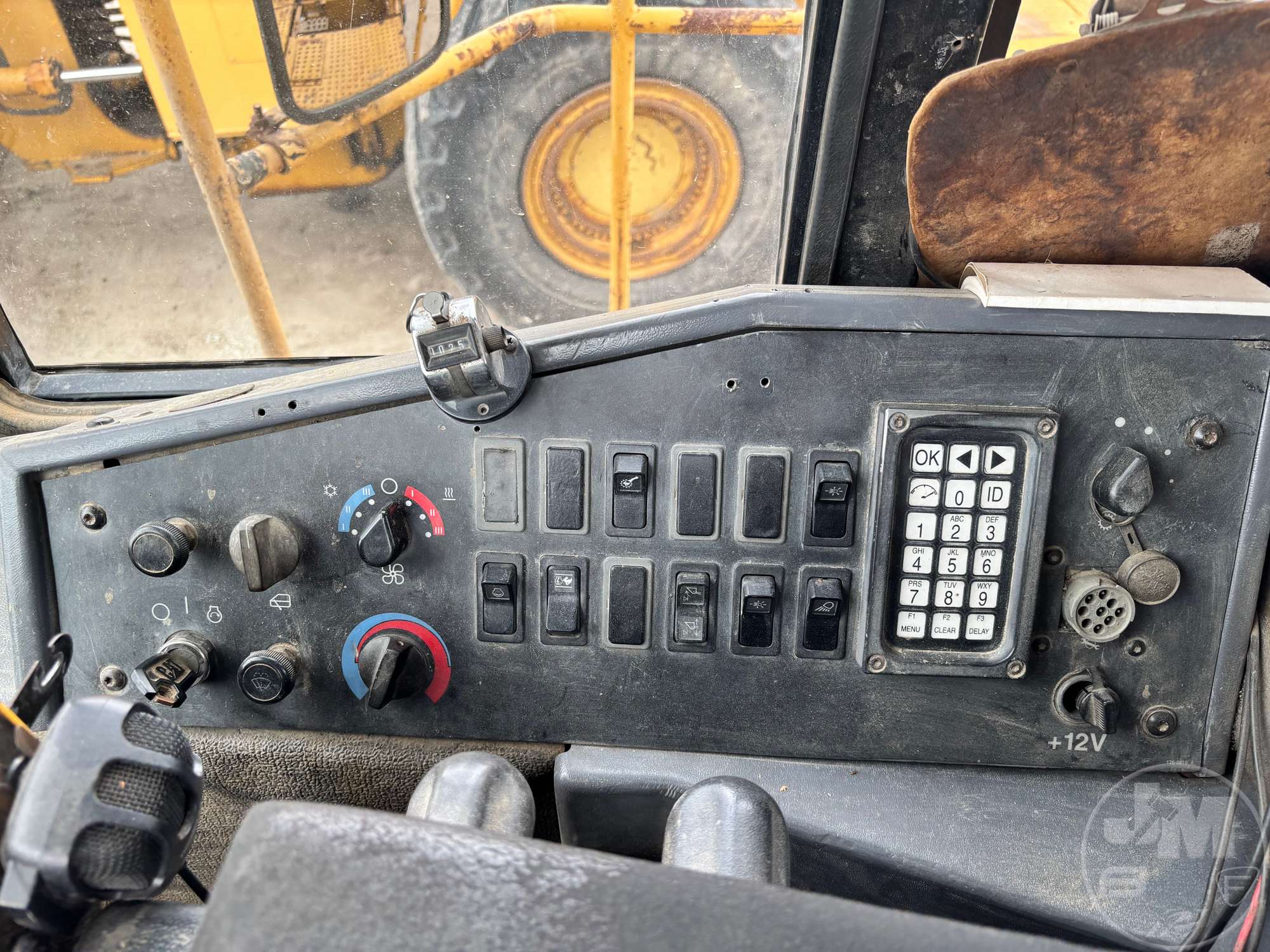

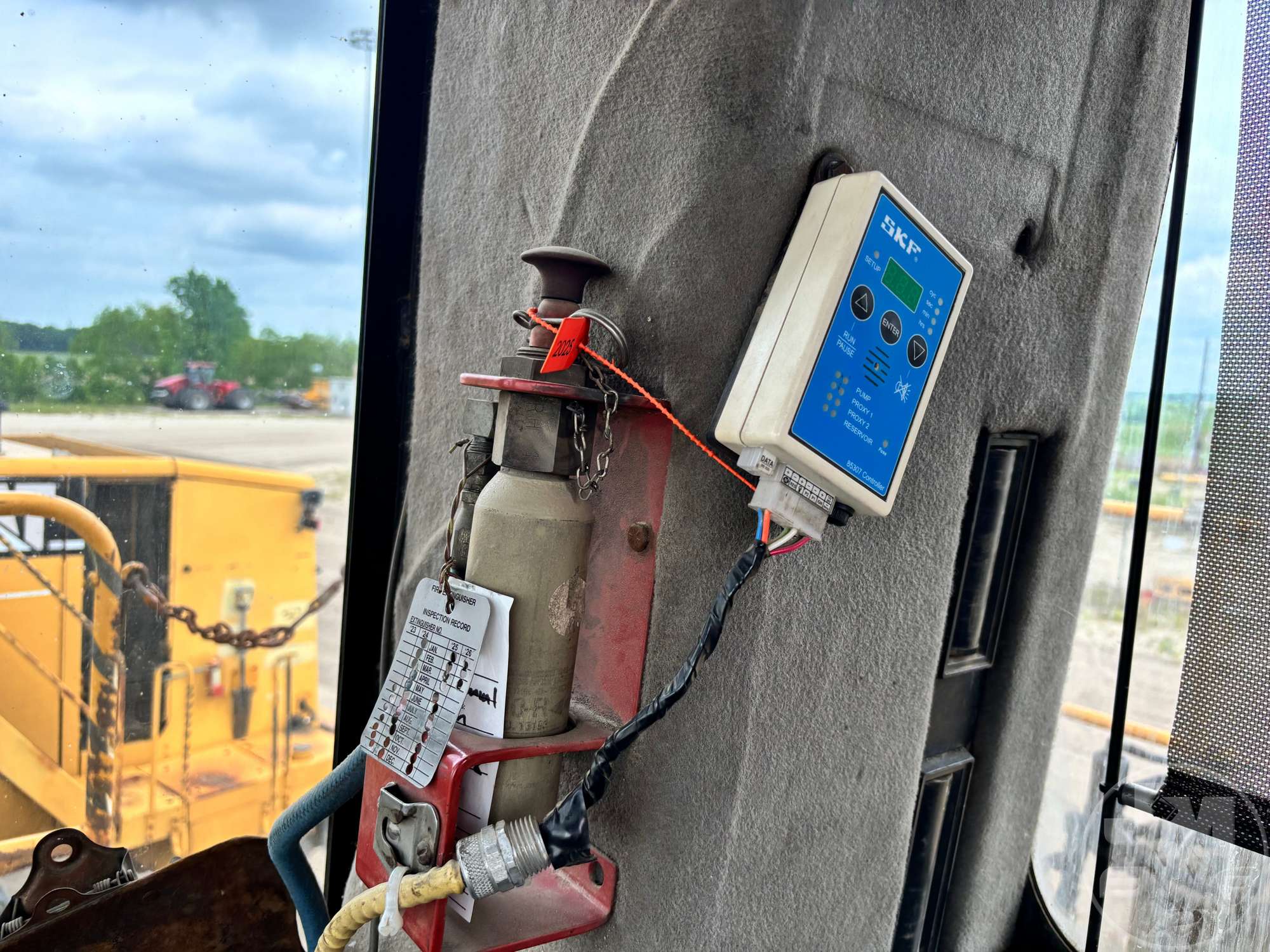

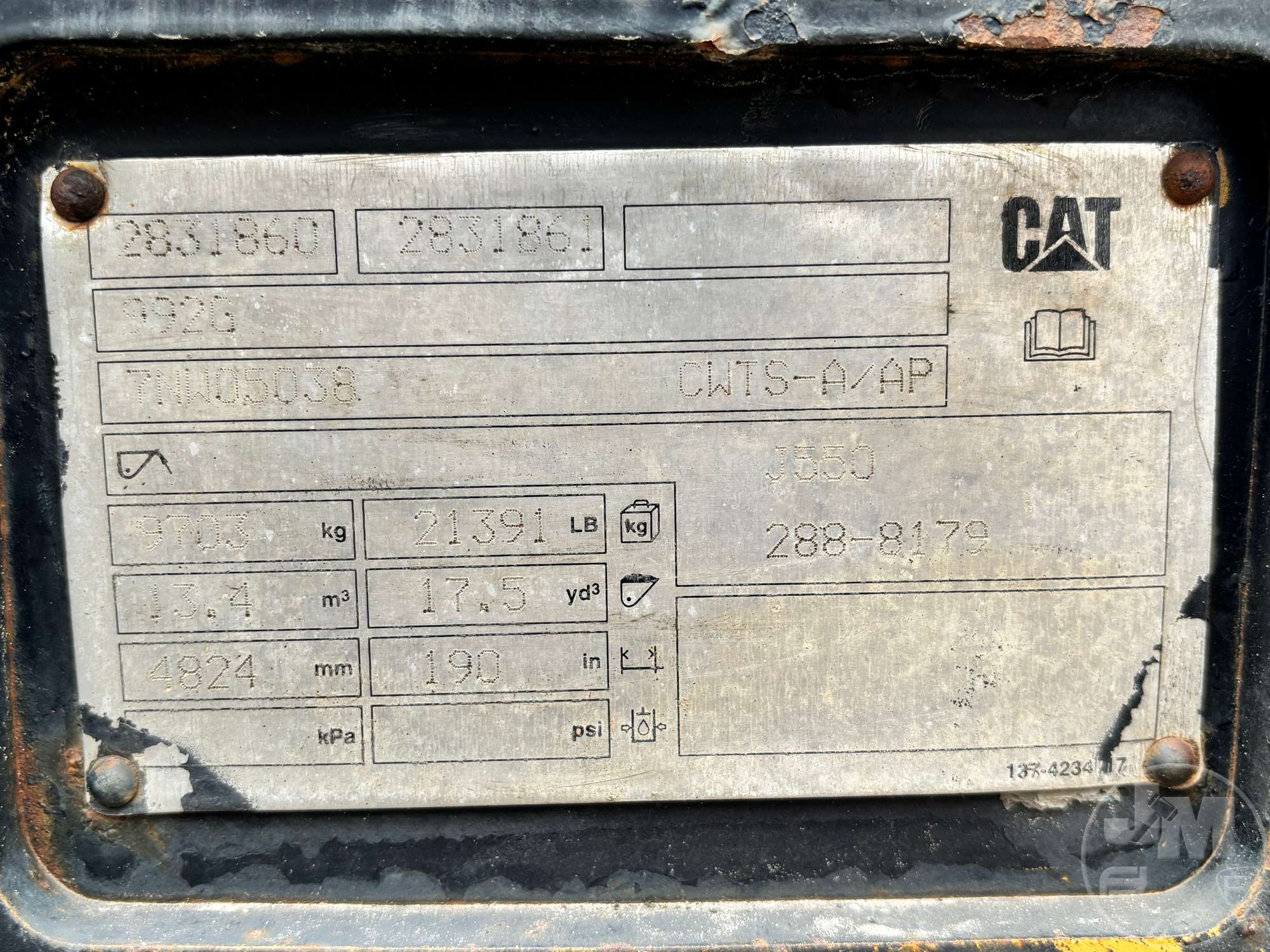

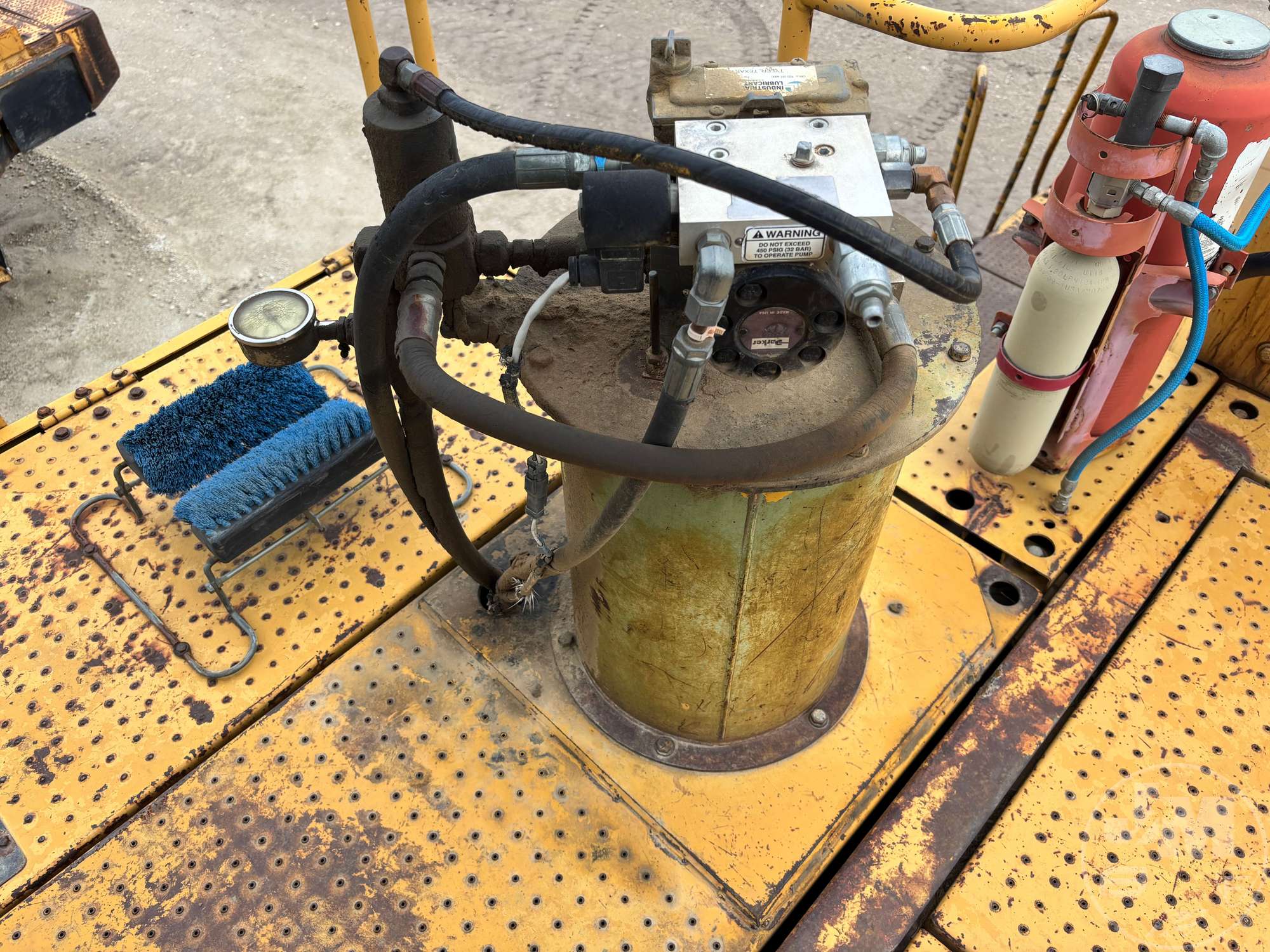

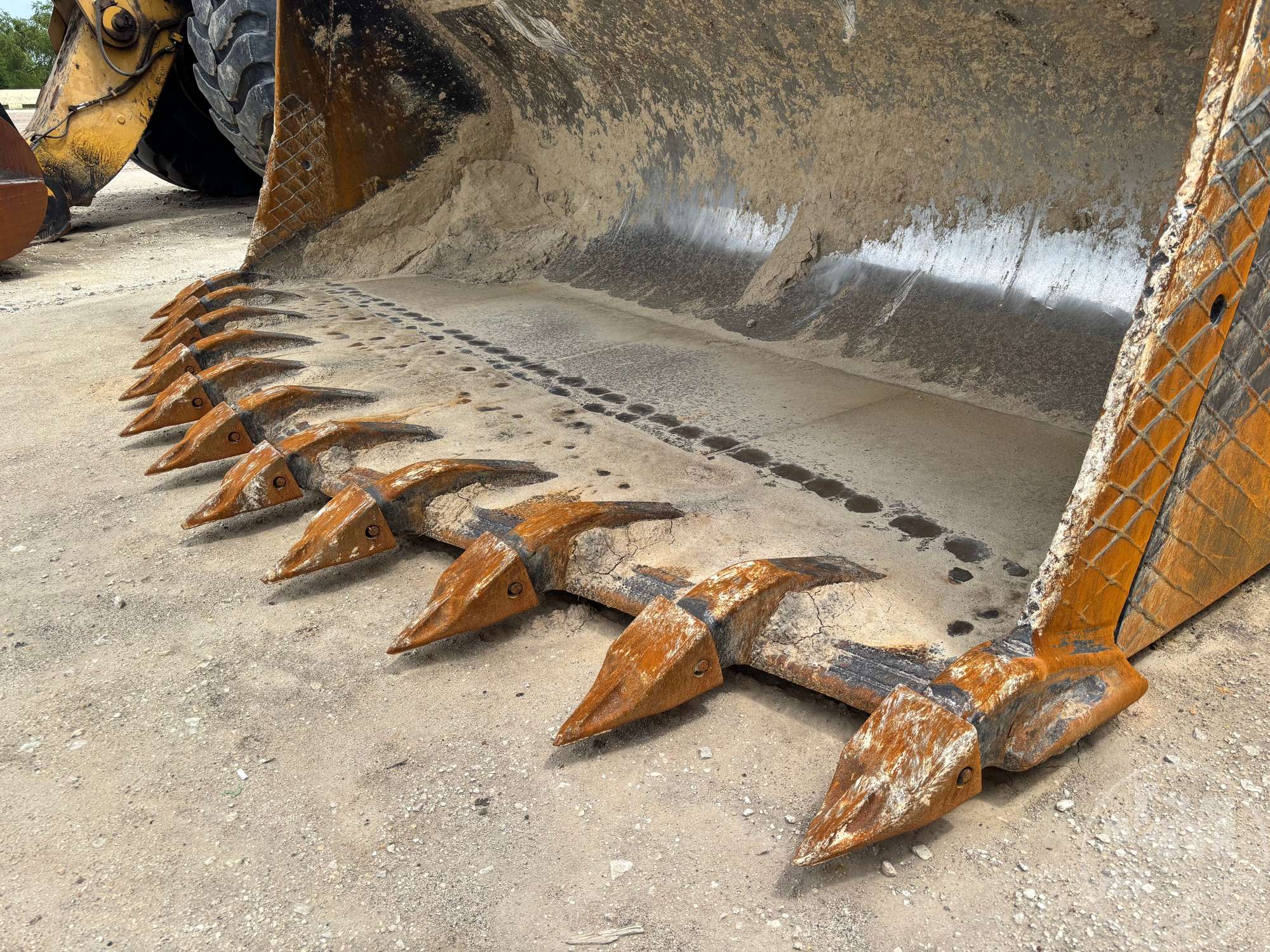

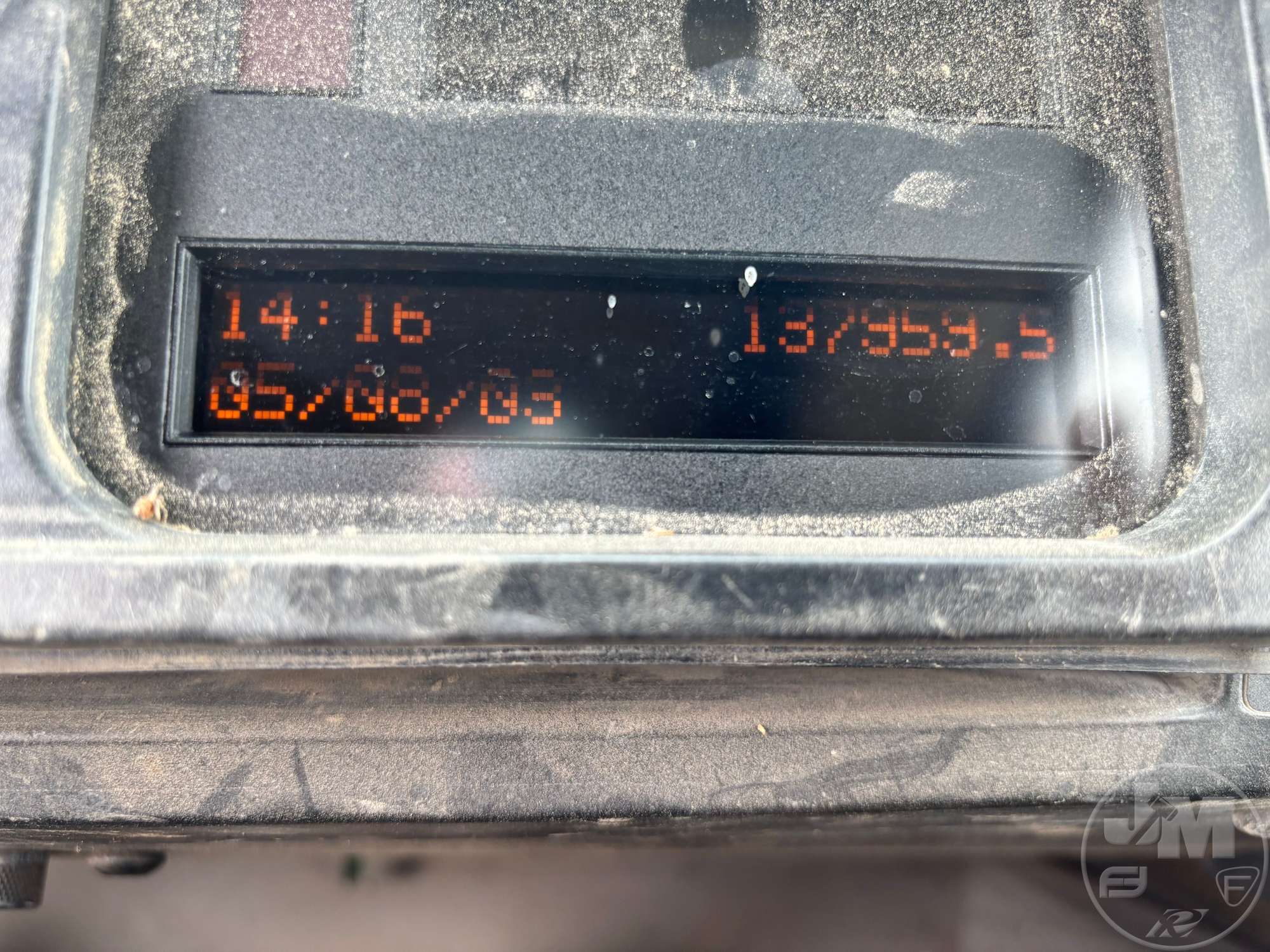

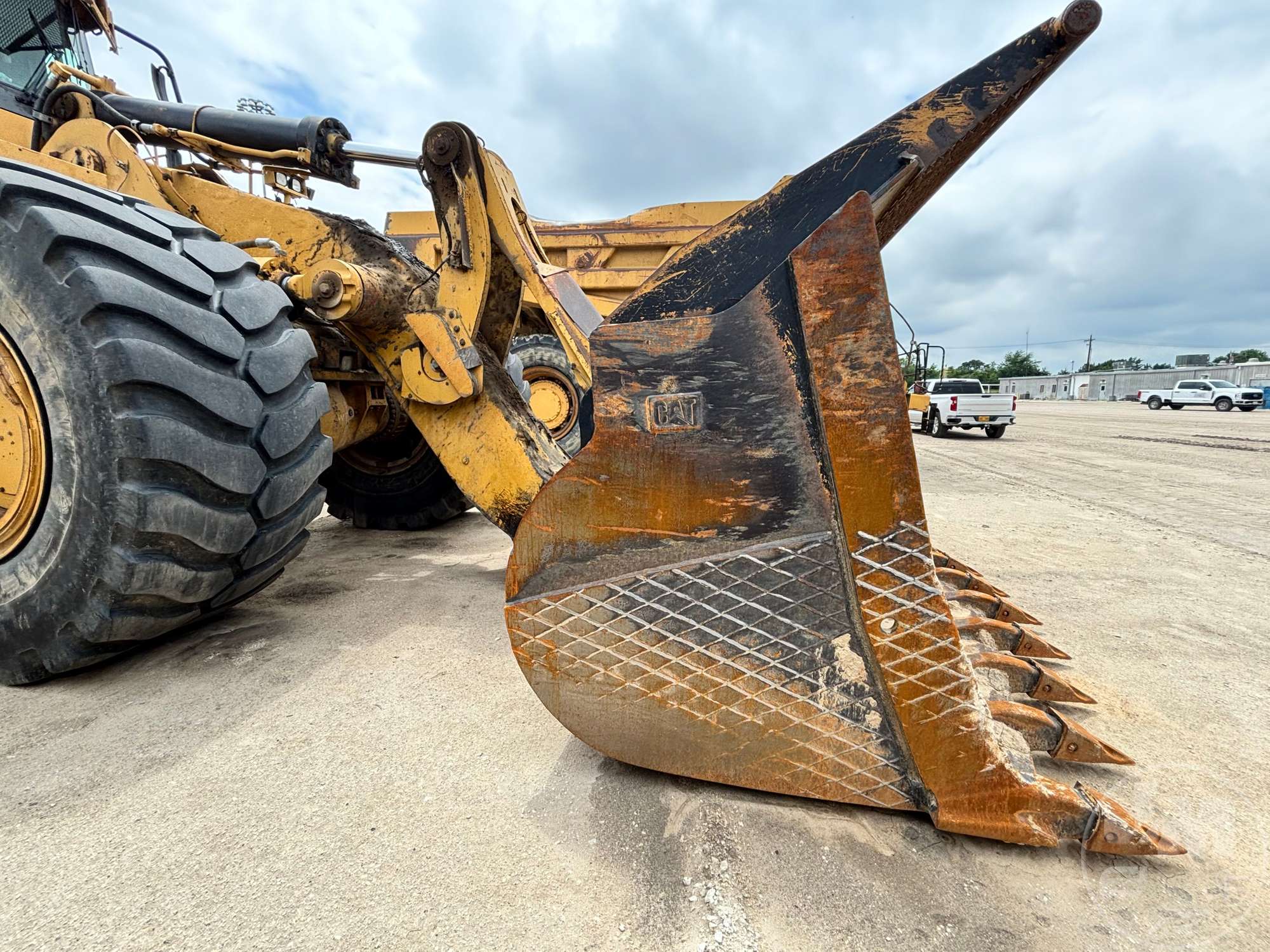

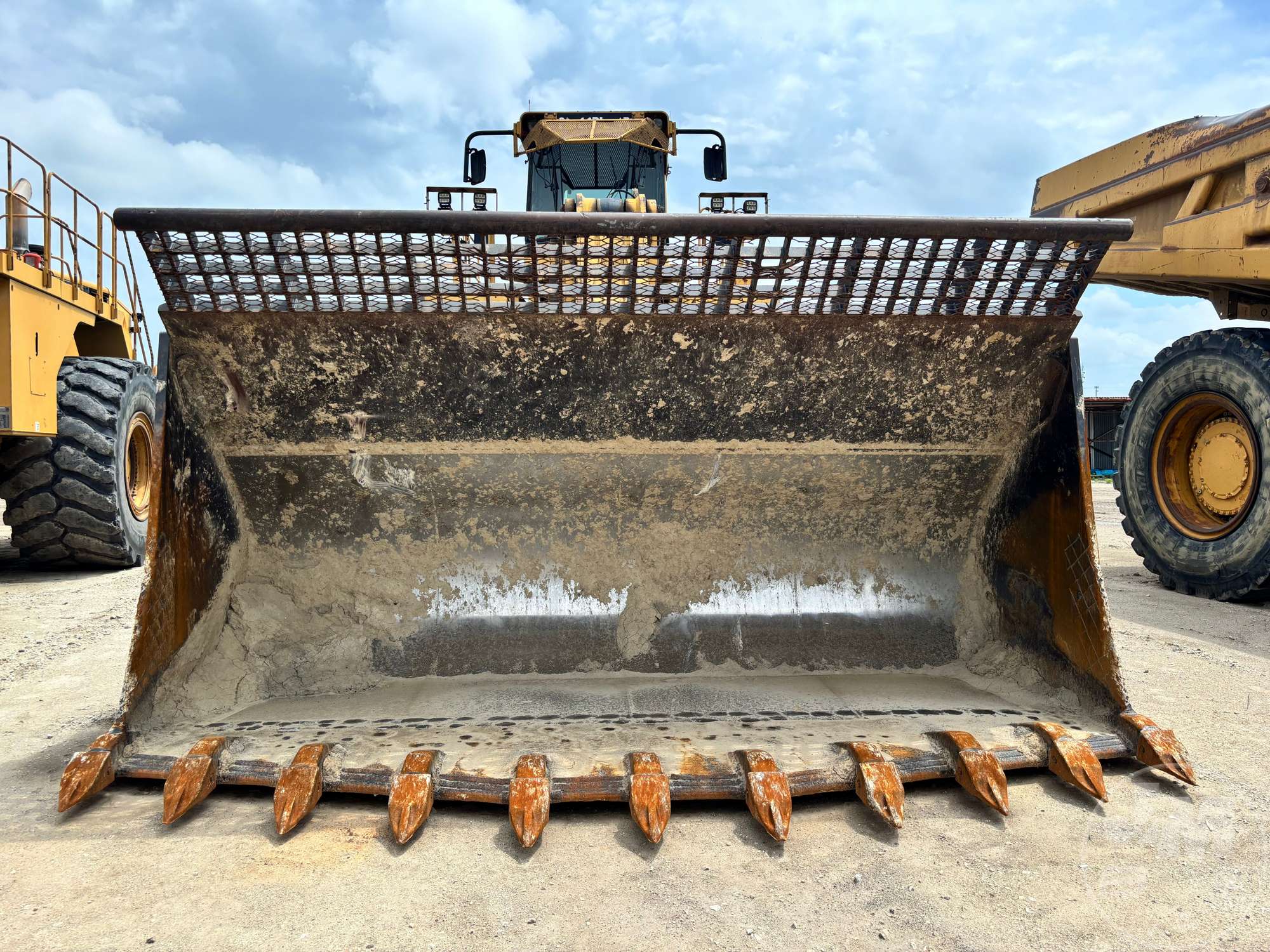

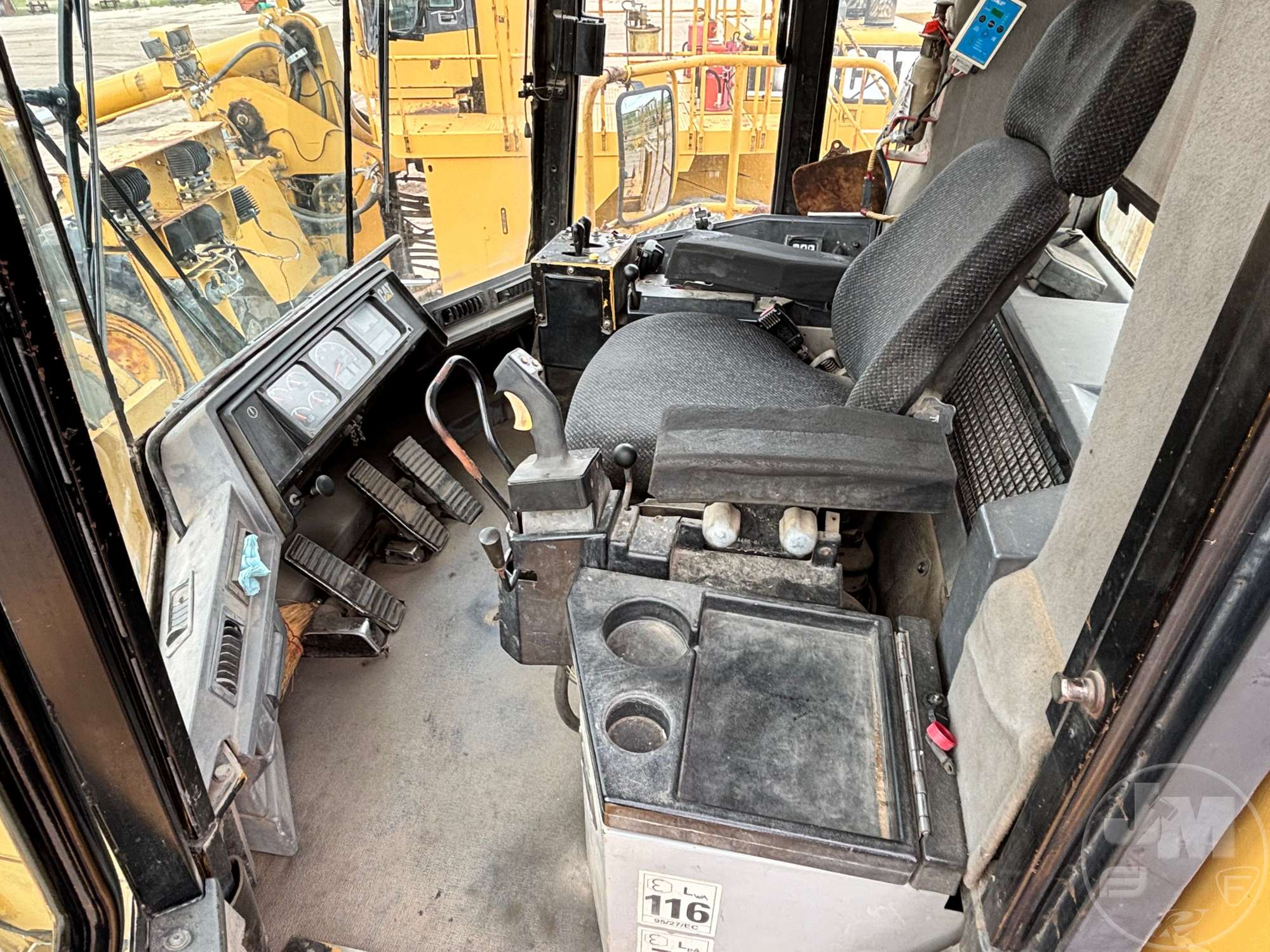

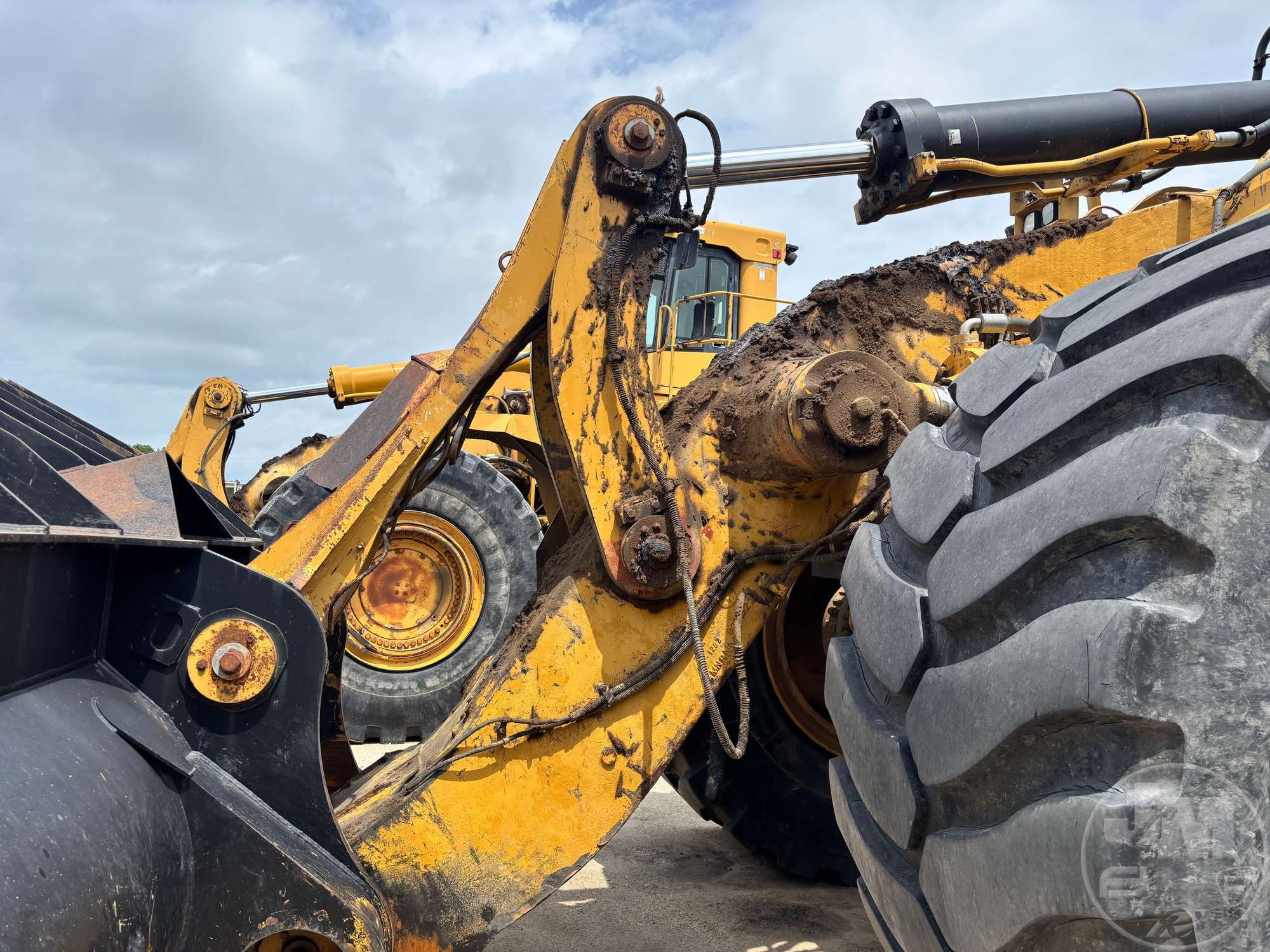

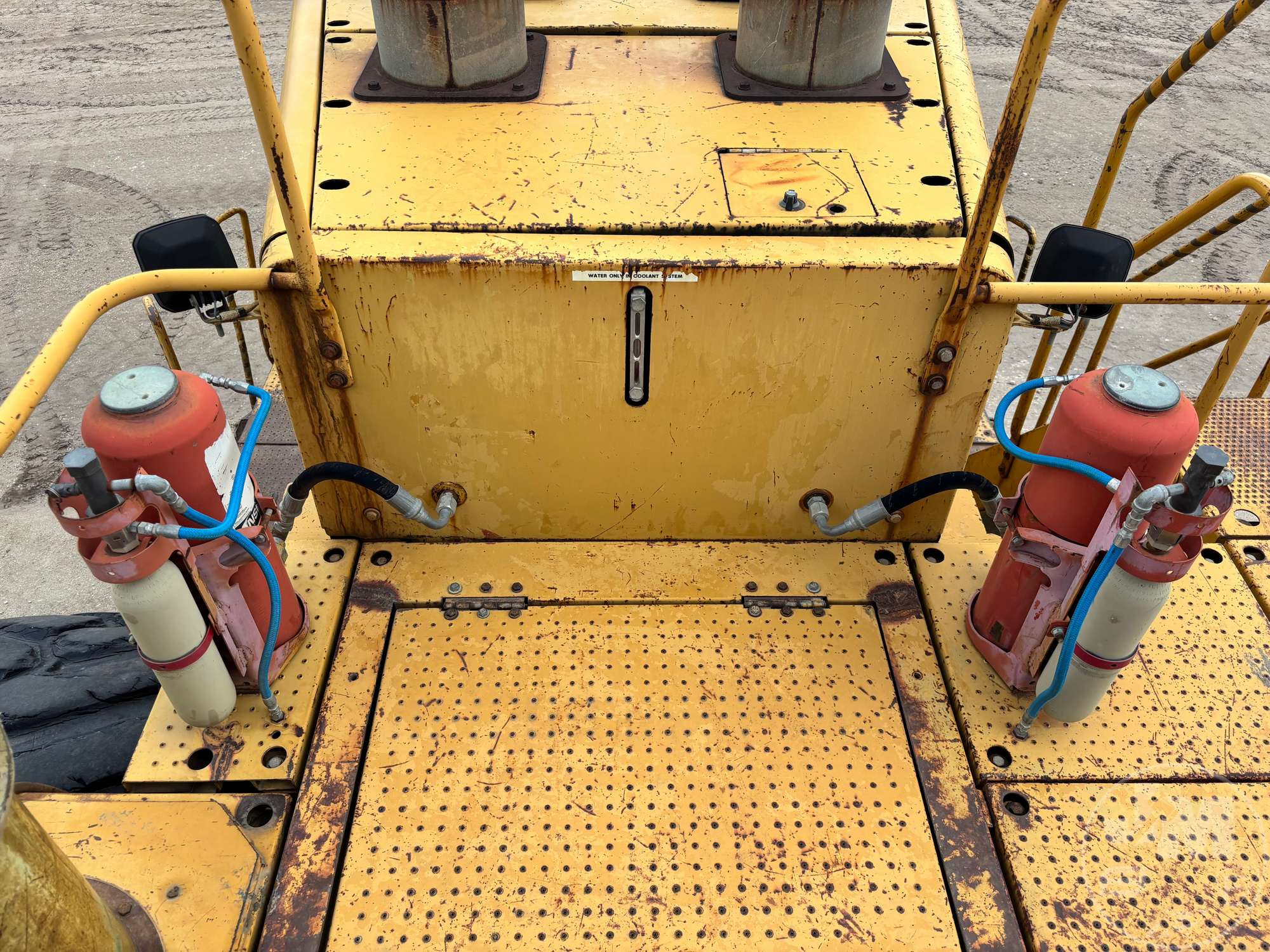

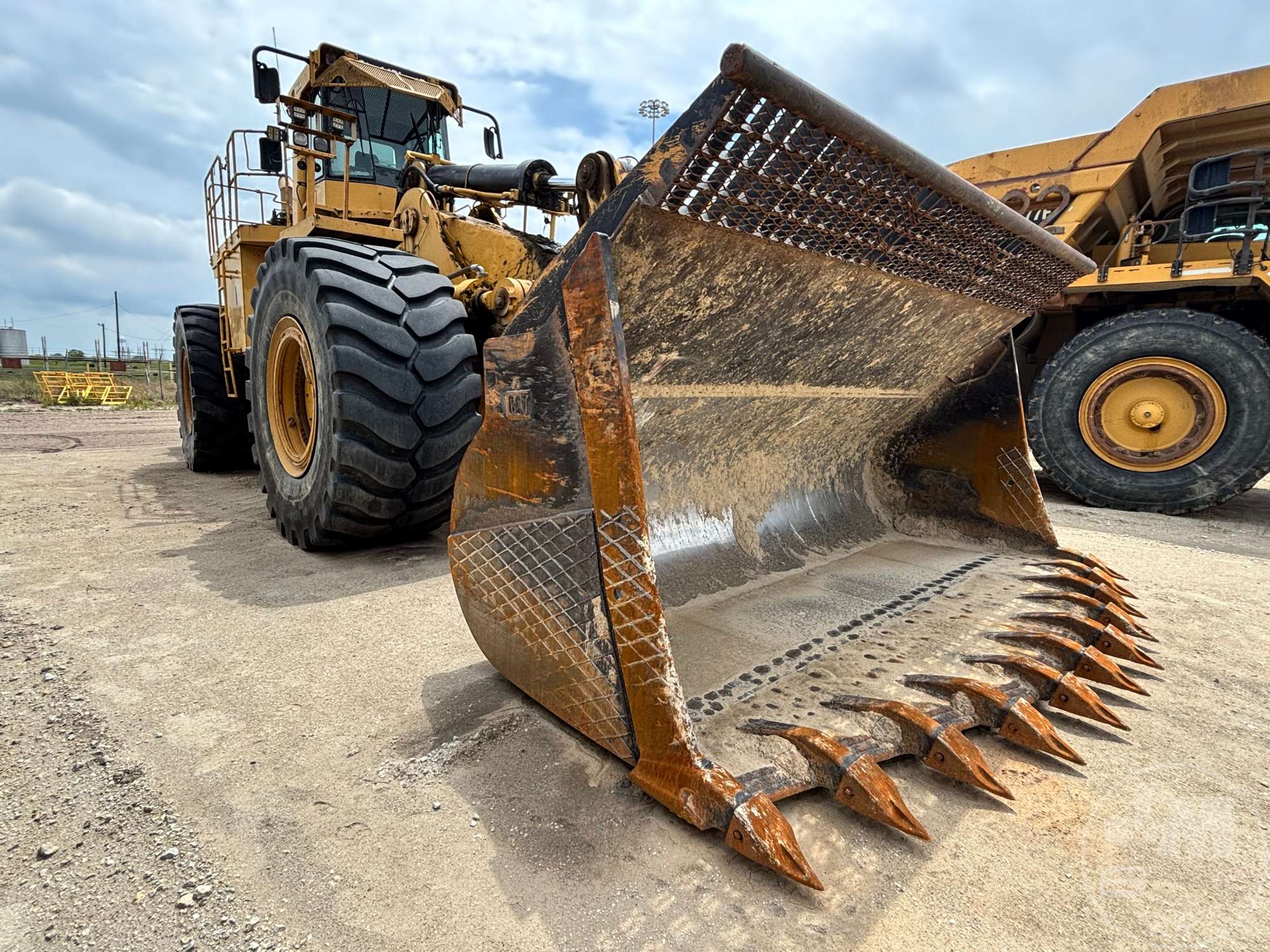

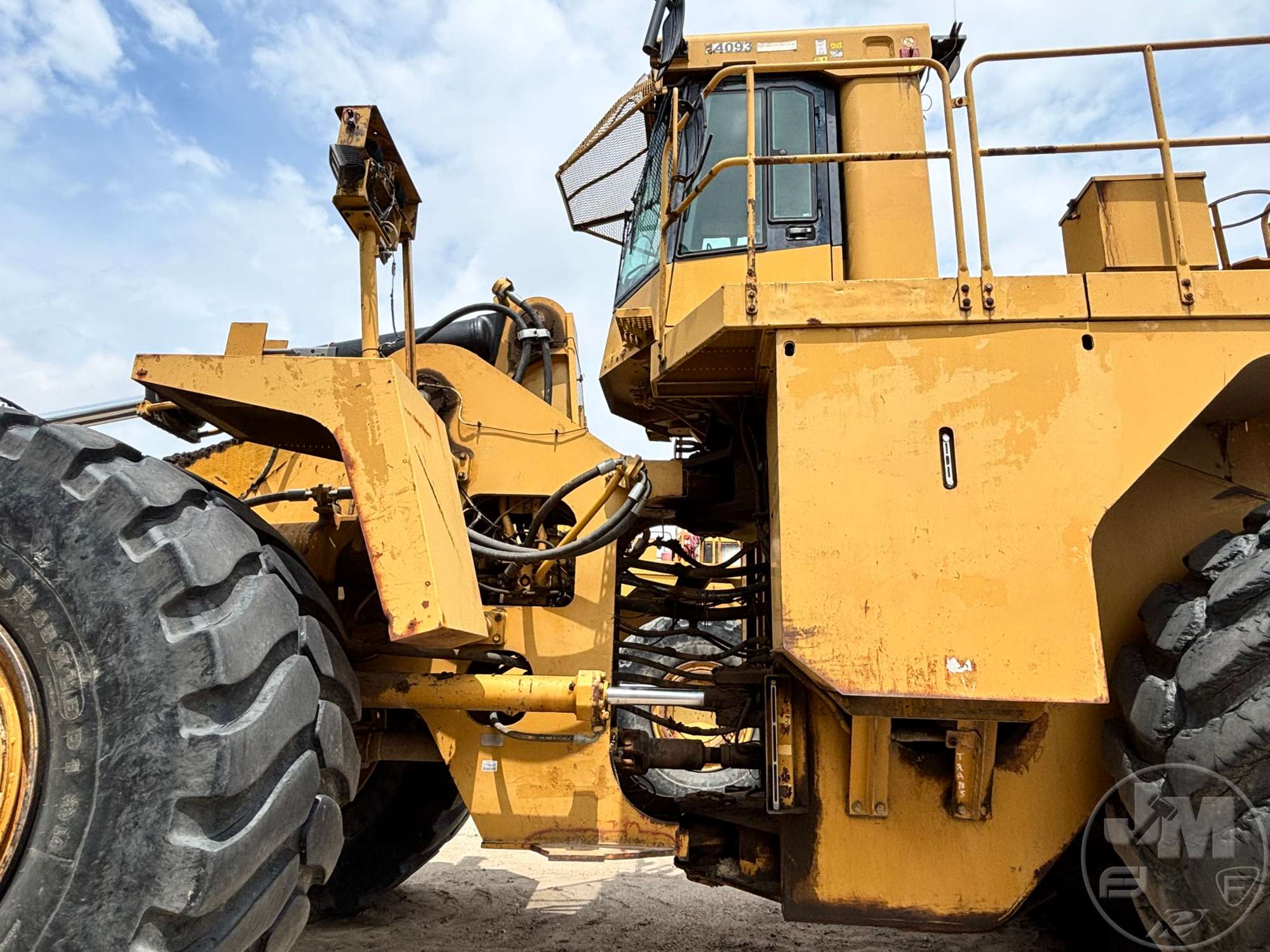

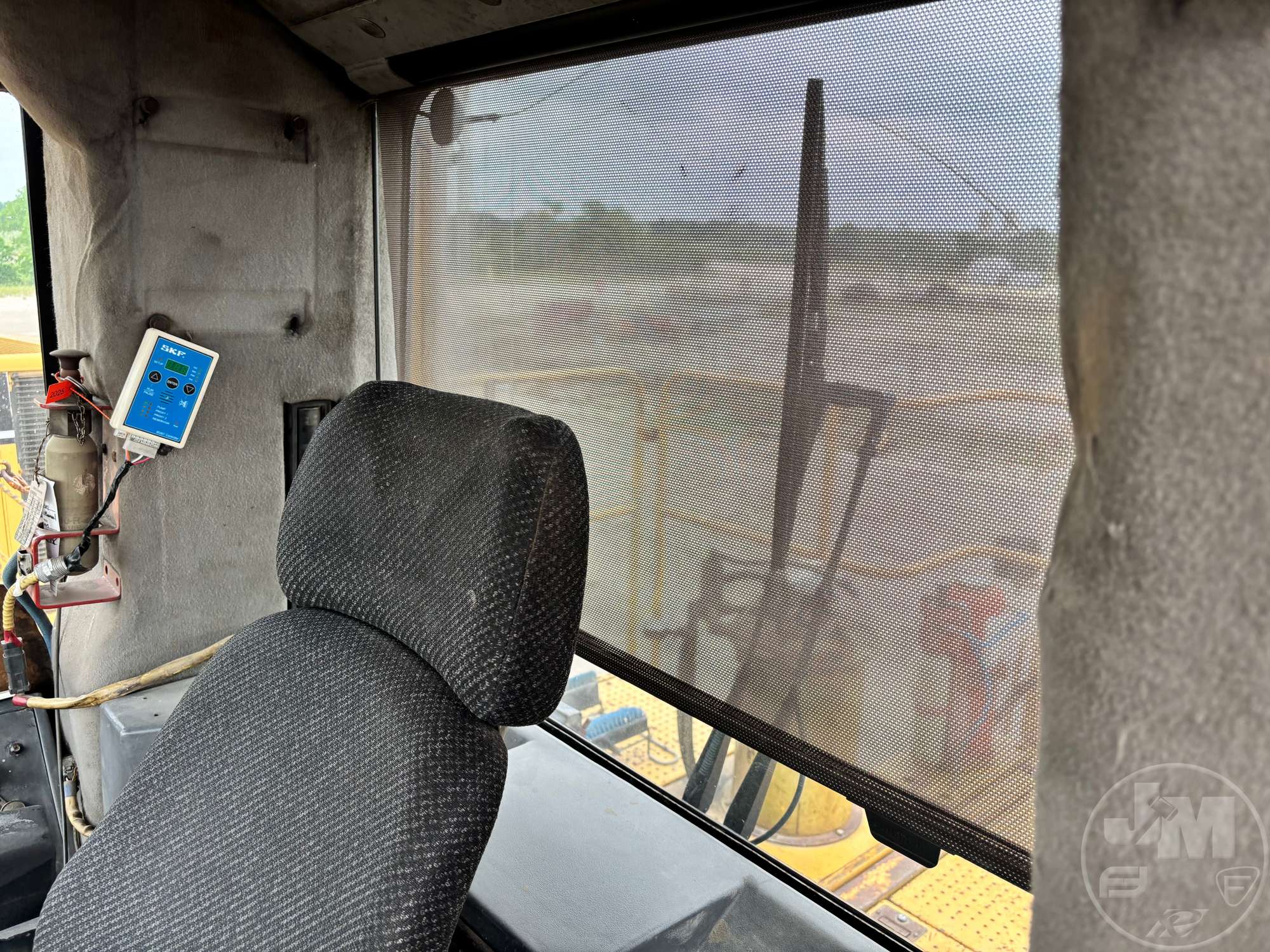

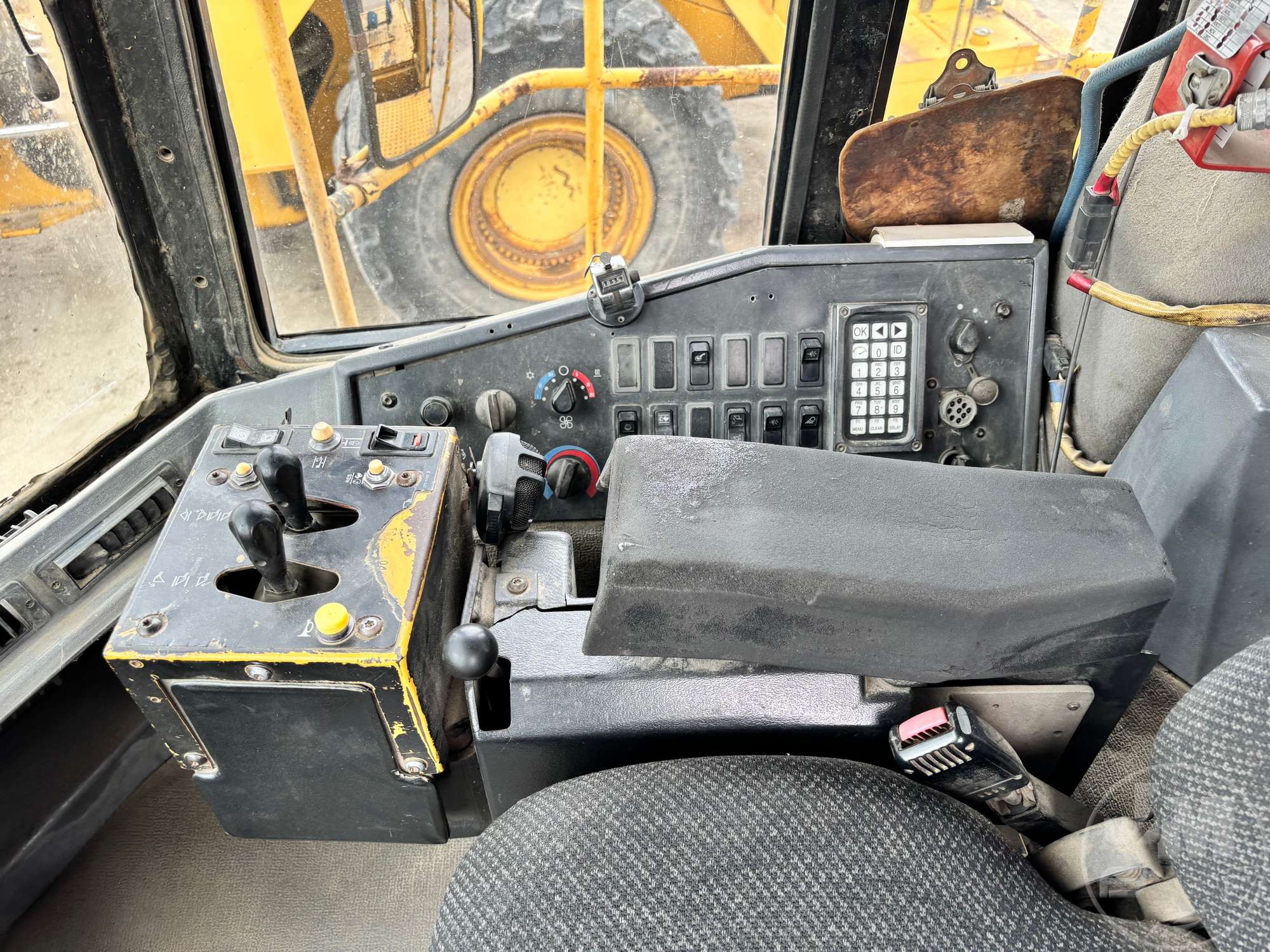

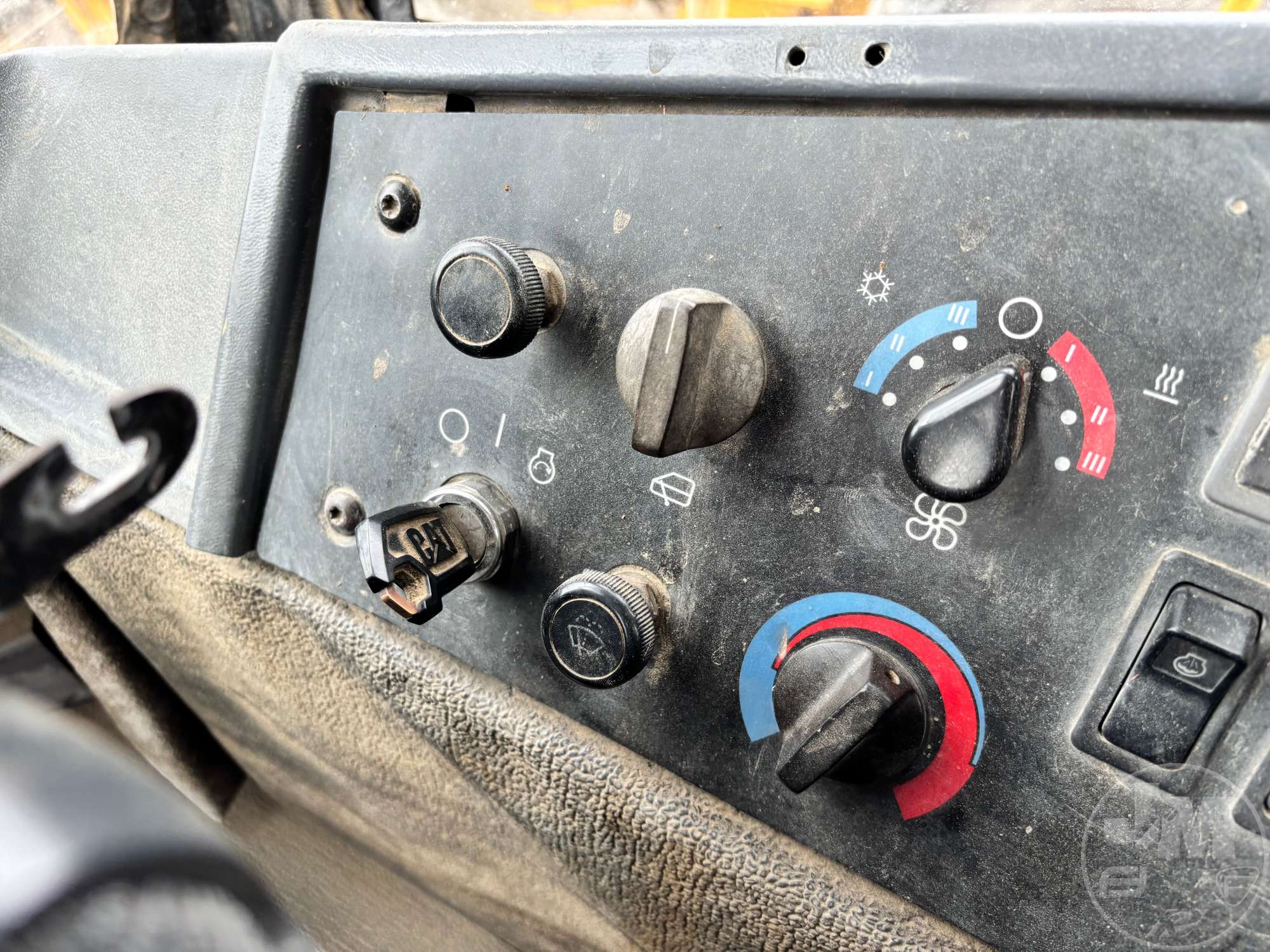

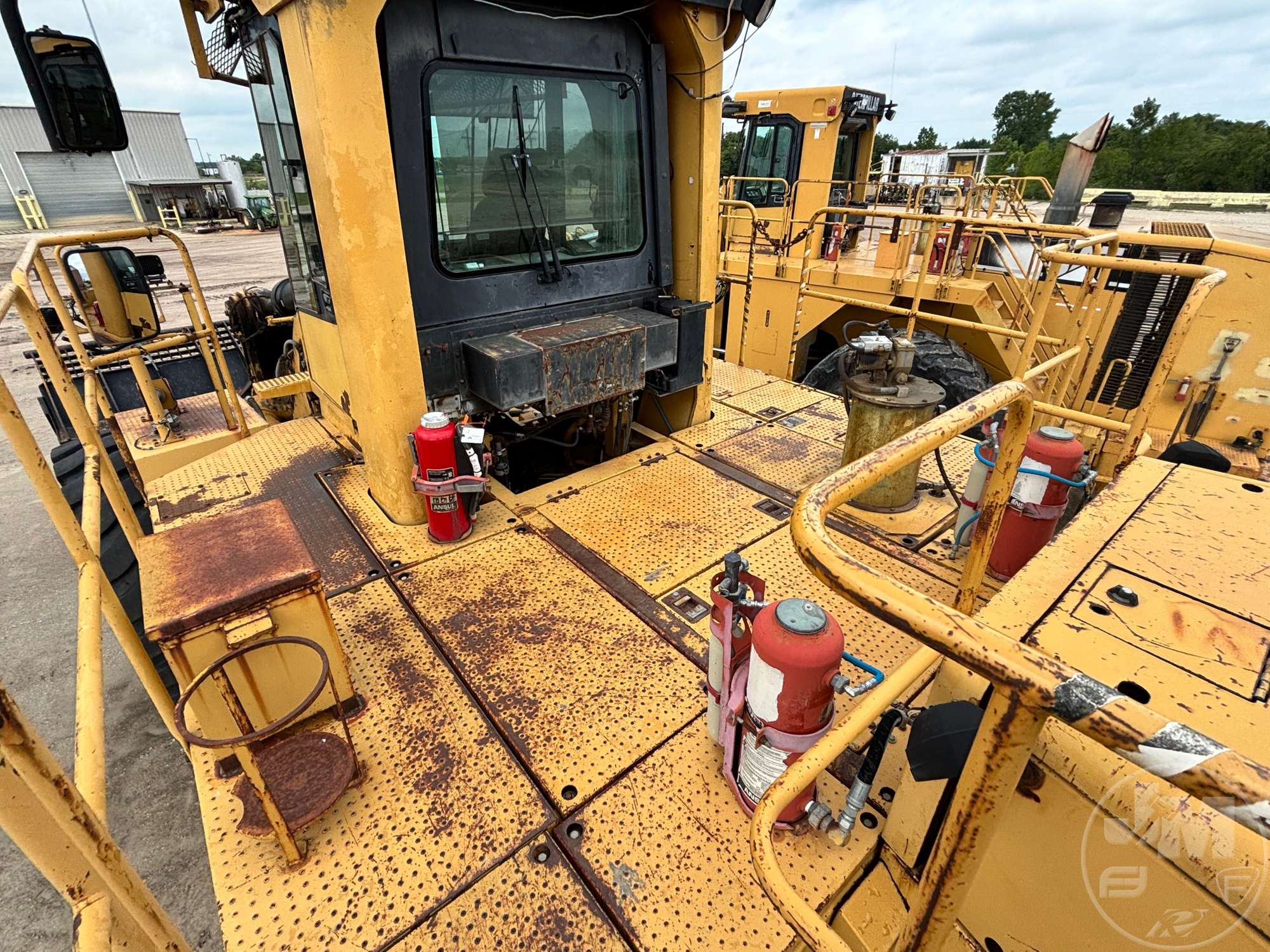

WHEEL LOADER, CAB, AC, RADIO, RIDE CONTROL, AUTO LUBE, FIRE SUPPRESSION SYSTEM, 183 IN, SPADE NOSE BUCKET, HOUR METER READS: 137948 Â ***NO LOADER ASSISTANCE***ITEMS MUST BE REMOVED BY APPROVED VENDOR AT BUYER'S EXPENSE. PLEASE CONTACT RIAN AT JEFF MARTIN AUCTIONEERS (601-450-6200) FOR VENDOR CONTACT INFORMATION.***LOCATED IN FAIRFIELD, TX***

From the manufacturer:

Supplied by HeavyEquipmentData.com →

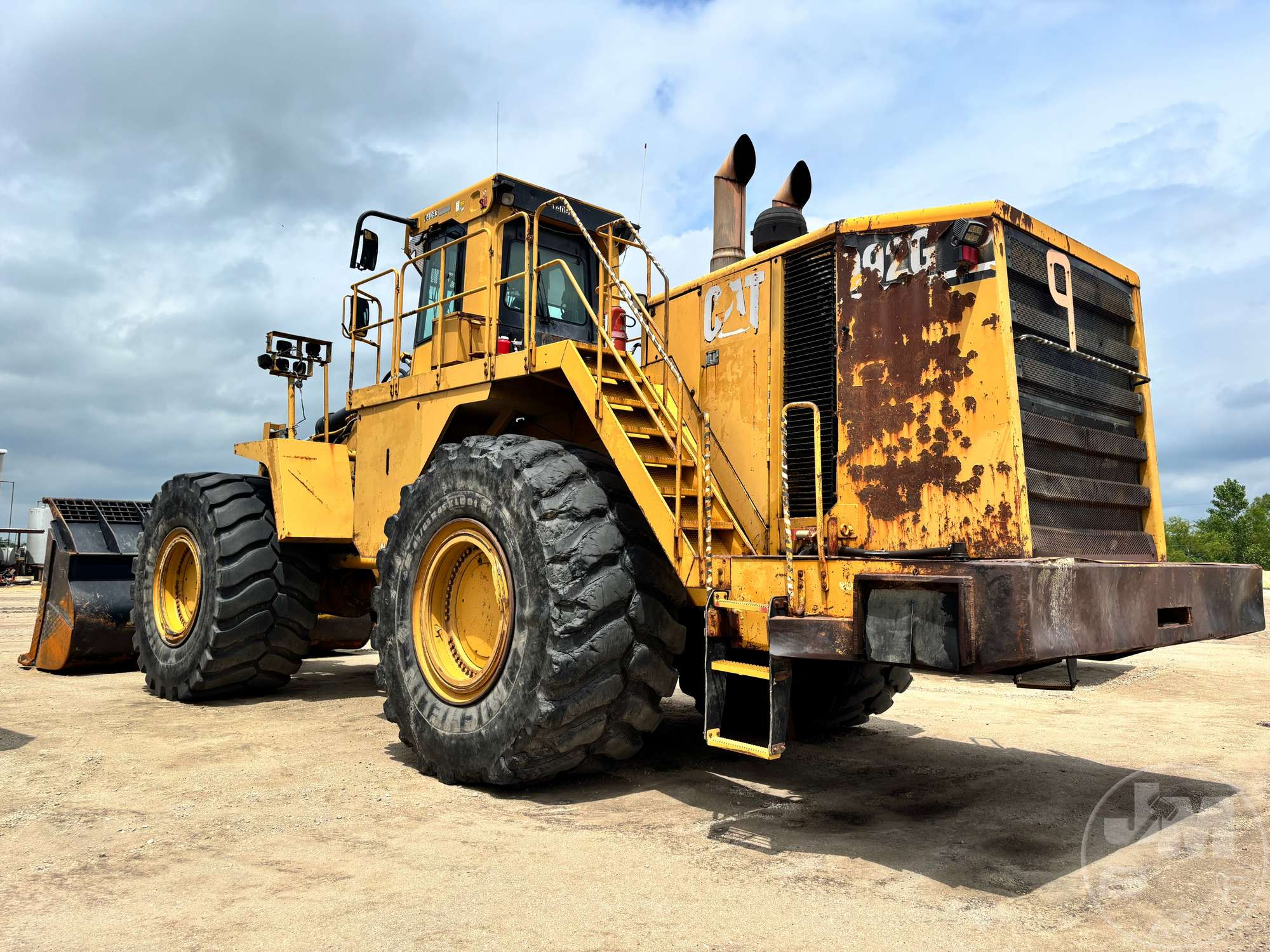

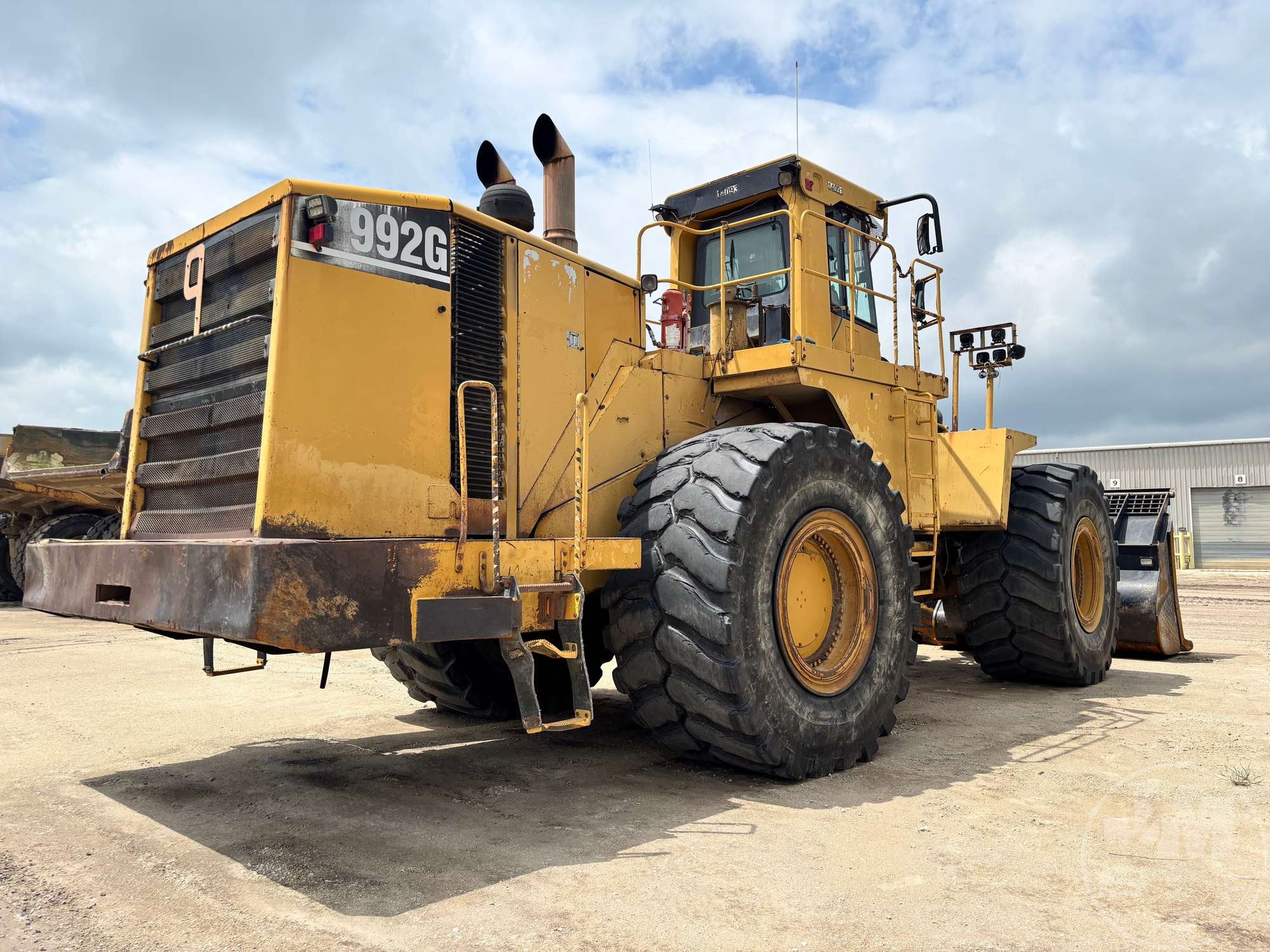

The Caterpillar 992G is a large wheel loader designed for high-production material handling in mining, quarry, and heavy construction applications. Built by Caterpillar, the 992G features a robust frame, articulated steering, and a high-capacity bucket for loading haul trucks, stockpiles, and aggregate materials. It is commonly used in demanding environments where durability, traction, and efficient cycle times are important. The machine is powered by a diesel engine and equipped with hydraulic lift and tilt systems for controlled loading performance. The Caterpillar 992G remains a recognized model in the wheel loader category for heavy-duty bulk material movement.

Axles
Front	Fixed
Maximum Single-Wheel Rise and Fall	25 in (63 cm)
Oscillation Angle	10 degrees
Rear	Trunnion
Bucket
Breakout Force	138,360 lbs (62,759 kg)
Bucket Capacities	31 cu yd (24 cu m)
Bucket Capacity - heaped	15 cu yd (11 cu m)
Bucket Capacity - struck	12 cu yd (9 cu m)
Bucket Width	16 ft (5 m)
Dump Clearance at Max Raise	15 ft (5 m)
Maximum Bucket Capacity	16 cu yd (12 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	18 ft (6 m)
Height - Top of Exhaust	17 ft (5 m)
Hinge Pin - Max Height	23 ft (7 m)
Hinge Pin Height at Full Lift	23 ft (7 m)
Length with Bucket on Ground	51 ft (16 m)
Overall Length	51 ft (16 m)
Reach at Max Lift and Dump	8 ft (2 m)
Reach at Maximum Lift/Dump	8 ft (2 m)
Wheel Base Length	19 ft (6 m)
Wheelbase	19 ft (6 m)
Width Over Tires	15 ft (5 m)
Engine
Aspiration	twin turbocharged
Bore	7 in (17 cm)
Displacement	2,105 cu in (34,501 cu cm)
Engine Model	Cat 3508B EUI
Gross Power	880 hp (656 kw)
Net Power	800 hp (597 kw)
Number of Cylinders	8
Power Measured @	1,750 rpm
Rated Speed	1,750 rpm
Stroke	8 in (19 cm)
Torque Measured @	1,300 rpm
Torque Rise	30%
Hydraulic Cycle Times
Dump	3 seconds
Raise	9 seconds
Total Hydraulic Cycle Time	16 seconds
Hydraulic System
Dump Time	3 seconds
Lower Time	4 seconds
Raise Time	9 seconds
Relief Valve Setting	4,500 psi
Operating Specifications
Alternator Supplied Amperage	100 amps
Articulation Angle	43 degrees
Breakout Force	237,825 lbs (107,876 kg)
Cat Truck Match - Standard	777D
Cooling System Fluid Capacity	54 gal (204 l)
Dump Clearance	19 ft (6 m)
Engine Oil Fluid Capacity	27 gal (100 l)
Front Axle/Diff Fluid Capacity	91 gal (344 l)
Fuel Capacity	413 gal (1,563 l)
Hydraulic System Fluid Capacity	85 gal (321 l)
Operating Voltage	24 volts
Operating Weight	209,278 lbs (94,927 kg)
Rated Payload	42,920 lbs (19,468 kg)
Rated Payload - Standard	42,920 lbs (19,468 kg)
Rear Axle Oscillation	20 degrees
Rear Axle/Diff Fluid Capacity	86 gal (326 l)
Static Tipping Load - Full Turn	112,777 lbs (51,155 kg)
Static Tipping Weight	132,921 lbs (60,292 kg)
Tire Size	45/65 50 ply
Transmission Fluid Capacity	45 gal (169 l)
Turning Radius	37 ft (11 m)
Service Refill Capacities
Cooling System	77 gal (290 l)
Crankcase	27 gal (102 l)
Differential - Final Drives - Front	91 gal (345 l)
Differential - Final Drives - Rear	86 gal (326 l)
Fuel Tank	413 gal (1,563 l)
Hydraulic System - Tank Only	86 gal (326 l)
Hydraulic System Factory Fill	171 gal (646 l)
Transmission	45 gal (169 l)
Steering System
Minimum Turning Radius - Over Bucket	439 in (1,114 cm)
Steering	Articulation
Steering Angle - Each Direction	43 degrees
Transmission
Forward - 1	4 mph (7 kph)
Forward - 2	7 mph (12 kph)
Forward - 3	12 mph (20 kph)
Max Speed - Forward	14 mph (22 kph)
Max Speed - Reverse	15 mph (24 kph)
Number of Forward Gears	3
Number of Reverse Gears	3
Reverse - 1	5 mph (7 kph)
Reverse - 2	8 mph (13 kph)
Reverse - 3	14 mph (22 kph)
Transmission Type	Planetary Powershift
